Rinnai SLIMFIRE 252 User manual

Gas Fireplace
Operation & Installation Manual
Models:
Slimfire 252 (RIBF25)

Rinnai 2 RIBF25 OIM
Congratulations on the purchase of your Rinnai Slimre 252 Series Gas Fireplace. We trust you will have many
years of comfort and enjoyment from your appliance.
IMPORTANT
BEFORE USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This appliance must be installed, maintained and removed
ONLY by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.
Slimre 252
RIBF25N
RIBF25L

Rinnai 3 RIBF25 OIM
OPERATION TABLE OF CONTENTS
Warnings & Important Information 4
Regulatory Information ������������������������������������������������������������������������������������������������������������������������������������������������������� 4
Notice to Victorian Consumers ������������������������������������������������������������������������������������������������������������������������������������������ 4
Dress Guard Warnings �������������������������������������������������������������������������������������������������������������������������������������������������������� 4
General Safety Warnings ���������������������������������������������������������������������������������������������������������������������������������������������������� 5
Operational Safety Warnings ���������������������������������������������������������������������������������������������������������������������������������������������� 6
Safety Devices ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7
Carton Contents / Item Checklist ��������������������������������������������������������������������������������������������������������������������������������������� 8
General Description ������������������������������������������������������������������������������������������������������������������������������������������������������������� 9

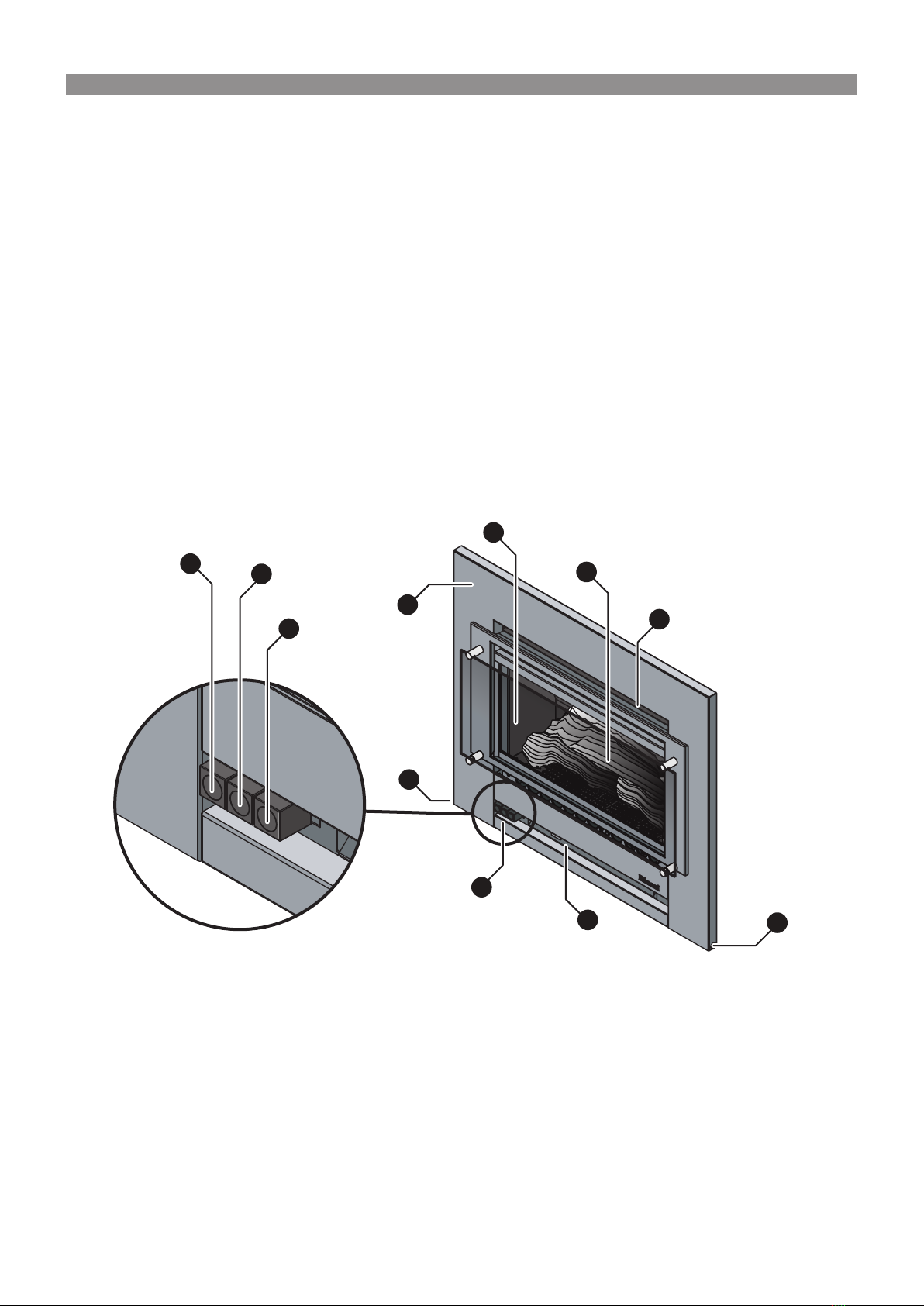

Appliance Overview ������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Operation 10
Turning ON ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Adjusting Heat ������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Fan Operation �������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Turning OFF ����������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Power Outage ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Care & Maintenance 11
Trouble Shooting Checklist �����������������������������������������������������������������������������������������������������������������������������������������������11
Service ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11
Abnormal Flame Pattern ��������������������������������������������������������������������������������������������������������������������������������������������������� 12
Installation Table of Contents 13
Contacts 36

Rinnai 4 RIBF25 OIM
IMPORTANT
BEFORE USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601.
Local Regulations and Municipal Building Codes including local OH&S requirements.
This appliance has been certied by the Australian Gas Association. The A.G.A. Certication
Number is shown on the data plate.
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
NOTICE TO VICTORIAN CONSUMERS
This appliance MUST be installed by a person licensed with the Victorian Building Authority.
ONLY a licensed person will have insurance protecting their workmanship.
So make sure you use a licensed person to install this appliance and ask for your Compliance
Certicate. For further information contact the Victorian Building Authority on 1300 815 127.
WARNING
DRESS GUARD WARNINGS
The guard is tted to this appliance to reduce the risk of re or injury from burns and
no part of it should be permanently removed. For protection of young children or the
inrm, a secondary guard is required.
The glass dress guard supplied with this appliance MUST NOT be permanently removed as it
fulls an operational safety function. Additional dress guards including free standing types may
be used in conjunction with, but NOT replace, the dress guard supplied with this appliance.
WARNING
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to the Supplier of the appliance. This
appliance was inspected and tested at the time of manufacture and packaging, and released for
transportation without known damage. Upon receipt, inspect the exterior for evidence of rough
handling in shipment. Ensure that the appliance is labelled correctly for the gas and electrical
supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect must not be
installed or operated under any circumstances. Installation of damaged or incorrect appliances
may contravene local government regulations. Rinnai disclaims any liability or responsibility
whatsoever in relation to the installation or operation of damaged or incorrect appliances.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
Check the label for the correct gas type (refer rating plate, inside the appliance). Refer to local gas
authority for conrmation of the gas type if you are in doubt.
WARNINGS & IMPORTANT INFORMATION

Rinnai 5 RIBF25 OIM
WARNING
MODIFICATIONS.
DO NOT MODIFY THIS APPLIANCE,modifying from original specications may create a
dangerous situation and will void your warranty. Failure to comply with these instructions could
result in a re or explosion, which could cause serious injury, death or property damage.
DO NOT modify the electrical wiring of this appliance.
If the power cord is damaged or deteriorated then it MUST be replaced by an authorised person.
Failure to do so may result in electric shock, re, serious injury or product failure.
Improper installation, adjustments, service or maintenance can cause serious injury, death or
property damage. Such work MUST ONLY be performed by an authorised person.
WARNING
GENERAL SAFETY WARNINGS
This appliance is HEAVY, during installation the use of a mechanical lifting aid is recommended,
noting that improper lifting may result in serious injury.
WARNING: This heater MUST NOT be used if any of the glass panels are damaged.
Flue terminal MUST always vent directly to outdoors. DO NOT extend the ue vertically or
horizontally in ways other than prescribed in this appliance manufacturer’s installation
instructions. ONLY the ue components specied by Rinnai must be used.

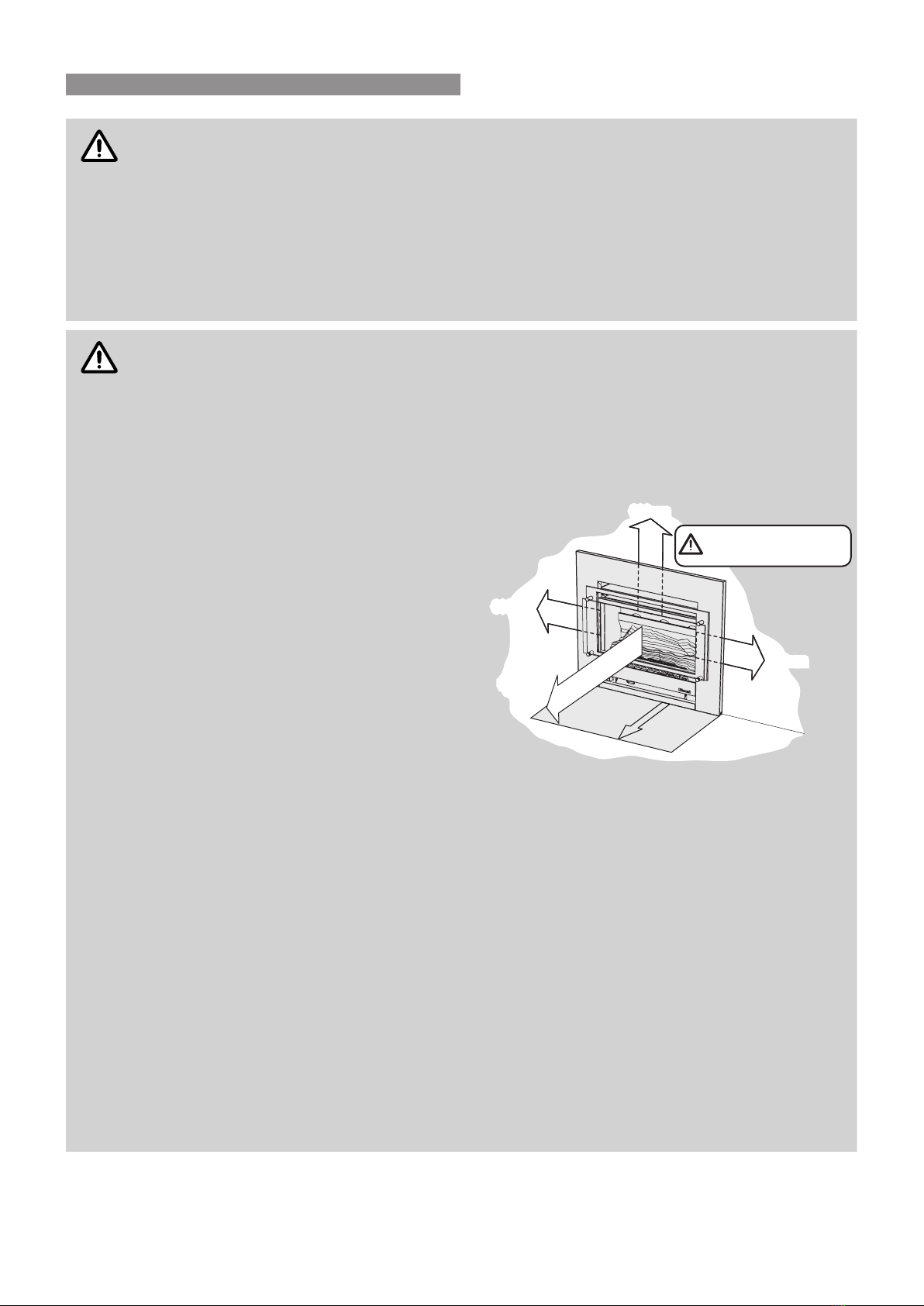

When considering installation ensure
minimum clearances as follows are adhered
to, refer Fig. 1.
Heat radiating from the front of this heater
may over time a󰀨ect the appearance of
some materials used for ooring such as
carpet, vinyl, cork or timber. This e󰀨ect may
be amplied if the air in the room contains
cooking vapours, candle vapours and
cigarette smoke, etc. To avoid this possibility,
it is recommended that a mat or similar
protective sheet be placed in front of the
appliance, extending at least 750 mm in front
of the dress guard. Refer to the installation
manual for mantle clearances, additional
installation information and warnings.
This appliance MUST NOT be installed where curtains or other combustible materials could
come into contact with it. In some cases curtains may need restraining.
This appliance is NOT intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
The appliance is NOT intended for use by young children or inrm persons without supervision.
Young children and the inrm SHOULD be supervised at all times when in the vicinity of this
heater while it is in operation.
The heater MUST NOT be located immediately below a power socket outlet.
A dedicated 230 V earthed 10 Amp power point must be used with this appliance.
Suitable ONLY for indoor installation.
DO NOT operate this appliance before leak checking hoses and gas cylinder connection.
NOT to be connected to an LP gas cylinder located indoors.
Please keep this instruction booklet in a safe place for future reference. All dimensions referred
to in these instructions are in millimetres, unless otherwise specied.
Note that side and vertical
clearances are measured
from the edge of the glass.
300mm
300mm
300mm
300mm
300mm
300mm
750mm
750mm
Fig .1
1000mm1000mm
WARNINGS & IMPORTANT INFORMATION

Rinnai 6 RIBF25 OIM
OPERATIONAL SAFETY WARNINGS
The appliance is not intended for use by young children or inrm persons without supervision. Young children
should always be supervised to ensure that they DO NOT play with the appliance.
DO NOT sit or lean against the heater.
DO NOT allow children or elderly persons to sleep in the warm air discharge from the heater.
DO NOT post or allow children to post articles into the louvres of the heater.
DO NOT cover or place articles on this heater.
DO NOT place articles in front of the louvres.
DO NOT operate / install this heater in areas where painting is taking place, or in places such as hairdressing
salons, where there may be u󰀨 and dust, and where aerosols are used.
DO NOT place articles on or against this appliance.
DO NOT use or store ammable materials near this appliance. Keep ammable materials away from heater.
Combustible materials MUST NOT be placed where the heater could ignite them.
DO NOT spray aerosols in the vicinity of this appliance while it is in operation. Most aerosols contain ammable
substances which can be a heater hazard if used near this heater when it is in use.
WARNINGS & IMPORTANT INFORMATION

Rinnai 7 RIBF25 OIM
A dedicated 240V earthed 10 Amp power point MUST BE USED with this appliance.
DO NOT use power boards or double adaptors to operate this appliance. The heater MUST NOT be located
below a power socket-outlet.
DO NOT unplug the heater while it is in operation or while the fan is still cycling.
DO NOT place containers of liquid on top of the heater. Water spillage can cause extensive damage to the
appliance and create an electrocution hazard.
DO NOT place articles on or against this appliance.
DO NOT connect to an LPG gas cylinder indoors.
Turn the heater ‘OFF’ after use.
DO NOT remove the Glass Dress Guard. The dress guard is tted to this appliance to reduce the risk of re
or injury from burns and no part of it should be permanently removed. For protection of children or the inrm, a
secondary guard is recommended.
Heat emanating from the front of the appliance may over time a󰀨ect the appearance of some materials used for
ooring such as carpet, vinyl, cork or timber. This a󰀨ect may be amplied if the air in the room contains cooking
vapours or cigarette smoke. To avoid this possibility, it is recommended that a mat be placed in front of the
appliance, extending at least 750 mm in front of the heater.
When the heater is operated for the rst time or after long periods of non use a slight odour may be emitted, this
is normal. However if odours persist switch ‘OFF’ the appliance and contact Rinnai.
SAFETY DEVICES
Over Heat Switches: When the heater gets too hot during operation (for example when air outlet louvres are
blocked, or during a power outage) these devices turn the gas o󰀨 automatically and allow the heater to restart
when cooled down.
Electrical Fuse: The electrical circuits are protected by a fuse.
Flame Failure Sensing System: Automatically cuts o󰀨 the gas supply to the heater in the event of a ame failure.
Power Failure: In the event of a power failure while the heater is in operation the fan will stop, however the gas
valves remain open and continue to heat the appliance. The overheat protection may then shut o󰀨 the gas to
protect the heater, however switching the heater to its lowest setting may allow the heater to continue operating
without reaching an overheat condition.
WARNINGS & IMPORTANT INFORMATION

Rinnai 8 RIBF25 OIM

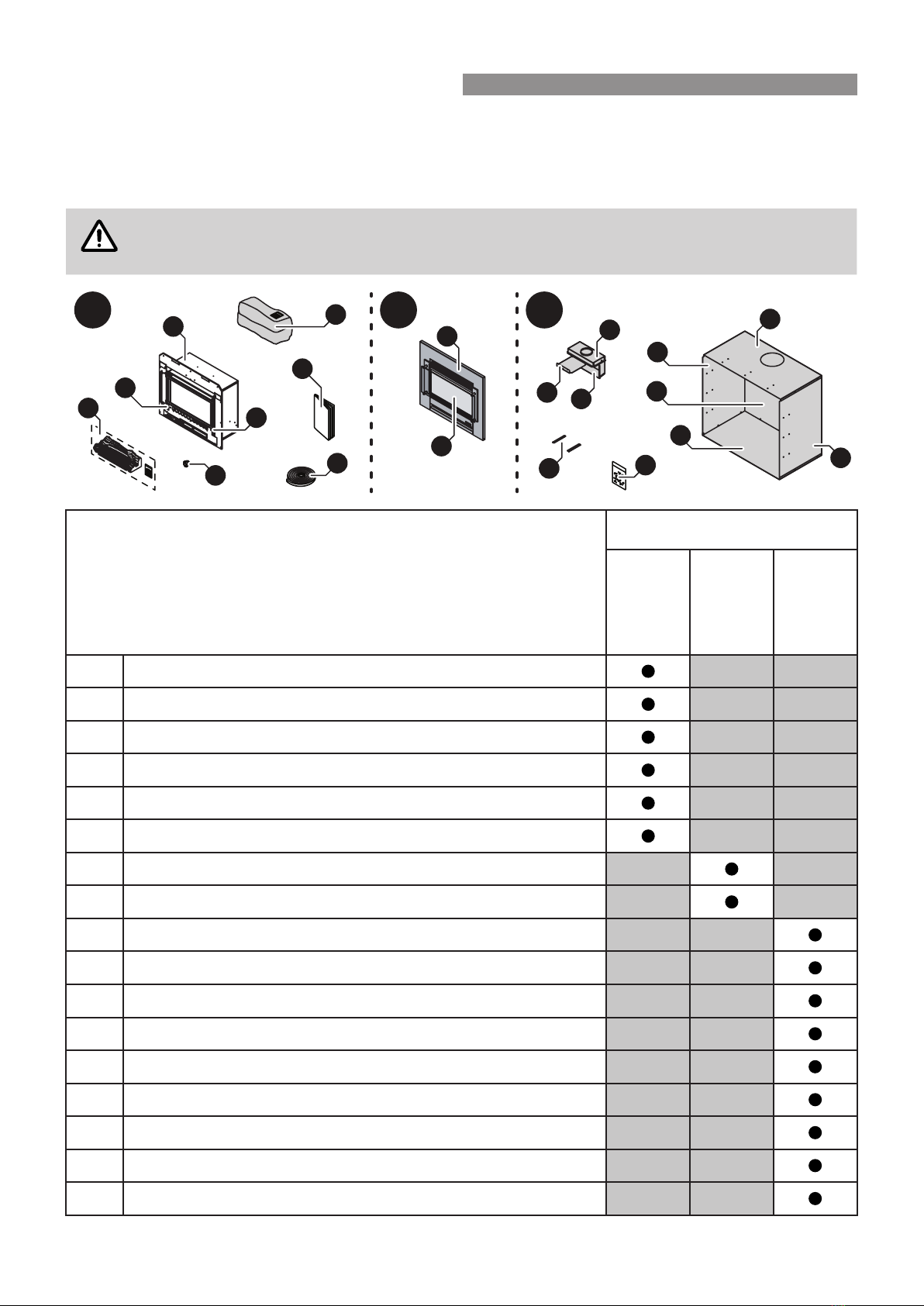

CARTON CONTENTS / ITEM CHECKLIST
The components for Slimre 252 heater are supplied in separate cartons, the following tables list which components
are in each carton. Ensure that the components listed for the installation method being installed are present before
proceeding with the installation.
IMPORTANT
The Engine and Fascia are packed into two separate cartons and are required for all installation

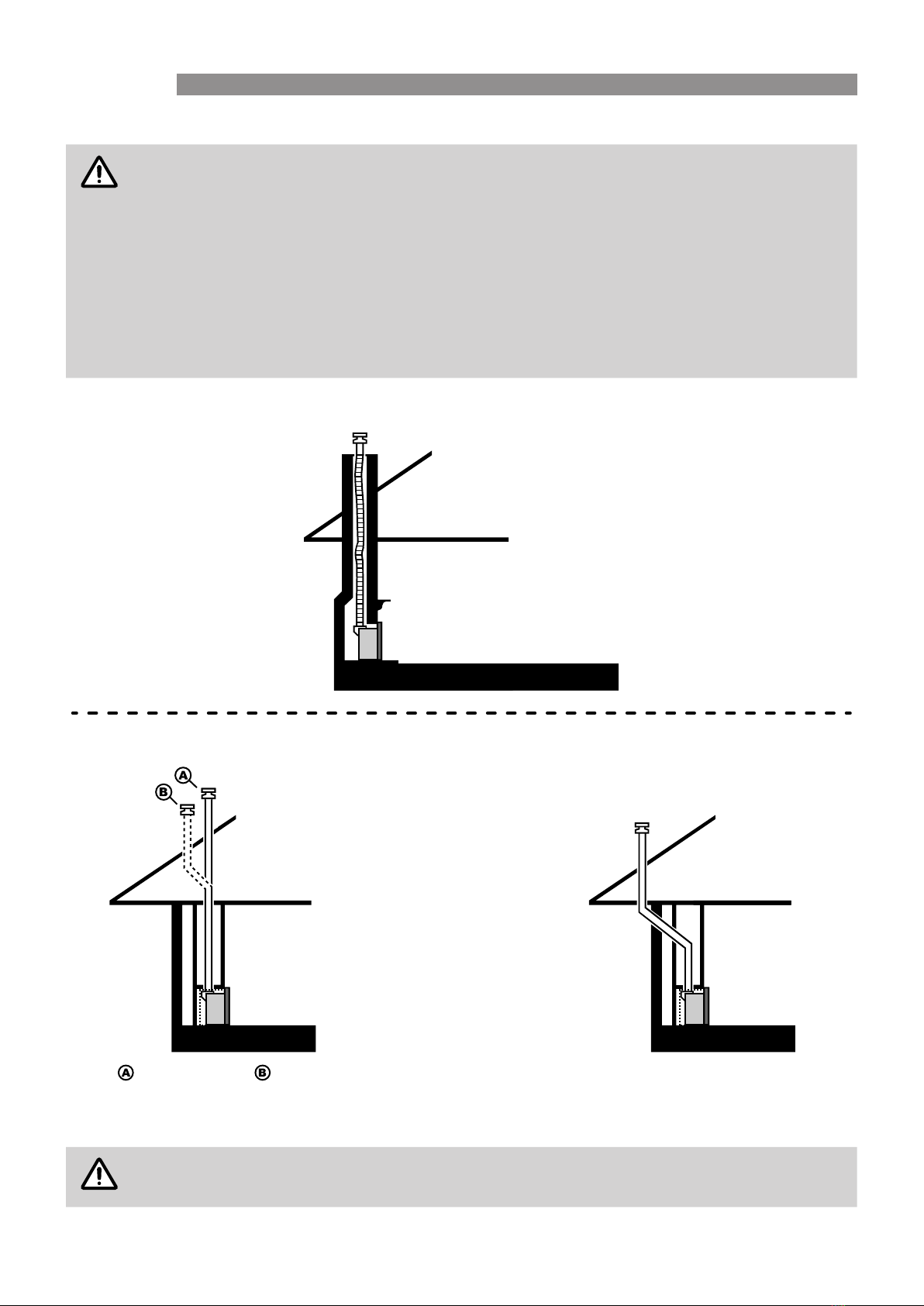

types. Masonry installations may require a exiliner ue to be installed, refer to “MASONRY FLUE
INSTALLATION” on page 21 for details. The Zero Clearance Kit and ue are purchased separately.
5
4
A B C
11
2
1
5
2
16
13
16
14
15
12
10
17
7
8
9
3
6
6
COMPONENTS DESCRIPTION
CARTON CONTENTS
(A) (B) (C)
Engine Fascia
Zero
Clearance
Kit
(1) Rinnai Slimre 252 Engine.
(2) Articial log set / burn media, Satchel burner granules (packed on top of the engine).
(3) ½” BSP Flared nut (x1shipped inside engine, attached to gas connection).

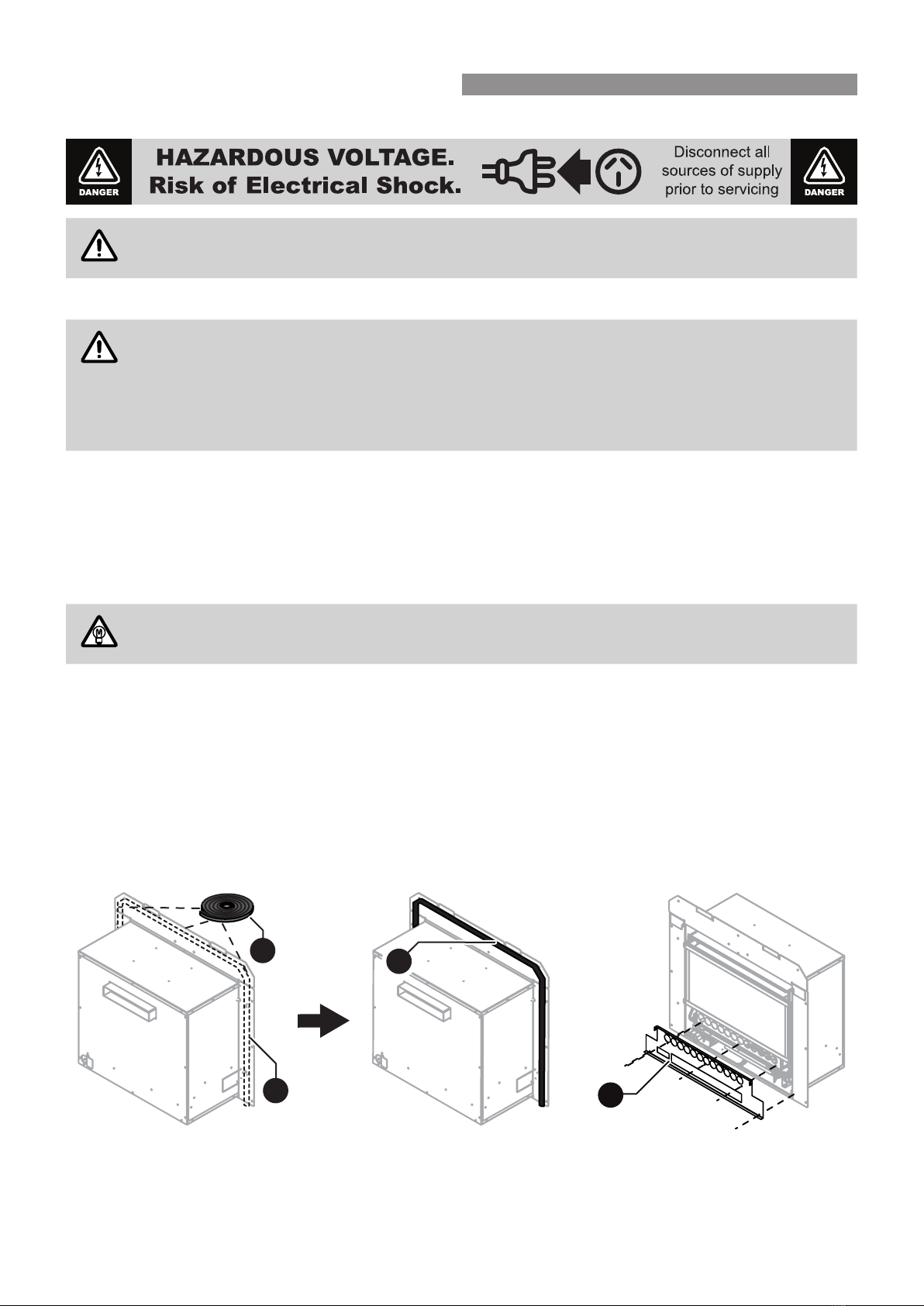

(4) Adhesive backed foam sealing strip.
(5) Operation and Installation manual.
(6) Fascia Mounting Screws (x2 pre-installed in the engine fascia mounting brackets).
(7) Fascia.
(8) Glass dress guard.
(9) Transition box rails (x2).
(10) Transition box upper.
(11) Transition box lower.
(12) Transition box guide plate.
(13) Zero Clearance Box - Top panel.
(14) Zero Clearance Box - Base panel.
(15) Zero Clearance Box - Rear panel.
(16) Zero Clearance Box - Left & Right side panels.
(17) Packet assembly screws, rivets and grommet.
WARNINGS & IMPORTANT INFORMATION

Rinnai 9 RIBF25 OIM
GENERAL DESCRIPTION
Your Slimre is a burning log e󰀨ect, gas space heating appliance with natural draft combustion system, intended
for use with Natural Gas and Propane. The burning log e󰀨ect is achieved using two main burners with strategically
placed, 'life like', imitation logs and granules. Temperature control is achieved through manual push button control.
This heater has an electronic ignition. The pilot is only on when the heater is in operation.
Burner, logs and granules are contained in a glass fronted, sealed burner box.
Combustion air is drawn from the room. Combustion product is exhausted via the ue discharge vent when installed
in a masonry chimney or when installed in a zero clearance box through a 100mmØ x 150mmØ twin skinned ue
to the outside of the house.
Fireplace / Masonry installation - Engine:
The appliance is directly mounted into an existing masonry re place or a non-combustible/masonry enclosure that
has a chimney. When installed correctly the appliance is a ush to wall mount.
Zero Clearance installation:
The appliance is tted within a sheet metal Zero Clearance Box Assembly that has been installed into a wall or
other suitable structure. Materials need not be non-combustible. When installed correctly the appliance is a ush
to wall mount.
APPLIANCE OVERVIEW
1
3
4
5
7
6
2
7
a
b
c
(1) Rinnai Slimre Heater.
(2) Push button control panel.
(a) Ignition / Low button.
(b) Medium button.
(c) High button.
(3) Glass dress guard.
(4) Flame window - articial log set and burn media.
(5) Warm air discharge vent.
(6) Return air vent.
(7) Alternative power cable outlet location on front panel can be left or right handed.

Rinnai 10 RIBF25 OIM
TURNING ON
NOTE
BEFORE PROCEEDING ENSURE THE GAS AND ELECTRICITY ARE TURNED ON.
You MUST read and understand these instructions fully before operating the heater.
The push button controls are located on the front lower left hand side of the heater.
1. Press the right hand control (Ignition/Low) button (a) rmly. This operates
the built-in safety device and starts the electronic spark. The front burner
and pilot will ignite. Check that the burner has lit and continue to hold the
button down for up to 15 seconds. The spark will continue while the button
is held down.
2. If the burner does not remain alight, Push the Ignition/Low button (a) again
and release it. This will return it to the ‘OFF’ position. Wait 30 seconds,
then repeat the ignition procedure.
NOTE
The Ignition/Low button (a) MUST BE in the ‘OFF’ position before attempting re-ignition.
ADJUSTING HEAT
The Slimre has three heating settings LOW (a), MEDIUM (b) and HIGH (c). Press each of the control buttons
in order from right to left, this will ignite additional burners and modulate the fan speed as shown in diagram below.
NOTE
There is no need to hold the buttons for 15 seconds when adjusting the heat. The relationship
between the burner operation and the fan speed are pre-set and can not be independently
adjusted.
BUTTON
IGNITION / LOW MEDIUM HIGH
aa a
bac
Fan Speed LOW LOW HIGH
Front Burner HIGH LOW HIGH
Rear Burner OFF LOW HIGH
MJ/h Usage Natural Propane Natural Propane Natural Propane
7.7 9.0 14.2 15.8 25.0 25.0
FAN OPERATION
The fan will operate automatically when the heater warms up, and will stop when the combustion chamber cools.
When the heater is on the HIGH setting the fan will operate on high speed when the heater is hot.
When the heater is on the’ low’ or MEDIUM heat setting, the fan will operate on slow speed when the heater is hot.
When the heater is on the LOW setting the fan may turn o󰀨 as the heater cools and restart when warm again.
The fan may continue to operate on slow speed when the burners have been extinguished until the heater cools
down.
TURNING OFF
To turn the heater ‘OFF’ push and release any of the operated control buttons from left to
right in sequence until all are released.
POWER OUTAGE
NOTE
If there is a power failure when the heater is in operation the overheat protection may shut o󰀨 the
gas to protect the heater. In the event of a power failure, turning the heater to its lowest setting
may allow the heater to continue operating without overheating. The fan will not work without
electrical power.
HIGH MED IGN
~
LOW
a
b
c
cba
OPERATION

Rinnai 11 RIBF25 OIM
Your heater needs very little maintenance, but the following information will help you to keep it looking good and
working e󰀩ciently.
WARNING
DO NOT attempt to clean the heater while the appliance is hot or operating.
All parts of the heater can be cleaned using a soft, damp cloth.
DO NOT USE SOLVENTS OR ABRASIVES TO CLEAN ANY PARTS.
DO NOT SPRAYAEROSOLS IN THE VICINITY OF THEAPPLIANCE WHILE IT IS IN OPERATION.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
DO NOT REMOVE ANY PANELS OR ATTEMPT TO CARRY OUT ANY SERVICE WORK OTHER
THAN THAT WHICH IS MENTIONED IN THE TROUBLE SHOOTING CHECKLIST BELOW.
TROUBLE SHOOTING CHECKLIST
Use the following chart to help determine whether a service call is required, however if you are unsure about the
way your heater is operating, or if you have any other faults or problems, please refer to your installer or a Rinnai
Customer Care Centre Consultant, see back page for Rinnai contact details.
Probable Cause
Fault Condition
Simplest Possible Remedy
Burners fail to ignite
Smell of gas
Fan Not Working
Minor soot deposits
Severe sooting
Glass, Condensating
Glass, Streaky lines
Not plugged in or turned off Plug in power cord and turn power ‘ON’.
Mains power failure Turn heater to LOW or OFF until power returns.
(Initial Install) Air in gas pipe Installer to purge air from gas supply.
Air in hose Repeat Ignition procedure.
Ignition failure Repeat Ignition procedure.
Gas escape Isolate gas supply, call Rinnai.
Gas supply turned off Turn gas supply on at the meter or cylinder.
Inadequate ue system Call Rinnai.
Insufcient gas pressure Call Rinnai.
Log Misalignment Call Rinnai.
Possible fan fault Call Rinnai.
Normal operation Allow heater to warm up.
SERVICE
This appliance does not contain user serviceable parts and MUST ONLY be serviced and repaired by an
authorised person. If the power supply cord or any other component of the heater are damaged, they MUST BE
replaced by Rinnai or a suitably qualied person.
Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best
service on your Rinnai appliance. Rinnai recommends that this appliance be serviced every 2 years.If your
appliance requires service, please call our National Help Line (contact numbers for which are on the back cover
of this manual).
NOTE
Service calls for general cleaning, maintenance and wear and tear are not necessarily covered
under the warranty. Service calls of this nature may be chargeable.
Faults caused by insu󰀩cient gas supply, gas quality, installation errors or operation errors are not
covered by the Rinnai warranty. Refer to separate Warranty Manual for details.
CARE & MAINTENANCE

Rinnai 12 RIBF25 OIM
ABNORMAL FLAME PATTERN
Each Rinnai Flame Fire heater has a distinct ame pattern. The ame should look the same every time you
operate your heater, after an initial warm up period of approximately 15 minutes.
Abnormal ame performance and/or pattern can indicate a problem with your heater, such as blocked gas injectors,
incorrectly installed / inadequate ue system or the articial logs/burn media may have shifted from when the
heater was rst installed.
There are some warning signs that could indicate a problem. If any of the signs below occur, please contact Rinnai.
NORMAL FLAME PATTERN ABNORMAL FLAME PATTERN SOOT BUILD UP
Key signs of abnormal ame performance:
• Appliance turns ‘OFF’ soon after start up and does not relight.
• Flame appears overly orange-yellow.
• Flame appears either very short or very long.
• Flame only burns part way across the burner.
• Severe soot building up on the inside of the glass or on logs.
• Continuous unusual smell from the appliance.
• Continued di󰀩culty or delay in establishing a ame.
NOTE
Be advised that appliances incorporating a live fuel e󰀨ect, and designed to operate with luminous
ames, may exhibit slight carbon deposition, this is normal operation.
CARE & MAINTENANCE

Rinnai 13 RIBF25 OIM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Operation Table of Contents 3
General Installation Information 14
Location .............................................................................................................................................................................. 14
TV & Ornamentation Warning ........................................................................................................................................... 14
Enclosure Requirements .................................................................................................................................................. 15
Masonry Fireplace ����������������������������������������������������������������������������������������������������������������������������������������������������������� 15
Zero Clearance In-built installation ���������������������������������������������������������������������������������������������������������������������������������� 15
Enclosure Dimensions ...................................................................................................................................................... 15
Gas Supply ......................................................................................................................................................................... 16
Installation of consumer piping ���������������������������������������������������������������������������������������������������������������������������������������� 16
Gas Supply Dimension Table ������������������������������������������������������������������������������������������������������������������������������������������ 16
Purging Gas Supply �������������������������������������������������������������������������������������������������������������������������������������������������������� 16
Leak Testing the Connection ������������������������������������������������������������������������������������������������������������������������������������������� 16
Electrical Supply ................................................................................................................................................................ 16
Direct Wired Installations ������������������������������������������������������������������������������������������������������������������������������������������������ 16
Flueing 17

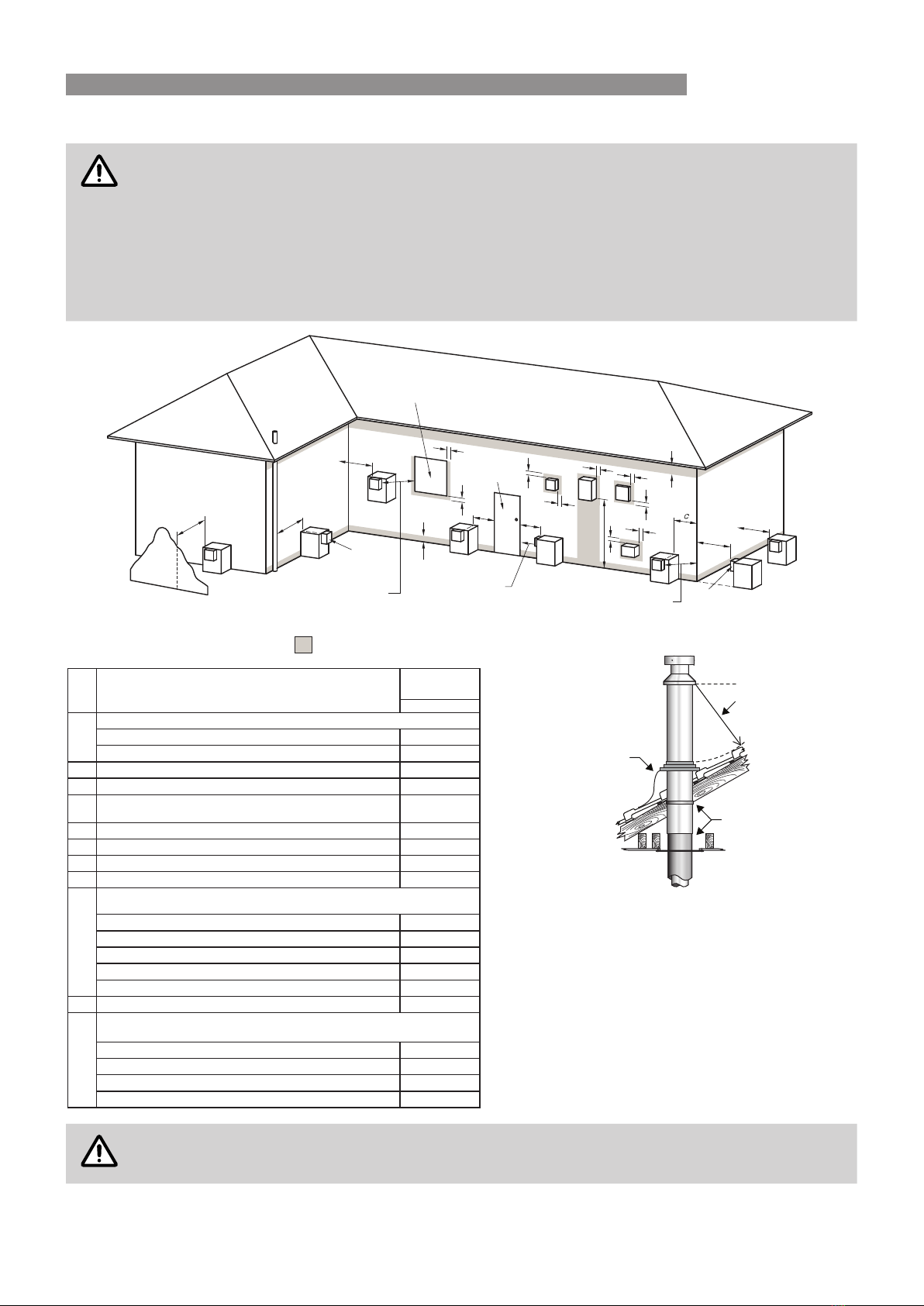

Flue Terminal Location ...................................................................................................................................................... 17
Flue Installation Options ................................................................................................................................................... 18
Masonry Flue Installation .................................................................................................................................................. 19
Engine Installation 20
Masonry .............................................................................................................................................................................. 20
Zero Clearance ................................................................................................................................................................... 22
Burner Media Installation 25
Commissioning 27
Installation Checklist & Record 30
Installation & Commissioning Checklist ......................................................................................................................... 30
Installation Record ............................................................................................................................................................ 31
Specications 32
Table 1. Appliance Details ................................................................................................................................................. 32
Table 2. Dimensions .......................................................................................................................................................... 33
Wiring Diagram .................................................................................................................................................................. 34
Contacts 36
INSTALLATION TABLE OF CONTENTS

Rinnai 14 RIBF25 OIM
LOCATION
When positioning the heater, the main variables governing
the location are Flueing and Warm Air Distribution.
This heater must not be installed where curtains or other
combustible materials could come into contact with it.
In some cases curtains may need restraining. Refer to
"Operational Safety Warnings" on page 6 for additional
safety considerations.
IMPORTANT
Horizontal and vertical clearances are
measured from the edge of the burner box
glass.

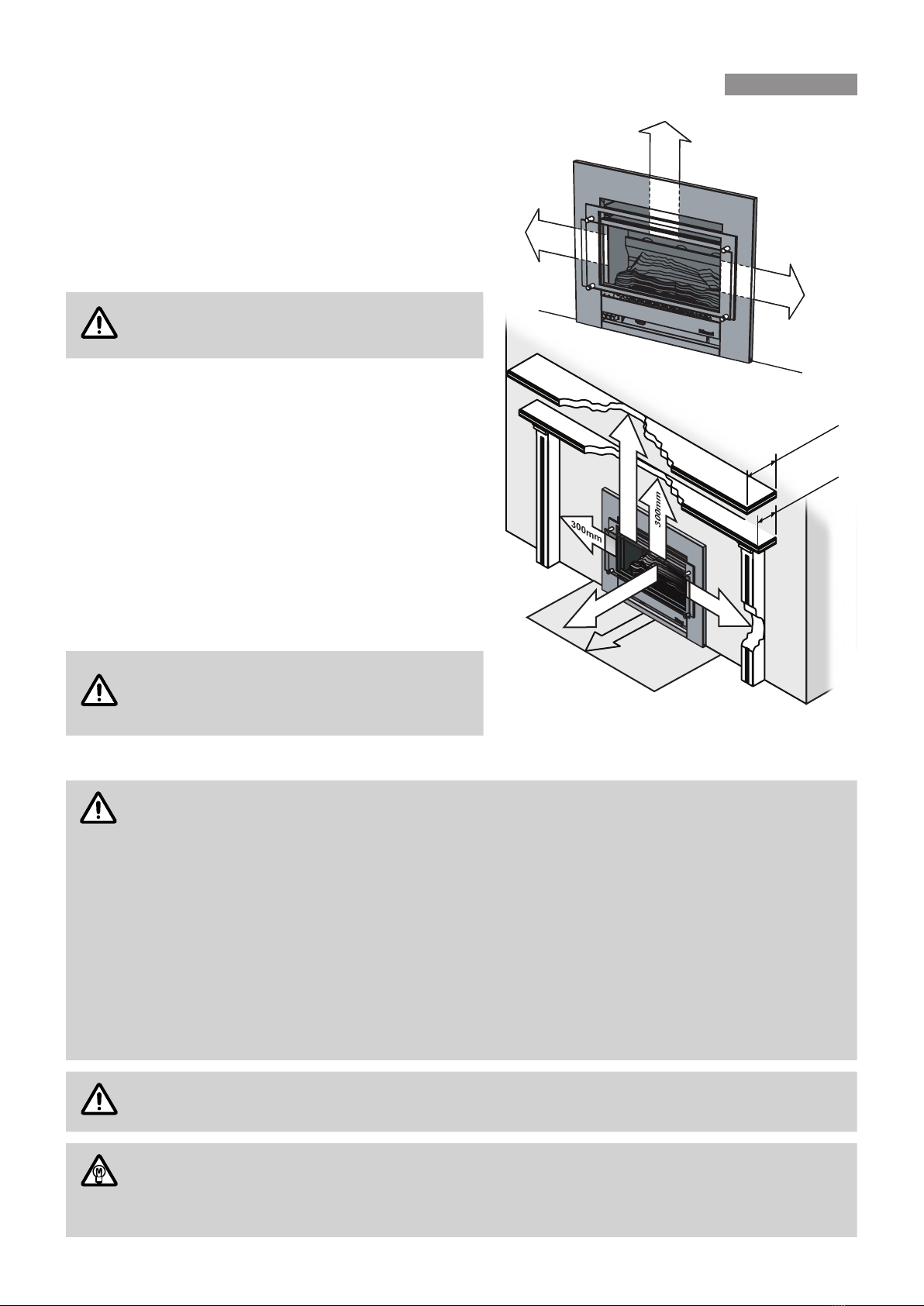

Mantles and surrounds can be added to compliment
the design provided that they conform to the following
clearances requirements.
The minimum clearance from the edge of the burner box
glass is 300 mm. The depth of the mantle or surround (A)
at this minimum clearance may not exceed 150 mm.
An additional 100 mm of clearance is required for every
extra 50 mm of mantle depth. The depth of the mantle
or surround (B) at 400 mm of clearance may not exceed
200 mm.
Ensure that the area in which the appliance is installed has
adequate xed ventilation, this xed ventilation must be
provided as detailed in AS/NZS 5601.1.
NOTE
Combustion product spillage testing must be
conducted during appliance commissioning.
This testing may show a need for additional
xed ventilation.
TV & ORNAMENTATION WARNING
CAUTION
INSTALLATION OF TV OR ORNAMENTATION ABOVE THE HEATER
The installation of electrical appliances above and in the vicinity of the heater such as, but not
limited to, Plasma TV, LCD TV, Home Theatre Screens, Speakers, etc must comply with their
manufacturers' instructions.
It is the responsibility of the installer/end-user to check the installation instructions of these
items and to ensure the location is suitable.
This caution also extends to, but is not limited to, ornaments such as: Paintings, Prints,
Photographs, Tapestries, Mirrors, Stu󰀨ed Animals, etc.
Please note the recommended clearances as per the diagram above.
The temperature of the wall surface directly above the appliance may be elevated and may
discolour paint nishes or distort vinyl wall coverings. For durability of surfaces you should
contact the relevant manufacturer for their specication.
WARNING
RINNAI DOES NOT TAKE ANY RESPONSIBILITY FOR ANY DAMAGE OCCURRING TO
ANY ITEMS INSTALLED ABOVE AND IN THE VICINITY OF THE HEATER.
IDEA
Use either a shelf or mantle below the TV or ornament or alternately you can construct a recess
to mount TV or ornament in.
Check the manufacturers installation instructions for these items and ensure the recess is
suitable.
750mm
300mm 300mm
300mm
1000mm
300mm 300mm
300mm
400mm
A = 150mm
B = 200mm
GENERAL INSTALLATION INFORMATION

Rinnai 15 RIBF25 OIM
ENCLOSURE REQUIREMENTS
Masonry Fireplace
The appliance must be positioned within the replace on a at level surface.
If the appliance is elevated from the ground within the structure, a base must be constructed using suitable material
with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
Zero Clearance In-built installation
Framework of the installation must conform to local building codes. Non-combustible materials need not be used.
If the appliance is elevated from the ground within the structure, a base must be constructed using suitable material
with supporting joists capable of supporting a minimum of 1.5 times the weight of the appliance.
CAUTION
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.
ENCLOSURE DIMENSIONS
Enclosure dimensions are shown below. The enclosure dimensions specied are critical to the successful
installation of this appliance and MUST be strictly adhered to.
Installation Type Height (H) Width (W) Depth (D)
Masonry Min
550
Max
630
Min
595
Max
700 360 (min clearance spigot to back of re place 50mm!)
Zero Clearance 615 685 380 (read caution below)
All dimensions are in mm.
CAUTION
For clarity the consumer piping gas supply, electrical connections and some construction details
have been omitted. Refer to "Gas Supply" on page 16 and "Electrical Supply" on page 16 for
details.
When preparing a cavity / frame for a zero clearance installation the total cavity depth MUST also
include the thickness of the external cladding, as the zero clearance box MUST BE installed ush
with the cladding surface. Failure to do this will cause misalignment of the ue systems.
MASONRY INSTALLATION ZERO CLEARANCE INSTALLATION
GENERAL INSTALLATION INFORMATION

Rinnai 16 RIBF25 OIM
GAS SUPPLY
WARNING
Gas pipe sizing must consider the gas input to this appliance as well as all other gas appliances
in the premises. The gas meter and regulator must be specied for the total gas rate.
A suitable sizing chart such as the one in AS/NZS 5601 should be used.
IMPORTANT
Conrm correct gas type (see labels located on top or rear panels). Refer to local gas authority
for conrmation of gas type if you are in doubt.
Installation of consumer piping
The gas supply (consumer piping), termination is inside the heater and enters
through the rear of the appliance.
A ½” BSP ared nut (a) and a ½” BSP Male Flare x ½” Barrel Union - Elbow
(b) are provided for connection to the consumer piping (c). They are shipped
inside the engine attached to on the gas inlet connection of the heater.
Refer to the table below and the dimensional drawings on this page and on
page 16 for appliance gas inlet location and other relevant dimensions.
1. Mark o󰀨 the location for the vertical centre line (1) of the heater enclosure.
2. To the right of the vertical centre line (1), mark o󰀨 both the vertical (2) and
horizontal (3) location for the gas supply penetration (consumer piping).
For measurements refer to the Gas Supply Dimension Table below.
CAUTION
The length of the gas supply (consumer piping) termination
(4) is measured from the front of the enclosure including the
thickness of any cladding material.
Gas Supply Dimension Table
2280mm to right of appliance centre-line (1)
343mm from base of enclosure
4Consumer piping to be terminated 79mm from the front of enclosure
Purging Gas Supply
Foreign materials and debris such as swarf, lings, etc. MUST be purged / removed from the gas supply, failure
to do so may cause damage to the gas control valve causing it to malfunction.
Leak Testing the Connection
Plug the end of the consumer piping gas and leak test all joints.
CAUTION
Use a soapy solution to test all gas connections. If a leak is present bubbles will form at the leak
point. When nished remove any residue with a rag. Prevent any soapy solution from coming in
contact with electrical components.
ELECTRICAL SUPPLY
If a power point is used it MUST be 230 V, rated at 10A and MUST be earthed.
This power point MUST NOT be located above the heater. The heater engine
is tted with a 1.5 metre power cord and three pin plug which can exit the
appliance from either the lower left or right hand side of the heater as required.
Direct Wired Installations
Alternatively the appliance can be direct wired to conceal the power supply.
IMPORTANT
A qualied electrician will need to be consulted where a direct wired installation is required. Any
such installation must comply with the requirements of AS/NZS 5601, AS/NZS 3000 and any other
relevant local regulations.
FRONT OF ENCLOSURE
(Including Cladding)
REAR OF
ENCLOSURE
4
1
2
Gas supply location
3
Gas supply pressure to be 1.13 to 2.75 kPa
b
a
c
Rubber Grommet
Power Cord
GENERAL INSTALLATION INFORMATION

Rinnai 17 RIBF25 OIM
FLUE TERMINAL LOCATION
WARNING
Ensure that the location of the ue terminal can comply with the requirements of AS/NZS 5601 -
Fig. 6.2 which is reproduced in part below.
AS/NZ 5601 was current at the time of printing but may have been superseded. It is the installer’s
responsibility to ensure that requirements of the current version of AS/NZS 5601 are met.
The ue system must be fully assembled and secured in place before the heater is installed into
the enclosure.
Refer to separate Flueing Installation Manual for Rinnai Flamere heaters.
Min. Clearances
(mm)
Natural Draught
•Appliances up to 50 MJ/h input 300
•Appliances over 50 MJ/h input 500
003*ecafrusrehtoroynoclabaevoba,dnuorgehtmorFb
005*renroclanretxerollawnruteratnorFc
d
From a gas meter (M) (see 5.11.5.9 for vent terminal location of regulator )
(see Table 6.6 for New Zealand requirements) 1000
eFrom an electricity meter or fuse box (P) † 500
epipliosroepipniardamorFf
gHorizontally from any building structure* = or obstruction facing a terminal 500
hFrom any other flue terminal , cowl, or combustion air intake † 500
•Appliances up to 150 MJ/h input * 500
•Appliances over 150 MJ/h input up to 200 MJ/h input * 1500
•Appliances over 200 MJ/h input up to 250 MJ/h input * 1500
•Appliances over 250 MJ/h input * 1500
• All fan-assisted flue appliances , in the direction of discharge -
0051rewolbapsagnidulcni,telnirialacinahcemamorFk
051tupnirh/JM05otpusretaehecapS•
• Other appliances up to 50 MJ/hr input 500
•Appliances over 50 MJ/h input and up to 150 MJ/h input 1000
•Appliances over 150 MJ/h input 1500
metI.feR
a
Below eaves, balconies and other projections:
n
j
Horizontally from an openable window, door, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
Vertically below an openable window, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
1Where dimensions c, j or kcannot be achieved an equivalent horizontal distance
measured diagonally from the nearest discharge point of the terminal to the opening
may be deemed by the Technical Regulator to comply.
2See Clause 6.9.4 for restrictions on a flue terminal under a covered area.
3See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder.
Aflue terminal is considered to be a source of ignition.
4For appliances not addressed above acceptance should be obtained from the
Technical Regulator.
FIGURE 6.2 (in-part) MINIMUM CLEARANCES REQUIRED FOR FAN-ASSISTED FLUE TERMINALS,
ROOM-SEALED APPLIANCE TERMINALS AND OPENINGS OF OUTDOOR APPLIANCES
* - unless appliance is certified for closer installation
NOTES:
† - Prohibited area below electricity meter or fuse box extends to ground level.
150
Sh a din g in d i c ate s pro hibi t ed ar e a for flu e ter minal s
LEGEN D:
I= Me ch ani ca l air i n le t
M= Gas me ter
P= El ec tr ic it y meter or f use b ox
S= Str uc ture
T= Flue te r minal
Z= Fan- as si s te d a pp li a nc e only
Dir ection of
disch arge
Se e N ote 1
Se e N ote 1
Op ening into
a building
T
T
T
T
T
T
T
C
M
d
d
e
e
h
j
j
j
n
b
f
a
h
P
Z
S
k
k
g
g
g
I
T
Door
i
ii
iii
iMinimum clearance 500mm to nearest part of roof
ii Minimum clearance 25mm to any combustible materials
iii Decktite or lead collar flashing
WARNING
The ue terminal should be positioned away ammable materials.
FLUEING

Rinnai 18 RIBF25 OIM
FLUE INSTALLATION OPTIONS
WARNING
The following diagrams illustrate the ue installation options that are available for the Slimre
252 ame. ONLY the genuine Rinnai Flamere (FLF) ue is certied as part of the Rinnai Slimre
252 space heaters.
ONLY an authorised person must install, service and remove the Rinnai Slimre 252 space
heater and ue system.
ONLY the ue system components described in the ‘Flueing Installation Manual For Rinnai
Flamere Heaters’ that is provided with the ue kit must be used.
Components that are not described in that manual, whether manufactured by Rinnai or otherwise,
are NOT compatible and must not be used.
Rinnai appliance warranty conditions may be voided if non Rinnai ue components are tted.
Inbuilt (Masonry)
Inbuilt (Zero Clearance)
Direct Flue Offset flue
FLFTWKITFLFKIT05
FLFHA5FLEX * / FLEXLINER03 #
Install the Rinnai rigid ue system components in accordance with the ‘Flueing Installation Manual For Rinnai
Flamere Heaters’ that are provided with the ue kit.
NOTE
For masonry installation details refer to "Masonry Flue Installation" on page 19.
FLUEING

Rinnai 19 RIBF25 OIM
MASONRY FLUE INSTALLATION
IMPORTANT
A ‘Lined Chimney’ installation is used when the existing chimney condition is inadequate for an
Open Chimney’ installation and uses a Rinnai Flexiliner (exible) ue system:
FLFHA5FLEX - for heaters Pre 2012 * / FLEXLINER03 - for heaters Post 29/11/12 2012 #
Refer to the instruction sheet provided with this kit for installation details.
Chimney Plate
Mortar
Minimum
200mm
Minimum
3m
Adaptor
Flexible Chimney Liner
Lined Chimney Installation
Appliance Adaptor
Approved Chimney Cowl
NOTE
Total chimney height MUST NOT be less than 3 metres and ue cowl must terminate above the
chimney in accordance with AS/NZS 5601.
The hearth surface must be at and level to support the entire heater. If the heater is not properly
supported noise and vibration may result.
In a masonry replace, use a slurry of sand and cement to level the base as required.
In a masonry replace, use a slurry of sand and cement to level the base as required.
FLUEING

Rinnai 20 RIBF25 OIM
MASONRY
IMPORTANT
Read this manual thoroughly and gain a full understanding of the requirements before undertaking
installation.
Step 1. Prepare Site
IMPORTANT
Ensure the intended enclosure meets the requirements of the dimensions as stipulated in
"Enclosure Requirements" on page 15 and that gas and electrical supplies have been prepared
in accordance with the dimensions stipulated in "Gas Supply" on page 16 and "Electrical
Supply" on page 16.
Carefully remove the foam packaging from the outside top of the heater engine, as this packaging
contains the fragile burner media it will need to be placed safely aside until required.
Step 2. Unpack The Heater Engine
The heater engine is supplied in one carton, check to ensure you have all contents as listed on "Carton Contents
/ Item Checklist" on page 8 at the start of this manual before proceeding.
Carefully remove carton by removing the straps and lifting the carton o󰀨 the appliance. Remove all packaging
materials and check all components for damage. If ANY damage is evident DO NOT install or operate this
appliance. Contact your supplier for advice.
IDEA
Retain the cardboard carton for use in the "Step 4. Positioning the Heater Engine".
Before installing the heater, check it is the correct gas type, (refer to the gas type label on the top body panel of the
heater). Refer to the local gas authority for conrmation of gas type if you are in doubt.
Step 3. Preparing Heater Engine
Attach the adhesive backed foam sealing strip (A) supplied to rear face of the fascia assembly mounting panel (B).
Ensure the seal is stuck to the Fascia Assembly mounting panel at approximately 20mm from the top edge (C).
The foam strip is intended to form a seal between the heater and the replace brickwork. If an adequate seal
cannot be formed then another means of sealing must then be used. (e.g. non combustible insulation or heat
resistant silicon).
Remove (do not discard) the gas/electrical access plate (D) ve screws.
B
A
C
D
Step 4. Positioning the Heater Engine
Place the heater engine in front of the replace enclosure.
ENGINE INSTALLATION
