Rinnai RH-TL65C-SSVR Guide

Cooker Hood
Instructions for use installation and connection
RH-TL65C-SSVR
RH-TL75C-SSVR
RH-TL95C-SSVR

Safety warnings ------------------------------------------------------------------------------------------------------------------------------2
Appliance specifications -------------------------------------------------------------------------------------------------------------------4
Installation -------------------------------------------------------------------------------------------------------------------------------------5
Operation --------------------------------------------------------------------------------------------------------------------------------------6
Maintenance and care --------------------------------------------------------------------------------------------------------------------- 7
Troubleshoot --------------------------------------------------------------------------------------------------------------------------------- 8
CONTENTS
IMPORTANT
To register your product warranty, please paste the
serial numbers stickers enclosed with the packaging
on your warranty card.
Please contact your local Rinnai Customer Care
Centre should you require further assistance.
Version: 2019.0

En
g
lish
SAFETY WARNINGS
Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains
important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass
them on to future user.
Unpacking
x Do not use the appliance if there are obvious signs
of transportation damage.
x If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
qualified technician to avoid hazard.
x Please ensure that young children do not play with
plastic bag packaging.
For the installer
x The extractor hood can be installed over gas and
electric cook top. Minimum installation height from
the bench top to the bottom of the hood is 700mm
(gas range) and 550mm (electric range) (Fig. 1).
For the user
x The extractor hood is designed for domestic use to
eliminate unpleasant odors from the kitchen. Do not
use the hood for uses other than its specific purpose.
x Do not allow young children to play with or operate
the appliance. Supervise its use by the elderly or
infirm.
x Installation and repair should be attempted by
qualified technical personnel only.
x It is dangerous to modify any part of this appliance.
Tampering with electrical connections or mechanical
parts can cause operation faults and may put the
user at risk.
x Never leave high naked flames under the extractor
hood when it is in operation. Always cover lit burners
with cookware.
2

En
g
lish
Fig.1
xAlways mount the extractor hood over the center of
the hob.
* Ensure that the appliance is installed in a location
with good permanent ventilation.
* When making the electrical connections, check that
othe mains voltage and frequency corresponds to
the technical information shown on the rating
plate.
oElectrical connection must be made in
accordance to local standards only. Check that
the voltage in your area is correct before
plugging in.
x Use an electrical connector with earth that is correct
for your location. The electrical connection of this
appliance must be connected to earth (where
applicable):
R Green & Yellow = EARTH; Blue = NEUTRAL;
Brown = LIVE
x Ducted mode:
R Connect the extractor hood to the exhaust duct
through a pipe of minimum ØϭϮϬmm. Use the
shortest and straightest duct route possible.
R Do not connect the extractor hood to exhaust
ducts carrying combustion fumes.
R Arrange proper ventilation if the extractor hood
is used in conjunction with other appliances
which are not supplied by electrical power e.g.
gas burning appliances. The kitchen must have a
direct opening to the outside in order to allow
entry of fresh air.
Note: The manufacturer accepts no responsibility for
complaints attributed to the design and layout of the
pipe work.
x Do not flambé or grill with an open flame directly
under the extractor hood. Flames could be drawn up
into the hood by the suction and the grease filters
may catch fire.
x Monitor cooking continuously as overheated oil
increases the risk of self-ignition.
x Do not operate the extractor hood without a grease
filter.
x It is important to clean and/or replace the filters at
appropriate intervals.
x Grease deposits build-up increases the risk of fire.
x Always disconnect the unit from the power supply
before carrying out any cleaning or maintenance work
on the hood.
x Ensure that the power supply chord is free from any
heat source or sharp objects.
x Multiple plugs and extension cables must not be used.
Overloading is dangerous and may cause a fire hazard.
Disposal
x This appliance and its packaging are environmentally
friendly and recyclable. Please help us to care for the
environment by disposing the packaging in a proper
manner and recycling any old appliances.
x Before disposing an old appliance, disconnect it from
the power supply and cut the power supply cord to
prevent hazards.
The manufacturer will not be held liable for any
damages resulting from improper installation nor
failure to adopt proper safety measures during
installation and operational use of the appliance.
3

SPECIFICATIONS
En
g
lish
Fig. 2
COMPONENTS
Fig. 3
Model RH-TL65C-SSVR RH-TL75C-SSVR RH-TL95C-SSVR
Voltage
Power of Motor
Power of Lamp 1 x 2W 2 x 2W 2 x 2W
Cable Length
599 x 298 x 217 699 x 298 x 217 899 x 298 x 217
Note: The manufacturer reserves the right to effect any
technological imporvement or modification without prior notice.
130W
Appliance
Dimension
220V-240V~ / 50-60Hz
1.5m
(W x D x H) - mm
F4ScrewM5x35
G 4 Screw ST4 x 30
H4
Wall plug T8xT6
Qty DocumentaƟon
1OperaƟon / InstallaƟon Manual
2 InstallaƟon Diagram
1 Warranty sƟcker
Ref Qty Product components
A 1 Duct connector
B1
Hood body(includes Blower,Switch
control,Light,Filters & sliding Carriage)
C 1 Front exhaust plastic cover
D 2 Non return flap
E
1 Charcoal filter
Qty Installation components
4

INSTALLATION
En
g
lish
This appliance can be installed in ducted or recirculation
mode.
Ducted mode (Fig. 4)
x In ducted mode, the extractor hood fan extracts the
cooking vapours and passes them through the
grease filter. The air then flows to the outside.
x The grease filter absorbs the solid particles in the
cooking vapors.
x In this mode, only grease filters are installed
(charcoal filter is optional).
Fig. 4
Recirculation mode (Fig. 5)
x In recirculation mode, the extractor hood fan
extracts the cooking vapors which are purified in the
grease filter and charcoal filter.
x The purified air is then recirculated into the kitchen
via a vent opening in the hood. The grease filter
absorbs the solid particles in the cooking vapors.
x The charcoal filter is designed to absorb cooking
odor. In this mode, both grease filters and charcoal
filters are installed.
Fig. 6
Connection (Fig. 7)
x For ducted mode:
o Use Ø 120mm pipe (flexible if possible) and fix it
with a pipe-tightening ring (not provided) at the
reduction fitting.
o Connect the pipe to the outdoor duct.
o Remove charcoal filters and use only grease
o filter for more powerful suction.
x For recirculation mode:
oInsert the charcoal filters.
Fig. 7
Fig. 5
Fitting into wall cabinet (Fig. 6)
Do ensure that the appliance is mounted on a solid
surface which could withstand the appliance’s weight.
x The hood support must be 180mm above the
bottom of the wall cabinet.
x For ducted mode version, cut a minimum Ø 140mm
duct hole on hood support.
x Lift the hood into the cabinet from below.
Secure using 4 (four) M5 x 35 screws provided.
Installation must be performed by qualified personnel only. The manufacturer declines all responsibility for improper
installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect
installation.
5

OPERATION
En
g
lish
To achieve better air extraction, we recommend you to switch on the blower a few minutes before starting to cook.
Leave it on for approximately 15 minutes after cooking or till all cooking smell is completely removed.

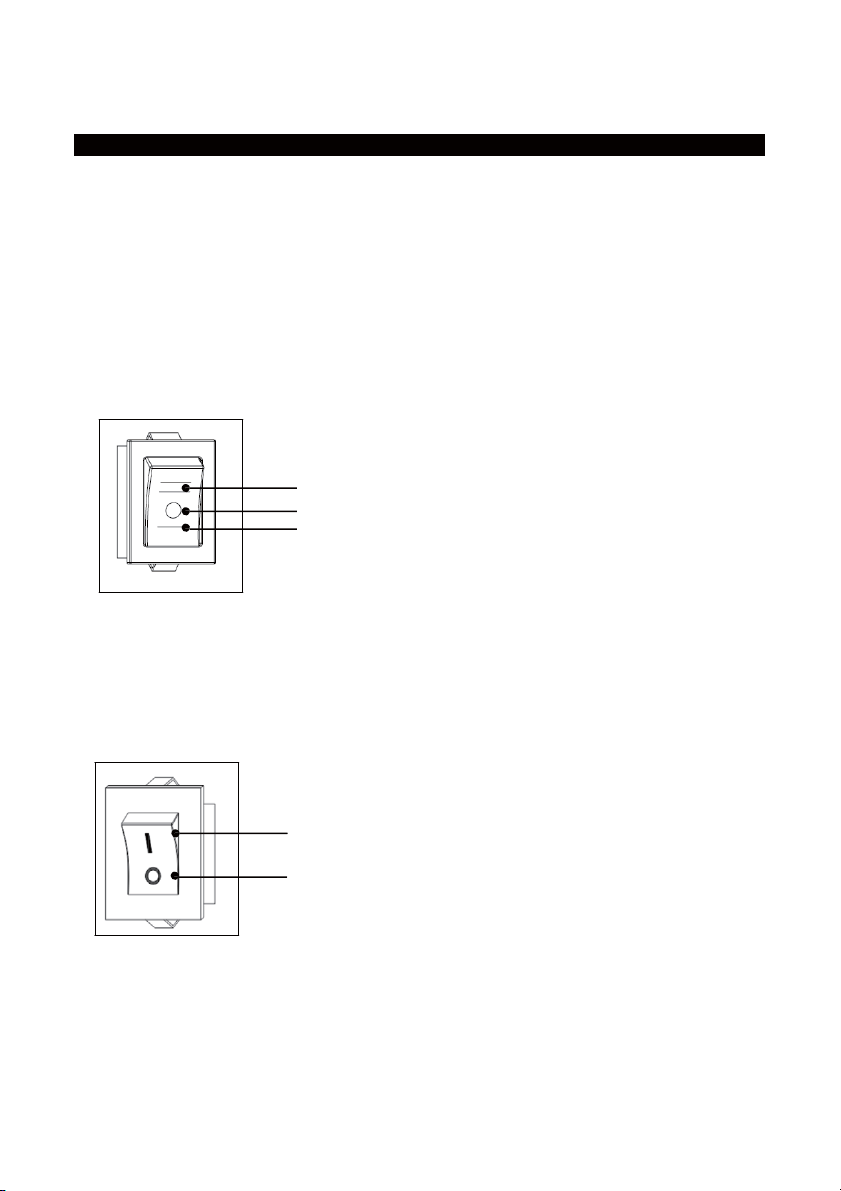

Speed settings (Fig. 8)
ඹHIGH :Switches the fan on at high speed.
යOFF : Switches the fan off.
රLOW :Switches the fan on at low speed.
*The motor automatically regulates on/off by opening/closing the sliding carriage. The motor works according to the last
speed selected when sliding carriage is opened.
ඹ
ය
ර
Fig. 8
Light (Fig. 9)
඼ON : Switches the light system on.
ලOFF : Switches the light system off.
඼
ල
Fig. 9
6

MAINTENANCE AND CARE
En
g
lish
Disconnect the power supply cord before carrying out
any cleaning or maintenance activities. It is important
to clean and/or replace the filters at appropriate
intervals as grease deposits build-up increases the risk
of fire. Do not operate the extractor hood without
grease filter.
Grease filter (Fig. 10)
x Grease filters are used to absorb the grease
particles formed during cooking process. The filters
must be removed and cleaned every 4 weeks,
depending on frequency of usage. Clean the filter
either by hand or in the dishwasher. Note: Take
care not to bend the filters during washing. Cleaning the appliance body
Fig. 11
x If by hand washing, soak the filters in warm
detergent solution to simplify the removal of
grease. Brush the filters, rinse thoroughly and
leave it to dry before refitting.
x If by dishwasher, select an appropriate wash
program. Leave it to dry before refitting.
Note:
slight discoloration of the filter may occur.
x Removing and inserting the grease filters:
o To remove, depress the handle and pull down
at the same time.
o To refit, slot the filter into position. Make sure
that the handle is visible on the outside.
Clean the extractor hood using warm detergent
solution and a soft damp cloth. Wipe dry with a lint-
free cloth.
x Avoid using corrosive or abrasive products that could
damage the surface.

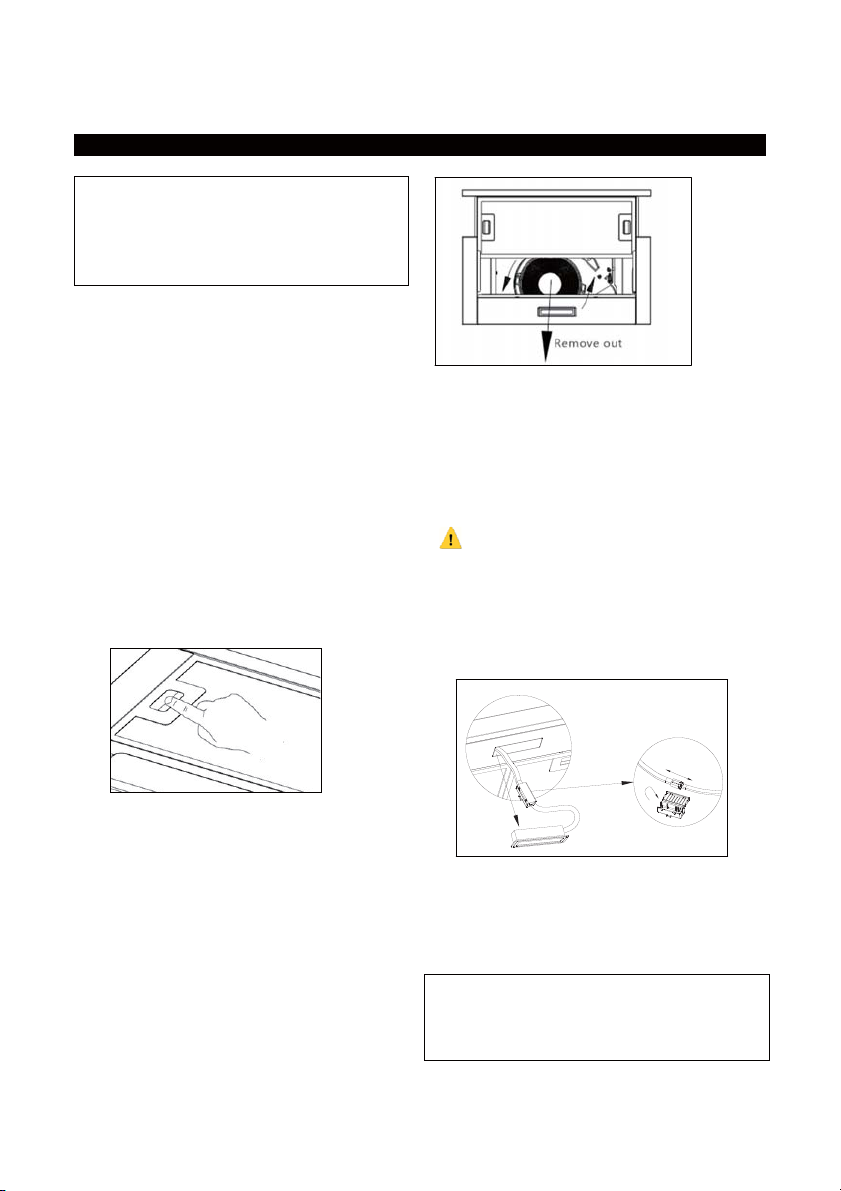

Light replacement (Fig. 12)
Replace the light with another which has the same
characteristics. A higher voltage bulb could
damage the
electrical unit.
x Removing and replacing the light:
o Remove grease filters and push out the light.
o KƉĞŶƚŚĞǁŝƌĞĐŽŶŶĞĐƚŽƌĂŶĚĚŝƐĐŽŶŶĞĐƚƚĞƌŵŝŶĂů
o Replace damaged lights and reconnect the terminal.
o Reverse the procedure for refitting.
Fig. 10
Charcoal filter (where applicable) (Fig. 11)
x The charcoal filters should be replaced when it is
noticeably dirty or discolored, usually after
ŵĂdžŝŵƵŵϮ
months depending on the conditions of
use.
x These filters are not washable and cannot be
restored. To ensure that this appliance functions
effectively, regular maintenance is necessary as
clogged filters restrict airflow and may cause the
motor to overheat.
x Removing and inserting the charcoal filter:
ͻRemove the grease filters.
ͻRemove the saturated charcoal filter from the
blower as shown.
ͻFit in the new charcoal filter.
ͻRefit the grease filters.
Fig. 12
You are strongly recommended to follow these safety
instructions. The manufacturer will not be held liable for
any damages to the appliance or any fire hazard due to
failure to observe the above safety recommendations.
7

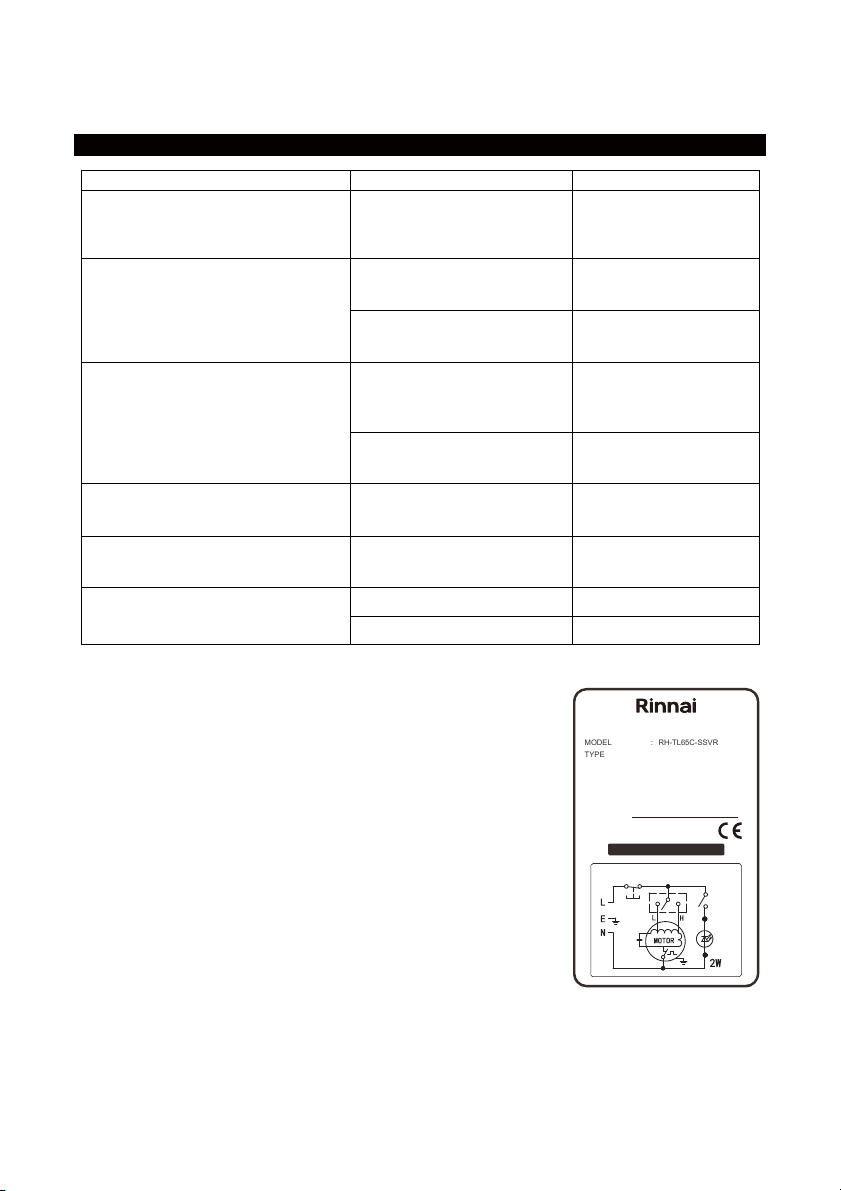

TROUBLESHOOT
Problem Possible Cause Solution
Extractor hood does not
function
No electrical supply Check that plug is
connected and main
power
switch is turned
on
Poor airflow
Grease filters clogged with
grease build-up
Clean the grease filters and
refit when dry
Charcoal filters clogged
with grease build-up
Replace charcoal filters
with new sets
Hood suction is not effective
Inadequate ventilation Ensure that the kitchen is
sufficiently ventilated
to
allow entry of
fresh air
Charcoal filters are not
installed
Install charcoal filters for
setting in recirculation mode
Motor is running but no airflow
Poor exhaust Please contact Rinnai
Customer Care Service
Whirring sound
Foreign object may be in
contact with fan blade
Please contact Rinnai
Customer Care Service
Lights are not working
>ŝŐŚƚďĂƌƐĂƌĞďůŽǁŶŽƵƚ ZĞƉůĂĐĞƚŚĞĚĂŵĂŐĞĚůŝŐŚƚ
>ŝŐŚƚďĂƌĐŽŶŶĞĐƚŝŽŶĂƌĞůŽŽƐĞ ZĞƐĞƚƚŚĞĐŽŶŶĞĐƚŝŽŶ
En
g
lish
If problem persists after the above checks, please contact Rinnai Customer Care
Centre for assistance.
Please quote the model number of your appliance as shown on the rating plate
attached to your equipment (Fig. 13).
For service calls under warranty, please note that it is necessary to produce your
proof of purchase and valid warranty card.
Fig.13-Rating plate is for illustration
purpose only and its specifications
vary across models.
8
MODEL
TYPE
: RH-TL65C-SSVR
RANGE HOOD
: TELESCOPIC
INPUT POWER : 132W Lamp ( 1x2W )
MOTOR POWER : 130W
POWER SUPPLY : 220V-240V~ 50/60Hz
CABLE LENGTH : 1.5m
SERIAL No :
CIRCUIT DIAGRAM
AC 220-240V
~
50/60Hz
1908000001

ZŝŶŶĂŝƵƐƚŽŵĞƌĂƌĞĞŶƚƌĞƐ
ŚŝŶĂѝѝഭ
'ƵĂŶŐnjŚŽƵZŝŶŶĂŝ'ĂƐΘůĞĐƚƌŝĐ

ZŽŽŵϮϴϬϱEŽϯϭ:ŝĂŶŐŚĞƵŝůĚŝŶŐ

dŝĂŶƐŚŽƵZŽĂĚ'ƵĂŶŐnjŚŽƵŚŝŶĂ

ᒯᐎ󰵨޵⟳ާ⭥ಘᴹ䲀ޜ
ѝഭᒯᐎཙ⋣ཙሯ䐟 31 ⊏⋣བྷ৖ 2805 ᇔ
dĞů
⭥䈍;ϴϲͿϮϬϯϴϮϭϳϵϳϲ
ŵĂŝů
䛞㇡ŐƌƌũĚƋΛŐnjƌŝŶŶĂŝĐŽŵĐŶ
hZ>
㖁൰ǁǁǁŐnjƌŝŶŶĂŝĐŽŵĐŶ
WŚŝůŝƉƉŝŶĞƐ
DŝƚƐƵŝ/ŶĚƵƐƚŝĂŽƌƉŽƌĂƚŝŽŶ

ϭϬƵĞŶĂǀĞŶƚƵƌĂ^ƚŽƌDĂĐƌƚŚƵƌ
,ŝŐŚǁĂLJĂůĂŶĚĂŶsĂůĞŶnjƵĞůĂŝƚLJ

WŚŝůŝƉƉŝŶĞƐ

dĞů;ϲϯͿϮϮϵϮϵϭϳϳϮϵϮϵϭϳϵ

&Ădž
;ϲϯͿϮϮϵϮϴϭϴϳ
/ŶĚŽŶĞƐŝĂ
WdŚĂŬƚŝ/ĚŽůĂdĂŵĂ
:ůZĂLJĂWĞũƵĂŶŐĂŶEŽϮϭ
<ŽŵƉZƵŬŽ^ĂƐƚƌĂ'ƌĂŚĂEŽϭϭͲϭϯ
:ĂŬĂƌƚĂϭϭϱϯϬ
dĞů;ϲϮͿϬϴϬϬϭϴϴϵϴϴϵ;ƵƐƚŽŵĞƌĂƌĞͿ
;ϬϴϭϱϭϭϮϵϵϵϵϵ;^D^ĞŶƚĞƌͿ
ŵĂŝůĐƵƐƚŽŵĞƌĐĂƌĞͺďŝƚΛLJĂŚŽŽĐŽŵ
hZ>ǁǁǁƌŝŶŶĂŝĐŽŝĚ
^ŝŶŐĂƉŽƌĞ
ZŝŶŶĂŝ,ŽůĚŝŶŐƐ;WĂĐŝĨŝĐͿWƚĞ>ƚĚ
ϲϭhďŝZŽĂĚϭηϬϮͲϮϬΘϮϭ
KdžůĞLJŝnjŚƵď^ŝŶŐĂƉŽƌĞϰϬϴϳϮϳ
dĞů;ϲϱͿϲϳϰϴϵϰϳϴ
&Ădž;ϲϱͿϲϳϰϱϵϮϰϬ
ŵĂŝůƐĞƌǀŝĐĞΛƌŝŶŶĂŝƐŐ
hZ>ǁǁǁƌŝŶŶĂŝƐŐ
DĂĐĂƵ◣
◣䮰
ZŝŶŶĂŝƉƉůŝĂŶĐĞ^ĞƌǀŝĐĞĞŶƚĞƌ
ĚŝĨŝĐŝŽ/ŶĚƵƐƚƌŝĂůϯĂŶĚĂƌ&ĚĂŽŶĂDĂĐĂƵ
ᯘ內∄ල᭹ົ୰ᚰ
󱂈㛛㟷Ὢ㊬ቃᕤᴗ኱ᗭϯᶂ&ᗙ
WŚŽŶĞ電話нϴϱϯϮϴϱϮͲϳϳϵϵ
&Ădž傳真нϴϱϯϮϴϮϳͲϬϱϳϮ
hZ>㖁൰ ǁǁǁƌŝŶŶĂŝĐŽŵŚŬŵŽ
dŚĂŝůĂŶĚประเทศไทย
ZŝŶŶĂŝ;dŚĂŝůĂŶĚͿŽ>ƚĚ
>ƵĐŬLJ&ůĂŵĞŽ>ƚĚ
ϲϭϭ^Žŝ<ŝŶŐŬ
ĂĞǁϵ<ŝŶŐŬĂĞǁZĚ
ZĂĐŚĂdŚĞǁĂĂŶŐƉŚůŝ^ĂŵƵƚƉƌĂŬĂƌŶϭϬϱϰϬdŚĂŝůĂŶĚ

บริษัท รินไน (ประเทศไทย) จํากัด
เลขที /ซอยกิงแก้วถนนกิงแก้วตําบลราชาเทวะ
อําเภอบางพลีจังหวัดสมุทรปราการ
ประเทศไทย 
dĞů
;ϲϲͿϮϯϭϮϰϯϯϬͲϰϬ
ŵĂŝůůƵĐŬLJϬϮΛůƵĐŬLJĨůĂŵ
ĞĐŽƚŚ
hZ>ǁǁǁůƵĐŬLJĨůĂŵĞĐŽƚŚ

DĂůĂLJƐŝĂ
ZŝŶŶĂŝ;DͿ^ĚŶŚĚ
ϮͲϯͲ'ΘϮͲϯͲϭůŽĐŬϮWƵƐĂƚWĞƌĚĂŐĂŶŐĂŶĂŶĂϭ
:ĂůĂŶW:hϭϰϲϰϳϯϬϭWĞƚĂůŝŶŐ:ĂLJĂ
^ĞůĂŶŐŽƌĂƌƵůŚƐĂŶDĂůĂLJƐŝĂ
dĞů;ϲϬͿϯϳϴϯϮϬϬϯϳϳϴϯϮϬϬϯϴϳϴϯϮϬϬϯϵ
&Ădž;ϲϬͿϯϳϴϯϮϬϬϯϲ
dŽůůĨƌĞĞϭϴϬϬͲϴϴͲϴϭϴϬ
ŵĂŝůĐƵƐƚŽŵĞƌĐĂƌĞΛƌŝŶŶĂŝĐŽŵŵLJ
hZ>ǁǁǁƌŝŶŶĂŝĐŽŵŵLJ
sŝĞƚŶĂŵsŝҵƚEĂŵ
ZŽŶŐsŝĞƚŽŵŵĞƌĐĞŽŵƉĂŶLJ>ŝŵŝƚĞĚ

ϭϮϬϯϮ^ƚƌĞĞƚtĂƌĚϭϮŝƐƚƌŝĐƚϭϬ

,ŽŚŝDŝŶŚŝƚLJsŝĞƚŶĂŵ

ƀŶŐdLJdE,,dŚӇҿŶŐD
ҢŝZһŶŐsŝҵƚ
ϭϮϬӇ
ӁŶŐϯϮWŚӇӁŶŐϭϮYƵҨŶϭϬ
dW,
һŚşDŝŶŚsŝҵƚEĂŵ
dĞů;ϴϰͿ
ϴϯϴϲϮϯϰϬϵ
&Ădž;ϴϰͿϴϱϰϬϰϭϵϲϰ

ŵĂŝůŝŶĨŽΛƌŽŶŐǀŝĞƚ
ͲƌŝŶŶĂŝĐŽŵ
hZ>ǁǁǁƌŽŶŐǀŝĞƚ
ͲƌŝŶŶĂŝĐŽŵ
DLJĂŶŵĂƌ
ျမန္မာ

DLJĂŶŵĂƌ<ŽǁĂ/ŶƚĞƌŶĂƚŝŽŶĂůŽ>ƚĚ
EŽϭϵϵ'ƌŽƵŶĚ&ůŽŽƌϯϰƚŚ^ƚƌĞĞƚ;hƉƉĞƌůŽĐŬͿ
<LJĂƵŬƚĂĚĂdŽǁŶƐŚŝƉzĂŶŐŽŶDLJĂŶŵĂƌ
အမွတ္ (၁၉၉)၊၃၄ လမ္း (အေပၚဘေလာက္)၊
ေက်ာက္တံတားၿမိဳ႕နယ္၊ ရန္ကုန္ၿမိဳ႕။
dĞůဖုန္း;ϵϱͲϭͿϮϰϱϵϮϱϮϰϲϯϬϰ;ϵϱͲϵͿϳϯϬϬϳϳϳϯ
&Ădžဖက္(စ္) ;ϵϱͲϭͿϮϰϱϵϮϱ
ŵĂŝůအီးေမးလŵĂƌŬĞƚŝŶŐΛŵLJĂŶŵĂƌŬŽǁĂĐŽŵ
