ITA – Prima di iniziare
Siamo lieti di darvi il benvenuto nel mondo Rizoma, e ci complimentiamo con voi per l’ottima scelta effettuata. Vi invitiamo a seguire scrupolosamente
le indicazioni riportate in questa guida, che consentono di montare e utilizzare correttamente il prodotto e sfruttare appieno tutte le funzionalità
di cui dispone. Per la Vostra tutela e sicurezza, Rizoma consiglia espressamente di far eseguire il montaggio del prodotto da personale Tecnico
specializzato. Installare, riparare o fare manutenzione in maniera impropria, può essere causa di incidenti. Conservare la presente guida per l’utente
quale riferimento per il futuro.
ENG – Before you start
We are pleased to welcome you into the world of RIZOMA, and we congratulate you for your excellent choice. Please carefully follow the instructions in
this guide, which will allow you to mount and use the product correctly and enjoy all the features it has.
For your protection and safety, RIZOMA expressly recommends that you have the installation of the product performed by skilled personnel. Improper
installation, repair or maintenance, can cause accidents. Keep this user guide as a reference for the future.
FRA – Avant de commencer
Nous sommes heureux de vous accueillir dans le monde Rizoma, et nous vous félicitons de votre excellent choix. Nous vous invitons à suivre
scrupuleusement les instructions de ce guide, qui vous permettrons de monter et utiliser le produit correctement et proter de toutes les
fonctionnalités dont il dispose. Pour votre protection et votre sécurité, Rizoma recommande expressément l’installation du produit par une personne
techniquement spécialisée. Installer, réparer ou entretenir de façon inadaptée, peuvent causer des accidents. Conserver ce guide de référence pour
l’historique de ce produit.
DEU – Bitte beachten Sie
Vielen Dank zu Ihrer Kaufentscheidung für ein Qualitäts-Produkt aus dem Hause RIZOMA. Damit Sie das maximale Fahrvergnügen durch den
Neuerwerb genießen können, bitten wir Sie den Anweisungen in diesem Handbuch zu befolgen und dieses als Referenz aufbewahren. Zu Ihrer eigenen
Sicherheit empehlt RIZOMA ausdrücklich, die Montage des Produktes durch Fachpersonal durchführen zu lassen. Bitte beachten Sie, dass eine
unsachgemäße Montage, Wartung / Pege oder Reparaturen zu Unfällen bzw. erlöschen der Gewährleistung zur Folge haben kann.
ESP – Antes deempezar
Noscomplacedarle la bienvenidaalmundoRizoma,ylefelicitamosporsuexcelente elección.
Por favorsiga cuidadosamente lasinstrucciones de esta guía. Hacer uso de estas, garantiza una correcta instalación, para un mayor disfrute y
durabilidad del producto. Para suprotección yseguridad,Rizomarecomienda expresamente, quese haga uso de personal especializado para
la correcta instalación delproducto.Instalación,reparaciónomantenimiento deforma inadecuada,pueden causaraccidentes. Conserve este
manualcomoreferenciapara elfuturo.
Benvenuto in Rizoma
Welcome to Rizoma
User Manual Rev.: 01
© 2019 RIZOMA
ITA !– Attenzione: alcuni componenti vengono montati solo per il trasporto. Serrare tutti i dispositivi di ssaggio con opportune coppie di serraggio prima
della guida.
La non osservanza delle istruzioni precedute da questo simbolo, può creare situazioni di pericolo e causare gravi lesioni personali e anche la morte.
1. Leggere e seguire attentamente le presenti istruzioni, parte essenziale del prodotto. Per qualsiasi dubbio riguardo l’installazione e l’utilizzo del prodotto, contattare un
rivenditore autorizzato RIZOMA (su www.rizoma.com).
2-Per una corretta installazione tutti i serraggi devono essere effettuati dopo il posizionamento corretto degli accessori e senza forzare i punti mobili una volta bloccati,
per non compromettere la tenuta e il corretto funzionamento del prodotto.
3-Dopo l’installazione dei prodotti Rizoma è importante controllare il corretto funzionamento di tutte le parti del motoveicolo, incluso ma non limitato a freni,frizione,luci,a
cceleratore,sterzo. Inoltre è estremamente consigliato ripetere periodicamente questi controlli , anche dopo lunghi viaggi e periodi di fermo.
Tutti i prodotti Rizoma richiedono regolare ispezione e manutenzione. Maggiore è il loro utilizzo maggiore deve essere la frequenza dei controlli. In caso si rilevino parti
mancanti, danneggiate, consumate o con un’ aspetto irregolare consultare immediatamente il rivenditore Rizoma prima di utilizzare il motoveicolo. In ogni caso mai
cercare di riparare o modicare i prodotti Rizoma o le sue parti, in ogni caso sostituire con componenti originali Rizoma.
I prodotti Rizoma possono non essere compatibili con il vostro motoveicolo o con altri accessori after market precedentemente installati. Per la vostra sicurezza Rizoma
consiglia di contattare sempre il rivenditore Autorizzato di ducia.
O.E.M.: componenti originali.
ENG !– Attention: This component comes assembled for shipping purposes only. Tighten all fasteners to appropriate torque specications before riding.
Descriptions preceded by this symbol contain information, instructions, or procedures, which, if not followed, may result in death or serious injury.
1. Carefully read, understand and follow these instructions, they are an essential part of the product. If you have any doubt whatsoever regarding the installation or use of
your RIZOMA product, please see your authorized RIZOMA dealer for assistance (on www.rizoma.com).
2- For correct installation, all tightening has to be done after the correct positioning of the accessories without restricting the moving parts, to not compromise the
correct functioning of the product.
3-After installing any Rizoma product, please check that all related components of the motorbike function e.g. brakes, throttle, clutch, lights and steering. We strongly
suggest to repeat these checks periodically, especially after long trips or prolonged periods of not using the bike.
Your RIZOMA products require regular inspection and maintenance. The more you ride the more often you must inspect your RIZOMA products. If your products are
leaking, bent, deformed, cracked, chipped or worn, no matter how slight, immediately have a RIZOMA dealer inspect the products before you ride again. In any case never
try to repair or modify the Rizoma products or their components, always replace with Rizoma original components.
Rizoma products may not be compatible with your motorcycle or with other aftermarket equipment installed before. For your safety Rizoma suggests to always contact
your RIZOMA dealer.
O.E.M.: original equipment manufacturer.
Condizioni generali
General conditions
BS232
PART NUMBER
ITA – Consultare il sito internet www.rizoma.com, nella sezione Specchietti cliccare "DOWNLOAD", per scaricare il documento d'omologazione
in formato PDF.
ENG – Consult the website www.rizoma.com, in the mirrors section click "DOWNLOAD" to download the PDF document homologation.

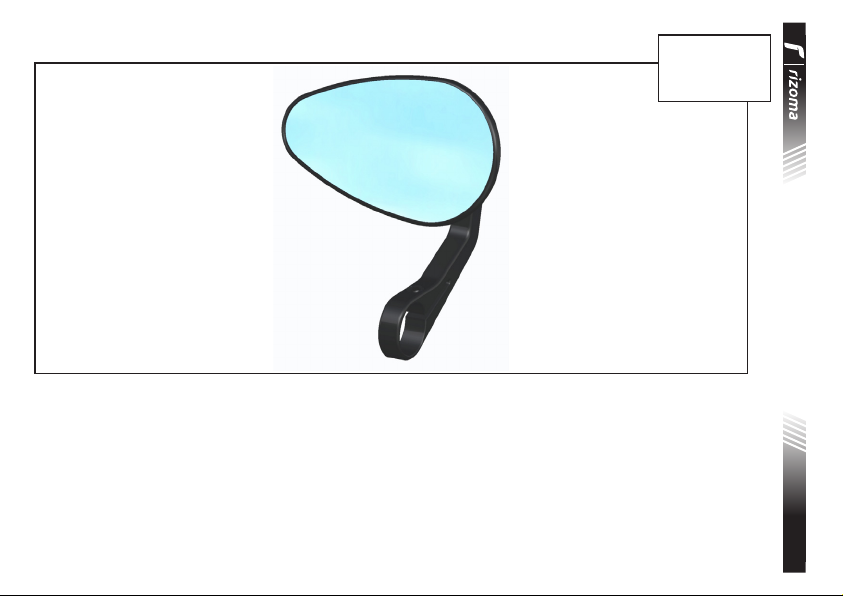

Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
ITA !– Prima di iniziare il montaggio vericare la completezza del
kit. Il livello di difcoltà e il tempo di montaggio non comprendono lo
smontaggio dei componenti OEM. Attenzione: Prima di procedere
all'installazione, assicurarsi che la moto si trovi in una posizione
stabile, perchè la moto in bilico potrebbe causare danni a cose
o a persone o ferimenti. ATTENZIONE: PER LA PULIZIA DELLO
SPECCHIETTO NON UTILIZZARE DETERSIVI, SGRASSATORI,
PRODOTTI AGGRESSIVI O SPUGNE ABRASIVE CHE POTREBBERO
ROVINARE O GRAFFIARE LO SPECCHIETTO, MA UTILIZZARE
ESCLUSIVAMENTE DETERGENTI NEUTRI CON ACQUA FREDDA.
Consultare il sito internet o contattare il dealer autorizzato per
scegliere l'adattatore universale.
ENG !– Before you start mounting the product please check the
completeness of the kit on the part list. The difculty level and the time
of assemblage shown do not include the removal of OEM components.
Warning: Make sure that your motorbike is standing rmly before
you start work, as a fall may lead to damage to the motorbike or
injury to you or others. WARNING: TO CLEAN YOUR MIRROR DON'T
USE DETERGENT, AGGRESSIVE PRODUCTS OR ABRASIVE SPONGE
THAT CAN DAMAGE OR SCRATCH YOUR MIRROR, BUT USE ONLY
NEUTRAL DETERGENT WITH COLD WATER. Consult the website or
contact the authorized dealer to choose the universal adapter.
ITA !– Non tutti i nostri prodotti sono omologati per l’utilizzo nella
circolazione stradale nei Paesi ove sia invece prescritta l’omologazione.
La RIZOMA® srl declina ogni e qualsiasi responsabilità in dipendenza
dell’uso diverso che ne venga fatto.
ENG !– Some of our products may not be approved for road circulation
in the countries where homologation is required. Thus RIZOMA® srl
declines any responsibility for a different use of its products.
LIVELLO DI DIFFICOLTÀ
DIFFICULTY LEVEL
Facile
Simple
TEMPO DI MONTAGGIO
TIME OF ASSEMBLAGE 10-15 min
5 mm 5 mm
1
B126 1
2
B113 1
BS232
PART NUMBER
Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
MONTAGGIO SPECCHIETTO SU MANUBRIO INSTALL MIRROR ON HANDLEBAR
Step 1

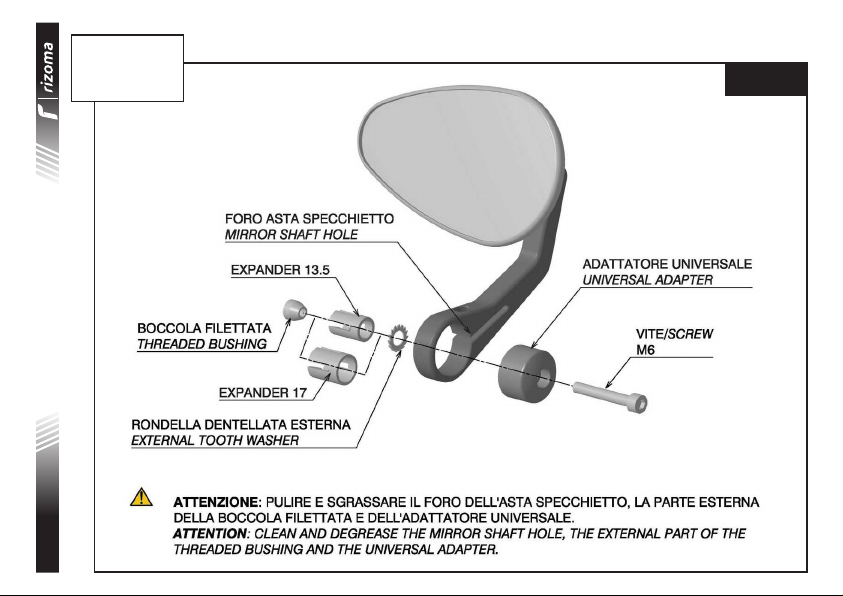

ITA !– Pulire e sgrassare il foro dell'asta dello
specchietto, la boccola e la parte esterna del manubrio.
ENG !– Clean and degrease the mirror shaft hole, the
bushing and the external part of handlebar.
BS232
PART NUMBER
Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
MONTAGGIO SPECCHIETTO CON ADATTATORE UNIVERSALE INSTALL MIRROR WITH UNIVERSAL ADAPTER
Step 2
BS232
PART NUMBER
Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
SERRAGGIO VITI TIGHTENING THE SCREWS
Step 3
ITA !– Lubricare con del grasso la lettatura e il sotto
testa delle viti.
ENG !– Lubricate with grease the threads and the
under head of screws.
BS232
PART NUMBER
Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
MONTAGGIO SPECCHIETTO DX INSTALL RH MIRROR
Step 4
BS232
PART NUMBER
Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
REGOLAZIONE SPECCHIETTO ADJUSTMENT MIRROR
Step 5
ITA !– Trovare la posizione desiderata dello
specchietto e serrare la vite.
ENG !– Find the correct position of the mirror and
tighten the screw.
BS232
PART NUMBER
Specchietto "REVERSE RADIAL"
Mirror "REVERSE RADIAL"
