Robustel GoRugged R3000 Lite User guide

Installation Quick Guide
R3000 Lite - Dual SIM Industrial Cellular VPN Router
Packing List
Before installing the R3000 Lite router, please verify the kit contents as following:
Robustel R3000 Lite router
Power terminal block
Documents and software CD
Optional Accessories
AC/DC power supply adapter
Rubber/magnet SMA cellular antenna for HSPA+/LTE
Serial cable (DB9 female connector switches to DB9 male connector)
35 mm DIN rail mounting kit or wall mounting kit
*If any of the above items is missing or damaged, please contact your Robustel Sales
Representative.
Environmental Requirements
Power input: 6 to 26 VDC
Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state
Operating temperature: -40 °C to 85 °C (R3000-L3E supports -20 °C to 75 °C )
Relative humidity: 5% to 95% RH
Hardware Introduction
As shown in the following figure, R3000 Lite router has an Ethernet port (LAN interface), a DB9
serial port (supports for RS232 and RS485), two cellular SIM card slots, two cellular antenna
interfaces and a GPS antenna interface (optional).
Dimension: 105 mm x 98 mm x 29.5 mm

Device should be in accordance
with the reliable grounding to avoid
lighting strike.
Use the rated power adapter for
the device, and note the power
polarity when wiring.
Pay attention to waterproof in
storage, transporting and operating
environment.
Place the device on the horizontal
surface.
Damaging the product’s warranty
labeling cannot enjoy the free
maintenance in warranty period.
CAUTION!

LEDs
Ethernet Port
The Ethernet port has two LED indicators. The yellow one is Link Indicator and the green one is
Speed Indicator. Each indicator has three status, for details see the table below:
Indicator
State
Description
Link Indicator
On
Connection is enabled
On, blinking
Data is being transmitted
Off
Connection is disabled
Speed Indicator
On
100 Mbps mode
Off
10 Mbps mode
Reset Button
After powering up the router, press the RST button by a small non-conductive stick with a blunt
end in about 60 seconds until all three LEDs (RUN, PPP, USR) on the left side blinking 5 times
simultaneously. Then the router will be restored to factory default settings.
Hardware Installation Steps
Step 1: After opening the package, refer to right side figure
to remove the cover, loosen the screws associated
with the cover by using a screwdriver and then find
the SIM card slot. To insert SIM card, press the card
with fingers until snap on and then tighten the
screws associated with the cover by using a
screwdriver.
Note: In order to protect the slot and SIM card,
make sure the router is power off before inserting
or removing the SIM card.
Step 2: Connect the SMA external antenna connector to the
router’s antenna interface and twist tightly. Make
sure the antenna is within the correct frequency
range.
Note: Recommended torque for mounting is 0.35 N.m
LED Name
Color
State
Description
RUN
Green
On, solid
Router is booting
On, blinking
Router is ready
Off
Router is powered off
USR
Green
On, solid/blinking
VPN tunnel/PPPoE/DynDNS is on
Off
VPN tunnel/PPPoE/DynDNS is off
PPP
Green
On, solid
PPP connection enabled
On, blinking
There is dataflow
Off
PPP connection is disabled

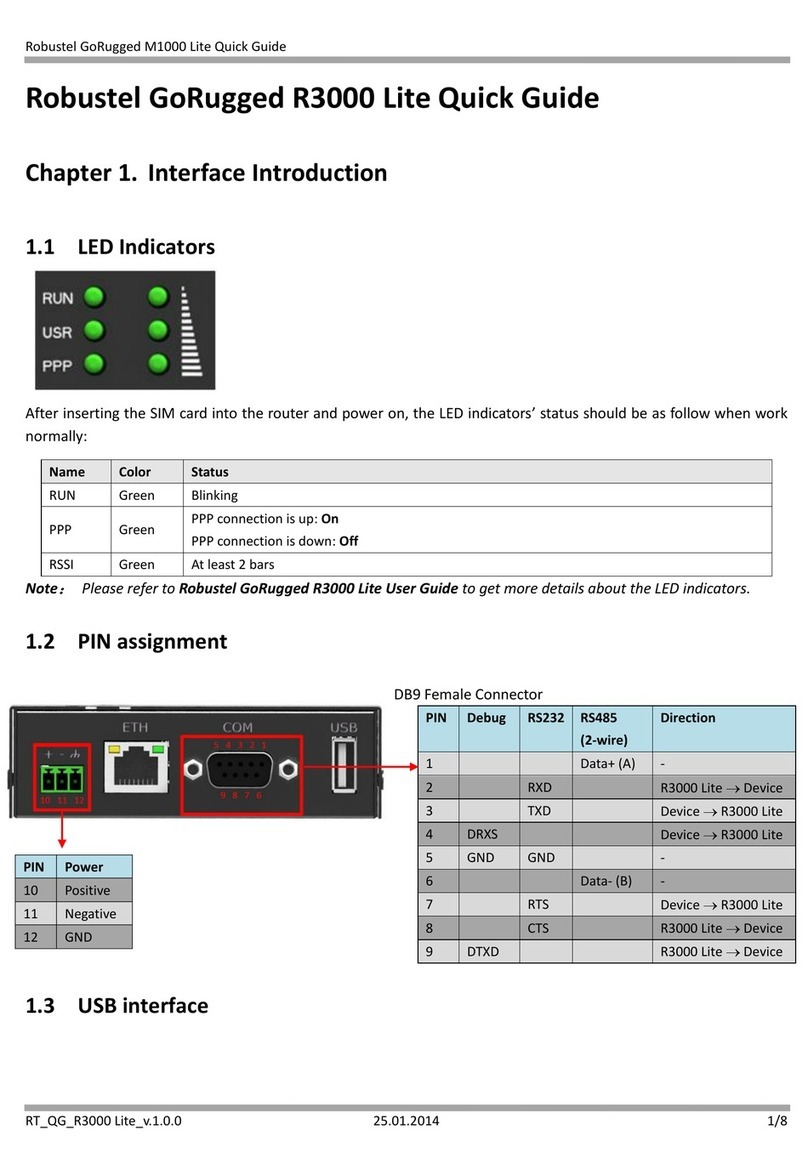

PIN
Polarity
10
Positive
11
Negative
12
GND
PIN
Debug
RS232
RS485
(2-wire)
1
Data+ (A)
2
RXD
3
TXD
4
DRXD
5
GND
GND
6
Data- (B)
7
RTS
8
CTS
9
DTXD
Pinouts
PIN
Function
1
TX+
2
TX-
3
RX+
6
RX-
RSSI LEDs
Description
None
No signal or no SIM card inserted correctly
1 bar (only the first LED is on)
Signal level: 1-10 (Abnormal signal level)
2 bar (the first and the second LED are on)
Signal level: 11-20 (Average signal level)
3 bar (all the RSSI LEDs are on)
Signal level: 21-31 (Optimum signal level)

E-mail: [email protected]
© 2016 Guangzhou Robustel IoT Technologies Co., Ltd. All rights reserved. Subject to change without notice. Web: www.robustel.com
Step 3: Connect the router to the site ground wire by the ground screw before powering on.
Router grounding helps prevent the noise effect due to electromagnetic interference
(EMI).
Step 4: Connect the router’s Ethernet port to a PC through a standard crossed network cable.
Step 5: R3000 Lite router supports for horizontal surface placement, DIN rail mounting and wall
mounting. For details refer to next figure.
Step 6: Use the power adapter to power on the router. R3000 Lite router supports reverse
polarity protection, but always connects to the power adapter correctly. There are two
cables associated with the power adapter. Following to the color of the head, connect
the cable marked red to the positive pole through a terminal block, and connect the
yellow one to the negative in the same way. The last step is to plug in and power on.
Two methods for mounting the router
Wall mounting
Wall mounting kit size (unit: mm)
Use 3 pcs of M3*4 countersunk phillips screws to fix the router on the wall mounting kit,
and then use 2 pcs of M3 drywall screws to mount the router associated with the wall
mounting kit on the wall.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
DIN rail mounting
DIN rail size (unit: mm)
Use 3 pcs of M3*4 countersunk phillips screws to fix the router on the DIN rail, and then
hang the DIN rail on the bracket. It is necessary to choose the standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
