Roger Technology BE20 Series User manual

USE AND
MAINTENANCE MANUAL
Swing gates
Rev.00 28/07/2016

2

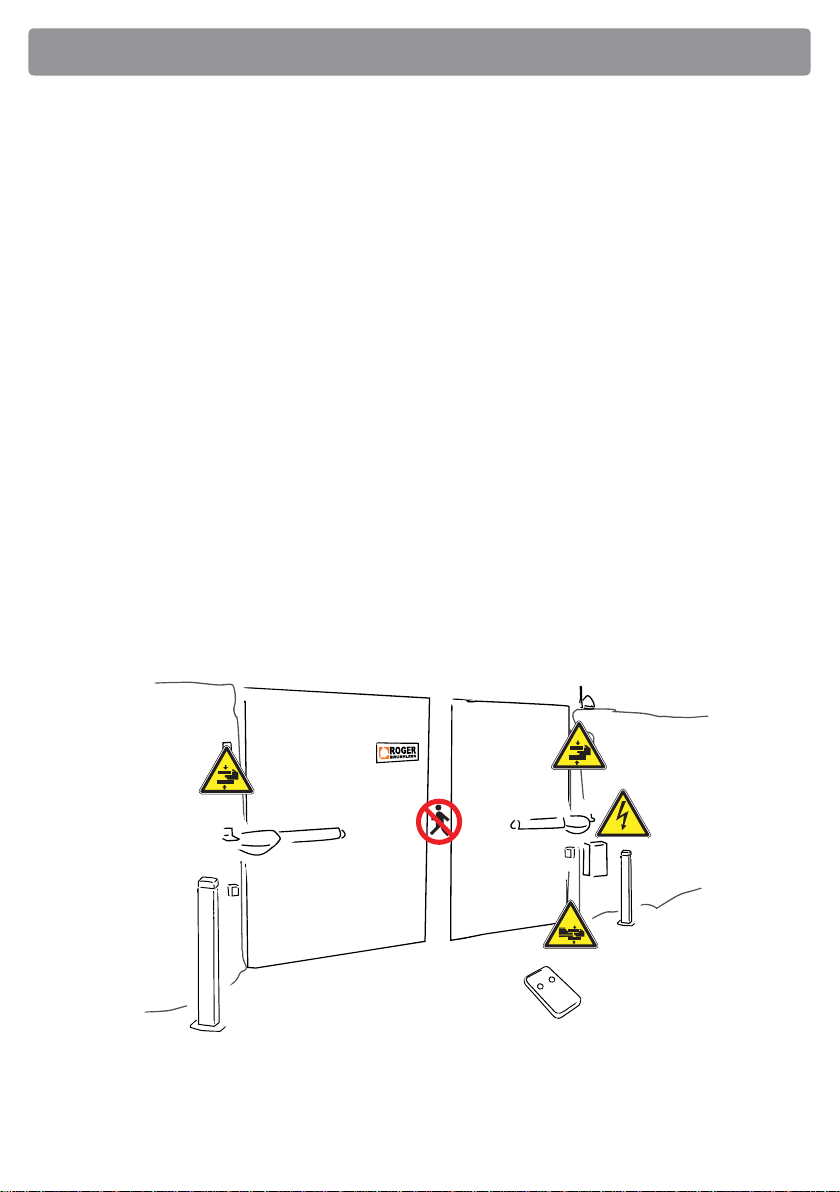

1 Safety precautions
Failure to observe the information given in this manual may result in personal injury or damage
to the equipment.
These instructions are an integral part of the product and must be handed to the user.
Read these instructions carefully, as they provide important information concerning the safety,
use and maintenance of the installation.
These instructions must be kept and must be made available to any other persons authorised to
use the installation.
This product may only be used for its expressly intended purpose.
Any other usage is inappropriate and dangerous. The manufacturer cannot be held responsible for
any damage resulting from inappropriate, erroneous or unreasonable usage.
Keep away from hinges and moving parts.
Keep out of the area of action of the motorised door or gate while it is moving.
Never try to stop the motorised door or gate while it is moving as this may be dangerous.
The motorised door or gate may be used by children aged 8 and above, by persons with diminished
physical, sensory or mental capacity and by persons without the necessary experience and
knowledge provided that they are supervised or have received adequate instruction on using the
installation safely and to ensure that they understand the dangers involved in its operation.
Children must be supervised at all times to ensure that they do not play with the installation and
that they keep out of the area of action of the motorised door or gate.
Keep remote controls and any other control devices out of the reach of children to prevent the
risk of the motorised door or gate being operated unintentionally.
In the event of a fault or malfunction of the product, turn the main power switch off and have
WKHLQVWDOODWLRQVHUYLFHGE\DTXDOLÀHGSURIHVVLRQDO'RQRWDWWHPSWWRUHSDLUWKHLQVWDOODWLRQRU
rectify the problem yourself.
Failure to observe these instructions may lead to danger.

3
2 Responsibility for product
,QDFFRUGDQFHZLWK(XURSHDQ'LUHFWLYHVWKHRZQHURUXVHURILQWKHLQVWDOODWLRQLVUHVSRQVLEOHIRU
complying with the following.
To ensure that the installation is kept in proper working order, the automatic gate must be subject
WRSHULRGLFDOPDLQWHQDQFHSHUIRUPHGE\TXDOLÀHGSHUVRQQHOLQDFFRUGDQFHZLWKWKHLQVWUXFWLRQV
of the manufacturer.
7KH DXWRPDWLF V\VWHP PXVW RSHUDWH LQ WKH RULJLQDO FRQGLWLRQV YHULÀHG GXULQJ LQLWLDO WHVWLQJ
conducted by the installer and in the presence of the end user.
'RQRWWDPSHUZLWKWKHRULJLQDOVHWWLQJV
In the event of a fault or malfunction of the automatic gate, disconnect the installation from
PDLQV HOHFWULFDO SRZHU DQG KDYH WKH LQVWDOODWLRQ VHUYLFHG E\ D TXDOLÀHG SURIHVVLRQDO 'R QRW
attempt to repair the installation or rectify the problem yourself.
In the event of any malfunction, stop using the automation system immediately and contact the
technical support service.
Failure to observe these instructions may lead to danger.
3 Maintenance
The ROGER TECHNOLOGY automation system for swing gates requires periodical maintenance to
keep it in proper working order and to ensure that it continues to function in complete safety.
Agree upon a periodical maintenance schedule with the installer.
ROGER TECHNOLOGY recommends servicing at 6 month intervals for normal usage. However, the
frequency of maintenance intervals may vary depending on intensity of usage.
In particular, all the safety devices must be checked periodically to ensure that they are working
correctly.
All installation, maintenance and repair work must be documented correctly, and the relative
documents must be made available to the user.
2.1 Periodical maintenance by user
 &OHDQWKHOHQVHVRIWKHSKRWRFHOOVZLWKDVRIWFORWKGDPSHQHGVOLJKWO\ZLWKZDWHU'RQRWXVH
solvent or other chemical products, as this may damage the devices.
 Clean the guide rails to remove any leaves or stones which could impede the movements of
the automation system.
 Trim any plants encroaching into the area of action of the photocells or which could impede
the movements of the automation system.
 'RQRW direct water onto the parts.
2.2 Periodical maintenance by installer
 'LVFRQQHFWWKHV\VWHPIURPPDLQVHOHFWULFLW\DQGXQORFNWKHJDWH
 Check all parts for wear and deterioration. In particular, check all structural parts for wear
and corrosion. Replace any parts not in an adequate condition to ensure continued correct
operation.
 Check the condition and tightness of all fastener screws.
 Clean and lubricate, the turning pins, the hinges of the gate and the drive screw. Manually
check that the gate slides smoothly and without impediment.
 Lock the gate and reconnect to mains electricity.
 Check that all control devices, safety devices and limit switches function correctly.
 Check the force settings.

4
4 Unlock instructions
BE20 - BR20 - R20 Series
UNLOCKING ÀJ
2SHQ WKH ORFN FRYHU UHI  LQVHUW WKH NH\
included in the lock and turn clockwise by 90°
UHIWKHQSXOOWKHNH\ÀUVWDQGWKHQWKHOHYHU
WRRSHQWKHGRRUUHIFRPSOHWHO\0DQRHXYUH
the gate manually.
LOCKINGÀJ
WARNING: operate the lock release lever with
FDXWLRQWRDYRLGWKHULVNRILQMXU\WRWKHÀQJHUV
Close the lock release lever. Insert the key
included into the lock and turn clockwise by 90°.
Once the lock release lever has returned to its
original position, turn the key anticlockwise,
remove from the lock and close the lock cover.
BM20 - M20 - H20 Series
UNLOCKING ÀJ
Turn the lock cover (rif. 1 LQVHUW WKH NH\
included in the lock and turn clockwise by 90°
UHIWKHQSXOOWKHNH\ÀUVWDQGWKHQWKHOHYHU
WRRSHQWKHGRRUUHIFRPSOHWHO\0DQRHXYUH
the gate manually.
LOCKINGÀJ
WARNING: operate the lock release lever with
FDXWLRQWRDYRLGWKHULVNRILQMXU\WRWKHÀQJHUV
Close the lock release lever. Insert the key
included into the lock and turn clockwise by
90°.
Once the lock release lever has returned to its
original position, turn the key anticlockwise,
remove from the lock and close the lock cover.
BH23 - H23 Series
UNLOCKING ÀJ
Turn the lock cover (rif. 1 LQVHUW WKH NH\
included in the lock and turn clockwise by 90°
UHIWKHQSXOOWKHNH\ÀUVWDQGWKHQWKHOHYHU
WRRSHQWKHGRRUUHIFRPSOHWHO\0DQRHXYUH
the gate manually.
LOCKINGÀJ
WARNING: operate the lock release lever with
FDXWLRQWRDYRLGWKHULVNRILQMXU\WRWKHÀQJHUV
Close the lock release lever. Insert the key
included into the lock and turn clockwise by 90°.
Once the lock release lever has returned to its
original position, turn the key anticlockwise,
remove from the lock and close the lock cover.
1
Fig. 1
Fig. 2
2
3
32
1
2
1
3
12
3
Fig. 1
Fig. 2
1
3
2
3
1
2

5
R23 Series
UNLOCKINGÀJ
2SHQWKHORFNFRYHUUHILQVHUWWKHNH\LQFOXGHGLQWKH
ORFN DQG WXUQ FORFNZLVH E\  UHI . Turn the lever by
UHI
Manoeuvre the gate manually.
LOCKING ÀJ
WARNING: operate the lock release lever with caution to
DYRLGWKHULVNRILQMXU\WRWKHÀQJHUV
7XUQWKHORFNUHOHDVHOHYHUE\DQGUHWXUQLWWRLWVRULJLQDO
position. Insert the key and turn anticlockwise, remove from
the lock and close the lock cover.
BR21 - R21 Series
UNLOCKING, RL650ÀJ
5HPRYHWKHORFNFRYHUUHIÀWWKH
lock release lever included and turn
E\ DSSUR[LPDWHO\  WRZDUGV WKH
FHQWUHRIWKHJDWHUHI0DQRHXYUH
WKHJDWHPDQXDOO\UHI
LOCKING RL650 ÀJ
:LWK WKH JDWH RSHQ ÀW WKH ORFN
release lever and rotate towards the
gate hinges to return it to its original
position.Fitthelockcover.Therelease
system re-engages automatically
when the gate is manoeuvred again.
UNLOCKING RL651
)LJ  5HPRYH WKH ORFN FRYHU UHI
LQVHUWWKHORFNUHOHDVHNH\LQFOXGHGDQGWXUQE\DSSUR[LPDWHO\WRZDUGVWKHFHQWUHRIWKH
JDWHUHIZLWKRXWUHPRYLQJWKHNH\3XOOWKHOHYHUWRRSHQFRPSOHWHO\UHI0DQRHXYUHWKH
JDWHPDQXDOO\UHI
LOCKING RL651
)LJ:LWKWKHJDWHRSHQWXUQWKHUHOHDVHOHYHUUHIWRUHWXUQLWWRLWVRULJLQDOSRVLWLRQ
7XUQ WKH NH\ E\  WRZDUGV WKH JDWH KLQJHV UHI  )LW WKH ORFN FRYHU UHI  7KH UHOHDVH
system re-engages automatically when the gate is manoeuvred again.
1
2
3
2
1
RL650 Fig. 1
RL650 Fig. 2
1
4
2
3
3
2
1
RL651 Fig. 1
RL651 Fig. 2
1
2
3
3
2
1
Fig. 1
Fig. 2

6
5 Environmental requisites
ROGER TECHNOLOGY products consist of electronic components and may also be
equipped with batteries containing substances that are harmful to the environment.
'LVFRQQHFW IURP PDLQV HOHFWULFLW\ EHIRUH UHPRYLQJ HOHFWURQLF FRPSRQHQWV DQG WKH
battery.
2EVHUYH ORFDO UHJXODWLRQV IRU GLVSRVLQJ RI XVHG PDWHULDOV DQG SDFNDJLQJ 'LVSRVLQJ
correctly of products when no longer in use will contribute to preventing harm to the environment
and to human health.
To dispose correctly of electric and electronic devices and batteries, the owner or user must
deliver them to specialised differentiated refuse collection centres operated by local authorities.
6 Troubleshooting
Problem Possible cause Solution
Gate does not open and does not
close No power Check mains power supply
Gear motor unlocked Lock the gear motor. See instruc-
tions for unlocking.
7UDQVPLWWHUEDWWHU\ÁDW Replace batteries
Transmitter broken Contact technical support service
6723EXWWRQVWXFNRUIDXOW\ Contact technical support service
Open/close buttons or key selec-
tor switch stuck Contact technical support service
Gate opens but does not close Obstacle detected by photocells Check if photocell lenses are
clean and check operation of
photocells
Sensing edge malfunction Contact technical support service
Gate closes but does not open Sensing edge malfunction Contact technical support service
Flashing light not working Bulb blown Replace bulb.
