Rohde & Schwarz RTE Series User manual

R&S®RTE
Oscilloscope
Getting Started
Getting Started
Version 08
1326102602
(=J:J2)
www.allice.de
Allice Messtechnik GmbH

This manual describes the following R&S®RTE models with firmware version 4.60
and higher:
●R&S®RTE1022: 200 MHz, 2 channels (1326.2000K22 and 1317.2500K22)
●R&S®RTE1024: 200 MHz, 4 channels (1326.2000K24 and 1317.2500K24)
●R&S®RTE1032: 350 MHz, 2 channels (1326.2000K32 and 1317.2500K32)
●R&S®RTE1034: 350 MHz, 4 channels (1326.2000K34 and 1317.2500K34)
●R&S®RTE1052: 500 MHz, 2 channels (1326.2000K52 and 1317.2500K52)
●R&S®RTE1054: 500 MHz, 4 channels (1326.2000K54 and 1317.2500K54)
●R&S®RTE1102: 1 GHz, 2 channels (1326.2000K62 and 1317.2500K02)
●R&S®RTE1104: 1 GHz, 4 channels (1326.2000K64 and 1317.2500K04)
●R&S®RTE1152: 1,5 GHz, 2 channels (1326.2000K72)
●R&S®RTE1154: 1,5 GHz, 4 channels (1326.2000K74)
●R&S®RTE1202: 2 GHz, 2 channels (1326.2000K82)
●R&S®RTE1204: 2 GHz, 4 channels (1326.2000K84)
© 2019 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1326.1026.02 | Version 08 | R&S®RTE
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g.
R&S®RTE is indicated as R&S RTE.
www.allice.de
Allice Messtechnik GmbH

Contents
R&S®RTE
3Getting Started 1326.1026.02 ─ 08
Contents
1Safety Information................................................................. 5
2 Preface....................................................................................6
2.1 Key Features......................................................................................... 6
2.2 Documentation Overview.....................................................................7
2.3 Conventions Used in the Documentation...........................................9
3 Preparing for Use.................................................................10
3.1 Unpacking and Checking the Instrument......................................... 10
3.2 Positioning the Instrument.................................................................11
3.3 Starting the Instrument...................................................................... 13
3.4 Connecting External Devices............................................................ 15
4 Instrument Tour................................................................... 19

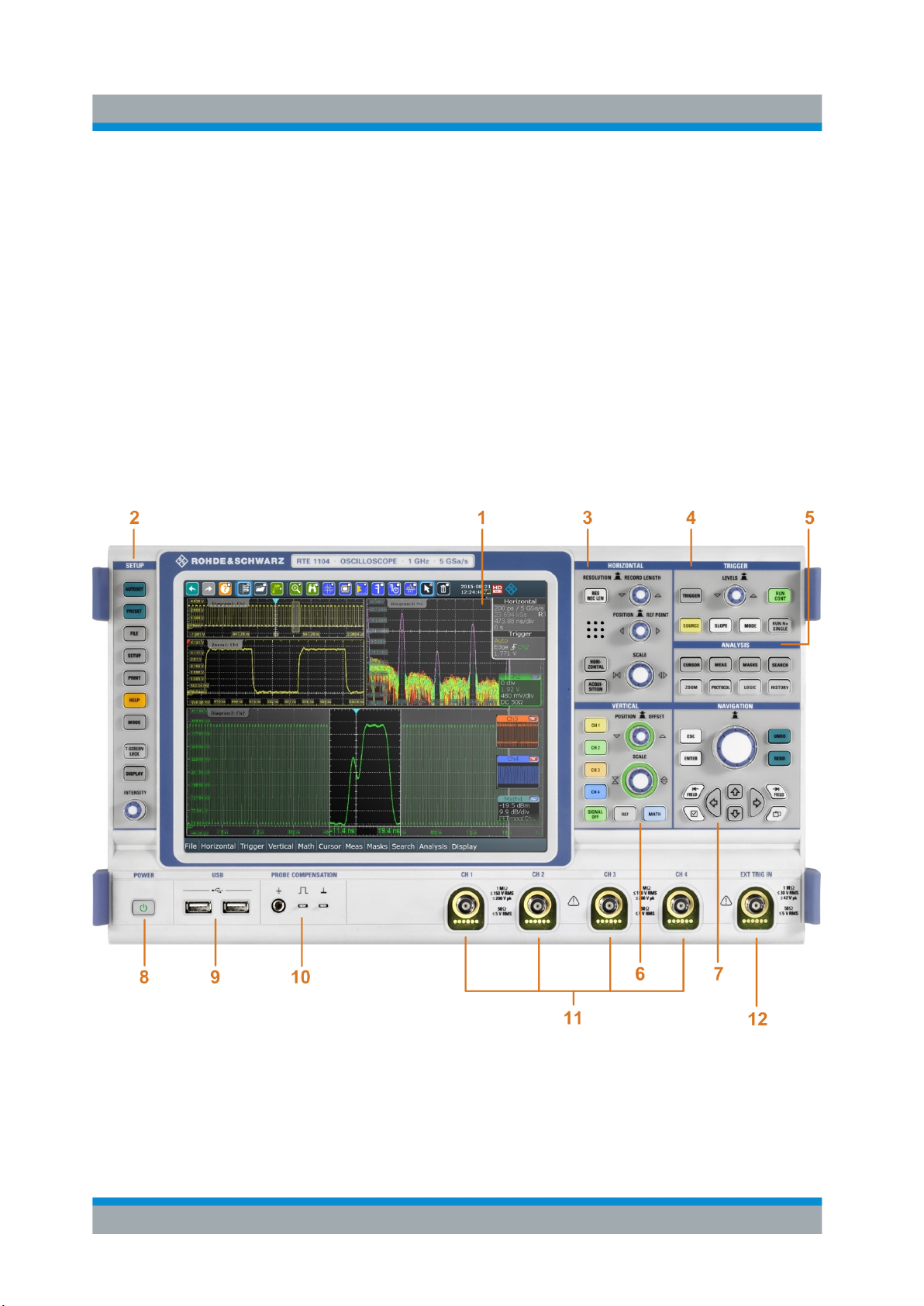

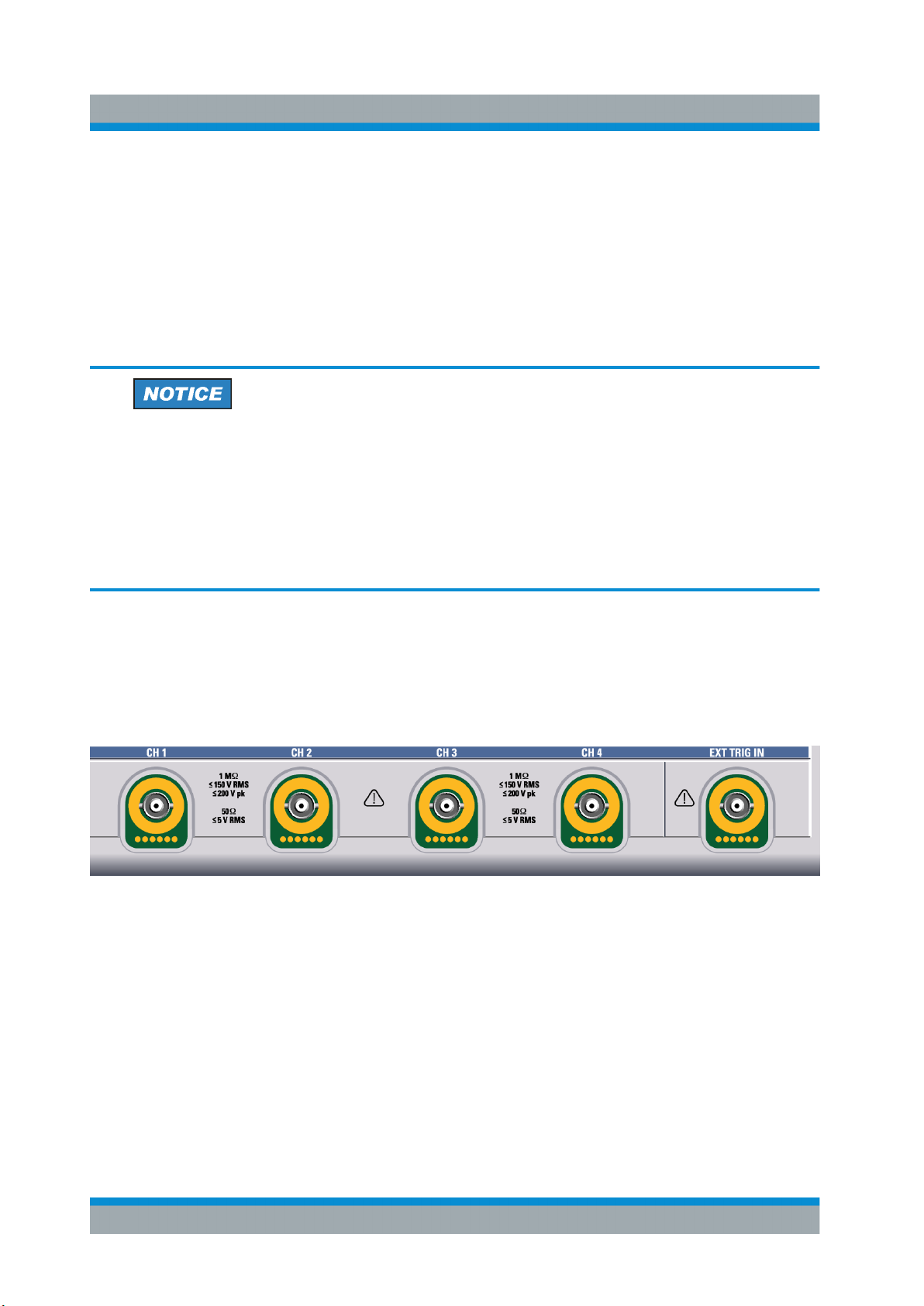

4.1 Front Panel.......................................................................................... 19
4.2 Rear Panel........................................................................................... 22
4.3 Keys and Controls.............................................................................. 25
5 Trying Out the Instrument...................................................37
5.1 Displaying a Basic Signal.................................................................. 37
5.2 Acquiring Data.................................................................................... 39
5.3 Changing the Waveform Scaling and Position................................ 40
5.4 Zooming into the Display................................................................... 46
5.5 Displaying the Waveform History......................................................48
5.6 Showing Basic Measurement Results.............................................. 50
5.7 Performing a Basic FFT Analysis......................................................58
5.8 Performing Mathematical Calculations.............................................60
5.9 Performing a Search...........................................................................62
www.allice.de
Allice Messtechnik GmbH

Contents
R&S®RTE
4Getting Started 1326.1026.02 ─ 08
5.10 Performing a Mask Test......................................................................63
5.11 Printing and Saving Screenshots......................................................66
5.12 Saving Data......................................................................................... 69
6 Operating the Instrument....................................................72
6.1 Means of Manual Interaction..............................................................72
6.2 Touchscreen Display.......................................................................... 73
6.3 App Cockpit.........................................................................................79
6.4 Working with Waveforms................................................................... 80
6.5 Rohde & Schwarz SmartGrid............................................................. 83
6.6 Using the Signal bar........................................................................... 84
6.7 Toolbar................................................................................................. 86
6.8 Displaying Results..............................................................................94
6.9 Using Dialog Boxes............................................................................ 96
6.10 Entering Data.......................................................................................98
6.11 Messages...........................................................................................100
6.12 Getting Information and Help.......................................................... 101
7 Setting Up the Instrument.................................................104
7.1 Performing a Self-alignment............................................................ 104
7.2 Aligning the Touchscreen................................................................ 105
7.3 Setting the Display Language..........................................................105
7.4 Adjusting Passive Probes................................................................106
8 Contacting Customer Support......................................... 107
Index................................................................................... 108
www.allice.de
Allice Messtechnik GmbH

Safety Information
R&S®RTE
5Getting Started 1326.1026.02 ─ 08
1 Safety Information
The product documentation helps you use the R&S RTE safely and efficiently.
Follow the instructions provided here and in the printed "Basic Safety Instruc-
tions". Keep the product documentation nearby and offer it to other users.
Intended use
The R&S RTE is intended for the development, production and verification of
electronic components and devices in industrial, administrative, and laboratory
environments. Use the R&S RTE only for its designated purpose. Observe the
operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injuries or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S RTE.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
www.allice.de
Allice Messtechnik GmbH

Preface
R&S®RTE
6Getting Started 1326.1026.02 ─ 08
2 Preface
2.1 Key Features
The R&S RTE oscilloscope provides fast signal acquisition and analysis:
●1 million waveforms per second waveform acquisition rate
●Bandwidth up to 2 GHz, memory depth of 50 MSa per channel
●Highly accurate digital trigger system
●Very low noise floor
●Precise measurements due to single-core A/D converter
●High measurement speed, even for complex analysis functions
●High-quality line of probes
For a detailed specification refer to the data sheet.
The R&S RTE oscilloscope brings various benefits in your daily work:
●Find rare signal faults quickly with no trade-offs for measurement and analysis
due to highest acquisition rate and shortest blind time.
●Access and analyze prior waveforms in the memory using the history function
●Get fastest results even with maximum data with hardware-accelerated pro-
cessing: mathematical operations, mask tests, histograms, automatic and cur-
sor measurements, and spectrum display.
●Capture closest successive events with the real-time digital trigger system. It
works with high trigger sensitivity at full bandwidth and very low trigger jitter.
●See signal details at your fingertip with fingertip zoom
●Get key measurement results at the push of a button with Quick Measurement
●Easy to use:
– Smart and straightforward user guidance
– Color-coded control elements for clear identification
– Signal icons with drag & drop functionality
– Toolbar with frequently used functionality
●Use various options for triggering and decoding of serial protocols, MSO
option, high resolution, and more.
Key Features
www.allice.de
Allice Messtechnik GmbH

Preface
R&S®RTE
7Getting Started 1326.1026.02 ─ 08
2.2 Documentation Overview
This section provides an overview of the R&S RTE user documentation.
2.2.1 Manuals and Instrument Help
You find the manuals on the product page at:
www.rohde-schwarz.com/manual/rte
Getting started manual
Introduces the R&S RTE and describes how to set up and start working with the
instrument, and describes basic operations. A printed English version is included
in the delivery. Editions in other languages are available on the product website.
Instrument help
The help offers quick, context-sensitive access to the complete information for the
firmware basic functionality and applications.
User manual
Describes all instrument functions in detail. It also provides an introduction to
remote control, a complete description of the remote control commands with pro-
gramming examples, and information on maintenance and instrument interfaces.
Includes the contents of the getting started manual.
The online version of the user manual provides the complete contents for immedi-
ate display on the internet.
Basic safety instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
Instrument security procedures manual
Deals with security issues when working with the R&S RTE in secure areas.
Documentation Overview
www.allice.de
Allice Messtechnik GmbH

Preface
R&S®RTE
8Getting Started 1326.1026.02 ─ 08
Service Manual
Describes the performance test for checking the rated specifications, module
replacement, firmware update, troubleshooting and fault elimination, and contains
mechanical drawings and spare part lists. The service manual is available for reg-
istered users on the global Rohde & Schwarz information system (GLORIS,
https://gloris.rohde-schwarz.com).
2.2.2 Data Sheet and Brochure
The data sheet contains the technical specifications of the R&S RTE. It also lists
the options with their order numbers and optional accessories. The brochure pro-
vides an overview of the instrument and deals with the specific characteristics.
See www.rohde-schwarz.com/brochure-datasheet/rte
2.2.3 Release Notes, Open Source Acknowledgment
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation. The open source
acknowledgment document provides verbatim license texts of the used open
source software. It can also be read directly on the instrument.
See www.rohde-schwarz.com/firmware/rte.
2.2.4 Application notes, Application cards, Videos
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/rte and Oscilloscopes Application Vid-
eos - Media Center
Documentation Overview
www.allice.de
Allice Messtechnik GmbH

Preface
R&S®RTE
9Getting Started 1326.1026.02 ─ 08
2.3 Conventions Used in the Documentation
2.3.1 Typographical Conventions
The following text markers are used throughout this documentation:
Convention Description
"Graphical user interface
elements"
All names of graphical user interface elements on the screen,
such as dialog boxes, menus, options, buttons, and softkeys are
enclosed by quotation marks.
[Keys] Key and knob names are enclosed by square brackets.
Filenames, commands,
program code
Filenames, commands, coding samples and screen output are
distinguished by their font.
Input Input to be entered by the user is displayed in italics.
Links Links that you can click are displayed in blue font.
"References" References to other parts of the documentation are enclosed by
quotation marks.
2.3.2 Conventions for Procedure Descriptions
When operating the instrument, several alternative methods may be available to
perform the same task. In this case, the procedure using the touchscreen is
described. Any elements that can be activated by touching can also be clicked
using an additionally connected mouse. The alternative procedure using the keys
on the instrument or the on-screen keyboard is only described if it deviates from
the standard operating procedures.
The term "select" may refer to any of the described methods, i.e. using a finger on
the touchscreen, a mouse pointer in the display, or a key on the instrument or on
a keyboard.
Conventions Used in the Documentation
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
10Getting Started 1326.1026.02 ─ 08
3 Preparing for Use
This section describes the basic steps to be taken when setting up the R&S RTE
for the first time.
Risk of instrument damage due to inappropriate operating conditions
An unsuitable operating site or test setup can damage the instrument and
connected devices. Before switching on the instrument, observe the infor-
mation on appropriate operating conditions provided in the data sheet. In
particular, ensure the following:
●All fan openings are unobstructed and the airflow perforations are unim-
peded. A minimum distance of 10 cm to other objects is recommended.
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●The ambient temperature does not exceed the range specified in the
data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are connected correctly and are not overloaded.
3.1 Unpacking and Checking the Instrument
To remove the instrument from its packaging and check the equipment for com-
pleteness, proceed as follows:
1. Pull off the polyethylene protection pads from the instrument's rear feet.
2. Carefully remove the pads from the instrument handles at the front.
3. Pull off the corrugated cardboard cover that protects the rear of the instru-
ment.
4. Carefully unthread the corrugated cardboard cover at the front that protects
the instrument handles and remove it.
Unpacking and Checking the Instrument
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
11Getting Started 1326.1026.02 ─ 08
5. Check the equipment for completeness using the delivery note and the acces-
sory lists for the various items.
6. Check the instrument for any damage. If there is damage, immediately contact
the carrier who delivered the instrument. Make sure not to discard the box and
packing material.
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped later, you can use the material to protect the control ele-
ments and connectors.
3.2 Positioning the Instrument
The instrument is designed for use under laboratory conditions. It can be used in
standalone operation on a bench top or can be installed in a rack.
3.2.1 Bench Top Operation
For standalone operation, place the instrument on a horizontal bench with even,
flat surface. The instrument can be used in horizontal position, standing on its
feet, or with the support feet on the bottom extended.
Positioning the Instrument
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
12Getting Started 1326.1026.02 ─ 08

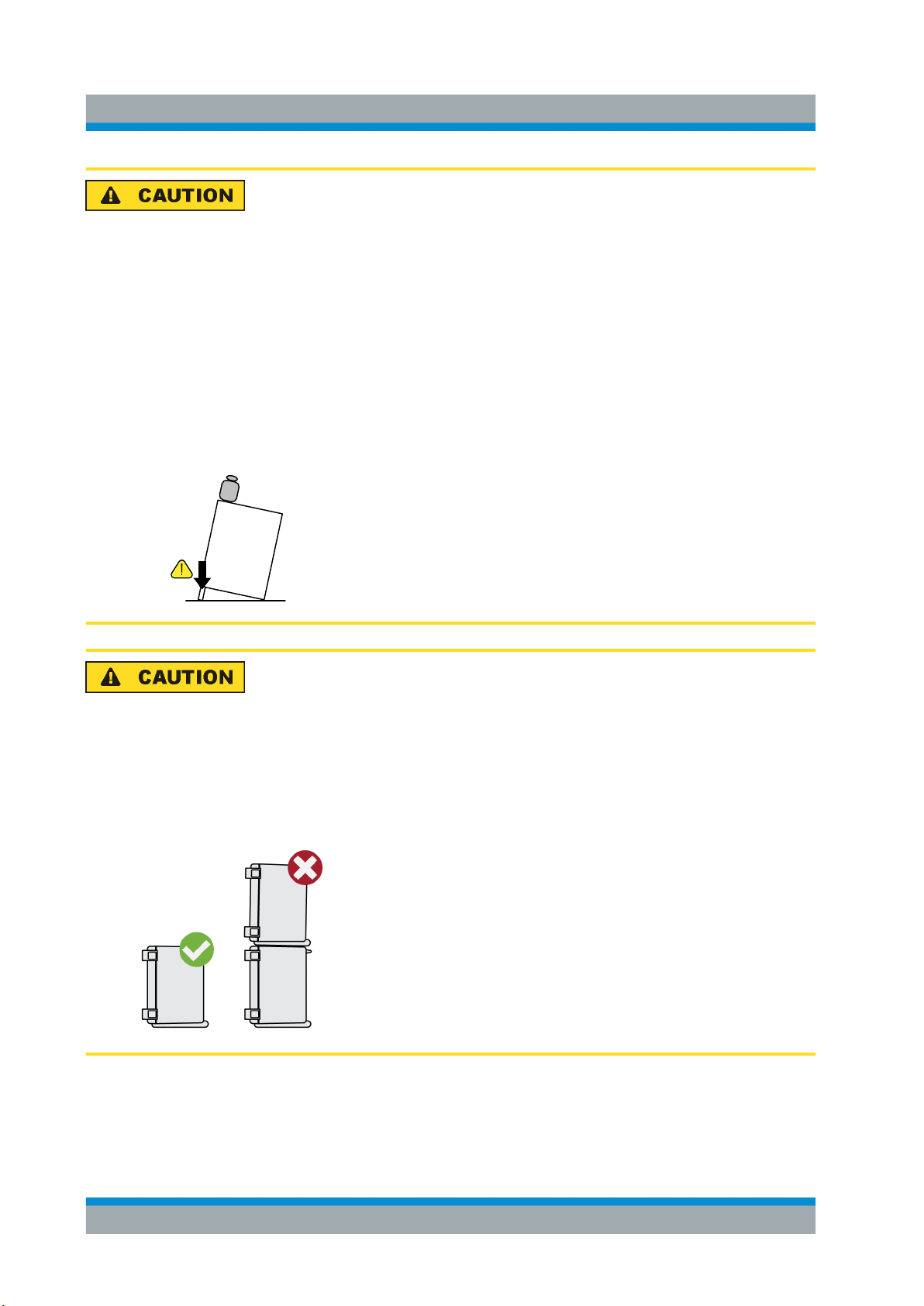

Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument
is shifted. This can cause damage or injury.
●Fold the feet completely in or out to ensure stability of the instrument.
Never shift the instrument when the feet are folded out.
●When the feet are folded out, do not work under the instrument or place
anything underneath.
●The feet can break if they are overloaded. The overall load on the fol-
ded-out feet must not exceed 200 N.
Fmax
Risk of injury when stacking instruments insecurely
Never stack instruments on top of each other. The instrument's top surface
area is too small to stack multiple instruments. Stacked instruments can tilt
over and cause injury or damage the instrument.
If you need to stack instruments, install them in a rack.
Positioning the Instrument
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
13Getting Started 1326.1026.02 ─ 08
3.2.2 Rackmounting
The instrument can be installed in a rack using a rack adapter kit. The order num-
ber is given in the data sheet. The installation instructions are part of the adapter
kit.
Risk of instrument damage due to insufficient airflow in a rack
If you mount several instruments in a rack, you need an efficient ventilation
concept to ensure that the instruments do not overheat. Insufficient airflow
for a longer period can disturb the operation and even cause damage.
3.3 Starting the Instrument
Risk of injury
Connect the oscilloscope to an outlet that has a ground contact.
If grounding is not ensured by the mains system, ground the oscilloscope
using the protective earth conductor on the front panel and an appropriate
cable.
Do not use an isolating transformer to connect the oscilloscope to the AC
power supply.
3.3.1 Powering On and Off
The R&S RTE can be used with different AC power voltages and adapts itself
automatically to it.
The nominal ranges are:
●100 V to 240 V AC at 50 Hz to 60 Hz and 400 Hz
●max. 3.3 A to 1.5 A
●max. 300 W
Starting the Instrument
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
14Getting Started 1326.1026.02 ─ 08
To power on
1. Connect the power cable to the AC power connector on the rear panel of the
R&S RTE.
2. Connect the power cable to the socket outlet.
3. Switch the main power switch at the rear of the instrument to position I.
The power key on the front panel lights up.
Before you start measurements, be sure to comply with the warm-up phase
specified in the data sheet.
If you leave the main power switch on, the instrument is in standby mode. To dis-
connect from power supply, power off the instrument. Powering off is only
required if the instrument must be disconnected from all power supplies.
To power off
1. If the instrument is running and the [POWER] key is green, press the
[POWER] key on the front panel to shut down the instrument.
2. Switch the main power switch at the rear of the instrument to position 0.
3. Disconnect the AC power cable from the AC power supply.
Risk of losing data
If you switch off the running instrument using the rear panel switch or by
disconnecting the power cord, the instrument loses its current settings. Fur-
thermore, program data can be lost.
Press the POWER key first to shut down the application properly.
3.3.2 Starting Up and Shutting Down
The [POWER] key is located in the bottom left corner of the front panel.
To start up the instrument
1. Make sure that the R&S RTE is connected to the AC power supply and the
main power switch on the rear panel is in position I.
Starting the Instrument
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
15Getting Started 1326.1026.02 ─ 08
2. Press the [POWER] key on the front panel.
The instrument performs a system check, boots the Windows operating sys-
tem, and then starts the R&S RTE firmware.
The [POWER] key turns green and the illuminated keys on the front panel
light up. If the previous session was terminated regularly, the oscilloscope
uses the last settings.
To shut down the instrument
► Press the [POWER] key on the front panel.
All current settings are saved, and the software shuts down. The [POWER]
key turns orange. The standby power supplies only the power switch circuits.
Now it is safe to power off the instrument.
The "Exit" function in the "File" menu shuts down only the firmware application. To
shut down the instrument completely, also shut down the operating system in the
"Start" menu, or use the [POWER] key.
3.3.3 EMI Suppression
Electromagnetic Interference (EMI) may affect the measurement results.
To suppress generated Electromagnetic Interference:
●Use suitable shielded cables of high quality. For example use double-shielded
RF and LAN cables.
●Always terminate open cable ends.
●Note the EMC classification in the data sheet.
3.4 Connecting External Devices
The following interfaces for external devices are provided:
●USB connectors at the front and rear panel of the instrument
●Monitor connector DVI-D at the rear panel of the instrument
●Connecting USB Devices................................................................................16
●Connecting an External Monitor......................................................................17
Connecting External Devices
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
16Getting Started 1326.1026.02 ─ 08
3.4.1 Connecting USB Devices
The USB interfaces on the front and rear panels allow you to connect USB devi-
ces directly to the instrument. The number of USB connectors can be increased
by using USB hubs. Due to the large number of available USB devices, there is
almost no limit to the expansions that are possible with the R&S RTE.
The following USB devices can be useful, for example:
●USB flash drives to save screenshots and measurement results, and for easy
installation of firmware applications
●Keyboard and/or mouse to simplify the operation and the entry of data, com-
ments, filenames, etc.
●Printer to print measurement results and screenshots
You can connect or disconnect all USB devices during operation of the instru-
ment.
Installing USB devices on R&S RTE is easy under the Windows operating sys-
tem, because all USB devices are plug&play. After a device is connected to the
USB interface, Windows automatically searches for a suitable device driver.
If the operating system does not find a suitable driver, it prompts you to specify a
directory that contains the driver software. If the driver software is on a storage
media, connect the appropriate drive to the instrument before proceeding. If the
instrument is integrated in a network, you can also install driver data stored in a
network directory.
When a USB device is disconnected from the R&S RTE, Windows immediately
detects the change in hardware configuration and deactivates the corresponding
driver.
The properties of external USB devices are configured in the operating system,
not in the R&S RTE software. It is recommended that you use mouse and key-
board to access and modify the settings of the Windows operating system. To
access Windows, press the Windows key on the external keyboard, or select
"File" > "Minimize Application" on the R&S RTE menu.
Connecting a USB flash drive
If the installation of a USB flash drive is successful, Windows informs you that the
device is ready to use. The device is made available as a new drive ("D:") and is
displayed in Windows Explorer. The name of the drive depends on the manufac-
turer.
Connecting External Devices
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
17Getting Started 1326.1026.02 ─ 08
Connecting a keyboard
The keyboard is detected automatically when it is connected. The default input
language is English – US.
To configure the keyboard properties:
1. Tap the "Find" icon (magnifier) on the Windows taskbar.
2. Type keybord.
3. Select "Edit language and keyboard options".
Connecting a mouse
The mouse is detected automatically when it is connected. To configure the
mouse properties:
1. Tap the "Find" icon (magnifier) on the Windows taskbar.
2. Type mouse.
3. Select "Mouse settings".
Connecting a printer
When printing a file, the instrument checks whether a printer is connected and
turned on, and whether the appropriate printer driver is installed. If necessary,
printer driver installation is initiated by the Windows system. To install a printer
driver:
1. Tap the "Find" icon (magnifier) on the Windows taskbar.
2. Type printer.
3. Select "Printers & scanners".
4. Select "Add a printer or scanner".
3.4.2 Connecting an External Monitor
You can connect an external monitor or projector to the R&S RTE. The following
connectors are available:
●"MONITOR (DVI-D)" on page 24
Before connecting an external monitor, ensure that the monitor and the R&S RTE
are connected to a ground contact. Otherwise the instrument can be damaged.
Connecting External Devices
www.allice.de
Allice Messtechnik GmbH

Preparing for Use
R&S®RTE
18Getting Started 1326.1026.02 ─ 08
After connecting an additional monitor or projector to the instrument, configure it
for usage. The relevant settings are Windows settings but you can configure the
displays directly in the instrument setup.
1. Check the input type of the monitor or projector. Make sure to select the cor-
rect cable. To use a VGA monitor, you need an active DVI-D to VGA adapter.
2. Press the [SETUP] key.
3. Select the "System" tab.
4. Tap "Display / Monitors".
5. To show the instrument's display content only on the external monitor, select
"Projector only".
To show the instrument's display content on both the oscilloscope and the
external monitor, select "Duplicate".
The touchscreen of the R&S RTE has a screen resolution of 1024 x 768 pixel.
Most external monitors have a higher screen resolution. If the screen resolution of
the monitor is set higher than the instrument's resolution, the application window
uses a 1024 x 768 area of the monitor display. For full screen display, adjust the
monitor's screen resolution using "Additional display settings".
Connecting External Devices
www.allice.de
Allice Messtechnik GmbH

Instrument Tour
R&S®RTE
19Getting Started 1326.1026.02 ─ 08
4 Instrument Tour
This chapter describes the front and rear panels of the instrument including all
function keys and connectors, and also the touchscreen with its control elements.
4.1 Front Panel
The front panel of the R&S RTE is shown in Figure 4-1. The function keys are
grouped in functional blocks to the left and the right of the touchscreen. Below the
screen, various connectors are located.
Figure 4-1: Front panel of R&S
RTE1104 with 4 input channels
1 = Touchscreen
2 = [SETUP] controls
3 = [HORIZONTAL] controls
4 = [TRIGGER] controls
Front Panel
www.allice.de
Allice Messtechnik GmbH

Instrument Tour
R&S®RTE
20Getting Started 1326.1026.02 ─ 08
5 = [ANALYSIS] controls
6 = [VERTICAL] controls
7 = [NAVIGATION] controls
8 = [POWER] key
9 = USB 2.0 connectors
10 = Connectors for probe compensation
11 = Input channels
12 = External trigger input
Instrument damage caused by cleaning agents
Cleaning agents contain substances such as solvents (thinners, acetone,
etc.), acids, bases, or other substances. Solvents can damage the front
panel labeling, plastic parts, or screens, for example.
Never use cleaning agents to clean the outside of the instrument. Use a
soft, dry, lint-free dust cloth instead.
4.1.1 Input Connectors
The R&S RTE has two or four channel inputs to connect the input signals, and an
external trigger input to control the measurement by an external signal.
The input connectors are provided with a special Rohde & Schwarz active probe
interface, and they are BNC compatible. Thus, the instrument can automatically
detect passive probes with standard BNC connector and active Rohde & Schwarz
probes having the Rohde & Schwarz probe interface.
The input impedance is selectable, the values are 50 Ω and 1 MΩ.
Front Panel
