Rohde & Schwarz R&S TS-PIO4 User manual

R&S®TS-PIO4
Digital Functional Test Module
User Manual
1178319202
Version 06
(;ÜOê2)

This manual describes the following R&S®TSVP module:
●R&S®TS-PIO4 (1525.5559.02)
© 2022 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1178.3192.02 | Version 06 | R&S®TS-PIO4
The following abbreviations are used in this manual: R&S®TS‑PIO4 is abbreviated to R&S TS‑PIO4.

Contents
R&S®TS-PIO4
3User Manual 1178.3192.02 ─ 06
Contents
1 Safety information (multilingual).......................................................... 7
2 Documentation overview.....................................................................11
2.1 Getting started manual............................................................................................... 11
2.2 User manuals...............................................................................................................11
2.3 System manual............................................................................................................12
2.4 Service manual............................................................................................................12
2.5 Printed safety instructions.........................................................................................12
2.6 Brochures and specifications....................................................................................12
2.7 Release notes and open source acknowledgment.................................................. 12
3 Welcome to the R&S TS-PIO4.............................................................13
4 Module tour...........................................................................................15
4.1 Status LEDs................................................................................................................. 15
4.2 Connectors X1 and X20.............................................................................................. 16
4.3 Connector X10.............................................................................................................16
4.4 Connector X30.............................................................................................................16
5 Installing the module........................................................................... 17
6 Typical applications............................................................................. 18
6.1 Digital functional test – static.................................................................................... 18
6.2 Digital functional test – dynamic............................................................................... 19
7 Functions..............................................................................................20
7.1 Overview...................................................................................................................... 20
7.1.1 General......................................................................................................................... 20
7.1.2 Ports..............................................................................................................................21
7.1.3 Memories...................................................................................................................... 21
7.1.4 Static digital test............................................................................................................ 23
7.1.5 Dynamic digital test....................................................................................................... 23
7.2 Programming of digital tests..................................................................................... 24
7.2.1 Digital tests with device driver functions....................................................................... 25
7.2.2 Digital test with DIO manager....................................................................................... 28

Contents
R&S®TS-PIO4
4User Manual 1178.3192.02 ─ 06
7.3 Configuration of digital channels.............................................................................. 33
7.3.1 Setting of voltage range................................................................................................ 33
7.3.2 Configuration of stimulus channels............................................................................... 33
7.3.3 Configuration of input channels.....................................................................................34
7.3.4 Time settings for data output.........................................................................................35
7.3.5 Time settings for data recording....................................................................................35
7.3.6 Configuration of data width in dynamic mode............................................................... 35
7.3.7 Power consumption.......................................................................................................37
7.4 Triggering and sequence control.............................................................................. 40
7.4.1 Trigger units.................................................................................................................. 40
7.4.2 Receiving of trigger signals........................................................................................... 41
7.4.3 Generation of trigger signals......................................................................................... 42
7.5 PWM............................................................................................................................. 43
7.6 Frequency measurement............................................................................................43
7.7 Bidirectional channels................................................................................................44
7.8 External clock input.................................................................................................... 45
7.9 Synchronization of multiple modules....................................................................... 45
7.10 AUX channels.............................................................................................................. 45
7.11 GND relay.....................................................................................................................45
8 Software................................................................................................46
8.1 Driver software............................................................................................................ 46
8.2 Soft panel.....................................................................................................................46
8.3 Programming examples for R&S TS-PIO4................................................................ 47
8.3.1 Digital test with "DIO manager" library.......................................................................... 47
8.3.2 Dynamic pattern execution with IVI Digital....................................................................52
8.3.3 Static pattern execution with IVI Digital.........................................................................61
8.3.4 Static pattern output with Low‑Level driver functions....................................................68
8.3.5 Dynamic pattern execution with Low‑Level driver functions......................................... 71
8.3.6 Triggered pattern execution.......................................................................................... 76
9 Maintenance, storage and disposal................................................... 81
9.1 Storage.........................................................................................................................81
9.2 Disposal....................................................................................................................... 81

Contents
R&S®TS-PIO4
5User Manual 1178.3192.02 ─ 06
10 Troubleshooting................................................................................... 82
10.1 LED test........................................................................................................................82
10.2 Power-on test.............................................................................................................. 82
10.3 R&S TSVP self-test..................................................................................................... 83
10.4 Contacting customer support....................................................................................83
Annex.................................................................................................... 84
A Specifications.......................................................................................84
B Block diagrams.................................................................................... 85
C Interface description............................................................................90
C.1 Connector X10.............................................................................................................90
C.2 Connector X20.............................................................................................................91
C.3 Connector X30.............................................................................................................92
C.4 Connector X1...............................................................................................................93

Contents
R&S®TS-PIO4
6User Manual 1178.3192.02 ─ 06

Safety information (multilingual)
R&S®TS-PIO4
7User Manual 1178.3192.02 ─ 06
1 Safety information (multilingual)
This option or accessory is designed for a specific Rohde & Schwarz product. Multilin-
gual safety information is delivered with the product. Follow the provided installation
instructions.
Esta opción o este accesorio están diseñados para un producto Rohde & Schwarz
concreto. El producto va acompañado de información de seguridad en varios idiomas.
Siga las instrucciones de instalación puestas a disposición.
Diese Option oder dieses Zubehör ist für ein bestimmtes Rohde & Schwarz Produkt
vorgesehen. Mit dem Produkt werden mehrsprachige Sicherheitsinformationen gelie-
fert. Befolgen Sie die mitgelieferten Installationsanweisungen.
Cette option ou cet accessoire est conçu pour un produit Rohde & Schwarz spécifi-
que. Des informations de sécurité multilingues sont fournies avec le produit. Suivez les
instructions d'installation fournies.
Questa funzione opzionale o accessoria è progettata per un prodotto
Rohde & Schwarz specifico. Con il prodotto sono fornite informazioni sulla sicurezza in
formato multilingue. Seguire le istruzioni di installazione allegate.
Esta(e) opção ou acessório foi concebida(o) para um produto específico da
Rohde & Schwarz. Serão fornecidas informações de segurança multilingues com o
produto. Siga as instruções de instalação fornecidas.
Αυτή η προαιρετική επιλογή ή εξάρτημα έχει σχεδιαστεί για συγκεκριμένο προϊόν
Rohde & Schwarz. Μαζί με το προϊόν παρέχονται πληροφορίες ασφαλείας σε πολλές
γλώσσες. Ακολουθήστε τις παρεχόμενες οδηγίες εγκατάστασης.
Din l-għażla jew aċċessorju huma mfassla għal prodott Rohde & Schwarz speċifiku. L-
informazzjoni multilingwi dwar is-sikurezza hija pprovduta mal-prodott. Segwi l-istruzz-
jonijiet ipprovduti għall-installazzjoni.
Deze optie of dit accessoire is ontwikkeld voor een specifiek product van
Rohde & Schwarz. Het product wordt geleverd met veiligheidsinformatie in meerdere
talen. Volg de meegeleverde installatie-instructies.
Denne mulighed eller tilbehørsdel er designet til et specifikt Rohde & Schwarz pro-
dukt. En flersproget sikkerhedsanvisning leveres sammen med produktet. Følg de
medfølgende installationsanvisninger.
Detta tillval eller tillbehör är avsett för en särskild produkt från
Rohde & Schwarz. Säkerhetsinformation på flera språk medföljer produkten. Följ de
medföljande installationsanvisningarna.
Tämä vaihtoehto tai lisävaruste on suunniteltu tietylle Rohde & Schwarz -yrityksen
tuotteelle. Tuotteen mukana on toimitettu monikieliset turvallisuusohjeet. Noudata
annettuja asennusohjeita.
Dette alternativet eller ekstrautstyret er utformet for et spesifikt Rohde & Schwarz pro-
dukt. Flerspråklig sikkerhetsinformasjon leveres med produktet. Overhold installasjons-
veiledningen som følger med.

Safety information (multilingual)
R&S®TS-PIO4
8User Manual 1178.3192.02 ─ 06
See valik või lisaseade on mõeldud konkreetsele Rohde & Schwarz tootele. Tootega
on kaasas mitmekeelne ohutusteave. Järgige kaasasolevaid paigaldusjuhiseid.
Šī opcija vai piederums ir izstrādāts īpaši Rohde & Schwarz produktam. Produktam
pievienota drošības informācija vairākās valodās. Ievērojiet sniegtos uzstādīšanas nor-
ādījumus.
Ši parinktis ar priedas skirti konkrečiam Rohde & Schwarz gaminiui. Su gaminiu patei-
kiama saugos informacijos keliomis kalbomis. Laikykitės pateikiamų montavimo nuro-
dymų.
Þessi auka- eða fylgibúnaður er hannaður fyrir tiltekna Rohde & Schwarz vöru. Öryggi-
supplýsingar á mörgum tungumálum fylgja með vörunni. Fylgið meðfylgjandi uppset-
ningarleiðbeiningum.
Tá an rogha nó an oiriúint seo ceaptha le haghaidh táirge Rohde & Schwarz son-
rach. Cuirtear eolas sábháilteachta ilteangach ar fáil leis an táirge. Lean na treoracha
suiteála a thugtar.
Эта опция или принадлежность предназначена для конкретного продукта
Rohde & Schwarz. В комплект поставки продукта входят инструкции по технике
безопасности на нескольких языках. Соблюдайте прилагаемые инструкции по
установке.
Ця опція або приладдя призначені для конкретного виробу
Rohde & Schwarz. Інструкції з техніки безпеки кількома мовами постачаються
разом із виробом. Дотримуйтеся наданих інструкцій зі встановлення.
Ta opcja lub akcesorium jest przeznaczone do określonego produktu
Rohde & Schwarz. Dostarczany produkt zawiera informacje w wielu językach dotyc-
zące bezpieczeństwa. Należy postępować zgodnie z dostarczonymi instrukcjami insta-
lacji.
Tato varianta nebo příslušenství je určeno pro konkrétní produkt Rohde & Schwarz.
S produktem jsou dodávány vícejazyčné bezpečnostní informace. Řiďte se přiloženými
pokyny k instalaci.
Táto verzia alebo príslušenstvo je navrhnutá pre špecifický výrobok
Rohde & Schwarz. S výrobkom sa dodávajú viacjazyčné bezpečnostné pokyny. Riaďte
sa dodanými pokynmi na inštaláciu.
Ta možnost ali dodatek je zasnovan za določen izdelek podjetja
Rohde & Schwarz. Izdelku so priložena varnostna navodila v več jezikih. Upoštevajte
priložena navodila za namestitev.
Ezt a beállítást vagy tartozékot egy adott Rohde & Schwarz termékhez tervezték. A
termékhez többnyelvű biztonsági információt mellékelünk. Kövesse a mellékelt szere-
lési utasításokat.
Тази опция или аксесоар са проектирани за специфичен продукт на
Rohde & Schwarz. Многоезикова информация за безопасност се доставя с
продукта. Следвайте предоставените инструкции за монтаж.
Ova opcija ili oprema namijenjena je za određeni proizvod tvrtke Rohde & Schwarz. Uz
proizvod su dostavljene sigurnosne napomene na više jezika. Pratite isporučene upute
za ugradnju.

Safety information (multilingual)
R&S®TS-PIO4
9User Manual 1178.3192.02 ─ 06
Ova opcija ili pribor je dizajniran za određeni Rohde & Schwarz proizvod. Proizvodu su
priložene sigurnosne informacije na više jezika. Slijedite priložena uputstva za instala-
ciju.
Ova opcija ili dodatni pribor je projektovan za određeni Rohde & Schwarz proiz-
vod. Bezbednosne informacije na više jezika se isporučuju uz proizvod. Sledite dos-
tavljena uputstva za instalaciju.
Această opțiune sau acest accesoriu a fost conceput pentru un produs specific
Rohde & Schwarz. Informațiile multilingve privind siguranța sunt livrate împreună cu
produsul. Urmați instrucțiunile de instalare furnizate.
Ky opsion ose aksesor është krijuar për një produkt specifik Rohde & Schwarz. Bashkë
me produktin jepen edhe informacionet e sigurisë në shumë gjuhë. Ndiqni udhëzimet e
dhëna të instalimit.
Оваа опција или додаток се наменети за одреден производ на
Rohde & Schwarz. Со производот се испорачани повеќејазични безбедносни
упатства. Следете ги дадените упатства за инсталација.
Bu opsiyon veya aksesuar, belirli bir Rohde & Schwarz ürünü için tasarlanmıştır. Çok
dilli güvenlik uyarıları ürünle birlikte teslim edilir. Size sağlanan kurulum talimatlarına
uyun.
Şu opsiýa ýa-da esbap Rohde & Schwarz anyk önüm üçin niýetlenilen. Dürli dildäki
howpsuzlyk barada maglumat önüm bilen bile üpjün edilýär. Üpjün edilen gurnama
ugrukdyrmalaryny ýerine ýetiriň.
本选件或附件专门设计用于特定的 Rohde & Schwarz 产品。产品随附多种语言版本的安
全资讯。谨遵文件中的安装说明。
本オプションアクセサリは、特定の Rohde & Schwarz 製品向けに設計されています。
多言語で記載された安全情報が製品に付属します。付属のインストール手順に従って
ください。
이 옵션 또는 액세서리는 특정 Rohde & Schwarz 제품용으로 설계되었습니다. 제품과
함께 다국어로 작성된 안전 정보가 제공됩니다. 함께 제공된 설치 지침을 따르십시오.
本選配或配件專門設計用於特定的 Rohde & Schwarz 產品。產品隨附多種語言版本的安
全資訊。遵守文件中的安裝說明。

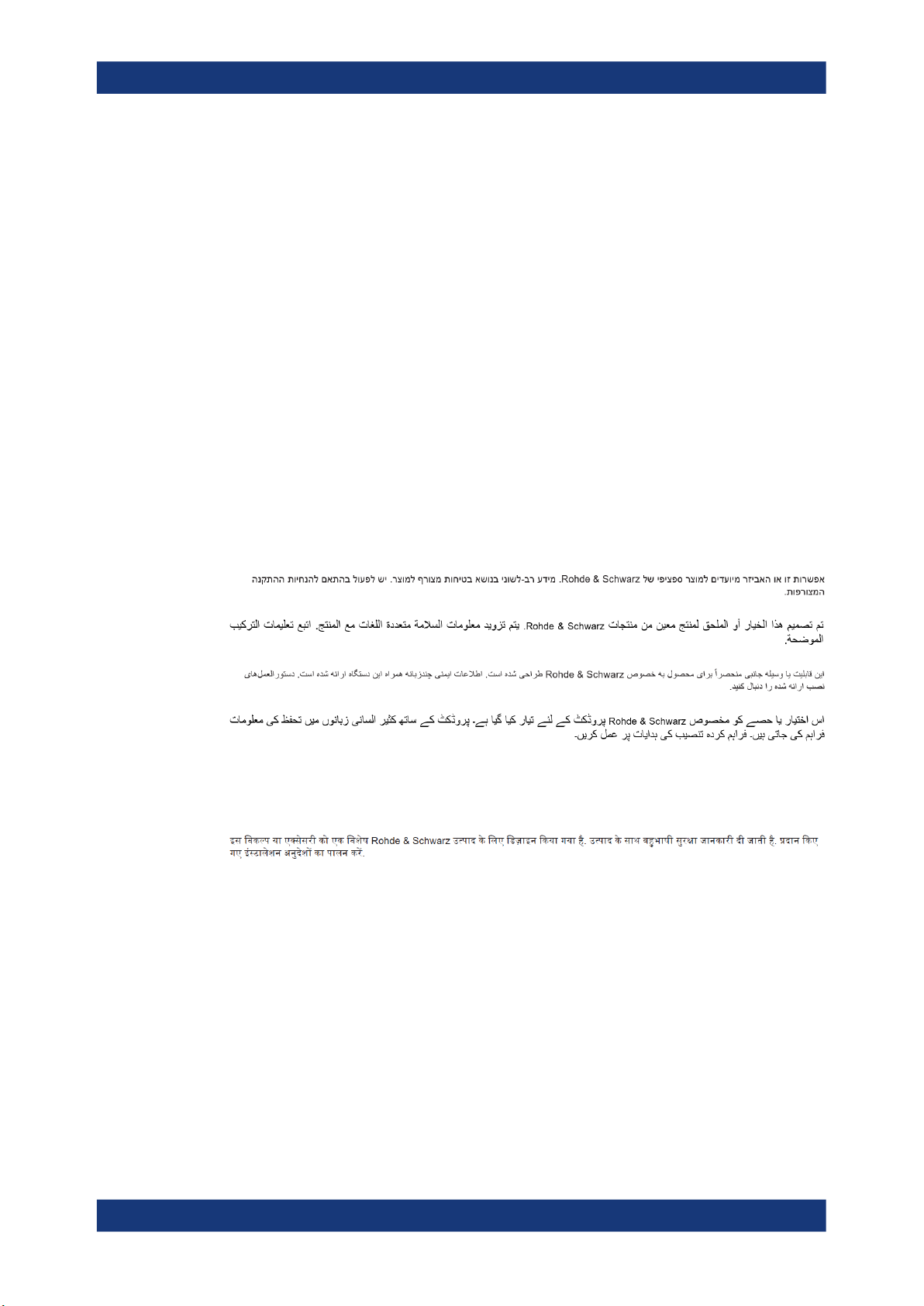

Safety information (multilingual)
R&S®TS-PIO4
10User Manual 1178.3192.02 ─ 06
Tùy chọn hoặc phụ kiện này dành riêng cho một sản phẩm Rohde & Schwarz cụ thể.
Thông tin an toàn đa ngôn ngữ được cung cấp kèm theo sản phẩm. Thực hiện theo
hướng dẫn lắp đặt kèm theo.
ตัวเลือกหรืออุปกรณเสริมนีออกแบบมาสำหรับผลิตภัณฑ Rohde & Schwarz โดยเฉพาะ โดยจะมีการจัดสงขอมูลดานความปลอดภัย-
หลายภาษามาใหพรอมกับผลิตภัณฑ ปฏิบัติตามคำแนะนำในการติดตังทีใหไว
Pilihan atau aksesori ini direka bentuk untuk produk Rohde & Schwarz yang ter-
tentu. Maklumat keselamatan berbilang bahasa disertakan bersama produk. Ikut ara-
han pemasangan yang diberikan.
Opsi atau aksesori ini dirancang untuk produk Rohde & Schwarz tertentu. Informasi
keamanan dalam beberapa bahasa juga disertakan bersama produk. Ikuti petunjuk
pemasangan yang disediakan.
Esta opción o este accesorio están diseñados para un producto Rohde & Schwarz en
concreto. El producto va acompañado de información de seguridad en varios idiomas.
Siga las instrucciones de instalación proporcionadas con el producto.
Esta opção ou acessório foi desenvolvido para um produto Rohde & Schwarz especí-
fico. Informações de segurança em vários idiomas acompanham o produto. Siga as
instruções de instalação disponibilizadas.

Documentation overview
R&S®TS-PIO4
11User Manual 1178.3192.02 ─ 06
2 Documentation overview
This section provides an overview of the R&S TSVP (test system versatile platform)
user documentation.
All documents are delivered with the Generic Test Software Library ("R&S GTSL")
installation package. After installing the software, you can open all the documentation
from the Windows "Start" menu. Additionally, you can find detailed information about
the software interfaces in the "R&S GTSL Help" folder in the Windows "Start" menu.
The user documentation and "R&S GTSL" installation package are also available for
download in GLORIS at:
https://gloris.rohde-schwarz.com/
For details, see the R&S TSVP Getting Started manual.
2.1 Getting started manual
Introduces the R&S TSVP (test system versatile platform) and describes how to set up
and start working with the product. It includes safety information.
A printed version is delivered with the instrument.
2.2 User manuals
Separate manuals are provided for the base units, the individual plug-in module types,
as well as for the control software and the calibration tool:
●Base unit manual
The base unit user manuals introduce the base units and describes how to set up
and operate the product. It includes safety information and information on mainte-
nance and instrument interfaces. It includes the contents of the getting started
manual.
●Plug-in module manuals
Contain the description of the specific modules. Basic information on setting up the
R&S TSVP (test system versatile platform) is not included.
●In-System calibration user manuals
Provide all the information required for installation and operation of the in-system
calibration R&S TS-ISC solution.
●Control software
– R&S GTSL
Generic Test Software Library
– R&S EGTSL
Enhanced Generic Test Software Library
– R&S IC-Check
User manuals

Documentation overview
R&S®TS-PIO4
12User Manual 1178.3192.02 ─ 06
Generic Test Software Library
2.3 System manual
Describes the complete R&S TSVP (test system versatile platform) as a whole, includ-
ing the combined use of R&S CompactTSVP and R&S PowerTSVP, plug-in modules
and generic test software. It also includes typical use cases.
Additionally, it describes known installation problems (hardware and software) along
with possible solutions.
2.4 Service manual
Describes the self-test to check correct operation, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
2.5 Printed safety instructions
Provides safety information in many languages. The printed document is delivered with
the product.
2.6 Brochures and specifications
Separate brochures are provided for the base unit, the individual plug-in module types,
as well as for the control software. The brochures provide an overview of the base
units and each additional module, and also contain the technical specifications. They
also list the hardware options and their order numbers, and optional accessories.
2.7 Release notes and open source acknowledgment
The release notes list new features, improvements and known issues of the current
software version. In addition, the available firmware versions and the firmware update
procedure for plug-in modules are described.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
Release notes and open source acknowledgment

Welcome to the R&S TS-PIO4
R&S®TS-PIO4
13User Manual 1178.3192.02 ─ 06
3 Welcome to the R&S TS-PIO4
This manual describes the function and operation of the Rohde & Schwarz digital func-
tional test module R&S TS-PIO4 for use in the test system versatile platform
R&S TSVP. The module is controlled by the PXI bus and occupies one slot on the front
side of the R&S TSVP.
The R&S TS-PIO4 digital functional test module is used wherever digital circuits are
tested by flexibly programmable static or dynamic stimulation and the response is
recorded.
Deterministic, simultaneous stimulation and recording of digital signals makes it possi-
ble to simulate operating conditions in a manner that is very close to reality. A large
local memory pool and an independent sequence controller are available on the mod-
ule to ensure that the precise and predictable time response can be maintained for out-
put, recording and analysis of the bit patterns. Extensive trigger options via the PXI
trigger bus enable synchronization with additional R&S TS-PIO4 modules or other
measurement and stimulus modules. This makes it possible to increase the number of
digital channels in an application. Measurements in which signals are to be recorded
synchronously are also possible.
Output levels and input thresholds can be programmed in 8 ports each with 4 chan-
nels. This allows for optimum adaptability to the requirements of different logic families.
The effect of interference signals in the test setup can be minimized by adjusting the
hysteresis for the input thresholds.
Safety circuits to protect against short circuits, countervoltages and overvoltages con-
tribute to the robustness of the R&S TS-PIO4 digital functional test module. Due to the
extremely space‑saving design of the I/O safety circuit and signal conditioning unit, the
R&S TS-PIO4 occupies just one PXI slot. This makes it possible to set up very
high‑performance and compact measuring systems.
A soft panel is available for operation of the module. An IVI‑C driver is provided to
allow the module to be used under software control.
Features of the R&S TS-PIO4 digital functional test module.
●32 digital inputs and 32 digital outputs divided into 8 ports each with 4 channels
●Programmable output level range from ‒6 V to 10 V, output impedance 30 Ω (typ.)
●Resolution 14 bits
●Output current up to 150 mA per channel, 350 mA per port
●Tri‑state control in dynamic and static mode
●Two programmable input thresholds per port for hysteresis or level monitoring
●Inputs can be connected to outputs
●Pattern rate up to 40 MS/s per channel x 12.5 nsec. resolution
●Memory depth 2 Msample (32‑bit data)
●External clock input
●Synchronization/triggering via PXI trigger bus and via XTI (TTL)
●Timer/counter function
●FPGA‑based flexibility

Welcome to the R&S TS-PIO4
R&S®TS-PIO4
14User Manual 1178.3192.02 ─ 06
●Standalone self‑test capability
●LabWindows IVI‑C driver available
●Used in PXI based R&S TSVP base units

Module tour
R&S®TS-PIO4
15User Manual 1178.3192.02 ─ 06
4 Module tour
The R&S TS-PIO4 module is designed as a long plug-in module for mounting in the
front of PXI based base units.
Figure 4-1: Overview of interfaces on R&S TS ‑ PIO4 module
LEDs = Chapter 4.1, "Status LEDs", on page 15
X1 = Chapter 4.2, "Connectors X1 and X20", on page 16
X10 = Chapter 4.3, "Connector X10", on page 16
X20 = Chapter 4.2, "Connectors X1 and X20", on page 16
X30 = Chapter 4.4, "Connector X30", on page 16
Mechanical elements
●Retaining screws on the front to secure the module after installation.
●A locating pin on the front panel of the module that allows you to insert the module
correctly into the base unit.
4.1 Status LEDs
The LEDs on the front indicate the current status of the module.
●"PWR" (green LED)
Indicates that all necessary supply voltages are present.
●"COM" (yellow LED)
Indicates data exchange via the interface.
●"ERR" (red LED)
Indicates an error condition if illuminated.
Status LEDs

Module tour
R&S®TS-PIO4
16User Manual 1178.3192.02 ─ 06
4.2 Connectors X1 and X20
Type: PXI bus
Interface to connect the module to the backplane of PXI based base units.
See Chapter C.4, "Connector X1", on page 93 and Chapter C.2, "Connector X20",
on page 91 for a detailed description of the connectors.
4.3 Connector X10
Interface to connect test objects and UUTs to the module.
See Chapter C.1, "Connector X10", on page 90 for a detailed description of the con-
nector.
4.4 Connector X30
Type: Analog bus
Interface to connect the module to the analog bus backplane in the housing of the base
unit.
See Chapter C.3, "Connector X30", on page 92 for a detailed description of the con-
nector.
Connector X30

Installing the module
R&S®TS-PIO4
17User Manual 1178.3192.02 ─ 06
5 Installing the module
The R&S TS-PIO4 is a module installed on the front panel of PXI based base units.
1. Install the module as described in the user manuals of the base units.
2. WARNING! Risk of electric shock. The test environment, e.g the UUT or additional
power supplies, can supply high voltages to the instruments. In this case, the volt-
age can also apply to the signal output connectors of the R&S TSVP, in particular
the analog bus connector X2.
Therefore, do not connect or disconnect devices from the X2 connectors while con-
nected to an external power supply or UUT.
Always connect both ends of the cable connecting the R&S CompactTSVP and
R&S PowerTSVP. Thus, you avoid the risk of touching the X2 connector with a
possibly hazardous voltage applied.
Take the system into operation as described in the user manuals of the base units.

Typical applications
R&S®TS-PIO4
18User Manual 1178.3192.02 ─ 06
6 Typical applications
The R&S TS-PIO4 digital functional test module is used for testing digital modules or
devices. This type of functional test is used to check the overall operation of a digital
circuit under conditions that are as close to reality as possible. The module does this
by applying digital input patterns, measuring the output signals and comparing them
with the nominal values.
The R&S TS-PIO4 digital functional test module can be used for tasks such as the fol-
lowing:
●Digital functional test (low‑speed/high‑speed, IO control)
●Bit pattern stimulation (low‑speed/high‑speed, digital buses)
●Bit pattern measurement (low‑speed/high‑speed)
●Monitoring of changes in level state (pattern trigger)
●Digital functional test at component level (no node‑forcing or backdriving capability)
●Downloads, e.g. for flash components, serial and parallel
A typical functional test consists of the following elements:
●Adaptation of the pin electronics to the UUT environment (logic level and logic fam-
ily)
●Definition of the sensor strobe (timing)
●Definition of the stimulus and measuring behavior
●Evaluation of the test result
6.1 Digital functional test – static
Characteristics for which correct interaction of the logic modules is more important than
the verification of time-critical limits are tested in the static digital functional test. The
application outputs the patterns to be stimulated, reads in the UUT response via the
module inputs and compares it with the expected response. Comparison with the nomi-
nal values then results in a PASS or FAIL statement. The comparison takes place in
the application. As the time response (length of time that a pattern is available; sam-
pling time point of the inputs) is controlled primarily by the host computer, this test can-
not be used to test time‑critical or chronologically precisely defined sequences. With
the static test, the order of the sequence is deterministic, i.e. the chronological order of
the patterns as well as the read‑in procedure is predictable. How long the interval from
one pattern to the next pattern will be and how large the interval from application of a
pattern to reading in of the data will be are, however, not predictable. Here, the operat-
ing system of the host computer (task switching, etc.) influences the runtimes in a
non‑predictable way.
Digital functional test – static

Typical applications
R&S®TS-PIO4
19User Manual 1178.3192.02 ─ 06
6.2 Digital functional test – dynamic
In the real‑time test, overall operation of the digital section of a UUT is tested under
operating conditions that are as close to reality as possible. For this purpose, digital
patterns (vectors and pattern sets) with a precisely defined, usually high clock rate and
precise time response are applied at the UUT connections and the responses recor-
ded. Recording is also performed with a precisely defined, reproducible time response.
The basic requirement for exact, predictable timing is that the patterns for the stimulus
are stored in the memories "downstream of the drivers" and can be processed with a
defined time response and at a high speed. To enable this, the module has its own
sequence controller in the FPGA. The recorded input data is also initially stored in a
memory on the module and later retrieved by the application on the host computer and
evaluated for a PASS/FAIL decision.
Digital functional test – dynamic

Functions
R&S®TS-PIO4
20User Manual 1178.3192.02 ─ 06
7 Functions
7.1 Overview
7.1.1 General
The R&S TS-PIO4 digital functional test module provides 8 ports each with 4 digital
input pins and output pins. For this purpose, the module has unmultiplexed digital pins,
i.e. behind each pin is a separate digital channel. Furthermore, the output voltages of
the drivers as well as the comparator thresholds of the inputs can, within certain limits,
be freely programmed on the module. This allows the appropriate logic level to be gen-
erated for practically every application. All settings as well as clock generation take
place on the module itself, which means that no additional stimulus modules are nec-
essary.
Refer to Figure B-1, Figure B-2 and Figure B-3 for details.
The usable level range depends on the configuration of the driver references. The
overall level range is divided into 4 sections. The driver levels are generated from the
CPCI supply (+5 V and +3.3 V).
The application software must set an appropriate voltage range before the output vol-
tages and comparator thresholds can be configured. Here, the device driver performs a
plausibility check and prevents invalid or damaging values from being set.
Table 7-1: Voltage ranges
Range VL1VH2CVL3 / CVH4
3 +1.5 V to +6.0 V +1.5 V to +10.0 V +1.5 V to +7.1 V
2 ‒1.8 V to +2.7 V ‒1.8 V to +10.0 V ‒1.8 V to +7.1 V
1 ‒3.5 V to +1.0 V ‒3.5 V to +10.0 V ‒3.5 V to +7.1 V
0 ‒6.0 V to ‒1.5 V ‒6.0 V to +8.0 V ‒6.0 V to +5.1 V
1VL: Output level Low
2VH: Output level High
3CVL: Comparator level Low
4CVH: Comparator level High
If required, all outputs (OUTx) can be connected to their corresponding input (INx) and
therefore stimulate, measure and monitor the driving of signals. All driver channels can
be set to the high‑impedance state (TRI-STATE).
Timing control of data output and reading in of response signals takes place on the
module controlled by FPGAs.
Overview
