Rointe Belize 0330RAD User manual

User Manual
Belize radiator
Models
0330RAD | 0550RAD | 0770RAD | 0990RAD | 1210RAD | 1430RAD | 1600RAD
Please read this manual carefully before installation and operation. Please keep this manual for future
reference and your product guarantee conditions.

2
CONTENTS
1. Introduction .............................................................................................................. 2
2. Features & functions ................................................................................................ 4
3. Installation ................................................................................................................ 4
4. Control panel ............................................................................................................ 8
5. Operation & programming ....................................................................................... 9
6. WiFi pairing .............................................................................................................17
7. Maintenance and cleaning ......................................................................................18
8. European Directive (WEEE) 2012/19/UE ................................................................18
9. Guarantee ................................................................................................................18
9.1 Terms and conditions .......................................................................................19
9.2 How to register ................................................................................................ 21
10. ERP Directive Commission Regulation (EU) 2015/1188 ...................................... 22
11. Technical specication & data .............................................................................. 23
1. INTRODUCTION
Thank you for choosing this product. Please read this manual carefully before operation
and retain for further use.
ROINTE digital electric radiators are designed for all types of environments and to meet any
thermal need. The careful choice of components and materials ensures efficiency, without
affecting comfort.
Using a unique design, ROINTE radiators utilise natural air convection with an air-speed of
>0.1 m/s. Cold air is introduced at the bottom of the radiator and raises its temperature by
passing through the interior of the heating element and expelling at the top as warm air. This
allows a constant room temperature with a small variation of only +/- 0.25ºC.
To ensure maximum energy efficiency, ROINTE products must be correctly sized. Please
check with your installer or supplier, before installation, that the product you have purchased
is the correct size for the room requirements. ROINTE will not be held responsible for
incorrectly sized products, unless an official ROINTE Technical Study has been
completed and followed. We recommend mounting the product on the wall at a height
between 10 and 15 cm from the floor. This guarantees optimal natural convection throughout
the room.

3
BELIZE DIGITAL WIFI RADIATOR
IMPORTANT: When using electrical appliances, precautions should be taken to reduce
the risk of re, electrical shock and injury to persons.
IMPORTANT: This product is lled with a precise amount of thermal oil that does not require
maintenance. Any repairs that require opening the oil tank must be done by ROINTE or
authorized personnel, who should also be notied if an oil leak is noticed. Please observe
regulations when disposing of this product and its thermal oil.
IMPORTANT: To disconnect the product from the main power supply, remove the plug
from the socket. Do not pull the cable.
WARNING: If the power cable is damaged, it must be replaced by ROINTE or its authorized
personnel in order to avoid any damage.
WARNING: Servicing and product repairs should only be undertaken by ROINTE or its
authorized personnel using only exact manufacturer-approved spare parts.
WARNING: The product is IP24 rated and may be used in bathrooms, however not in the
immediate vicinity of baths, showers, water connections, basins, swimming pools or other
bodies of water. The product must never be installed where itself or the switches/control
panel is within the reach of persons in water. Never use the product with wet hands. Do
not place any water containers (glasses, vases etc.) on or near the product.
WARNING: To avoid overheating or the interruption of
the natural convection cycle, do not cover the product.
This includes furniture, curtains, clothes and any other
items. Do not insert any kind of object in the product
or obstruct its air circulation. Obstructions should not
be placed in front, above or directly next to the product.
Do not use insecticides, paints, chemicals or aerosols
on or near the product. Do not sit on the product.
Failure to comply with the above will render your
guarantee invalid.
WARNING: This product can be used by children aged over 8 years
and by persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the product in a safe way and understand
the hazards involved. Children should not plug in, regulate, clean, play
with or perform maintenance on this product. Children aged less than 3
years should be kept away from the product unless supervised.

4
2. FEATURES & FUNCTIONS
Not only are our radiators Lot20 compliant, we also include functions to help manage
efciency more effectively.
• Open Windows
This function is activated when a 4ºC temperature decrease happens within a 30 minute
time period. This normally occurs when a window is left open, letting warm air escape and
wasting consumption. If this happens, your product will automatically activate the Anti-frost
mode for 2 hours. If needed, push the on / off button to switch your product off, leave for 5
seconds and press again to turn the product on without the active Open Windows.
• Temperature set indicator
The temperature set indicator shows on the product display screen to indicate what level of
temperature has been set in programming. A green indicator means the temperature is set
between 7 - 18.5 ºC. A yellow indicator is between 19 - 24.5 ºC. A red indicator is between
25 - 30 ºC. This indicator appears automatically and cannot be altered manually. You can
see the product consumption and usage statistics in the Rointe Connect Lite app.
• Built-in WiFi & e·life technology
The high powered Wi-Fi module and e·life technology, built into your Rointe product,
allows real-time synchronization with the Rointe Connect Lite app. Any change made via the
Rointe Connect Lite app will update your product instantly for easier energy management.
You won’t need intermediate or additional devices. Please note your Wi-Fi network must
only be 2.4 GHz in order for the app and WiFi module in your product to work.
3. INSTALLATION
We recommend using a Rointe Trusted Supplier. Find your nearest one by calling us on
0203 321 5928 or using the locator at www.rointe.co.uk.
IMPORTANT: Before installation, please locate the metal tag situated on the back
of the product and note the product reference and serial number. You will need this
information to register your guarantee.
WARNING: Do not install the product directly below a xed socket outlet or
connection box. Do not install or use outdoors. Do not install directly underneath a
shelf. This product is designed for internal wall-mounted installation using the ROINTE
template, installation kit and xing items provided.

5
BELIZE DIGITAL WIFI RADIATOR
The product should be wall-mounted in an
upright position according to the minimum
clearances shown opposite, using the brackets
and fixings supplied.
Our products transfer heat through natural air
convection. If the product is covered, this will
interrupt air-flow and could cause overheating.
Please do not cover the products or place any
object (including furniture) directly in front of it.
WARNING: The product is IP 24 rated and may be used in bathrooms, but not near
baths, showers, water connections, basins etc. It can only be installed outside of zone
1 and 2. The product must not be installed where itself or the control panel is within the
reach of persons in water.

6

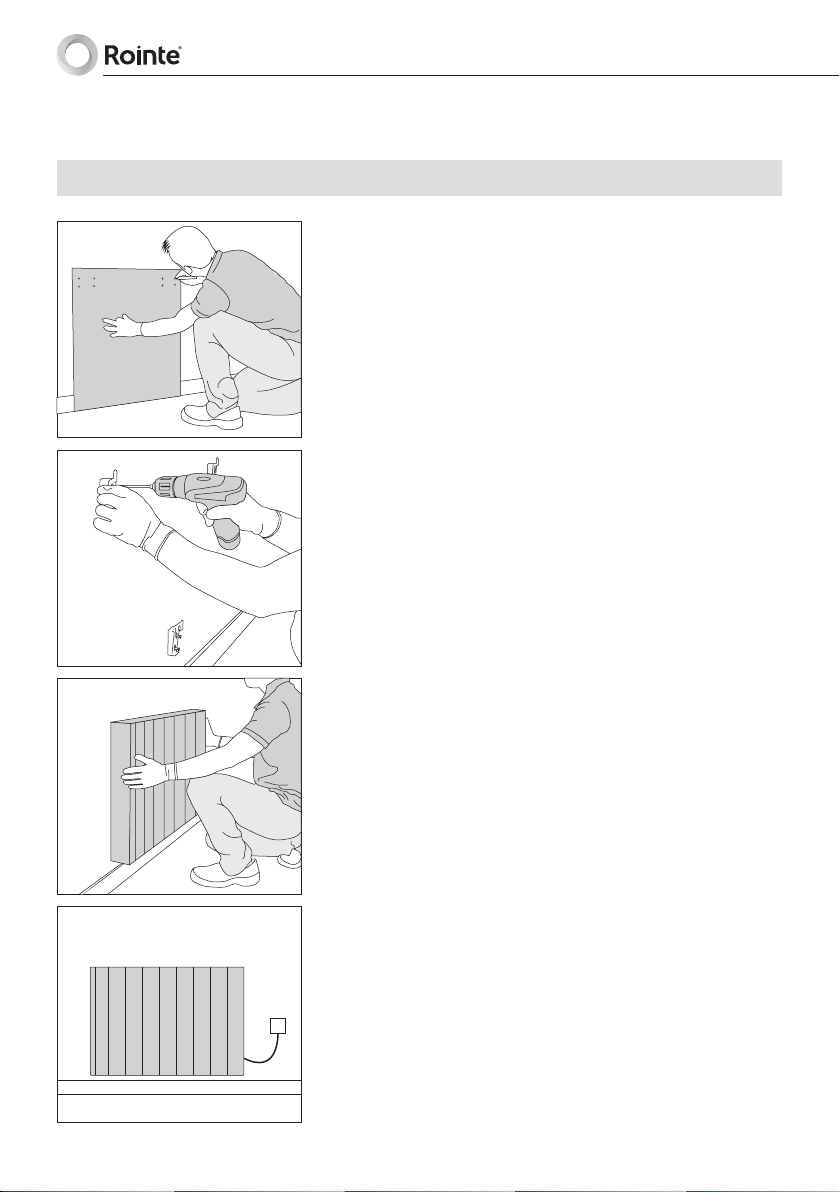

Inside the product packaging, you will nd an installation kit. You will need a drill, rubber
mallet, spirit level and a pencil to complete the installation.
IMPORTANT: Please follow these instructions carefully.
1. Remove packaging and check installation kit
contains brackets, screws, rawl plugs and
cardboard template.
2.
Place template on the wall and mark holes
for brackets and screws. Observe minimum
distance requirements on the previous page.
Use the oor as a base for the template, not
the skirting board.
3. Remove the template and carefully drill the
marked holes.
4.
Fix upper brackets using the plugs and screws
provided. Then x the lower bracket.
NOTE: The lower bracket has a different design
to the upper ones, so you can tell them apart.
5. Slide product into xed brackets, using a top
to bottom method. Lift the product higher than
the bracket and slide downwards into position.
6. Check the straightness with a spirit level and
adjust brackets accordingly if needed.
7. Connect your product to the electric supply
and switch on.
8. See section 5 for operation instructions.

7
BELIZE DIGITAL WIFI RADIATOR
IMPORTANT: Template measurements per model
0330RAD - 3 elements 0550RAD - 5 elements
80 mm
661 mm
206 mm
240 mm
80 mm
661 mm
206 mm
0770RAD - 7 elements 0990RAD - 9 elements
400 mm
160 mm
661 mm
206 mm
560 mm
240 mm
661 mm
206 mm
1210RAD - 11 elements 1430RAD - 13 elements &
1600RAD - 15 elements
720 mm
320 mm
661 mm
206 mm
880 mm
400 mm
661 mm
206 mm

8
4. CONTROL PANEL
On / Off button
Decrease temperature /
Move left button
Increase temperature
/ Move right button
Main menu button
TFT screen
Programming button

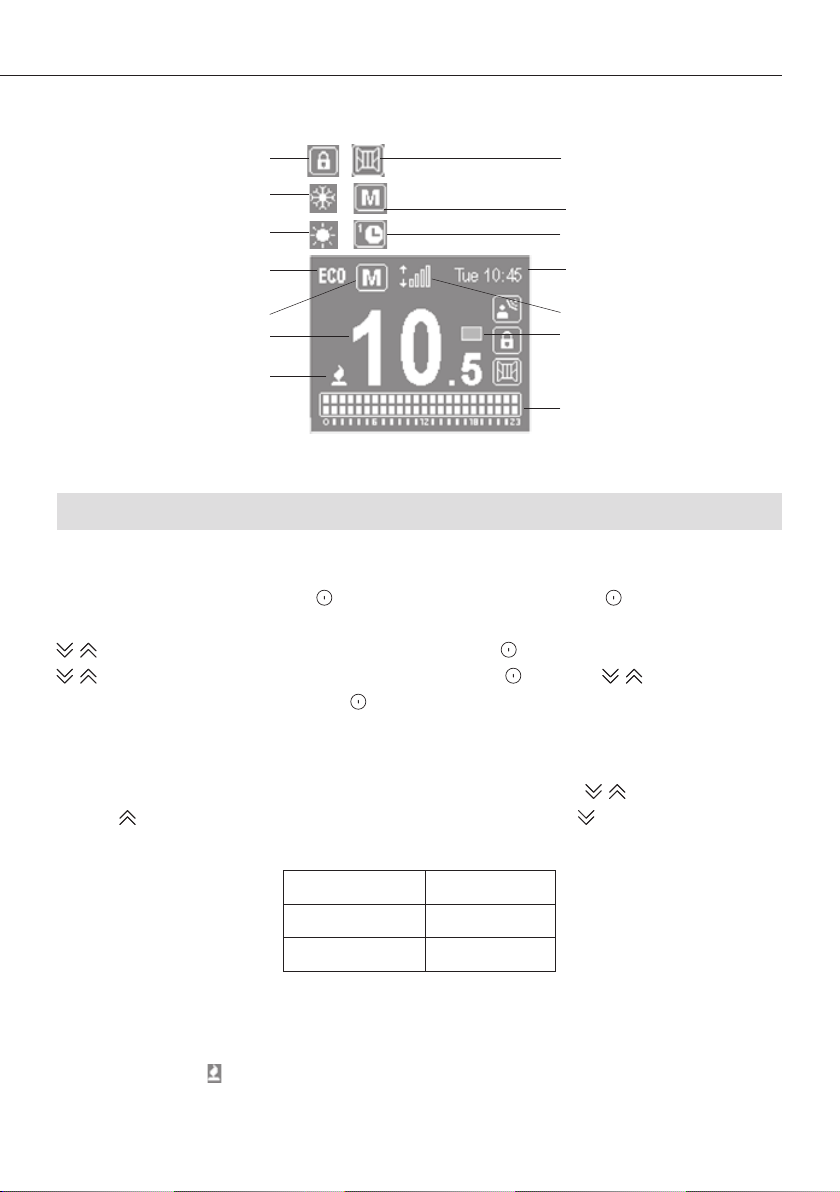

1Selected temperature
2Current time and day
3Heating element on
4Comfort mode
5Eco mode
6Anti-Frost mode
7Locked buttonpad
8Manual mode
9Automatic mode
10 Preset programs mode
11 Hourly programming
12 WiFi connection
indicator
13 Open Windows indicator
14 Energy consumption
indicator

9
BELIZE DIGITAL WIFI RADIATOR
1
9
3
4
5
6
713
2
10
11
12
14
8
5. OPERATION & PROGRAMMING
5.1. Switch on / off
To turn the product on press the button once. To turn off press the button again. When
you turn the product on for the rst time, it will ask you to set the date and time. Use the
buttons to select the correct time and press the button to conrm. Then use the
buttons to select the correct minutes and press . Use the buttons again to
select the correct day and press the button to conrm.
5.2. Select the set temperature
You can regulate the set temperature of the radiator by using the buttons. Press the
button to increase the product temperature by 0.5 ºC or the button to decrease the
temperature by 0.5 ºC. The temperature ranges for each mode are as follows:
COMFORT 19 - 30 ºC
ECO 7.5 – 18.5 ºC
ANTI-FROST 7 ºC
5.3. Temperature control
When the temperature in the room is lower than the selected one, the heating element is
activated and the symbol appears. The temperature control will perform an intelligently
to activate and deactivate the electric current through the heating element to heat the uid
in the radiator.

10
5.4. Lock / unlock buttonpad
The buttonpad can be locked using the control panel or the Rointe Lite App. When the
buttonpad is locked, you must unlock it via the method used to lock it.
To lock / unlock the buttonpad using the product control panel, press and hold the and
buttons together for 3 seconds.
The On/Off button will still work, even if the control panel is locked. Press the button for
3 seconds to switch the product on or off.
5.5. Configuration menu
Press the button to access the conguration menu. The available options are: Settings,
Energy, WiFi and Programming mode.
Settings Set time
Backlight
Language
Firmware

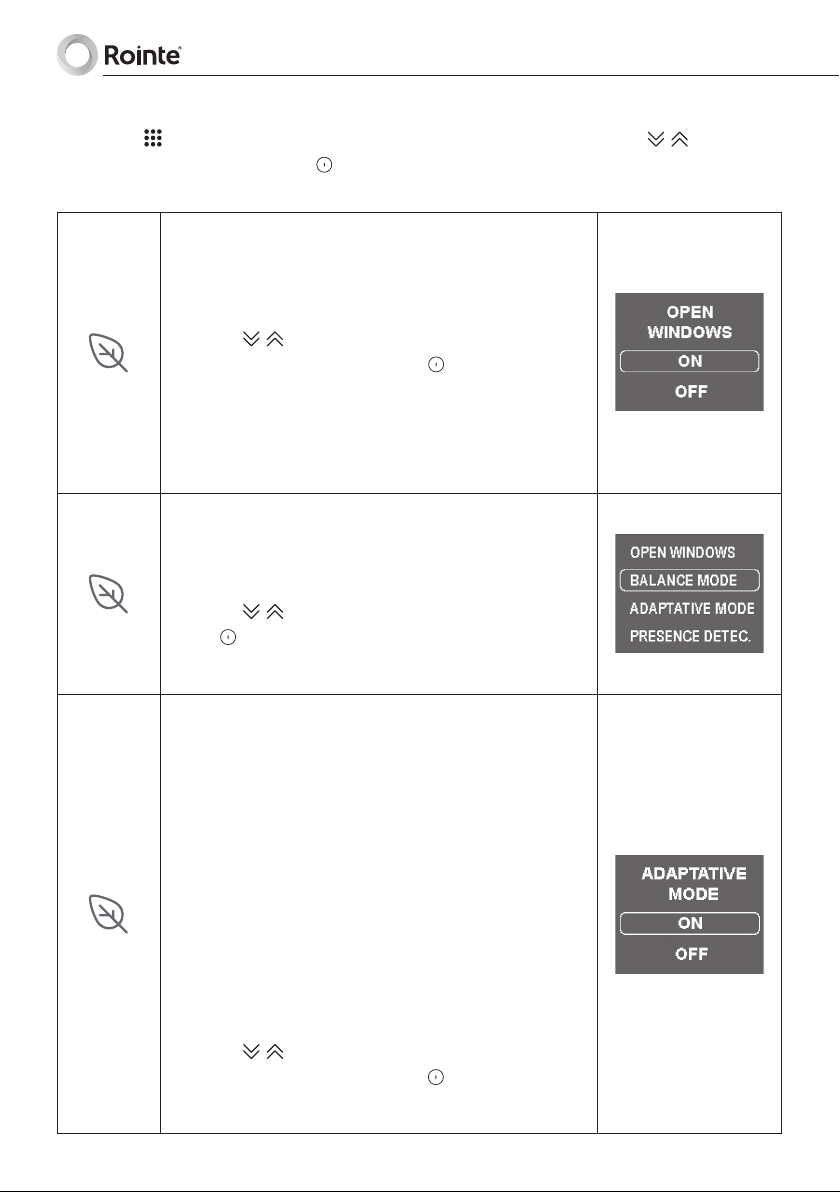

Energy Open windows function
Balance mode
Adaptative mode
WiFi On / Off
Link device
WiFi info
Prog. mode On / Off
Preset programs
User mode
Pilot wire (only available on request)
Use the buttons to move between the menu options. A box will appear around the
option you have selected. Press the button to enter the submenu.

11
BELIZE DIGITAL WIFI RADIATOR

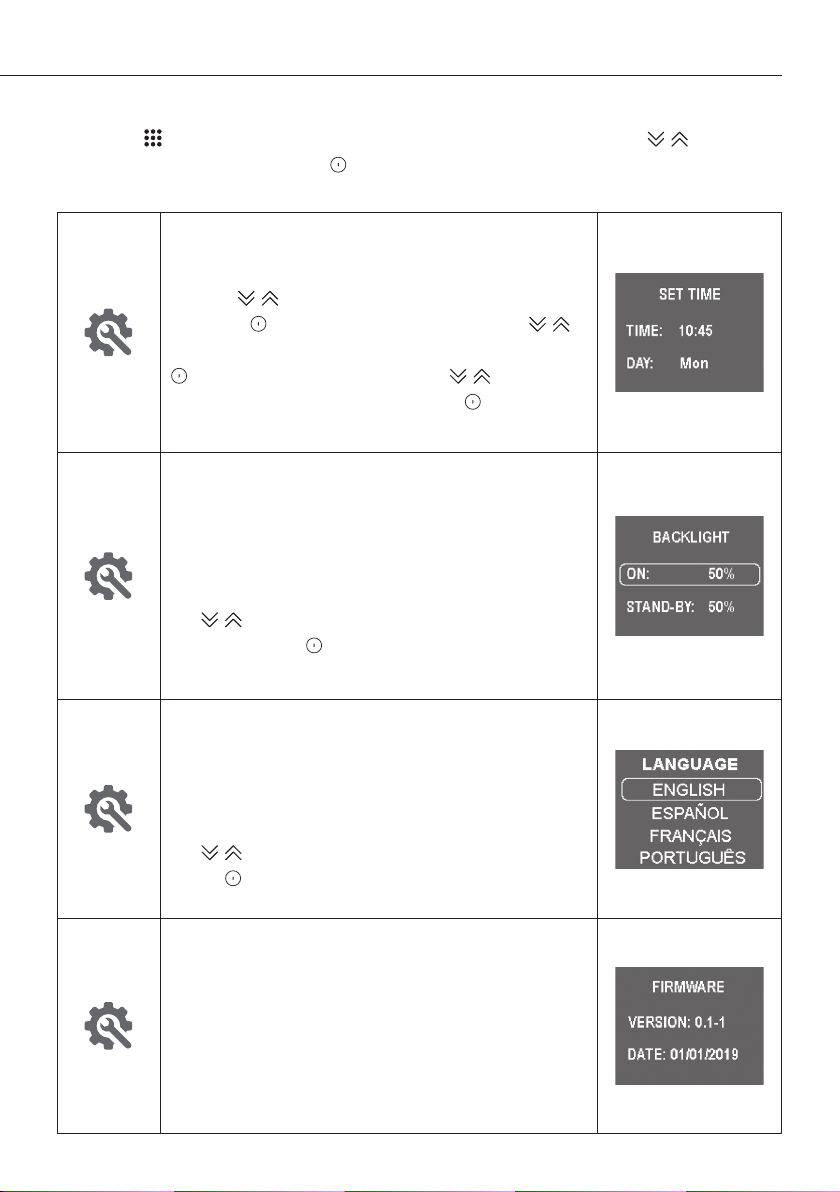

5.5.1. Settings menu
Press the button to access the conguration menu. Then use the buttons to
navigate to SETTINGS. Press the button to access.
• Set the day and time
To set the day or time select the CLOCK option.
Use the buttons to select the correct time and
press the button to conrm. Then use the
buttons to select the correct minutes and press the
button to conrm. Then use the buttons to
select the correct day and press the button to
conrm.
• Adjust brightness
This function allows you to adjust the brightness
when the product is on or in standby.
To adjust the brightness, select BACKLIGHT. With
the buttons you can turn the brightness up or
down. Press the button to conrm.
• Language
This function allows you to change the language of
the product.
To change the language, select LANGUAGE. Use
the buttons to select the correct one and
press .
• Firmware
Press the FIRMWARE option to see the current
software version and the release date.

12
5.5.2. Energy menu
Press the button to access the conguration menu. Then use the buttons to
navigate to ENERGY. Press the button to access.
• Open Windows
Use the buttons to select whether you want
this function On / Off and press to save.
See section 2 for more information on this function.
• Balance
This function resets your product to a temperature
of 19ºC in Manual mode.
Use the buttons to select this option and
press to conrm. The screen will show 19ºC in
Manual mode.
• Adaptive mode
This function anticipates the product start-up, so
that the room temperature at the start of the
selected time is equal to the set temperature at
the exact time that we have established during
programming. This means your product will begin
heating before the time set. This ensures the
temperature is at the set temperature for the start
of the time selected.
To indicate that the algorithm is working, the icon
will ash.
Use the buttons to select whether you want
this function On / Off and press to save.

13
BELIZE DIGITAL WIFI RADIATOR
5.5.3. WiFi menu
Press the button to access the conguration menu. Then use the buttons to
navigate to WIFI. Press the button to access.
• WiFi status
The WIFI STATUS option allows you to activate or
deactivate the product WiFi connection.
Use the buttons to select On / Off and press
to save.
• Link device
The LINK DEVICE option generates a WiFi network
to connect your product.
When you select LINK DEVICE, the following
screen will appear where you will be given the
name of the network and the password.
For more information on the pairing process, see
section 6.
Use the buttons to select this option and
press to conrm.
• WiFi info
The WIFI INFO option allows you to view
information on the network status.
When you select WIFI INFO, the following screen
appears where you can see the IP, NM and GW.
Use the button to see more information.

14
5.5.4. Prog. Mode
To change the status of your product from MANUAL to AUTO or vice versa, make a quick
press of the button. If you want to start programming your product, make a long press
of the button. To see all the options available for programming your radiator, select the
option PROG. MODE in the main menu. The screen will show the following options:
• Mode
From the MODE menu, select the operating mode
you require: MANUAL or PROGRAMMING.
Use the buttons to select manual or
programming and press to conrm.
• Preset heating programs
From the PRE-PROGRAMS menu you can select
a preset heating program to use. There are 4
available. Use to select between the different
programs and press to conrm.
Available pre-programs
PRE-PROGRAM 1
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Fri
Sat-
Sun
PRE-PROGRAM 2
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Fri
Sat-
Sun
PRE-PROGRAM 3
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Sun
PRE-PROGRAM 4
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Fri
Sat-
Sun
COMFORT ECO OFF

15
BELIZE DIGITAL WIFI RADIATOR

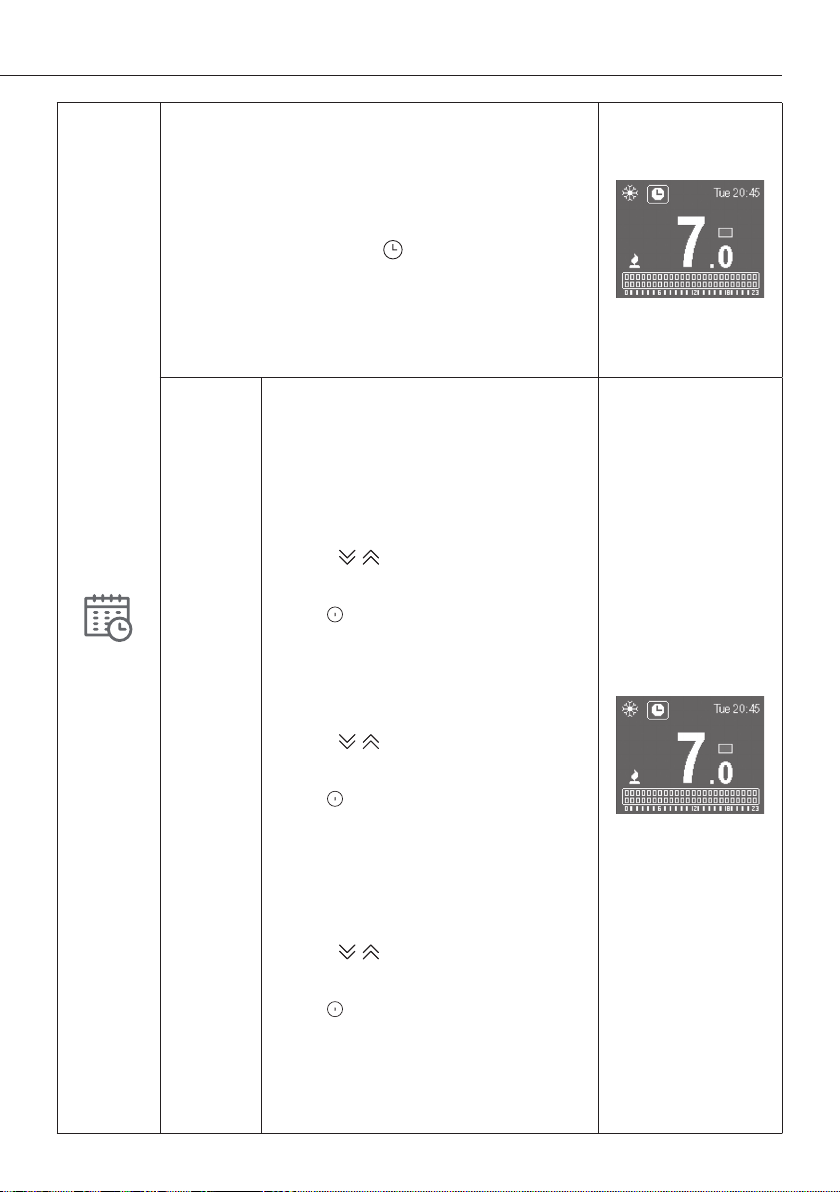

• User program
This mode allows the user to make their own
programming. There are 2 ways to start editing the
programming:
1. Do a long press on the button.
2. Enter the submenu USER PROGRAM from the
main menu.
Then follow the steps below.
STEP 1
1. Select the COMFORT
temperature:
Temperature range 19 – 30 °C
Use the buttons to select the
desired Comfort temperature.
Press to conrm.
2. Select the ECO temperature:
Temperature range: 7.5 – 18.5 °C
Use the buttons to select the
desired Eco temperature.
Press to conrm.
3. Select between ANTI-FROST or
OFF:
Temperature range: 7 °C / OFF
Use the buttons to select the
ANTI-FROST or OFF.
Press to conrm.

16

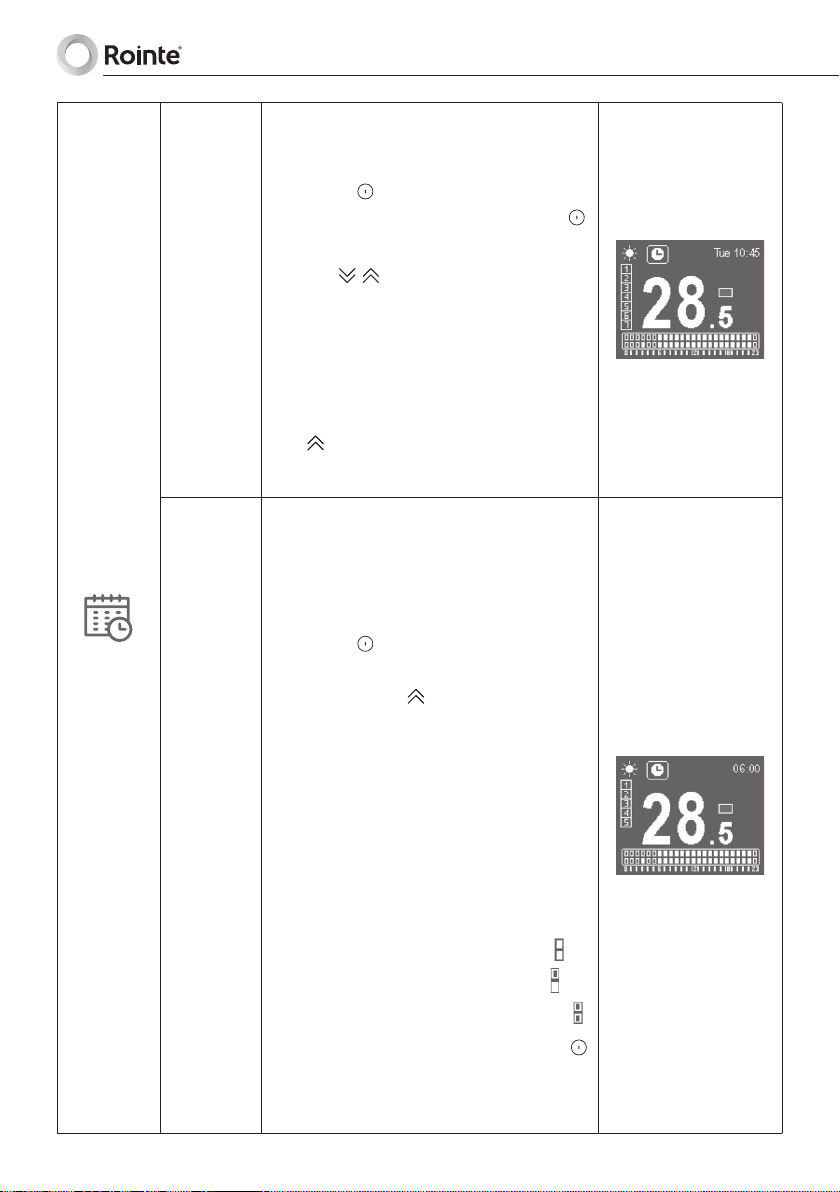

STEP 2
Select the days to be programmed
Start on Day 1 (Monday).
Press the button to include this
day in your programming. Press the
button again to exclude.
Use the buttons to move to the
next day and repeat for all days of the
week.
The selected days will be highlighted
by a box on the screen.
Once you have reached Day 7, press
the button to advance to the next
step.
STEP 3
Select the hour and mode to be
programmed
Start on 0h (midnight).
Press the button to select ECO,
COMFORT or ANTI-FROST/OFF for
that hour. Press to move to the
next hour and repeat.
• The upper right of the screen
shows the hour you are
programming.
• The left side shows the selected
days.
• The bottom programming bar
indicates:
-Comfort mode: 2 shaded squares
-ECO mode: lower shaded square
-ANTI-FROST/OFF: 2 empty squares
Once you reach 23:00 hours, press
to complete the programming.

17
BELIZE DIGITAL WIFI RADIATOR
• Pilot wire
This option activates the pilot wire mode for those
products that are connected to a control panel by
means of a pilot wire.
The product will be managed by the external pilot
wire control unit to which it is connected.
Use to select this option and press to
conrm.
6. WIFI PAIRING
Selecting the option “pair the product” will create its own network to which you can
connect your device.
• Starting process
The following screen will show the data of the created network
(NET) and the password (PIN) for the product you want to pair.
• Connection
When the smartphone is connected to the radiator network, the
following display will appear:
• Product configuration
When the product has received the conguration from the
smartphone, it will start processing and display the following
screen:
• End of the pairing process
This screen indicates to the user that the product has processed
the information received. After displaying this screen for 2
seconds the product will restart.

18
7. MAINTENANCE & CLEANING
The product does not require regular maintenance. We do, however, recommend that all
parts of the product are kept clean (behind, underneath, along the upper ns etc.). Clean
the aluminium with a soft, damp cloth and pH-neutral soap. Clean the control panel with a
soft, dry cloth.
WARNING: Disconnect the product from the power supply before any cleaning or
maintenance.
WARNING: Do not use any abrasive product on the aluminium, such as (but not limited
to) chemicals, rough cloths, hard bristled brushes or wire/steel wool.
8. EUROPEAN DIRECTIVE (WEEE) 2012/19/UE
Under the European Directive 2012/19/UE on Waste Electrical and Electronic Equipment
(WEEE), this product cannot be treated as household waste. Instead it must be separated
to optimize the recovery and recycling of all of the components and materials to reduce
the impact on human health and the environment. The symbol of the container crossed out
over a horizontal line is marked on all of ROINTE products to remind the consumer of the
obligation to separate them on disposal. The consumer should contact their local authority
or council ofce, or original point of sale to learn about the correct method of disposal for
this product.
9. GUARANTEE
There are certain terms and conditions on this ROINTE product. These conditions comply
with all the rights construed within national legislation, as well as any additional rights and
guarantees, which are offered by ROINTE. Please ensure that you register your product
guarantee at www.rointe.co.uk.
Any incident you might detect with your product can be sorted by the product seller or by
ROINTE. Please contact ROINTE by telephoning 0203 321 5929 or send an email to
[email protected], through which we will instruct you on how to solve the incident.
You will need to state the product reference and serial number (located on the metal
tag with the product) and the type of incident when contacting ROINTE. In addition,
please attach a copy of the product invoice and/or proof of purchase that indicates
the date on which the product was sold.

19
BELIZE DIGITAL WIFI RADIATOR
BELIZE
BRN0440RAD
SERIAL NUMBER
REFERENCE
9.1 Terms & conditions
1. ROINTE guarantees there are no material defects of design or manufacture at the time
of original purchase. ROINTE guarantees the aluminium body for 120 months and electric
plus electronic components for 24 months for this product only, provided it has not been
modied in any way.
2. If during the guarantee period, the product does not work correctly under normal use,
and any design, material or manufacturing defect is found, ROINTE will repair or substitute
the product as it sees t, in accordance with the terms and conditions as follows:
2.1. The guarantee is only applicable if the original guarantee is issued by the seller and
when the said guarantee has been registered with ROINTE correctly, including product
reference, series number (marked on the product’s metal tag), purchase date and proof of
purchase. The product guarantee can be registered on our website at www.rointe.co.uk
or can be sent via email to [email protected] within 90 days of installation. ROINTE
reserves the right to reject the guarantee when this information has been removed or
modied after the original product purchase.
2.2. The guarantee is only applicable if the product has been installed by a competent
person in accordance with this installation manual and all current regulations at the time
of installation.
2.3. The guarantee is only applicable to those cases that concern material, design and
manufacturing defects, and under no circumstances covers damage to the product for
the following reasons:
i) Damage caused by negligence and / or misuse of the product, i.e. used for other
purposes that are not construed as its normal use or for not respecting instructions of
use and maintenance given by ROINTE, as well as incorrect installation or use of the
product that may not comply with the current technical standards of safety.
ii) Corrosion of any part of the product caused by direct exposure to salt-water. When
the product is installed less than 200m from the coast, the guarantee period for
damages caused by corrosion will be reduced by 50%.
iii) Any unauthorised modication of the product or repairs of the product carried out
by third parties or unauthorised persons, or opening of the product by third parties or
unauthorised persons.
iv) Any accidents that are deemed outside the control of ROINTE, such as (but not

20
limited to): lightning, res, oods, natural disasters, public disorder, atmospheric or
geologic phenomena etc.
v) Faults that result from incorrect installation. Guidance can be found from Rointe and
in this installation manual. If in doubt, please contact ROINTE.
2.4. Any repairs or substitutions completed as part of this guarantee service do not allow
extension periods or new periods of guarantee i.e. your guarantee will not be extended
should a repair or substitution of this product take place.
2.5. Any repairs or substitutions covered under this guarantee must be parts that are
functionally equivalent. The defective parts or parts removed or replaced shall become
the property of ROINTE and should be returned as such.
2.6. The product must be installed in a way that allows access for ROINTE technicians
or authorised persons should they need to gain access to the product for repair or
maintenance. The user/client is responsible for any costs or organisation required to
provide access to the products for repair and/or substitution.
3. The ROINTE Technical Support department will advise you if you need to purchase any
parts not covered under this guarantee or out of guarantee.
4. This guarantee will be invalid if the product: has been manipulated, modied and/or
repaired in any way and/or by unauthorised persons. This guarantee will also be invalid if
the product is not correctly installed.
5. This guarantee is not transferable and does not include claims due to damage by lime
scale or frost.
6. Proof of purchase will be required by ROINTE for any claim.
7. This guarantee does not affect your statutory rights.
8. This guarantee does not affect the buyer’s legal rights stipulated in current national
legislation, nor affects those rights against the distributor or installer that could come forth
in compliance with the purchase contract.
9. In the absence of applicable national legislation, this guarantee shall prevail and may
be construed as the buyer’s only protection. ROINTE, its ofces, employees, distributors
and installers will not be held responsible for any accidental damage that emerges due to
infringement of any rules implicitly related to this product.
10. Check the EULA conditions (supplied with the product) for information about the legal
agreement you accept when installing a ROINTE Belize product.
For help about the product or guarantee, please contact ROINTE by phoning
0203 321 5929 or send an email to [email protected].
