Rointe Kyros Manual

Class II
KYROS
INSTRUCTION MANUAL
TOWEL RAILS
Mounting, installation, starting and operation

2
KYROS
Thank you very much for choosing Rointe.
Before using the low consumption KYROS digital electric towel rail,
we recommend you read this instruction manual thoroughly.
IMPORTANT:
This manual should be left with the product after installation.
Thank you.

3
CONTENTS
1. KYROS Towel Rail Information ........................................................................................ 4
1.1. Control Panel.............................................................................................................. 4
1.2. Switching On and Off (stand-by)............................................................................... 6
1.3. Adjust the Day/Time .................................................................................................. 6
1.4. Temperature Selection............................................................................................... 7
1.5. Locking the Keypad... ................................................................................................ 8
1.6. Main Menu ..................................................................................................................9
1.6.1 Setting sub-menu .............................................................................................9
1.6.2 Energy sub-menu ........................................................................................... 11
1.6.3 Balance sub-menu ..........................................................................................13
1.6.4 Program sub-menu......................................................................................... 13
1.7. OPEN WINDOWS function....................................................................................... 21
2. Mounting ........................................................................................................................ 22
3. Connecting .................................................................................................................... 23
3.1. Technical Characteristics........................................................................................ 24
3.2. Specific Regulations for Bathrooms....................................................................... 25
4. Maintenance & Cleaning................................................................................................. 25
4.1. Safety Precautions.................................................................................................. 25
5. Guarantee ...................................................................................................................... 25

4
KYROS
1. KYROS Towel Rail Information
1.1. Control Panel
1.1.1. Keypad
1.1.2. Display Panel
NO. INDICATION
1Programming
2Days Of The Week
3Time Of Day
4Temperature Selected
5Control Panel Locked / Unlocked indicator
6MANUAL / AUTOMATIC / PILOT WIRE
function indicator
7COMFORT / ECO / ANTI-FROST
mode indicator
8Heating Element On indicator
9Consumption indicator
10 OPEN WINDOWS function indicator
1
2
3
4
10 9
87
6
5
ICON INDICATION
On / Off - Accept
Decrease Temperature - Move left
Increase Temperature - Move right
Access/Back to Menu - Move up
Manual/Automatic - Move down

5
ICON INDICATION
OPEN WINDOWS function - active mode, no detection
OPEN WINDOWS function - active mode, detected
Energy Consumption indicator - green / yellow / red
Heating Element on
COMFORT mode on
ECO mode on
ANTI-FROST mode on
AUTOMATIC function on
MANUAL function on
PILOT WIRE function on
AUTOMATIC function on when USER mode activated
MANUAL function on when USER mode activated
PILOT WIRE function on when USER mode activated
Control Panel locked through Keypad
Control Panel locked through Remote Control
Not available in UK. Only upon demand.
Not available in UK. Only upon demand.

6
KYROS
1.2. Switching On and Off (stand-by)
To switch the product ON, please press the button once.
The image to the right will appear on the display panel when the product
is switched on.
After 5 seconds the temperature, time and days of the week will be
displayed on the display panel.
To switch the product OFF, please press the button again once.
The product will go into stand-by mode with the word ‘STAND-BY’
displayed on the display panel.
After 5 seconds the Rointe logo will appear.
1.3. Adjust the Day and Time
To set the day and time, please press the button on the keypad panel
to access the Main Menu.
Select the `Settings´ menu icon using the or buttons on the
keypad.
To move left press the button and to move right press the button.
Once the icon is highlighted on the display panel, press to access.

7
Now use the and buttons again to select the clock option and
press to access.
Use the buttons and to set the hour, then press to confirm.
Then use the and buttons to set the minutes and press to
confirm. Finally, use the and buttons to set the day (1 = Monday,
2 = Tuesday etc.) and confirm by pressing the button.
1.4. Temperature Selection
To change the temperature, please press the or the button. To
decrease the temperature press the button and to increase the
temperature press the button.
When the room temperature is lower than the set temperature on the display
panel, the product will come on with the symbol appearing in the top
right of the display panel.

8
KYROS

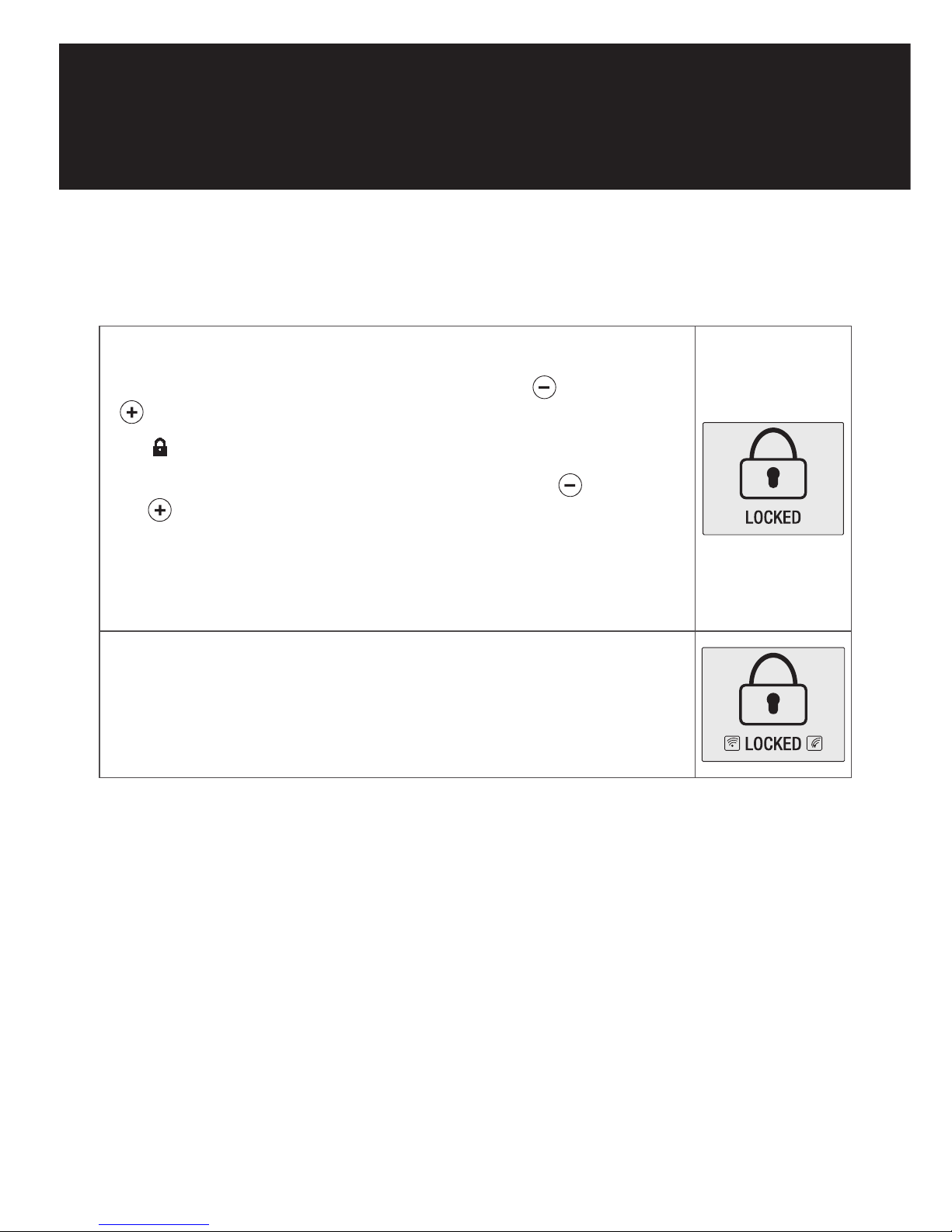

1.5. Locking the Keypad
You can lock the keypad from the product or from your remote control* (optional).
TO LOCK USING THE KEYPAD:
To lock the keypad manually, please hold and press the button AND the
button TOGETHER for 3 seconds.
The symbol will appear on the display panel and the keys will not respond.
To unlock the keypad manually, please hold and press the button AND
the button TOGETHER for 3 seconds.
*To lock the keypad using your remote control, please see the corresponding
instruction manual for your remote control separately.
Please note that if you lock your product using your remote control then you
can only unlock using your remote control. If your product is locked using
your remote control and you press the control panel on your product then
the following image will appear on the display panel.

9
1.6. Main Menu
The Main Menu of your product is accessed by pressing the menu
button.
You can navigate through the different options available on the menu by
pressing the and buttons to move left and right respectively and
to scroll through all 4 options.
The selected sub-menu will be highlighted with a frame, as shown in the
image to the right on the `Settings´ section of the display panel.
The below icons displayed on the screen take you to the following sub-
menus:
Settings Energy Balance Program
1.6.1. Main Menu: Settings sub-menu
The `Settings´ sub-menu configures the technical parameters of your
product. To access, select the icon displayed in the Main Menu screen
and press to confirm.
Use the and buttons to move across the different options on the
sub-menu to choose your parameter and press .
The below icons displayed on the screen take you to the following
parameters:
Clear
Memory
Display Panel
brightness Clear Memory Language Time

10
KYROS
• Adjust brightness of the Display Panel
This allows you to change the brightness of the display panel in both the
STAND-BY and ON modes separately. To change the brightness ensure
the icon is highlighted and press the button to access. Then with
the buttons and you can switch between the two modes.
With the buttons and you can increase or decrease the brightness
as you wish.
The cursor indicates the intensity of the light. Once you have set the required
brightness press the button to save and exit.
• Clear the Memory Clear
Memory
This allows you to clear any information saved in your product.
To clear the memory ensure the Clear
Memory icon is highlighted in the `Settings´
sub-menu and press the button to confirm.
The display panel will show when completed and the language will change
to default.
• Change the Language
To set your chosen language, ensure the icon is highlighted in the
`Settings´ sub-menu and press the button to access.
Use the and buttons to move up or down respectively until your
chosen language is highlighted and confirm by pressing the button.
LANGUAGE
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS

11

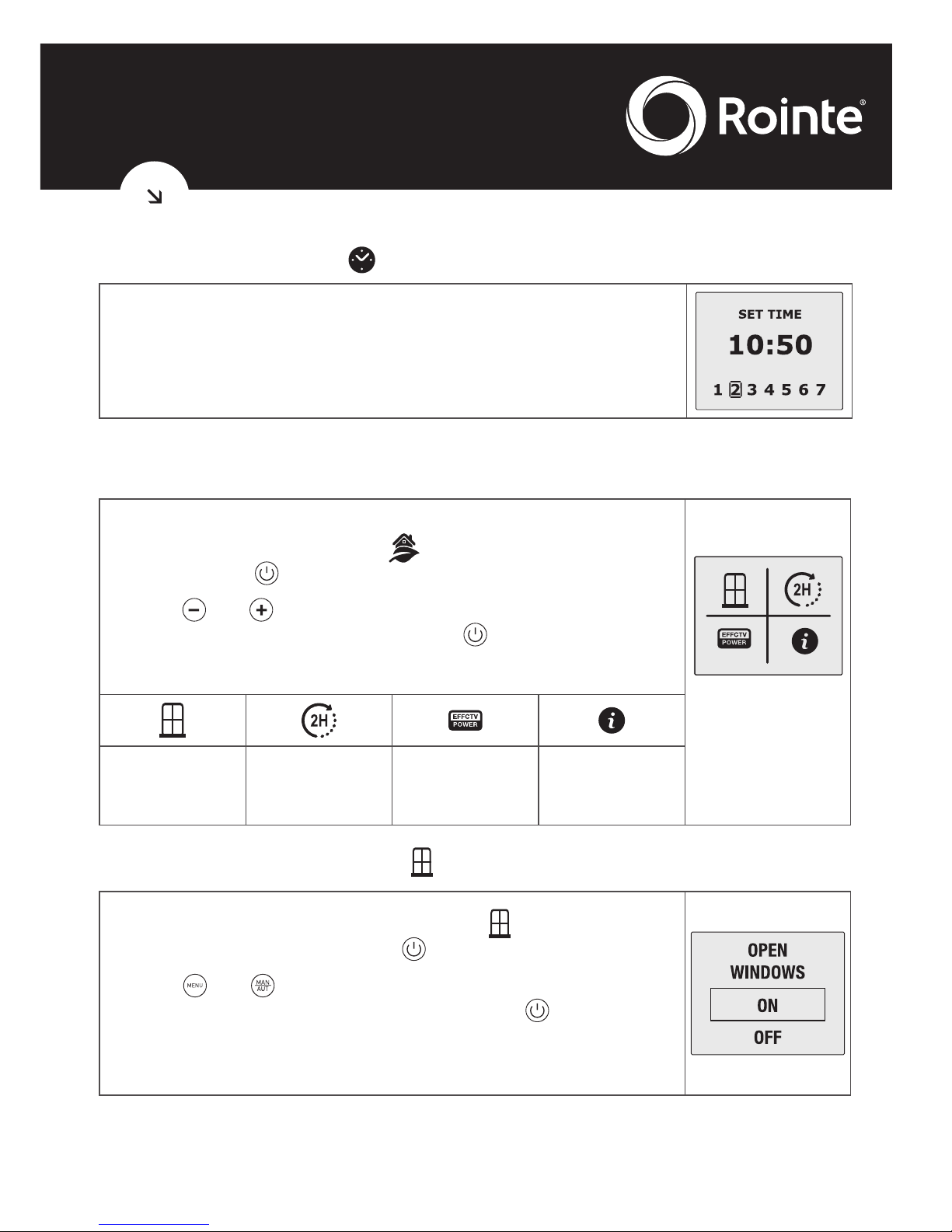

• Adjust/Set the Time
This option sets the hour, minutes and day of the week in your product.
Please refer to section 1.3. on page 6 of this manual.
1.6.2 Main Menu: Energy sub-menu
The `Energy´ sub-menu provides access to functions related to energy
management. To access, select the icon displayed in the Main Menu
screen and press to confirm.
Use the and buttons to move across the different options on the
sub-menu to choose your function and press to confirm.
The below icons displayed on the screen take you to the following functions:
OPEN
WINDOWS
function
2 hour BOOST
mode
Effective Power
function Information
• OPEN WINDOWS Function
To set the OPEN WINDOWS* function, ensure the icon is highlighted in
the `Energy´ sub-menu and press the button to confirm.
Use the and buttons to move up or down respectively until your
preference is highlighted and confirm by pressing the button.
*To learn more about how this function works, please go to point 1.7. on
page 21 of this manual.

12
KYROS

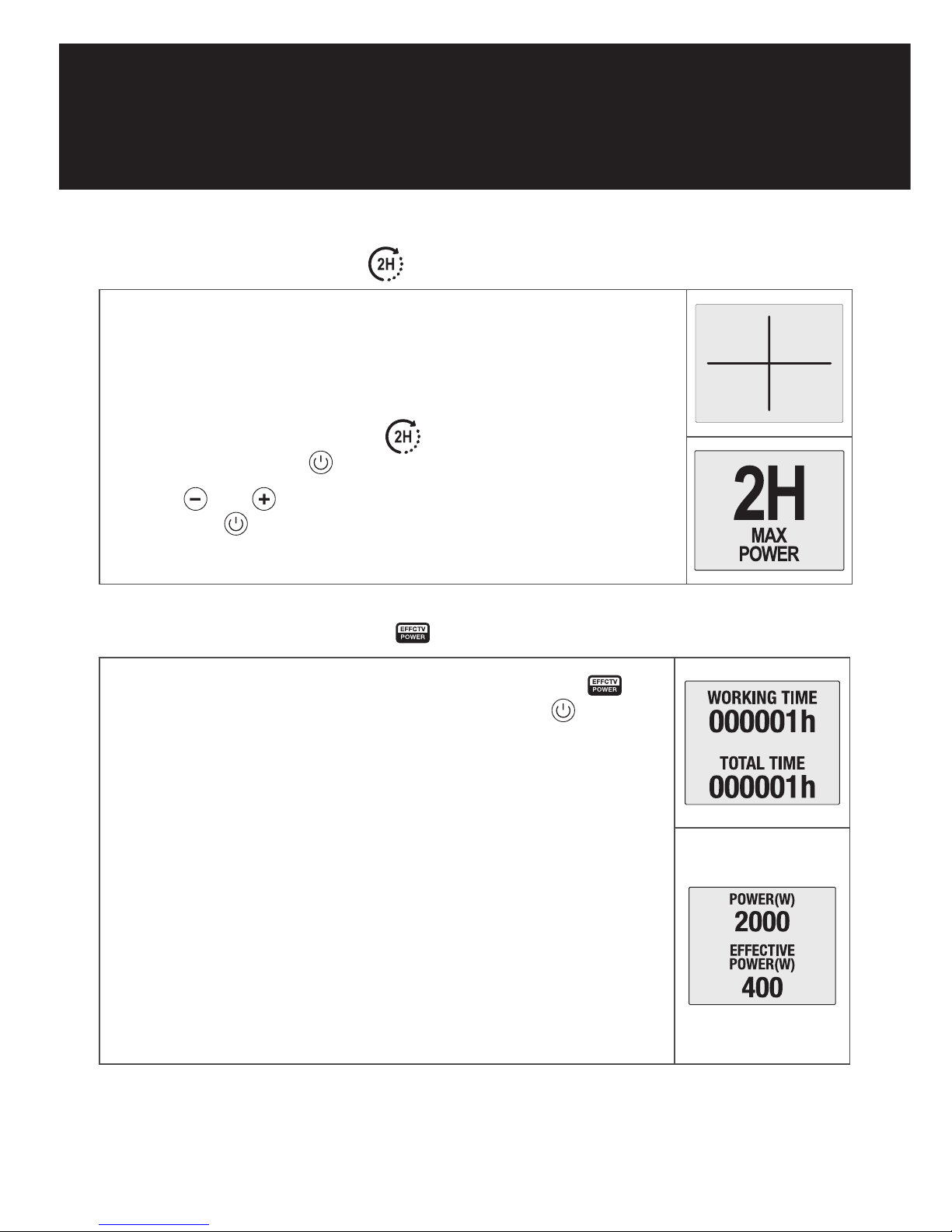

• Two-hour Boost Mode
The two hour BOOST mode will override any other set mode and will boost
your product to maximum power. You can choose to boost to maximum
power for 15 minutes, 30 minutes, 1 hour or 2 hours.
To set the BOOST mode, ensure the icon is highlighted in the `Energy´
sub-menu and press the button to access.
Use the and buttons to choose how long to boost your product
for and press to confirm.
1H 2H
15
min
30
min
• Effective Power Function
To check the Effective Power status of your product, ensure the icon
is highlighted in the `Energy´ sub-menu and press the button to
confirm.
The display panel will then show a status according to the current state
of consumption of the product:
• Working Time
• Total Time
After 6 seconds, the display panel will then show:
• Nominal Power (w)
• Effective Power* (w)
*The effective power is the actual value of its nominal power that the
product consumes during periods of operation.

13

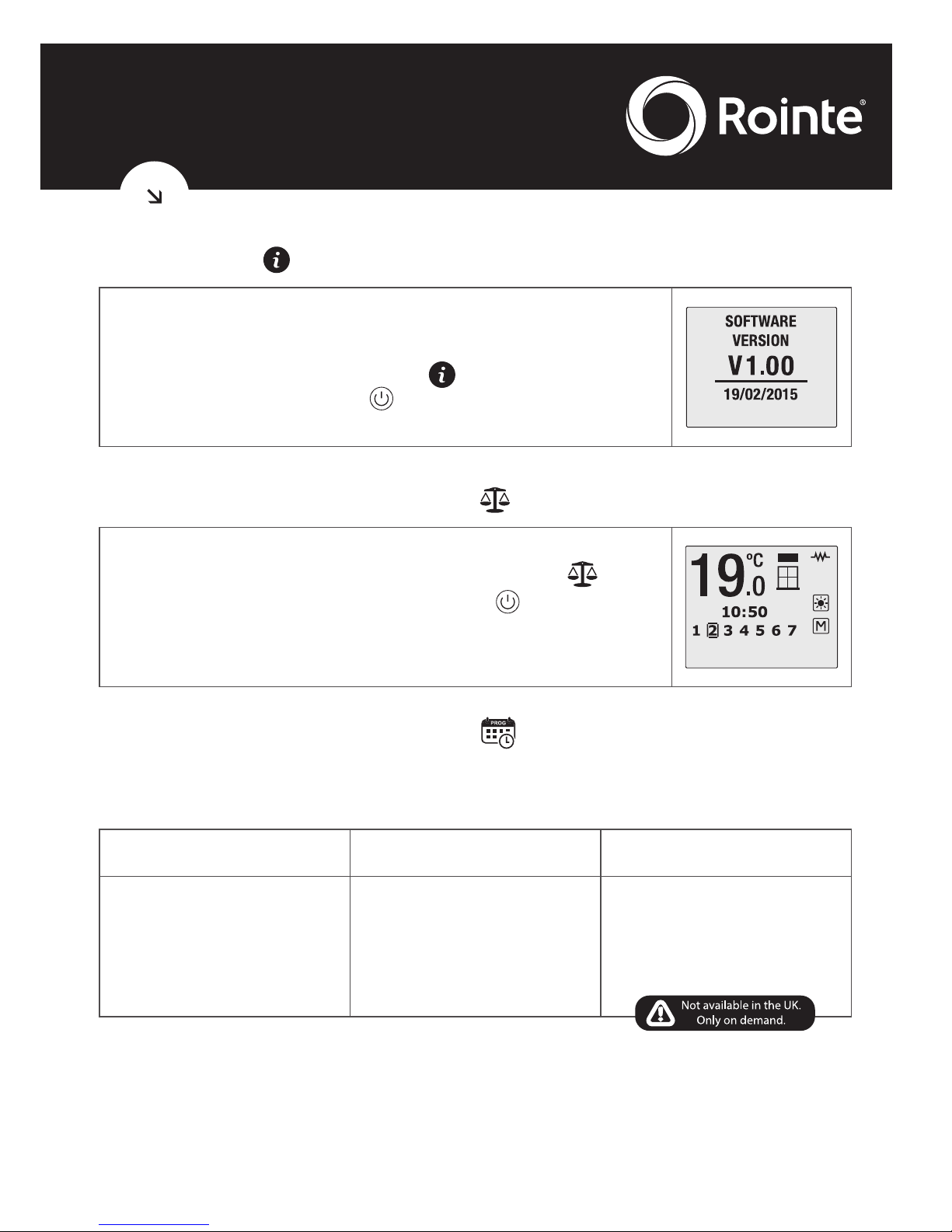

• Information
This function will display the software version, the date of this release
and the rated power of the product.
To access this information, ensure the icon is highlighted in the
`Energy´ sub-menu and press the button to confirm. The information
will then show in the display panel. POWER 2400W
1.6.3 Main Menu: Balance sub-menu
The `Balance´ sub-menu/function returns the product to a constant
temperature of 19°C. To activate this function, ensure the icon is
highlighted in the `Balance´ sub-menu and press the button to confirm.
The product will return to the display panel in MANUAL function, with the
temperature set to 19ºC.
1.6.4 Main Menu: Program sub-menu
This section, explains the operational aspects of your product in its various functions and modes.
What are the functions of MANUAL, AUTOMATIC and PILOT WIRE mode?
MANUAL AUTOMATIC PILOT WIRE
This function allows you to
change the product between
the COMFORT, ECO and ANTI-
FROST modes and to change
the temperature*.
This function will activate
the programming that has
previously been set in the
product.
This function allows the
product to be controlled by a
central programmer.
* To change temperature, please see point 1.4 on page 7 of this manual.

14
KYROS
What are COMFORT, ECO and ANTI-FROST modes?
These modes are the different temperature ranges available within the product.
COMFORT ECO ANTI-FROST
From 19ºC to 30ºC From 7.5ºC to 18.5ºC 7ºC
The `Program´ sub-menu provides access to functions related to
programming the product. To access, select the icon displayed in the
Main Menu screen and press to confirm.
Use the and buttons to move across the different options on the
sub-menu to choose your program and press to confirm.
The icons displayed on the following screen take you to the following
functions:
/
MANUAL/
AUTOMATIC
functions
Programming
options USER function
PILOT WIRE
mode
• Manual/Automatic Function
To change or choose the MANUAL or AUTOMATIC
function, ensure the icon is highlighted in
the `Program´ sub-menu and press the button
to confirm. You can change from AUTOMATIC to
MANUAL and vice versa by pressing the button
again.
The AUTOMATIC function activates the programming
you have already established in the product.

15
On the display panel, the symbol will appear for
the AUTOMATIC function and the symbol for the
MANUAL function.
• Programming options
To choose a program for your product you MUST be in AUTOMATIC mode.
Please see previous page 14 for details on how to adjust to AUTOMATIC
mode.
To access the `Programming´ options, ensure you are in the `Program´ sub-
menu, then select the icon by using the and buttons and
then press the button once the button is highlighted.
The display panel will show 2 options:
• PREPROGRAMS
• START PROGRAMMING
A flashing line will appear around the option that is selected. To change the
option use the and buttons and press the button.
• START PROGRAMMING for AUTOMATIC mode
To program the AUTOMATIC mode, see points above and ensure that START
PROGRAMMING is highlighted. Press the button to confirm and the
display panel will show a flashing screen.
STEP 1 - Select COMFORT mode temperature
COMFORT mode will be programmed first. Select the COMFORT mode
temperature between 19ºC and 30ºC using the and buttons. The
icon and the temperature will flash. Press the button to confirm.

16
KYROS
STEP 2 - Select ECO mode temperature
ECO mode will be programmed next. Select the ECO mode temperature
between 7.5ºC and 18.5ºC. The icon and the temperature will flash. Press
the button to confirm.
STEP 3 - Select the Days
The days of the week will start flashing on the display panel and show as
DAY 1, DAY 2, DAY 3 etc.
Use the and buttons to move forwards or backwards through the
days. Press to select the day or days that you wish to include in your
AUTOMATIC program. The day will stop flashing once selected. Repeat for
all the days you wish to program and once all days are selected press the
button to move onto setting the hour.
STEP 4 - Select the Hours
Once step 3 has been completed, 0h appears on the display panel. 0h is
equal to midnight. Use the or buttons to select the hour you wish
to change. Use the button to change the mode (COMFORT, ECO or
nothing) for the hour you wish to modify. The corresponding icon for that
mode will appear at the top of the screen.
To finish the programming press or leave for 30 seconds without
pressing any buttons. To change the programming go back to step 1 and
proceed as described before.
*If you wish to have different days with different programming within your
program you will need to modify each day separately, starting from the
Main Menu again for each day/days. Follow Steps 1 to 4 above to program
multiple differing days/hours/temperatures.
12h

17

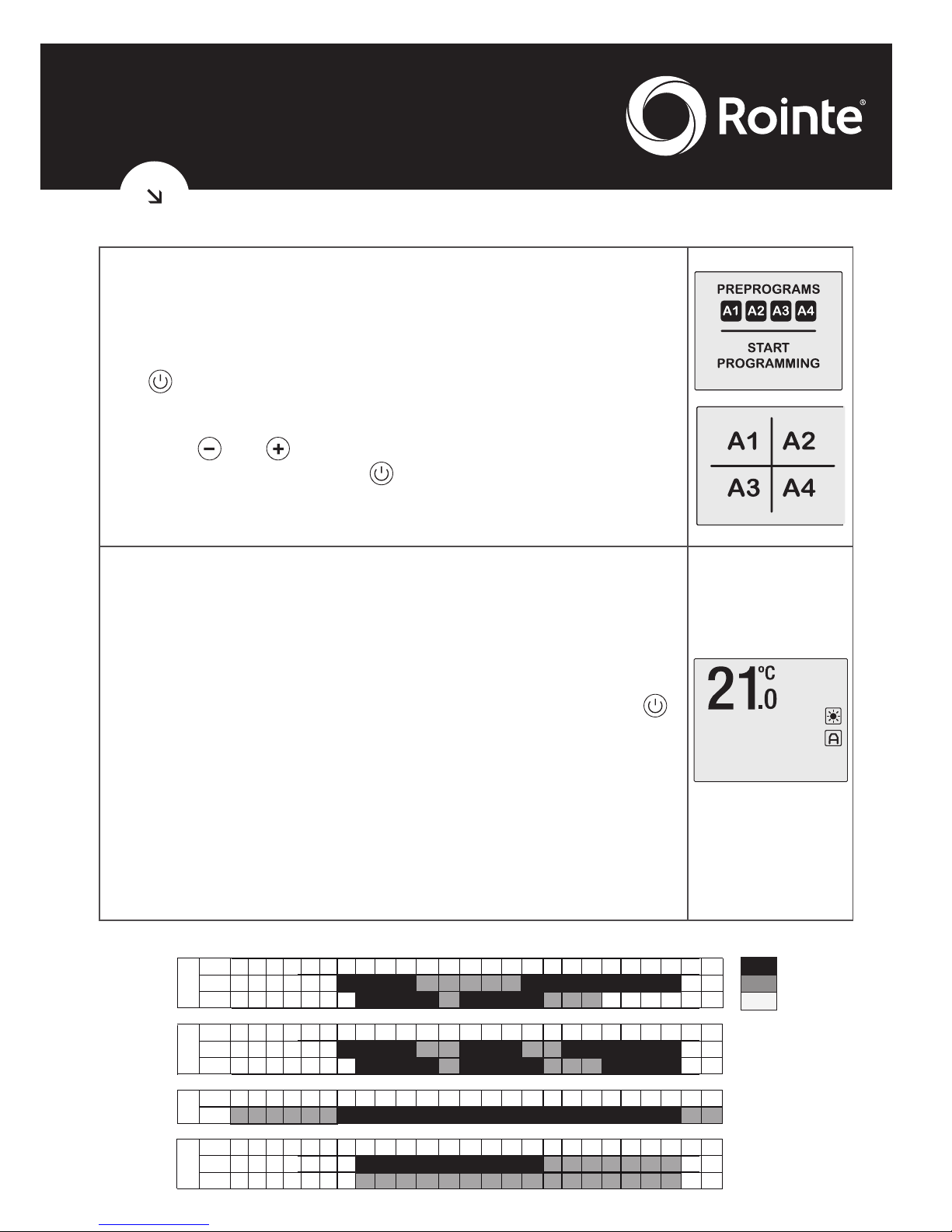

• PREPROGRAMS
To CHOOSE a PREPROGRAM for your product:
Ensure that PREPROGRAM is highlighted in the `Program´ sub-menu. Press
the button to confirm and the display panel will show 4 programs for
you to choose from: A1, A2, A3 and A4.
Using the and buttons, choose the program you wish to activate
and once highlighted, press the button to confirm. You will then be
automatically taken back to the main display panel and your preprogram
option will show on the screen to confirm it is active.
To MODIFY any of the preset programs:
You need to be in AUTOMATIC mode and select the preprogram you want
to modify i.e. your product must be working/have the preprogram already
activated you wish to modify.
Then ensure that START PROGRAMMING is highlighted. Press the
button to confirm and the display panel will show a flashing screen. You
then need to follow STEPS 1 - 4 on pages 15 & 16 to modify the temperature/
day/hours.
*If you wish to have different days with different programming within your
program you will need to modify each day separately, starting from the
Main Menu again for each day/days. Follow Steps 1 to 4 above to program
multiple differing days/hours/temperatures.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Sa-Su
M-F
PRE-INSTALLED PROGRAMMES
A1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Sa-Su
M-F
A2
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
M-S
A3
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Sa-Su
M-F
A4
OFF
ECO
COMFORT

18
KYROS

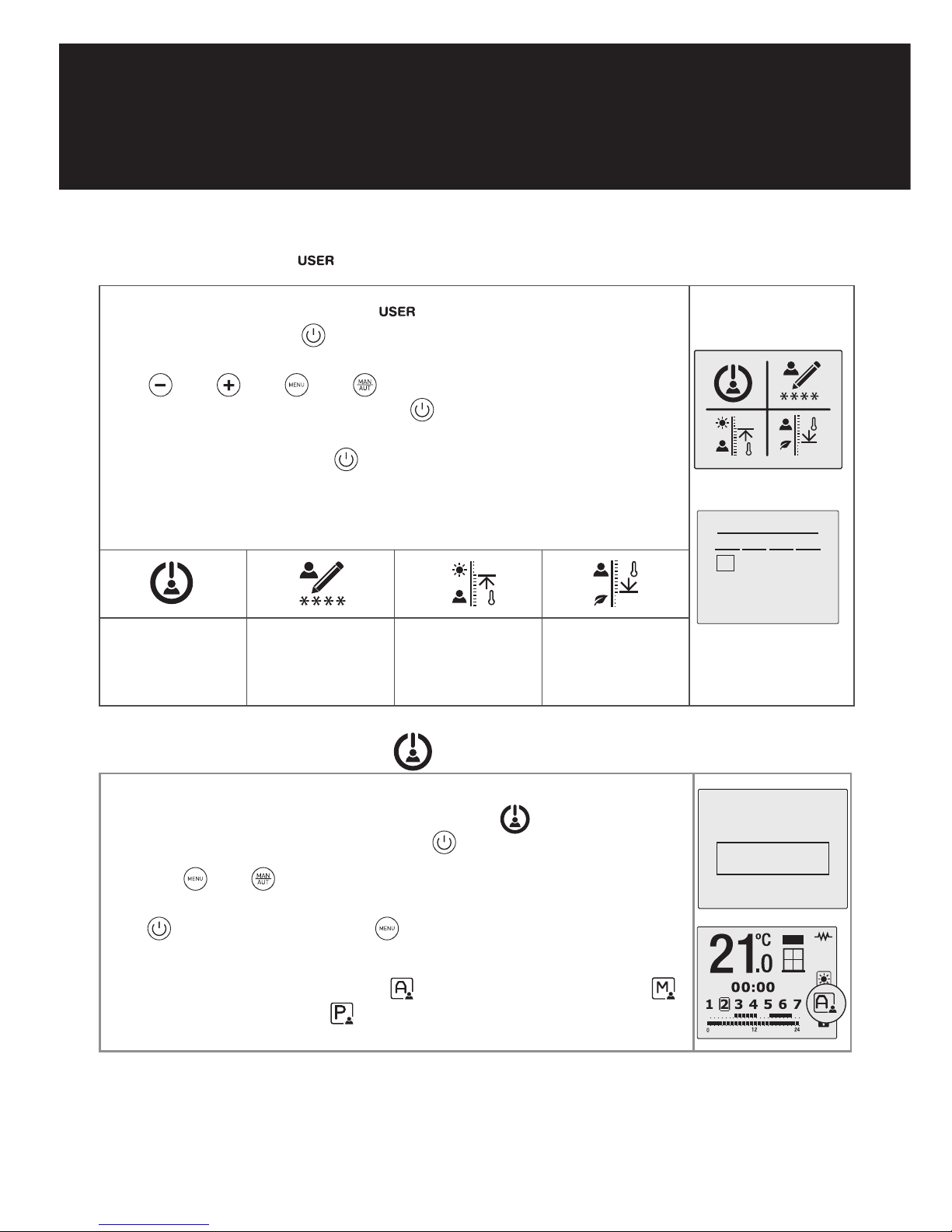

• USER Function
To enter the USER function, ensure icon is highlighted in the `Program´
sub-menu and press the button to access. A 4 digit PIN code is required
in order to access the menu. The default PIN is 0000. To enter the PIN use
the and and and buttons to move left, right, up or down
to select the correct numbers, pressing after each number is highlighted
to confirm. Once the full 4 digits have been entered, move to OK on the
display panel and press the button to confirm. Once the PIN number
has been entered correctly, the main USER function sub-menu will be shown.
The below icons displayed on the screen take you to the following functions:
Enable/
Disable
function
Change
PIN
Upper
temperature
limit
Lower
temperature
limit
• Enable /Disable function
To access the Enable/Disable function, ensure the icon is highlighted
in the `Program´ sub-menu and press the button to access.
Use the and buttons to move up and down respectively to select
ON to enable or OFF to disable. Once the desired option is highlighted press
the button to confirm. Use the button to go back to the main display
panel or leave for 30 seconds without pressing any buttons.
On the main screen you will see the icon in automatic function, the
icon in Manual function and when in Pilot Wire control function.
INSERT PIN
1 2 3
4 5 6
7 8 9
0
OK
CANCEL
USER
FUNCTION
ON
OFF

19
• Changing the PIN code
To change the PIN code of your product, ensure the icon is highlighted
in the `Program´ sub-menu and press the button to access.
Use the and and and buttons to move left, right, up or
down to select the new numbers, pressing after each number is
highlighted to confirm.
Then move to OK on the display panel and press the button to confirm.
The screen will show PIN CHANGED.
Please remember your new PIN code for the future and store in a safe
place. In order to access the USER function menu again you will need
your new PIN code.
• Upper temperature
To set the upper temperature limit of your product ensure the icon is
highlighted in the `Program´ sub-menu and press the button to access.
Use the and buttons to decrease or increase your desired upper
temperature between 19ºC to 30ºC and press the button to confirm.
You will then return to the USER function screen. To exit press the
button to go back to the main display panel or leave for 30 seconds without
pressing any buttons.
PIN
CHANGED
1 2 3
4 5 6
7 8 9
0OK
CANCEL
NEW PIN

20
KYROS
• Lower temperature
To set the lower temperature limit of your product ensure the icon is
highlighted in the `Program´ sub-menu and press the button to access.
Use the and buttons to decrease or increase your desired lower
temperature between 7.5ºC to 18.5ºC and press the button to confirm.
You will then return to the USER function screen. To exit press the
button to go back to the main display panel or leave for 30 seconds without
pressing any buttons.
LOWER
TEMPERATURE
LIMIT
10.0ºC
• PILOT WIRE mode
The PILOT WIRE wire mode allows your heating only to be controlled via a pilot wire programmer.
To access the PILOT WIRE mode, ensure the
icon is highlighted in the `Program´ sub-menu and
press the button to access.
Use the and buttons to move up and down
respectively to select ON to enable or OFF to disable.
Once the desired option is highlighted press the
button to confirm. Use the button to go back to
the main display panel or leave for 30 seconds
without pressing any buttons.
On the main display panel the symbol will appear.
PILOT
WIRE
ON
OFF
Not available in UK. Only upon demand.
