Rointe SYGMA SHORT User manual

MANUAL DE INSTALACIÓN Y USO
Página 22
MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO
Página 41
INSTALLATION AND USER MANUAL
Page 03
INSTALLATIE- EN GEBRUIKERSHANDLEIDING
Page 59
ES
EN
PT
NL
SYGMA SHORT Energy-saving digital radiator / Radiador
digital de bajo consumo / Radiador digital economizador de energia /
Energiebesparende digitale radiator
GUARANTEE / GARANTÍA
/ GARANTIA / GARANTIE
ON THE BODY
EN EL CUERPO
NO CORPO
IN HET LICHAAM
YEARS / AÑOS
/ ANOS / JAAR
YEARS / AÑOS
/ ANOS / JAAR
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
IN ELEKTRONICA

EN
SYGMA SHORT DIGITAL RADIATOR
3
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not
leave or place magazines, spray cans, volatile substances, or similar objects
within 250 mm of the radiator.
HOT SURFACE. This symbol indicates that your surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.

4
INDEX
1. General Warnings ............................................................................................................ 5
2. Technical information .................................................................................................... 8
3. Installation........................................................................................................................ 9
4. Screen & Keypad ............................................................................................................ 13
5. Functionality and programming ................................................................................. 13
5.1. Power ON / OFF (stand-by) ................................................................................... 13
5.2. Adjust the day and time......................................................................................... 14
5.3. Adjust the temperature ........................................................................................ 14
5.4. Lock the control panel...........................................................................................14
5.5. Adjust display backlight brightness..................................................................... 14
5.6. Manual / automatic functions .............................................................................. 15
5.6.1. Manual function............................................................................................... 15
5.6.2. Automatic function ......................................................................................... 15
5.7. Open windows function ......................................................................................... 16
5.8. Optimizer Energy Plus technology ....................................................................... 17
6. Maintenance and cleaning .......................................................................................... .17
7. European Regulation (WEEE) 2012/19/EU ................................................................ .17
8. Guarantee ..................................................................................................................... .17
9. How to register your product guarantee ....................................................................20
Directive ERP Commission Regulation ..........................................................................77
EU Declaration of Conformity ..........................................................................................79

EN
SYGMA SHORT DIGITAL RADIATOR
5
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on this
product. Children under 3 years of age should be kept away
from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the
radiator.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the
product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.

6
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the product.
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging
including bags and other items within reach of babies or
children.
The product has an IP24 degree of protection and can be
used in bathrooms, but not in the vicinity of bathtubs, taps,
showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where
it, the switches or the control panel are within the reach of
people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or
near the product.

EN
SYGMA SHORT DIGITAL RADIATOR
7
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must be
followed. See WEEE in section 7.
!

8
2. TECHNICAL INFORMATION
MODEL SRI1100RADC2 SRI1300RADC2 SRI1500RADC2
Number of elements 11 13 15
DIMENSIONS, WEIGHTS & FINISHES
Width (mm) 990 1,150 1,310
Height (mm) 420 420 420
Depth (mm) 95 95 95
Installed depth (mm) 118 118 118
Weight (kg) 17.9 21.0 24.8
Finish White RAL 9016
ELECTRICAL CHARACTERISTICS
Nominal power (W) 1,100 1,300 1,500
Effective power (W) 440 520 600
Voltage (V) 230 ~V 230 ~V 230 ~V
Current (A) 4.6 5.7 6.5
SAFETY & INSTALLATION
Safety thermostat ✓ ✓ ✓
Protection Grade IP24 IP24 IP24
Template & Installation Kit ✓ ✓ ✓
EAN CODE 8436045914897 8436045914903 8436045914910

EN
SYGMA SHORT DIGITAL RADIATOR
9
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5928 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back of the
product and note the product reference and serial number. You will need this information
to register your guarantee. See section 9 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.
The product must be mounted on the wall in the position shown in the accompanying image
using the brackets and with the xings supplied.

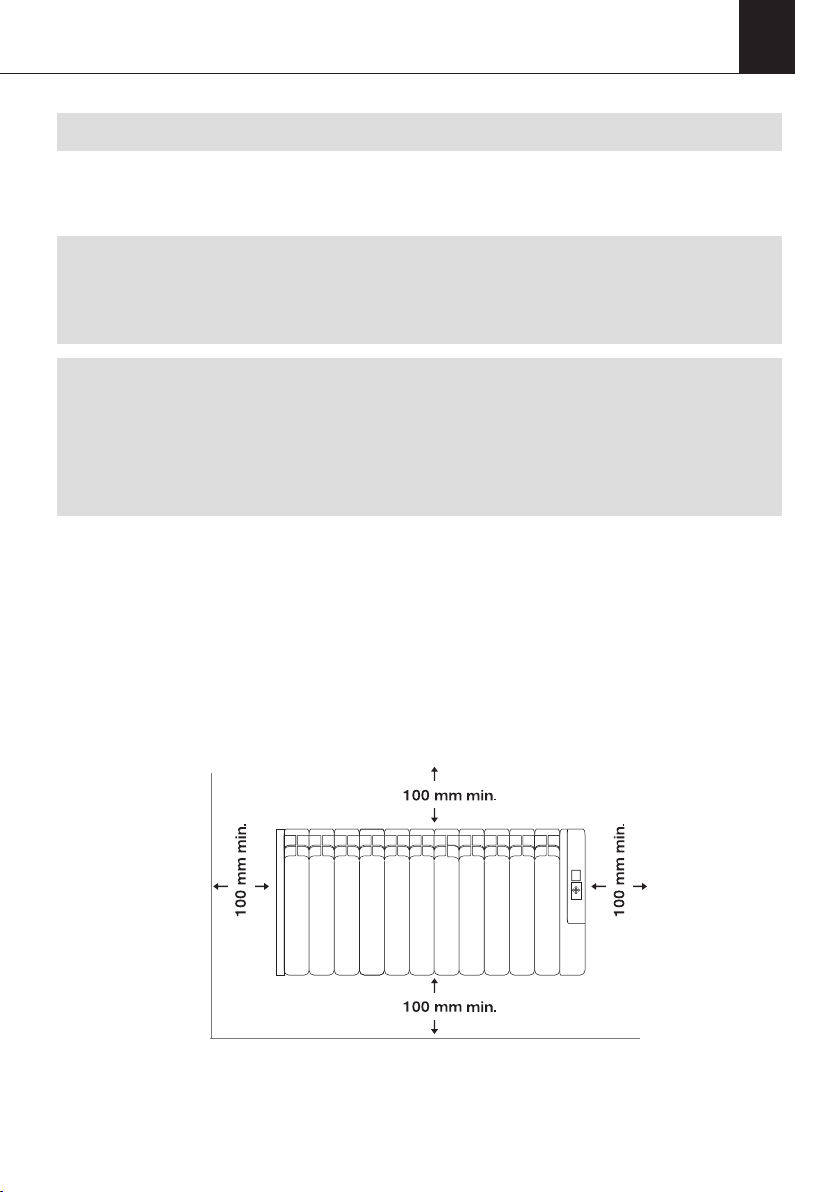

Our products transfer heat through the natural air convection. If the product is covered, this
will disrupt the airow and could cause overheating. It must be positioned in accordance
with the minimum distances shown in the accompanying picture.
Floor
Wall

10

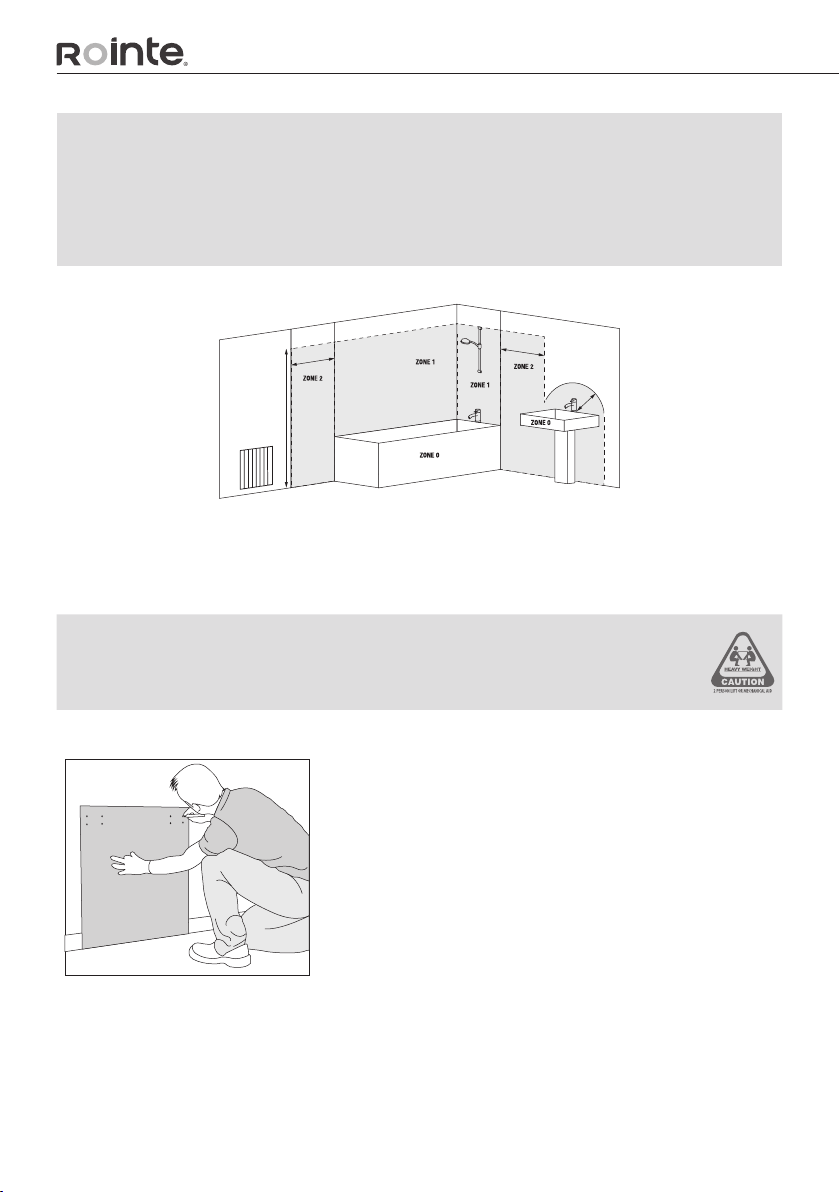

WARNING: The product has an IP24 degree of protection and can be used in bathrooms,
but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming
pools or other masses of water. The product can only be installed in zone 3 of the
accompanying picture. The product must never be installed where it, the switches or the
control panel are within the reach of people in the water. Never use the product with wet
hands. Do not place any water containers (glasses, vases, etc.) on or near the product.
An installation kit is included in the product packaging. You will need a drill, a rubber mallet,
a spirit level and a pencil to complete the installation.
WARNING: The weight of some of the products may be heavy. The installation
may require two people.
IMPORTANT: Please follow these instructions carefully.

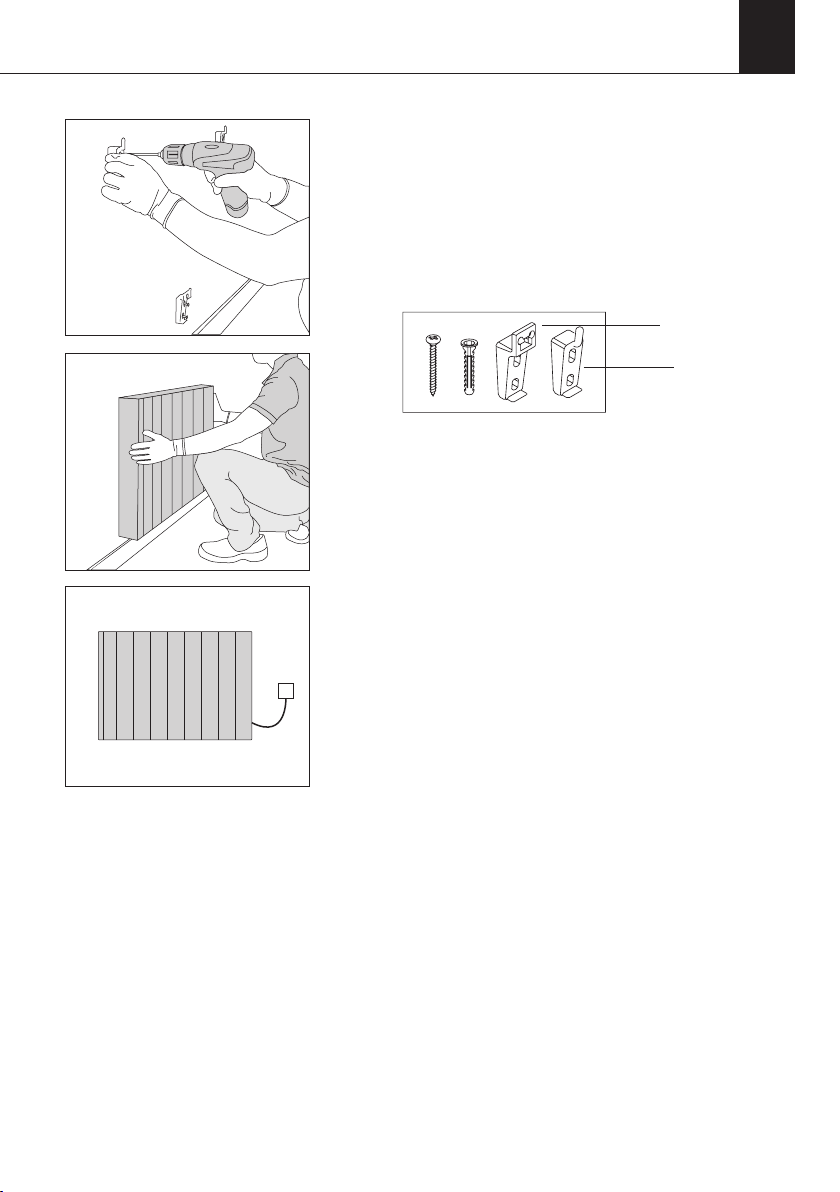

1. Remove the packaging and check that the installation
contains brackets, screws, rawl plugs and a cardboard
template.
2. Select a suitable location on the wall. Place the
template on the wall and mark the holes for the
brackets and screws. Observe the minimum distance
requirements from the previous page.
Use the oor as a base for the template, not the
skirting board.
ZONA EXTERIOR ZONA EXTERIOR
2.25 m
0.6 m 0.6 m
0.6 m

EN
SYGMA SHORT DIGITAL RADIATOR
11
3. Remove the template and carefully drill out the
marked holes.
4. Secure the upper brackets with the rawl plugs
and screws provided. Then x the lower bracket. To
distinguish it, the lower bracket has a different design
from the top ones.
5. Slide the product up and down over the xed
brackets.
6. Check the straightness with a spirit level and adjust
the supports accordingly if necessary.
7. Connect your product to the power supply and
switch it on.
8. See section 5 for operating instructions.
Bottom bracket
Top bracket

12
IMPORTANT: Measurement template per model.
SRI1100RADC2
SRI1300RADC2 / SRI1500RADC2
Floor
Floor

EN
SYGMA SHORT DIGITAL RADIATOR
13
4. SCREEN & KEYPAD
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
OPEN WINDOWS function - active AUTOMATIC function active
Heating element active MANUAL function active
COMFORT mode active Optimizer Energy Plus technology active
ECO mode active Control panel locked through keypad
ANTI-FROST mode active
5. FUNCTIONALITY AND PROGRAMMING
5.1. POWER ON AND OFF (STANDBY)
To switch the product on, please press the button once. After 3 seconds the tempera-
ture, time and days of the week will be show on the display panel. To switch the product off,
please press the button again once. The product will go into stand-by mode with the
word ‘STAND-BY’ displayed on the display panel.
Programming
Days of the week
Control panel
locked /
unlocked
MANUAL /
AUTOMATIC /
PILOT WIRE*
function indicator
COMFORT / ECO /
ANTI-FROST mode
indicator
Optimizer Energy Plus
indicator
Heating element
active indicator
OPEN WINDOWS
function indicator
Temperature
selected
Time
Decrease temperature
Move left
Increase temperature
Accept / Conrm
On / Off
MANUAL /
AUTOMATIC function
Move down
Access/Return to menu
Move up

14
5.2. ADJUST THE DAY & TIME
To adjust the day and time, please ensure you are in MANUAL function (see section 5.7.)
Then press and hold the button on the keypad for 3 seconds. Use the buttons and
to set the hour, then press to conrm. Then use the and buttons to set the
minutes and press to conrm. Finally, use the and buttons to set the day (1 =
Monday, 2 = Tuesday etc.) and conrm by pressing the button. You will then return to
the main display panel.
5.3. ADJUST TEMPERATURE
With the key or you can change the setpoint temperature. By increasing the
temperature with the , and decreasing the temperature with the key if the temperature
of the room is lower than the selected temperature, the product is consumed and the symbol
at the top right of the screen. When the symbol replaces the symbol , then
the Optimizer Energy Plus technology is in operation.
5.4. LOCK THE CONTROL PANEL
Pressing simultaneously the and for 3 seconds, the keyboard is locked by turning
on the keyboard lock icon . To unlock, press the and keys again for 3 seconds.
5.5. ADJUST DISPLAY BACKLIGHT BRIGHTNESS
The display illumination can be changed by pressing the key during 3 seconds when
the product is in manual mode (see point 5.6.1.). With the and keys, you can decrease
or increase the brightness of the display in ON mode. To modify the brightness of the
“Standby” mode, press the and keys and the bounding box will mark the “STAND-
BY” option, and the brightness can be modied with the same keys and . To exit this
function, wait 10 seconds without pressing any button.

EN
SYGMA SHORT DIGITAL RADIATOR
15
5.6. MANUAL/AUTOMATIC FUNCTIONS
Press the button to switch between the Manual and Automatic functions. The main
display will show the symbol for the AUTOMATIC function and the symbol for the
manual function.
MANUAL AUTOMATIC
This function allows you to switch between
COMFORT, ECO and ANTI-FROST modes by
changing the temperature.
This function activates the programming stored
in the product.
5.6.1. MANUAL FUNCTION
This function allows you to vary the temperature by switching the product modes between
COMFORT, ECO and ANTI-FROST. To set the temperature in MANUAL mode see point 5.3. of
this manual. The icons for COMFORT, ECO and anti-freeze will appear when the temperature
changes to the above ranges. Depending on the selected temperature, you will see one of
these symbols on the display:
CONFORT ECO ANTI-FROST
From 19ºC to 30ºC From 7.5ºC to 18.5ºC 7ºC
5.6.2. AUTOMATIC FUNCTION
Para comenzar a programar, compruebe que está en función AUTOMÁTICO, mostrando la
pantalla el símbolo . Si la pantalla muestra el símbolo pulse para cambiar de
función. Una vez en función AUTOMÁTICO, pulse y mantenga durante 3 segundos
para entrar en el modo de programación.
STEP 1 - Select the COMFORT mode temperature
The CONFORT mode will be programmed rst. Select the COMFORT mode temperature
between 19ºC and 30ºC with the and buttons. The icon and temperature will
ash; press the icon to conrm.
STEP 2 - Select the ECO mode temperature
The ECO mode will be programmed later. Use the and burtton to vary the
temperature within the range between 7.5ºC and 18.5ºC. The icon and the temperature
will start ashing; once you are satised with the selection, press to conrm.

16
STEP 3 - Select the days
The days of the week will start ashing on the display panel and will show DAY 1, DAY 2, DAY
3, etc. Use the and buttons to scroll forward or backward through the days. Press
to select the day(s) you wish to include in your AUTOMATIC programme. The day will
stop ashing once selected. Repeat all the days you wish to program with the same settings
and once all the days are selected press the button (while on day 7) to scroll to the time
setting.
STEP 4 - Select the hours
Once step 3 has been completed, the display will show the time in 24-hour format (midnight
is 0h, 1h, 2h...). Move through the hours using or to change them as you wish. Use
the key to switch between COMFORT , ECO and ANTI-FROST modes for the
time you wish to change, for all the days selected in step 3. The corresponding icon for that
mode will appear at the top of the display; repeat the process of selecting the mode with
the button each time you need it.
Once you have nished programming, press the button to end or simply do not press
any keys for 30 seconds. To change the programming again, go back to step 1 and proceed
as described above.If you want to activate the anti-frost mode in the hours that do not have
COMFORT or ECO mode, from the main screen of the radiator and in automatic mode, press
the key . If you want to reverse this action, press .
* If you want different schedules on multiple days within your programme, you will need to
modify each day or group of days separately, starting from the main menu again for each
day / days. Follow steps 1 to 4 above to program different days / times / temperatures.
5.7. OPEN WINDOWS FUNCTION
This function is activated when the temperature read by the probe detects a drop of 4ºC
with respect to the setpoint temperature within 30 minutes. When this function is activated,
the following image appears on the radiator display for 5 seconds:
Once the Open Windows function is activated, a screen indicating that the anti-frost mode
is active will appear with this icon at the top. The mode will be active for 2 hours. During
this period, if you press the key, the radiator will be switched off. Pressing again , the
radiator will be switched on again without the Open windows function active. At the end of
a period of two hours without pressing any buttons, the radiator will automatically return to
the previous state.

EN
SYGMA SHORT DIGITAL RADIATOR
17
5.8. OPTIMIZER ENERGY PLUS TECHNOLOGY
This product includes Optimizer Energy Plus technology, which manages the radiator’s
energy consumption in the most ecient way.
Optimizer Energy Plus is a technology that bases its operation on the generation of thousands
of micro-cuts in the energy consumption of the heating element to maintain a stable water
temperature with minimum consumption. When the replaces the symbol , then
the Optimizer Energy Plus technology is in operation.
6. MAINTENANCE AND CLEANING
The product does not require any maintenance. We recommend cleaning the product (back,
bottom of the product, etc.). Do not use abrasive substances on the product, clean it with
a damp cloth and neutral pH soap and the screen with a dry cloth. Before carrying out any
cleaning operation, make sure that the product is switched off and at room temperature.
7. EUROPEAN REGULATION (WEEE) 2012/19/EU
Based on the European regulation 2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE), these appliances cannot be thrown in the usual council bins; they must be collected
selectively to optimise the recovery and recycling of the components and materials that
make them up, and reduce the impact on human health and the environment. The crossedout
wheelie bin symbol on a horizontal bar is marked on all ROINTE products to remind the
consumer of the obligation to separate them for separate collection. The consumer should
contact the local authority or the retailer for information regarding the correct disposal of
their product.
8. GUARANTEE
1. Agreement
1.1. This section describes the guarantee conditions available to the buyer when
purchasing a new product of the Rointe brand. These conditions include all the rights
that the buyer has in accordance with current national legislation, as well as the
guarantee and additional rights offered by the brand. Any incident detected in your
Rointe product can be dealt with by the seller of the product or in a more agile way
through the manufacturer itself.

18
1.2. Rointe offers you Technical Assistance from our After-Sales Service by telephone at
[phone] or email to [email protected], where we will indicate the steps
to follow to solve the incident. You will need the product reference (located on the metal
characteristics label), serial number, date of purchase and the nature of the fault when
contacting us. In addition, you must have a copy of the proof of purchase of the product.
1.3. ROINTE guarantees there are no material defects of design or manufacture at the
time of original purchase. ROINTE guarantees the body for 120 months (10 years) and
the electrical plus electronic components for 36 months (3 years) for this product only,
from the date of purchase, or delivery if later, provided it has not been modied, and in
accordance with the provisions of the following stipulations.
2. Conditions
2.1. If during the guarantee period, the product under normal use, and with proper
maintenance, fails to function properly and is found to be defective in design, material,
or workmanship, it will be repaired or replaced at the customer’s option, in accordance
with the provisions of the law, and subject to the following terms and conditions:
2.1.1. The guarantee is only applicable if the original guarantee is issued by the
seller and when such guarantee has been registered with Rointe correctly, including
the product reference, serial number (marked on the metal label of the product),
date of purchase and proof of purchase. The product guarantee can be registered
on our website at www.rointe.co.uk or can be emailed to [email protected]
within 90 days of installation. ROINTE reserves the right to refuse a guarantee when
this information has been removed or modied after the original product purchase.
2.1.2. The guarantee is only applicable if the product has been installed by a
competent person in accordance with this installation manual and all regulations in
force at the time of installation.
2.1.3. The guarantee is only applicable to those cases that refer to defects in
material, design and manufacture, and in no case covers damage to the product for
the following reasons:
i) Damage caused by negligence and/or misuse of the product, i.e. used for
purposes other than its normal use, or by not respecting the instructions for use,
maintenance and cleaning given by ROINTE, as well as by incorrect or inadequate
installation or use of the product that may not comply with the technical safety
standards in force.
SYGMA SHORT
SRI1100RADC2
SERIAL NUMBER
REFERENCE

EN
SYGMA SHORT DIGITAL RADIATOR
19
ii) Corrosion of any part of the product caused by direct exposure to saltwater.
Where the product is installed within 200 m of the coast, the guarantee period for
damage caused by corrosion shall be reduced by 50%.
iii) Any unauthorised modications or repairs to the product carried out by third
parties or unauthorised persons, or the opening of the product by third parties or
unauthorised persons.
iv) Any accident deemed to be beyond ROINTE’s control, such as (but not limited to):
lightning, re, ood, natural disasters, public disorder, atmospheric or geological
phenomena, and all those of a similar nature.
v) Failures resulting from incorrect installation. In case of doubt, please contact
ROINTE.
2.2. Any repair or replacement carried out as part of this guarantee service does not
allow for extension periods or new guarantee periods, i.e. your guarantee will not be
extended in the event that a repair or replacement of this product is carried out, but will
be suspended until the product is returned repaired or a new one is delivered.
2.3. Any repair or replacement covered by this guarantee must be a functionally
equivalent part. Defective parts or parts removed or replaced shall become the property
of ROINTE and must be returned as such.
2.4. The product must be installed in such a way as to allow access by ROINTE
technicians or authorised persons in the event that they need to access the product for
repair or maintenance. The user/customer is responsible for the organisational means
necessary to allow access to the products by ROINTE for repair or replacement.
2.5. ROINTE’s Technical Support department will advise you if you need to purchase any
parts not covered by this guarantee or outside of this guarantee.
2.6. This guarantee will not be valid if the product has been tampered with, modied
and/or repaired in any way and/or by unauthorised persons. This guarantee will also not
be valid if the product is not correctly installed.
2.7. This guarantee is not transferable and does not include claims for limescale or frost
damage.
2.8. This guarantee does not affect the purchaser’s statutory rights under applicable
national legislation, nor does it affect any rights contracted with the dealer or installer
that may arise in performance of the contract of sale.
2.9. ROINTE, its oces, employees, distributors and installers shall not be liable for any
incidental damages arising from the infringement of any rule implied in this product, as
well as for its improper or incorrect use.
2.10. Check the EULA conditions (supplied with the product for Wi-Fi connected
products) for information on the legal agreement you accept when installing a ROINTE
product. For product or guarantee assistance, please contact ROINTE by telephone at
[phone] or by email to [email protected].

20
9. HOW TO REGISTER YOUR PRODUCT GUARANTEE
IMPORTANT: It is important that you register your ROINTE product as part of our guarantee
service, in case you wish to make a claim.
You can register your ROINTE product in the following ways:
WEB
1. Go to https://rointe.com/uk/register-your-guarantee/
2. Log in to your existing account or create a new account if necessary.
3. Click on “My products”.
4. Enter your product reference (alphanumeric and in capital letters).
5. Enter your serial number (26 digits located on the metal tag of your product starting with 84).
6. Upload your proof of purchase, such as your invoice in PDF, JPEG or PNG format. This is not
mandatory, but doing so ensures that your warranty period is accurate.
7. Click on “Register”.
8. Congratulations! Your product is now registered.
EMAIL
1. Send an email to [email protected] with the following information:
• Customer name
• Address and postcode
• Telephone number and email address
• Product reference
• Serial number
• The date of purchase of the product and proof of purchase (as described in the WEBSITE
section above).
• Our technical support team will conrm product registration and request any additional
information needed by email.
POSTAL
1. Send the information listed in the EMAIL section to:
• INDUSTRIAS ROYAL TERMIC, S.L. - Rointe, C/E Parcela 43, 30140, Santomera (ESPAÑA).
2. Please ensure you obtain proof of postage.
