Rointe SYGMA STN030SEB2 Setup guide

SYGMA
INSTRUCTIONS MANUAL
SYGMA DIGITAL
ELECTRIC TOWEL RAIL
MOUNTING, INSTALLATION,
STARTING AND OPERATION
EN

2
SYGMA
WELCOME
Dear Customer,
Thank you for choosing the SYGMA digital electric towel rail, with an
exclusive electronic temperature programmer and made with the
highest quality materials especially for you.
The SYGMA digital electric towel rail have exceeded the most
stringent quality controls in order to comply with the most rigorous
requirements for safety.
Before using the SYGMA digital electric towel rail, we recommend
that you read this instruction manual in order to ensure correct
operation.
IMPORTANT
THIS MANUAL SHOULD BE LEFT WITH THE PRODUCT AFTER
INSTALLATION

3
TABLE OF CONTENTS
1. DESCRIPTION OF THE SYGMA TOWEL RAIL.............................. 4
1.1. Front Panel Parts ................................................................. 4
1.2. Switching On & Off (stand-by) .............................................. 5
1.3. Setting the day and time....................................................... 6
1.4. Locking the Control Panel.................................................... 7
1.5. Temperature Selection......................................................... 7
1.6. Manual/Automatic Mode ...................................................... 7
1.7. Two-hour Boost Mode (2H)................................................... 8
1.8. Open windows function......................................................... 8
1.9. Screen brightness function .................................................. 9
2. PROGRAMMING THE SYGMA TOWEL RAIL .............................. 10
3. MOUNTING INSTRUCTIONS ..................................................... 12
4. CONNECTING INSTRUCTIONS ................................................. 13
4.1. SYGMA Towel Rail Technical Characteristics .................... 15
4.2. Specific Regulations for Bathrooms .................................. 17
5. MAINTENANCE & CLEANING................................................... 17
5.1. Safety .................................................................................. 18
6. GUARANTEE.............................................................................. 18
ENGLISH
ATTENTION:
If you are the owner of a model bought in the UK or Éire, please refer
ONLY to its manual as the specifications of the towel rails are different.

4
SYGMA
TFT DISPLAY
CONTROL PANEL
1. DESCRIPTION OF THE SYGMA TOWEL RAIL
1.1. Front panel parts

5
1.1.1. TFT display symbols
SEGMENT INDICATION
1PROGRAMMING
2DAYS OF THE WEEK
3TIME OF DAY
4TEMPERATURE SELECTED
5OPEN WINDOW FUNCTION
6TOWEL RAIL HEATING
7MANUAL / AUTOMATIC FUNCTION
8COMFORT / ECO / ANTI-FROST MODE
9LOCKING THE CONTROL PANEL
1.2. Switching On & Off (stand-by)
By pressing the key , we switch the towel rail on or off. The following
3
7
4
2
56
19
8

6
SYGMA
image will appear on the screen when switched on:
The screen will automatically go into sleep mode if no button is pushed
for 10 seconds. By pushing the button again the towel rail will go into
standby mode with the word “Standby” appearing followed by the
Rointe logo.
1.3. Setting the day and time
In order to adjust the time and day of the week, please follow the
steps below. First we choose the hour, then the minutes, then the
day of the week.
To enter the time and day adjust mode, press and hold the button
for 3 seconds.The hours will start flashing.
Select the hour using the and buttons to move the hour up or
down. Press once and the minutes will start to flash.
In the same way as with the hours, use and to increase or
decrease the minutes to select the correct time.
Once the minutes are correct press again so that the day flashes.
This represents Monday. With the button we can advance through
to day 2 (Tuesday), day 3 (Wednesday), etc. until we reach the required
day. Press again to confirm the day and to leave the time and date
adjust mode.

7
1.4. Locking the Control Panel
By pressing the keys and at the same time for 3 seconds, we
lock the control panel. The control panel symbol is activated and
the keys will not respond when pressed. If one key is pressed this
image will appear in the screen of the towel rail:
To unlock, press the and keys again, at the same time for 3
seconds.
1.5. Temperature Selection
By pressing or we change the temperature. When the room
temperature is lower than the set temperature, the electric towel rail
will begin to generate heat and the symbol will appear.
1.6. Manual / Automatic Mode
By pressing we change between the Manual and Automatic mode.
When the manual mode is selected, the symbol appears on the
display. When the automatic mode is selected, the symbol appears
on the display.
1.6.1. Manual Mode
This enables you to choose between the CONFORT, ECO and
ANTI-FROST modes of operation, changing the temperature as
indicated in Section 1.5.
ICON MODE TEMPERATURE RANGE
COMFORT 20ºC-30ºC
ECO 15ºC -19,5ºC
ANTI-FROST 8ºC

8
SYGMA
1.6.2. Automatic mode
This mode activates the programming set on the heated towel rail.
1.7. Two-hour Boost Mode (2H)
By pressing the key , the heated towel rail will work for two hours
at maximum power, regardless of any other mode. This mode takes
priority over any other.
When the heated towel rail is set on the two-hour mode, the screen
will show this image: for a few seconds.
Once the towel rail is set on the two-hour mode, and until the two
hours have finished or the key is pressed again, the display will
show this image:
1.8. “Open Window” function
This function is activated when the sensor detects a reduction of 4ºC
in respect of the set temperature during 30 minutes.
On activation, the following image will appear on the towel rail display
for 5 seconds:
When the “Open Window” function is activated, the following screen

9
will appear showing that the anti-frost mode is activated:
This function will be active for 2 hours. If the button is pushed
during this period the towel rail will switch off. Pushing the button
again will switch on the towel rail without the “Open Window”
function being switched on.
1.9. Screen brightness function
You can change the brightness of the screen by pushing the button
for 3 seconds when the product is in manual mode. Entering this
mode you will see the following screen:
In ON mode you can increase or decrease the brightness of the
screen by using the and buttons.

10
SYGMA
You can change the “Standby” mode brightness by pushing the button
to move the frame to the “STAND-BY” position. You can then adjust the
brightness by pushing the same and keys.
To finish the programming wait for 10 seconds without pressing any
buttons.
2. PROGRAMMING THE SYGMA TOWEL RAIL
IMPORTANT NOTICE: PLEASE READ THE INSTRUCTIONS FULLY
BEFORE STARTING THE PROGRAMMING TO ENSURE A GOOD
UNDERSTANDING OF THE PROCESS.
It is possible to programme the towel rail using the control panel.
In order to start the programming please ensure that the screen
shows automatic mode with the symbol .
If the screen shows an symbol, please press the button to
change modes.
By pressing and holding for 3 seconds the button we enter
programming mode.
The first thing you will see is the sun symbol flashing, representing
the comfort mode. The comfort mode temperature will also be
displayed.
Using the and buttons we can increase and decrease the
temperature desired within the comfort mode, from 20ºC to 30ºC.
This temperature will be applied later when programming an hour with
the comfort mode setting.
Once the comfort mode temperature is selected, press the button
so that the moon symbol appears flashing. This symbol represents
the economy (eco) mode. The economy mode temperature will also
be displayed.

11
Using the and buttons we can increase or decrease the eco
mode temperature, from 15ºC to 19,5ºC. The selected temperature
will be applied later when programming an hour with the eco mode
setting.
Next we press the button to move to selecting the days of the week
that we wish to program from (Monday) to (Sunday). These
numbers will initially be flashing and they will also be represented
by DAY 1, DAY 2, DAY 3,... etc.
Pressing the on/off button will select a day, which will stop flashing.
To select another day to be programmed, use and to change
the day (we can move directly from day to day and day to
day , if required) and select each day by pressing the on/off button
so that it stops flashing.
Repeat this until all the days you wish to be programmed have stopped
flashing.
Once you are ready, we can move on to programming hour by hour
by pressing the button.
NOTE: At this stage, it is possible that you have programmed the towel
rails previously and you are now changing the programming. When
the days selected have different programming, they will all change
by default to the programming of the last day selected, which also
happens when programming with the remote control.
From the numbers we can see the selected hour in 24 hour display
(0h is midnight, 01h, 02h,...).
On the hourly programming bar at the bottom of the screen you
will see the programming for the whole day and the selected hour
flashing. Use the button to change between COMFORT ( symbol),
ECO ( symbol) and OFF for every hour.

12
SYGMA
Move through the hours using or and change each hour’s
programming using the button every time you wish to change the
setting.
If you do not wish to change the programming of a particular hour,
continue to the next hour you wish to change. Once all of the hours
are programmed, or left blank without programming, press the
button to exit or leave the unit for 30 seconds without pressing
anything.
3. MOUNTING INSTRUCTIONS
Inside the box you will find a mounting kit.
1. Choose the right part of the wall.
2. Place the mounting stencil on the wall, marking the places for
the holes.
3. Remove the stencil and make the holes in the wall.
4. Insert the rawl plugs in the holes made.
5. Screw the plastic fastener to the wall with the 5,5 x 50 mm screw.
6. Screw the two brackets for supporting the heated towel rail and
the plastic fastener to the horizontal tube of the heated towel rail
like in Figure 1 with the 8 x 26 mm screw.
7. Insert what you have assembled in Section 6 into the plastic piece
and fix well with the 5 x 12 mm stud bolt.
8. Place the cover on the piece supporting the heated towel rail.

13
110 x 40 mm Rawl Plug
2Bracket
35.5 x 50 mm screw
45 x 12 mm screw
5Bracket insert
6Bracket head
78 x 26 mm screw
8Cap
9Towel Rail

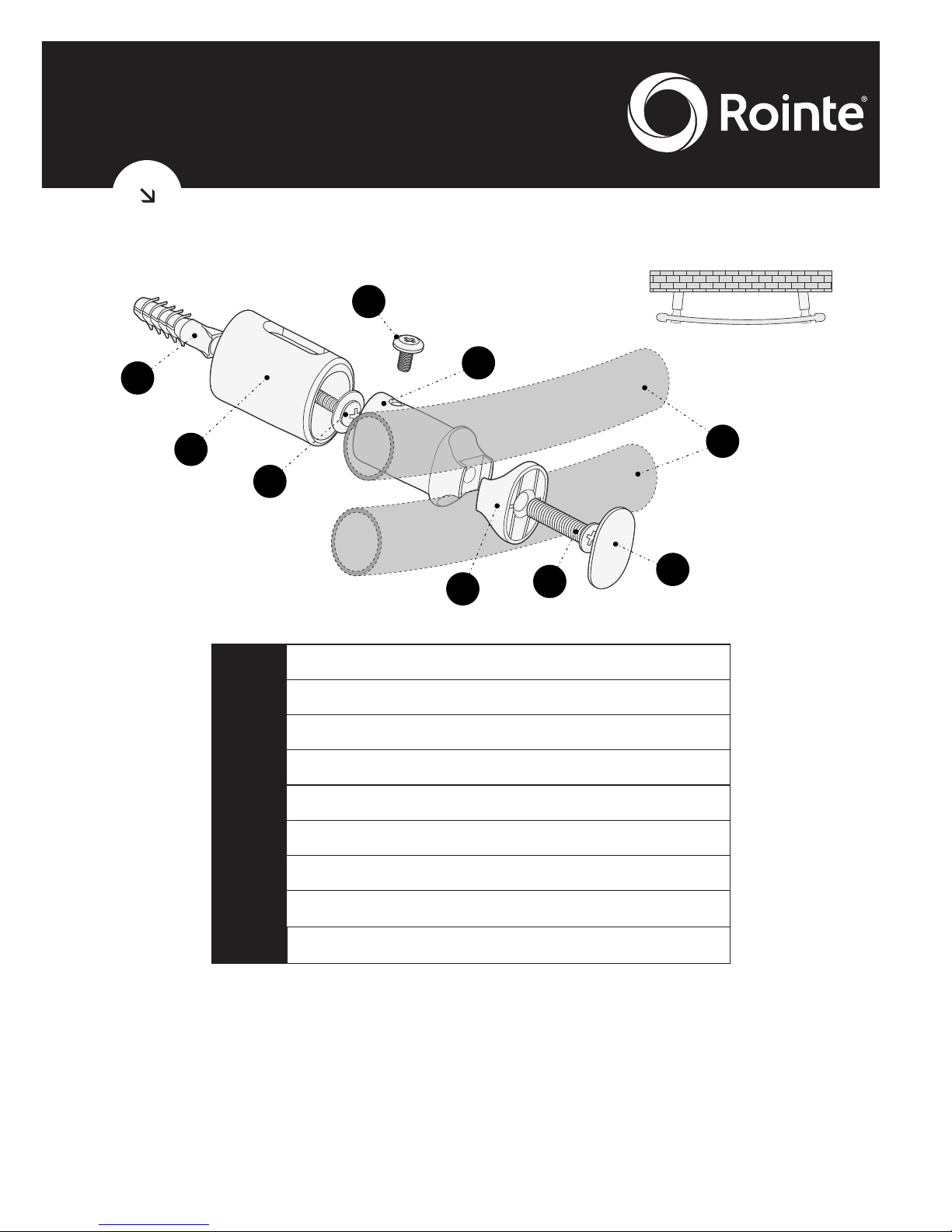

Figure 1 - Cross section of the mounting of the towel rail
4. CONNECTING INSTRUCTIONS
Connection to the mains must be made observing the voltage stated
on the product technical data label.
1
2
3
4
5
678
9

14
SYGMA
This appliance is designed to be permanently installed connected to
fixed facilities. The heated towel rail power supply circuit must have
an all-pole circuit breaker switch with a separation of at least 3 mm
between the contacts.
The appliance must be installed, if possible, away from any source
of draughts (windows, doors) or any other thing which may affect its
functioning. In this way, the temperature will not be affected. Place
any object which might prevent the air flow (furniture, armchairs) 50
cm away from the front of the appliance. The electric towel rail must
never be installed immediately below a power point.
The lower part of the control panel must be placed at least 15 cm
from the floor.
For any appliance, if the power cable is damaged, it must be replaced
by a specific cable. The replacement of the cable must be done by the
maker, its after-sales service or qualified personnel. The technical
specifications of your appliance appear on the technical data label.
OK

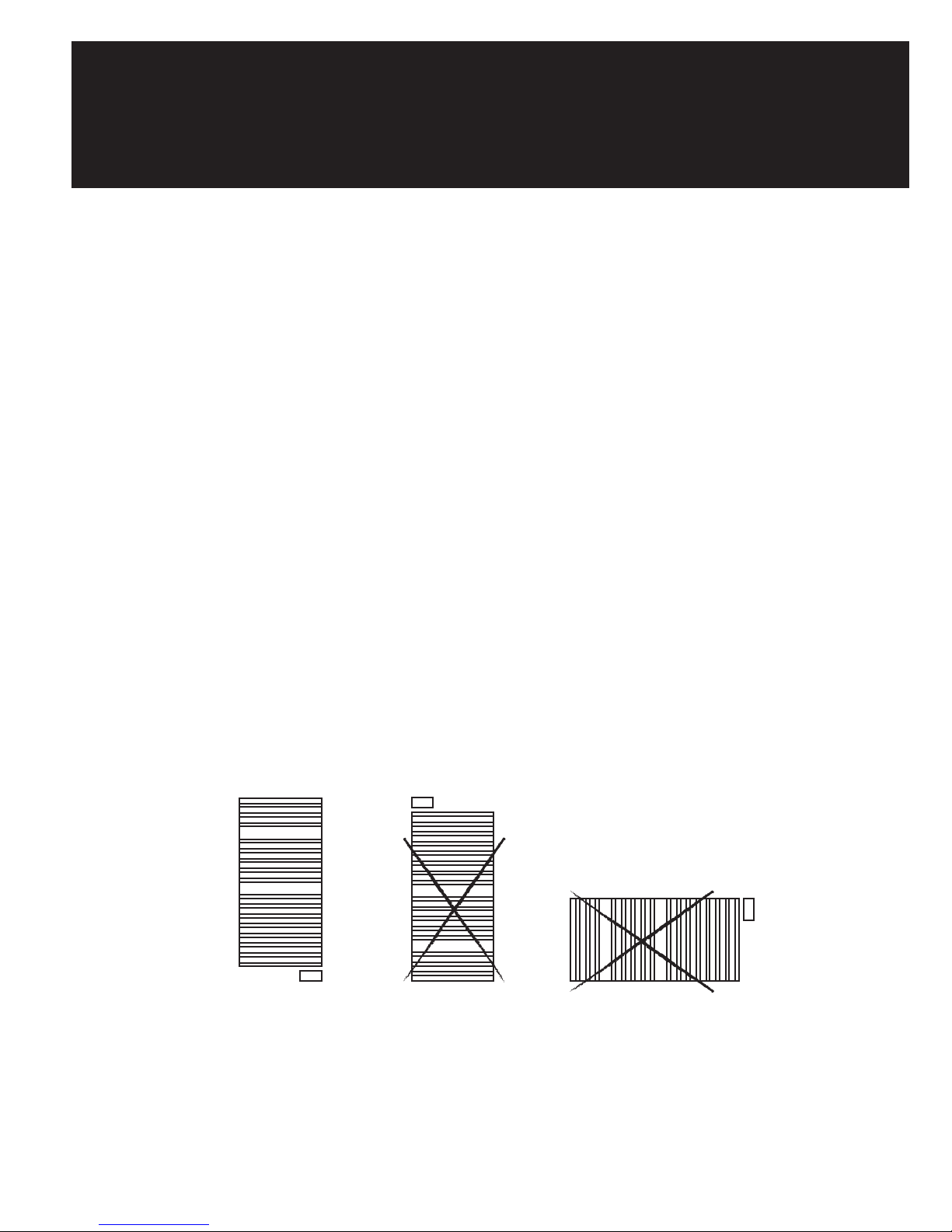

IMPORTANT
• This device must never be installed with its control panel at the top.
• This device must not be installed horizontally.
• During installation, use wedges so that the control panel will not be
in contact with the floor.

15
REFERENCE H1 (mm) H2 (mm) V1 (mm) V2 (mm) V3 (mm) V4 (mm)
STN030SE** 500 300 800 640 149 900
STN050SE** 500 300 1,200 1,040 149 1,300
STN075SE** 500 300 1,600 1,360 228 1,700
STN100SE** 500 300 1,800 1,360 425 1,900

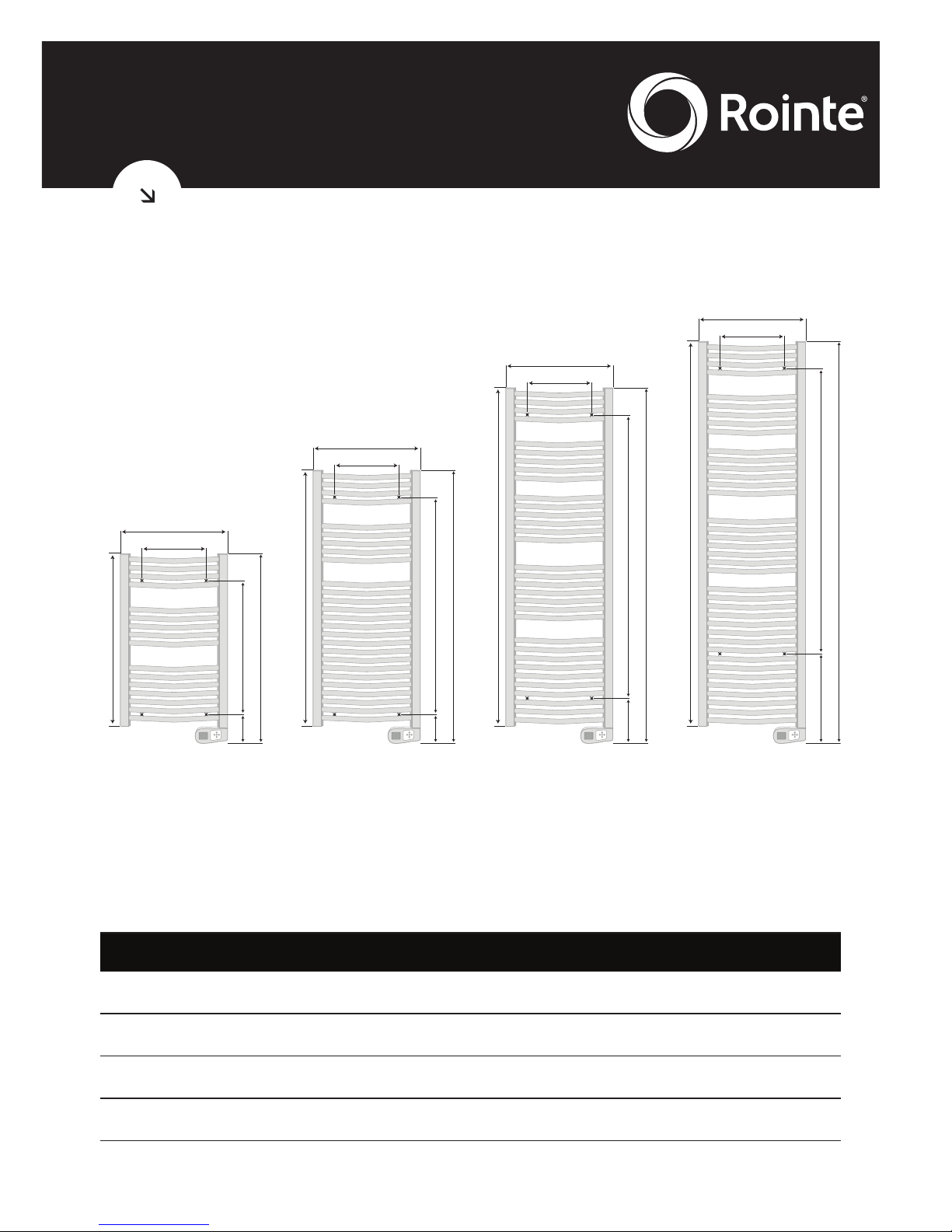

4.1. SYGMA Towel Rail Technical Characteristics
H1
H2
V1
V2V3 V4
STN030SE**
H1
H2
V1
V2V3
V4
STN050SE**
H1
H2
V1
V2V3
V4
H1
H2
V1
V2V3
V4
STN075SE** STN100SE**
Figure 2 - Towel Rail Measures

16
SYGMA
MODEL FINISH POWER VOLTAGE
TOTAL
HEIGHT
(mm)
WIDTH
(mm)
DEPTH
(mm)
INST.
DEPTH
(mm)
WEIGHT
STN030SEB2
STN030SEM2 WHITE
METALLIC 300 W 230V~ 900 500 50 100 11 kg
STN050SEB2
STN050SEM2 WHITE
METALLIC 500 W 230V~ 1,300 500 50 100 15 kg
STN075SEB2
STN075SEM2 WHITE
METALLIC 750 W 230V~ 1,700 500 50 100 22 kg
STN100SEB2
STN100SEM2 WHITE
METALLIC 1,000 W 230V~ 1,900 500 50 100 28 kg
STN030SEC2 CHROME 300 W 230V~ 900 500 50 100 11 kg
STN050SEC2 CHROME 300 W 230V~ 1,300 500 50 100 15 kg
STN075SEC2 CHROME 500 W 230V~ 1,700 500 50 100 22 kg
STN100SEC2 CHROME 750 W 230V~ 1,900 500 50 100 28 kg
SYGMA TOWEL RAIL TECHNICAL CHARACTERISTICS

17

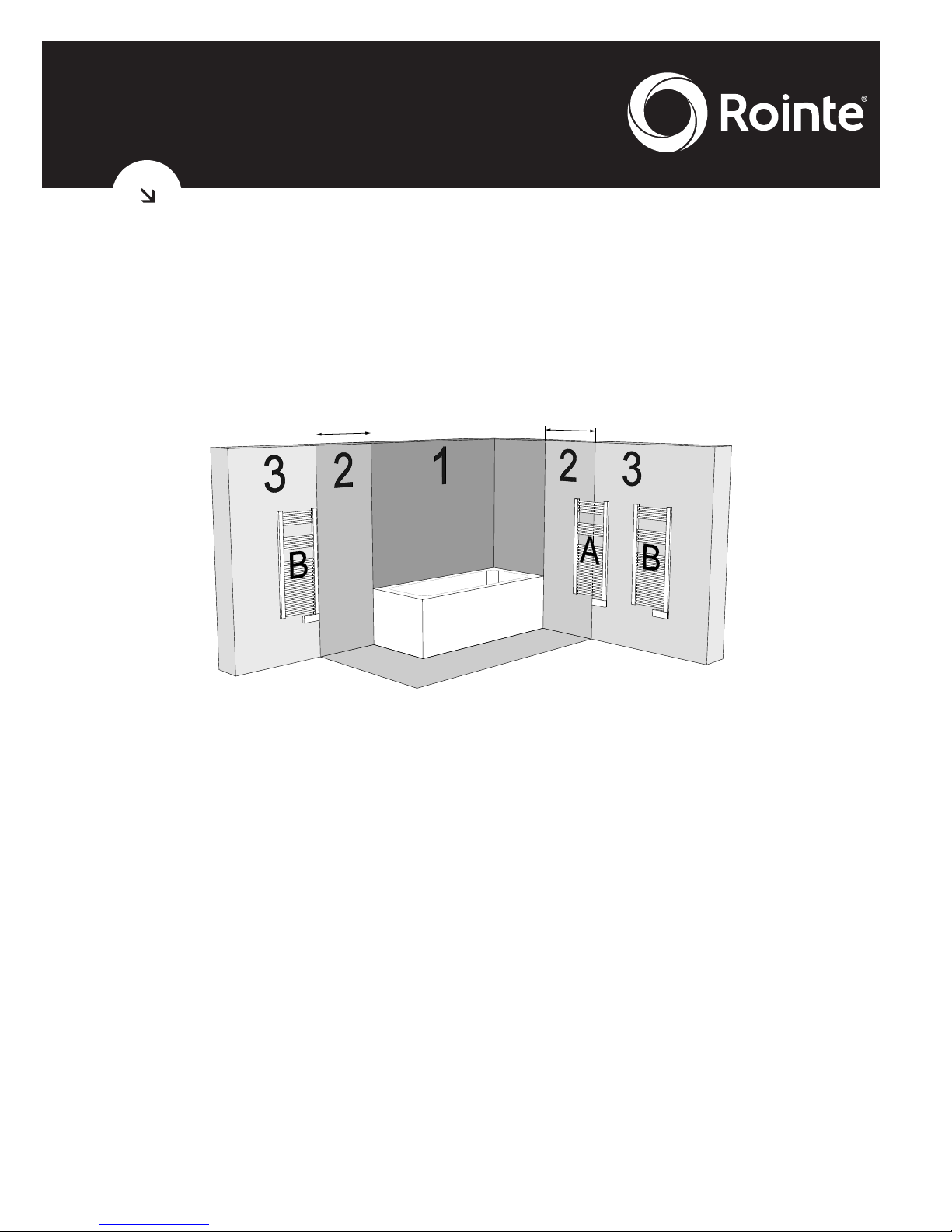

4.2. Specific Regulations for Bathrooms
This device is in compliance with CLASS II safety regulations (double
insulation). It can be installed in areas 2 and 3, position A and B
whenever it observes the following regulations:
600 mm 600 mm
• In bathrooms, the electric towel rail must never be installed in such
a way that the switches and other control devices may be touched by
someone in the bathtub or having a shower.
• In a kitchen or bathroom, the body of the heated towel rail shall be
placed at least 25 cm from the floor.
• It must not be earthed.
5. MAINTENANCE & CLEANING
Thanks to the high standard of its materials and surface treatment,
your heated towel rail is protected against corrosion.
Don’t use abrasive or corrosive products. Use a cloth with alcohol,
taking the precaution to switch off the device beforehand. For the
control panel, use a dry cloth (without any solvents).

18
SYGMA
5.1. Safety
This appliance can be used by children aged from 8 years and above
and persons with reduced physical sensory or mental capabilities
or lack of experience and knowledge if they are supervised or have
been given instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children should not play with
the appliance. Cleaning and user maintenance should not be carried
out by children without supervision. Children must be supervised at
all times to ensure that they do not play with the product.
6. GUARANTEE
6.1. If you need to invoke the guarantee service, contact the dealer
/ installer where it was purchased. In the event of any problems,
you can contact ROINTE on its TECHNICAL ASSISTANCE HELPLINE
01432 598 024 or e-mail us at [e-mail]
6.2. ROINTE guarantees this product is free from defects in materials,
design and workmanship at the time of its purchase and for the
immediately following period of 120 months regarding steel and leak
tightness, and 24 months for electric and electronic parts.
6.3. If during the guarantee period the heated towel rail fails to work
properly due to defects in design, materials or workmanship, ROINTE
will repair or replace the towel rail, whichever it considers to be more
advisable, in the terms and conditions stated below:
6.3.1. The guarantee shall only be covered if the original Certificate of
Guarantee issued to the buyer by the dealer or installer is presented
and when the guarantee states the towel rail serial number and
model (on the technical data label) and its date of purchase. ROINTE
reserves the right to refuse the guarantee service when this
information has been removed or changed following the original
purchase of the product.

19
Only the original receipt or invoice shall be accepted as proof of
purchase when presented to the dealer or installer that sold the
product.
6.3.2. The guarantee shall only be applicable to cases regarding
defects in materials, design and workmanship, and shall never cover
any damages due to the following:
6.3.2.1. Incorrect use of the product for other than normal
purposes or failure to observe the instructions given by ROINTE
regarding the use and maintenance of the heated towel rail, as
well as the installation or use of the product in a way that fails to
comply with the applicable technical safety standards.
Corrosion caused by direct exposure to salt water is excluded from
the guarantee. When the product is installed no more than 200m
from the coast the guarantee for damages caused by corrosion
the period will be reduced by 50%.
6.3.2.2. Repairs made by unauthorized repair shops or the opening
of the heated towel rail by unauthorized persons.
6.3.2.3. Unforeseen circumstances beyond the control of ROINTE,
such as lightning, fire, floods, public disorder, etc.
6.3.2.4. The repairs or replacements covered in this guarantee do
not permit any extension or new beginning of the guarantee period.
The repairs or replacements covered in this guarantee shall be
made with functionally equivalent reconditioned units. The faulty
parts or pieces removed shall become the property of ROINTE.
6.3.2.5. This guarantee does not affect the buyer’s statutory rights
under the current national laws, or the buyer’s rights against those
of the dealer or installer arising from the contract of sale.

20
SYGMA
European Directive (WEEE) 2012/19/EU
Under the European Directive 2012/19/EU on waste electrical and
electronic equipment (WEEE), the apparatus cannot be disposed in the
usual council bins and containers. They must be separated to optimize
the recovery and recycling of all of the components and materials
and reduce the impact to human health and the environment. The
symbol of the container crossed out over a horizontal line is marked
on all of ROINTE’s products to remind the consumer of the obligation
to separate them on disposal.
6.3.2.6. In the event of there being no national legislation applicable,
this guarantee shall be the buyer’s sole protection. ROINTE, its
offices, dealers and installers shall not be held liable for any type
of damages, whether fortuitous or accidental, arising from the
failure to observe any of the regulations related with this product.
