Rointe ecodeisgn KYROS 0330RAD3 User manual

MANUAL DE INSTALACIÓN Y USO
Página 31
MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO
Página 58
INSTALLATION AND USER MANUAL
Page 03
ES
EN
PT
KYROS Low consumption digital radiator / Radiador digital de bajo
consumo / Radiador digital economizador de energia
GUARANTEE / GARANTÍA
/ GARANTIA
ON THE BODY
EN EL CUERPO
NO CORPO
YEARS / AÑOS
/ ANOS
YEARS / AÑOS
/ ANOS
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA

EN
KYROS DIGITAL RADIATOR
3
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not
leave or place magazines, spray cans, volatile substances, or similar objects
within 250 mm of the radiator.
HOT SURFACE. This symbol indicates that your surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.

4
INDEX
1. General Warnings ............................................................................................................ 5
2. Technical information .................................................................................................... 8
3. Installation........................................................................................................................ 9
4. Screen & Keypad ............................................................................................................ 12
5. Functionality and programming ................................................................................. 13

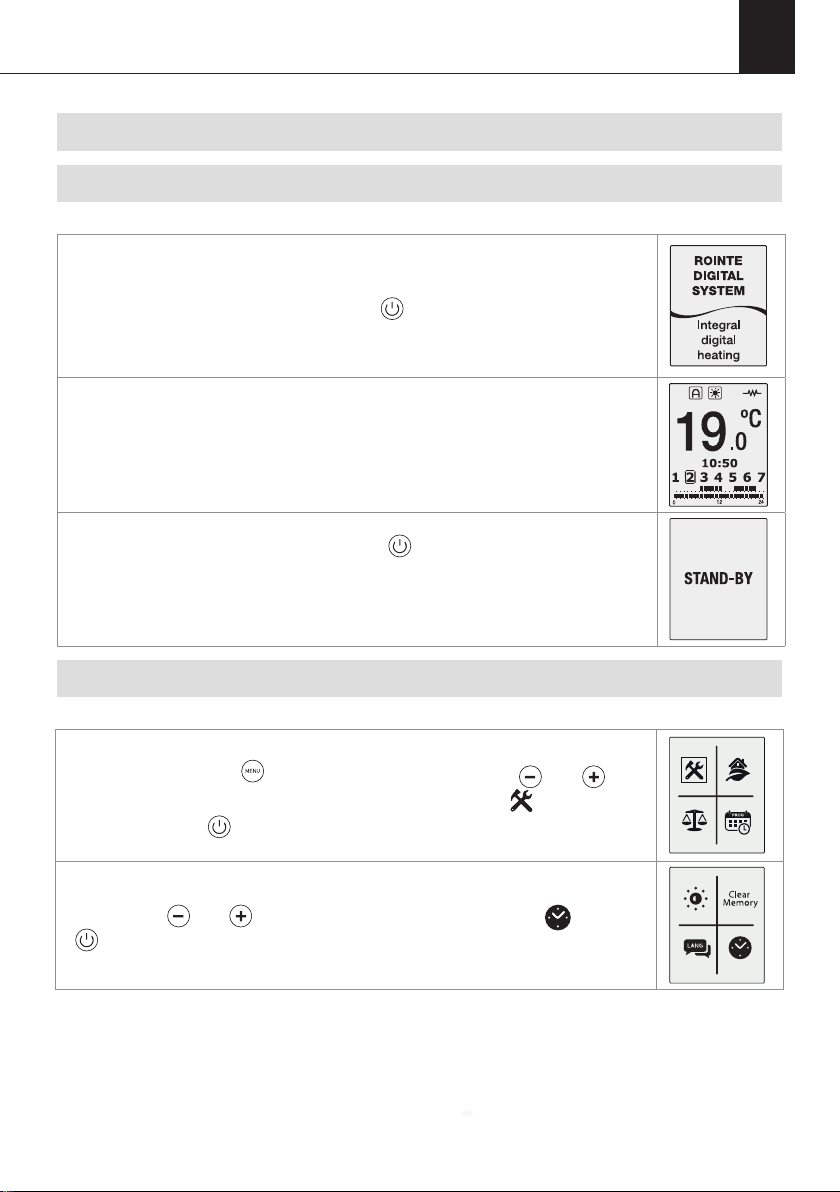

5.1. ON / OFF (stand-by) ...............................................................................................13

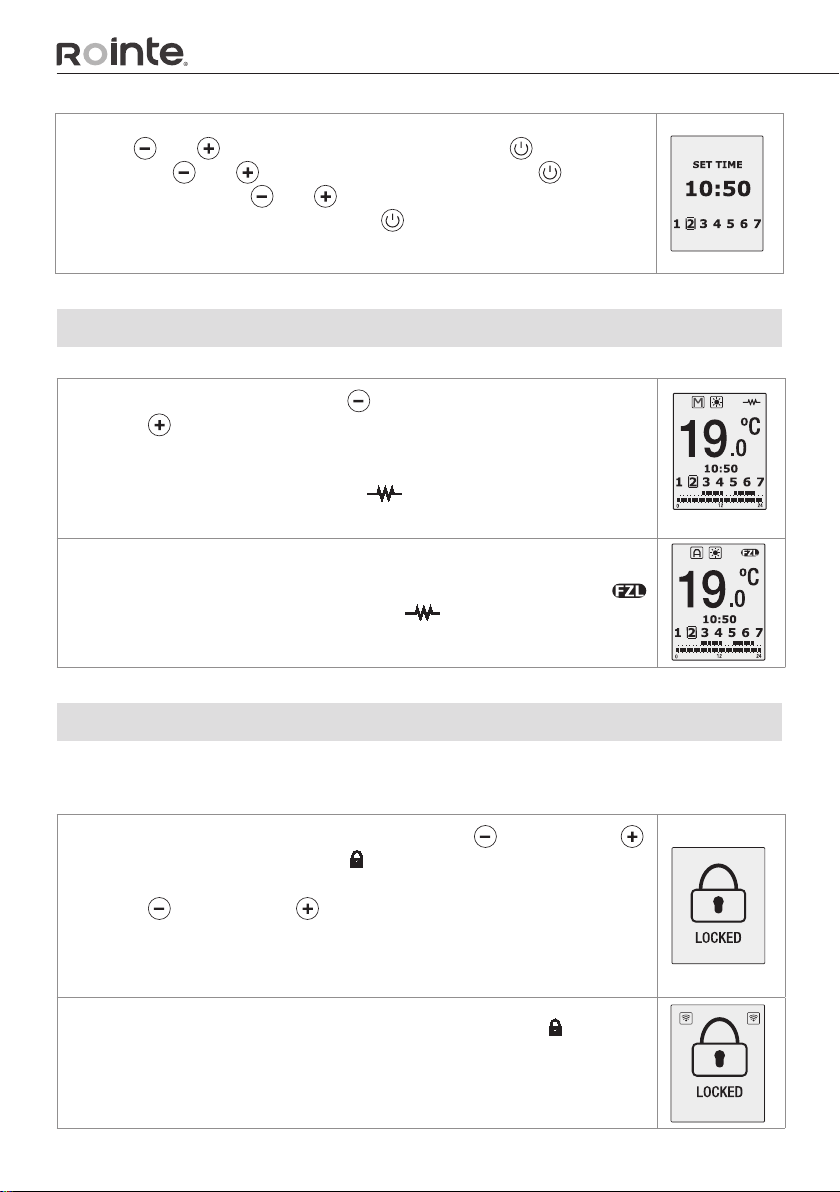

5.2. Adjust the day and time......................................................................................... 13
5.3. Adjust the temperature ........................................................................................ 14
5.4. Lock the control panel...........................................................................................14

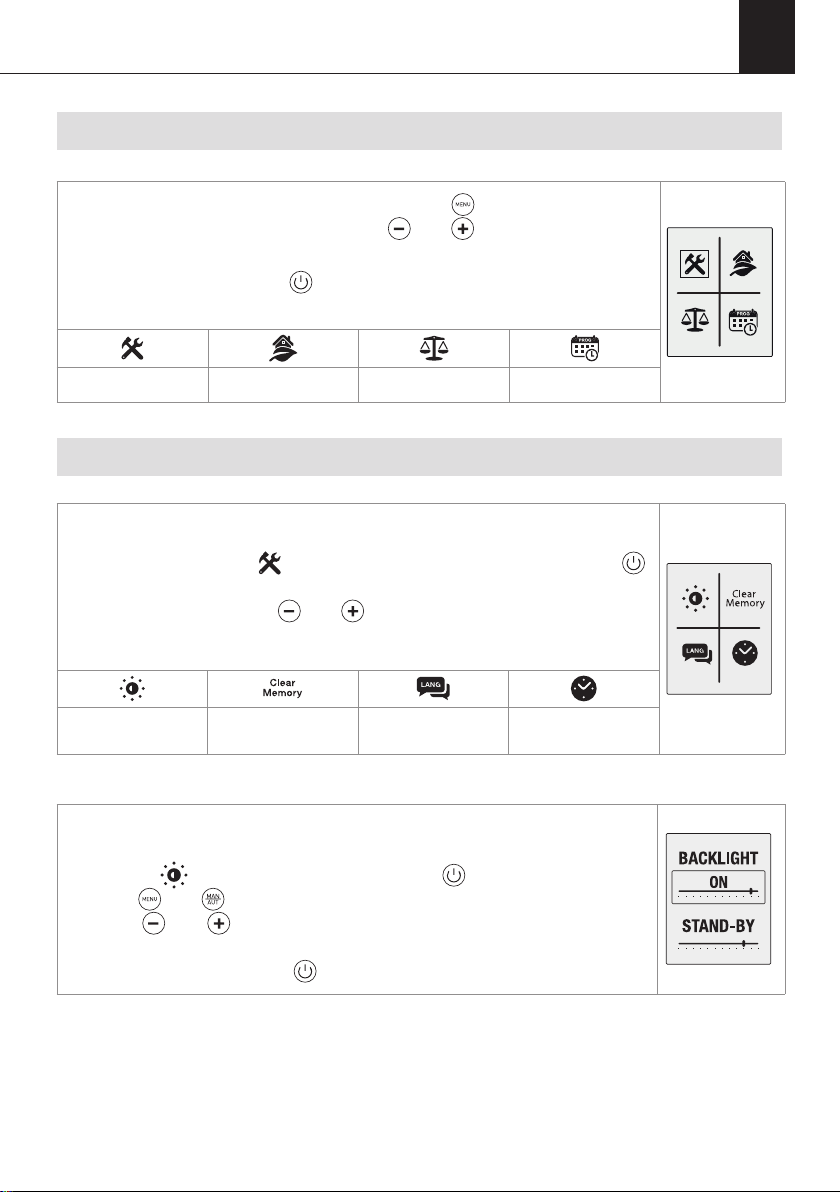

5.5. Main menu ............................................................................................................. 15

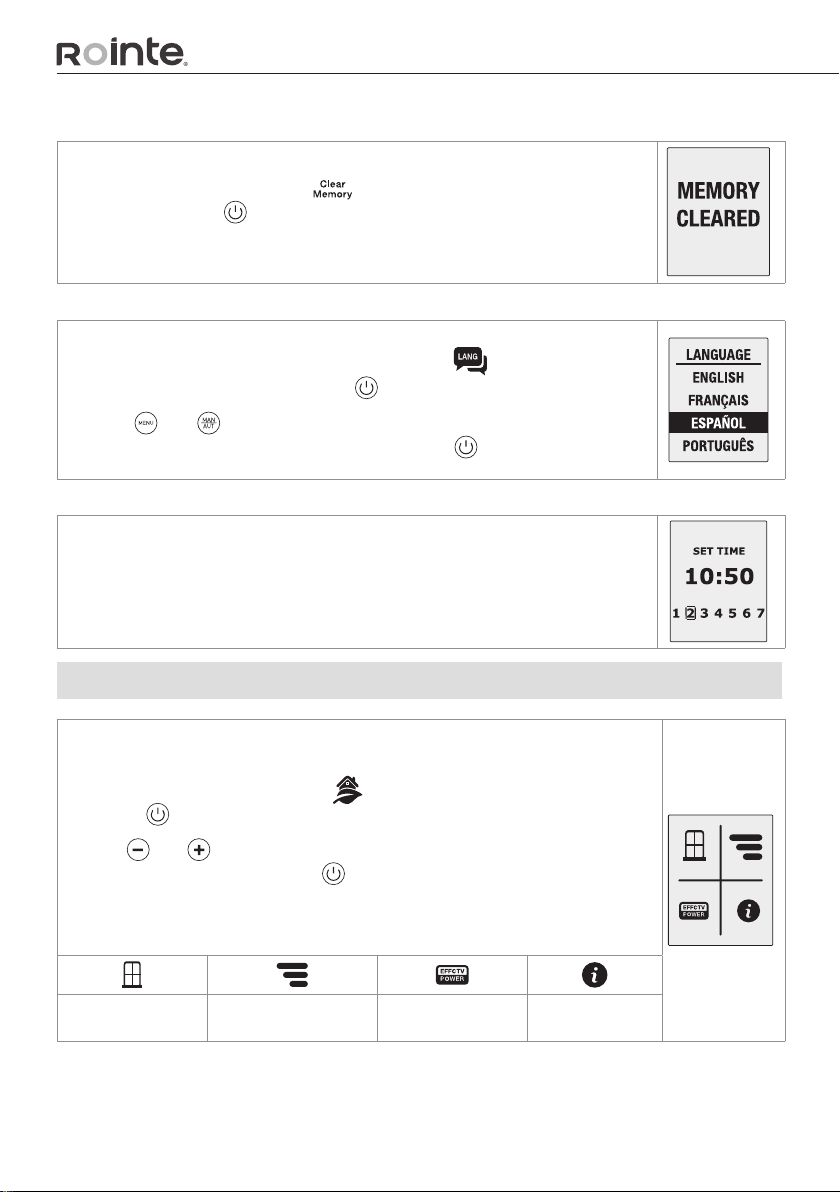

5.6. Main menu: Submenu settings ............................................................................ 15

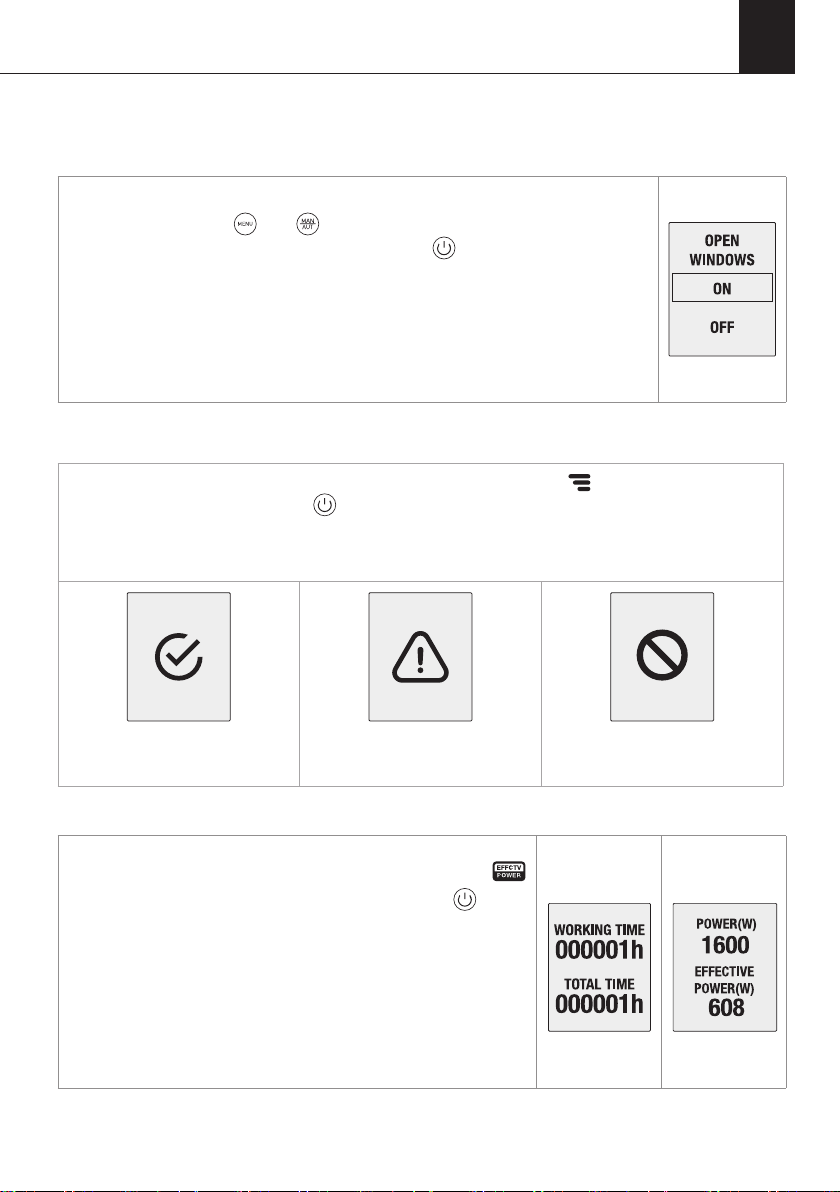

5.7. Main Menu: Energy sub-menu .............................................................................. 16
5.8. Main menu: Equilibrium / Balance sub-menu ....................................................18
5.9. Main menu: Program sub-menu .......................................................................... 18
5.9.1. Manual/Automatic functions.......................................................................... 19
5.9.2. Programming options..................................................................................... 19
5.9.3. User mode........................................................................................................23
5.10. Energy saving functionalities..............................................................................25
6. Maintenance and cleaning ...........................................................................................25
7. European Regulation (WEEE) 2012/19/EU .................................................................26
8. Guarantee ......................................................................................................................26
9. How to register your product guarantee ....................................................................29
Directive ERP Commission Regulation ..........................................................................84
EU Declaration of Conformity ..........................................................................................85

EN
KYROS DIGITAL RADIATOR
5
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on this
product. Children under 3 years of age should be kept away
from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the
radiator.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the
product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.

6
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the product.
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging
including bags and other items within reach of babies or
children.
The product has an IP24 degree of protection and can be
used in bathrooms, but not in the vicinity of bathtubs, taps,
showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where
it, the switches or the control panel are within the reach of
people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or
near the product.

EN
KYROS DIGITAL RADIATOR
7
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must be
followed. See WEEE in section 7.
!

8
2. TECHNICAL INFORMATION
MODELS 0330RAD3 0550RAD3 0770RAD3 0990RAD3 1210RAD3 1430RAD3 1600RAD3 Number of elements 3 5 7 9 11 13 15 DIMENSIONS, WEIGHTS & FINISHES Width (mm) 350 510 670 830 990 1,150 1,310
Height (mm) 580 580 580 580 580 580 580 Depth (mm) 95 95 95 95 95 95 95 Installed depth (mm) 118 118 118 118 118 118 118 Weight (kg) 7.7 12.2 16.4 20.1 24.1 27.8 32.1
Finish White RAL 9016 ELECTRICAL CHARACTERISTICS Nominal power (W) 330 550 770 990 1,210 1,430 1,600
Effective power (W) 125 209 293 376 460 543 608 Voltage (V) 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V Current (A) 1.5 2.4 3.4 4.3 5.3 6.2 7.0
SAFETY & INSTALLATION Safety thermostat ✓ ✓ ✓ ✓ ✓ ✓ ✓
Protection Grade IP24 IP24 IP24 IP24 IP24 IP24 IP24
Template & Installation Kit ✓ ✓ ✓ ✓ ✓ ✓ ✓
EAN CODE 8436045917256 8436045917263 8436045917270 8436045917287 8436045917294 8436045917300 8436045917317

EN
KYROS DIGITAL RADIATOR
9
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back of the
product and note the product reference and serial number. You will need this information
to register your guarantee. See section 9 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.
The product must be mounted on the wall in the position
shown in the accompanying image using the brackets
and with the xings supplied.
Our products transfer heat through the natural air
convection. If the product is covered, this will disrupt
the airow and could cause overheating. It must be
positioned in accordance with the minimum distances
shown in the accompanying picture.
WARNING: The product has an IP24 degree of protection and can be used in bathrooms,
but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming
pools or other masses of water. The product can only be installed in zone 3 of the
accompanying picture. The product must never be installed where it, the switches or the
control panel are within the reach of people in the water. Never use the product with wet
hands. Do not place any water containers (glasses, vases, etc.) on or near the product.
EXTERIOR ZONE EXTERIOR ZONE
2.25 m
0.6 m 0.6 m
0.6 m
An installation kit is included in the product packaging. You will need a drill, a rubber mallet,
a spirit level and a pencil to complete the installation.

10
WARNING: The weight of some of the products may be heavy. The installation
may require two people.
IMPORTANT: Please follow these instructions carefully.

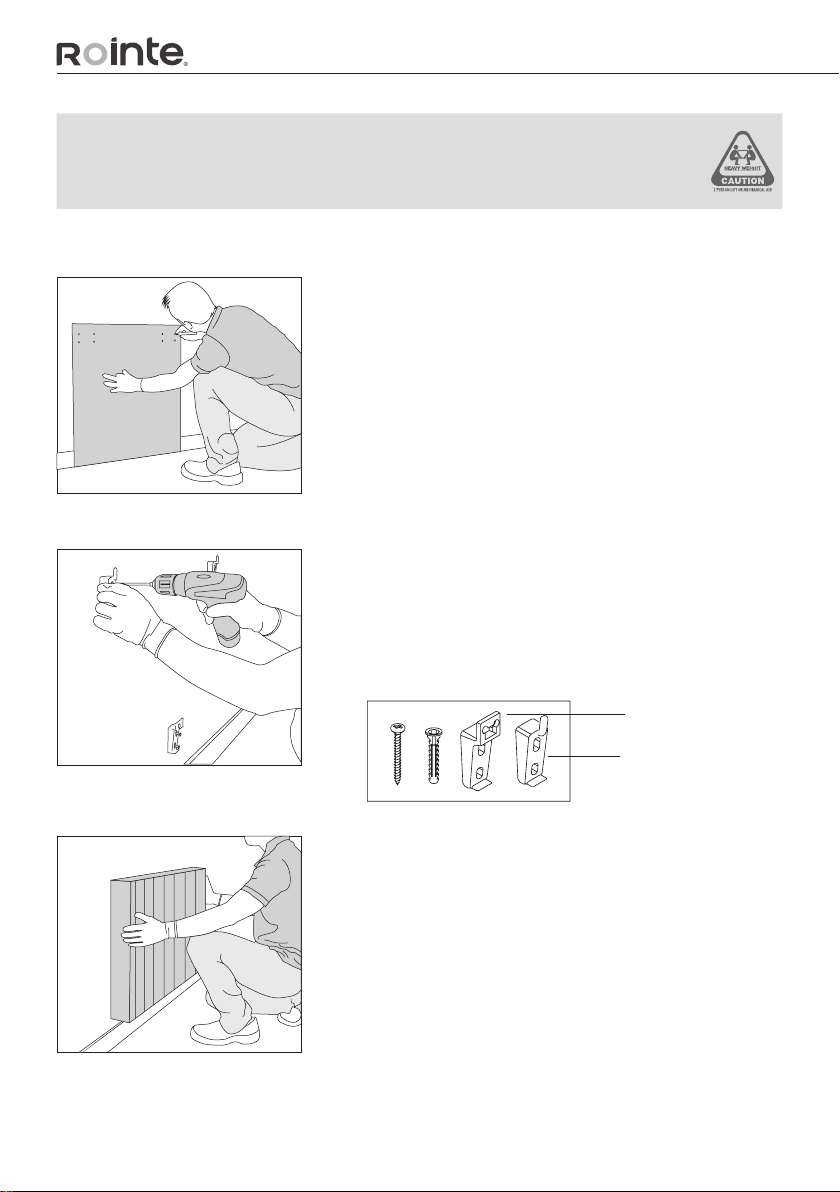

1. Remove the packaging and check that the installation
contains brackets, screws, rawl plugs and a cardboard
template.
2. Select a suitable location on the wall. Place the
template on the wall and mark the holes for the
brackets and screws. Observe the minimum distance
requirements from the previous page.
Use the oor as a base for the template, not the
skirting board.
3. Remove the template and carefully drill out the
marked holes.
4. Secure the upper brackets with the rawl plugs
and screws provided. Then x the lower bracket. To
distinguish it, the lower bracket has a different design
from the top ones.
Bottom bracket
Top bracket
5. Slide the product up and down over the xed
brackets.
6. Check the straightness with a spirit level and adjust
the supports accordingly if necessary.

EN
KYROS DIGITAL RADIATOR
11
7. Connect your product to the power supply and
switch it on.
8. See section 5 for operating instructions.
IMPORTANT: Measurement template per model.
KR*0330RAD3 KR*0550RAD3 KR*0770RAD3
KR*0990RAD3 KR*1210RAD3 KR*1430RAD3 /
KR*1600RAD3

12

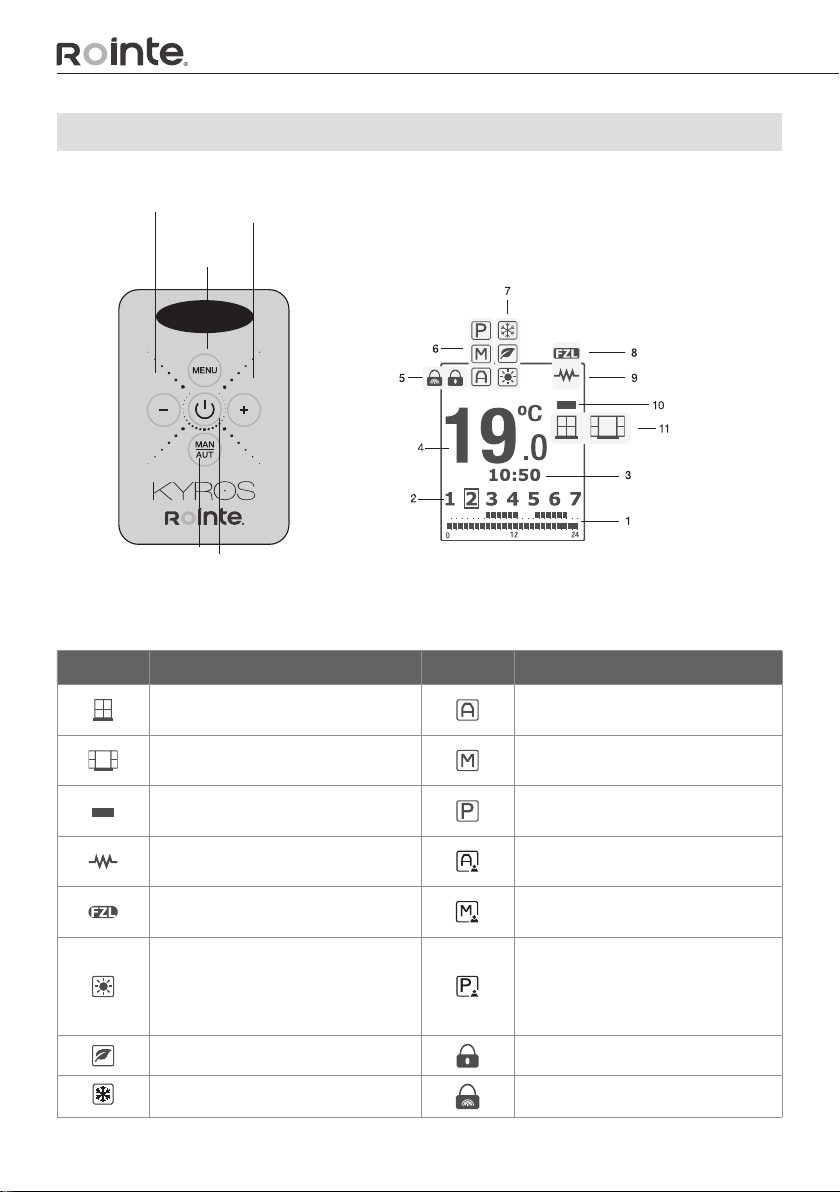

4. SCREEN & KEYPAD
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
OPEN WINDOWS function - active no
detection AUTOMATIC function - active
OPEN WINDOWS function - active,
detection MANUAL function - active
Energy consumption status - green /
amber / red
PILOT WIRE function - active
* Only on demand.
Heating element - active AUTOMATIC function - active when USER
mode active
Fuzzy Logic Energy Control technology
active
MANUAL function - active when USER
mode active
COMFORT mode - active
PILOT WIRE function - active when USER
mode active
* Only on demand.
ECO mode - active Control panel locked through keypad
ANTI-FROST mode - active Control panel locked through remote
Programming
Days of the week
Control panel
locked / unlocked
MANUAL /
AUTOMATIC /
PILOT WIRE*
function indicator
COMFORT / ECO /
ANTI-FROST mode
indicator
Fuzzy Logic Energy
Control technology
indicator
Heating element
active indicator
Energy consumption
indicator
OPEN WINDOWS
function indicator
Temperature
selected
Hours
Increase temperature
Move right
Decrease temperature
Move left
On / Off
Accept / Conrm
MANUAL / AUTOMATIC button
Move down
Access/Return to menu
Move up

EN
KYROS DIGITAL RADIATOR
13
5. FUNCTIONALITY & PROGRAMMING
5.1. ON / OFF (STAND BY)
To switch the product on, please press the button on the keypad once.
After 3 seconds the temperature, time and weekday display is shown.
To switch the product off, please press the button again once.
The product will go into stand-by mode with the word ‘STAND-BY’ displayed on
the display panel. After 3 seconds the Rointe logo will appear.
5.2. ADJUST THE DAY & TIME
Press the menu button to access the main menu. Use the and , (left
and right respectively), select the conguration submenu , and press the
button. Press the button to access.
Now use the and buttons again to select the clock option and press
to access.

14
Use the and buttons to set the hour and then press to conrm.
Then use the and buttons to set the minutes and press to
conrm. Finally, use the and buttons to set the day (1 = Monday, 2 =
Tuesday etc.) and conrm by pressing the button. Te screen will
automatically revert to the main one or wait 30 seconds for it to do so.
5.3. ADJUST THE TEMPERATURE
To decrease the temperature press the button and to increase the temperature
press the button.
When the room temperature is lower than the set temperature on the display
panel, the product will come on with the symbol appearing in the top right
of the display panel.
When the Fuzzy Logic Energy Control technology is activated the symbol
will replace the heating element active symbol in the top right of the screen.
5.4. LOCK THE CONTROL PANEL
You can lock the keypad from the product or from a Rointe remote control (sold separately).
To lock the keypad manually, please hold and press the button AND the
button TOGETHER for 3 seconds. The symbol will appear on the display panel
and the keys will not respond.To unlock the keypad manually, please hold and
press the button AND the button TOGETHER for 3 seconds.
*To lock the keypad using a remote control, please see the corresponding
instruction manual for the remote control separately.
When locked from the remote control, the remote keypad lock icon will appear
on the screen. When pressing any key on the product, the image on the right will
be displayed on the screen. The remote keypad lock can only be unlocked from
the remote control.

EN
KYROS DIGITAL RADIATOR
15
5.5. MAIN MENU
To access the main menu of your product, press the button. o move through
the various submenus that appear, use the and buttons.
The selected option will be highlighted with a ashing frame; to access the
selected submenu, press the button.
The icons that allow you to enter the different submenus are listed below:
Settings Energy Equilibrium Programming
5.6. MAIN MENU: SUBMENU SETTINGS
The settings submenu adjusts four technical parameters of your product. To
access it, select the icon in the main menu and conrm by pressing the
button. The screen on the right will appear and you can move through the different
submenu options using the and buttons.
The following icons allow access to the different submenus explained below:
Screen
brightness Clear memory Language Time
• Adjust display backlight brightness
This allows you to change the brightness of the display panel in both the STAND-
BY and ON modes separately. To change the brightness of the display panel
ensure the icon is highlighted and press the button to conrm. Then
with the and buttons you can switch between the two modes.
With the and buttons you can increase or decrease the brightness as
you wish. The cursor indicates the intensity of the light. Once you have set the
required brightness press the button to save and exit.

16
• Clear the memory
This allows you to clear any information saved in your product.
To clear the memory ensure the icon is highlighted in the ‘Settings’ sub-
menu and press the button to conrm.
The display panel will show when completed and the language will change to
default.
• Change the language
To change the language of your product, ensure the icon is highlighted in
the ‘Settings’ sub-menu and press the button to access.
Use the and buttons to move up or down respectively until your chosen
language is highlighted and conrm by pressing the button.
• Adjust the day and time
This function sets the hour, minute and day of the week from the product itself.
To set the time and day, please go to section 5.2.
5.7. MAIN MENU: ENERGY SUB-MENU
The ‘Energy’ sub-menu provides access to functions related to energy management
of the product. To access, select the icon displayed in the Main Menu screen
and press to conrm.
Use the and buttons to move across the different options on the sub-menu
to choose your function and press to conrm.
The below icons displayed on the screen take you to the following functions:
OPEN WINDOWS
function
Energy
Consumption status
Effective Power
function Information

EN
KYROS DIGITAL RADIATOR
17
• OPEN WINDOWS function
This option allows you to activate or deactivate the WINDOWS OPEN function.
Using the and buttons and , select ON to activate and OFF to deactivate.
Once the desired option has been selected, press to conrm and exit.
This function is activated when there is a drop of at least 4°C in the room
temperature within 30 minutes. This normally occurs when a window is left open,
allowing warm air to escape and wasting energy. If this occurs, your product will
automatically activate the Anti-freeze mode for 2 hours. To deactivate this function,
press the on/off button.
• Energy Consumption status
To check the current consumption status of your product, ensure the icon is highlighted in the
‘Energy’ sub-menu and press the button to access.
The display panel will then show a status according to the current state of consumption of the
product:
OK
CONSUMPTION
Up to 40%
effective power
CONSUMPTION
CAUTION
40% - 60%
effective power
CONSUMPTION
WARNING
More than 60%
effective power
• Effective Power function
To check the Power status of your product, make sure the
icon is ashing in the ‘Energy’ submenu and press the button
to access. This option shows on the display the actual
consumption time of the product and the total time during which
our product is connected to the mains. After a few seconds
without pressing any button, the display will show the nominal
power and the effective power of the product. The effective
power corresponds to the average power value that our product
actually consumes during operation.

18
• Information
This function will display the software version, the date of this release and the
rated power of the product. To access this information, ensure the icon is
highlighted in the ‘Energy’ sub-menu and press the button to conrm. The
information will then show in the display panel
5.8. MAIN MENU: EQUILIBRIUM / BALANCE SUB-MENU
The ‘Balance’ sub-menu/function returns the product to a constant temperature of
19°C. To activate this function ensure the icon is highlighted in the ‘Balance’
sub-menu and press the button to conrm.
The product will return to the display panel in MANUAL function, with the
temperature set to 19ºC.
5.9. MAIN MENU: PROGRAM SUB-MENU
This section explains the operational aspects of your product in its various functions and
modes.
What are the functions of MANUAL, AUTOMATIC and PILOT WIRE functions?
MANUAL This function allows you to change the product between the COMFORT, ECO and
ANTI-FROST modes and to change the temperature (see section 5.3.).
AUTOMATIC This function will activate the programming that has previously been set in the
product.
PILOT WIRE This function allows the product to be controlled by a central programmer.
* Not available in UK. Only on demand*
What are the COMFORT, ECO and ANTI-FROST modes?
COMFORT ECO ANTI-FROST
From 19ºC to 30ºC From 7.5ºC to 18.5ºC 7ºC
3
11 11 2021
65

EN
KYROS DIGITAL RADIATOR
19
The ‘Program’ sub-menu provides access to functions related to programming the
product. To access, select the con displayed in the Main Menu screen and
press to access.
Use the and buttons to move across the different options on the sub-menu
to choose your program and press to access.
The icons displayed on the screen take you to the following functions:
MANUAL /
AUTOMATIC
functions
Programming
options USER mode
PILOT WIRE function
* Not available in UK. Only on
demand.*
5.9.1. MANUAL / AUTOMATIC FUNCTIONS
To change or choose the MANUAL or AUTOMATIC function,
ensure the icon is highlighted in the ‘Program’ sub-
menu and press the button to conrm. You can change
from AUTOMATIC to MANUAL and vice versa by pressing the
button again.
On the display panel, the symbol will appear for the
AUTOMATIC function and the symbol for the MANUAL
function.
5.9.2. PROGRAMMING OPTIONS
To access the programming options, ensure you are in the ‘Program’ sub-menu,
then select the icon by using the and buttons and then press the
button once the icon is highlighted.

20
The display panel will show 2 options:
• PRE-PROGRAMS: one of the four pre-set schedules.
•
START PROGRAMMING: to set a personalised programming and change
the values of the COMFORT and ECO modes.
A ashing line will appear around the option that is selected. To change the option
use the and buttons and press the button to conrm.
Start programming for AUTOMATIC function
To program the AUTOMATIC mode, see points above and ensure that START
PROGRAMMING is highlighted. Press the button to access and the display
panel will show a ashing screen.
STEP 1 - Select COMFORT mode temperature
COMFORT mode will be programmed rst. Select the COMFORT mode
temperature between 19ºC and 30ºC using the and buttons. The icon
and the temperature will ash. Press the button to conrm.
STEP 2 - Select ECO mode temperature
ECO mode will be programmed next. Select the ECO mode temperature
between 7.5ºC and 18.5ºC. The icon and the temperature will ash. Press the
button to conrm.
STEP 3 - Select the Days
The days of the week will start ashing on the display panel and show as DAY 1,
DAY 2, DAY 3 etc.
Use the and buttons to move forwards or backwards through the days.
Press to select the day or days that you wish to include in your AUTOMATIC
program. The day will stop ashing once selected. Repeat for all the days you
wish to program and once all days are selected press the button to move
onto setting the hour.
