Roland CAMM-3 PNC-3200 User manual

Thank you very much for purchasing the PNC-3200 Protective Cover.
• To ensure correct and safe usage with a full understanding of this
product's performance, please be sure to read through this manual
completely and store it in a safe location.
• Unauthorized copying or transferral, in whole or in part, of this
manual is prohibited.
• The contents of this operation manual and the specifications of
this product are subject to change without notice.
• The operation manual and the product have been prepared and
tested as much as possible. If you find any misprint or error,
please inform us.
USER'S MANUAL
Protective Cover
PNC-3200

ROLAND DG CORPORATION
1-6-4 Shinmiyakoda, Hamamatsu-shi, Shizuoka-ken, JAPAN 431-2103
MODEL NAME : See the MODEL given on the rating plate.
RELEVANT DIRECTIVE : EC MACHINERY DIRECTIVE (98/37/EC)
EC LOW VOLTAGE DIRECTIVE (73/23/EEC)
EC ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (89/336/EEC)
WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

1
Table of Contents
To Ensure Safe Use.......................................................................................................................2
About the Labels Affixed to the Unit ......................................................................5
How to Read This Manual...........................................................................................................................6
1 Name of Parts...........................................................................................................................................7
2 Setting Up and Connection ..................................................................................................................8
Setting Up ......................................................................................................................................8
Connection ....................................................................................................................................9
3 Spindle action ....................................................................................................................................... 10
Specifications ............................................................................................................................................. 10
Copyright © 1999 ROLAND DG CORPORATION

2
To Ensure Safe Use
Used for instructions intended to alert the user to the risk of death or severe
injury should the unit be used improperly.
About and Notices
Used for instructions intended to alert the user to the risk of injury or material
damage should the unit be used improperly.
* Material damage refers to damage or other adverse effects caused with
respect to the home and all its furnishings, as well to domestic animals or
pets.
About the Symbols
The symbol alerts the user to important instructions or warnings. The specific meaning of
the symbol is determined by the design contained within the triangle. The symbol at left means
"danger of electrocution."
The symbol alerts the user to items that must never be carried out (are forbidden). The
specific thing that must not be done is indicated by the design contained within the circle. The
symbol at left means the unit must never be disassembled.
The symbol alerts the user to things that must be carried out. The specific thing that must
be done is indicated by the design contained within the circle. The symbol at left means the
power-cord plug must be unplugged from the outlet.
Do not disassemble, repair, or
modify.
Doing so may lead to fire or abnormal
operation resulting in injury.
Ground the unit with the ground
wire.
Failure to do so may result in risk of
electrical shock in the even of a mechanical
problem
Do not use with any electrical power
supply that does not meet the
ratings displayed on the unit.
Use with any other power supply may lead
to fire or electrocution.
Do not use while in an abnormal
state (i.e., emitting smoke, burning
odor, unusual noise, or the like).
Doing so may result in fire or electrical
shock.
Immediately switch off the power, unplug
the power cord from the electrical outlet,
and contact your authorized Roland DG
Corp. dealer or service center.

3

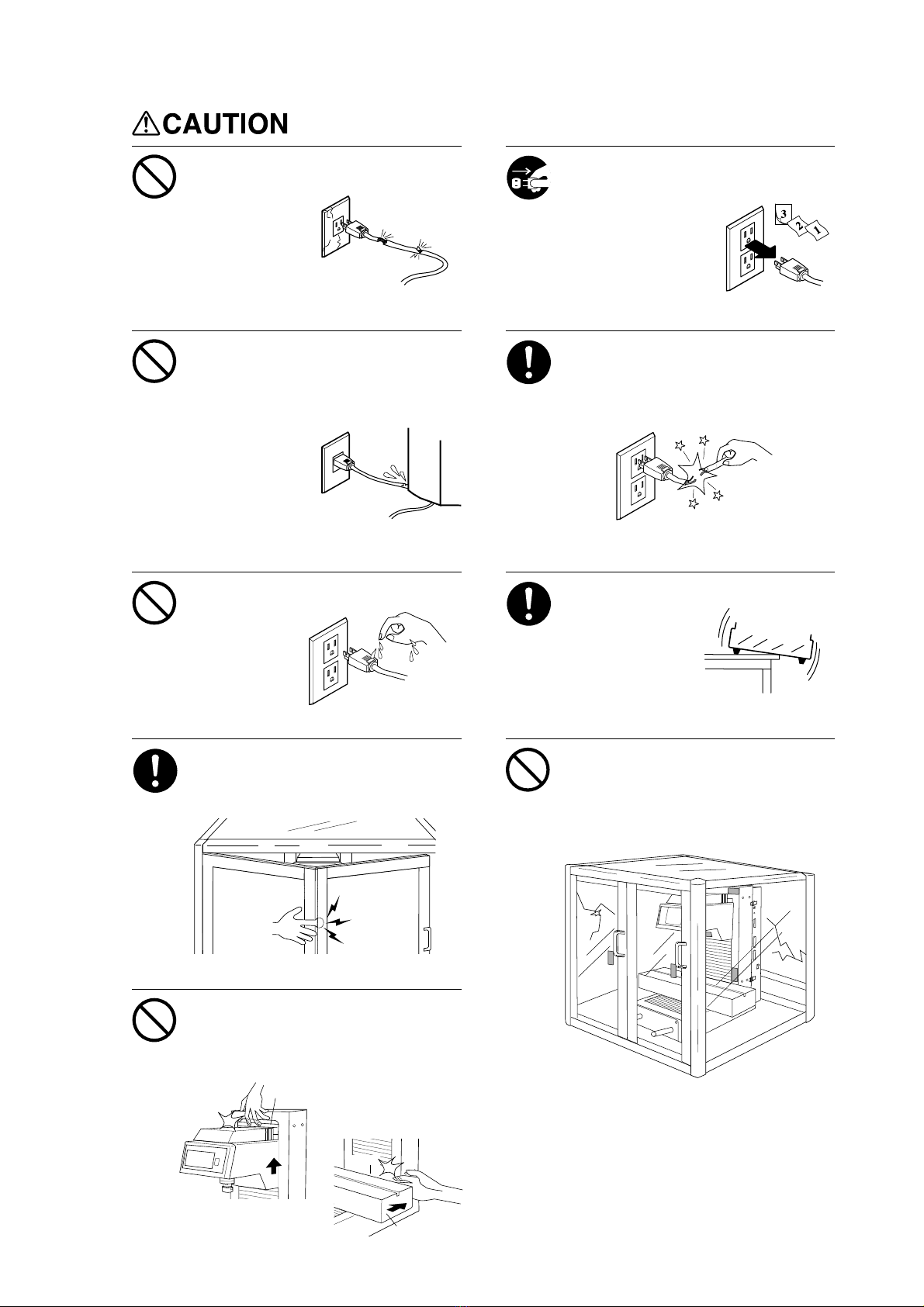

Do not use with a damaged power
cord or plug, or with a loose
electrical outlet.
Use with any other
power supply may
lead to fire or
electrocution.
Do not injure or modify the electrical
power cord, nor subject it to
excessive bends, twists, pulls,
binding, or pinching, nor place any
object of weight on it.
Doing so may
damage the
electrical power
cord, leading to
electrocution or
fire.
When not in use for extended
periods, unplug the power cord from
the electrical outlet.
Failure to do so may
result in danger of
shock, electrocution,
or fire due to
deterioration of the
electrical insulation.
When unplugging the electrical
power cord from the power outlet,
grasp the plug, not the cord.
Unplugging by pulling the cord may damage
it, leading to fire or electrocution.
Install on a stable surface.
Failure to do so
may result in
falling of the unit,
leading to injury.
Do not attempt to unplug the power
cord with wet hands.
Doing so may
result in electrical
shock.
When closing the door take care not
to catch your fingers in it.
Always use the provided handles to open
and close the door.
Base
XY Table
Head
Z Cover
Do not insert the fingers between
the XY table and base or between
the head and Z cover.
The fingers may be pinched, resulting in
injury.
Do not use the protective cover if it
is cracked.
If you find a crack, contact your autho-
rized Roland DG Corp. dealer or
service center immediately.

4

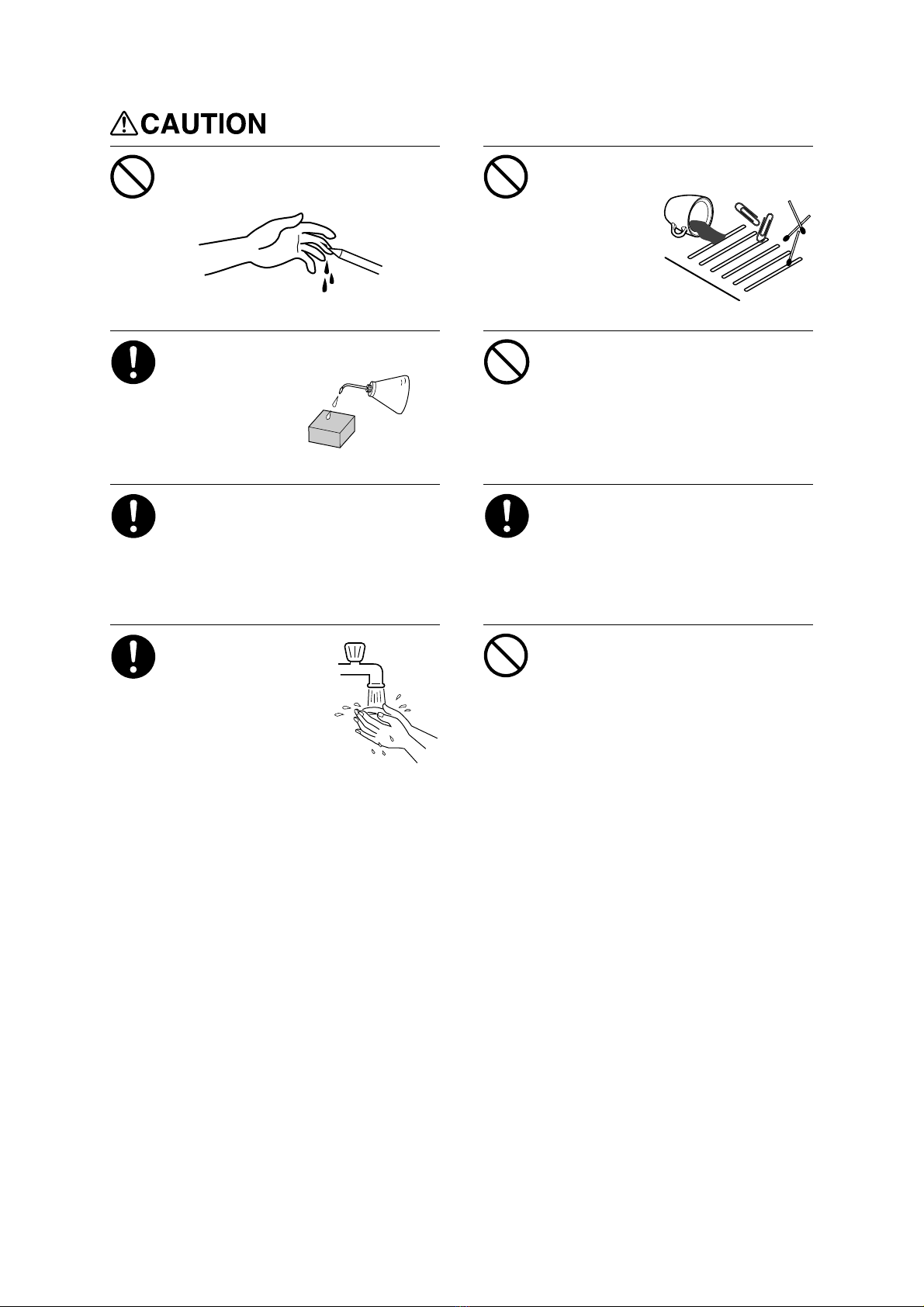

Do not touch the tip of the blade
with your fingers.
Doing so may result in injury.
When you're finished,
wash your hands to
rinse away all
cuttings.
Do not allow liquids, metal objects
or flammables inside the machine.
Such materials
can cause fire.
When cleaning, set the power switch
on the unit to OFF.
Failure to do so may result in injury or
electrical shock.
Perform dry cutting with no cutting
oil.
Such materials can
cause fire.
Do not touch the tool immediately
after cutting operating stops.
The tool may have become hot due to
friction heat and may cause burns if
touched.
Please use a vacuum cleaner to
remove cutting dust.
Do not use any blower like airbrush.
Otherwise, dust spread in the air may harm
your health.
If the machine is still in operation
when you open the protective cover,
wait until operation stops.
Doing so may result in injury.

5
About the Labels Affixed to the Unit
These labels are affixed to the body of this product.
The following figure describes the location and content of these messages.
When closing the
door take care
not to catch your
fingers in it.
Do not insert fingers
between XY table and
base during operation.
Do not insert fingers
between the head and Z
cover during operation.
Handle tool with care.
In addition to the and symbols, the symbols shown below are also used.
: Indicates information to prevent machine breakdown or malfunction and ensure correct use.
: Indicates a handy tip or advice regarding use.
NOTICE
Model name
Rating label
Use a rated power supply.
Model name

6
How to Read This Manual
This manual is organized in the following format. Please use it in the way that best matches your needs.
This User's Manual lists information relating to the protective cover, along with precautions to assure safety when using the PNC-3200 with
the protective cover.
Fasten the tool and material securely in place. Failure to do so may lead to faulty operation or breakdown.
NOTICE
Do not place a load of 8 kg (17.6 lb.) or more (combined weight of the workpiece and vise) on the XY table. Doing
so may lead to faulty operation or breakdown.
If the PNC-3200 is installed with a protective cover, please be aware that the following restrictions apply.
• A brush adapter for chip cleaning (ZAD-10/ZAD-20) cannot be used.
• The cover at the rear of the PNC-3200 cannot be opened and closed, and the interior of the machine cannot be
cleaned.
Do not operate beyond capacity or subject the tool to undue force. Doing so may lead to faulty operation or
breakdown.

7

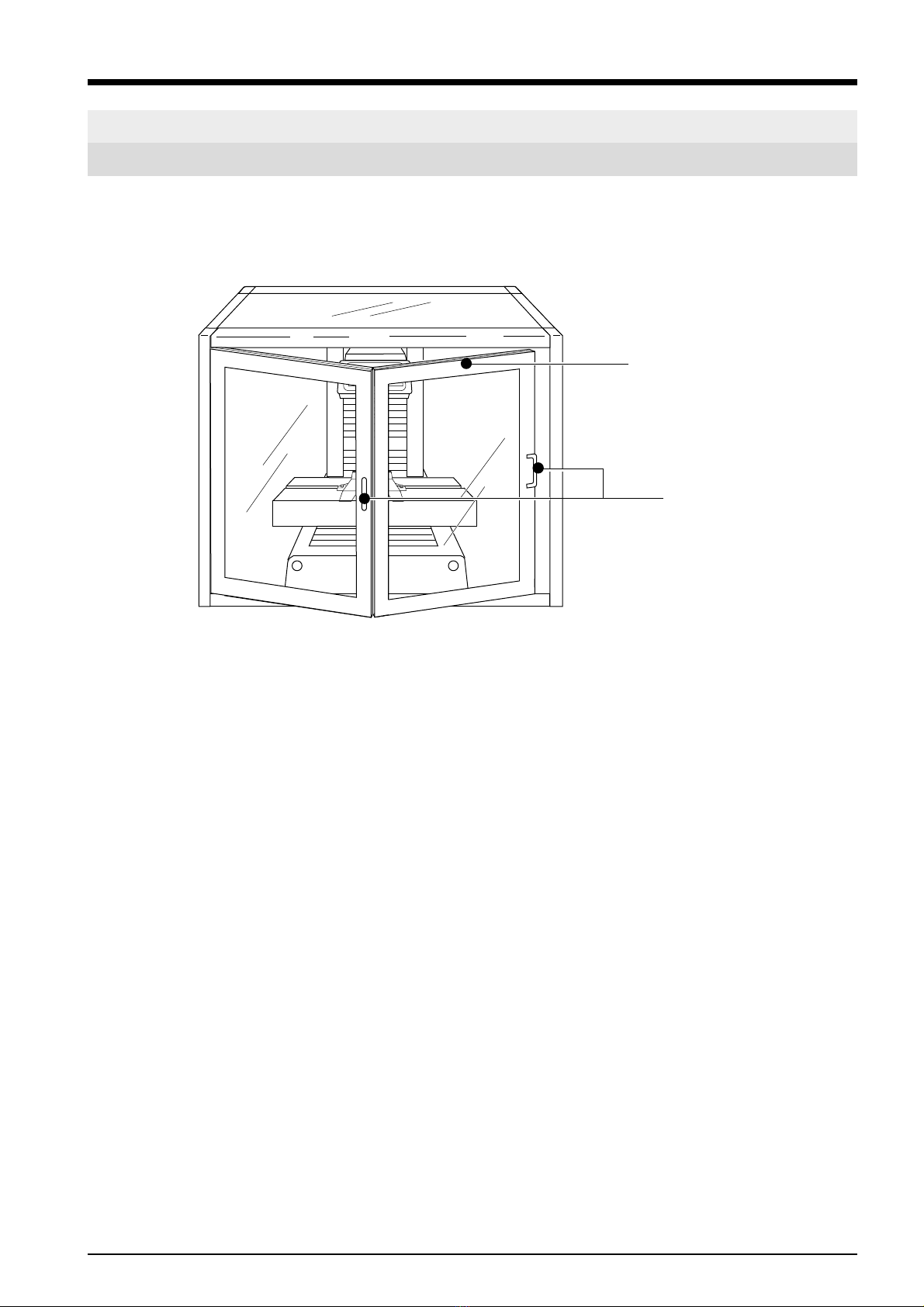

1 Names of Parts
Access door
Handle

8
2 Setting Up and Connection
Setting Up
Install on a stable surface.
Failure to do so
may result in
falling of the unit,
leading to injury.
Use within a temperature range of 5 to 40°C (41 to 104°F) and within a humidity range of 35 to 80%.
NOTICE
Do not place any object except tools or workpiece materials inside the protective cover.
Doing so may not only obstruct operation, it may result in machine breakdown.
870mm
(34-5/16 in.) 50 mm
(2 in.)
334 mm
(13-3/16 in.)
Switch panel
450mm
(17-3/4 in.) 910mm
(35-7/8 in.) 150mm
(5-15/16 in.)
1510mm
(59-1/2 in.)
50 mm
(2 in.)
970 mm
(38-1/4 in.)

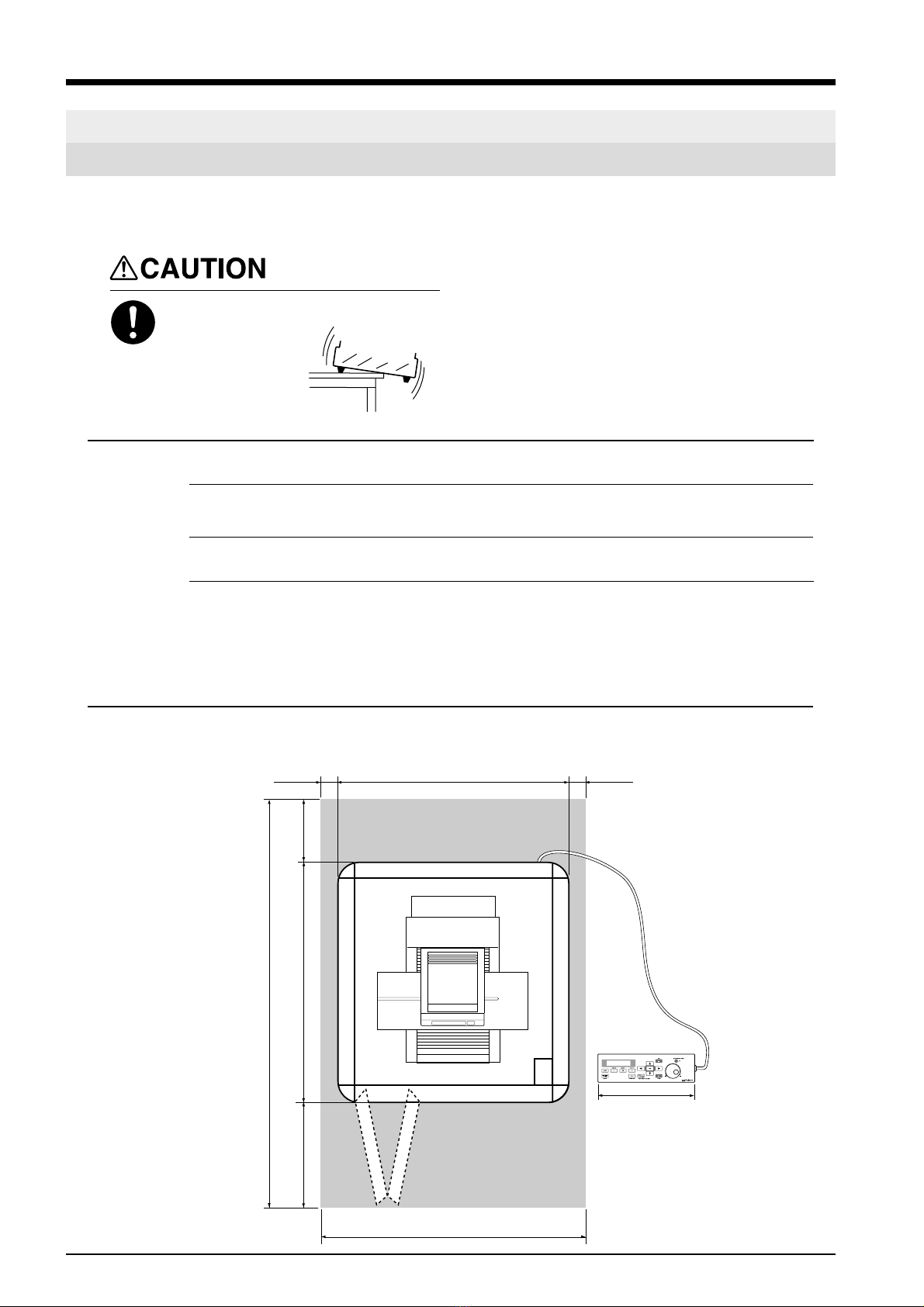

Installation requires the following access space.
To prevent accidents, do not install in any of the following types of areas.
•Avoid use in areas subject to strong electric noise.
•Avoid use in areas subject to high humidity or dust.
•The PNC-3200 generates heat when used, and should not be installed in an area with poor heat radiation
characteristics.
•Do not install in an area subject to strong vibration.
Do not place any objects on the main unit's head or protective cover.

9
Connection
Ground the unit with the ground
wire.
Failure to do so may result in risk of
electrical shock in the even of a mechanical
problem
Do not use with any electrical power
supply that does not meet the
ratings displayed on the unit.
Use with any other power supply may lead
to fire or electrocution.
NOTICE Be sure that the power to both the computer and the main unit is switched off when connecting the cable.
The included cable (for connecting the switch panel) should not be used to connect any other devices. Doing so
may damage the equipment.
Securely connect the power cord, computer I/O cable and so on so that they will not be unplugged and cause
failure during operation. Doing so may lead to faulty operation or breakdown.
For Switch panel
For Computer

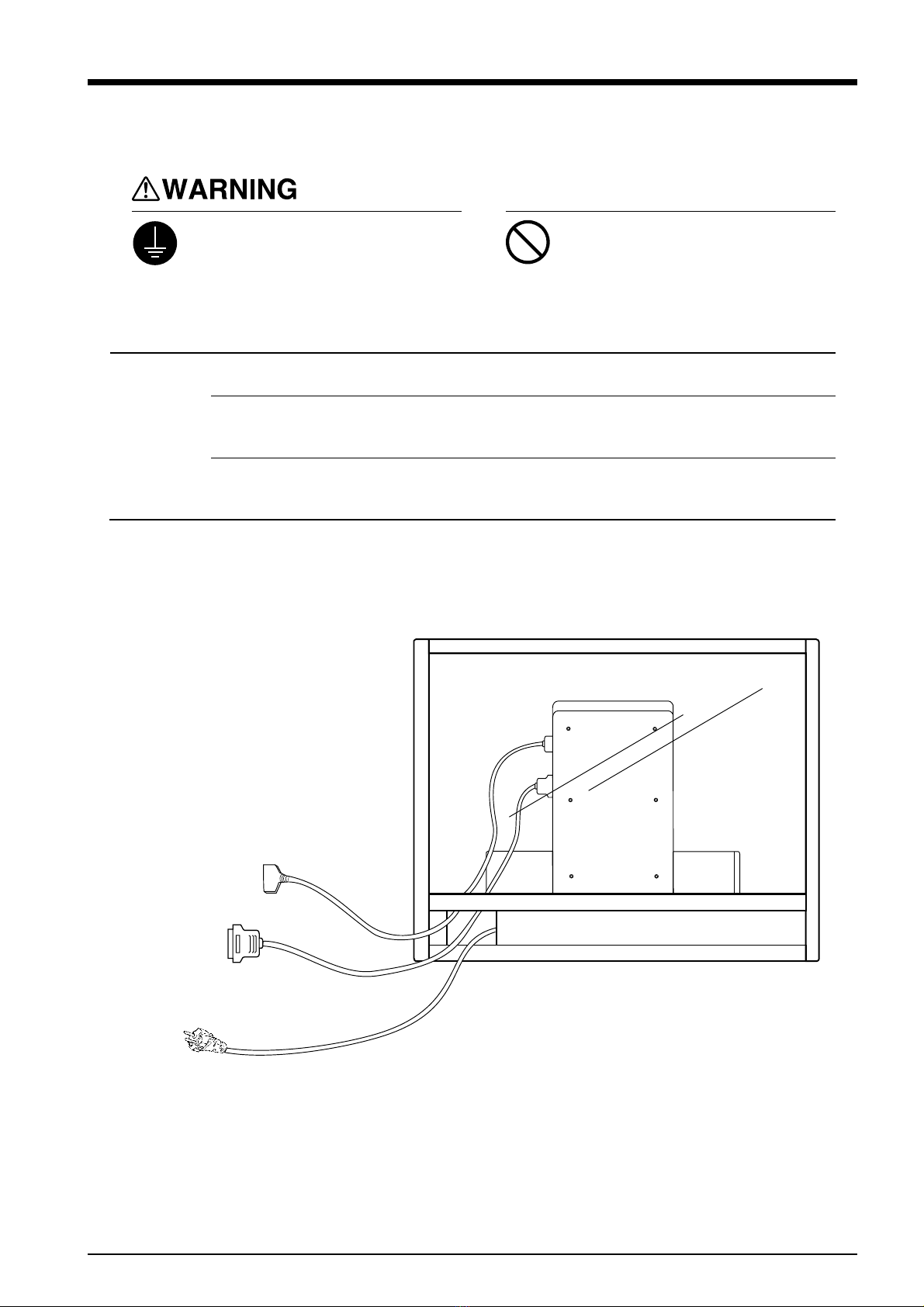

Pass the cables through the back of the protective cover as shown in the figure.
For information about making the connections, see User’s Manual 1 —“Setup and Maintenance.”
For Electrical outlet

10
3 Spindle action
When the protective cover is open, the spindle does not rotate. At such times, the [SPINDLE TEST ON/OFF] key has no effect.
When sending operating instructions from the host computer or when rotating the spindle with the [SPINDLE TEST ON/OFF] key, close
the protective cover.
Specifications
PNC-3200 Protective Cover
870 mm(W) x 910 mm(D) x 635 mm(H) (34-5/16(W) x 35-7/8(D) x 25-1/16(H) in.)
37.5 kg (82.7 lb.)
During no-load operation: 57 dB (A) or less
Standby mode: 35 dB (A) or less
Dimensions
Weight
Acoustic noise level (According to ISO 7779)
