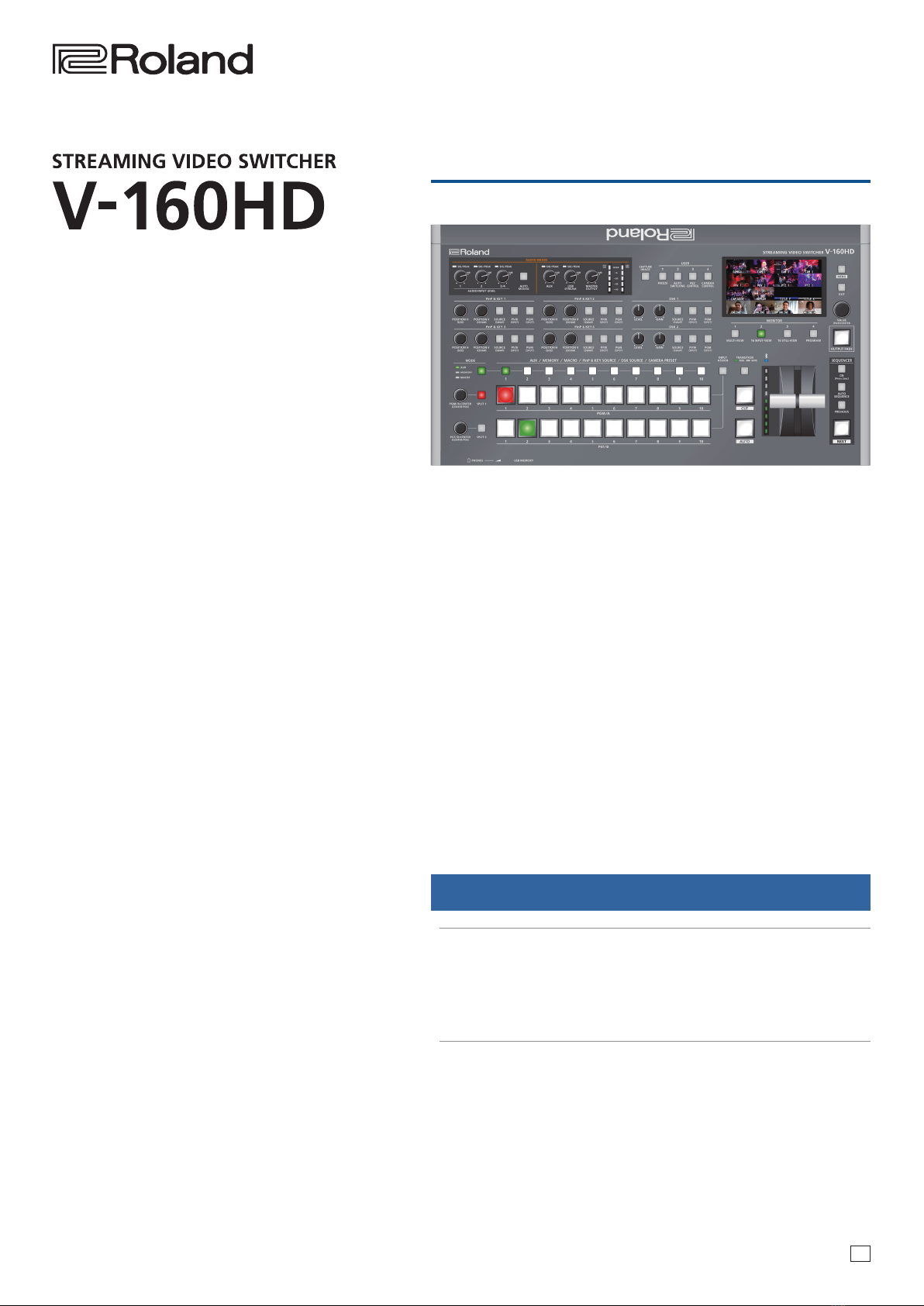

Roland V-160HD Use and maintenance manual

01
Contents
MIDI Implementation.......................................... 2
1. MIDI Messages Received at MIDI IN .............................. 2
2. Parameter Address Map ........................................ 3
3. Supplementary Material ........................................ 18
MIDI Implementation Chart ....................................... 19

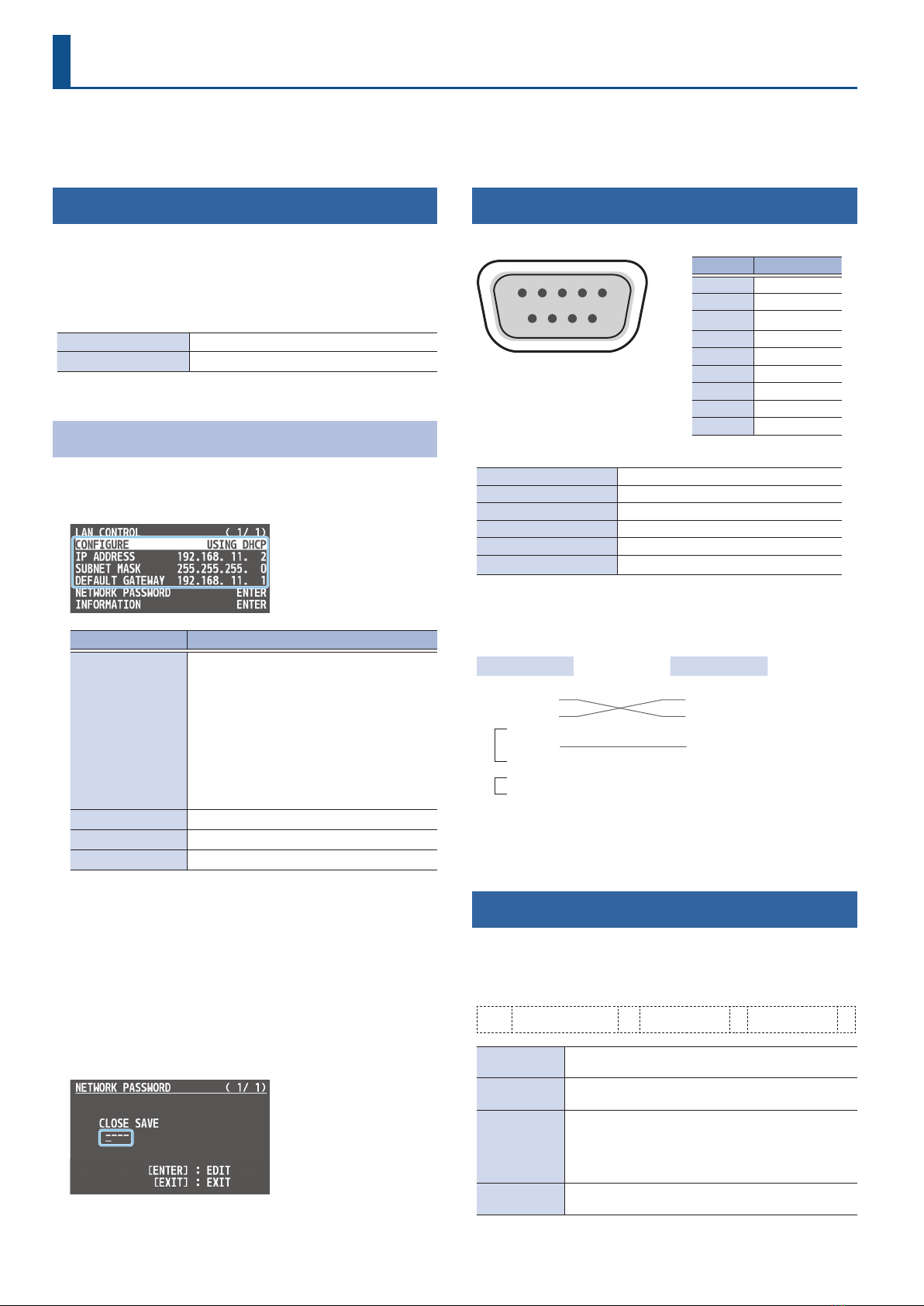

LAN/RS-232 Command Reference .............................. 20
LAN Interface ................................................... 20
RS-232 Interface ................................................. 20
Command Format ............................................... 20
List of Commands ............................................... 21
Remote Control Guide
© 2021 Roland Corporation

2
MIDI Implementation
Model: V-160HD
Date: July 12, 2021
Version: 1.04
Symbol Item Setting Range
n MIDI Channel Fixed at 00H
1. MIDI Messages Received at MIDI IN
ÃSystem Exclusive Messages
Status Data Byte Status
F0H iiH,ddH,...,eeH F7H
F0H: Status of system exclusive message
ii= ID number: This is the ID to recognize manufacturer of the exclusive
message (manufacturer ID). The manufacturer ID of Roland is
41H. The ID numbers of 7EH and 7FH are expansion of MIDI
standards and used as universal non-realtime message (7EH) of
universal realtime message (7FH).
dd,...,ee= data: 00H–7FH (0–127)
F7H: EOX (end of exclusive)
ÁData Request 1 (RQ1)
This is the message to request of“send data” to the connected device. Specify data
type and amount using address and size. When this is received, the unit sends the
requested data as“Data Set 1 (DT1)” message in case the unit is in status where the
sending of data is possible and requested address and size are appropriate. If not, the
unit sends nothing.
Status Data Byte Status
F0H 41H, 10H, 00H, 00H, 00H, 00H, 02H, 11H, aaH, F7H
bbH, ccH, ssH, ttH, uuH, sum
Byte Explanation
F0H Exclusive Status
41H Manufacturer ID (Roland)
10H Device ID
00H 1st byte of model ID (V-160HD)
00H 2nd byte of model ID (V-160HD)
00H 3rd byte of model ID (V-160HD)
00H 4th byte of model ID (V-160HD)
02H 5th byte of model ID (V-160HD)
11H Command ID (RQ1)
aaH Address upper byte
bbH Address middle byte
ccH Address lower byte
ssH Size upper byte
ttH Size middle byte
uuH Size lower byte
sum Checksum
F7H EOX (end of exclusive)
* Depending on the data type, the amount of single-time transmission is specied.
It is necessary to execute data request according to the specied rst address and
size. Refer to the“2. Parameter Address Map”(p. 3) for address and size.
* See “Example of an Exclusive Message and Calculating a Checksum” (p. 18) for
checksum.
ÁData Set 1 (DT1)
This is the message of actual data transmission. Use this when you want to set data
to the unit.
Status Data Byte Status
F0H 41H, 10H, 00H, 00H, 00H, 00H, 02H, 12H, aaH, F7H
bbH, ccH, ddH, ..., eeH, sum
Byte Explanation
F0H Exclusive Status
41H Manufacturer ID (Roland)
10H Device ID
00H 1st byte of model ID (V-160HD)
00H 2nd byte of model ID (V-160HD)
00H 3rd byte of model ID (V-160HD)
00H 4th byte of model ID (V-160HD)
02H 5th byte of model ID (V-160HD)
12H Command ID (DT1)
aaH Address upper byte
bbH Address middle byte
ccH Address lower byte
ddH Data: actual data to transmit. Multiple byte data is sent in address order.
: :
eeH Data
sum Checksum
F7H EOX (end of exclusive)
* Depending on the data type, the amount of single-time transmission is specied.
It is necessary to execute data request according to the specied rst address and
size. Refer to the“2. Parameter Address Map”(p. 3) for address and size.
* See “Example of an Exclusive Message and Calculating a Checksum” (p. 18) for
checksum.
* Data exceeding 256 bytes should be divided into packets of 256 bytes or smaller. If
you send data set 1 successively, set interval of 20 msec or longer between packets.

3
MIDI Implementation
2. Parameter Address Map
Start Address Description Start Address Description
00H 00H 00H Video Parameter Area 18H 00H 00H Video Parameter (Memory 5)
01H 00H 00H Audio Parameter Area 19H 00H 00H Audio Parameter (Memory 5)
02H 00H 00H System Parameter Area 1AH 00H 00H Video Parameter (Memory 6)
0AH 00H 00H Other Parameter Area 1BH 00H 00H Audio Parameter (Memory 6)
0CH 00H 00H Tally Parameter Area 1CH 00H 00H Video Parameter (Memory 7)
10H 00H 00H Video Parameter (Memory 1) 1DH 00H 00H Audio Parameter (Memory 7)
11H 00H 00H Audio Parameter (Memory 1) 1EH 00H 00H Video Parameter (Memory 8)
12H 00H 00H Video Parameter (Memory 2) 1FH 00H 00H Audio Parameter (Memory 8)
13H 00H 00H Audio Parameter (Memory 2) : :
14H 00H 00H Video Parameter (Memory 3) 4AH 00H 00H Video Parameter (Memory 30)
15H 00H 00H Audio Parameter (Memory 3) 4BH 00H 00H Audio Parameter (Memory 30)
16H 00H 00H Video Parameter (Memory 4) 60H 00H 00H Memory Name
17H 00H 00H Audio Parameter (Memory 4)
ÁVideo Parameter Area
ÀVIDEO ASSIGN
Address Parameter name SysEx value Meaning of value
00H 00H 00H INPUT 1 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 01H INPUT 2 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 02H INPUT 3 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 03H INPUT 4 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 04H INPUT 5 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 05H INPUT 6 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 06H INPUT 7 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 07H INPUT 8 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 08H INPUT 9 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 09H INPUT 10 ASSIGN 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 0AH HDMI OUTPUT 1 ASSIGN 00H–06H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 00H 0BH HDMI OUTPUT 2 ASSIGN 00H–06H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 00H 0CH HDMI OUTPUT 3 ASSIGN 00H–06H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 00H 0DH SDI OUTPUT 1 ASSIGN 00H–06H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 00H 0EH SDI OUTPUT 2 ASSIGN 00H–06H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 00H 0FH SDI OUTPUT 3 ASSIGN 00H–06H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 01H 10H USB OUTPUT ASSIGN 00H–07H PROGRAM, SUB PROGRAM, PREVIEW, AUX, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW
00H 00H 11H AUX SOURCE 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H 00H 12H PROGRAM LAYER PinP & Key 1 00H–01H DISABLE, ENABLE
00H 00H 13H PROGRAM LAYER PinP & Key 2 00H–01H DISABLE, ENABLE
00H 00H 14H PROGRAM LAYER PinP & Key 3 00H–01H DISABLE, ENABLE
00H 00H 15H PROGRAM LAYER PinP & Key 4 00H–01H DISABLE, ENABLE
00H 00H 16H PROGRAM LAYER DSK 1 00H–01H DISABLE, ENABLE
00H 00H 17H PROGRAM LAYER DSK 2 00H–01H DISABLE, ENABLE
00H 00H 18H SUB PROGRAM LAYER PinP & Key 1 00H–01H DISABLE, ENABLE
00H 00H 19H SUB PROGRAM LAYER PinP & Key 2 00H–01H DISABLE, ENABLE
00H 00H 1AH SUB PROGRAM LAYER PinP & Key 3 00H–01H DISABLE, ENABLE
00H 00H 1BH SUB PROGRAM LAYER PinP & Key 4 00H–01H DISABLE, ENABLE
00H 00H 1CH SUB PROGRAM LAYER DSK 1 00H–01H DISABLE, ENABLE
00H 00H 1DH SUB PROGRAM LAYER DSK 2 00H–01H DISABLE, ENABLE
ÀVIDEO INPUT
* xxH: 01H–04H (HDMI IN 1–4), 09H–10H (SDI IN 1–8)
Address Parameter name SysEx value Meaning of value
00H xxH 00H FLIP H 00H–01H OFF, ON
00H xxH 01H FLIP V 00H–01H OFF, ON
00H xxH 02H BRIGHTNESS 60H–00H–1FH -32–0–31
00H xxH 03H CONTRAST 60H–00H–1FH -32–0–31
00H xxH 04H SATURATION 60H–00H–1FH -32–0–31

4
MIDI Implementation
ÀVIDEO INPUT (SCALER)
* xxH: 05H–08H (HDMI IN 5–8)
Address Parameter name SysEx value Meaning of value
00H xxH 00H FLICKER FILTER 00H–01H OFF, ON
00H xxH 01H FLIP H 00H–01H OFF, ON
00H xxH 02H FLIP V 00H–01H OFF, ON
00H xxH 03H EDID 00H–0BH
INTERNAL, SVGA (800 x 600), XGA (1024 x 768), WXGA (1280 x 800), FWXGA (1366 x 768),
SXGA (1280 x 1024), SXGA+ (1400 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200),
720p, 1080i, 1080p
00H xxH 04H
05H ZOOM 00H 64H–4EH 10H 10.0–1000.0%
00H xxH 06H SCALING TYPE 00H–04H FULL, LETTER BOX, CROP, DOT BY DOT, MANUAL
00H xxH 07H
08H MANUAL SIZE H 70H 30H–00H 00H–0FH 50H -2000–0–2000
00H xxH 09H
0AH MANUAL SIZE V 70H 30H–00H 00H–0FH 50H -2000–0–2000
00H xxH 0BH
0CH POSITION H 71H 00H–00H 00H–0FH 00H -1920–0–1920
00H xxH 0DH
0EH POSITION V 76H 50H–00H 00H–09H 30H -1200–0–1200
00H xxH 0FH BRIGHTNESS 60H–00H–1FH -32–0–31
00H xxH 10H CONTRAST 60H–00H–1FH -32–0–31
00H xxH 11H SATURATION 60H–00H–1FH -32–0–31
00H xxH 12H RED 40H–00H–3FH -64–0–63
00H xxH 13H GREEN 40H–00H–3FH -64–0–63
00H xxH 14H BLUE 40H–00H–3FH -64–0–63
ÀVIDEO OUTPUT (HDMI)
* xxH: 11H–13H (HDMI OUT 1–3)
Address Parameter name SysEx value Meaning of value
00H xxH 00H COLOR SPACE 00H–03H YPbPr (4: 4: 4), YPbPr (4: 2: 2), RGB (0-255), RGB (16-235)
00H xxH 01H DVI-D/HDMI SIGNAL 00H–01H HDMI, DVI-D
00H xxH 02H BRIGHTNESS 40H–00H–3FH -64–0–63
00H xxH 03H CONTRAST 40H–00H–3FH -64–0–63
00H xxH 04H SATURATION 40H–00H–3FH -64–0–63
00H xxH 05H RED 40H–00H–3FH -64–0–63
00H xxH 06H GREEN 40H–00H–3FH -64–0–63
00H xxH 07H BLUE 40H–00H–3FH -64–0–63
00H xxH 08H REC CONTROL 00H–01H OFF, ON
ÀVIDEO OUTPUT (SDI)
* xxH: 14H–16H (SDI OUT 1–3)
Address Parameter name SysEx value Meaning of value
00H xxH 00H 3G-SDI MAPPING 00H–01H LEVEL-A, LEVEL-B
00H xxH 01H BRIGHTNESS 40H–00H–3FH -64–0–63
00H xxH 02H CONTRAST 40H–00H–3FH -64–0–63
00H xxH 03H SATURATION 40H–00H–3FH -64–0–63
ÀTRANSITION TIME
Address Parameter name SysEx value Meaning of value
00H 17H 00H MIX/WIPE TIME 00H–28H 0.0–4.0sec
00H 17H 01H PinP 1 TIME 00H–28H 0.0–4.0sec
00H 17H 02H PinP 2 TIME 00H–28H 0.0–4.0sec
00H 17H 03H PinP 3 TIME 00H–28H 0.0–4.0sec
00H 17H 04H PinP 4 TIME 00H–28H 0.0–4.0sec
00H 17H 05H DSK 1 TIME 00H–28H 0.0–4.0sec
00H 17H 06H DSK 2 TIME 00H–28H 0.0–4.0sec
00H 17H 07H OUTPUT FADE TIME 00H–28H 0.0–4.0sec

5
MIDI Implementation
ÀMIX/WIPE
Address Parameter name SysEx value Meaning of value
00H 18H 00H TRANSITION TYPE 00H–01H MIX, WIPE
00H 18H 01H MIX TYPE 00H–02H MIX, FAM, NAM
00H 18H 02H WIPE TYPE 00H–07H HORIZONTAL, VERTICAL, UPPER LEFT, UPPER RIGHT, LOWER LEFT, LOWER RIGHT,
H-CENTER, V-CENTER
00H 18H 03H WIPE DIRECTION 00H–02H NORMAL, REVERSE, ROUND TRIP
00H 18H 04H WIPE BORDER COLOR 00H–08H WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK, SOFT EDGE
00H 18H 05H WIPE BORDER WIDTH 00H–0FH 0–15
ÀSPLIT
* xxH: 19H–1AH (SPLIT 1, 2)
Address Parameter name SysEx value Meaning of value
00H xxH 00H SPLIT SW 00H–01H OFF, ON
00H xxH 01H SPLIT TYPE 00H–01H SPLIT V, SPLIT H
00H xxH 02H
03H PGM/A-CENTER 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 04H
05H PST/B-CENTER 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 06H
07H CENTER POSITION 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 08H BORDER COLOR 00H–07H WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK
00H xxH 09H BORDER WIDTH 00H–0EH 0–14
ÀPinP & KEY
* xxH: 1BH–1EH (PinP & KEY 1–4)
Address Parameter name SysEx value Meaning of value
00H xxH 00H PGM SW 00H–01H OFF, ON
00H xxH 01H PVW SW 00H–01H OFF, ON
00H xxH 02H SOURCE 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H xxH 03H TYPE 00H–03H PinP, LUMINANCE-WHITE KEY, LUMINANCE-BLACK KEY, CHROMA KEY
00H xxH 04H
05H POSITION H 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 06H
07H POSITION V 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 08H
09H SIZE 00H 64H–07H 68H 10.0–100.0%
00H xxH 0AH
0BH CROPPING H 00H 00H–07H 68H 0.0–100.0%
00H xxH 0CH
0DH CROPPING V 00H 00H–07H 68H 0.0–100.0%
00H xxH 0EH SHAPE 00H–02H RECTANGLE, CIRCLE, DIAMOND
00H xxH 0FH BORDER COLOR 00H–08H WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK, SOFT EDGE
00H xxH 10H BORDER WIDTH 00H–0FH 0–15
00H xxH 11H
12H VIEW POSITION H 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 13H
14H VIEW POSITION V 7CH 0CH–00H 00H–03H 74H -50.0–0.0–50.0%
00H xxH 15H
16H VIEW ZOOM 00H 64H–4EH 10H 100–1000%
00H xxH 17H
18H KEY LEVEL 00H 00H–01H 7FH 0–255
00H xxH 19H
1AH KEY GAIN 00H 00H–01H 7FH 0–255
00H xxH 1BH
1CH MIX LEVEL 00H 00H–01H 7FH 0–255
00H xxH 1DH CHROMA COLOR 00H–01H GREEN, BLUE
00H xxH 1EH HUE WIDTH 62H–00H–1EH -30–0–30
00H xxH 1FH
20H HUE FINE 00H 00H–02H 68H 0–360
00H xxH 21H
22H SATURATION WIDTH 7FH 00H–00H 00H –00H 7FH -128–0–127

6
MIDI Implementation
Address Parameter name SysEx value Meaning of value
00H xxH 23H
24H SATURATION FINE 00H 00H–01H 7FH 0–255
ÀDSK
* xxH: 1FH–20H (DSK 1, 2)
Address Parameter name SysEx value Meaning of value
00H xxH 00H PGM SW 00H–01H OFF, ON
00H xxH 01H PVW SW 00H–01H OFF, ON
00H xxH 02H DSK MODE 00H–02H SELF KEY, ALPHA KEY, EXTERNAL KEY
00H xxH 03H KEY SOURCE 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16 (*1)
00H xxH 04H FILL SOURCE (*2) 00H–1FH HDMI 1–8, SDI 1–8, STILL 1–16
00H xxH 05H DSK TYPE (*3) 00H–02H LUMINANCE-WHITE KEY, LUMINANCE-BLACK KEY, CHROMA KEY
00H xxH 06H
07H DSK LEVEL 00H 00H–01H 7FH 0–255
00H xxH 08H
09H DSK GAIN 00H 00H–01H 7FH 0–255
00H xxH 0AH
0BH MIX LEVEL 00H 00H–01H 7FH 0–255
00H xxH 0CH CHROMA COLOR 00H–01H GREEN, BLUE
00H xxH 0DH HUE WIDTH 62H–00H–1EH -30–0–30
00H xxH 0EH
0FH HUE FINE 00H 00H–02H 68H 0–360
00H xxH 10H
11H SATURATION WIDTH 7FH 00H–00H 00H–00H 7FH -128–0–127
00H xxH 12H
13H SATURATION FINE 00H 00H–01H 7FH 0–255
00H xxH 14H FILL TYPE 00H–01H BUS, MATTE
00H xxH 15H MATTE COLOR 00H–07H WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK
00H xxH 16H EDGE TYPE 00H–04H OFF, BORDER, DROP, SHADOW, OUTLINE
00H xxH 17H EDGE COLOR 00H–07H WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK
00H xxH 18H EDGE WIDTH 00H–0FH 0–15
(*1) When “DSK MODE” is set to “ALPHA KEY,” only “STILL 1–16”is available.
(*2) This can be set if “DSK MODE”is “EXTERNAL KEY.”
(*3) This can be set if “DSK MODE”is “SELF KEY.”
ÀPanel
Address Parameter name SysEx value Meaning of value
00H 21H 00H PGM Select 00H–0AH INPUT 1–10
00H 21H 01H PST Select 00H–0AH INPUT 1–10
00H 21H 02H
03H AB Fader Level 00H 00H–0FH 7FH 0–2047
00H 21H 04H AB Bus Select 00H–01H A bus, B bus

7
MIDI Implementation
ÁAudio Parameter Area
ÀAUDIO INPUT
* xxH: 00H–14H (AUDIO IN 1–3/4, USB IN, Bluetooth IN, HDMI IN 1–8, SDI IN 1–8)
Address Parameter name SysEx value Meaning of value
01H xxH 00H ANALOG GAIN (*1) 00H–40H 0–64dB
01H xxH 01H
02H DIGITAL GAIN 7CH 5CH–00H 00H–03H 24H -42.0–0.0–42.0dB
01H xxH 03H
04H
05H
INPUT LEVEL 7EH 00H 00H,
7FH 79H 60H–00H 00H 00H–00H 00H 64H -INFdB, -80.0–0.0–10.0dB
01H xxH 06H INPUT MUTE 00H–01H OFF, ON
01H xxH 07H PHANTOM +48V (*1) 00H–01H OFF, ON
01H xxH 08H PAN (*1) 00H–32H–64H LEFT–CENTER–RIGHT
01H xxH 09H STEREO LINK (*2) 00H–01H OFF, ON
01H xxH 0AH MONO (*3) 00H–03H OFF, L ONLY, R ONLY, LR MIX
01H xxH 0BH SOLO 00H–01H OFF, ON
01H xxH 0CH EFFECT PRESET 00H–04H DEFAULT, MEETING, INTERVIEW, AMBIENT MIC, WINDY FIELD
01H xxH 0DH
0EH DELAY 00H 00H–27H 08H 0.0–500.0msec
01H xxH 0FH REVERB SEND 00H–7FH 0–127
01H xxH 10H HIGH PASS FILTER 80Hz 00H–01H OFF, ON
01H xxH 11H ECHO CANELLER SW (*1) 00H–01H OFF, ON
01H xxH 12H ECHO CANELLER DEPTH (*1) 01H–0AH 1–10
01H xxH 13H ANTI-FEEDBACK (*1) 00H–01H OFF, ON
01H xxH 14H NOISE GATE SW 00H–01H OFF, ON
01H xxH 15H NOISE GATE THRESHOLD 30H–00H -80–0dB
01H xxH 16H NOISE GATE RELEASE 00H–7FH 30–5000msec
01H xxH 17H DE-ESSER SW (*1) 00H–01H OFF, ON
01H xxH 18H DE-ESSER SENS (*1) 00H–64H 0–100
01H xxH 19H DE-ESSER DEPTH (*1) 00H–64H 0–100
01H xxH 1AH COMPRESSOR SW 00H–01H OFF, ON
01H xxH 1BH COMPRESSOR THRESHOLD 4EH–00H -50–0dB
01H xxH 1CH COMPRESSOR RATIO 00H–0DH 1.00: 1, 1.12: 1, 1.25: 1, 1.40: 1, 1.60: 1, 1.80: 1, 2.00: 1, 2.50: 1, 3.20: 1,
4.00: 1, 5.60: 1, 8.00: 1, 16.0: 1, INF: 1
01H xxH 1DH COMPRESSOR ATTACK 00H–73H 0.0–100msec
01H xxH 1EH COMPRESSOR RELEASE 00H–7FH 30–5000msec
01H xxH 1FH COMPRESSOR MAKEUP GAIN 58H–00H–28H -40–0–40dB
01H xxH 20H EQUALIZER SW 00H–01H OFF, ON
01H xxH 21H EQUALIZER Hi GAIN 04H–7CH -12.0–12dB
01H xxH 22H EQUALIZER Hi FREQUENCY 24H–3EH 1.00–20.0kHz
01H xxH 23H EQUALIZER Mid GAIN 04H–7CH -12.0–12dB
01H xxH 24H EQUALIZER Mid FREQUENCY 02H–3EH 20Hz–20.0kHz
01H xxH 25H EQUALIZER Mid Q 00H–05H 0.5, 1.0, 2.0, 4.0, 8.0, 16.0
01H xxH 26H EQUALIZER Lo GAIN 04H–7CH -12.0–12dB
01H xxH 27H EQUALIZER Lo FREQUENCY 02H–2AH 20Hz–2.00kHz
01H xxH 28H VOICE CHANGER SW (*1) 00H–01H OFF, ON
01H xxH 29H VOICE CHANGER PITCH (*1) 74H–00H–0CH -12–0– +12
01H xxH 2AH VOICE CHANGER FORMANT
(*1) 76H–00H–0AH -10–0– +10
01H xxH 2BH VOICE CHANGER ROBOT (*1) 00H–01H OFF, ON
01H xxH 2CH VOICE CHANGER MIX (*1) 00H–64H 0–100
(*1) AUDIO IN 1, 2 only
(*2) AUDIO IN 1 only
(*3) Stereo audio only

8
MIDI Implementation
ÀAUDIO OUTPUT ASSIGN
Address Parameter name SysEx value Meaning of value
01H 20H 00H AUDIO OUT (XLR) 00H–01H MASTER OUTPUT, AUX
01H 20H 01H AUDIO OUT (RCA) 00H–01H MASTER OUTPUT, AUX
01H 20H 02H PHONES OUT 00H–01H MASTER OUTPUT, AUX
01H 20H 03H USB OUT 00H–01H MASTER OUTPUT, AUX
01H 20H 04H HDMI OUT 1 00H–02H AUTO, MASTER OUTPUT, AUX
01H 20H 05H HDMI OUT 2 00H–02H AUTO, MASTER OUTPUT, AUX
01H 20H 06H HDMI OUT 3 00H–02H AUTO, MASTER OUTPUT, AUX
01H 20H 07H SDI OUT 1 00H–02H AUTO, MASTER OUTPUT, AUX
01H 20H 08H SDI OUT 2 00H–02H AUTO, MASTER OUTPUT, AUX
01H 20H 09H SDI OUT 3 00H–02H AUTO, MASTER OUTPUT, AUX
ÀAUDIO MASTER OUTPUT
Address Parameter name SysEx value Meaning of value
01H 21H 00H
01H
02H
OUTPUT LEVEL 7EH 00H 00H,
7FH 79H 60H–00H 00H 00H–00H 00H 64H -INFdB, -80.0–0.0–10.0dB
01H 21H 03H OUTPUT MUTE 00H–01H OFF, ON
01H 21H 04H
05H OUTPUT DELAY 00H 00H–27H 08H 0.0–500.0msec
01H 21H 06H LIMITER SW 00H–01H OFF, ON
01H 21H 07H LIMITER THRESHOLD 58H–00H -40–0dB
01H 21H 08H REVERB SW 00H–01H OFF, ON
01H 21H 09H REVERB LEVEL 00H–7FH 0–127
01H 21H 0AH REVERB TYPE 00H–01H ROOM, HALL
01H 21H 0BH REVERB SIZE 01H–14H 1–20
01H 21H 0CH EQUALIZER SW 00H–01H OFF, ON
01H 21H 0DH EQUALIZER Hi GAIN 04H–7CH -12.0–12dB
01H 21H 0EH EQUALIZER Hi FREQUENCY 24H–3EH 1.00–20.0kHz
01H 21H 0FH EQUALIZER Mid GAIN 04H–7CH -12.0–12dB
01H 21H 10H EQUALIZER Mid FREQUENCY 02H–3EH 20Hz–20.0kHz
01H 21H 11H EQUALIZER Mid Q 00H–05H 0.5, 1.0, 2.0, 4.0, 8.0, 16.0
01H 21H 12H EQUALIZER Lo GAIN 04H–7CH -12.0–12dB
01H 21H 13H EQUALIZER Lo FREQUENCY 02H–2AH 20Hz–2.00kHz
01H 21H 14H MULTI BAND COMPRESSOR SW 00H–01H OFF, ON
01H 21H 15H MB COMP Hi THRESHOLD 58H–00H -40–0dB
01H 21H 16H MB COMP Hi RATIO 00H–0DH 1.00: 1, 1.12: 1, 1.25: 1, 1.40: 1, 1.60: 1, 1.80: 1, 2.00: 1, 2.50: 1,
3.20: 1, 4.00: 1, 5.60: 1, 8.00: 1, 16.0: 1, INF: 1
01H 21H 17H MB COMP Mid THRESHOLD 58H–00H -40–0dB
01H 21H 18H MB COMP Mid RATIO 00H–0DH 1.00: 1, 1.12: 1, 1.25: 1, 1.40: 1, 1.60: 1, 1.80: 1, 2.00: 1, 2.50: 1,
3.20: 1, 4.00: 1, 5.60: 1, 8.00: 1, 16.0: 1, INF: 1
01H 21H 19H MB COMP Lo THRESHOLD 58H–00H -40–0dB
01H 21H 1AH MB COMP Lo RATIO 00H–0DH 1.00: 1, 1.12: 1, 1.25: 1, 1.40: 1, 1.60: 1, 1.80: 1, 2.00: 1, 2.50: 1,
3.20: 1, 4.00: 1, 5.60: 1, 8.00: 1, 16.0: 1, INF: 1
ÀAUDIO AUX OUTPUT
Address Parameter name SysEx value Meaning of value
01H 22H 00H
01H
02H
AUX LEVEL 7EH 00H 00H,
7FH 79H 60H–00H 00H 00H–00H 00H 64H -INFdB, -80.0–0.0–10.0dB
01H 22H 03H AUX MUTE 00H–01H OFF, ON
01H 22H 04H
05H AUX DELAY 00H 00H–27H 08H 0.0–500.0msec
01H 22H 06H LIMITER SW 00H–01H OFF, ON
01H 22H 07H LIMITER THRESHOLD 58H–00H -40–0dB
01H 22H 08H AUX SEND VIDEO 00H–01H AUTO, MANUAL
01H 22H 09H AUX SEND AUDIO IN 1 2FH–00H -INF, -80–0dB
01H 22H 0AH AUX SNED AUDIO IN 2 2FH–00H -INF, -80–0dB
01H 22H 0BH AUX SEND AUDIO IN 3/4 2FH–00H -INF, -80–0dB
01H 22H 0CH AUX SEND USB IN 2FH–00H -INF, -80–0dB
01H 22H 0DH AUX SEND Bluetooth IN 2FH–00H -INF, -80–0dB
01H 22H 0EH AUX SEND HDMI IN 1 2FH–00H -INF, -80–0dB

9
MIDI Implementation
Address Parameter name SysEx value Meaning of value
01H 22H 0FH AUX SEND HDMI IN 2 2FH–00H -INF, -80–0dB
01H 22H 10H AUX SEND HDMI IN 3 2FH–00H -INF, -80–0dB
01H 22H 11H AUX SEND HDMI IN 4 2FH–00H -INF, -80–0dB
01H 22H 12H AUX SEND HDMI IN 5 2FH–00H -INF, -80–0dB
01H 22H 13H AUX SEND HDMI IN 6 2FH–00H -INF, -80–0dB
01H 22H 14H AUX SEND HDMI IN 7 2FH–00H -INF, -80–0dB
01H 22H 15H AUX SEND HDMI IN 8 2FH–00H -INF, -80–0dB
01H 22H 16H AUX SEND SDI IN 1 2FH–00H -INF, -80–0dB
01H 22H 17H AUX SEND SDI IN 2 2FH–00H -INF, -80–0dB
01H 22H 18H AUX SEND SDI IN 3 2FH–00H -INF, -80–0dB
01H 22H 19H AUX SEND SDI IN 4 2FH–00H -INF, -80–0dB
01H 22H 1AH AUX SEND SDI IN 5 2FH–00H -INF, -80–0dB
01H 22H 1BH AUX SEND SDI IN 6 2FH–00H -INF, -80–0dB
01H 22H 1CH AUX SEND SDI IN 7 2FH–00H -INF, -80–0dB
01H 22H 1DH AUX SEND SDI IN 8 2FH–00H -INF, -80–0dB
01H 22H 1EH AUX EFFECT AUDIO IN 1 00H–02H DRY, PRE FADER, POST FADER
01H 22H 1FH AUX EFFECT AUDIO IN 2 00H–02H DRY, PRE FADER, POST FADER
01H 22H 20H AUX EFFECT AUDIO IN 3/4 00H–02H DRY, PRE FADER, POST FADER
01H 22H 21H AUX EFFECT USB IN 00H–02H DRY, PRE FADER, POST FADER
01H 22H 22H AUX EFFECT Bluetooth IN 00H–02H DRY, PRE FADER, POST FADER
01H 22H 23H AUX EFFECT HDMI IN 1 00H–02H DRY, PRE FADER, POST FADER
01H 22H 24H AUX EFFECT HDMI IN 2 00H–02H DRY, PRE FADER, POST FADER
01H 22H 25H AUX EFFECT HDMI IN 3 00H–02H DRY, PRE FADER, POST FADER
01H 22H 26H AUX EFFECT HDMI IN 4 00H–02H DRY, PRE FADER, POST FADER
01H 22H 27H AUX EFFECT HDMI IN 5 00H–02H DRY, PRE FADER, POST FADER
01H 22H 28H AUX EFFECT HDMI IN 6 00H–02H DRY, PRE FADER, POST FADER
01H 22H 29H AUX EFFECT HDMI IN 7 00H–02H DRY, PRE FADER, POST FADER
01H 22H 2AH AUX EFFECT HDMI IN 8 00H–02H DRY, PRE FADER, POST FADER
01H 22H 2BH AUX EFFECT SDI IN 1 00H–02H DRY, PRE FADER, POST FADER
01H 22H 2CH AUX EFFECT SDI IN 2 00H–02H DRY, PRE FADER, POST FADER
01H 22H 2DH AUX EFFECT SDI IN 3 00H–02H DRY, PRE FADER, POST FADER
01H 22H 2EH AUX EFFECT SDI IN 4 00H–02H DRY, PRE FADER, POST FADER
01H 22H 2FH AUX EFFECT SDI IN 5 00H–02H DRY, PRE FADER, POST FADER
01H 22H 30H AUX EFFECT SDI IN 6 00H–02H DRY, PRE FADER, POST FADER
01H 22H 31H AUX EFFECT SDI IN 7 00H–02H DRY, PRE FADER, POST FADER
01H 22H 32H AUX EFFECT SDI IN 8 00H–02H DRY, PRE FADER, POST FADER
ÀAUDIO USB OUTPUT
Address Parameter name SysEx value Meaning of value
01H 23H 00H
01H
02H
USB OUT LEVEL 7EH 00H 00H,
7FH 79H 60H–00H 00H 00H–00H 00H 64H -INFdB, -80.0–0.0–10.0dB
01H 23H 03H USB OUT MUTE 00H–01H OFF, ON
01H 23H 04H
05H AUX DELAY 00H 00H–27H 08H 0.0–500.0msec
01H 23H 06H EQUALIZER SW 00H–01H OFF, ON
01H 23H 07H EQUALIZER Hi GAIN 04H–7CH -12.0–12dB
01H 23H 08H EQUALIZER Hi FREQUENCY 24H–3EH 1.00–20.0kHz
01H 23H 09H EQUALIZER Mid GAIN 04H–7CH -12.0–12dB
01H 23H 0AH EQUALIZER Mid FREQUENCY 02H–3EH 20Hz–20.0kHz
01H 23H 0BH EQUALIZER Mid Q 00H–05H 0.5, 1.0, 2.0, 4.0, 8.0, 16.0
01H 23H 0CH EQUALIZER Lo GAIN 04H–7CH -12.0–12dB
01H 23H 0DH EQUALIZER Lo FREQUENCY 02H–2AH 20Hz–2.00kHz

10
MIDI Implementation
ÀAUDIO EMBEDDED
Address Parameter name SysEx value Meaning of value
01H 24H 00H HDMI OUT SEND (CH3-4) 00H–14H AUDIO IN 1–3/4, USB AUDIO IN, Bluetooth AUDIO IN, HDMI IN 1–8, SDI IN 1–8
01H 24H 01H HDMI OUT SEND (CH5-6) 00H–14H AUDIO IN 1–3/4, USB AUDIO IN, Bluetooth AUDIO IN, HDMI IN 1–8, SDI IN 1–8
01H 24H 02H HDMI OUT SEND (CH7-8) 00H–14H AUDIO IN 1–3/4, USB AUDIO IN, Bluetooth AUDIO IN, HDMI IN 1–8, SDI IN 1–8
01H 24H 03H SDI OUT SEND (CH3-4) 00H–14H AUDIO IN 1–3/4, USB AUDIO IN, Bluetooth AUDIO IN, HDMI IN 1–8, SDI IN 1–8
01H 24H 04H SDI OUT SEND (CH5-6) 00H–14H AUDIO IN 1–3/4, USB AUDIO IN, Bluetooth AUDIO IN, HDMI IN 1–8, SDI IN 1–8
01H 24H 05H SDI OUT SEND (CH7-8) 00H–14H AUDIO IN 1–3/4, USB AUDIO IN, Bluetooth AUDIO IN, HDMI IN 1–8, SDI IN 1–8
01H 24H 06H AUDIO EMBEDDED AUDIO IN 1 00H–02H DRY, PRE FADER, POST FADER
01H 24H 07H AUDIO EMBEDDED AUDIO IN 2 00H–02H DRY, PRE FADER, POST FADER
01H 24H 08H AUDIO EMBEDDED AUDIO IN 3/4 00H–02H DRY, PRE FADER, POST FADER
01H 24H 09H AUDIO EMBEDDED USB IN 00H–02H DRY, PRE FADER, POST FADER
01H 24H 0AH AUDIO EMBEDDED Bluetooth IN 00H–02H DRY, PRE FADER, POST FADER
01H 24H 0BH AUDIO EMBEDDED HDMI IN 1 00H–02H DRY, PRE FADER, POST FADER
01H 24H 0CH AUDIO EMBEDDED HDMI IN 2 00H–02H DRY, PRE FADER, POST FADER
01H 24H 0DH AUDIO EMBEDDED HDMI IN 3 00H–02H DRY, PRE FADER, POST FADER
01H 24H 0EH AUDIO EMBEDDED HDMI IN 4 00H–02H DRY, PRE FADER, POST FADER
01H 24H 0FH AUDIO EMBEDDED HDMI IN 5 00H–02H DRY, PRE FADER, POST FADER
01H 24H 10H AUDIO EMBEDDED HDMI IN 6 00H–02H DRY, PRE FADER, POST FADER
01H 24H 11H AUDIO EMBEDDED HDMI IN 7 00H–02H DRY, PRE FADER, POST FADER
01H 24H 12H AUDIO EMBEDDED HDMI IN 8 00H–02H DRY, PRE FADER, POST FADER
01H 24H 13H AUDIO EMBEDDED SDI IN 1 00H–02H DRY, PRE FADER, POST FADER
01H 24H 14H AUDIO EMBEDDED SDI IN 2 00H–02H DRY, PRE FADER, POST FADER
01H 24H 15H AUDIO EMBEDDED SDI IN 3 00H–02H DRY, PRE FADER, POST FADER
01H 24H 16H AUDIO EMBEDDED SDI IN 4 00H–02H DRY, PRE FADER, POST FADER
01H 24H 17H AUDIO EMBEDDED SDI IN 5 00H–02H DRY, PRE FADER, POST FADER
01H 24H 18H AUDIO EMBEDDED SDI IN 6 00H–02H DRY, PRE FADER, POST FADER
01H 24H 19H AUDIO EMBEDDED SDI IN 7 00H–02H DRY, PRE FADER, POST FADER
01H 24H 1AH AUDIO EMBEDDED SDI IN 8 00H–02H DRY, PRE FADER, POST FADER
ÀAUDIO FOLLOW
Address Parameter name SysEx value Meaning of value
01H 30H 00H HDMI IN 1 00H–01H OFF, ON
01H 30H 01H HDMI IN 2 00H–01H OFF, ON
01H 30H 02H HDMI IN 3 00H–01H OFF, ON
01H 30H 03H HDMI IN 4 00H–01H OFF, ON
01H 30H 04H HDMI IN 5 00H–01H OFF, ON
01H 30H 05H HDMI IN 6 00H–01H OFF, ON
01H 30H 06H HDMI IN 7 00H–01H OFF, ON
01H 30H 07H HDMI IN 8 00H–01H OFF, ON
01H 30H 08H SDI IN 1 00H–01H OFF, ON
01H 30H 09H SDI IN 2 00H–01H OFF, ON
01H 30H 0AH SDI IN 3 00H–01H OFF, ON
01H 30H 0BH SDI IN 4 00H–01H OFF, ON
01H 30H 0CH SDI IN 5 00H–01H OFF, ON
01H 30H 0DH SDI IN 6 00H–01H OFF, ON
01H 30H 0EH SDI IN 7 00H–01H OFF, ON
01H 30H 0FH SDI IN 8 00H–01H OFF, ON
01H 30H 10H AUDIO IN 1 00H–0AH OFF, INPUT 1–10
01H 30H 11H AUDIO IN 2 00H–0AH OFF, INPUT 1–10
01H 30H 12H AUDIO IN 3/4 00H–0AH OFF, INPUT 1–10
01H 30H 13H USB IN 00H–0AH OFF, INPUT 1–10
01H 30H 14H Bluetooth IN 00H–0AH OFF, INPUT 1–10

11
MIDI Implementation
ÀAUDIO AUTO MIXING
Address Parameter name SysEx value Meaning of value
01H 31H 00H AUTO MIXING SW 00H–01H OFF, ON
01H 31H 01H AUDIO IN 1 SW 00H–01H DISABLE, ENABLE
01H 31H 02H AUDIO IN 1 WEIGHT 00H–64H 0–100%
01H 31H 03H AUDIO IN 2 SW 00H–01H DISABLE, ENABLE
01H 31H 04H AUDIO IN 2 WEIGHT 00H–64H 0–100%
01H 31H 05H AUDIO IN 3/4 SW 00H–01H DISABLE, ENABLE
01H 31H 06H AUDIO IN 3/4 WEIGHT 00H–64H 0–100%
01H 31H 07H USB IN SW 00H–01H DISABLE, ENABLE
01H 31H 08H USB IN WEIGHT 00H–64H 0–100%
01H 31H 09H Bluetooth IN SW 00H–01H DISABLE, ENABLE
01H 31H 0AH Bluetooth IN WEIGHT 00H–64H 0–100%
01H 31H 0BH HDMI IN 1 SW 00H–01H DISABLE, ENABLE
01H 31H 0CH HDMI IN 1 WEIGHT 00H–64H 0–100%
01H 31H 0DH HDMI IN 2 SW 00H–01H DISABLE, ENABLE
01H 31H 0EH HDMI IN 2 WEIGHT 00H–64H 0–100%
01H 31H 0FH HDMI IN 3 SW 00H–01H DISABLE, ENABLE
01H 31H 10H HDMI IN 3 WEIGHT 00H–64H 0–100%
01H 31H 11H HDMI IN 4 SW 00H–01H DISABLE, ENABLE
01H 31H 12H HDMI IN 4 WEIGHT 00H–64H 0–100%
01H 31H 13H HDMI IN 5 SW 00H–01H DISABLE, ENABLE
01H 31H 14H HDMI IN 5 WEIGHT 00H–64H 0–100%
01H 31H 15H HDMI IN 6 SW 00H–01H DISABLE, ENABLE
01H 31H 16H HDMI IN 6 WEIGHT 00H–64H 0–100%
01H 31H 17H HDMI IN 7 SW 00H–01H DISABLE, ENABLE
01H 31H 18H HDMI IN 7 WEIGHT 00H–64H 0–100%
01H 31H 19H HDMI IN 8 SW 00H–01H DISABLE, ENABLE
01H 31H 1AH HDMI IN 8 WEIGHT 00H–64H 0–100%
01H 31H 1BH SDI IN 1 SW 00H–01H DISABLE, ENABLE
01H 31H 1CH SDI IN 1 WEIGHT 00H–64H 0–100%
01H 31H 1DH SDI IN 2 SW 00H–01H DISABLE, ENABLE
01H 31H 1EH SDI IN 2 WEIGHT 00H–64H 0–100%
01H 31H 1FH SDI IN 3 SW 00H–01H DISABLE, ENABLE
01H 31H 20H SDI IN 3 WEIGHT 00H–64H 0–100%
01H 31H 21H SDI IN 4 SW 00H–01H DISABLE, ENABLE
01H 31H 22H SDI IN 4 WEIGHT 00H–64H 0–100%
01H 31H 23H SDI IN 5 SW 00H–01H DISABLE, ENABLE
01H 31H 24H SDI IN 5 WEIGHT 00H–64H 0–100%
01H 31H 25H SDI IN 6 SW 00H–01H DISABLE, ENABLE
01H 31H 26H SDI IN 6 WEIGHT 00H–64H 0–100%
01H 31H 27H SDI IN 7 SW 00H–01H DISABLE, ENABLE
01H 31H 28H SDI IN 7 WEIGHT 00H–64H 0–100%
01H 31H 29H SDI IN 8 SW 00H–01H DISABLE, ENABLE
01H 31H 2AH SDI IN 8 WEIGHT 00H–64H 0–100%

12
MIDI Implementation
ÁSystem Parameter Area
ÀVersion
Address Parameter name SysEx value Meaning of value
02H 00H 00H System Version Major 00H–09H 0–9
02H 00H 01H System Version Minor (1) 00H–09H 0–9
02H 00H 02H System Version Minor (2) 00H–09H 0–9
02H 00H 03H System Version Build (1) 00H–09H 0–9
02H 00H 04H System Version Build (2) 00H–09H 0–9
02H 00H 05H System Version Build (3) 00H–09H 0–9
ÀSYSTEM
Address Parameter name SysEx value Meaning of value
02H 01H 00H HDCP 00H–01H OFF, ON
02H 01H 01H FRAME RATE 00H–02H 60Hz, 59.94Hz, 50Hz
02H 01H 02H USB OUT 00H–01H HALF RATE, NORMAL
* The value diers depending on the “FRAME RATE” setting.
02H 01H 03H SYSTEM FORMAT 00H–02H 1080p, 1080i, 720p
02H 01H 04H REFERENCE SOURCE 00H–09H INTERNAL, EXTERNAL, SDI 1–8
02H 01H 05H
06H REFERENCE CLOCK ADJUST 71H 00H–00H 00H–0FH 00H -1920–0 –1920
02H 01H 07H
08H REFERENCE LINE ADJUST 76H 50H–00H 00H–09H 30H -1200–0–1200
02H 01H 09H Bluetooth SW 00H–01H OFF, ON
02H 01H 0AH PANEL OPERATION 00H–01H A/B, PGM/PST
02H 01H 0BH EFFECT TRANSITION SYNC 00H–01H OFF, ON
02H 01H 0CH EFFECT SPOT 00H–01H DISABLE, ENABLE
02H 01H 0DH AUX LINKED PGM 00H–02H OFF, AUTO LINK, MANUAL LINK
02H 01H 0EH CUT SW ASSIGN 00H–04H ÇAUDIO TAKE, ÇAUTO TAKEÉ, ÇCUT, ÇCUTÉ, ÇTRANSFORM
02H 01H 0FH AUTO SW ASSIGN 00H–04H AUDIO TAKEÉ, ÇAUTO TAKEÉ, CUTÉ, ÇCUTÉ, TRANSFORMÉ
02H 01H 10H OUTPUT FADE ASSIGN VIDEO FADE 00H–03H N/A, BLACK, WHITE, AUX
02H 01H 11H OUTPUT FADE ASSIGN AUDIO FADE 00H–01H DISABLE, ENABLE
02H 01H 12H USER 1 SW ASSIGN 00H–60H N/A, FREEZE, AUTO SWITCHING SW, BPM TAP, INPUT 1–10 ASSIGN,
STILL 1–16 OUTPUT, AUDIO MUTE (for each INPUT, OUTPUT),
VOICE CHANGER 1 SW, VOICE CHANGER 2 SW, REVERB (MOMENTARY),
REVERB (ALTERNATE), INPUT SCAN NORMAL/REVERSE,
MEMORY SCAN NORMAL/REVERSE, REC CONTROL, GPO (ONE SHOT) 1–16,
GPO (ALTERNATE) 1–16, CAMERA CONTROL, Bluetooth CONTROL
02H 01H 13H USER 2 SW ASSIGN 00H–60H
02H 01H 14H USER 3 SW ASSIGN 00H–60H
02H 01H 15H USER 4 SW ASSIGN 00H–60H
02H 01H 16H MONITOR SW 1 ASSIGN 00H–07H
N/A, MULTI-VIEW, 16 INPUT-VIEW, 16 STILL-VIEW,
PROGRAM, SUB PROGRAM, PREVIEW, AUX
02H 01H 17H MONITOR SW 2 ASSIGN 00H–07H
02H 01H 18H MONITOR SW 3 ASSIGN 00H–07H
02H 01H 19H MONITOR SW 4 ASSIGN 00H–07H
02H 01H 1AH LED DIMMER 01H–08H 1–8
02H 01H 1BH LCD DIMMER 01H–08H 1–8
02H 01H 1CH ON SCREEN MENU 00H–03H UPPER LEFT, UPPER RIGHT, LOWER LEFT, LOWER RIGHT
02H 01H 1DH TALLY FRAME 00H–01H OFF, ON
02H 01H 1EH AUX/SOURCE INDICATOR 00H–01H OFF, ON
02H 01H 1FH REC INDICATOR 00H–01H OFF, ON
02H 01H 20H AUDIO LEVEL METER SW 00H–01H OFF, ON
02H 01H 21H AUDIO LEVEL METER MASTER OUTPUT 00H–02H OFF, LEFT, RIGHT
02H 01H 22H AUDIO LEVEL METER AUX 00H–02H OFF, LEFT, RIGHT
02H 01H 23H AUDIO LEVEL METER USB OUT 00H–02H OFF, LEFT, RIGHT
02H 01H 24H AUDIO LEVEL METER AUDIO IN/USB/
Bluetooth 00H–02H OFF, LOWER, UPPER
02H 01H 25H MULTI-VIEW LABEL SW 00H–01H OFF, ON
02H 01H 26H MULTI-VIEW LABEL SIZE 00H–01H SMALL, NORMAL
02H 01H 27H MULTI-VIEW LAYOUT LEFT 00H–03H PROGRAM, SUB PROGRAM, PREVIEW, BLACK
02H 01H 28H MULTI-VIEW LAYOUT RIGHT 00H–03H PROGRAM, SUB PROGRAM, PREVIEW, BLACK
02H 01H 29H OUTPUT 3 OSD ON SCREEN MENU 00H–01H OFF, ON
02H 01H 2AH OUTPUT 3 OSD TALLY FRAME 00H–01H OFF, ON
02H 01H 2BH OUTPUT 3 OSD LABEL/LEVEL METER/MARK 00H–01H OFF, ON
02H 01H 2CH AUTO INPUT DETECT 00H–01H OFF, ON
02H 01H 2DH TEST PATTERN 00H–05H OFF, 75% COLOR BAR, 100% COLOR BAR, RAMP, STEP, HATCH

13
MIDI Implementation
Address Parameter name SysEx value Meaning of value
02H 01H 2EH TEST PATTERN MOTION 00H–02H DISABLE, SLOW, FAST
02H 01H 2FH TEST TONE LEVEL 00H–03H OFF, -20dB, -10dB, 0dB
02H 01H 30H TEST TONE FREQ L 00H–02H 500Hz, 1kHz, 2kHz
02H 01H 31H TEST TONE FREQ R 00H–02H 500Hz, 1kHz, 2kHz
ÀPANEL LOCK
Address Parameter name SysEx value Meaning of value
02H 02H 00H A/PGM 1 SW 00H–01H OFF, ON
02H 02H 01H A/PGM 2 SW 00H–01H OFF, ON
02H 02H 02H A/PGM 3 SW 00H–01H OFF, ON
02H 02H 03H A/PGM 4 SW 00H–01H OFF, ON
02H 02H 04H A/PGM 5 SW 00H–01H OFF, ON
02H 02H 05H A/PGM 6 SW 00H–01H OFF, ON
02H 02H 06H A/PGM 7 SW 00H–01H OFF, ON
02H 02H 07H A/PGM 8 SW 00H–01H OFF, ON
02H 02H 08H A/PGM 9 SW 00H–01H OFF, ON
02H 02H 09H A/PGM 10 SW 00H–01H OFF, ON
02H 02H 0AH B/PST 1 SW 00H–01H OFF, ON
02H 02H 0BH B/PST 2 SW 00H–01H OFF, ON
02H 02H 0CH B/PST 3 SW 00H–01H OFF, ON
02H 02H 0DH B/PST 4 SW 00H–01H OFF, ON
02H 02H 0EH B/PST 5 SW 00H–01H OFF, ON
02H 02H 0FH B/PST 6 SW 00H–01H OFF, ON
02H 02H 10H B/PST 7 SW 00H–01H OFF, ON
02H 02H 11H B/PST 8 SW 00H–01H OFF, ON
02H 02H 12H B/PST 9 SW 00H–01H OFF, ON
02H 02H 13H B/PST 10 SW 00H–01H OFF, ON
02H 02H 14H INPUT ASSIGN SW 00H–01H OFF, ON
02H 02H 15H CUT SW 00H–01H OFF, ON
02H 02H 16H AUTO SW 00H–01H OFF, ON
02H 02H 17H MODE SW 00H–01H OFF, ON
02H 02H 18H AUX SW 00H–01H OFF, ON
02H 02H 19H MEMORY SW 00H–01H OFF, ON
02H 02H 1AH MACRO SW 00H–01H OFF, ON
02H 02H 1BH TRANSITION SW 00H–01H OFF, ON
02H 02H 1CH VIDEO FADER 00H–01H OFF, ON
02H 02H 1DH SPLIT BLOCK 00H–01H OFF, ON
02H 02H 1EH SEQUENCER BLOCK 00H–01H OFF, ON
02H 02H 1FH PinP 1 BLOCK 00H–01H OFF, ON
02H 02H 20H PinP 2 BLOCK 00H–01H OFF, ON
02H 02H 21H PinP 3 BLOCK 00H–01H OFF, ON
02H 02H 22H PinP 4 BLOCK 00H–01H OFF, ON
02H 02H 23H DSK 1 BLOCK 00H–01H OFF, ON
02H 02H 24H DSK 2 BLOCK 00H–01H OFF, ON
02H 02H 25H MONITOR 1 SW 00H–01H OFF, ON
02H 02H 26H MONITOR 2 SW 00H–01H OFF, ON
02H 02H 27H MONITOR 3 SW 00H–01H OFF, ON
02H 02H 28H MONITOR 4 SW 00H–01H OFF, ON
02H 02H 29H OUTPUT FADE SW 00H–01H OFF, ON
02H 02H 2AH CAPTURE IMAGE SW 00H–01H OFF, ON
02H 02H 2BH USER 1 SW 00H–01H OFF, ON
02H 02H 2CH USER 2 SW 00H–01H OFF, ON
02H 02H 2DH USER 3 SW 00H–01H OFF, ON
02H 02H 2EH USER 4 SW 00H–01H OFF, ON
02H 02H 2FH AUDIO IN 1 VOLUME 00H–01H OFF, ON
02H 02H 30H AUDIO IN 2 VOLUME 00H–01H OFF, ON
02H 02H 31H AUDIO IN 3/4 VOLUME 00H–01H OFF, ON
02H 02H 32H AUTO MIXING SW 00H–01H OFF, ON
02H 02H 33H AUX VOLUME 00H–01H OFF, ON
02H 02H 34H USB STREAM VOLUME 00H–01H OFF, ON
02H 02H 35H MASTER OUTPUT VOLUME 00H–01H OFF, ON

14
MIDI Implementation
ÀPRESET MEMORY
Address Parameter name SysEx value Meaning of value
02H 03H 00H START UP 00H–1EH LAST MEMORY, MEMORY 1–30
02H 03H 01H MEMORY PROTECT 00H–01H OFF, ON
02H 03H 02H NUMBER OF MEMORY SW 00H–01H 10, 30
02H 03H 03H FADE TIME 00H–28H 0.0–4.0sec
02H 03H 04H FADE MIX/WIPE 00H–01H OFF, ON
02H 03H 05H FADE PinP & KEY 1 00H–01H OFF, ON
02H 03H 06H FADE PinP & KEY 2 00H–01H OFF, ON
02H 03H 07H FADE PinP & KEY 3 00H–01H OFF, ON
02H 03H 08H FADE PinP & KEY 4 00H–01H OFF, ON
02H 03H 09H FADE DSK 1 00H–01H OFF, ON
02H 03H 0AH FADE DSK 2 00H–01H OFF, ON
02H 03H 0BH LOAD PARAMETER / VIDEO ASSIGN 00H–01H OFF, ON
02H 03H 0CH LOAD PARAMETER / VIDEO INPUT 00H–01H OFF, ON
02H 03H 0DH LOAD PARAMETER / VIDEO OUTPUT 00H–01H OFF, ON
02H 03H 0EH LOAD PARAMETER / TRANSITION TIME 00H–01H OFF, ON
02H 03H 0FH LOAD PARAMETER / MIX/WIPE 00H–01H OFF, ON
02H 03H 10H LOAD PARAMETER / SPLIT 00H–01H OFF, ON
02H 03H 11H LOAD PARAMETER / PinP & KEY 00H–01H OFF, ON
02H 03H 12H LOAD PARAMETER / DSK 00H–01H OFF, ON
02H 03H 13H LOAD PARAMETER / CROSSPOINT 00H–01H OFF, ON
02H 03H 14H LOAD PARAMETER / VIDEO FADER 00H–01H INITIALIZE, ON
02H 03H 15H LOAD PARAMETER / AUDIO INPUT 00H–01H OFF, ON
02H 03H 16H LOAD PARAMETER / AUDIO OUTPUT 00H–01H OFF, ON
02H 03H 17H LOAD PARAMETER / AUDIO FOLLOW 00H–01H OFF, ON
02H 03H 18H LOAD PARAMETER / AUTO MIXING 00H–01H OFF, ON
ÀSTILL IMAGE
Address Parameter name SysEx value Meaning of value
02H 04H 00H SAVE TO INTERNAL STORAGE 00H–01H DISABLE, ENABLE
ÀFREEZE
Address Parameter name SysEx value Meaning of value
02H 05H 00H FREEZE SW 00H–01H OFF, ON
02H 05H 01H FREEZE TYPE 00H–01H ALL, SELECT
02H 05H 02H FREEZE SELECT HDMI IN 1 00H–01H DISABLE, ENABLE
02H 05H 03H FREEZE SELECT HDMI IN 2 00H–01H DISABLE, ENABLE
02H 05H 04H FREEZE SELECT HDMI IN 3 00H–01H DISABLE, ENABLE
02H 05H 05H FREEZE SELECT HDMI IN 4 00H–01H DISABLE, ENABLE
02H 05H 06H FREEZE SELECT HDMI IN 5 00H–01H DISABLE, ENABLE
02H 05H 07H FREEZE SELECT HDMI IN 6 00H–01H DISABLE, ENABLE
02H 05H 08H FREEZE SELECT HDMI IN 7 00H–01H DISABLE, ENABLE
02H 05H 09H FREEZE SELECT HDMI IN 8 00H–01H DISABLE, ENABLE
02H 05H 0AH FREEZE SELECT SDI IN 1 00H–01H DISABLE, ENABLE
02H 05H 0BH FREEZE SELECT SDI IN 2 00H–01H DISABLE, ENABLE
02H 05H 0CH FREEZE SELECT SDI IN 3 00H–01H DISABLE, ENABLE
02H 05H 0DH FREEZE SELECT SDI IN 4 00H–01H DISABLE, ENABLE
02H 05H 0EH FREEZE SELECT SDI IN 5 00H–01H DISABLE, ENABLE
02H 05H 0FH FREEZE SELECT SDI IN 6 00H–01H DISABLE, ENABLE
02H 05H 10H FREEZE SELECT SDI IN 7 00H–01H DISABLE, ENABLE
02H 05H 11H FREEZE SELECT SDI IN 8 00H–01H DISABLE, ENABLE

15
MIDI Implementation
ÀAUTO SWITCHING
Address Parameter name SysEx value Meaning of value
02H 06H 00H AUTO SWITCHING SW 00H–01H OFF, ON
02H 06H 01H AUTO SWITCHING TYPE 00H–02H INPUT SCAN, PRESET MEMORY SCAN, BPM SYNC
02H 06H 02H INPUT SCAN SEQUENCE 00H–02H NORMAL, REVERSE, RANDOM
02H 06H 03H INPUT SCAN TRANSITION TIME 00H–28H 0.0–4.0sec
02H 06H 04H INPUT SCAN TARGET 00H–04H PGM/A & PST/B, PinP & KEY 1–4
02H 06H 05H INPUT SCAN TIME / INPUT 1 00H–78H OFF, 1–120sec
02H 06H 06H INPUT SCAN TIME / INPUT 2 00H–78H OFF, 1–120sec
02H 06H 07H INPUT SCAN TIME / INPUT 3 00H–78H OFF, 1–120sec
02H 06H 08H INPUT SCAN TIME / INPUT 4 00H–78H OFF, 1–120sec
02H 06H 09H INPUT SCAN TIME / INPUT 5 00H–78H OFF, 1–120sec
02H 06H 0AH INPUT SCAN TIME / INPUT 6 00H–78H OFF, 1–120sec
02H 06H 0BH INPUT SCAN TIME / INPUT 7 00H–78H OFF, 1–120sec
02H 06H 0CH INPUT SCAN TIME / INPUT 8 00H–78H OFF, 1–120sec
02H 06H 0DH INPUT SCAN TIME / INPUT 9 00H–78H OFF, 1–120sec
02H 06H 0EH INPUT SCAN TIME / INPUT 10 00H–78H OFF, 1–120sec
02H 06H 0FH MEMORY SCAN SEQUENCE 00H–02H NORMAL, REVERSE, RANDOM
02H 06H 10H
11H BPM SYNC BPM 00H 14H–01H 7AH 20–250
02H 06H 12H BPM SYNC MODE 00H–01H TRANSITION, CUT
02H 06H 13H BPM SYNC SPEED 00H–03H x1/4, x1/2, x1, x2
02H 06H 14H MEMORY SCAN TIME / MEMORY 1 00H–78H OFF, 1–120sec
: :
02H 06H 31H MEMORY SCAN TIME / MEMORY 30 00H–78H OFF, 1–120sec
ÀCTL/EXP
* xxH: 07H, 08H (CTL/EXP 1, 2)
Address Parameter name SysEx value Meaning of value
02H xxH 00H CTL/EXP TYPE 00H–02H OFF, CTL A & CTL B, EXP
02H xxH 01H
02H CTL A ASSIGN 00H 00H–06H 24H
See “Menu List” in the“Reference Manual” (PDF).
02H xxH 03H
04H CTL B ASSIGN 00H 00H–06H 24H
02H xxH 05H EXP ASSIGN 00H–31H
ÀRS-232/TALLY/GPO/GPI
Address Parameter name SysEx value Meaning of value
02H 09H 00H RS-232 SW 00H–01H OFF, ON
02H 09H 01H RS-232 BAUDRATE 00H–02H 9600, 38400, 115200
02H 09H 02H TALLY/GPO TEMPLATE 00H–04H HDMI TALLY, SDI TALLY, GPO, HDMI TALLY/GPO, SDI TALLY/GPO
02H 09H 03H TALLY/GPO 1 00H–2FH PGM HDMI 1–8, PST HDMI 1–8, PGM SDI 1–8, PST SDI 1–8, GPO 1–16
: :
02H 09H 12H TALLY/GPO 16 00H–2FH PGM HDMI 1–8, PST HDMI 1–8, PGM SDI 1–8, PST SDI 1–8, GPO 1–16
02H 09H 13H
14H GPI 1 00H 00H–06H 24H
See “Menu List” in the“Reference Manual” (PDF).: :
02H 09H 21H
22H GPI 8 00H 00H–06H 24H

16
MIDI Implementation
ÀLABEL EDIT
* xxH: 10H–33H (HDMI 1–8, SDI 1–8, STILL 1–16, PGM, SUB PGM, PVW, AUX)
Address Parameter name SysEx value Meaning of value
02H xxH 00H LABEL (0) 00H–7FH The label name (1st character)
02H xxH 01H LABEL (1) 00H–7FH The label name (2nd character)
02H xxH 02H LABEL (2) 00H–7FH The label name (3rd character)
02H xxH 03H LABEL (3) 00H–7FH The label name (4th character)
02H xxH 04H LABEL (4) 00H–7FH The label name (5th character)
02H xxH 05H LABEL (5) 00H–7FH The label name (6th character)
02H xxH 06H LABEL (6) 00H–7FH The label name (7th character)
02H xxH 07H LABEL (7) 00H–7FH The label name (8th character)
ÀCAMERA CONTROL COMMON
Address Parameter name SysEx value Meaning of value
02H 40H 00H CAMERA ID 00H–0FH CAMERA 1–16
02H 40H 01H ALL CAMERAS RECALL 00H–01H OFF, ON
ÀCAMERA CONTROL
* xxH: 41H–50H (CAMERA 1–16)
Address Parameter name SysEx value Meaning of value
02H xxH 00H PROTOCOL 00H–06H N/A, JVC, Panasonic, Canon, VISCA over IP, PTZOptics, Avonic
02H xxH 01H
02H IP ADDRESS 1 00H 00H–01H 7FH 0–255
02H xxH 03H
04H IP ADDRESS 2 00H 00H–01H 7FH 0–255
02H xxH 05H
06H IP ADDRESS 3 00H 00H–01H 7FH 0–255
02H xxH 07H
08H IP ADDRESS 4 00H 00H–01H 7FH 0–255
02H xxH 09H LOGIN NAME 1 00H–7FH Login name (1st character)
02H xxH 0AH LOGIN NAME 2 00H–7FH Login name (2nd character)
02H xxH 0BH LOGIN NAME 3 00H–7FH Login name (3rd character)
02H xxH 0CH LOGIN NAME 4 00H–7FH Login name (4th character)
02H xxH 0DH LOGIN NAME 5 00H–7FH Login name (5th character)
02H xxH 0EH LOGIN NAME 6 00H–7FH Login name (6th character)
02H xxH 0FH LOGIN NAME 7 00H–7FH Login name (7th character)
02H xxH 10H LOGIN NAME 8 00H–7FH Login name (8th character)
02H xxH 11H PASSWORD 1 00H–7FH Password (1st character)
02H xxH 12H PASSWORD 2 00H–7FH Password (2nd character)
02H xxH 13H PASSWORD 3 00H–7FH Password (3rd character)
02H xxH 14H PASSWORD 4 00H–7FH Password (4th character)
02H xxH 15H PASSWORD 5 00H–7FH Password (5th character)
02H xxH 16H PASSWORD 6 00H–7FH Password (6th character)
02H xxH 17H PASSWORD 7 00H–7FH Password (7th character)
02H xxH 18H PASSWORD 8 00H–7FH Password (8th character)
02H xxH 19H PASSWORD 9 00H–7FH Password (9th character)
02H xxH 1AH PASSWORD 10 00H–7FH Password (10th character)
02H xxH 1BH PASSWORD 11 00H–7FH Password (11th character)
02H xxH 1CH PASSWORD 12 00H–7FH Password (12th character)
02H xxH 1DH PASSWORD 13 00H–7FH Password (13th character)
02H xxH 1EH PASSWORD 14 00H–7FH Password (14th character)
02H xxH 1FH PASSWORD 15 00H–7FH Password (15th character)
02H xxH 20H PASSWORD 16 00H–7FH Password (16th character)
02H xxH 21H PRESET RECALL 00H–0AH PRESET 1–10 * Executes when written.
02H xxH 22H PRESET STORE 00H–0AH PRESET 1–10 * Executes when written.
02H xxH 23H CURRENT PRESET 00H–0AH PRESET 1–10 (Read only)
02H xxH 24H PAN 7FH, 00H, 01H LEFT, STOP, RIGHT
02H xxH 25H TILT 7FH, 00H, 01H DOWN, STOP, UP
02H xxH 26H PAN/TILT SPEED 01H–18H 1–24
02H xxH 27H ZOOM 7EH–00H–02H WIDE (FAST), WIDE (SLOW), STOP, TELE (SLOW), TELE (FAST)
02H xxH 28H FOCUS 7FH, 00H, 01H NEAR, STOP, FAR
02H xxH 29H AUTO FOCUS 00H–01H OFF, ON
02H xxH 2AH EXPOSURE 00H–01H MANUAL, AUTO
02H xxH 2BH TALLY CH 00H–0FH HDMI 1–8, SDI 1–8

17
MIDI Implementation
ÁOther Parameter Area
ÀMemory
Address Parameter name SysEx value Meaning of value
0AH 00H 00H Memory Load Trigger 00H–1DH Memory 1–30 (Write only)
0AH 00H 01H Memory Save Trigger 00H–1DH Memory 1–30 (Write only)
0AH 00H 02H Memory Initialize Trigger 00H–1DH Memory 1–30 (Write only)
0AH 00H 03H Loaded Memory Number 00H–1DH, 7FH Memory 1–30, Last Memory (Read only)
ÁTally Parameter Area
Address Parameter name SysEx value Meaning of value
0CH 00H 00H HDMI IN 1 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 01H HDMI IN 2 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 02H HDMI IN 3 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 03H HDMI IN 4 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 04H HDMI IN 5 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 05H HDMI IN 6 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 06H HDMI IN 7 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 07H HDMI IN 8 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 08H SDI IN 1 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 09H SDI IN 2 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 0AH SDI IN 3 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 0BH SDI IN 4 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 0CH SDI IN 5 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 0DH SDI IN 6 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 0EH SDI IN 7 TALLY 00H–02H OFF, PGM, PST (Read only)
0CH 00H 0FH SDI IN 8 TALLY 00H–02H OFF, PGM, PST (Read only)
ÁPreset Memory Area
You can load or rewrite the stored contents of the preset memories.
* The ranges for the second and third bytes of the address and the values are shared with Video Parameter Area (00H 00H 00H) and Audio Parameter Area (01H 00H 00H).
Address Parameter name Meaning of value
10H 00H 00H Video Parameter (Memory 1) Load/rewrite video parameter stored in Memory 1
11H 00H 00H Audio Parameter (Memory 1) Load/rewrite audio parameter stored in Memory 1
12H 00H 00H Video Parameter (Memory 2) Load/rewrite video parameter stored in Memory 2
13H 00H 00H Audio Parameter (Memory 2) Load/rewrite audio parameter stored in Memory 2
14H 00H 00H Video Parameter (Memory 3) Load/rewrite video parameter stored in Memory 3
15H 00H 00H Audio Parameter (Memory 3) Load/rewrite audio parameter stored in Memory 3
16H 00H 00H Video Parameter (Memory 4) Load/rewrite video parameter stored in Memory 4
17H 00H 00H Audio Parameter (Memory 4) Load/rewrite audio parameter stored in Memory 4
18H 00H 00H Video Parameter (Memory 5) Load/rewrite video parameter stored in Memory 5
19H 00H 00H Audio Parameter (Memory 5) Load/rewrite audio parameter stored in Memory 5
1AH 00H 00H Video Parameter (Memory 6) Load/rewrite video parameter stored in Memory 6
1BH 00H 00H Audio Parameter (Memory 6) Load/rewrite audio parameter stored in Memory 6
1CH 00H 00H Video Parameter (Memory 7) Load/rewrite video parameter stored in Memory 7
1DH 00H 00H Audio Parameter (Memory 7) Load/rewrite audio parameter stored in Memory 7
1EH 00H 00H Video Parameter (Memory 8) Load/rewrite video parameter stored in Memory 8
1FH 00H 00H Audio Parameter (Memory 8) Load/rewrite audio parameter stored in Memory 8
: :
4AH 00H 00H Video Parameter (Memory 30) Load/rewrite video parameter stored in Memory 30
4BH 00H 00H Audio Parameter (Memory 30) Load/rewrite audio parameter stored in Memory 30
ÁPreset Memory Name Area
* xxH: 00H–1DH (MEMORY 1–30)
Address Parameter Name Meaning of value
60H xxH 00H NAME (0) Name of preset memory number xx (1st character)
60H xxH 01H NAME (1) Name of preset memory number xx (2nd character)
60H xxH 02H NAME (2) Name of preset memory number xx (3rd character)
60H xxH 03H NAME (3) Name of preset memory number xx (4th character)
60H xxH 04H NAME (4) Name of preset memory number xx (5th character)
60H xxH 05H NAME (5) Name of preset memory number xx (6th character)
60H xxH 06H NAME (6) Name of preset memory number xx (7th character)
60H xxH 07H NAME (7) Name of preset memory number xx (8th character)

18
MIDI Implementation
3. Supplementary Material
ÁDecimal and Hexadecimal Table
(Hexadecimal Numbers are Indicated by“H”)
In MIDI documentation, data values and addresses/sizes of exclusive messages etc.
are expressed as hexadecimal values for each 7 bits.
The following table shows how these correspond to decimal numbers.
DHDHDHDH
000H 32 20H 64 40H 96 60H
101H 33 21H 65 41H 97 61H
202H 34 22H 66 42H 98 62H
303H 35 23H 67 43H 99 63H
404H 36 24H 68 44H 100 64H
505H 37 25H 69 45H 101 65H
606H 38 26H 70 46H 102 66H
707H 39 27H 71 47H 103 67H
808H 40 28H 72 48H 104 68H
909H 41 29H 73 49H 105 69H
10 0AH 42 2AH 74 4AH 106 6AH
11 0BH 43 2BH 75 4BH 107 6BH
12 0CH 44 2CH 76 4CH 108 6CH
13 0DH 45 2DH 77 4DH 109 6DH
14 0EH 46 2EH 78 4EH 110 6EH
15 0FH 47 2FH 79 4FH 111 6FH
16 10H 48 30H 80 50H 112 70H
17 11H 49 31H 81 51H 113 71H
18 12H 50 32H 82 52H 114 72H
19 13H 51 33H 83 53H 115 73H
20 14H 52 34H 84 54H 116 74H
21 15H 53 35H 85 55H 117 75H
22 16H 54 36H 86 56H 118 76H
23 17H 55 37H 87 57H 119 77H
24 18H 56 38H 88 58H 120 78H
25 19H 57 39H 89 59H 121 79H
26 1AH 58 3AH 90 5AH 122 7AH
27 1BH 59 3BH 91 5BH 123 7BH
28 1CH 60 3CH 92 5CH 124 7CH
29 1DH 61 3DH 93 5DH 125 7DH
30 1EH 62 3EH 94 5EH 126 7EH
31 1FH 63 3FH 95 5FH 127 7FH
D: decimal
H: hexadecimal
* Decimal expressions used for MIDI channel, bank select, and program change are 1
greater than the decimal value shown in the above table.
* Hexadecimal values in 7-bit units can express a maximum of 128 levels in one byte
of data. If the data requires greater resolution, two or more bytes are used. For
example, a value indicated by a hexadecimal expression in two 7-bit bytes aa bbH
would be aa x 128 + bb.
* Data marked “nibbled”is expressed in hexadecimal in 4-bit units. A value expressed
as a 2-byte nibble 0a 0bH has the value of a x 16 + b.
<Example 1>
What is the decimal expression of 5AH?
From the preceding table, 5AH = 90
<Example 2>
What is the decimal expression of the value 12 34H given as hexadecimal for each 7
bits?
From the preceding table, since 12H = 18 and 34H = 52
18 x 128 + 52 = 2356
ÁExample of an Exclusive Message and Calculating a Checksum
Roland Exclusive messages are transmitted with a checksum at the end (before F7)
to make sure that the message was correctly received. The value of the checksum is
determined by the address and data (or size) of the transmitted exclusive message.
ÀHow to Calculate the Checksum
(Hexadecimal Numbers are Indicated by“H”)
The checksum is a value that produces a lower 7 bits of zero when the address, size,
and checksum itself are summed. If the exclusive message to be transmitted has an
address of aa bb ccH and the data is dd ee H, the actual calculation would be as
follows:
aa + bb + cc + dd + ee +  = sum
sum / 128 = quotient ... remainder
128 - remainder = checksum
(However, the checksum will be 0 if the remainder is 0.)
<Example>
When setting PGM Select to INPUT 2 for data set 1
From the “Parameter Address Map,” the address of the PGM Select is 00H 21H 00H and
the INPUT 2 parameter is 01H. Therefore ...
F0H 41H 10H 00H 00H 00H 00H 02H 12H 00H 21H 00H 01H ??H F7H
(1) (2) (3) (4) (5) (6) (7) (8) (9)
(1) Exclusive Status
(2) ID Number (Roland)
(3) Device ID
(4) Model ID
(5) Command ID (DT1)
(6) Address
(7) Data
(8) Checksum
(9) EOX
Next calculate the checksum. Add (6) to (7).
00H + 21H + 00H + 01H = 0 + 33 + 0 + 1 = 34 (sum)
34 (sum) / 128 = 0 (quotient) ... 34 (remainder)
Checksum = 128
- 34 (remainder) = 94 = 5EH
Thus, the message to transmit is :
F0H 41H 10H 00H 00H 00H 00H 02H 12H 00H 21H 00H 01H 5EH F7H

19
Function Transmitted Recognized Remarks
Basic
Channel
Default
Changed
1
1
1
1
Mode
Default
Messages
Altered
×
×
**************
×
×
**************
Note
Number True Voice × ×
Velocity Note On
Note O
×
×
×
×
After
Touch
Key’s
Channel’s
×
×
×
×
Pitch Bend × ×
Control
Change
0–9
10–31
32–46
46–51
52–65
66–119
×
×
×
×
×
×
×
×
×
×
×
×
Program
Change : True Number × ×
System Exclusive O O
System
Common
: Song Position
: Song Select
: Tune Request
×
×
×
×
×
×
System
Real Time
: Clock
: Commands
×
×
×
×
Aux
Messages
: All Sound O
: Reset All Controllers
: Local On/O
: All Notes O
: Active Sensing
: System Reset
×
×
×
×
×
×
×
×
×
×
×
×
Notes
Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO
Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO
O : Yes
× : No
MIDI Implementation Chart
Streaming Video Switcher
Model V-160HD
Date: July 12, 2021
Version: 1.04

20
LAN/RS-232 Command Reference
The V-160HD support two types of remote-interface communication: LAN and RS-232.
Using the LAN CONTROL port or RS-232 connector to send specic commands to the V-160HD from a controlling device lets you operate the
V-160HD remotely.
LAN Interface
This uses the LAN CONTROL port on the V-160HD.
You use Telnet to operate the V-160HD remotely over a LAN (TCP/IP
protocol).
Communication standards
Port LAN CONTROL port
TCP port number 8023
Specifying the V-160HD’s Network Settings
1. [MENU] button Ó“LAN CONTROL” Óselect the menu
item shown below, and press the [VALUE] knob.
Menu item Explanation
CONFIGURE
Selects how settings are made for the IP
address, subnet mask, and default gateway.
USING DHCP:
The IP address and other information needed
for connecting to the network is obtained
automatically from the DHCP server of the LAN.
MANUAL:
The IP address, subnet mask, and default
gateway are specied manually.
IP ADDRESS Shows the IP address. (*1)
SUBNET MASK Shows the subnet mask. (*1)
DEFAULT GATEWAY Shows the default gateway. (*1)
(*1) When“CONFIGURE”is set to“MANUAL,” set these respectively
according to the network.
2. Use the [VALUE] knob to change the value of the setting.
3. Use the [VALUE] knob to select “NETWORK PASSWORD,”
and press the [VALUE] knob.
The NETWORK PASSWORD screen appears.
4. Set a network password (four characters).
Input the password that’s set here when connecting a computer or
other device on the same network to access the V-160HD.
5. Press the [MENU] button to close the menu.
RS-232 Interface
RS-232 connector pin layout Pin assignments
12345
6789
DB-9 type (male)
Pin No. Signal
1N.C.
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9N.C.
Communication standards
Communication method Synchronous (asynchronous), full-duplex
Communication speed 9,600/38,400/115,200 bps
Parity none
Data length 8 bits
Stop bit 1 bit
Code set ASCII
Cable wiring diagram
Use an RS-232 crossover cable to connect the V-160HD and the
controller (an RS-232-compatible computer or other device).
V-160HD Control device
N.C.: 1 1:
RXD: 2 2: RXD
TXD: 3 3: TXD
DTR: 4 4:
GND: 5 5: GND
DSR: 6 6:
RTS: 7 7:
CTS: 8 8:
N.C.: 9 9:
(Crossover connection)
* The connections between 4 and 6 and between 7 and 8 are inside the
V-160HD.
Command Format
Commands are formatted using the conguration shown below.
Commands are all in ASCII code.
* Commands are common to the LAN and the RS-232 interface.
stx Command code : Parameter , Parameter ;
stx ASCII code “02H”is a control code indicating the start of
a command.“H”indicates that it is a hexadecimal value.
Command
code
This species the command type (three single-byte
alphanumeric characters).
Parameter
This is appended to a command that requires one or
more parameter. The command and the parameter
portion are separated by a “ : ”(colon). When there are
multiple parameters, they are each separated by“ , ”
(comma) characters.
;This is the code that this unit recognizes as the end of
a command.
* The codes of stx (02H), ack (06H), xon (11H), and xo (13H) are the
control codes.
