Rollplay W463 Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understood the instructions.
Made in China.
Styles and colors may vary. Before returning your product to the store, please contact our
Customer Service team.
Call 1-888-982-9309 for assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: W463 W463-G
POWERSPORT TRAIL
THUNDER

Introduction
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
12 V 7 AH
12V
3 and up
77 lb (35 kg)
48 x 29.53 x 33.86 in (122 x 75 x 86 cm)
Up to 4 mph (6.5 km/h)
8-12 Hours
1 Hours
DC 12.0 V 1.0 A
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle.
Please keep your sales receipt and register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions. Have your
model number and serial number ready before calling. Please have proof
of purchase.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone:
Email: [e-mail]
For inquiries in French, please email only at [email protected] and
we will respond within 48 hours.

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
BEFORE YOU RETURN YOUR
PRODUCT TO THE STORE,
CONTACT ROLLPLAY WITH
QUESTIONS
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
www.rollplay.com as we require proof of purchase.
Email [e-mail] or
call customer service 1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
have proof of purchase. Keep your sales receipt and register your product at

Table of Contents
Safety......................................................... 5
Parts ......................................................... 7
Charging Instructions.............................. 8
Attach the Steering Rod ......................... 9
Attach the Front Bumper ........................ 10
Assemble the Front Rear Wheel............. 11
Attach the Steering Wheel ...................... 12
Attach the Windshield ............................. 13
Install the Storage Compartment ........... 15
Attach the Seat ........................................ 14
Remote Control Instructions ................. 17
Product Features...................................... 19
Maintenance ............................................ 20
General Care ............................................ 21
Attach the Light Bar ................................ 16
Troubleshooting Guide............................ 22
FCC Information ...................................... 24
Service and Repairs ............................... 25
Warranty ................................................... 26
Product Registration ............................... 27

5Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time; Always replace the
whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of different types.
Do not operate near ammable vapours (gasoline, paint thinner, acetone, etc.).

6
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead components.
DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

Parts
7
1
10
3
5
7
13
14
6
15
8
4
9
2
11
12

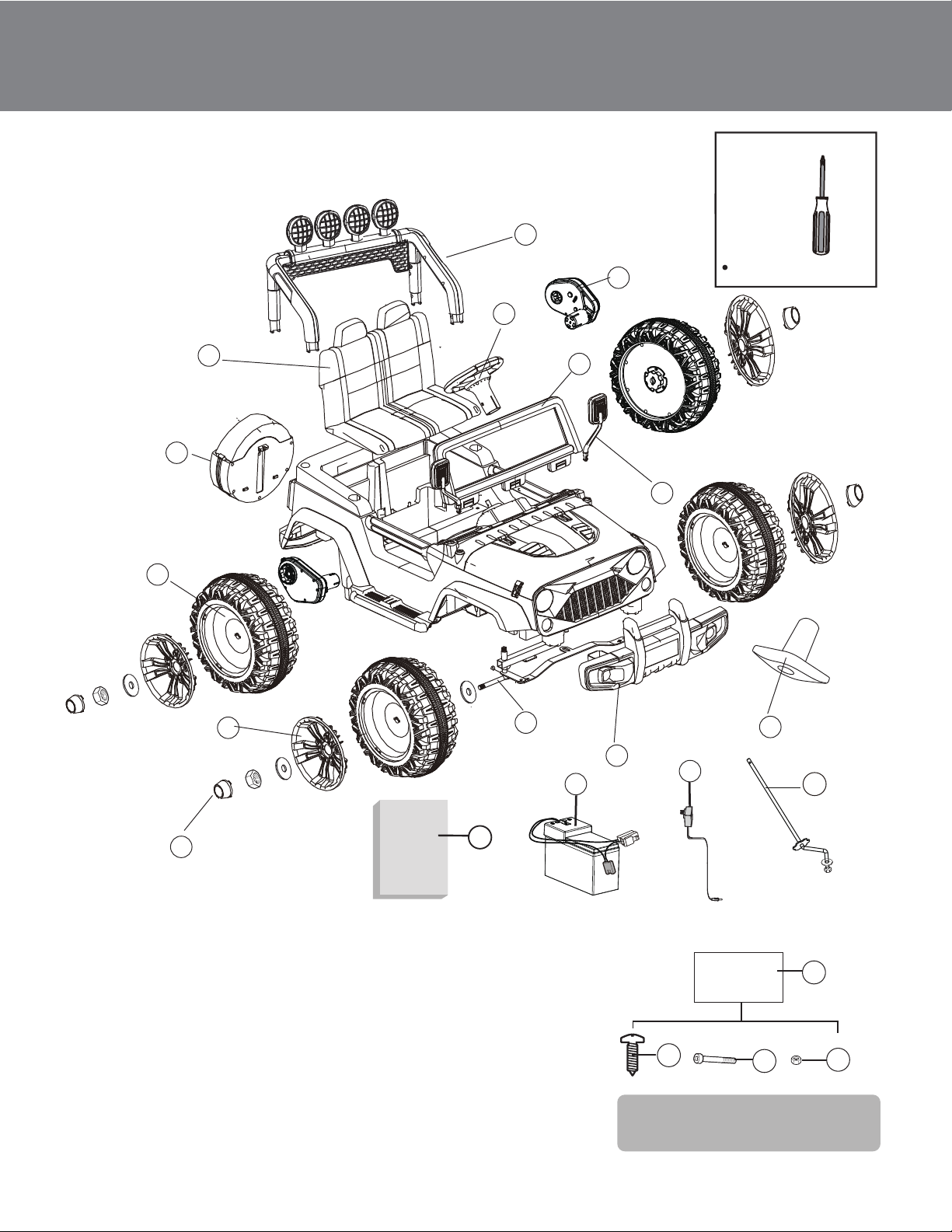

1. Seat
2. Storage Compartment
3. Wheels (x4)
4. Wheel Covers (x4)
5. Wheel Cap (x4)
6. Front Axle Frame
7. Front Bumper
8. Gear Box (x2)
9. Light Bar
10. Steering Wheel
11. Windshield
12. Side Mirrors (x2)
13. Hex Wrench
14. Battery
15. Charger
16. Steering Rod
17. Manual
18. Screws (x29)
19. Steering Rod Screw
20. Nuts (x4)
21. Blister Pack
Phillips screwdriver
Not Included:
16
18 19 20
21
Note:
Parts 18-20 ship in the Blister Pack (21)
16

8
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
x2
A
B
1. Ensure the car is stopped and the power
is turned off.
2. Open the engine cover by unlocking the
clasps on each side and lifting the hood.
Then, connect the battery (wires A and
B in Figure 1).
3. Close the hood and secure it with four
short Screws (16) on the clasps (Figure 2).
4. To charge the vehicle, plug the included
charger (15) into the port on
the dashboard and plug the charger into
a 120 V outlet (Figure 3). Do not use the
vehicle while it is charging.
Figure 1
Figure 2
Figure 3

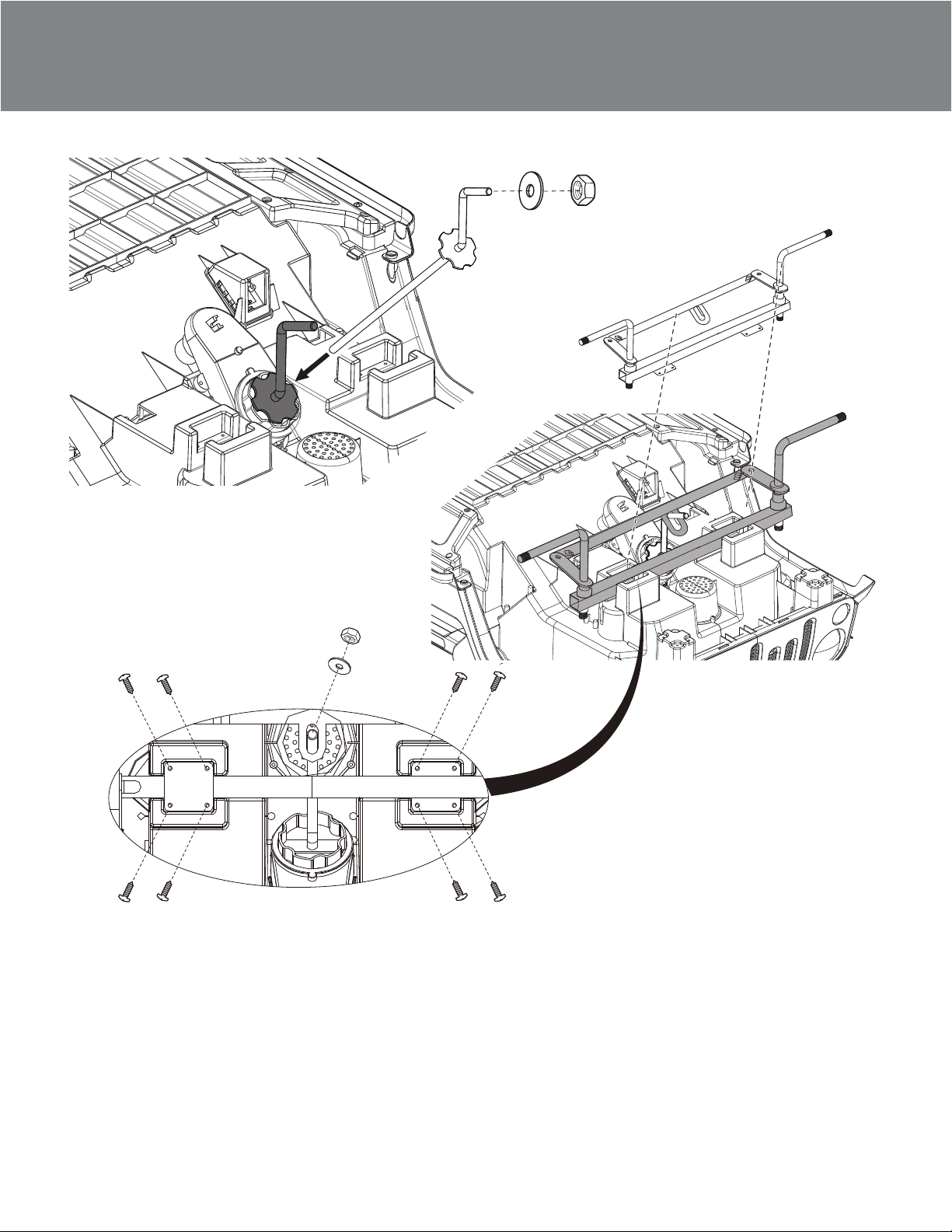

9Attach the Steering Rod
1. Gently flip the vehicle upside down and lay on a smooth surface.
2. Remove the locknut and washer from Steering Rod (16), insert the Steering
Rod into the hole near the front of the vehicle.
3. Slide the Axle Frame onto the Steering Rod through the slot on the Axle Frame,
then secure the frame with the locknut and washer.
4. Secure the frame with four Screws (17) using a Phillips screwdriver.

10
x16
1. Align the Front Bumper (7) with the slots on the front of the car.
2. Using a Phillips screwdriver, secure the front bumper with 16 Screws (18).

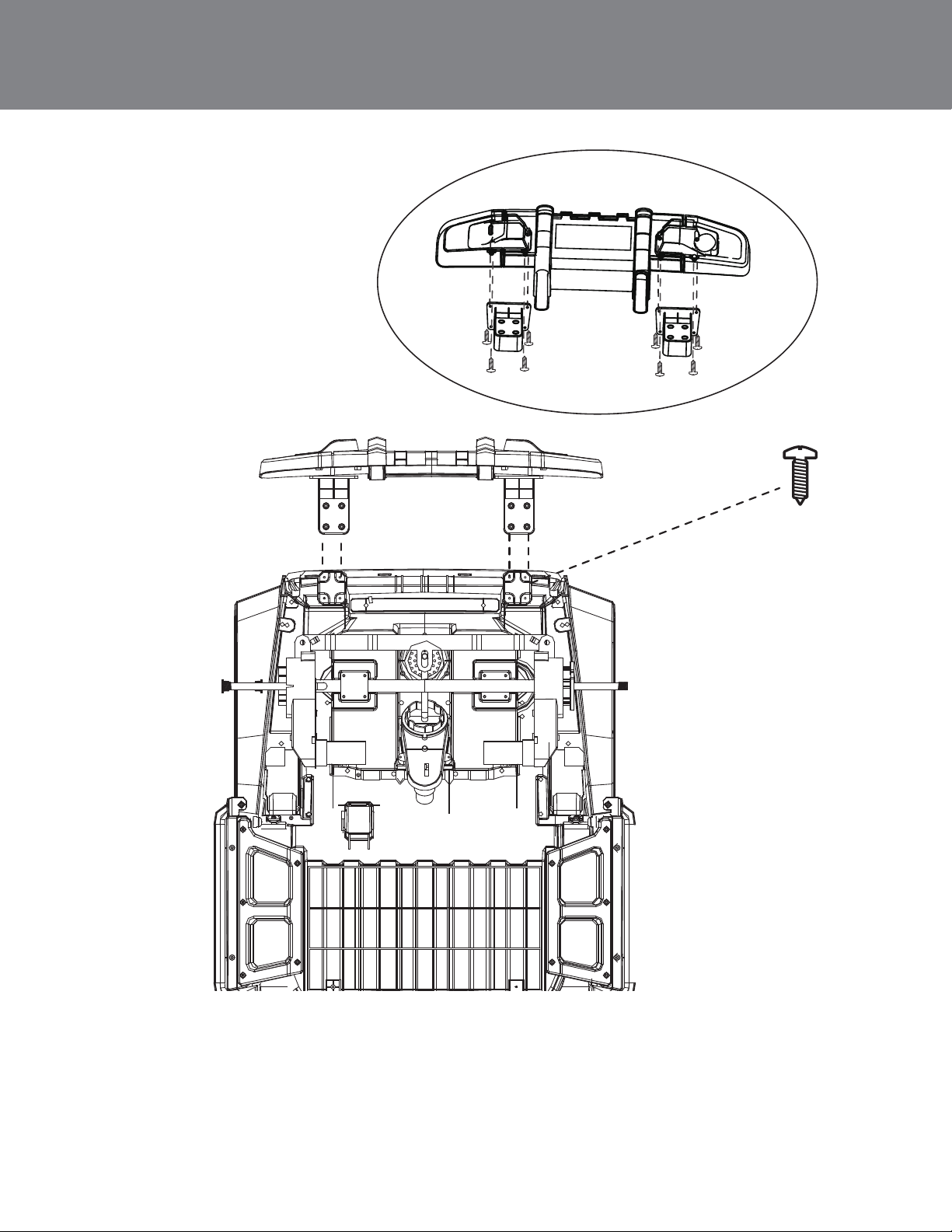

Attach the Front Bumper

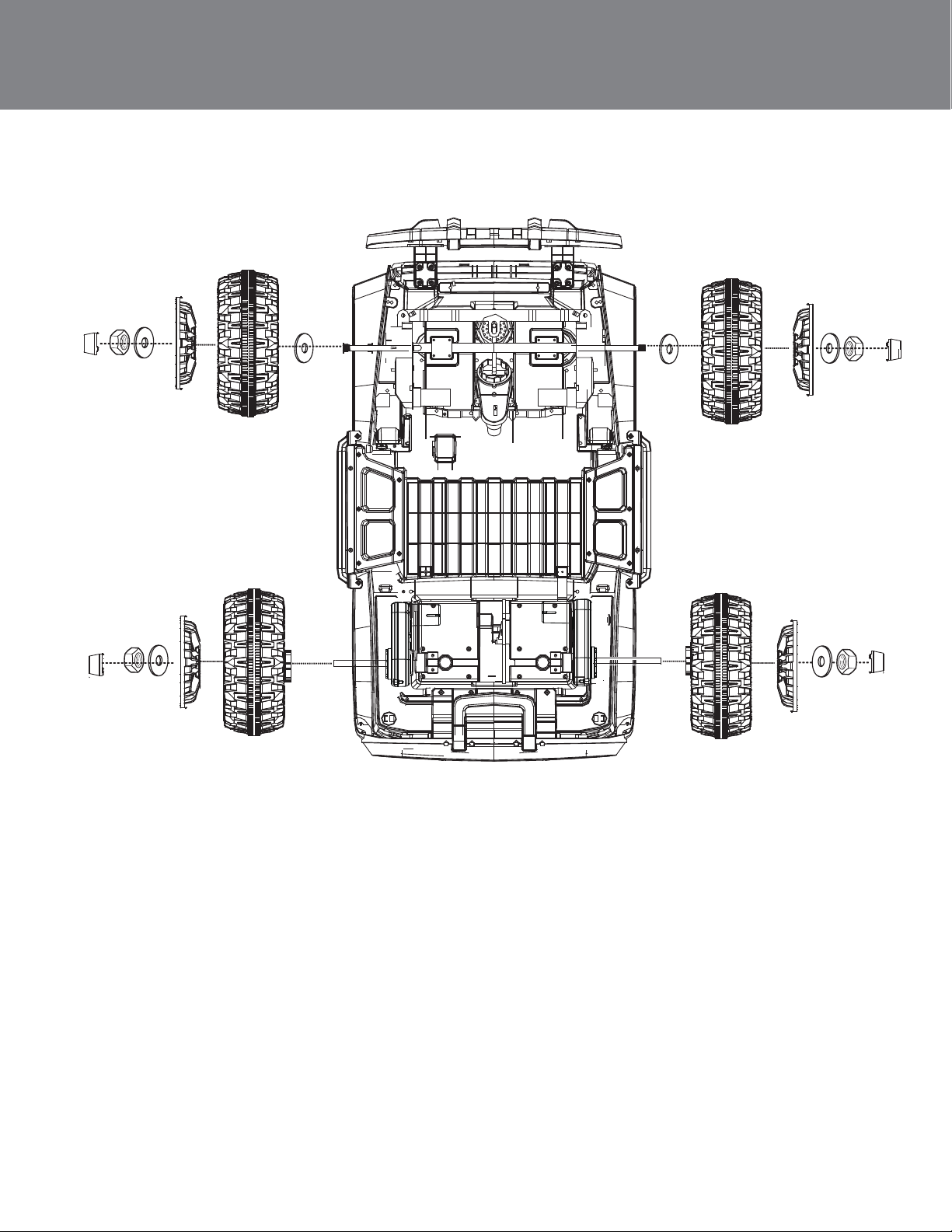

11 Assemble the Wheels
1. Locate the Wheels (3), Washers, Nuts (20), Wheel Covers (4), Wheel Cap (5) and
Hex Wrench (13).
2. Slide a Washer onto one of the Front Axles, then slide on a Front Wheel.
3. Snap a Wheel Cover (4) onto the Wheel, then slide another Washer and a Nut on
the axle.
4. Use the Hex Wrench to tighten the Nut. Then, snap a Wheel Cap (5) onto the
Wheel Cover to complete the wheel assembly.
5. Repeat steps 1-4 for the other Front Wheel.
6. On a rear axle, slide on a Rear Wheel. The gear teeth on the Wheel should engage
with the Gear Box (8).
7. Snap on a Wheel Cover, then slide a Washer, followed by a Nut onto the Axle.
8. Tighten the Nut using the included Hex Wrench. Then, snap a Wheel Cap (5) onto
the Wheel Cover to complete the wheel assembly.
9. Repeat steps 6-8 with the other Rear Wheel.

12 Attach the Steering Wheel
1. Inside the hole for the Steering Rod on the dashboard, locate the
music wire and connect it to the wire on the Steering Wheel (10).
2. Gently tuck the wires into the Vehicle body. Straighten the front
wheels before assembling the steering wheel. From underneath the
vehicle, press the Steering Rod (16) up and attach the Steering Wheel
to the top of the Steering Rod.
3. Insert the Steering Rod Screw (19) through the hole at the base of the
Steering Wheel and secure with a Nut (20).

13
1. Locate the Windshield (11) and slide it into the slots at the top of
the dashboard until it clicks into place.
2. Insert the Side Mirrors (12) into the slots on the sides of the Wind-
shield.
Attach the Windshield

14
1. Insert the Seat (1) by sliding the hooks on the back into the
slots on the vehicle body.
2. Secure with two Screws (18).
Attach the Seat
x2

x1
15 Install the Storage Compartment
1. Align the Storage Compartment (2) with the slots on the back of the
vehicle.
2. Insert a Screw (18) inside the Storage Compartment and into the
hole on the vehicle body to secure.

16
Attach the Light Bar
3. Connect the wires inside the Light Bar to the wires from the back of
the vehicle body.
4. Slide the Light Bar brackets into the slots on the rear of vehicle body
until they click into place.
1. Connect the wiring inside the Light Bar (9) with the wiring
inside the side brackets, then attach the side brackets to the
Light Bar.
2. Fasten the side brackets to the Light Bar with two Screws (18).
x2

17 Remote Operating Instructions
DO NOT mix old and new batteries
DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
AAA 1.5V

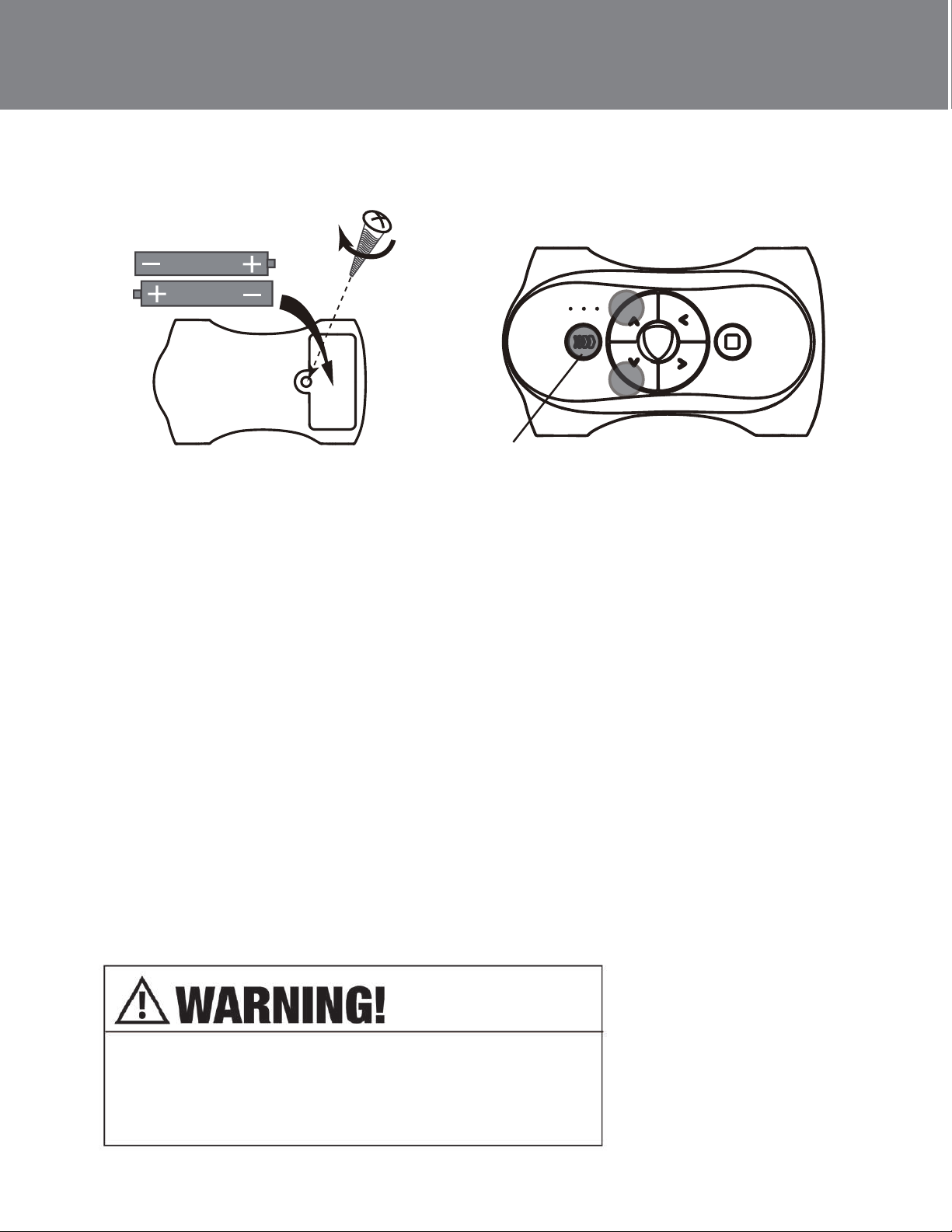

Remote Control Battery Installation:
Open the battery cover with a screwdriver. Place two "AAA"
(AM-4/LR03) batteries into the battery compartment and replace the
battery cover. Secure with the screw. Please note, the use of new
alkaline batteries is recommended for optimal performance. If the red
light does not light up, please replace the batteries.
Pair Remote Control with E-Car:
1. Press and hold the forward, back and speed adjustment buttons at
the same time. The LED lights should ash when it is ready to pair.
2. Once the lights ash, press the vehicle's Power Button within 5
seconds. Then, the vehicle should pair automatically.
3. The lights on the remote will stop ashing, but remain on when the
vehicle is successfully paired. If the vehicle does not connect to the
remote, please repeat the above steps.
Speed adjustment

18
Remote Operating Instructions
Forward/Reverse Buttons: Press the Forward Button,to move
forward. Press the Back Button, to drive in reverse.
Speed Adjustment: The Speed Adjustment Button allows you to
choose between 3 speeds. Press the button to choose the desired
speed. The LED light will display which speed is selected: three lights
indicate the fastest speed option, while one light indicates the slowest
speed option.
Left/Right Buttons: Press the Left and Right Buttons to turn the
vehicle.
Stop Button: Press the Stop Button to stop the car.
Power Saving Mode:
After 5 seconds of inactivity, the remote will go into power saving mode.
After 10 hours of inactivity, the vehicle will shut down automatically.
LED light
Speed adjustment
Back
Forward Left
Right
Stop

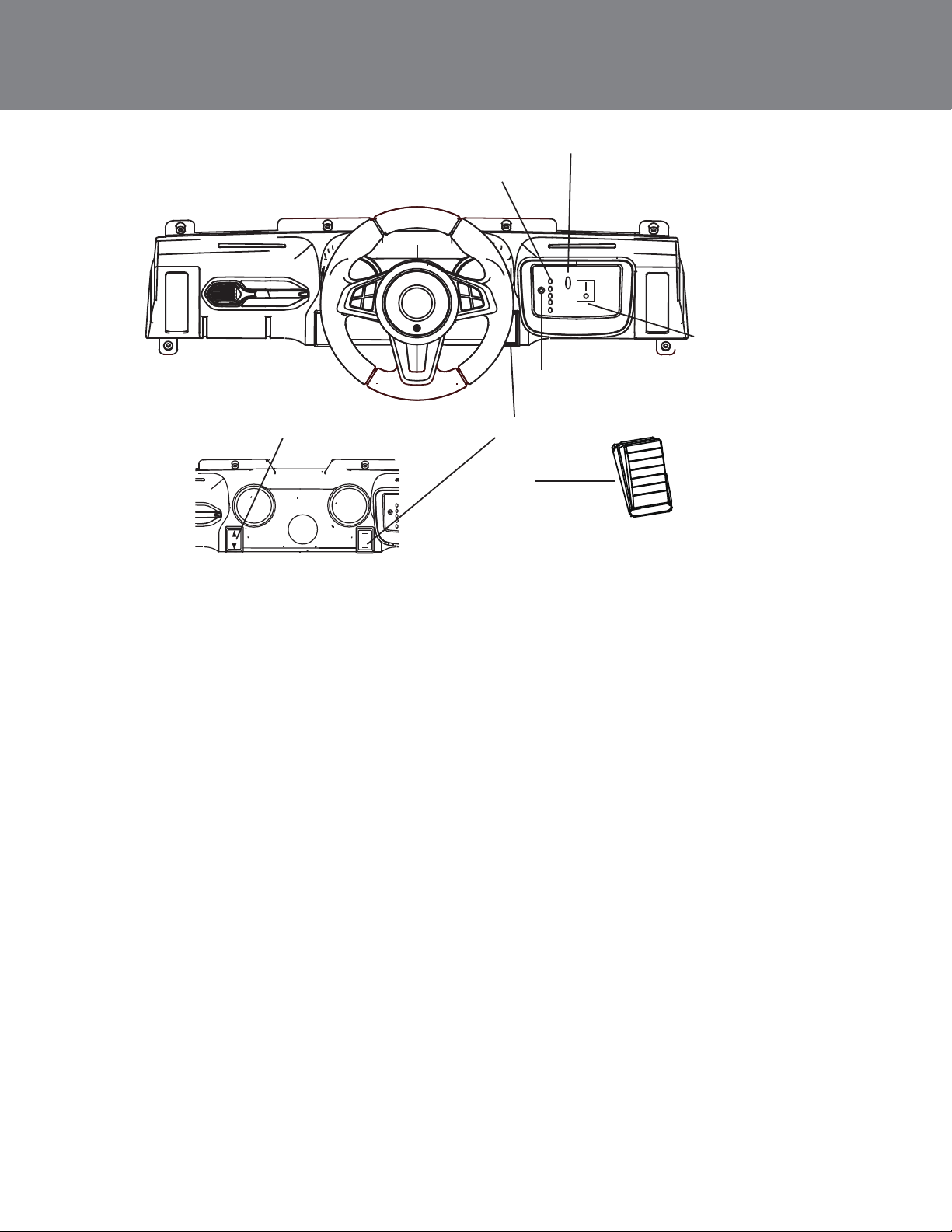

19 Product Features
Power Button
Charging Port
Bluetooth
Battery Life Indicator
Speed Button
Pedal
Forward/Reverse Button
Power Button: Press the Power Button to turn on the car. The Power Button
will light up and a start-up sound will play once the vehicle is on. Press the "O"
on the Power Button to turn off the car.
Bluetooth: Press the Bluetooth Button. You will hear voice prompts to connect
your device. On your device, search and select "YX" in the list of available
Bluetooth devices. You will hear a voice prompt play on the car speakers once
the pairing is complete.
Battery Life Indicator: The number of lights displayed indicates the remaining
battery power:
-When only one red light is displayed, the battery must be charged
-When all lights are illuminated, the vehicle is fully charged.
(Note: When the power is on, but the car is not in use, the Battery Life Indicator
will automatically shut-off after ten minutes of inactivity. Press the two buttons
on the steering wheel to turn the Battery Life Indicator back on).
Charging Port: To charge the vehicle, connect the included charger to the
Charging Port and plug into a 120 V outlet. The vehicle should be turned off
prior to charging. No function is available while charging.
Steering Wheel Buttons: Press the left button on the steering wheel to hear
horn sounds and the right button to hear engine sounds.
Speed Button: Use this button to choose between a fast or slow speed.
Forward/Reverse Button: Switch directions with this button.
Pedal: Press the Foot Pedal down to go. Release the Foot Pedal to stop.
