Rollplay W348AC-P-F Assembly instructions

Owner’s Manual and Assembly Instructions
Model #: W348AC-P-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colours may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V BMW Police Motorcycle
®

Introduction
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it
for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle. Please have your model number
and serial number ready before calling. Please have proof of purchase.
Keep your sales receipt and register your product at
www.rollplay.com.
Please contact Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [email protected]
Web: www.rollplay.com
Specifications:
BATTERY 6V 7AH
MOTOR 6V 20W
AGE 3 Years and Up
MAX WEIGHT 35 kg (77 lb)
PRODUCT SIZE 101.5 × 57.5 × 68.5 cm (39.96 x 22.64 x 26.97 in）
SPEED 4.0 km/h (2.5 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V
For French inquiries only, please send an email to
[email protected] and we will respond within 48 hours.
Visit our website to watch a video on how to assemble this product.
www.Rollplay.com

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
Failure to recharge the battery periodically may result in a battery that will
not accept a charge.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt and register your product
at www.rollplay.com as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

This page has intentionally been left blank.

5
Table of Contents
Safety.................................................................... 6
Parts ................................................................... 8
Charging Instructions ......................................... 9
Assemble the Front Wheel ................................ 10
Assemble the Rear Fork ................................... 11
Assemble the Rear Wheel ................................. 12
Assemble the Support Wheels ......................... 13
Attach the Mud Guard ....................................... 14
Attach the License Plate ................................... 15
Assemble the Handle Bars ............................... 16
Assemble the Windshield ................................. 17
Assemble the Baggage Rack ........................... 18
Attach the Exhaust Pipe ................................... 19
Product Features ................................................ 22
Maintenance ...................................................... 23
20 ...........
........................ 21
General Care ...................................................... 24
Troubleshooting Guide ...................................... 25
FCC Information ................................................ 27
Service and Repairs ......................................... 28
Warranty ............................................................. 29
Product Registration ......................................... 30

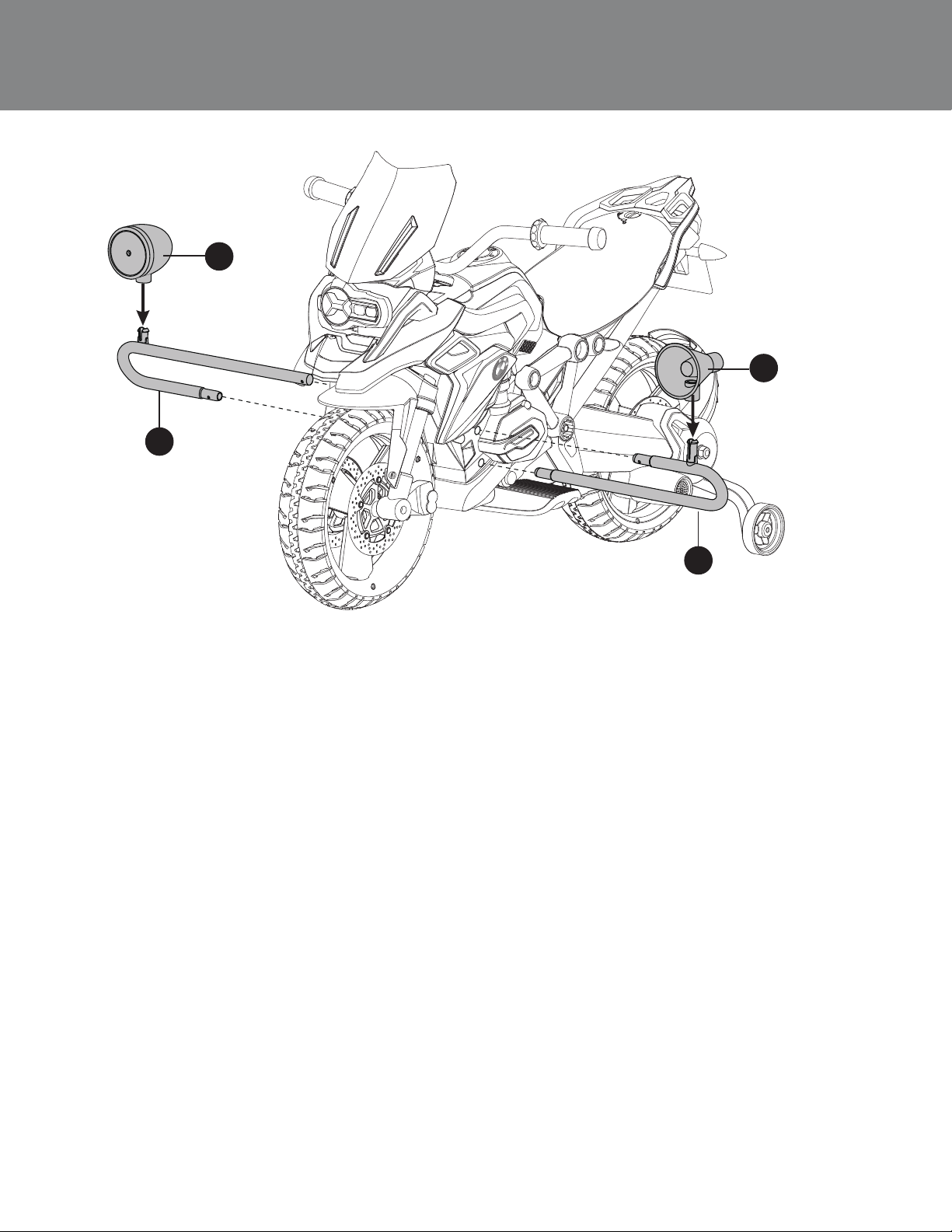

Attach the Megaphone and Searchlight
Attach the Megaphone Speaker

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 35 kg (77 lb).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider at a time.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
• Adult assembly required.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
RISK OF FIRE. Do not bypass.
• Remove batteries if product is to be left unused for a long time; Always replace the
whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of different types.
Do not operate near water, swimming pools or other bodies of water.

7
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(acid) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
instructions.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

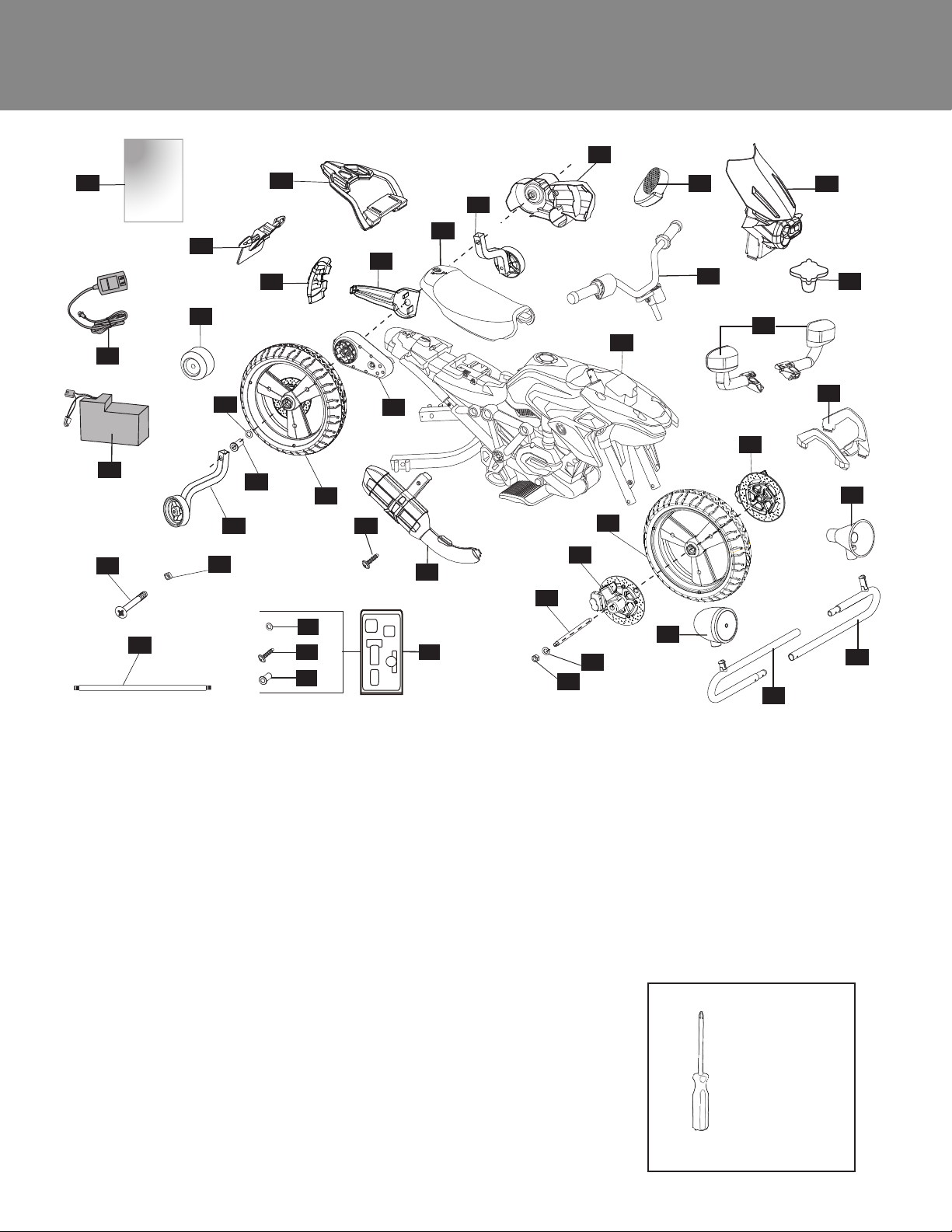

8Parts
1. Manual
2. License Plate
3. Baggage Rack
4. Rear Mud Guard
5. Rear Wing Bracket
6. Seat
7. Left Support Wheel
8. Rear Shield
9. Handlebar
10. Windshield Assembly
11. Front Bracket
12. Motorcycle Body
13. Left Brake
• Phillips screwdriver
Not Included:
14. Front Wheel
15. Right Brake
16. Front Axle
17. Washers (x5)
18. Wrench
19. Hexagon Nut (x4) (on axles)
20. Battery
(located under the seat)
21. Exhaust Pipe
22. Self-Tapping Screw (x6)
23. Rear Wheel
24. Square Nut (on steering rod)
25. Charger
26. Steering Wheel Screw
(on steering rod)
31. Gear Box
32. Microphone
33. Siren Lights
34. Megaphone
27. Right Support Wheel
28. Inner Wheel Spacer
29. Rear Axle Cover
30. Rear Axle
35. Searchlight
36. Left Fixed Round Tube
37. Right Fixed Round Tube
38. Blister Pack
1
2
4
3
5
7
8
24
22
9
6
10
11
12
13
15
14
21
27
23
31
29
26
25
18
33
20
16
17
19
28
30
17
38
17
22
28
32
34
36
37
35

9

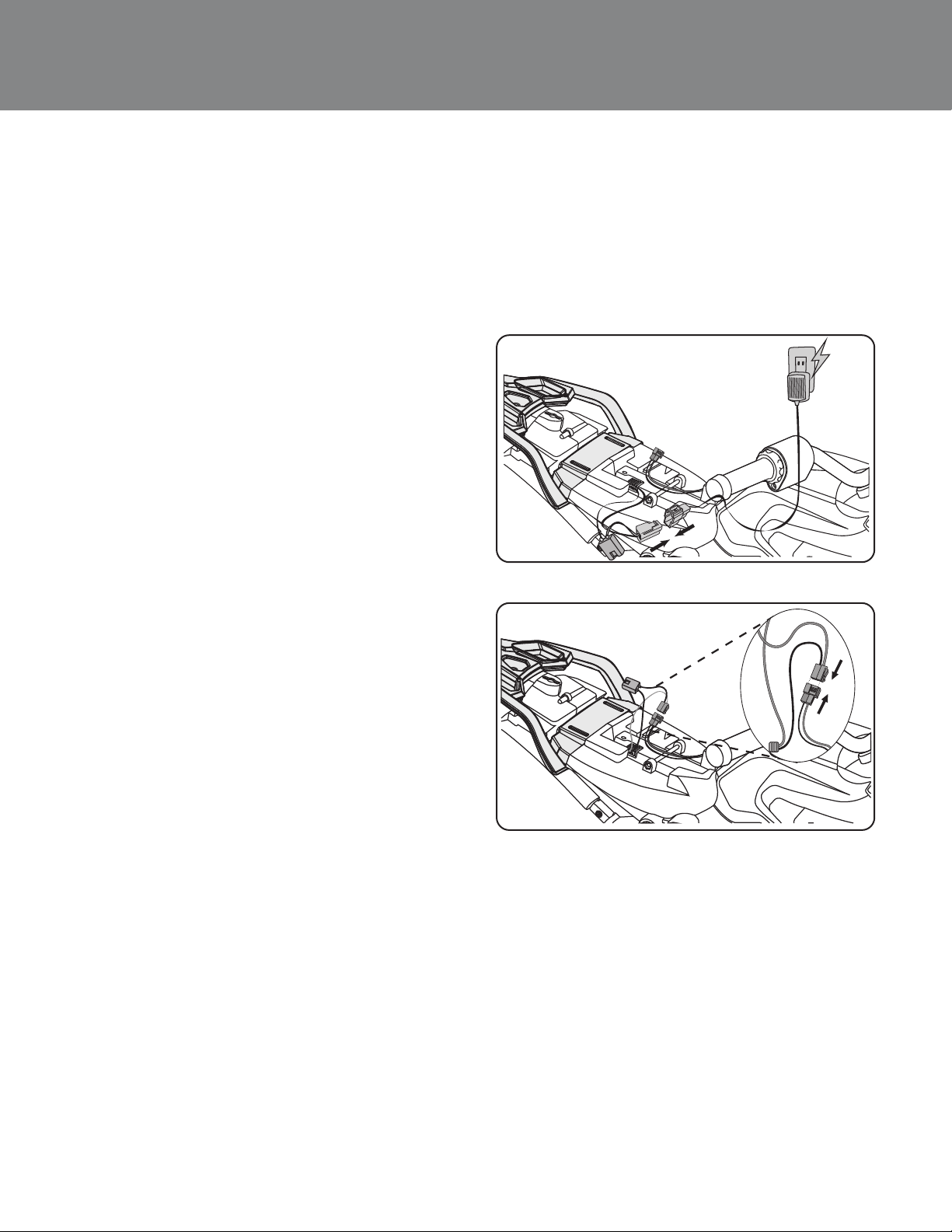

Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the vehicle is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
from the red engine connector.
4. Connect the red battery connector
to the red battery charger
connector.
5. Plug into a 120 V outlet.
To Unplug the Battery:
6. Unplug the battery charger from
the outlet.
7. Unplug the red battery connector.
8. Reconnect the red battery
connector to the red engine
connector.
9. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However,
if the battery does not reach the
outlet, it can be removed for charging
by disconnecting the red engine
connector from the red battery
connector, loosening the screw on the
left side of the battery bar, removing
the battery bar, and then removing the
battery.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE! CHARGE THE BATTERY ONCE
A MONTH, EVEN WHEN NOT IN USE!

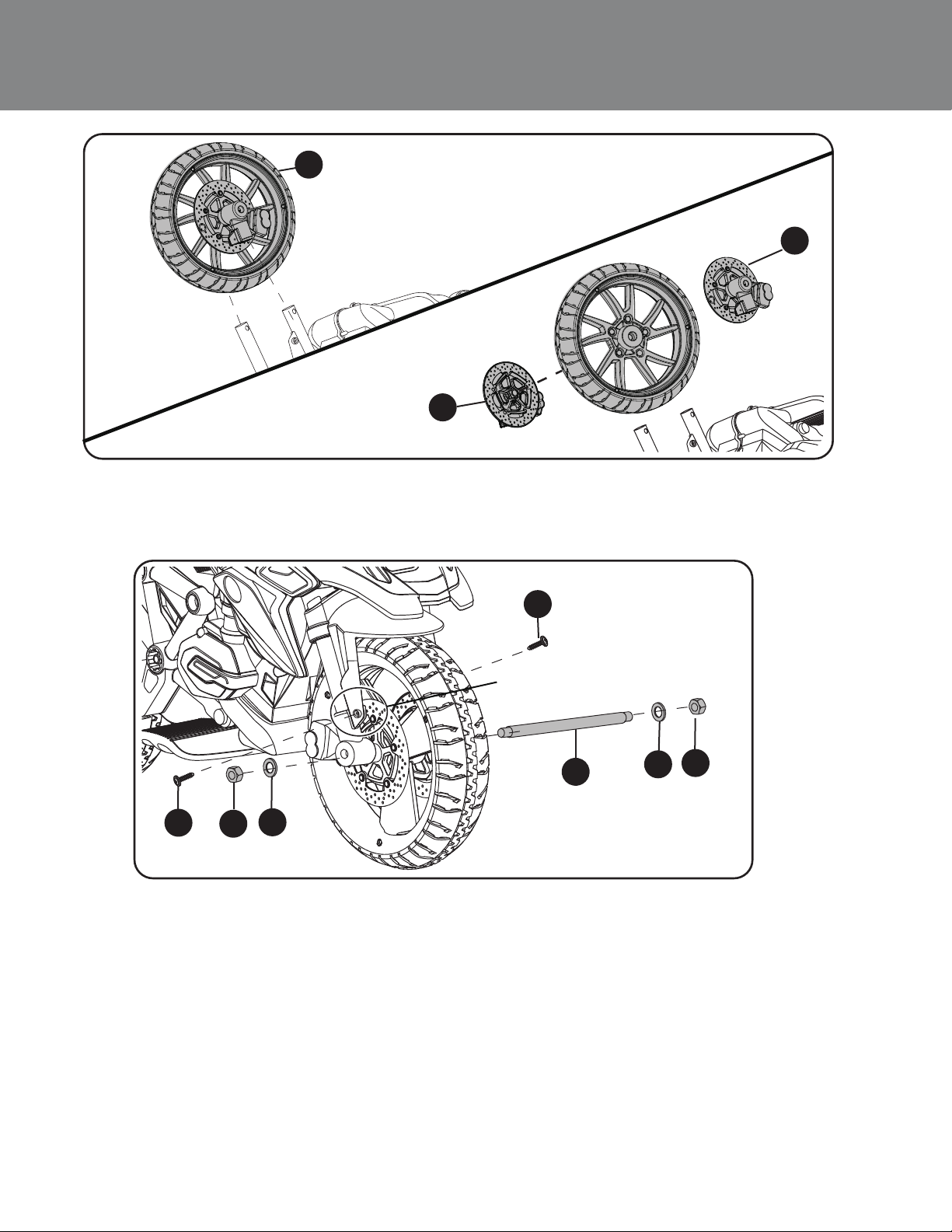

10 Assemble the Front Wheel
15
13
14
16 17
17
19
19
22
22
1. Gently ip the motorcycle over.
2. Slide a brake (13) onto a front fork.
3. Place front tire (14) in between the two front forks and the brake.
4. Insert the front axle (16) through the front fork, front brake and halfway through
the tire.
5. Slide the other brake (15) onto the other front fork on the opposite side of tire.
Continue to push the axle through the tire, brake and front axle.
6. Align the holes on the brakes with the holes on the plastic piece of the front fork.
Insert a self-tapping screw (22) into the holes on both sides of the front fork to
secure the brakes to the front fork.
7. Slide one washer (17) on each side of the front axle.
8. Secure the washers with a hexagon nut (19) on both sides of the axle. Use the
included wrench (18) to tighten.
hole on front fork

11
Assemble the Rear Fork
1. Align the slot on the rear wing bracket (5) with the inner side of the rear, left
fork.
2. Insert a self-tapping screw (22) through the wing bracket (5) and into the rear
fork to secure.
5
22
Left
Right

12 Assemble the Rear Wheel
1. Insert the rear axle (30) into the left hole of the rear fork. Do not slide all the way
through.
2. Slide the gear box (31) onto the rear axle. Connect the white connector on the
gear box with the white engine connector.
Note: The protruding piece of the gear box will stick out underneath the rear fork,
but will be placed in the rear shield (8) on the next step.
3. Slide the rear wheel (23) onto the axle (30), the side of the wheel with the silver
piece should connect with gear box (31) . Ensure the wheel is fully engaged with
gear teeth on gear box (31).
4. Slide the washer (17) and inner wheel spacer (28) onto the axle, and then slide the
axle through the other rear fork.
30
31
23
17
28
Left Right
View is from back of
the motorcycle

13

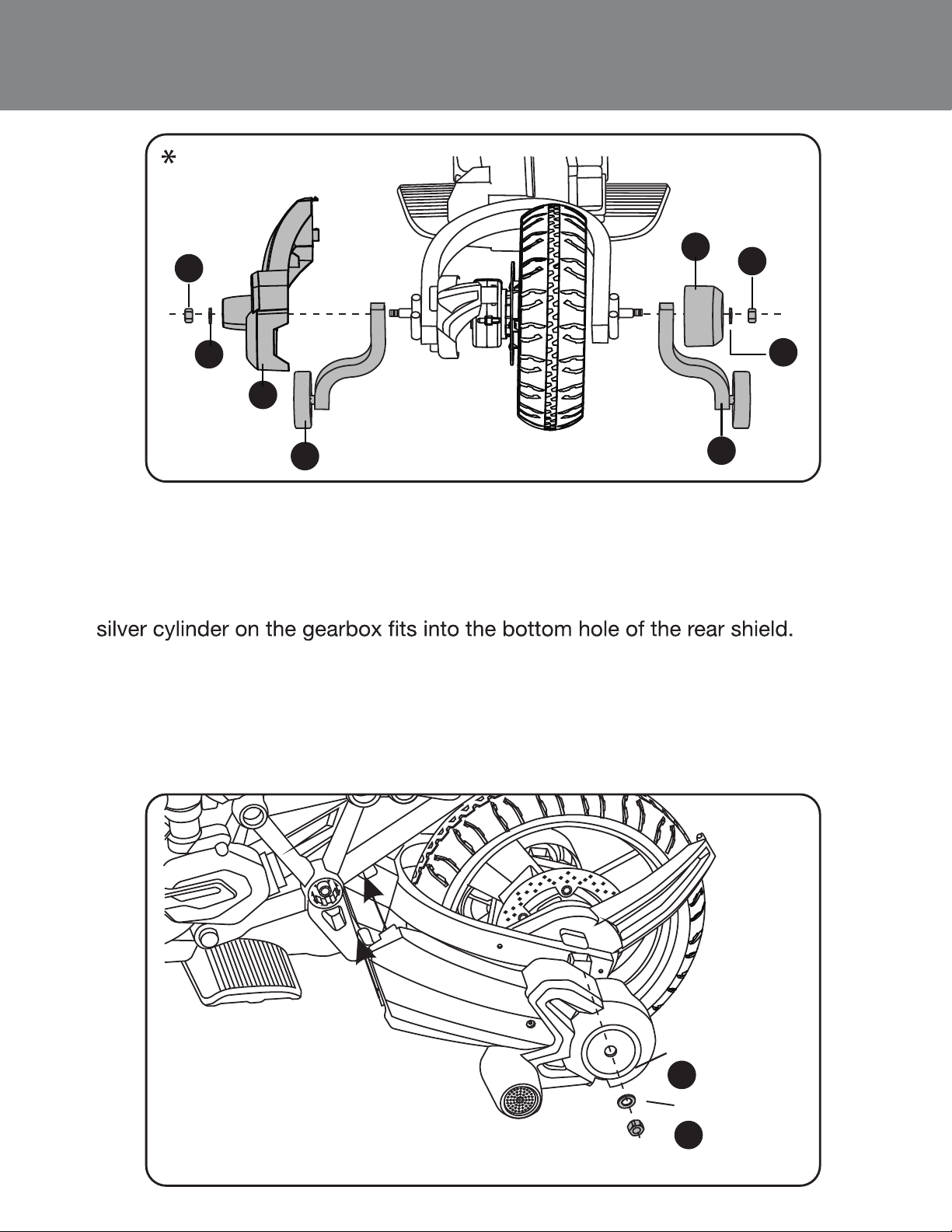

Assemble the Support Wheels
1. Slide the left support wheel (7) onto the left side of the rear axle.
2. Slide the right support wheel (27) onto the right side of the rear axle.
3. Slide the rear shield (8) onto the left side of the rear axle. Align the slots on the
rear shield with the protrusions on the left fork and snap into place. Ensure the
4.
5.
Add a washer (17) and hexagon nut (19) to the axle, then tighten with the
included wrench (18).
On the right side, slide the right support wheel (27) onto the axle, then attach the
silver rear axle cover (29), followed by the washer (17) and hexagon nut (19).
Tighten with the included wrench (18).
L R
8
19
17
727
17
19
29 19
17
View is from back of
the motorcycle

14 Attach the Mud Guard
1. Align the slot on the back of the mud guard (4) with the back of the rear
wing bracket (5).
2. Snap the mud guard onto the rear wing bracket.
5
4

15
Attach the License Plate
1. Align the top of the license plate (2) with the slot on the bottom of the
back of the motorcycle body.
2. Slide the license plate onto the slot until it snaps into place.
2

16 Assemble the Handle Bars
1. Remove the screw (26) and nut (24) from the steering rod.
2. Slide the handle bars (9) onto the steering rod. Ensure the holes on the
handle bars align with the holes on the steering rod.
Note: The Power Button should be on the front of the handlebar.
You may need to thread the wires partially through the wire
compartment to reach.
3. Insert the screw (26) and nut (24) into the handle bar, through the
steering axle and tighten with a screwdriver.
4. Carefully slide the handle bar wire connector into the wire compartment
where the motorcycle wire connector is located.
26
24

17
Assemble the Windshield
1. Connect the corresponding windshield wire to the handlebar wire, then
connect the other windshield wire to the motorcycle wire.
2. Align the windshield (10) with the slots on the wire
compartment and snap into place, taking care not to damage the wires
in the process.
1. Align the front bracket (11) with the four slots on the sides of the
windshield (10).
2. Snap the bottom half of bracket into place, then snap the top half of
the bracket into place.
1110
10

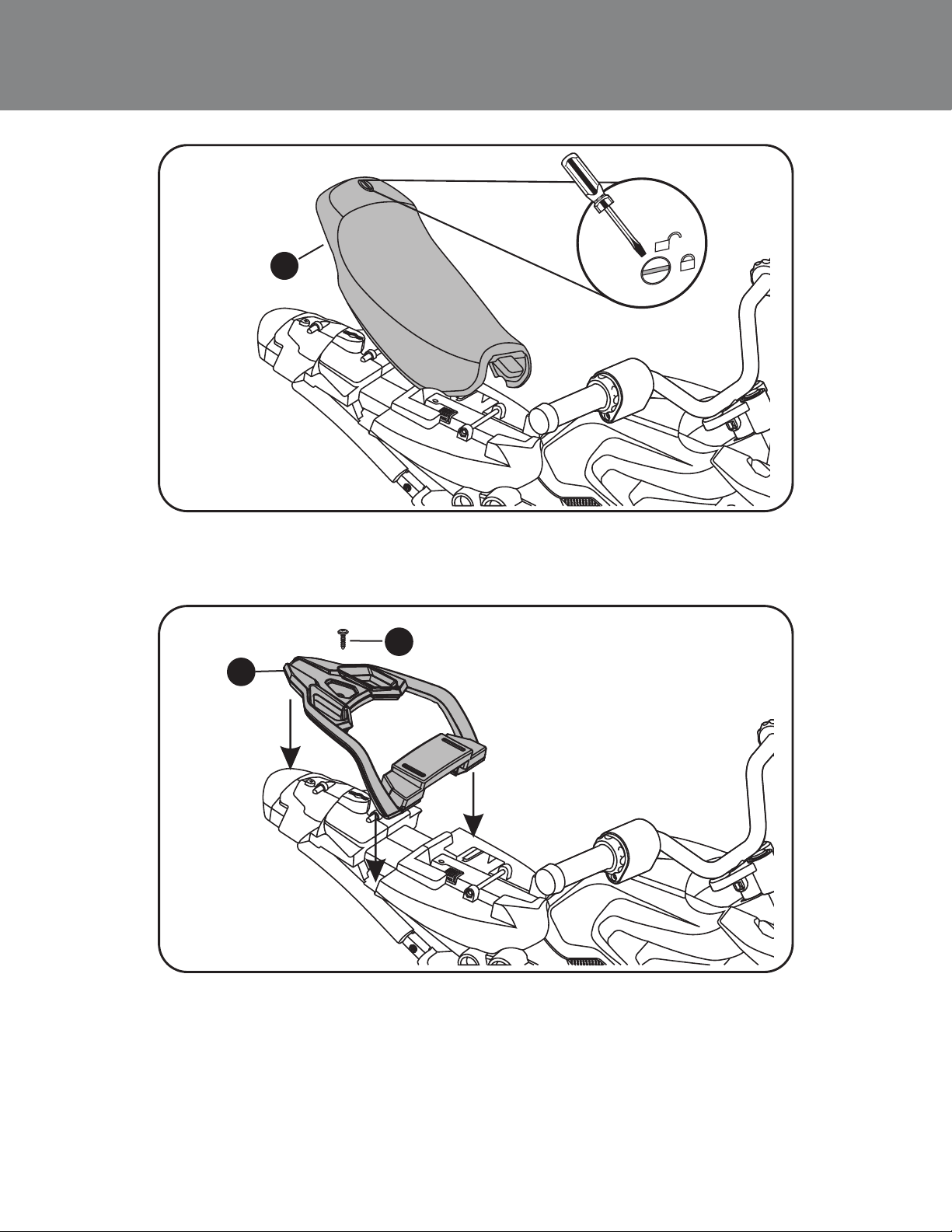

18 Assemble the Baggage Rack
1.
2. Remove the seat (6) by lifting on the back of the seat.
Using a athead screw driver, turn the seat lock to the unlocked position.
1. Align the front bar of the baggage rack (3) with the gap on the rear of
the battery compartment and snap into place.
2. Insert a self-tapping screw (22) into the hole on the back of the baggage
rack to secure.
3. Ensure the red connector on the battery is connected to the red engine
connector before replacing and locking the seat.
6
22
3

19

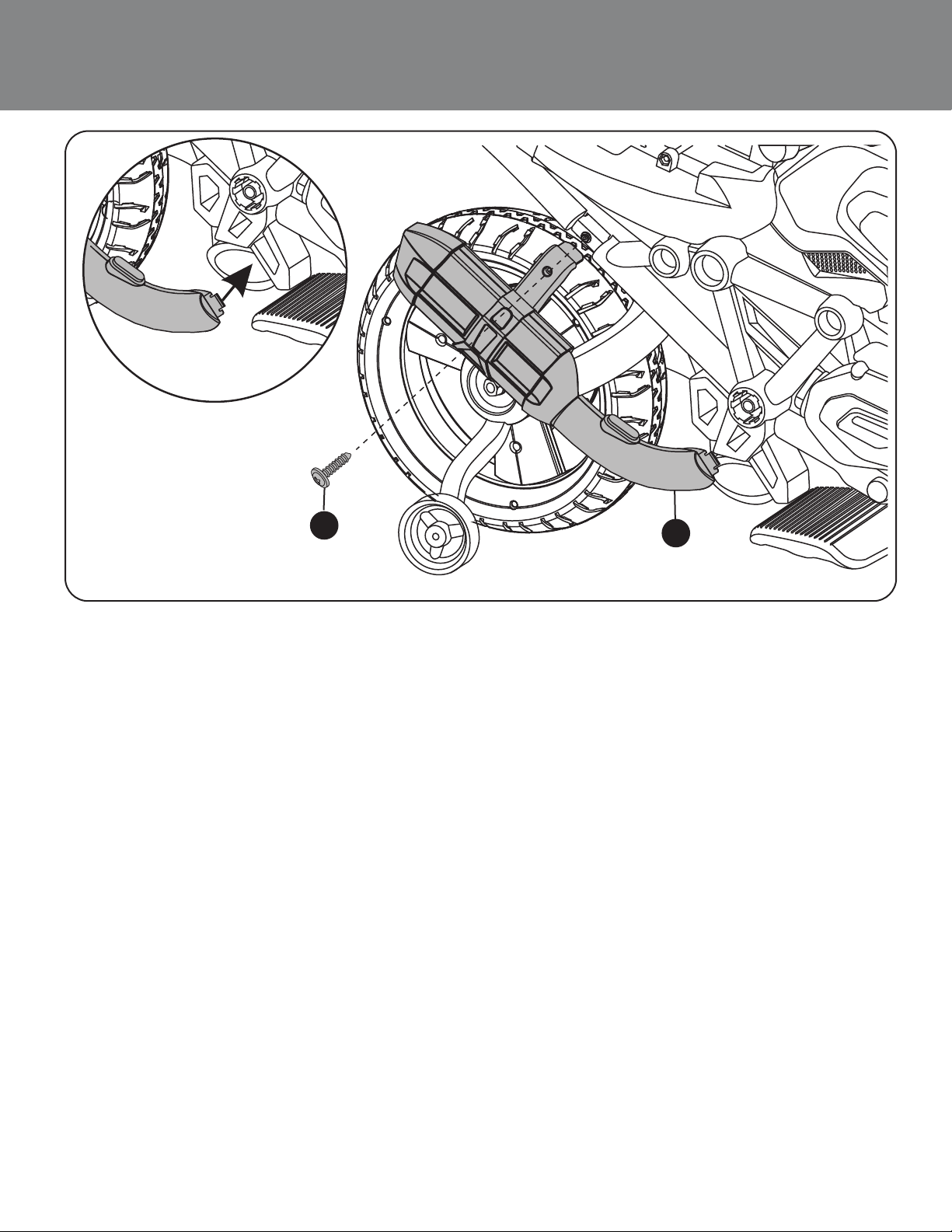

Attach the Exhaust Pipe
1. Align the top and front of the exhaust pipe (21) with the slots on the
right side of the motorcycle body and snap into place.
2. Use a self-tapping screw (22) to secure.
22 21

20
Attach the Megaphone and Searchlight
1. Align the left round tube (36) with the holes on the motorcycle body.
The short side should be on top. Slide the tubes in and repeat on the
other side, with the right round tube (37), but with the long side on the
top. Press the tubes in until you hear a click.
2. Slide the megaphone (34) onto the left xed round tube and the
searchlight (35) onto the right xed round tube. Make sure both
accessory pieces are securely attached before rst use.
34
36
35
37
