Rollplay Beach Cruiser Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: LW839AC-F
Beach Cruiser

Introduction
Thank you for purchasing this vehicle from Aria Child. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.ariachild.com.
Please contact Aria Child Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [email protected]
Web: www.ariachild.com
Specifications:
BATTERY 6V 7AH
MOTOR 6V 15W
AGE 37 month - 96 month
MAX WEIGHT 77 lbs (35 kg)
PRODUCT SIZE 36.61” x 31.10” x 19.68” (93 x 79 x 50 cm)
SPEED 1.25 MPH - 2.5 MPH
RECHARGE TIME 8 - 12 Hours
TYPICAL RUN TIME 1 - 2 Hours
CHARGER OUTPUT DC 7.0V 0.7A

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Contact Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Please have proof of purchase. Keep your sales receipt or register your
product at www.ariachild.com as we may require proof of purchase.
[email protected]
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

4Table of Contents
Safety..........................................................5
Parts ..........................................................7
Charging Instructions ...............................8
Assemble the Front Wheels......................9
Assemble the Steering Wheel ................10
Attach the Front Grill...............................11
Install the Battery ....................................12
Install the Engine.....................................13
Attach the Seat .......................................14
Assemble the Vehicle Frame ............ 15-16
Operating Instructions............................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20
Service and Repairs ...............................22
Warranty ...................................................23
Product Registration...............................25

5
Safety
WARNING: SAFETY RIDING RULES
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use on roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
NEVER allow more than (1) rider on the vehicle.
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle.
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
plastic bags before assembly.
• Riders must always wear a tted helmet that complies with U.S. Consumer Product
Safety Commission (CPSC) Standard CFR 1203.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
• Do not operate near water, swimming pools or other uids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or ne gravel.
• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

7

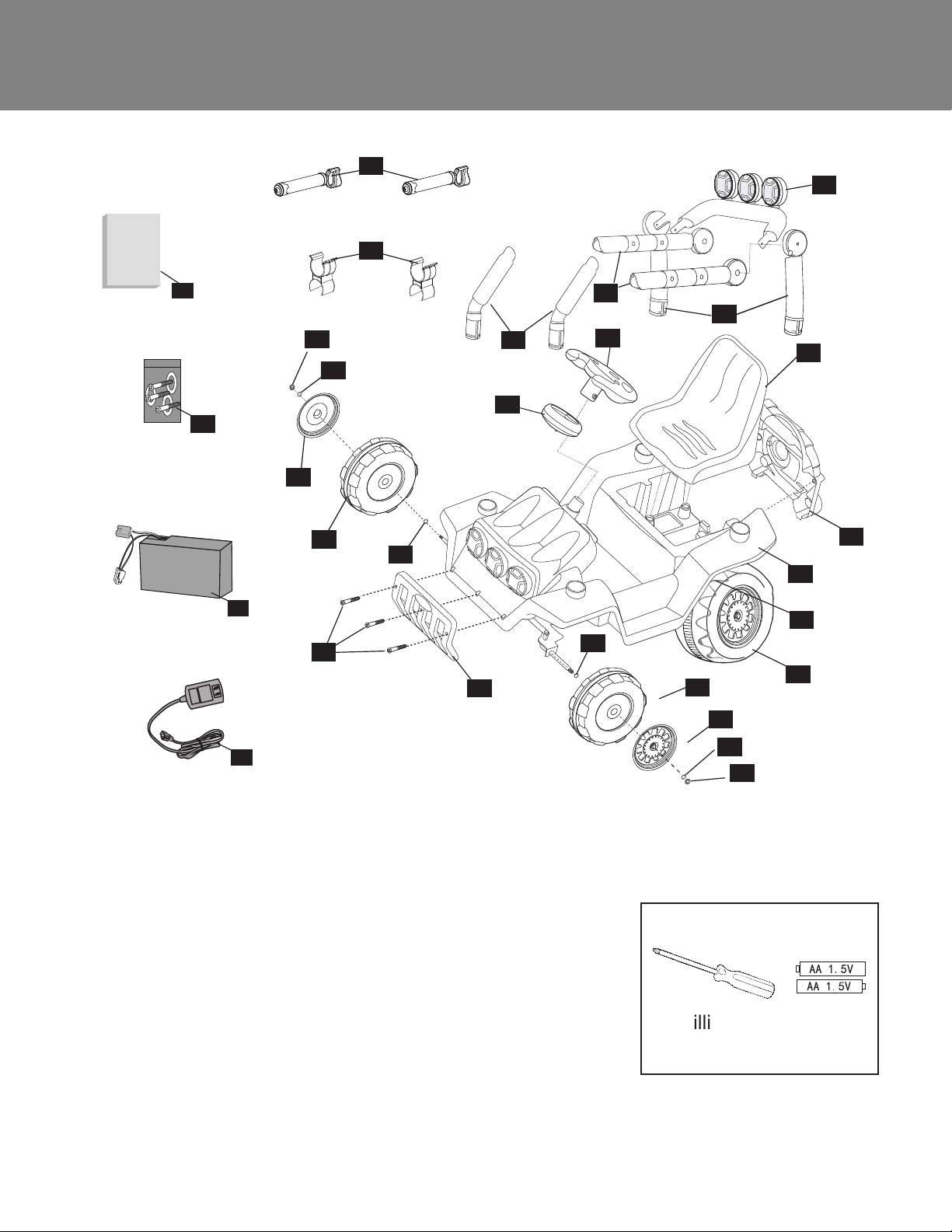

Parts
1. Vehicle Body
2. Front Wheels (2)
3. Wheel Caps (2)
4. Washers (4)
5. Nuts (2)
6. Front Grill
7. Engine
8. Seat
9. Steering Wheel Assembly
10. Dashboard
11. Front Frame Supports (2)
12. Top Frame Supports (2)
13. Rear Frame Supports (2)
14. Light Supports
15. Water Cannons (2)
16. Cannon Brackets (2)
17. Screws (3)
18. Rear Wheels (Pre-
Assembled)
19. Gearbox (Pre-Assembled)
20. Hardware Bag
21. 6V Battery
22. Charger
23. Manual
Phillips Screwdriver,
2 AA Batteries
Not Included:
3
2
4
5
1
1
2
3
4
5
4
10
9
7
8
17
23
6
4
15
16
14
11
13
12
21
22
19
18
20

8Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

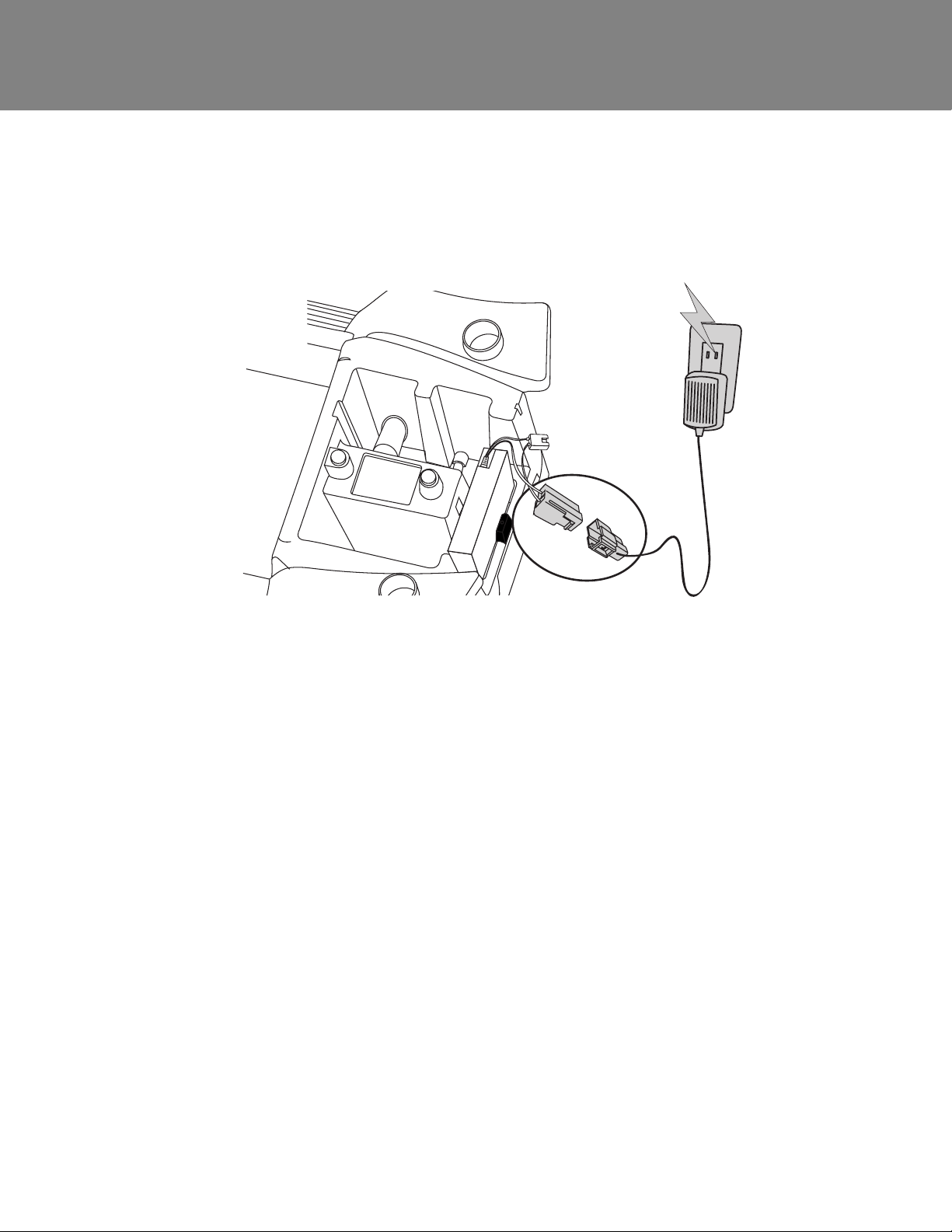

Charge the Battery:
1. Ensure the vehicle is stopped and turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector from the red engine connector.
4. Connect the red battery connector to the red battery charger connector.
5. Plug the charger into a 120 V outlet.
Unplug the Battery:
1. Unplug the battery charger from the outlet.
2. Unplug the red battery connector.
3. Reconnect the red battery connector to the red engine connector.
4. Replace the seat and tighten lock.
Note: It is not necessary to remove the battery for charging. However, if the
battery does not reach the outlet, it can be removed for charging. See Page
16 for Battery Removal instructions.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!

9
Assemble the Front Wheels
1. Slide the thick washer onto the front axle.
2. Slide the wheel on the front axle.
3. Snap the wheel cap onto the wheel.
4. Slide the thin washer on the axle and tighten with the nut.
5. Repeat steps 1 - 3 for the second front wheel.

10 Assemble the Steering Wheel

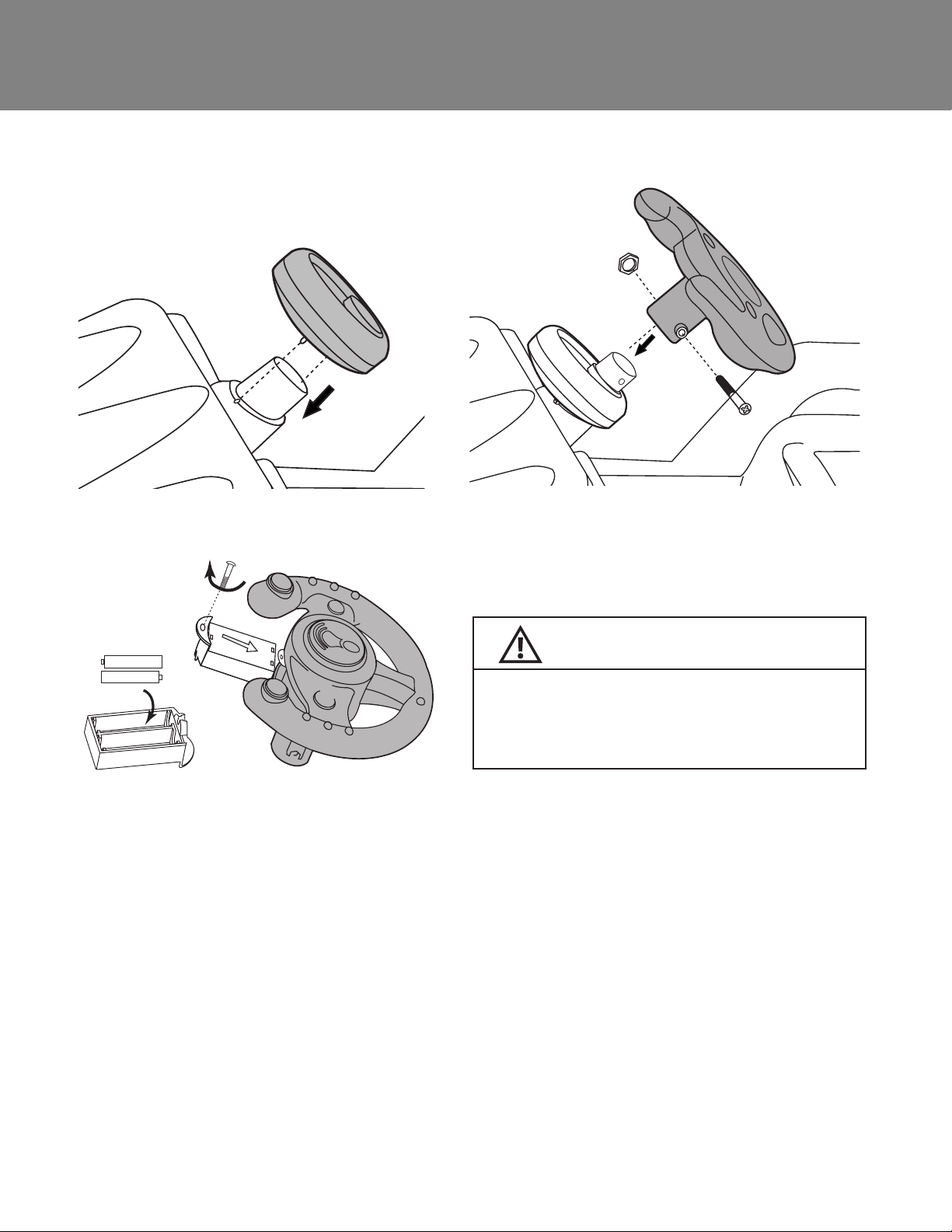

1. Place the dashboard cover onto the steering wheel rod. Ensure the
pegs on the dashboard cover are lined up with the holes on the steering
wheel rod and attach securely.
2. Remove the screw and bolt from the steering wheel assembly before
attaching.
3. Place the steering wheel onto the steering wheel rod and line up the
hole on the steering wheel to the hole on the post.
4. Insert the screw into the hole and fasten the nut to secure.
5. Insert 2 AA batteries into the battery compartment of the steering wheel.
6. Attach the battery compartment to the steering wheel with the screw.
WARNING!
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickle-cadmium) batteries.
ＡＡ １．５V
ＡＡ １．５V
+
+
-
-

11
Attach the Front Grill
1. Slide the grill onto the front of the vehicle body, as shown above.
2. Line up the holes on the grill with the holes on the vehicle body.
3. Secure the grill to the vehicle with 3 screws. Tighten with a screwdriver.

12 Attach the Engine
1. Place the engine on the back of the car body, lining up the holes on the
engine with the holes on the body.
2. Insert the lock knobs into the holes.
3. Using a screwdriver, turn the lock knobs into the locked position.

13

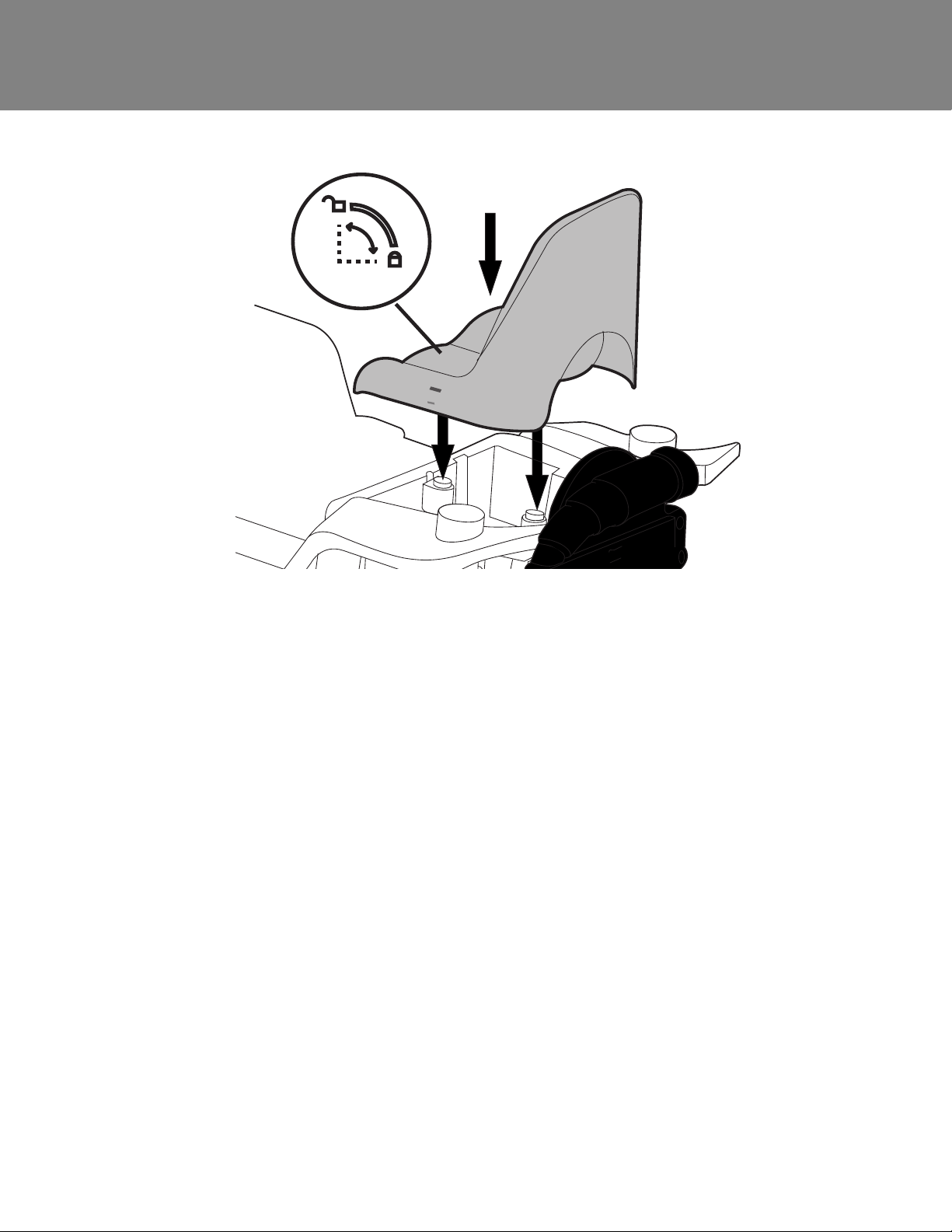

Attach the Seat
1. Align the seat posts with the holes on the seat, then press down to lock.
2. Turn the thumb screw clockwise on the seat to lock it properly in
position.

14
1. To attach the left side of the vehicle frame, insert the screw through
the left rear frame support (A), the light support (B), and the top frame
support (C).
2. Fasten the screw with the nut.
3. Repeat steps 1 - 2 for the right side of the vehicle frame.
Assemble the Vehicle Frame
AA
B
B
C
C

15
Assemble the Vehicle Frame
1. Line up the front frame supports with the post holes on the vehicle
body. Press down to securely attach.
2. Line up the rear frame supports with the post holes on the vehicle body.
Press down to securely attach.
3. Attach the water cannons to the brackets, and connect the brackets to
the top frame supports.
4. Connect the top frame to the front frame. Lift the top frame when the
rider enters and exits the vehicle.

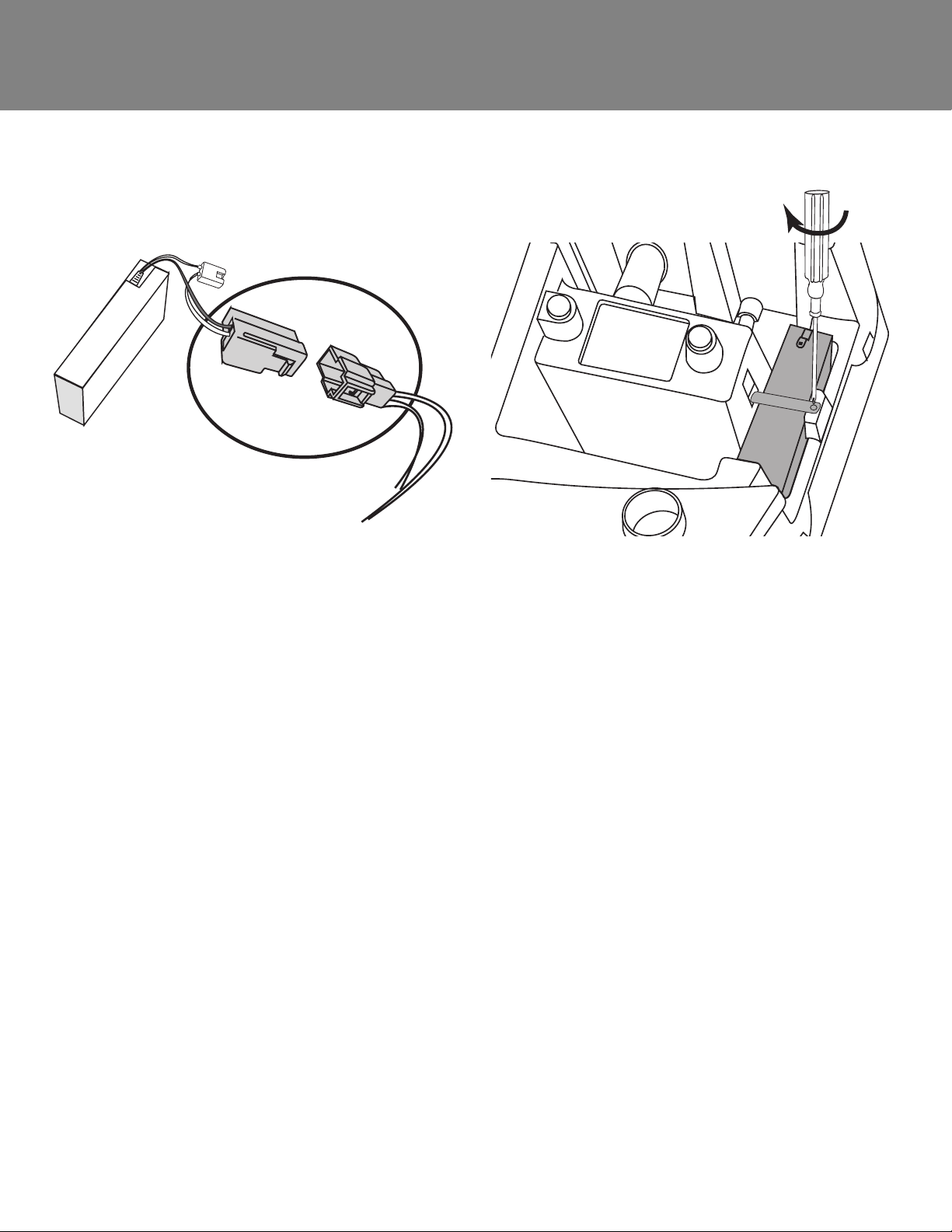

16 Battery Removal
1. Disconnect the red battery connector from the red engine connector.
2. Loosen and remove the screw.
3. Unfasten the battery from the clamp.
4. Remove the battery.
Note: It is not necessary to remove the battery for charging. However, if the
battery does not reach the outlet, it can be removed for charging.

17
Operating Instructions
• To turn on the vehicle, turn the power switch from “OFF” to “ON”.
• Push the shifter forward to move forward. Pull the shifter back to go in
reverse.
• Press the foot pedal down to go. Release the foot pedal to stop.
• Press the top left and right buttons to use the turn signals
• Press the center left and right buttons to play sounds.
• Press the center button to play horn sound.
ON
OFF

18 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
• Charge the battery for 24 hours before using the vehicle for the rst
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Only use the charger specied with the original item. Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 19 for
replacement information.
• Remove damaged batteries from the vehicle immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

19
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 19 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

20 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped This product uses a
recoverable fuse which will
automatically cut power to
the vehicle if the current is
overowed. The vehicle will
recover and properly function
again in 5 to 10 seconds
Wheel snap pins are
loose
Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle 35
kg (77 lb)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
