ROOES SMARTE-SCOOTER User manual

SMART E-SCOOTER

Fashionable/Portable/Smart

MANUAL

Version No.20151030

Product Manual

This manual contains important instruction for safety usage,

please be patient to read it completely before using the product.

In the package, there are: one E-scooter, recharger, tool kit,

operate manual, warranty card, certificate of quality

Catalogue

Part One

1.1 Product Features

1.2 Product Specifications

Part Two

2.1 Intelligent digital display

2.2 Product function

2.3 How to use

2.4 How to fold

2.5 Intelligent alarm

2.6 Charge your e-scooter

2.7 Charge your phone, ipad

2.8 Bluetooth speaker

2.9 Cruise mileage display

2.10 Cruise control setting

Part Three

Part Four

Part Five

E-scooter Introduction

Product Operation

Safety usage

Maintenance

After-sales service

.....................................................................P01

...........................................................P02

........................................................P03

. ..........................................................P04..........

..........................................................................P05-06

........................................................................P07-08

. .....................................................P09-10...........

.... .................................................P11.......

...........................................................P11

..... ...................................................P12...........

...........................................................P12

Fashionable/Portable/Smart

Part One

≤18kg

≤120kg

35-45km

3-5h

30±1V

01

1200mmX615mm 985mmX

1235mm 536mm 270mmX X

1.1 Product Introduction

We are dedicating to producing the most fashionable and portable intelligent scooter for

short trip. With tridimensional K shape design, fashionable and unrestrained color

theme, top level technology and unique craftsmanship make it perfect in

quality. With foldable and portable innovative design , our scooters become the

prior choice for office staffs, students, white-collar workers' short trip. Insisting on

"Detail Matters", we equip the E-scooter with considerate devices in every

detail which makes your trip joyful.

Product features:

1.USB charging interface:

2.Water-proof stereo bluetooth speaker

3.Super endurance ability, high performance battery imported from

SAMSUNG, LG company.

4.Speed control system

5.LED headlight

6.Front & rear brand disc brake

7.Brake to power-off protector

1.2 Product Specifications

Unfold size

Fold size

Weight

Loading weight

Max speed

Endurance mileage

Charging time

Battery capacity

Battery type

Nominal voltage

Rated power

Motor type

Motor rated torque

Electricity consumption for

one charging round

Overcurrent protection

Controller under-voltage protection

Controller power tube number 6tubes

lithium

Brushless gear motor

0.3 degree

ITEM SPECIFICATION

8.8AH

36V

240w

6.6N.M

13A±1A

02

25km/h

10.4AH

45-55km

03

2.1 Intelligent digital display

Part Two Product Operation

Cellphone charging display

Headlight

Single trip mileage

Total trip mileage

Speed control

Grip malfunction

Battery display

Undervoltage reminder

Controller malfunction

Motor malfunction

Brake display

Temperature display

2.2 Product function

1. Foldable handle bar: innovative foldable design clip to decrease room capacity.

2. Big LED headlight: effectively increase brightness to realize visibility.

3. Brake to power-off: power-off when brake to ensure safety.

4. LCD display: speed, mileage, and temperature etc. can be showed.

5. Grip: eco-friendly, comfortable to hold.

6. Genuine leather saddle: more comfortable and healthy.

7. Rear reflector: guarantee safe during night driving.

8. Imported SAMSUNG, LG battery: fast recharging, environment friendly, long life-span

9. Foldable clip: strictly and appropriately control, solid and durable

10. Power switch

11.Taiwan Cheng shin/Kenda tyre: automobile standard tyre, top-level anti-friction material,

safety and anti-explosion.

12. Guard: protect both front and rear , avoid mud to splash on scooter or user.

13. Foldable pedal: compliance with ergonomics, comfortable and convenient.

14. Front & rear disc brake: the safest disc brake system

15. Kickstand: same material as the body part, strong support.

16. German brushless gear motor: strong power, environment friendly,

low-consumption.

17. Remote key: mini and easy to carry

Part Two

04

Fashionable/Portable/Smart

1 2 3 4

Assistant shift

5. Switch on the battery as shown

2.3 How to use

06

05

6. Press remote key to unlock and start the power

7. Slowly rotate the right grip(as shown ),then start the scooter.

4. Unfold the pedal and kickstand as shown

1. Open the package,fix the front tyre with equipped tool (as shown )

8. Press the left button(as shown ), the night light will turns on.

12

+ +

Steps:

Press the "unlock"

button once, then press "power" button twice

2. Open the handle bar as shown steps

3. Stretch the handle bar and unfold the scooter (as shown)

Part Two

Fashionable/Portable/Smart

2

13

4 5 6

1 2 3 4

12 3 4

Pull open as the arrow direction shows Lift the saddle bar ,

the front part will fold naturally Press downward the saddle Push close as the arrow

direction shows

08

07

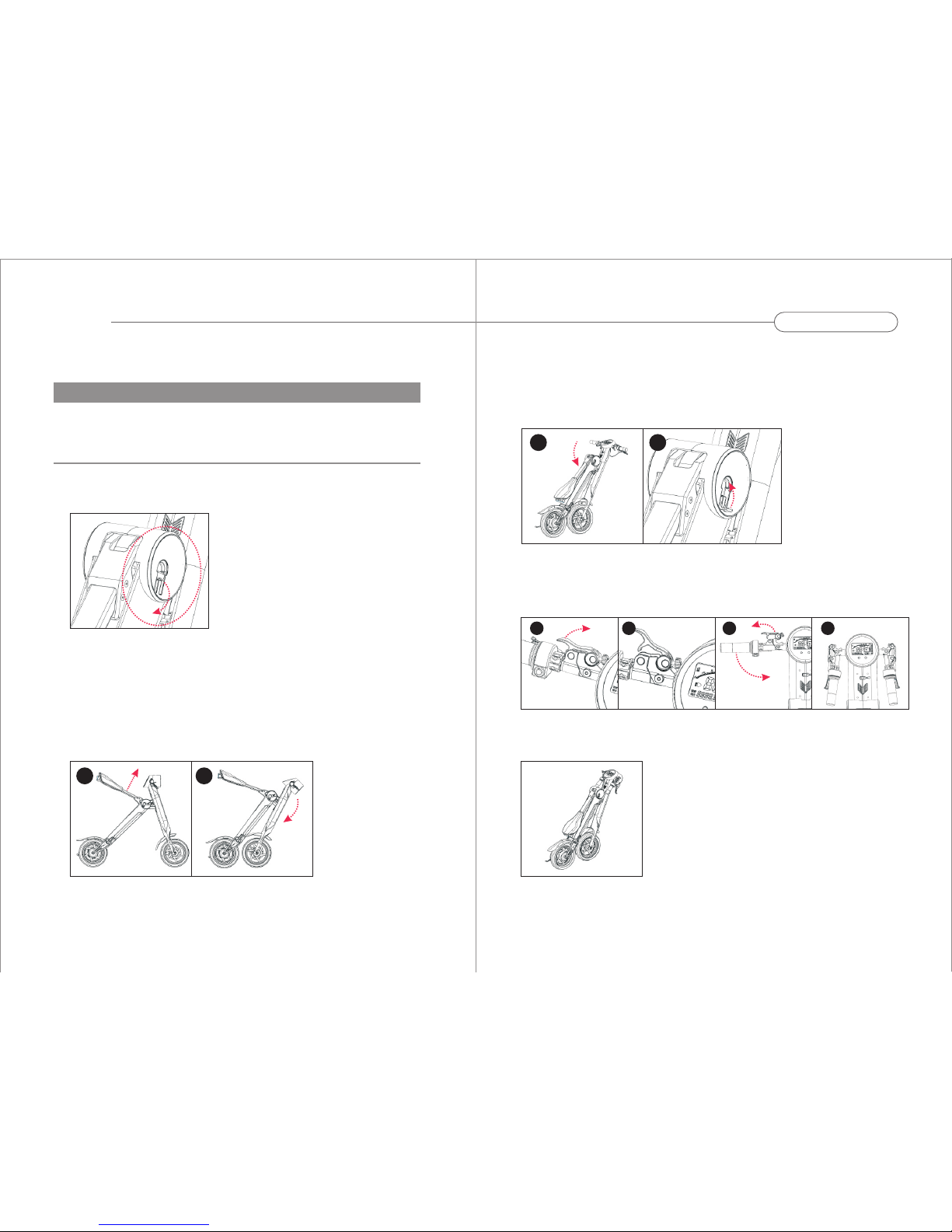

2.4 How to fold

1. Open the folding switch firstly (as shown )

Fold

2. Lift the saddle bar, and the front wheel will fold naturally(as shown)

Pull open as the arrow direction shows

3. Press the saddle bar into the frame slot. Folding action is completed when

hearing a click sound, (as shown)

4. Switch on the handle bar, move it out from arc clip, and press the grip downward

(as shown)

5. Full folding actions are completed(as shown)

Part Two

Fashionable/Portable/Smart

1 2

4321

Push close as the arrow direction shows

10

09

2.5.5 How to set the Alarm (Alternative)

The system sounds to remind the owener to set the alarm after the scooter

parked for 5 seconds.

2.5 Smart Alarm

2.5.1 How To Set Burglar Alarm

Park the scooter and press the key , it's on the alert with the sound of horn.

The horn will sound 15 seconds continuously when the scooter is started or

touched.

2.5.2 How To Cancel The Alarm

To exit the alert by pressing the key , which will be done when the horn sounds.

Press the key to start remote control and the scooter will get power off .

2.5.3 How to Start the Remote Control

Press the key twice, the lock unlocks when the horn sounds

2.5.4 How to Position the scooter

Press the key on the alert , the horn will sound 5 times to indicate the position

of scooter.Press any key can exit the status.

2.5.6 How to Adjust the Sensitivity Alternative

2.5.7 Guard Against Robbery Function

Park the scooter and press the key long till horn sounds continuously.

The first alarm sound is the first grade sensitivity(the top), the second sound

is the second grade …… There are 4 grades in all and the 4th one is the lowest.

If you are robbed while driving,please press the key long within the range

of remote working distance , the scooter will be powered off and freezed .

Press the key can restart the scooter .

Part Two

Fashionable/Portable/Smart

2. Standard charging time : 3-5 hours , Temperature : About 25 ℃.

3. The charger is equipped with protector of overcurrent and the charging current should

below 3A. Heavy current will damage the protector or shorten the battery's lifespan.

The E-scooter is equipped with charge interface for phone & Ipad in case of

outdoor power urgency.

2.7 Charge for phone & Ipad

2.9 How to Check the Endurance Mileage

1211

The bluetooth speaker can be connected with

IOS & Android system cell phone

( only 1 cell phone for once ).Its working

range is 0-8m, and within 5m is efficient.

2.8 Bluetooth Speaker

The position of bluetooth speaker

1. The red indicating light shines when the charger connects the electricity power .

2.5 爱车充电

Remarks: Please use our exclusive charger

Turn the battery dustproof cover by 90 degree around arrow direction and you will see the charge interface

2.6 How To Charge

The position of phone charge interface

Part Two

Fashionable/Portable/Smart

2.9.1 You ca choose 1,2,3 and 4 shift

by pressing the button shortly in

starting up condition.Different shift

will make you feel the different

passion for starting up.

2.9.2 You can reset the scooter to

factory setting by pressing the

button long for 30 seconds,

which is finished by showing a new screen.

1 2 3 4

2.10 Cruise Control Setting

Exiting:Shutdown system or make a brake.

2.10.1 Don’t have to turn the grip by hand always to keep the scooter moving at

constant speed.

Start:Press the"light"key long during driving

End:Rotate the speed grip or jam the power

brake or press the "light"key long.

.

Entering:Press the (headlight key) long

during accelerate driving,then start

cruise control system and sign of appear.

Please learn the safety causion carefully.

1.Don't overspeed in downhill running. Don't use front brake first during

high speed driving in order in to avoid leaning forward .

2.Don't drive on rainy days.

3.Don't drive in deep water.

4.Only authorized chargers and parts. Or no guarantee will be given if

dangers happen.

5.Don't disassemble or refit the scooter.Or we will not be responsible for

above situation ,and even worse, you may lose guarantee promise. Please

ask local agency or appointed maintenance center for help if necessary.

1.Charge in safe place where children can't reach.

2.Charge fully before initially use

3.No other brand charger ,other type of battery is forbidden either .

4.The charger contains high-voltage circuit, don't dismount arbitrarily.

5.Avoid liquid or metal bead infiltering the charger .Don't drop and crash

in order to avoid damage.

6.Don't cover anything in charging.

7.The charger should be used in dry & ventilative environment.

8.Stop charging when it is smelly or excess temperature,and send it to agency

for repair immidiately

Part three: Safety Usage

3.1 Important ( Application environment)

3.2 Attention for charging

3.3 Attention for battery

1.Keep away from fire and flammable , explosive and corrosive gas .

2.Don't dismount the battery arbitrarily in order to avoid damaging inner parts.

Don't damage the label on battery in order to avoid losing guarantee.

No other brand charger ,other type of battery is forbidden either .

14

13

Part Three

Fashionable/Portable/Smart

Part four Maintaining

Maintaining determines the lifespan of smart E-scooter, please learn maintaining details well

1.Please make sure the gas pressure reaches 280kpa befor using.

2.Charge the lithium battery fully to store , charge and discharge fully every two

months if it is unused.

3.Form good habits to charge everyday. Charge intime before allowed minimum

voltage in order to guarantee battery's life.

4.1 Basic maintaining

1.Check if screws of front and back wheels are locked firm.

2.Check if the tyre is worn or dehisced ,and check if the driving system is smooth.

3.Check if the connecting terminal is normal. Check if zipper of the brake cable

can be used in lubrication situation.

4.2 Regular maintaining and self-checking

1.Do not wash by water cannon in order to avoid damaging inner parts or circuitry.

2.Use neutral cleaner and wipe the stain on the surface of lacquer or plastic parts

softly ,then wipe with dry clean cloth.

3. Do not inject oil to disc, brake or rim.

4.3 Cleaning and maintaining

1615

Part Four

(Company only be responsible for certified battery )

Part Five After-sales Service

5.1 Rules of warranty

1

2

3

5

6

7

8

9

4

No. Description

Warranty

period

Specification

It can be changed a new one within 12 months(3 months turnover period).

Maintaining service is available with 15-36 months

Battery capacity < Original 60%

If there are weld lost, broken, and cracking causing out of tracking, we can

change for a new one, but modification and man-made damage are exceptions.

If there are flaws and serious burst damage, we can change for a new one,

but overweight and man-made damage are exceptions.

If there are leather aging, broken and baseboard broken, we can change for a

new one, not include overweight and man-made damage.

If there is function problem and can not be repaired, we can change for a new one.

If there are weld lost, broken, and cracking causing out of tracking, we can

change for a new one, but modification and man-made damage are exceptions.

Motor of back wheel

Battery

Frame

Frame of front wheel

Cushion

Controlor ; Charger

Headlight Alertor;

Meter

12 months

24 months

6 months

Front fork(including shocking

proof)and back fork

If there is function problem and can not be repaired, we can change for a new one.

Fashionable/Portable/Smart

ROOES SMARTE-SCOOTER User manual

Popular Scooter manuals by other brands
