Ropox SUPPORT User manual

Ropox Support Washbasin Complete
Fixed –Basic - Manual
USER MANUAL
MOUNTING INSTRUCTIONS
Keep this manual with the product at all times
PDF 6184 / Rev 001
PA 2004 00634

Page 2
© ROPOX 2017
Contents:
1. INTRODUCTION.................................................................................................................................................3
2. CONFORMITY WITH EU DIRECTIVES ........................................................................................................3
3. APPLICATION.....................................................................................................................................................3
3.1 Operation .....................................................................................................................................................4
4. TECHNICAL DATA.............................................................................................................................................5
5. DIMENSION SKETCHES...................................................................................................................................6
6. INSTALLATION INTERFACES........................................................................................................................7
6.1 Connection adapters ..................................................................................................................................11
7. MOUNTING INSTRUCTIONS.........................................................................................................................12
7.1 Support Washbasin, Fixed (40-44000/01)..................................................................................................12
7.2 Support Washbasin with Basic frame (40-4002/03)...................................................................................13
7.3 Mounting of covers for 40-44002/03..........................................................................................................17
7.4 Support Washbasin with Manual frame (40-44004/05) .............................................................................21
7.5 Mounting of covers for 40-44004/05..........................................................................................................29
8. LIST OF COMPONENTS..................................................................................................................................33
9. PERFORMANCE TEST ....................................................................................................................................37
10. SAFETY IN USE.................................................................................................................................................37
11. SERVICE AND MAINTENANCE....................................................................................................................38
11.1 Cleaning.....................................................................................................................................................38
11.2 Cleaning of tabletop and washbasin ..........................................................................................................38
11.3 Inspection...................................................................................................................................................38
11.4 Service schedule.........................................................................................................................................39
12. FAULT FINDING ...............................................................................................................................................39
13. LIST OF SPARE PARTS ...................................................................................................................................40
14. OPTIONAL EXTRAS.........................................................................................................................................40
15. LABEL .................................................................................................................................................................41
16. COMPLAINT......................................................................................................................................................42

Page 3
© ROPOX 2017
1. Introduction
Owing to its unique design, Ropox Support Washbasin provides additional support and easier
access to the washbasin for wheelchair users and walking-impaired persons. The manual height
adjustment facilitates frequent adjustment of the washbasin to suit several users. The height
adjustment range of the adjustable models is 30cm.
The ample space for knees and legs makes the washbasin ideal for wheelchair users, who obtain
optimum mobility and a perfect working position.
The integrated grab handles facilitate access and allows the user to get close to the washbasin.
Correct use, operation and inspection are decisive factors for effective and safe performance.
2. Conformity with EU Directives
This product has CE marking and is thus in accordance with the basic requirements concerning
functionality and safety according to the current Machinery Directive.
All models of Ropox Support Washbasin are manufactured in accordance with the current
requirements of Directive No. 93/42/EEC concerning Medical Devices and belong to the lowest risk
class 1
3. Application
Ropox Support Washbasin Basic and Manual may be adjusted in height for optimum working
height for user and carer. Ropox Support Washbasin must NOT be used as a lifting table or person
lifter.
The product is designed for indoor use under normal room temperature and humidity as specified
in Section 4.
This manual must ALWAYS accompany the product and be read by and available to the user

Page 4
© ROPOX 2017
3.1 Operation
Basic height adjustment (applying to 40-44002/03)
The height of the washbasin may be adjusted by loosening the two handles. Note that the
washbasin must be supported while loosening the handles in order to prevent it from falling to the
bottom position. Covers, if any, must be removed before adjustment of these models.
Manual height adjustment (applying to 40-44004/05):
The height of the washbasin may be easily adjusted by means of the detachable hand crank.

Page 5
© ROPOX 2017
4. Technical data
Product name: Ropox Support Washbasin
Item number: Item number Name Illustration
40-44000 Fixed (left)
40-44001 Fixed (right)
40-44002 Basic height adjustment (left)
40-44003 Basic height adjustment (right)
40-44004 Manual height adjustment (left)
40-44005 Manual height adjustment (right)
Adjustment range: 30 cm (71-101cm)
Mixer tap: Oras Saga, mixer tap with temperature pre-setting facility.
Alternative mixer taps available.
Contact Ropox for more information.
Materials: Frame: Welded steel pipes St. 37
Aluminium alloy 6060-T6
Various plastic components
Washbasin: Synthetic/marble composite
Cover: Vacuum-shaped ABS
Surface treatment: Powder coating, RAL 9010 matte white, chromite, gel coat
Max. load: Tested in accordance with DS/ISO 17966:2016, max user weight is
400kg/881lb
Temperature: 10-40° C
Air humidity: 5-85 % (non-condensing)
Complaint: See Complaint page 43
Manufacturer: Ropox A/S, DK-4700 Næstved, Phone: [phone]
e-mail: [e-mail], www.ropox.dk

Page 6
© ROPOX 2017

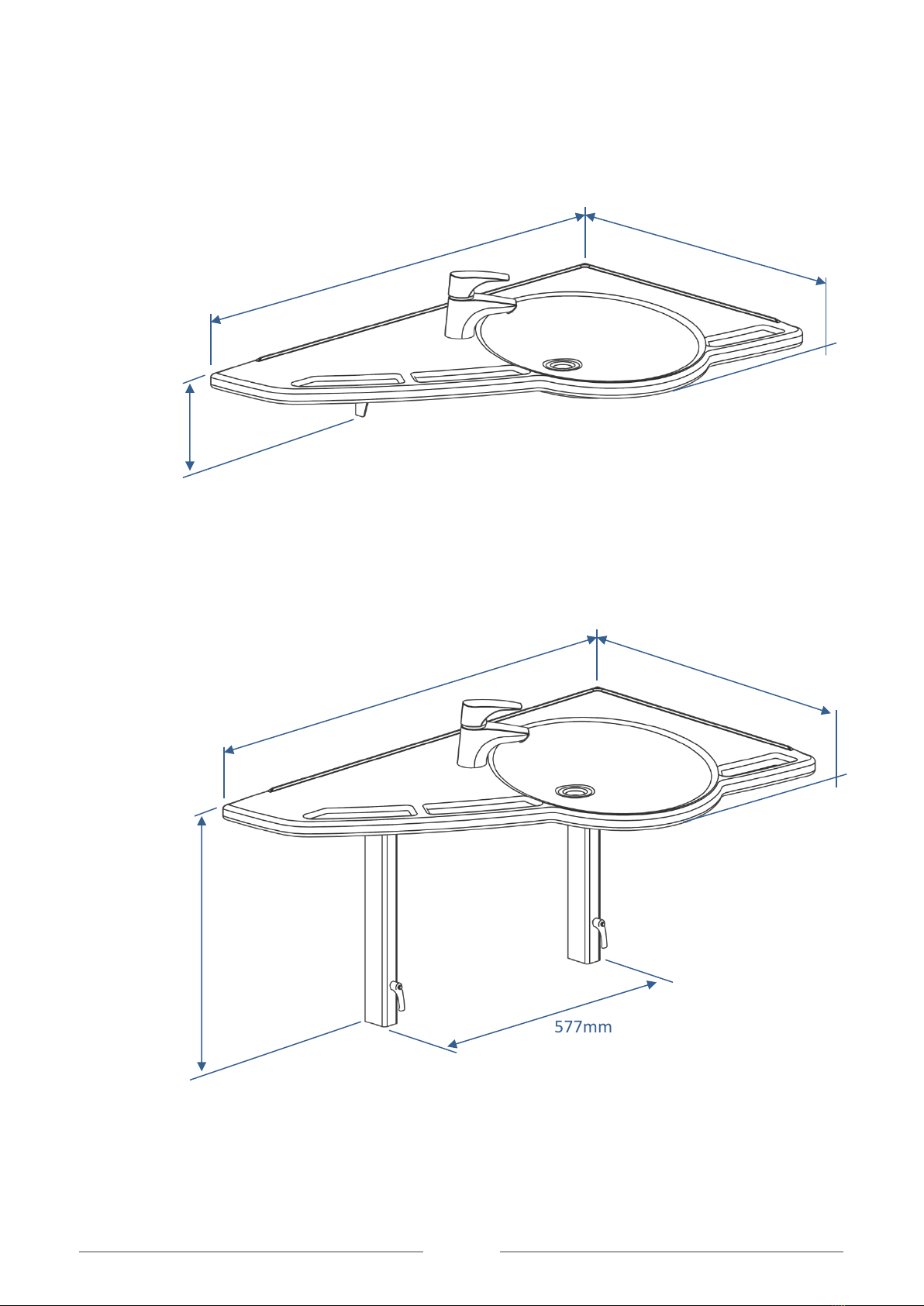

5. Dimension sketches
Fixed
40-44000/01
Basic height adjustment
40-44002/03
1000mm
633mm
166mm
1000mm
633mm
518mm
577mm

Page 7
© ROPOX 2017
Manual height adjustment
40-44004/05
Accessories –covers
40-44021/22
633mm
1000mm
580mm
657mm
125mm
273mm
90mm
550-850mm
653mm

Page 8
© ROPOX 2017

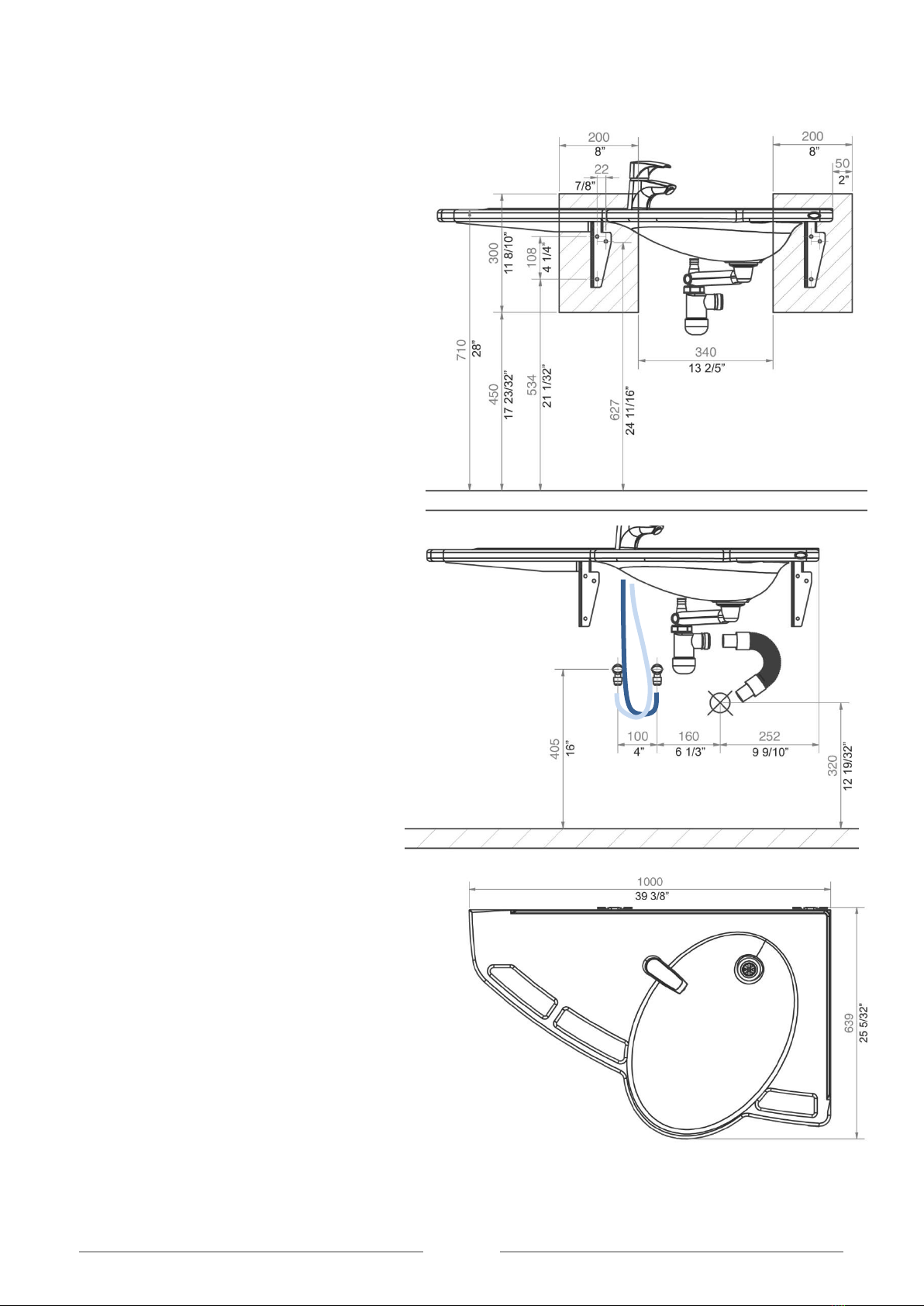

6. Installation interfaces
Fixed
(40-44000 and 40-44001)
CONSTRUCTION
The wall must be made of a material
suited for screw mounting and approved
for damp rooms. The hatched area is the
minimum area for reinforcement of the
wall. Reinforcement from floor to ceiling is
advisable.
Load-tested in Accordance to DS/ISO
17966, the maximum user weight has
been fixed at 400kg (881 lbs).
Max. tensile load of upper screws
150kg/screw (330 lbs)
The washbasin is supplied with a set of 6
screws and rawlplugs suitable for
mounting on a concrete wall. The fitter
should always consider the material,
condition and strength of the wall and
use screws and rawlplugs suitable for
the specific wall type.
PLUMBING
The drain is Ø32 (1 ¼”) and ends in an
Ø32x88.5° drain elbow.
The maximum protrusion of drain
connection and elbow from the wall is
90mm (3 ½”) to allow for the covers.
The water supply ends in 2 (two) 90°
shut-off valves with ½” outside thread
pointing downward (not included).
The maximum protrusion of the shut-off
valves from the wall is 90mm (3 ½”) to
allow for the covers.
If a location of the water supply and
drain different from the recommended
positioning is required or if there is a floor
drain, the Support Washbasin will have no
covers.
For purchase of adapters for connection to
various standard installations, see
”Connection Adapters – Other Washbasins”.
NOTE:
All dimensions are based on a washbasin
height of 710mm (28”) above floor level. If a
change of this height is required, the
recommended dimensions must be changed
accordingly.
The illustrations show the left-hand model 40-44000

Page 9
© ROPOX 2017
Basic
(40-44002 and 40-44003)
CONSTRUCTION
The wall must be made of a material
suited for screw mounting and approved
for damp rooms.
The hatched area is the minimum area for
reinforcement of the wall.
Reinforcement from floor to ceiling is
advisable.
Load-tested in Accordance to DS/ISO
17966, the maximum user weight has
been fixed at 400kg (881 lbs).
Max. tensile load of upper screws
85kg/screw (187 lbs)
The washbasin is supplied with a set of 6
screws and rawlplugs suitable for
mounting on a concrete wall. The fitter
should always consider the material,
condition and strength of the wall and
use screws and rawlplugs suitable for
the specific wall type.
PLUMBING
The drain is Ø32 (1 ¼”) and ends in an
Ø32x88.5° drain elbow.
The maximum protrusion of drain
connection and elbow from the wall is
90mm (3 ½”) to allow for the covers.
The water supply ends in 2 (two) 90°
shut-off valves with ½” outside thread
pointing downward (not included).
The maximum protrusion of the shut-off
valves from the wall is 90mm (3 ½”) to
allow for the covers.
It is important that all hoses for water
connection and drain are flexible to allow
the frame to move freely within the height
adjustment range of 710-1010mm (28” – 39
8/10”) (including washbasin).
If a location of water supply and drain
different from the recommended positioning
is required or if there is a floor drain, the
Support Washbasin will have no covers.
For purchase of adapters for connection to
various standard installations, see
”Connection Adapters – Other Washbasins”.
NOTE:
The illustrations show the left-hand model 40-44002

Page 10
© ROPOX 2017
Manual
(40-44004 and 40-44005)
CONSTRUCTION
The wall must be made of a material
suited for screw mounting and
approved for damp rooms.
The hatched area is the minimum area
for reinforcement of the wall.
Reinforcement from floor to ceiling is
advisable.
Load-tested in Accordance to DS/ISO
17966, the maximum user weight has
been fixed at 400kg (881 lbs).
Max tensile load of upper screws
71kg/screw (157 lbs)
The washbasin is supplied with a set of
8 screws and rawlplugs suitable for
mounting on a concrete wall. The fitter
should always consider the material,
condition and strength of the wall and use
screws and rawlplugs suitable for the
specific wall type.
PLUMBING
The drain is Ø32 (1 ¼”) and ends in an
Ø32x88.5° drain elbow.
The maximum protrusion of drain
connection of elbow from the wall is
90mm (3 ½”) to allow for the covers.
The water supply ends in 2 (two) 90°
shut-off valves pointing downward (not
included). The maximum protrusion of the
shut-off valves from the wall is 90mm (3
½”) to allow for the covers
It is important that all hoses for water
connection and drain are flexible to allow the
frame to move freely within the height
adjustment range of 710-1010mm (28” – 39
8/10”) (including washbasin).
If a location of water supply and drain
different from the recommended positioning
is required and if there is a floor drain, the
Support Washbasin will have no covers.
For purchase of adapters for connection to
various standard installations, see
”Connection Adapters – Other Washbasins”.
NOTE: The illustrations show the left-hand
model 40-44004

Page 11
© ROPOX 2017
6.1 Connection adapters
The highlighted components can be bought separately depending on the type of building
installation requirements.
Water supply
Hoses from basin
Adapters
Installation in room
(not included)
No adapter
necessary
1/2"
Thread
1/2" -> 3/8"
Item no. 97001670
3/8"
Thread
1/2" -> 15mm
Item no. 97001666
15mm
Pipe
Water hose extensions
Hose from basin
Coupling piece
Extra hose
1/2" -> 1/2"
Item no. 97001662
1/2" x 1/2", 0,5m, steel
Item no. 97001123
1/2" x 1/2", 1m, plastic
Item no. 97001120
Drain
Drain pipe from basin
Adapters
Installation in room
(not included)
No adapter
necessary
Ø32
Ø32 -> Ø40
Item no. 97001660
Ø40
Ø32 -> Ø50
Item no. 97001661
Ø50
Drain pipe extensions
Drain pipe from basin
Coupling piece
Extra drain pipe
Ø32-Ø32
Item no. 97001662
Ø32 Flex hose, 27-62cm
Item no. 97001162
Ø32 Flex hose, 40-110cm
Item no. 97001161
1/2”
Ø32
Ø32

Page 12
© ROPOX 2017
7. Mounting instructions

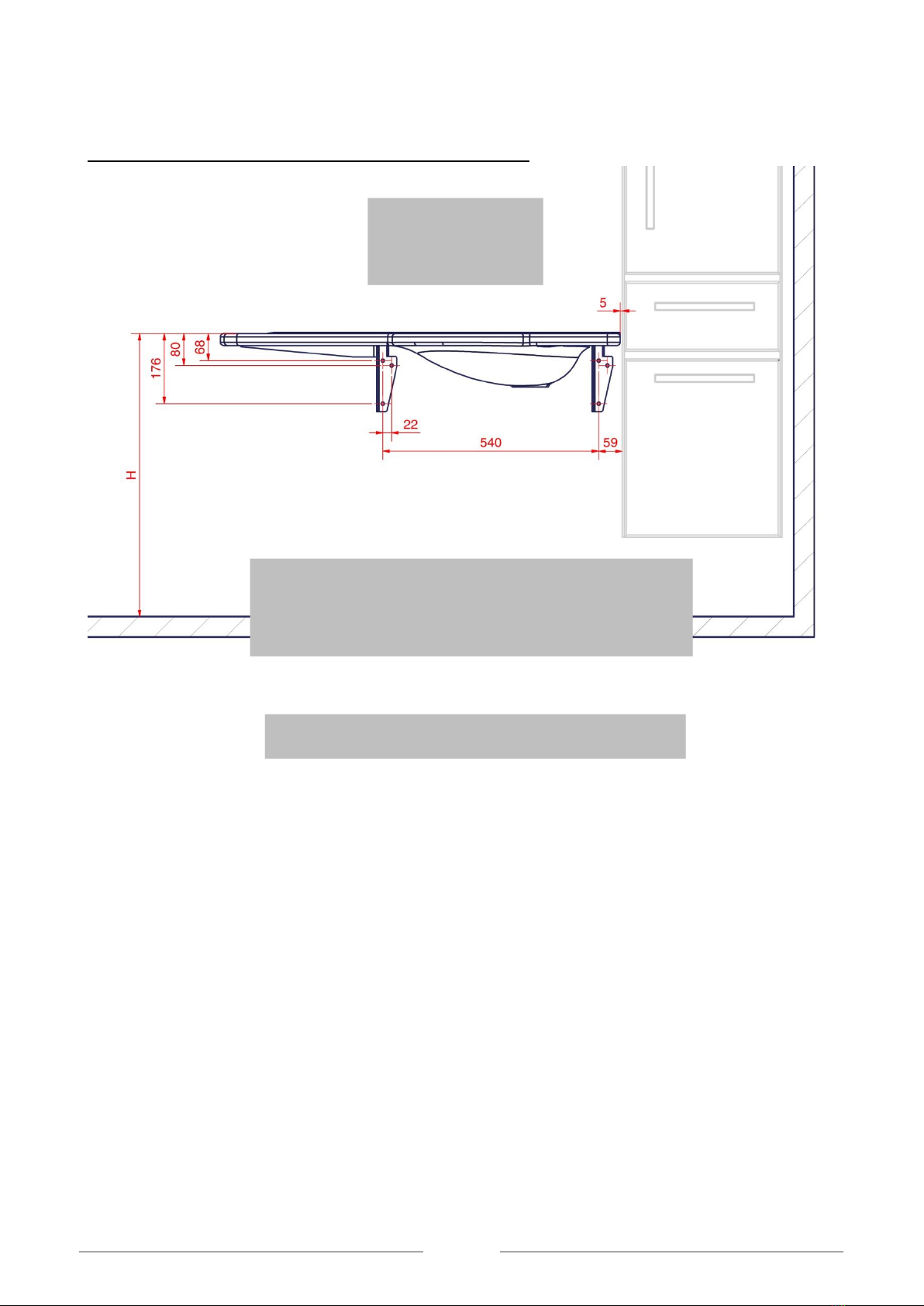

7.1 Support Washbasin, Fixed (40-44000/01)

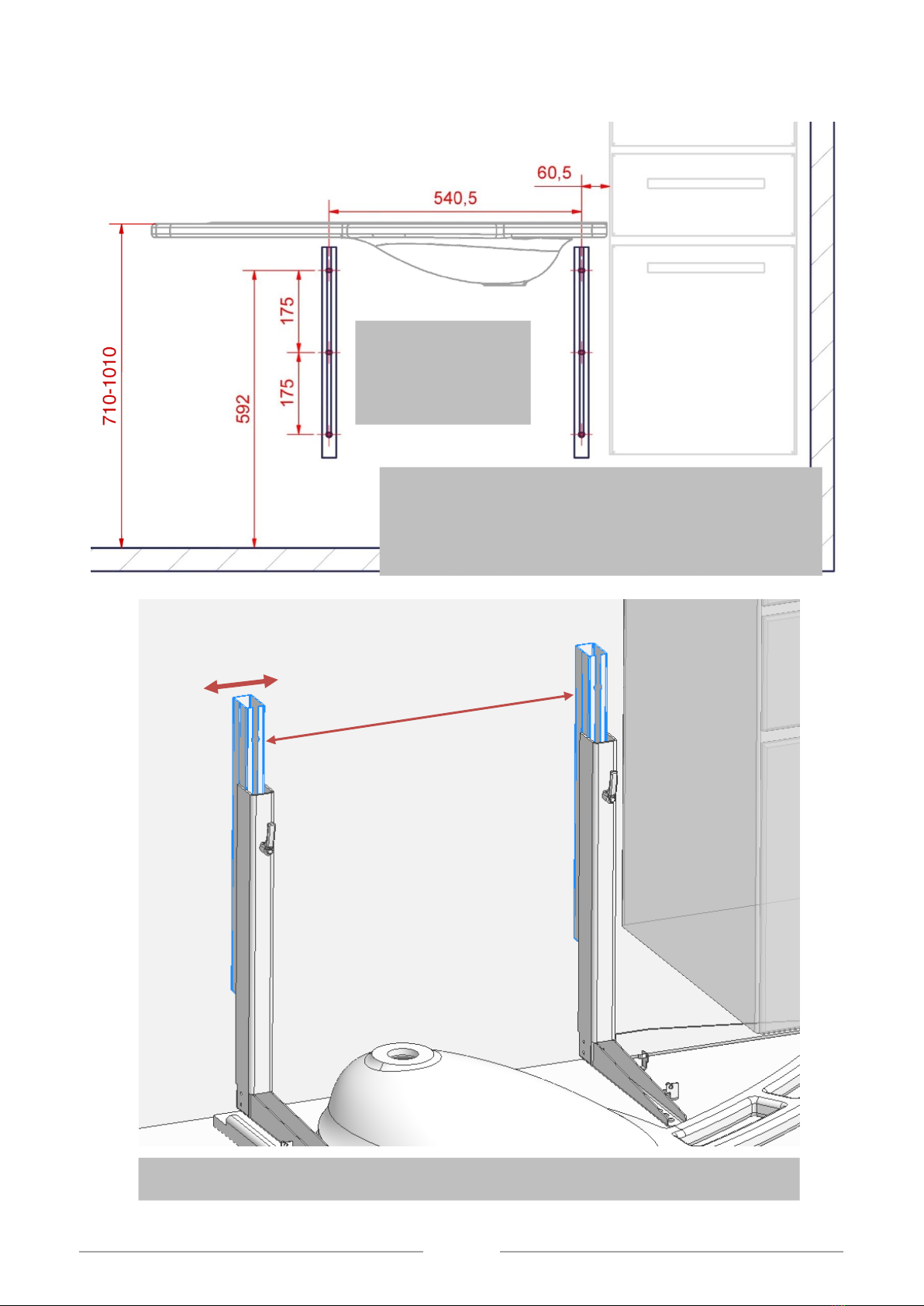

Recommended:
6 x 8x72
6 x rawlplugs
NOTE: Depending on wall type, choose other
suitable screws, as required.
Max load on upper screws: 150 kg/screw
Mounting of covers: See page 17-20

Page 13
© ROPOX 2017

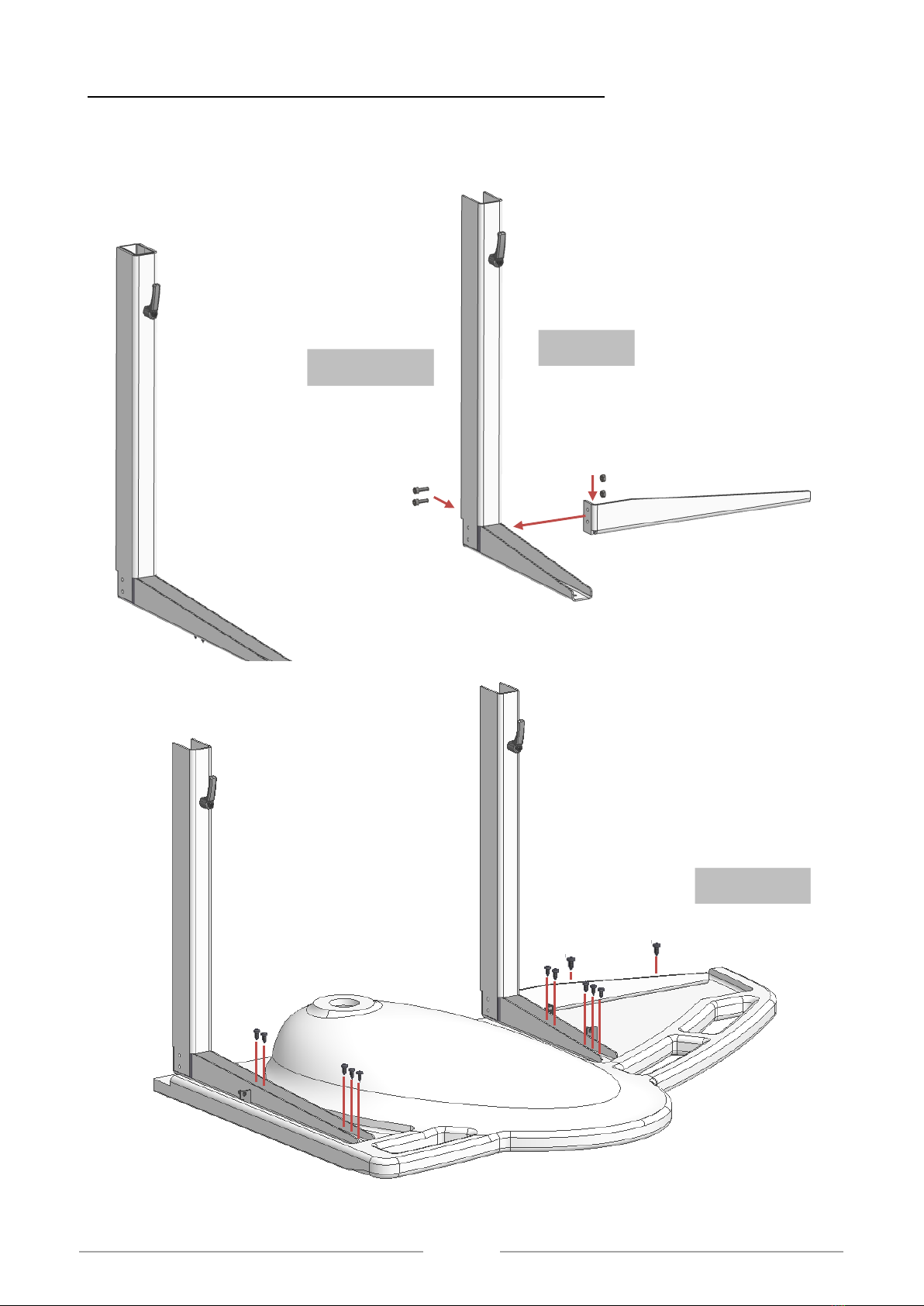

7.2 Support Washbasin with Basic frame (40-4002/03)
12 x 4x16
2 x M5
2 x M5x10

Page 14
© ROPOX 2017
Recommended:
6 x 8x72
6 x rawlplugs
510,5
NOTE: Depending on wall type, choose other
suitable screws, as required.
Max. load on upper screws: 85 kg/screw
Fine adjustment of wall fitting –use legs on washbasin as a guide

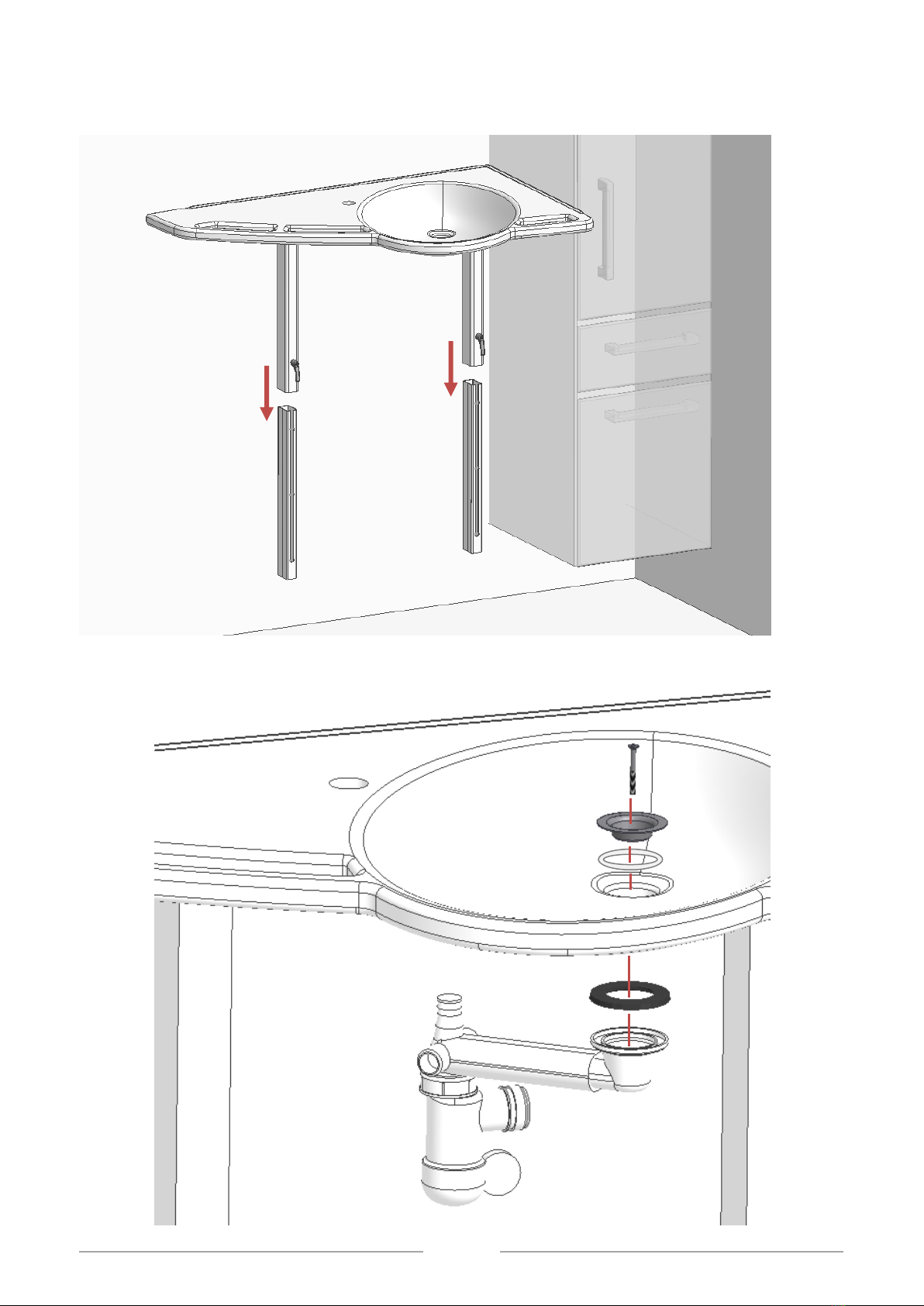

Page 15
© ROPOX 2017

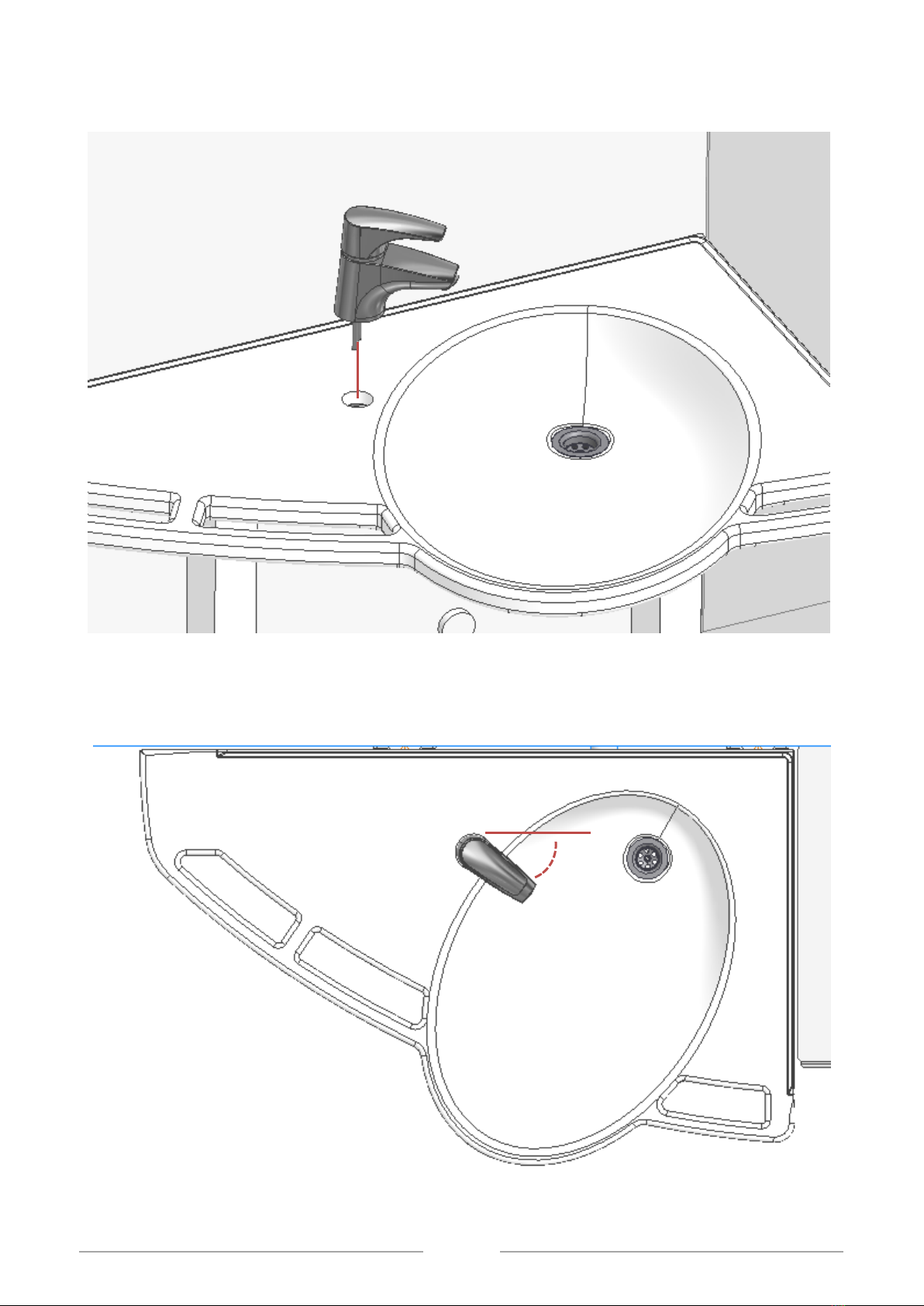

Page 16
© ROPOX 2017
!

Page 17
© ROPOX 2017

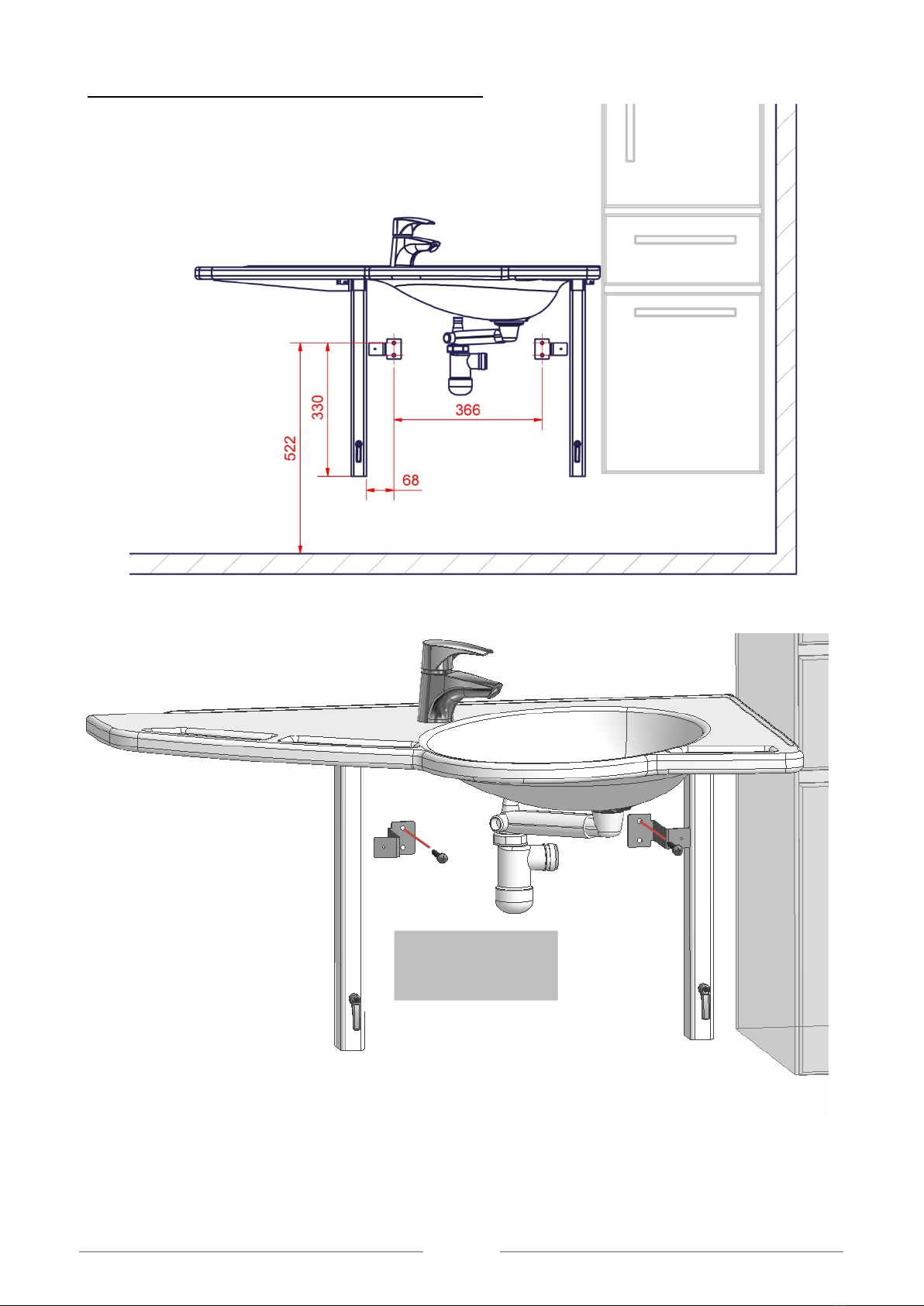

7.3 Mounting of covers for 40-44002/03
2 x 4.5x50
2 x rawlplugs

Page 18
© ROPOX 2017
2 x M4x10
6 x 4x16

Page 19
© ROPOX 2017

Page 20
© ROPOX 2017
3 x M4x10
