Rosco STSK4533 User manual

90-21 144th Place
Jamaica, NY 11435
1.800.227.2095
www.roscovision.com
Smart-VisionTM 4.3" Rearview
Mirror/Monitor Combo
Backup Camera System
INSTALLATION/USER'S MANUAL
STSK4533 - With License Plate Camera
STSK4532 - With Bumper "Bullet" Camera

STSK4533 Component List
Qty P/N Qty.
1 STSC112 BACK UP LICENSE PLATE CAMERA
1 STSM230 4.3" COLOR MIRROR MONITOR
1 STSW1000 WINDSHIELD MOUNT
1 STSH4530 MONITOR POWER HARNESS
1 STSH330 25' EXTENSION HARNESS
1 STSH373 CAMERA POWER
1 STSH374 SPLITTER HARNERR
Notes:
• Please read this manual carefully before using the product.
• This system is intended as an aid to safe reverse operation.
Drivers must always use extreme caution when operating a vehicle.
• Specications subject to change without prior notice.
Warning:
• To prevent electrical shock, DO NOT OPEN MONITOR CASE.
• Avoid exposing monitor to water, rain, moisture etc.
• Do not disassemble the camera. This voids the warranty.
Disassembling the camera will compromise the waterproof seal.
STSM230
STSW1000
STSH4530
STSC112
STSH330
STSH373
STSH374
A Century of Automotive Safety
1

STSK4532 Component List
Qty P/N Qty.
1 STSC106 BACK UP BULLET CAMERA
1 STSM231 4.3" COLOR MIRROR MONITOR
1 STSW1000 WINDSHIELD MOUNT
1 STSH4530 MONITOR POWER HARNESS
1 STSH330 25' EXTENSION HARNESS
1 STSH373 CAMERA POWER
1 STSH374 SPLITTER HARNESS
STSM230
STSW1000
STSH4530
STSH330
STSH373
STSH374
2
www.roscovision.com
STSC106

Smart-VisionTM 4.3" Mirror/Monitor
Combo Backup Camera System
Rosco Vision Systems introduces a revolutionary new
backup camera system for small to medium vehicles.
Smart-VisionTM utilizes an interior rearview mirror to
display a 4.3" LCD monitor when the vehicle shifts into
reverse. This monitor allows the driver to see behind
the vehicle for added convenience and safety while in
reverse. At other times, the full area of the mirror-glass
is reective just like a standard interior mirror.
Rosco’s rear view license plate camera gives the driver
a 180 degree wide and clear views of what's behind
the vehicle, allowing the driver to back up safely in all
weather conditions. The convenient and simple design
afxes over your existing rear license plate, permitting
the camera to be installed on the existing license plate
holes of the vehicle. Perfect for Mini Vans, SUV's,
Sedans, pick-up trucks and more.
General Technical Specications:
Power Supply: 12VDC
Power Consumption: ~3 Watt
Current Draw: ~250 mA
Video Input: 1 Vp-p@75 impedance
Monitor Dimensions: 11"W x 3"H x 1.5"D
Installation Tools:
C O N T E N T S
How To Operate
Display.............. 4
Color Camera ... 7
Wiring
Diagram ......... 5-6
Rearview Mirror
Installation....... 8
Camera
Installation....... 9
Testing &
Maintenance .. 10
1. Wire Tester 4. Wire Stripper 7. Drill
2. Phillips Screwdriver 5. Pencil 8. Tape
3. Tape Measure 6. Drill Bits 9. Wire Ties
(Not Shown)
1.
2.
3.
4.
5.
7.
8.
6.
A Century of Automotive Safety
3

How To Operate Display:
1. V1/V2 - Not Applicable.
2. "Up" - Menu selection control.
3. Menu - Switches to setup menu.
4. "Down" - Menu selection control.
5. Power - Switches monitor off.
Typically not used
How To Set Your Monitor:
On-screen menu commands may be
selected pressing the MENU button
while the mirror/monitor is on:
Brightness
Contrast
Saturation
Hue
Sharpness
4:3/16:9
Reset
How To Operate Display
Monitor Technical Specications:
Screen: 4.3" TFT Color LCD
Brightness: 500cd/m2
Contrast ratio: 300:1
Resolution: 480 x 272
Current Draw: Max 120mA
Video format: NTSC/PAL
Display format: 4 : 3 or 16 : 9
Power Supply: 12V
Working Temp.
°F(°C): -5° to 158°
(-20° to 70°)
IMPORTANT: The Rearview Mirror/
Monitor is not intended to be used for
prolonged periods of time. Therefore
the monitor stays off until triggered by
reverse circuit.
1.
2.
3.
4.
5.
4
www.roscovision.com

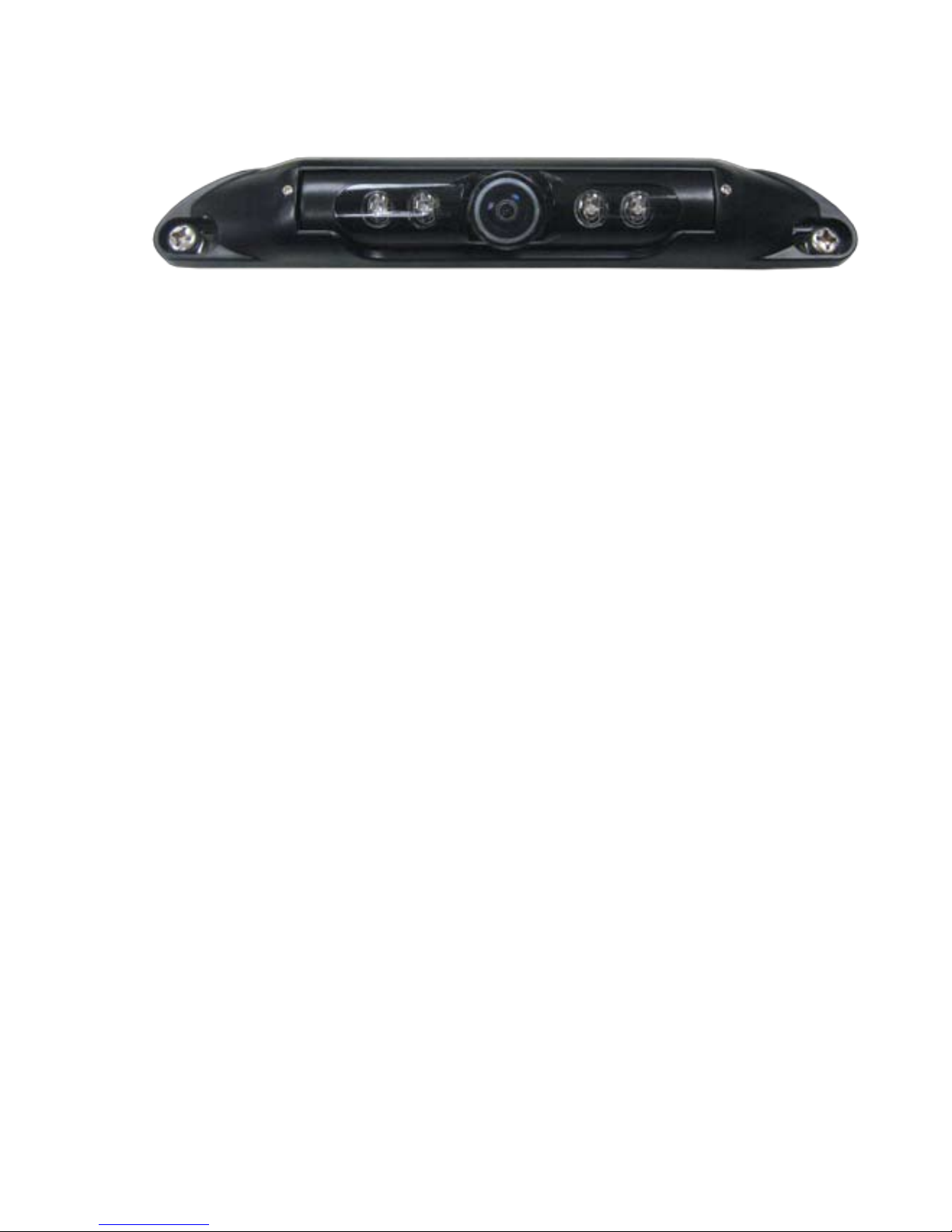

STSC112 License Plate Color Camera
Camera Technical Specications:
Processor: 1/4" Sharp® CCD
Sync System: Internal
Horizontal Resolution: 420TVL
Minimum Illumination: 0 Lux
Diagonal Angle: 180°
Video Output: 1.0Vp-p,
75ohm
Waterproof Grade: IP69K
Current Draw: Max. 120mA
Nominal Voltage: DC12V
Features and Benets:
• Superb Night Vision
• 180° Diagonal eld of vision
• Easy installation
• 4 High Output IR Led's for
Enhanced Night Vision
A Century of Automotive Safety
5

STSC106 Bumper Bullet Camera
Camera Technical Specications:
Processor: 1/4” Sharp CCD
Sync System: Internal
Horizontal Resolution: 420TVL
Minimum Illumination: 0 Lux
Diagonal Angle: 180°
Video Output: 1.0Vp-p,
75ohm
Waterproof Grade: IP69K
Current Draw: Max. 120mA
Nominal Voltage: DC12V
Features and Benets:
• 6 High Output InfraRed LED’s
for Enhanced Night Vision
• 180° Diagonal eld of vision
• Easy installation
6
www.roscovision.com

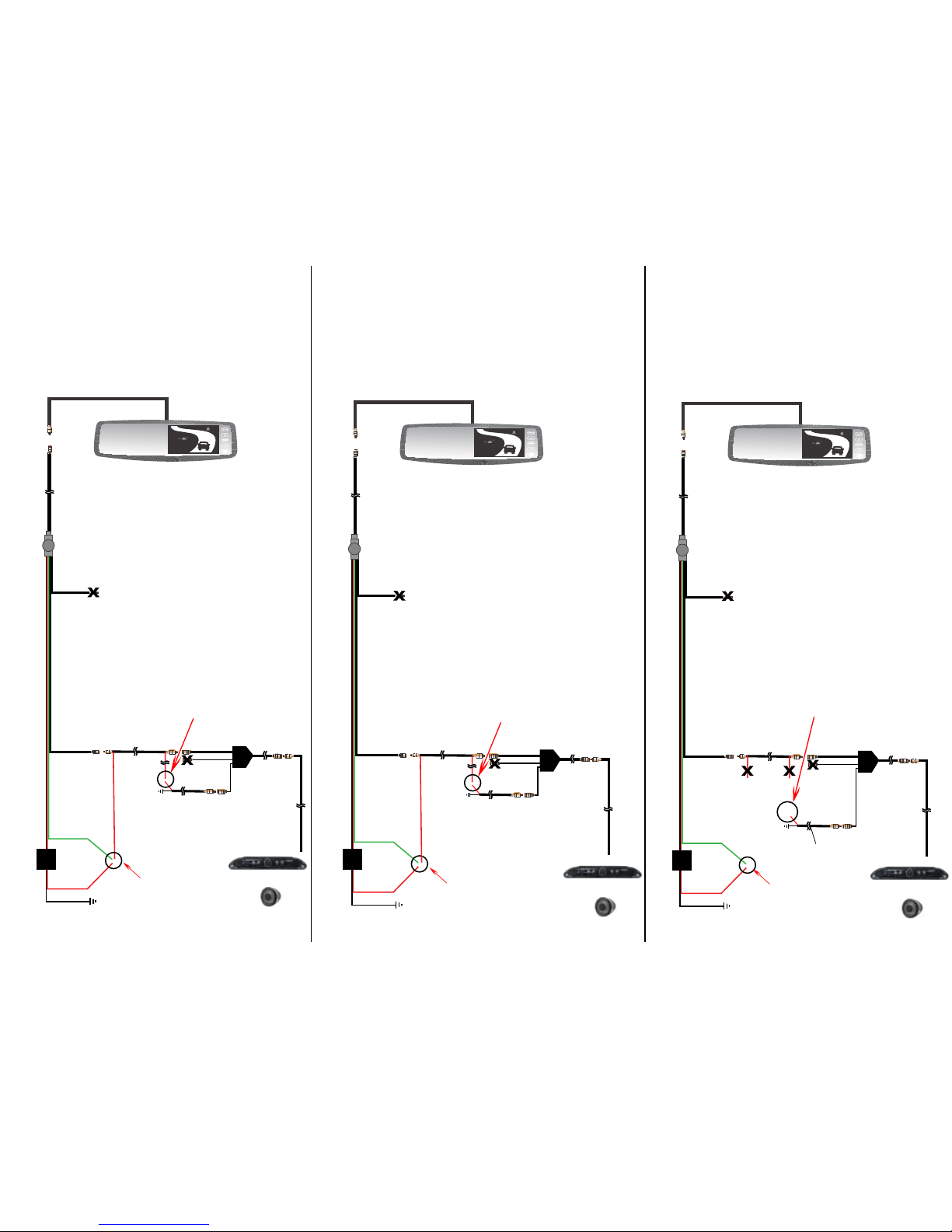

Option #3: Power Provided From Front and
Back of Vehicle (Least Common)
Option #2: Power Provided From Front of Vehicle
Option #1: Power Provided From Back of Vehicle
(Most Common)
AV1 (DO NOT USE)AV1 (DO NOT USE)
PN: STSH4530 PN: STSH4530
P/N: STSH330 P/N: STSH330
P/N: STSH374
Note: Additional
wire or adjustment
to harness may be
required.
P/N: STSH373
P/N: STSM230
P/N: STSC112
P/N: STSC106
OR
AV2 AV2
(Red) (Red)
7" 7"
68" 68"
7" 7"
7" 7"
Trigger (Green) Trigger (Green)
(Red) 12V (Red)
Chassis Ground Chassis Ground
Tie all 3 together
To Positive Reverse
Light Wire At The
Rear Of The Vehicle.
To reverse light circuit
at front fuse box.
To Chassis
Ground To Chassis
Ground
Red Power
Wire Red Power
Wire
12" 12"
11" 11"
11"
3A 250V
11"
26' 26'
9"
10" 10"
10" 10"
2"
29.5"
3'
19"
3A 250V
AUDIO CABLE
DO NOT USE
Option #3: Power Provided From Front and
Back of Vehicle (Least Common)
Option #2: Power Provided From Front of Vehicle
Option #1: Power Provided From Back of Vehicle
(Most Common)
AV1 (DO NOT USE)AV1 (DO NOT USE)
PN: STSH4530 PN: STSH4530
P/N: STSH330 P/N: STSH330
P/N: STSH374
Note: Adjustment
to harness may be
required.
P/N: STSH374
P/N: STSH373 P/N: STSH373
P/N: STSM230 P/N: STSM230
AV2
DO NOT USE
AUDIO CABLE
DO NOT USE
7"
68"
7"
7"
Trigger (Green)
12V (Red)
Chassis Ground
Tie both together
To reverse light circuit
at front fuse box.
To reverse light circuit
at front fuse box.
To Chassis
Ground
To Chassis
Ground
12"
11"
11"
26'
9" 9"
2"
2"
29.5" 29.5"
3' 3'
19"
19"
To Positive Reverse
Light Wire At The
Rear Of The Vehicle.
3A 250V
(Red)
AUDIO CABLE
DO NOT USE
P/N: STSC112
P/N: STSC106
OR
P/N: STSC112
P/N: STSC106
OR
Wiring DiagramWiring Diagram
8
www.roscovision.com
A Century of Automotive Safety
7

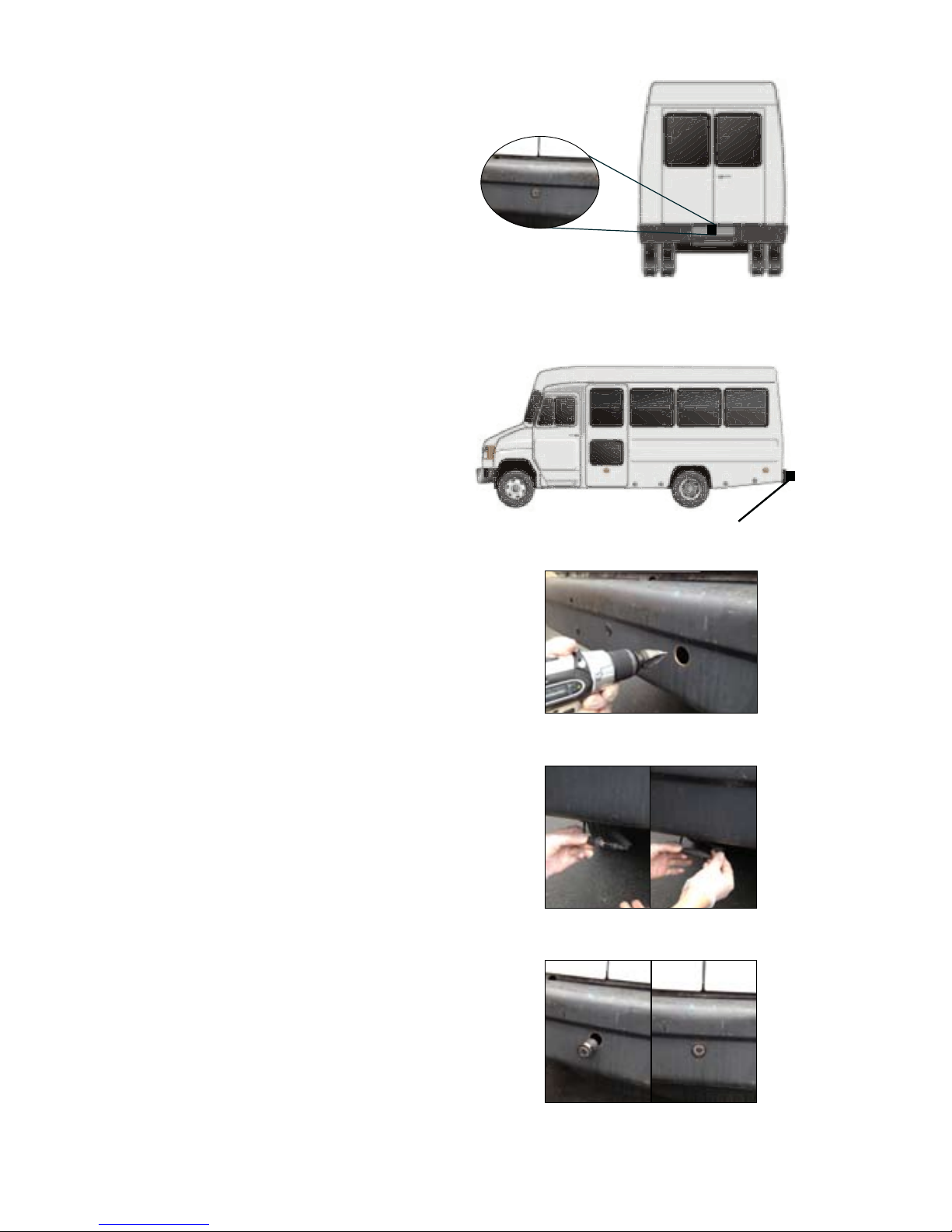

STSC106 Camera Installation
Figure. 3b
Figure. 4
Figure. 5
Figure. 6
Figure. 3a
Camera mount in
suggested location
Position of camera
A Century of Automotive Safety
9
1. Find a at centered location on
your bumper. (Figures 3a & 3b)
2. Make sure clearance behind
camera location is unobstructed.
3. Using a 31mm (1.25”) hole saw
(not included). Carefully drill a hole
in the surface. (See Figure 4)
4. Remove retaining rings from
camera and remove from harness.
5. Place harness through hole until
camera is ush. Do not run the cable
over sharp edges or corners. Do not
kink the cable. Keep the cable away
from hot and rotating parts.
(See Figure 6)
6. Replace retaining rings onto body of
camera. DO NOT TIGHTEN.
7. Connect camera to previously wired
harness.(See Figure 5)
8. Tighten rings behind camera until
completely snug (verify camera
orientation by viewing image on
monitor.)
9. Fasten all cable runs, and secure
all excess cable.

STSC112 Camera Installation
1. Locate rear license plate and
remove screws.
2. Find suitable location to drill
connector hole above/behind
license plate.
3. Once the location is chosen, drill
pilot hole to the inside of the
vehicle using a 5/16 drill bit.
Be sure to clear any obstacles
before drilling hole (See Figure 2).
4. Push connector through hole.
5. Mount camera on license plate and
use provided screws to mount
license plate back into position
(See Figure 3).
6. Use supplied grommet to plug up
drilled hole or use sealant to close
and secure hole.
7. Connect camera to extension
harness previously wired.
8. You have the option to change the
camera angle. Two set screws
located in the front of the camera
may be loosened to adjust the
camera angle. After the camera
angle is adjusted just retighten the
screws.
Figure. 2
Figure. 3
Figure. 1
Camera mount in
suggested location
10
www.roscovision.com

A Century of Automotive Safety
11

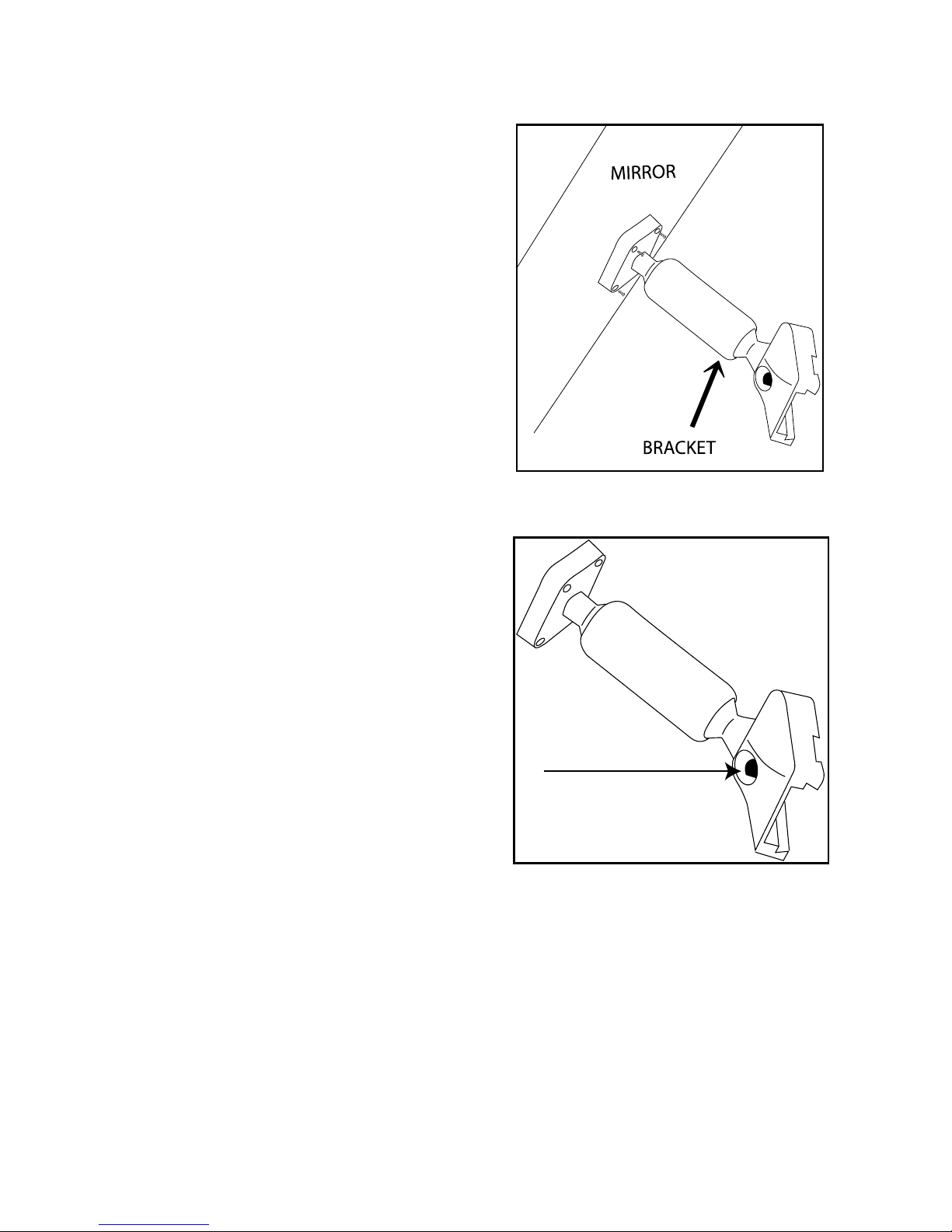

Rearview Mirror Installation
Figure. 2
Figure. 1
For standard mirror monitor
1. Attach windshield mounting bracket
to the back of STSM230 mirror/
monitor. Be certain that the monitor
is in the upright position when
attaching the mounting bracket.
(Figure 1)
2. Remove old rearview mirror from
factory mirror-mount tab.
3. Mount rearview mirror/monitor
securely to mounting tab by
tightening screw. (Figure 2)
4. Route the 8-pin connector end of
the power harness to the location
of mirror/monitor (preferably
through the headliner and the
vehicles A or B pillars).
5. Connect the power harness with
the mating 8-pin receptacle end
coming out of the mirror/monitor.
IMPORTANT: Please be certain to
match both guiding lines on each
connector for a proper connection.
Tightning Screw

12
www.roscovision.com
Testing & Maintenance
How to Test:
1. Apply the parking brakes.
2. Turn Ignition on. (DO NOT TURN ON VEHICLE)
3. Shift into reverse gear.
4. Image should appear on the monitor.
Trouble Shooting:
Problem Solution
No power to monitor while reversing. Check power and reverse
trigger connections.
"No Signal" appears while reversing.
1. Check video input
connections.
2. Check camera power
connections.
Video image is not sharp. Check camera lens for debris.
Maintenance:
Always keep camera clear from dirt, snow, and mud. Clean camera with
a soft moist cloth.

A Century of Automotive Safety
13
Testing & Maintenance
How to Test:
1. Apply the parking brakes.
2. Turn Ignition on. (DO NOT TURN ON VEHICLE)
3. Shift into reverse gear.
4. Image should appear on the monitor.
Trouble Shooting:
Problem Solution
No power to monitor while reversing. Check power and reverse
trigger connections.
"No Signal" appears while reversing.
1. Press AV1/AV2 button to
change video inputs.
2. Check video input
connections.
3. Check camera power
connections.
Video image is not sharp. Check camera lens for debris.
Maintenance:
Always keep camera clear from dirt, snow, and mud. Clean camera with
a soft moist cloth.

14
www.roscovision.com
NOTES
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
_______________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________

A Century of
Automotive Safety
90-21 144th Place
Jamaica, NY 11435
www.roscovision.com
Ph. 1.800.227.2095 Fx. 1.718.297.0323
Printed in China
Lit. P/N: 04242012
