USER MANUAL - MAXI MIX 1
USER MANUAL - MAXI
WHAT IS THE MAXI MIX?
• 120 X 36 X 8,5 cm - 47 X 14 X 3.3 "
• 380 W Max Consumption
• 8 kg - 17.6 lb
•24 TO 35 VDC - minimum battery load 15 Amp
• 1700K TO 10000K
• FULL COLOR (MIX TECHNOLOGY)
• TRUE ROSCO COLORTM
• FLICKER FREE
•

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 2
TABLE OF CONTENT
MAXI MIX CONTROLLER .................................................................................................................. 09
MAXI MIX CONTROLLER LOCAL USER INTERFACE ........................................................ 10
SAFETY AND PRECAUTIONS ........................................................................................................... 03
ASSEMBLY AND MOUNTING ................................................................................................. 04-07
MIX CONTROLLER USAGE EXAMPLE ....................................................................................... 08
THE 3 OPERATING MODES: WHITE / GEL / COLOR ........................................................ 11
THE SAVE FUNCTION ......................................................................................................................... 12
CONTROLLER SETTINGS .......................................................................................................... 15-17
COMMUNICATION PROTOCOLS: ARTNET, DMX512 AND THE MYMIX APP .... 18
DMX PROFILES ............................................................................................................................................................................. 19-23
THE MYMIX MOBILE APPLICATION ................................................................................................................ 24-28
UPDATING THE MIX FIRMWARE .......................................................................................................................... 29
THE LIBRARY AND ITS FOLDERS ......................................................................................... 12-14
SETTING UP DMX AND BLUETOOTH ......................................................................................................... 18-19
• WHITE MODE 11
• GEL MODE 11
• COLOR MODE 11
• SAVING A PRESET IN MYMIX 12
• CALLING UP PRESET 12
• DELETING A PRESET 12
• EFFECTS FOLDER 12
• SOURCE MATCHING FOLDER 12
• ROSCO GELS FOLDER 13 - 14
• MYMIX FOLDER 15
• BLUETOOTH: BT/OFF 15
• DMX MODE 15
• DIMMING CURVE 15
• GEL SORTING 16
• RDM (REMOTE DEVICE MANAGEMENT) 16
• FACTORY SETTINGS 16
• INFORMATION 16
• ERROR CODES 16
• ZONE SELECTION 17
• DMX 512 WIRED AND WIRELESS 18
• BLUETOOTH WITH MYMIX APP 18
• ARTNET 18
• DMX MODE OVERVIEW 18
• LINKING AND UNLINKING CRMX 18
• SETTING UP DMX (WIRED AND WIRELESS) 19
• SETTING UP T AND R MODE 19
• SETTING UP BLUETOOTH WITH MYMIX APP 19
• SETTING UP ARTNET 19

USER MANUAL - MAXI MIX 3
USER MANUAL - MAXI
General precautions
• DMG Lumière products are made to be used by trained professionals only.
• DMG Lumière products are not for household use.
Risk of falling
• All lights must be secured with an appropriate safety system (additionally to the
mounting system provided). All lamp heads have security cables attached for this
purpose. If not used, there is a high risk of accident, falling or death.
• Make sure the slings or chains chosen to secure the light complies with the security
standards in the country you are in.
Risk of electric shock and fire
• High voltage when using with the powerbox and External power supply !
• Use only the power supplies sold by DMG Lumière to power the lights.
• When inputting 220V or 110V AC current, make sure the power supply is connected to
the ground before using.
• Do not open the product. There are no user serviceable parts inside.
Overheating
• Do not operate the product if the ambient temperature exceeds 40° C.
• Intensive use can cause the surface to become hot .
• Let the product cool down completely before you handle it.
• Do not cover the air vents !
Intense light
• Do not look at the light directly
Warnings
• Stage and Studio Use Only
• Dry Location Only
• Hazardous Voltage
• Risk of Electrical Shock
• Disconnect Power Before Servicing
• Not For Residential Use
SAFETY AND PRECAUTIONS Power Cut Safety
• If power is cut inadvertently the controls will turn back on automatically when power is back.
• The controls will always turn back on in the last state it was.
• The last state of controls is automatically saved every three seconds.
Approvals
EU Safety :
• EN 55015:2013
• EN 61547:2009
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• EN 61000-4-2:2009
• EN 61000-4-3:2006+A1:2008+A2:2010
• EN 61000-4-4:2012
• EN 61000-4-5:2006
• EN 61000-4-6:2009
• EN 61000-4-8:2010
• EN 61000-4-11:2004
• EN 62471
FCC :
• 47 CFR of part 15
Certifications
ROHS :
• EPA3050B:1996
• EN1122B:2011
• EPA3052:1996
• EPA7196A:1992
• APE3540C:1996
• EPA8270D:2007
DANGER!
Risk of injury or death through
epileptic seizure when using the
strob effect.
Do not use the effect near
stairways, in corridors or near
public exits.
Provide advance notice that strobe
lighting is in use. Display advisory
notices on the set, at the point
of ticket sales, on tickets if
possible, in the program, and at the
entrance(s) to the venue or studio.
Avoid extended periods of
continuous ashing, particularly at
frequencies of 10 to 20 ashes per
second. At ash rates below 5
ashes per second, it is estimated
that only 5% of icker-sensitive
persons will be at risk of seizure
Make sure that personnel at the
venue are trained in the care of a
person who is having an epileptic
seizure and able to provide care if
necessary.
If strobes are in use and a person
has a seizure, switch the strobes
off immediately.
Mount strobes as high above head
height as practicable.

USER MANUAL - MAXI MIX 4
USER MANUAL - MAXI - ASSEMBLY AND MOUNTING
MAXI MIX PSU HOLDER
INSTRUCTION
4x M3*8mm screw + spring washer + washer
Power supply xing plaque
MAXI MIX POWER SUPPLY UNIT
Attaching and securing the power supply:

USER MANUAL - MAXI MIX 5
CORNERS DIFFUSION
Remove the corners to access the diffuser.
Use the provided Allen key.
Push the spring-loaded pin to slide the diffuser out.
USER MANUAL - MAXI - ASSEMBLY AND MOUNTING

USER MANUAL - MAXI MIX 6
SIMPLE YOKE DOUBLE YOKE
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
MATERIAL: TITLE:
SCALE: SHEET 2 OF 2
A3
WEIGHT:
FACES-VIEWS-MAXI-MIX-DOUBLE
1:10
Note : All rights reserved and belong to
DMG Technologies / Lumiere. This
document is confidential and intended
solely for the use of the individual or entity
to whom they are addressed.
X
Unit : mm
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
MATERIAL: TITLE:
SCALE: SHEET 2 OF 2
A3
WEIGHT:
FACES-VIEWS-MAXI-MIX-DOUBLE
1:10
Note : All rights reserved and belong to
DMG Technologies / Lumiere. This
document is confidential and intended
solely for the use of the individual or entity
to whom they are addressed.
X
Unit : mm
The 1/4 turn locking system ensures speed with security. Using the Allen Key provided,
in a clockwise motion, you will hear a ‘CLICK’ sound, which veries the fastener is locked
in place. To unlock, repeating the same movement in an anticlockwise motion will unlock
the fastener.
WARNING - If you have not heard the fastener ‘CLICK’, this means it has not been
locked safely.
USER MANUAL - MAXI - ASSEMBLY AND MOUNTING

USER MANUAL - MAXI MIX 7
CORNER RIGGING
Protection corners are designed to enable 4-point rope hanging for specic applications.
IMPORTANT NOTICE :
This is not to be used on a double MAXI MIX or any conguration where the LINK2
and LINK4 accessories must be used for hanging.
IMPORTANT NOTICE 1:
Protection corners are not to be used for safety slings.
Always use the handle for security cables.
USER MANUAL - MAXI - ASSEMBLY AND MOUNTING

USER MANUAL - MAXI MIX 8
DMG Lumière lights or any DMX enabled light
DMX Light 1 Light 2
DMX Light 1 Light 2
Our wireless DMX is compatible with any powered devices.
Light console
LAN/DMX
LAN/DMX
WIFI
WDMXWIFI
WDMX WDMX
Light 1
Light 1
Light 2
Light 2
Light 3
Light 3
WDMX WDMX
MYMIX APP IS COMPATIBLE WITH ANY MIX CONTROLLERS.
Up to 14 MIX controllers at the same time.
DMG Lumière lights or any DMX enabled light
DMG Lumière controllers or any Wireless DMX enabled controllers
USER MANUAL - MIX CONTROLLER USAGE EXAMPLE

USER MANUAL - MAXI MIX CONTROLLER
The MAXI MIX controller has the following
communication protocols inbuilt:
Proprietary "MIX Communication Protocol" via
Bluetooth with the myMIX app, up to 14 lights
connected at the same time.
DMX 512 (with RDM) via XLR-5 or wireless
CRMX by LumenRadio (Timo FX transceiver).
ArtNet via LAN (RJ45) and WiFi.
The MAXI MIX controller is RDM enabled.
Built-in micro-USB for upgrades.
DMX 512
1325,00
140,00
522,50
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
MATERIAL: TITLE:
SCALE: SHEET 1 OF 3
A3
WEIGHT:
FACES-VIEWS-MAXI-MIX
1:5
Note : All rights reserved and belong to
DMG Technologies / Lumiere. This
document is confidential and intended
solely for the use of the individual or entity
to whom they are addressed.
X
Unit : mm

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 10
MAXI MIX CONTROLLER LOCAL USER INTERFACE
1. POWER
Turns the xture ON or OFF.
Short press: Turns ON the controls.
When ON, a short press will do a quick
blackout.
Long press: Turn OFF the controls.
5. SETTINGS
Enter the xture settings where you
can set DMX addresses and proles,
Bluetooth and Wi-Fi options, select
zones and much more.
Short press: Enter settings.
Long press: No function.
Sets the light in gel mode. In gel mode
you can set the intensity, saturation,
white base and hue of the xture.
Short press: Enter gel mode.
Long press: No function.
2. GEL
The navigation button allows you to
switch from one controllable function to
another.
Short press: Switch from one
controllable function to another.
Long press: Link or Unlink the CRMX
module (Lumen Radio chip).
6. NAVIGATION
Sets the light in white mode. In white
mode you can set the intensity, CCT and
Green/Magenta correction of the xture.
Short press: Enter white mode.
Long press: No function.
3. WHITE
Use the rotary knob to set values on
selected function, as well as to navigate
through the menus.
Short press: Change between presets
when in white, gel and color mode.
Long press: No function.
7. ROTARY KNOB
Enter the xture library. All saved presets
(white, gels, colors...) are stored here, as
well as effects and source match.
Short press: Enter the library.
Long press: Store a preset when
controlling the xture. Delete a preset
when in the library.
8. LIBRARY
Sets the light in color mode. In color mode
you can set the intensity, saturation,
white base and hue of the xture.
Short press: Enter color mode.
Long press: No function.
9. COLOR
Back button takes you one step back in
menus and locks the xture controls.
Short press: One step back in navigation.
Long press: Lock all buttons and the
rotary knob. Unlock all buttons and the
rotary knob.
10. BACK
The display shows the current settings
and other information.
4. DISPLAY SCREEN
1 2 4 5
7
63
910 8

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 11
USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 11
THE 3 OPERATING MODES: WHITE / GEL / COLOR
• WHITE MODE • GEL MODE
• Use the navigation button to go around
the screen functions in each corner of
the screen.
• Change values with the dimmer button.
Press the dimmer to access presets.
Example: Intensity has 4 presets: 25, 50,
75 and 100%.
Simple CCT mode where you can change the intensity,
CCT and Green/Magenta.
Intensity resolution: 0.1%.
CCT range and resolution: 1700k~10000k with a 50k
increment.
Green/Magenta range and resolution: full green to full
magenta (100G to 100M) with a 1G or 1M increment.
Gel selection mode where you can select any of the gels
available in the MIX (standard and saved).
Saturation and hue are available on a limited range.
Intensity resolution: 0.1%.
White base: 3200k or 5600k.
Hue range: -10°~+10° (1° increment).
Saturation range: -20%~+20% (1% increment).
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
MATERIAL: TITLE:
SCALE: SHEET 1 OF 1
A3
WEIGHT:
MEMBRANE-KEYPAD-MIX_A
2:1
Note : All rights reserved and belong to
DMG Technologies / Lumiere. This
document is confidential and intended
solely for the use of the individual or entity
to whom they are addressed.
X
Unit : mm
• COLOR MODE
Color selection mode. This mode is an HSI (Hue,
Saturation, Intensity) with the ability to select the white
base between 1700k and 10000k.
Intensity resolution: 0.1%.
CCT base: 1700k to 10000k.
Hue range: 0°~360° (1° increment).
Saturation range: 0%~100% (1% increment).

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 12
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Source match Green screen 701 N/A N/A
Source match Blue screen 702 N/A N/A
Source match Xenon Headlamp 703 N/A N/A
Source match Candle Flame 704 N/A N/A
Source match Frosty moonlight 705 N/A N/A
Source match HP Sodium 706 N/A N/A
Source match LP Sodium 707 N/A N/A
Source match Tungsten Domestic 708 N/A N/A
Source match Mercury Vapor 709 N/A N/A
Source match Sodium Vapor 710 N/A N/A
• EFFECTS FOLDER
Effects selection mode, this is where all effects are stored.
To START/STOP the effect, short press the ON/OFF button.
• SOURCE MATCHING FOLDER
Source matching selection mode, this is where all source match spectrums are stored.
This mode emulates standards and legacy sources such as Tungsten, HMI, Sodium vapor…
Intensity resolution: 0.1%.

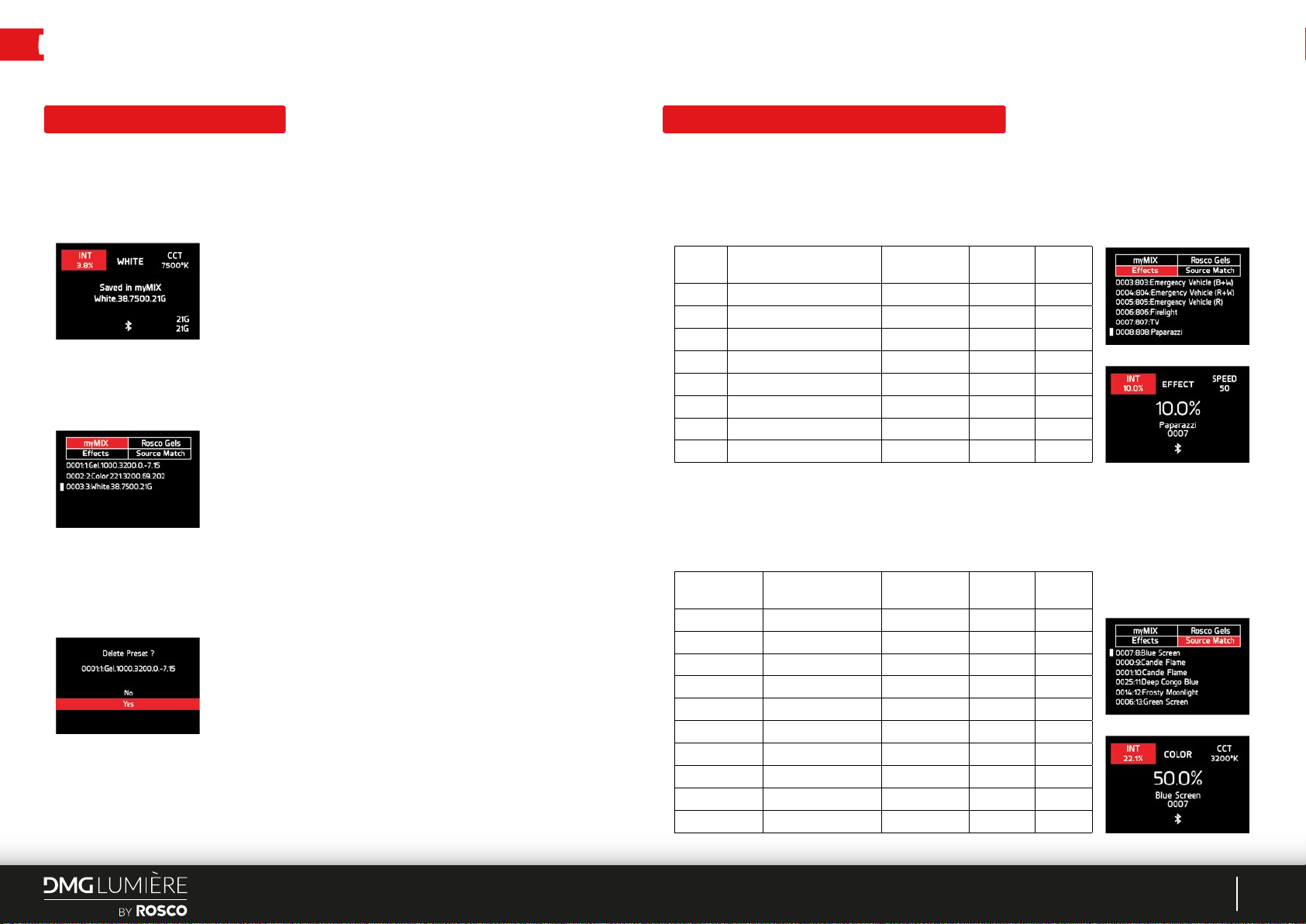

THE SAVE FUNCTION THE LIBRARY AND ITS FOLDERS
• SAVING A PRESET IN MYMIX
To save a preset in myMIX, press the LIBRARY button with a long press until you get
prompt the "SAVING PRESET" option. Presets will be saved in the myMIX section.
A maximum of 30 presets can be saved in myMIX.
• CALLING UP PRESET
To call up a preset enter the Library mode. All your saved presets are stored in myMIX.
Presets sent from the myMIX app will also be stored here.
To understand how to use the DMX call up number, go to page 10.
• DELETING A PRESET
To delete a preset, you must be in LIBRARY/myMIX with a preset selected. Hold down
the LIBRARY button with a long press, until you receive a prompt with a ‘delete’ option.
You will be asked to confirm the deletion.
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Effects Emergency vehicule B 801 N/A N/A
Effects Emergency vehicule B+R 802 N/A N/A
Effects Emergency vehicule B+W 803 N/A N/A
Effects Emergency vehicule R+W 804 N/A N/A
Effects Emergency vehicule R 805 N/A N/A
Effects Firelight 806 N/A N/A
Effects TV screen 807 N/A N/A
Effects Paparazzi 808 N/A N/A

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 13
USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 13
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Gels Medium Bastard Amber 101 04 Roscolux
Gels Pale Yellow 102 07 Roscolux
Gels Pale Amber Gold 103 09 Roscolux
Gels Straw Tint 104 13 Roscolux
Gels Flame 105 18 Roscolux
Gels Sunset Red 106 025 E-Colour
Gels Pink Carnation 107 039 E-Colour
Gels Lt Rose Purple 108 47 Roscolux
Gels Surprise Pink 109 51 Roscolux
Gels Special Lavender 110 54 Roscolux
Gels Primary Blue 111 80 Roscolux
Gels Moss Green 112 089 E-Colour
Gels Steel Blue 113 117 E-Colour
Gels Broadway Pink 114 339 Roscolux
Gels Storaro Orange 115 2002 Roscolux
Gels Storaro Cyan 116 2005 Roscolux
Gels Storaro Violet 117 2009 Roscolux
Gels medium Pink 118 036 E-Colour
Gels No Color Straw 119 06 Roscolux
Gels Pale Gold 120 08 Roscolux
Gels Straw 121 103 E-Colour
Gels Middle Rose 122 110 E-Colour
Gels Peacock Blue 123 115 E-Colour
Gels Light Blue 124 118 E-Colour
Gels Mauve 125 126 E-Colour
Gels Bright Pink 126 128 E-Colour
Gels Golden Amber 127 134 E-Colour
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Gels Apricot 128 147 E-Colour
Gels Pale Gold 129 152 E-Colour
Gels Pale Salmon 130 153 E-Colour
Gels Light Amber 131 16 Roscolux
Gels Bastard Amber 132 162 E-Colour
Gels Light Flame 133 17 Roscolux
Gels Pale Bastard Amber 134 302 Roscolux
Gels Daffodil 135 310 Roscolux
Gels Mayan Sun 136 318 Roscolux
Gels Soft Golden Amber 137 321 Roscolux
Gels Henna Sky 138 325 Roscolux
Gels No Color Pink 139 33 Roscolux
Gels Blush Pink 140 333 Roscolux
Gels Flesh Pink 141 34 Roscolux
Gels Lighter Blue 142 353 E-Colour
Gels Blue Bell 143 364 Roscolux
Gels Pale Rose Pink 144 37 Roscolux
Gels Cerulean Blue 145 375 Roscolux
Gels Bermuda Blue 146 376 Roscolux
Gels Alice Blue 147 378 Roscolux
Gels Baldassari Blue 148 381 Roscolux
Gels Skelton Exotic Sangria 149 39 Roscolux
Gels Salmon 150 41 Roscolux
Gels Middle Rose 151 44 Roscolux
Gels Daylight Blue 152 65 Roscolux
Gels Pale Yellow Green 153 87 Roscolux
Gels Light Green 154 88 Roscolux
THE LIBRARY AND ITS FOLDERS (CONTINUED)
• ROSCO GELS FOLDER
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Gels Turquoise 155 92 Roscolux
Gels Chocolate 156 99 Roscolux
Gels Rose Pink 157 002 E-Colour
Gels Lavender Tint 158 003 E-Colour
Gels Bastard Amber 159 02 Roscolux
Gels Scarlet 160 024 E-Colour
Gels Light Amber 161 102 E-Colour
Gels Light Salmon 162 109 E-Colour
Gels Fern Green 163 122 E-Colour
Gels Marine Blue 164 131 E-Colour
Gels Special Lavender 165 137 E-Colour
Gels Pale Green 166 138 E-Colour
Gels Pale Navy Blue 167 143 E-Colour
Gels Dark Steel Blue 168 174 E-Colour
Gels Light Red 169 26 Roscolux
Gels Warm Peach 170 303 Roscolux
Gels Pale Apricot 171 304 Roscolux
Gels Rose Gold 172 305 Roscolux
Gels Gallo Gold 173 316 Roscolux
Gels Pale Lavender 174 136 E-Colour
Gels Gypsy Red 175 324 Roscolux
Gels Shell Pink 176 331 Roscolux
Gels Cherry Pink 177 332 Roscolux
Gels Billington Pink 178 336 Roscolux
Gels True Pink 179 337 Roscolux
Gels Plum 180 341 E-Colour
Gels Fushia Pink 181 345 E-Colour

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 14
USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 14
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Gels Fisher Fuchsia 182 349 Roscolux
Gels Tipton Blue 183 362 Roscolux
Gels Cornower 184 366 E-Colour
Gels Winkler Blue 185 368 Roscolux
Gels Sunlight Yellow 186 765 E-Colour
Gels Lime 187 96 Roscolux
Gels Medium Purple 188 049 E-Colour
Gels Mist Blue 189 061 E-Colour
Gels Lime Green 190 088 E-Colour
Gels English Rose 191 108 E-Colour
Gels Dark Pink 192 111 E-Colour
Gels Leaf Green 193 121 E-Colour
Gels Smokey Pink 194 127 E-Colour
Gels Dark Salmon 195 008 E-Colour
Gels Summer Blue 196 140 E-Colour
Gels No Color Blue 197 144 E-Colour
Gels Bright Rose 198 148 E-Colour
Gels Pink 199 157 E-Colour
Gels Slate Blue 200 161 E-Colour
Gels Flame Red 201 164 E-Colour
Gels Daylight Blue 202 165 E-Colour
Gels Pale Red 203 166 E-Colour
Gels Deep Lavender 204 170 E-Colour
Gels Loving Amber 205 176 E-Colour
Gels Moonlight Blue 206 183 E-Colour
Gels Rosy Amber 207 193 E-Colour
Gels LCT Yellow 208 212 E-Colour
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Gels White Flame Green 209 213 E-Colour
Gels Fluorescent Green 210 219 E-Colour
Gels Soft Green 211 322 E-Colour
Gels Jade 212 323 E-Colour
Gels Follies Pink 213 328 E-Colour
Gels Violet 214 344 E-Colour
Gels Waterfront Green 215 504 E-Colour
Gels Sally Green 216 505 E-Colour
Gels Marlene 217 506 E-Colour
Gels Taragon 218 5455 E-Colour
Gels Grotto Green 219 5461 E-Colour
Gels Liberty Green 220 730 E-Colour
Gels Damp Squib 221 733 E-Colour
Gels Urban Sodium 222 652 E-Colour
Gels HI Sodium 223 651 E-Colour
Gels Industry Sodium 224 650 E-Colour
Gels Wheat 225 763 E-Colour
Gels Sun Colored Straw 226 764 E-Colour
Gels Gold Metal 227 550 E-Colour
Gels 1.5 CT Orange 228 286 E-Colour
Gels Aztec Gold 229 5336 E-Colour
Gels Bastard Pink 230 779 E-Colour
Gels Nectarine 231 776 E-Colour
Gels Cardbox Amber 232 773 E-Colour
Gels Double CTO 233 287 E-Colour
Gels Full CTS 234 441 E-Colour
Gels Half CTS 235 442 E-Colour
TYPE NAME DMX CALL
UP NUMBER
ROSCO
NUMBER
ROSCO
SERIE
Gels Quarter CTS 236 443 E-Colour
Gels Heighth CTS 237 444 E-Colour
THE LIBRARY AND ITS FOLDERS (CONTINUED)

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 15
• MYMIX FOLDER
This is your "personal" space, where you can store your favorite colors, whites, gels etc…
Any saved preset will go inside this folder -> long press of the LIBRARY button in any
modes: WHITE / GEL / COLOR / EFFECTS / SOURCE MATCH and the preset will go
automatically into the myMIX folder.
You can have a maximum of 30 presets into the myMIX folder.
This folder is retrievable into the myMIX app. With the app, you can import the myMIX
folder into your mobile device (import FAVORITES), as well as send the presets you have
on the app (send to Controller).
• BLUETOOTH: BT/OFF
BT: Bluetooth is ON, Remote Control is available via
Bluetooth and the myMIX app.
Please note that Bluetooth and WI-FI cannot be turned
on at the same time. Turning ON Bluetooth will turn off
WI-FI and vice versa.
• DMX MODE
Remote Control is available via Artnet, wired and wireless DMX.
• DIMMING CURVE
Linear: The default curve. The light outputs follow a straight line. 50% on the dimmer equals
50% of the total light, for example.
Square law: The light output shares the same pattern that the human eyes perceives.
It will feel more realistic (in terms of total light output) to the human eye compared to a
linear curve.
S Curve: Closer to traditional analog dimmers.
THE LIBRARY AND ITS FOLDERS (CONTINUED) CONTROLLER SETTINGS
Tungsten emulated (only in white mode at 3200k):tungsten emulated curve will change
the CCT from 3200k at 100%, to 1700k at 0.1%, emulating the warmer CCT of a dimmed
Tungsten light.
Level
0% 10% 20%
S
Square
Linear
30% 40% 50% 60% 70% 80% 90% 100%
Output Voltage

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 16
• ERROR CODES
• GEL SORTING
Choose how to sort Rosco gels in the library, by name, color or number.
• RDM (REMOTE DEVICE MANAGEMENT)
MIX is RDM enabled.
It allows MIX light fixtures to send data/settings back to a remote control console
(see table below).
Some settings can be changed, others cannot.
• INFORMATION
Serial Number/Firmware Version/Hour Count/Operating Temperature.
For light version :
Digit 1: LED batch number.
Digit 2: 1 = MINI ; 2 = SL1, 3 = MAXI.
• FACTORY SETTINGS
Reset to factory settings, decide to keep or not the content of the myMIX folder.
RDM table of MIX controller:
CONTROLLER SETTINGS (CONTINUED)
CATEGORY VALUE MODIFIABLE
MODEL DMG-MIX No
MANUFACTURER DMGLUMIERE (C) 2018 No
DMX START ADDRESS Example:1 Yes
DMX PERSONALITY (DMX
PROFILE) Example: White 8b Yes
DMX SLOTS Example: 4 No
LAMP HEAD TEMP Example: 50°C No
CONTROLER FIRMWARE
VERSION Example: V1.0 No
ERROR CODE DESCRIPTION
NONE No error
ERROR 1 Channel 1 is not working (open circuit, voltage diff,…)
ERROR 2 Channel 2 is not working (open circuit, voltage diff,…)
ERROR 3 Channel 3 is not working (open circuit, voltage diff,…)
ERROR 4 Global Driver Error (All channels affected)
ERROR 5 Temp sensor n°1 can’t be read
ERROR 6 Temp sensor n°2 can’t be read
ERROR 7 Mem cannot read can’t be read

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 17
• ZONE SELECTION
The MAXI has 2 independent zones. To select the zone you want to control click on «select
zone» and choose the zone you want to control.
This can also be done via the myMIX APP by pressing the 3 dots next to the MAXI MIX name.
CONTROLLER SETTINGS (CONTINUED)

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 18
COMMUNICATION PROTOCOLS: ARTNET, DMX512 AND
BLUETOOTH WITH myMIX APP
SETTING UP ARTNET, DMX AND BLUETOOTH
The MIX Controller can be operated remotely via 3 communication protocols:
• DMX 512 WIRED AND WIRELESS
DMX512isaworldwidestandardcommunicationprotocolforthefilm and enternainment
industry.
There are 2 ways to communicate DMX to the MIX controller: wired DMX (XLR 5 pin) or
Wireless DMX (Lumen Radio Timo FX RDM).
• BLUETOOTH WITH MYMIX APP
MIX can be controlled remotely via Bluetooth with the myMIX app. myMIX app can
control up to 14 controllers simultaneously.
Available on IOS and Android, see page 14.
• ARTNET
ArtNet is a communication protocol for transmitting the DMX512-A lighting control
protocol and Remote Device Management (RDM) protocol over the User Datagram
Protocol (UDP) of the Internet Protocol suite. It enables lights to be controlled over
standard internet or LAN network (via Wifi or RJ45 connector).
WARNING : In DMX mode, when DMX IN is set to WIFI, the Bluetooth (BT) is
automatically turned OFF (both WIFI and BT cannot be ON at the same time). If
you were connected with the App you will lose connection. To reconnect, turn the
Bluetooth back on BT.
• DMX MODE OVERVIEW
• LINKING AND UNLINKING CRMX
• To link receivers when sending CRMX, press the NAVIGATION button for 3 seconds
(long press) while the data OUT box is selected (when it is red).
• To unlink receivers when sending CRMX, press the NAVIGATION button for 3 seconds
(long press) while the data OUT box is NOT selected (when it is NOT red).
• To unlink CMRX when in receiving mode, press the NAVIGATION button for 3 seconds
(long press) while the data IN box is selected (when it is red).
Select input:
• XLR.
• CMRX (wireless DMX by
Lumen Radio).
• LAN (Art-Net).
Select your prole from the
7 proles available (refer to
user manual for details on the
proles).
Make sure DMX is enabled.
This is a basic security so local
users cannot change to another
mode while a board-op is
operating the light via DMX.
Select your DMX start address.
Select output:
• XLR.
• CMRX (if input is CMRX you
cannot output in CMRX).
• None. Status of DMX in and out.
To use the MAXI MIX in ArtNet or DMX, go to SETTINGS\
DMX MODE. If you have plugged in a DMX cable, the light
will go to DMX mode automatically.

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 19
DMX PROFILES
IMPORTANT INFORMATION:
In profile 3 and 10, only gel memories can be selected.
In profiles 4, 5, 11 ad 12, if the memory called is 000, then user has control of the selected
function.
Example: if 000 memory is called, then one can use the HUE and SAT mode as on the
controller.
SETTING UP DMX AND BLUETOOTH (CONTINUED)
Bluetooth is ON when set to BT. Bluetooth symbol should show
in white/color/gel.
On the myMIX APP
the light’s name will
be the light’s serial
number.
• SETTING UP ARTNET
If you connect to the controller with Wi-Fi, connect to the Wi-Fi network that has the
same name as the controler’s serail number (ex: MIX-1906-0001).
Use the following password: dmglumiere
On the controls: Controller Settings / DMX Mode / Input WIFI or LAN – the controller is
ready to receive the ArtNet Protocol.
In ArtNet, you need to broadcast to 2.255.255.255. Subnet 0, universe 0.
• SETTING UP BLUETOOTH WITH MYMIX APP
To use the MIX in Bluetooth make sure Bluetooth is set to BT in the settings menu:
• SETTING UP DMX (WIRED AND WIRELESS)
Input XLR or CRMX (wireless DMX by Lumen Radio).
Set up the address (check DMX profiles table to enter correct addessing system).
Enable DMX.
In the library, each preset, gel, source match and effect have a 3-digit DMX number
attached to it.
Each DMX digit can be called, using 3 channels.
DMX call up table as below:
0~99: myMIX.
100~699: gels.
700~799: source match.
800~899: effects.
900~999: free space.
Example:
If you would like to call up the GEL ‘Mauve’, which has a DMX number of 125 (displayed in
the LIBRARY and in the myMIX app).
Use the 3 channels dedicated to calling up a preset in your DMX setup:
Channel 1 (hundreds): 0 – 10%= 1.
Channel 2 (tens): 20% - 29%= 2.
Channel 3 (singles): 50% - 59%= 5.
You can then call the preset 125, or «Mauve».
Refer to the table on page 7 or in the myMIX app.
• SETTING UP T AND R MODE
When 2 MAXIs or more are linked together wtih Link2 and 4, you can control all of them
from on single user interface. To do so, put the controlling MAXI in DATA OUT: T mode
and the receiving MAXIs in DATA IN R mode.
MAXIs need to be lined via XLR in order to do this.
Everything done on the transmitting side will be mimiced on the receiving side.
You can also control the transmitter via myMIX, allow for an «innite» number of MAXIs
to be controlled remotly.

USER MANUAL - MAXI MIX CONTROLLER
USER MANUAL - MAXI MIX CONTROLLER 20
DMX PROFILES (CONTINUED)
#PROFILE NAME PROFILE DESCRIPTION CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7
1White mode (same
as local) White 8 bits Dimming CCT Green/Magenta
2Color mode (same
as local) Color 8 bits Dimming
White base color
(0~127=3200k
128~255=5600k)
Hue (2° steps) Saturation
3Gel mode (same as
local) Gel 8 bits Dimming mem # hundreds mem # tens mem # singles
White base gel
(0~127=3200k
128~255=5600k)
Hue gel
(-10/+10 256/20=
number of steps)**
Saturation gel
(-20/+20 256/40=
number of steps)**
#PROFILE NAME PROFILE DESCRIPTION CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7
4All modes in one
prole 8bits Pro 8 bits Dimming mem # hundreds mem # tens mem # singles
CCT (white base for
White mode and Color
mode)
Green/Magenta for
White mode Hue (2°)
5All modes in one
prole 16bits Pro 16 bits Dimming Coarse Dimming Fine mem # hundreds mem # tens mem # singles
CCT (white base for
White mode and Color
mode)
Green/Magenta for
white mode
6Individual control of
each LED Full 8 bits Dimming CCT base G/M Saturation (cross fade from CCT to a color mix) Red Green Blue
7Individual control of
each LED Full 16 bits Dimming Coarse Dimming Fine CCT base G/M Saturation (cross fade from CCT to a color mix) Red Green
Three basic DMX Profiles replicating the local modes: White/Color/Gel
Four Pro DMX Profiles for ultimate control
Four Pro DMX Profiles for ultimate control (continued)
*Control Channel: see p22.
# CHANNEL 8 CHANNEL 9 CHANNEL 10 CHANNEL 11 CHANNEL 12 CHANNEL 13 CHANNEL 14 CHANNEL 15 CHANNEL 16 CHANNEL 17 CHANNEL 18 CHANNEL 19 CHANNEL 20
4Saturation
color 0-100%
White base gel
(0~127=3200°K
128~255=5600°K)
Hue gel
(-10/+10 256/20
= number of steps)
Saturation gel
(-20/+20 256/40
= number of steps)
Effects SPEED x position y position Strobe
channel
Control
channel
5Hue (coarse) Hue (ne) Saturation color
0-100%
White base gel
(0~127=3200°K
128~255=5600°K)
Hue gel
(-10/+10 256/20=
number of steps)**
Saturation gel
(-20/+20 256/40=
number of steps)**
Effects
SPEED
x position
coarse
x postion
ne
y position
coarse
y postion
ne
Strobe
channel
Control
channel
6White Amber Lime Strob channel Control channel
7Blue White Amber Lime Strob channel Control channel
