Rosco RoscoLED VariWhite Gaffer Kit User manual

PLEASE READ & SAVE THESE ORIGINAL INSTRUCTIONS
User Guide
RoscoLED® Tape
VariWhite Gaffer Kit
www.rosco.com
Specifications
Part No.: 2932200BICLR – RoscoLED VariWhite Gaffer Kit
External Dimensions: 14” L x 12” W x 5.4” H
(35.6 cm L x 30.5 cm W X 13.7 cm H)
Weight: 8 lb (3.6 kg)

TABLE OF CONTENTS
Introduction......................................................................................................................................... 3
Important Safeguards .................................................................................................................... 3-5
Unpacking ............................................................................................................................................ 6
Connecting RoscoLED Tape............................................................................................................. 7
Troubleshooting ................................................................................................................................10
Specifications ....................................................................................................................................11
Warranty ........................................................................................................................................... 12
Information and specifications in this document are subject to change without notice.
Rosco assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
RoscoLED VariWhite Gaer Kit User Guide v1 Copyright ©2018 by Rosco
User Guide
2

INTRODUCTION
Congratulations on your purchase of a RoscoLED Gaffer Kit.
Designed to meet the needs of today’s Chief Lighting Technicians and Cinematographers, the RoscoLED
VariWhite Gaffer Kit provides a quick and versatile solution for the most challenging lighting situations.
Combining durable color-correct and tunable LED strips and tiles with simple plug-and-play connections
offers filmmakers fast, easy set-up that minimizes downtime between takes.
To ensure efficient and safe operation, please take a few moments to read this manual completely.
IMPORTANT SAFEGUARDS
The symbols below are used throughout this manual to identify important safety information. Heed all
warnings and safety info on.
Warning, Danger or Caution
Risk of Personal Injury
Risk of Electric Shock
Risk of severe electric shock
3

PREVENTING ELECTRIC SHOCK
• This machine uses mains electrical power at 100-240VAC. When directly contacted, such voltages are
hazardous to human life. Follow all local electrical codes and take precautions when using this product.
• This product is designed to operate from three-wire power systems, where one of the wires is a safety
ground. DO NOT disconnect the safety ground, or use extension cords or adapter plugs to connect this
machine to a two-wire system. Operation without a safety ground may result in hazardous electrical shock.
• Use only extension cords that are of appropriate length and are rated for the Power Adapter’s specified
voltage and current. If an extension cord shows signs of wear or gets warm to the touch, discontinue its
use and obtain a cord with a higher current rating. Improper extension cords are hazardous and may result
in poor performance due to excessive voltage drop.
• Disconnect unit from power source before servicing and when not in use.
4

MAINTAINING SAFE OPERATION
• Use only Rosco spare parts and accessories so as to not void the system warranty.
• RoscoLED DMX Controllers must only be serviced by a qualified technician.
• RoscoLED Gaffer Kits are not intended for residential use. Use only in a professional studio or mobile video
environment.
• RoscoLED Gaffer Kits are IP43 rated – for indoor use only.
• RoscoLED Gaffer Kits are not certified for use in hazardous locations.
• RoscoLED Gaffer Kits are designed for operation within the range of - 22° to 122°F (-30° to +50°C).
• Ensure Gaffer Kits are stored within the range of -40° to 176°F (-40° to +80°C).
5

UNPACKING
Carefully unlatch the lid of your RoscoLED Gaffer Kit and familiarize yourself with the contents.
Do not attempt to operate your RoscoLED Gaffer Kit if there are any signs of physical damage. In case of
damage, contact your local Rosco dealer.
Your RoscoLED Gaffer Kit will arrive with all components detached from the power supply and controllers.
Refer to the diagrams below before connecting to AC Mains power.

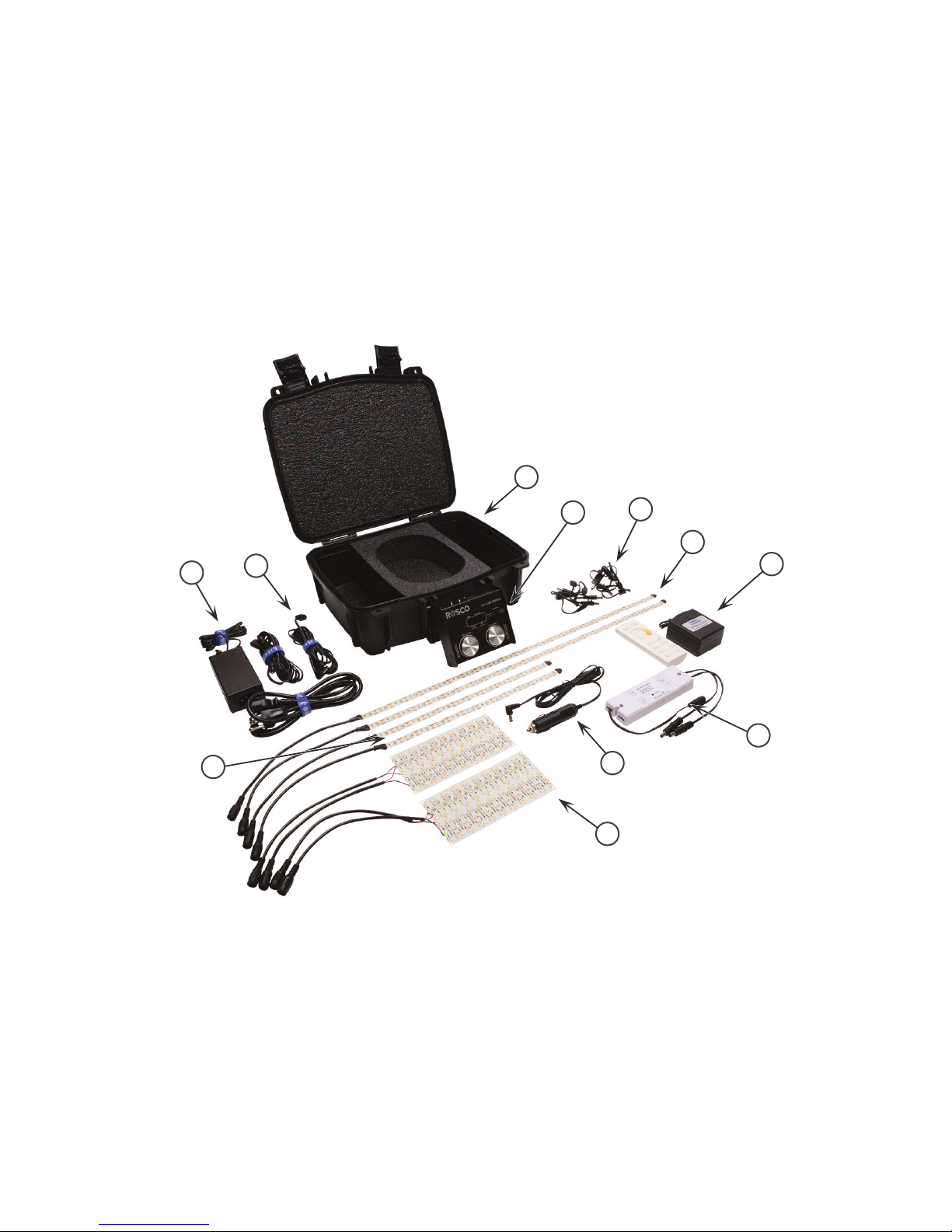

Item Qty Description Rosco Part No.
1 (2) 12” strips of 12V RoscoLED VariWhiteTape (3000K - 5600K) 29322120BI12
2 (2) 24” strips of 12V RoscoLED VariWhite Tape (3000K - 5600K) 29322120BI24
3 (2) 3” x 6” RoscoLED VariWhite Tiles, 12V (3000K - 5600K) 29322120BI36
4 (2) 10-ft extension cables 290637510000
5 (2) 4-Way splitter cable 290637300000
6 (1) 3A Power adapter: 100-240VAC In / 12VDC Out 290635030120
7 (1) AA Battery Holder 290636510812
8 (1) Car Adapter 290636000000
9 (1) 2 Channel DMX Dimmer 293222610003
10 (1) RF PWM Remote Controller 293222630001
11 (1) Durable Sentinel 912 Carrying Case 293220001001
6

4
6
11
3
9
8
2
7
1
5
10
7

CONNECTING THE ROSCOLED TAPE
Every component in the RoscoLED Gaffer Kit is designed for quick and easy configuration using 2.1mm
diameter barrel connections. Each connector has a Male or Female gender, so there is no possibility of an
incorrect connection.
The RoscoLED Tape in your Gaffer Kit requires 12VDC input. Always use the Rosco supplied Power Adapter
or alternate AA battery or Car Adapter to avoid damage to the system components and voiding the warranty.
RoscoLED VariWhite Tape uses two sets of Warm/Cool LED’s, requiring two channels of control. Your
RoscoLED Gaffer Kit offers two control options, each with outputs for 2 channels:
• 2 Channel CCT/DMX Controller – use in Manual/Stand-Alone mode or DMX mode to adjust
Color Temperature and Output settings.
• 2 Channel RF Remote Controller – wireless control of your RoscoLED Tape using the convenient
handheld Transmitter.
Refer to the User Manuals for operation of these two controllers.
8

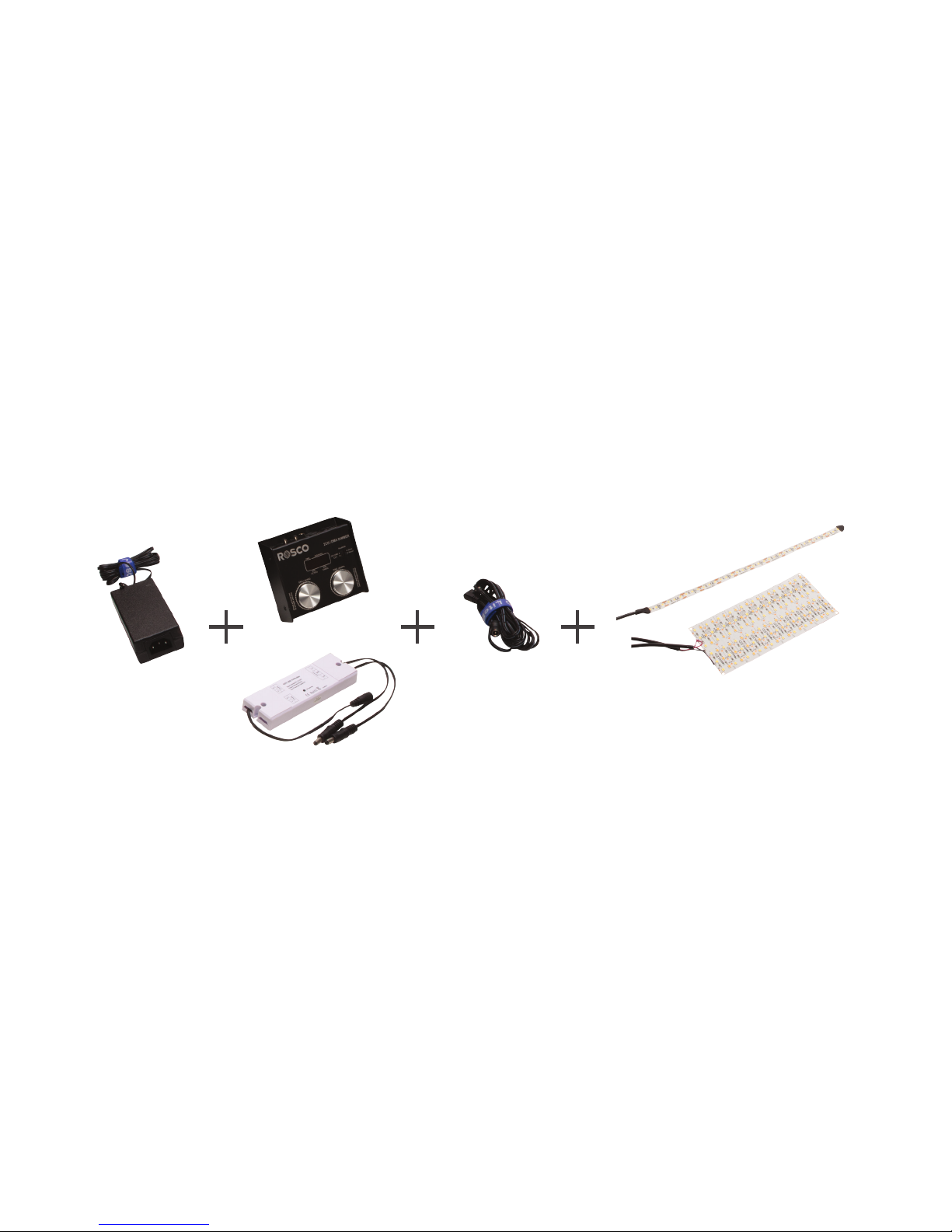

Basic Configuration:
Power Supply Controller
(DMX or RF Remote)
Extension Cables
(Optional)
RoscoLED Tape
(Strips or Tiles)
or
9

TROUBLESHOOTING
SYMPTOM
Tape/Tile will not
illuminate in Manual
Stand-Alone mode
Tape/Tile will not
illuminate in DMX mode
POSSIBLE CAUSE
Barrel Connections incomplete
Not plugged into AC Mains
Batteries charge depleted
CCT/DMX Controller set to DMX
mode
CCT/DMX Controller set to CCT
mode
DMX cable connections are not
secure
Incorrect DMX address
No DMX signal
SOLUTION
Check all connections
Check AC Mains connection
Check battery charge or replace
Confirm Controller is set to Manual
mode
Confirm Controller is set to DMX
mode
Check all DMX cable connections
Confirm DMX address
Confirm DMX console is powered
on and outputting signal
10

SPECIFICATIONS
LED Configuration: 3 emitters/inch
Heat Sink: 3 oz Copper
Lumen Output: 38 lm/in (1500 lm/m)
Color Temp. Range: 3000K – 5600K
CRI: 93
TLCI: 92
Voltage: 12VDC
Power Consumption:
12” VariWhite Strips = 5.8W/0.48A
24” VariWhite Strip = 11.6W/0.96A
3”x6” VariWhite Tiles = 19.2W/1.6A
IP Rating:
Strips: IP67 for use indoors and outdoors
Tiles: IP43 for indoor use only
External Dimensions: 14” L x 12” W x 5.4” H
(35.6 cm L x 30.5 cm W X 13.7 cm H)
Weight: 8 lbs (3.6 kg)
11

1-YEAR LIMITED WARRANTY
Rosco Laboratories warrants to the first retail purchaser that this Product will be free from defects in
workmanship and material for a period of 12 months from the date of original purchase.
For warranty service you must be able to provide proof of purchase. Should this Product prove defective
during the warranty period, please contact your local Rosco office for Return Authorization. No warranty
service will be performed without Return Authorization.
At Rosco’s sole discretion, covered Products will be repaired or replaced with new or refurbished equipment
or a model of like kind and quality. Exchanged or replaced parts and Products assume the remaining warranty
period of the original product covered by this limited warranty. You are responsible for securely packaging
the defective Product and returning it to Rosco as per the instructions of the Return Authorization. Within
North America, Rosco will ship the repaired or replaced Product to you freight prepaid. Shipments to other
locations will be made freight collect.
This warranty is non-transferable and does not extend beyond the first retail purchase of the Product.
This warranty does not cover damage to the Rosco Product caused by parts not manufactured, distributed or
certified by Rosco.
Rosco is not obligated to provide warranty service should the Product fail to be properly maintained or fail
to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage
caused by disasters such as flood, fire and lightning.
12
