Introduction and Display Overview
Introduction and Display Overview
Welcome to the 1710 Technical Manual for the 17" Fold Down
LCDDisplay.Thismanual providesanoverviewof display
detailsincluding:
• Pinouts
• Installation
• Operation
• Troubleshooting
• Specifications
The1710 model includesthefollowingfeatures:
• 17"DiagonalViewingArea
• NTSC / PAL / SECAM / RS-170 (B&W) and RGB
Inputs
• RGBCompatible(VGA-SXGA)
• 1280x1024ScreenResolution (SXGA)
• OnScreen Display(OSD) functions
• Picture in Picture (PIP)
• 28Volt DCPower Operation
The1710modelaccommodatesthe followingoptional
controllers(sold separately):
• IRRemoteCodesAvailable
• External7-ButtonController

Page 4 Rosen Aviation Displays
Pinout descriptions are provided to assist in the wiring
process. Pay close attention to the pinout information while
completingwiring connections.
Main Interface Connector
The input connector on this monitor is a 21WA4 Male Combo
D-subminiature with 17 size 20 contacts (standard density D-
sub) and four Size 8 coaxial contacts, mounting in a size 4 D-
subminiatureshell.The followingtableprovides detailedpinout
informationfor themaininterface connector.
Matingconnector (included):RosenConnector Kit0300-030
Pinouts
MATINGCONNECTORLOADINGVIEW
Pinouts
Pin Control Signal
Warning!
This display is for entertainment
purposes only! Connect to noncritical
power bus.
1 28V Return
2 +28V
3 N/C
4 N/C
5 N/C
6 RGB/Video Select Switch (TTL)
7 Status Output (TTL)
8 HSync
9 VSync
10 28V Return
11 +28V
12 N/C

17” Fold Down Page 5
Pinouts
Main Interface Connector Pinouts Continued:
13 Computer Sync Ground
14 N/C
15 N/C
16 N/C
17 N/C
A1-signal Red
A1-shield Red Return
A2-signal Green
A2-shield Green Return
A3-signal Blue
A3-shield Blue Return
A4-signal Composite Video
A4-shield Composite Video Return
Back Shell Chassis Ground
Pin Control Signal
Optional External Control Connector
Theoptional externalcontroller interfaceisa9-pinstandard
densityD-subminiature maleconnector(part number0300-
402).For permanentinstallation, connectorkit 0300-031is
requiredin additionto interfacewith theexternal control
connector latch system.
Pin Control Signal
1 Power On/Off
2 Source Select - Locked Out
3 N/C
4Up
5 Down
6 Menu/Select
7 Left
8 Right
9 Ground (Common)

Page 6 Rosen Aviation Displays
Installation Guidelines
Installation Guidelines
Thefollowing instructionsanddrawings areprovided toassist
the installation process for your 17” Fold Down. Pay close
attentionto dimensionswhen consideringinstallation
requirements.
Note: The dimensions are listed in inches.
Shipped Contents:
•MonitorAssembly
•ConnectorKit0300-030
Installation Preparation:
Shroud Removal
Remove the display assembly and set it flat on its back as
shownin thephoto below:
Note: It is EXTREMELYIMPORTANTto set the assembly on
something such that the weight rests on the frame and not on
the plastic.
Restingon theFrame Not the Plastic

17” Fold Down Page 7
Installation Guidelines
Openthe displaytoits fully-openposition (about160 degrees),
and then turn it on its side (or turn it over) to press out the (2)
pine tree clips where shown below. Save the clips for
reassembly.
Leave the display opened, set the assembly on its back, and
removethe (4)8-32 x 3/8socket-head capscrews (4)corner
locations(see below).Save thescrews for reassembly.
Note: It is EXTREMELYIMPORTANTto set the assembly on
something such that the weight rests on the frame and not on
the plastic.
clip locations

Page 8 Rosen Aviation Displays
Release the clip features by pulling back on the hinge region
oftheshroud whereshownbelow.
With the display still in its fully-opened position, carefully lift
the shroud off of the frame assembly. Pull back with your
fingers to release the doghouse clips, and lift as shown in the
photo below. Do not stress the outer edge of the enclosure, lift
onlyas shownbelow.
WARNING!Do notforce theshroudon oroff theframe
assembly. This delicate piece of plastic must be handled with
extremecare.

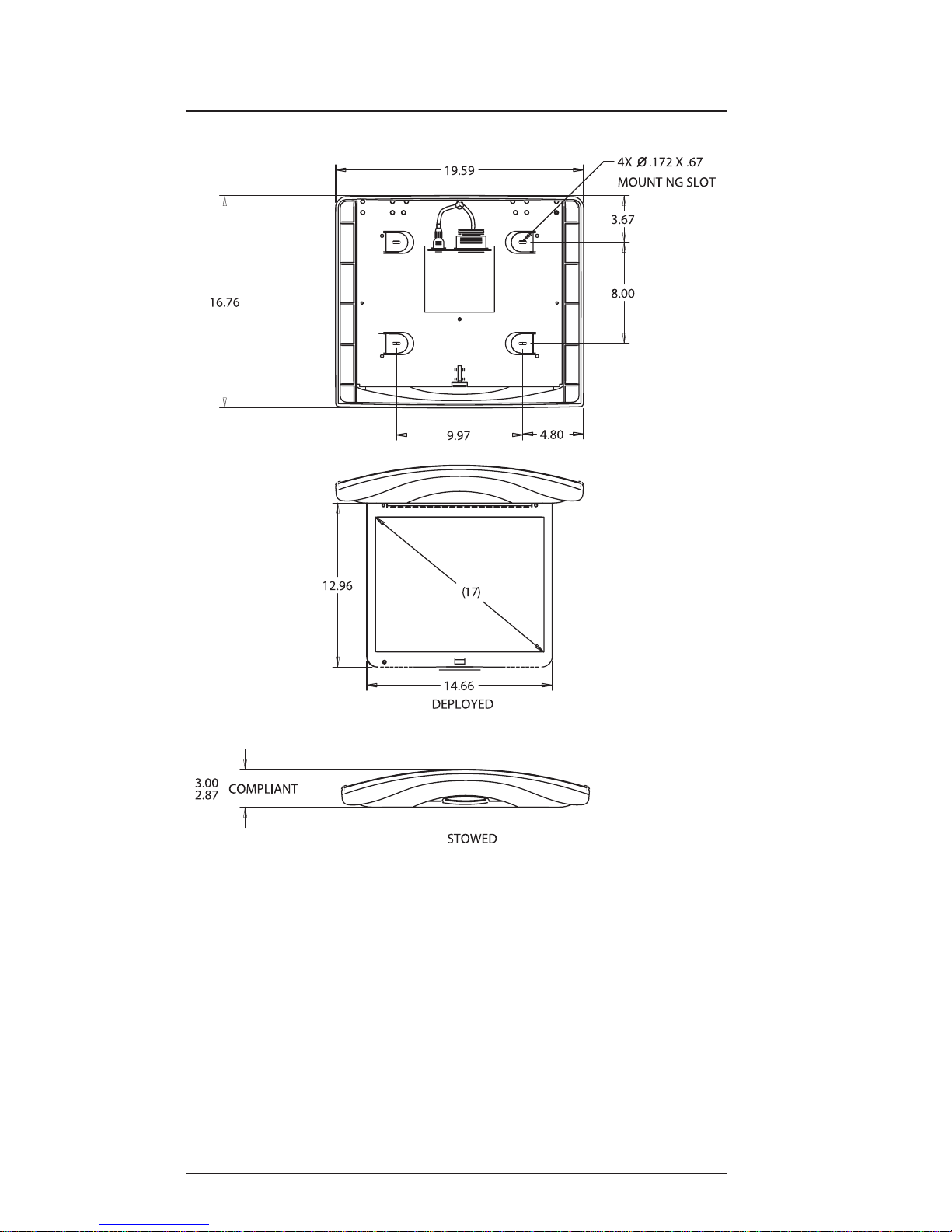

Use the following drawings to assist in mounting the 17” Fold
Downassembly.
Note: Ensure that the connecting harness from the aircraft will
be accessible to plug into after the assembly is mounted.
Installation Guidelines

17” Fold Down Page 9
Thefollowingdrawingsare alsoavailablethroughRosen’s
websiteatwww.rosenaviation.com.
Listed dimensions are in inches.
Installation Guidelines

Page 10 Rosen Aviation Displays
Installation Guidelines

17” Fold Down Page 11
SupportHere
Openthe display toits fully-openedposition. Carefully place
the shroud back onto the frame assembly by pressing it gently
into place. Press only as shown in the photo below; support
theshroud withone handand pressthe hingecover
“doghouse”onto the assembly. Ensure thatall ofthe doghouse
clips snap into place.
Reinsertthe(2) Pine Treeclips.
Replace the (4) 8-32 x 3/8 socket-head cap screws.
Once the assembly has been mounted, plug in the harness
and engage the side latch.
Installation Guidelines
GentlyPress DoghouseHere

Page 12 Rosen Aviation Displays
Adjusting the Rotation Stop:
The rotation stop may be adjusted to any position from 135
degrees to 180 degrees from stowed. It may be necessary to
adjust the rotation stop such that the display does not open
far enough to make contact with an obstruction.
There are two 6-32 socket head cap screws that need to be
loosened to adjust the rotation stop; one at each end of the
hinge (see photo below). Open the Fold Down to its fully-
openedposition (orasfar aspossible perobstruction), loosen
the two 6-32 socket head cap screws, position the Fold Down
tothe desiredrotation-stop locationand retightenthe6-32
screws (torque to approximately 9 inch/lbs).
Note: Use a 7/64” Hex Key to loosen and tighten the 6-32
socket head cap screws.
Installation Guidelines

17” Fold Down Page 13
Operation
Operation
To switch to different main menus (OSD, Utility,Auto)
use the 34 buttons on the switch panel.
To highlight a submenu use the 6button on the
switchpanel. Whensubmenus arehighlighteduse
the 34buttons to adjust up or down.
Toreturn tothe mainmenu highlight returnin
submenu and use the4button onthe switch panel.
To exit main menu use 4button until exit is
highlightedand thenpress themenu button.
Note:It takes 5 seconds for changes to be stored into memory
On Screen Display (OSD) Main Menu
TheOn ScreenDisplay(OSD) providesa setof menusthat
enableyou toadjust orview monitorfeatures. Mainmenu
selections lead to submenus with additional choices. Press
the menu button on the switch panel to see the main menu.
This Display turns on automatically when the Fold Down is in
its opened position, and turns off automatically when the
display is stowed.
Thedisplayauto-detects an RGBsignal when anRGB signal
is connected to the monitor by detecting the presence of the
Hsync signal (pin 8 of the 21WA4 connector). If no RGB
signal is detected, the display automatically switches to
compositevideo inputwhether avideo signalispresent ornot.
The Source button on the optional controller will be locked out.
MainMenu
Submenus

Page 14 Rosen Aviation Displays
Picture Submenu
Menu Option Description
Brightness Picture Brightness
Contrast Picture Contrast
Phase Removes Noise in RGB Mode.
Frequency Adjusts the Picture Width in RGB
Mode
H Position Horizontal PositionAdjustment
V Position Vertical Position Adjustment
Sharpness Picture Sharpness
Return Returns to Main Menu
Operation
OSD Submenu
Menu Option Description
H Position OSD Horizontal Position
V Position OSD Vertical Position
OSDTime Out Time in Which OSD Turns Off if
Left Alone
Return Returns to Main Menu
Note: Phase, Frequency, H Position, and V Position only
appearin RGB Mode.

17” Fold Down Page 15
Auto Automatically Adjusts Image Size
in RGB Mode
Exit Exits OSD
Utility Submenu
Menu Option Description
FreezeFrame Freezes Picture Frame
Reset Factory Reset to Default Settings
ColorTemperature Color Adjustment in RGB
Mode Only
Information Monitor Info
Return Returns to Main Menu
Operation
Auto Submenu
Menu Option Description
Exit Submenu
Menu Option Description
HotKeys
Hot keys are a quick way of adjusting brightness,
contrast, PIP, and the scaling modes.To activate the
hot keys simply use the 56buttons on the switch
panel to cycle through these modes.
Scaling mode: The scaling mode will adjust the
picturedepending onthe type offormatted DVDdisc
you are using.
Note: If picture looks stretched, adjust the scaling mode.
Picture in Picture: The small screen in the upper left
hand corner will display composite video when in RGB
mode.

Page 16 Rosen Aviation Displays
Troubleshooting
Troubleshooting
Ifthe monitordoes notfunction properly,referto thefollowing
troubleshootingtable forsymptoms andpossible solutions
beforecontacting Rosenfieldsupport.
Note:Always use an oscilloscope to verify the video signal.
Always use a multimeter to verify voltages. Check actual
results against the requirements described in this manual.
No Video • Verify that the video source is on and has a
tape or DVD installed.
• Verify that a signal is reaching the monitor
using an oscilloscope or another monitor.
• Verify that the monitor is turned on.
• Verify that the pinout is correct.
• Verify that the videoinput (Analog RGB/
Composite)and video standard(NTSC/PAL/
SECAM)match your application.
Screen is Black • Verify that the monitor is receiving power.
• Verify that the pinoutis correct.
• Verify that the video source is on and has a tape
orDVD installed.
• Verifyall connections.
Screen is Blue • Verify that a signal is reaching the monitor
using an oscilloscope or another monitor.
• Verify that the pinout is correct.
• Verify that the video source is on and has a tape
or DVD installed.
Color is Out of • Refer to the Utility Submenu on page 15.
Adjustment
Problem Possible Solutions

17” Fold Down Page 17
Problem Possible Solutions
Image Flickers • Verify that the signal cable is secure.
• Verify that the vertical frame frequency is 75 Hz
or less. If using the monitor with a PC in
Windows, change the Display Control Panel to
60 Hz to achieve the best performance.
Image is • Verify pinouts.
• Verify that a signal is reaching the monitor
using an oscilloscope or another monitor.
• Examine the monitor for pinched or damaged
cables.
Troubleshooting
Technical Support
For technical support or to order parts, contact
RosenAviationDisplaysat:888-668-4955
orvisit usat:www.rosenaviation.com
Cleaning Display
TheLCD should becleaned with alens gradetissue for
cleaningoptical surfacesand isopropylalcohol.
distorted
The Display’s external plastic surfaces may be
damagedby certainharsh,abrasive orstaining
chemicals.Avoid exposure to such chemicals.
Should an external surface be exposed to such
chemicals, promptly clean the surface with a sponge
andsoapy water.

Page 18 Rosen Aviation Displays
Specifications
Specifications
LCDPerformance
ScreenResolution (pixels) 1280 w x 1024 h
DisplayViewingArea 337.9x270.3mm
(13.30x 10.64inches)
ViewingAngle
Horizontal ±80º min, ±85º Typical
Vertical ±80º min, ±85º Typical
ContrastRatio 400:1 min,500:1Typical
BacklightLampLife(hours) 50,000
ScreenBrightness 200 cd/m2 min,250Typical
MechanicalPackaging
Weight 14.4 lbs ± 5%
PowerRequirements 28V DC 40W max.
VideoPerformance
VideoStandards NTSC,PAL, SECAM,RS-170
GraphicsStandards VGA, SVGA,XGA, SXGA
(75 Hz max)
Videoinput 1V peak-to-peak,75 Ohms
OperatingTemperature 0ºC- 50ºC
Warranty 2yr
DO-160Testing
This monitor is compliant with and has been tested to
applicableDO-160Dstandards. Forspecificinformation
contacta RosenCustomerService Representativeat
1.888.668.4955.

17” Fold Down Page 19
Disclaimer
Disclaimer
All information, including illustrations, is believed to be reliable. Users and/
or installers, however, should independently evaluate the suitability of
each product for their application. Rosen makes no warranties as to the
accuracy or completeness of the information, and disclaims any liability
regarding its use or installation. Rosen’s only obligations are those in the
Rosen Standard Terms and Conditions of Sales for this product, and in no
case will Rosen be liable for any incidental, indirect or consequential
damages arising from the sale, resale, use or misuse of the product.
Specifications are subject to change without notice. Rosen reserves the
right to make changes - without notification to buyer - to materials or
processing that do not affect compliance with any applicable
specifications.
