ROSSO MOTORS COBRA User manual

ROSSO COBRA
ELECTRIC FOLDING
KICKSTAND SCOOTER
OWNERS MANUAL - EN
PRIOR TO FIRST USE, READ THIS MANUAL COMPLETELY AND ATTENTIVELY! IMPERATIVELY FOLLOW THE SAFETY INSTRUCTIONS!
NONOBSERVANCE CAN LEAD TO PERILOUS INJURIES! CAREFULLY KEEP THIS MANUAL!

PLEASE INSPECT YOUR COBRA UPON ARRIVAL AND REPORT ANY
DAMAGES THAT MAY HAVE OCCURRED DURING SHIPPING
⚠
WARNING: Riding an electric scooter can be dangerous. Like other electric
products, electric scooters can and are intended to move, and it is
therefore possible to lose control, fall off and/or get into dangerous
situations that no amount of care, instruction or expertise can eliminate. If
such things occur you can be seriously injured or die, even when using
safety equipment and other precautions.
This product does not conform to Federal Motor Vehicle Standards and is not
intended for operation on public streets, roads or highways. Serious injury
can result from the unsafe operations of this product. Operators can
minimize these risks by using safety equipment. Always wear a helmet and
appropriate footwear and obey local laws.
⚠
This product is not intended for extreme or off-road use! Do not perform
jumps or tricks with this scooter it MAY result in accidental damage to the
scooter and/or rider. Do not ride in wet/icy conditions.
TABLE OF CONTENTS
SAFETY GUIDE 3
ASSEMBLY 4
SCOOTER COMPONENTS 8
OPERATING YOUR SCOOTER 9
MAINTENANCE & CARE 11
TROUBLESHOOTING 15
WARRANTY INFORMATION 16
2

SAFETY GUIDE
The recommended minimum age for riding this scooter is 8 years old. NEVER
allow children to operate the scooter without adult supervision.
This scooter is designed for 1 person only with a recommended weight limit of
200lbs (90kg). To avoid damage to the motor and footboard, do not overload
the scooter.
The user of this product assumes ALL risks (to themselves and those around
them) associated with its use. To minimize personal risk, the rider must always
wear a helmet and appropriate footwear, and can wear other safety gear such
as goggles, gloves, elbow and knee pads. Persons unwilling or unable to take
responsibility for their own actions should not use this product.
Avoid operating if you have difficulty with vision, balance, coordination, reflex,
muscle or bone strength. Never operate the scooter while under the influence
of drugs or alcohol.
Keep hands, face, feet and hair away from all moving parts. Do not touch the
motor or wheels while they are rotating.
Brakes are designed to control speed as well as stop the scooter. Practice
braking for proper slowing down and smooth stops. Apply brakes while traveling
downhill to control your speed. Avoid unintentional starts by turning the
scooter off while not in use.
This product is electric, avoid riding in wet conditions, puddles or rainy
weather or cleaning with hoses or pressure washers.
Maintain your scooter as recommended in this manual. Inspect your scooter
thoroughly before each use for loose or missing parts. Replace any part that is
cracked, chipped or damaged before use. Use only quality replacement parts
designed for your scooter.
To avoid damage to the battery, do not use the charger if it has been damaged.
Do not place the battery near fire or heat in any way. Always follow
recommended battery care instructions. (See page #11)
3

ASSEMBLY
Your Rosso Cobra requires minimum assembly. Please follow the instructions
below in order to get your scooter assembled properly. We recommend
thoroughly checking saving shipping packaging until the scooter is completed to
avoid accidentally disposing of hardware or components.
Please ensure the following pieces are include with your scooter in the box:
Charger Fuses
Seat Seat Post w/clamp
Tool Kit
*Actual tools included vary*
4

1 - Front Wheel
Carefully remove the scooter from the box. To install the wheel, remove the
axle nut then move the wheel into place with the brake disc slotted in between
the brake pads of the caliper. Replace the bolt, adding spacers on either side of
the wheel, then secure the axle nut back into place. NOTE: Shorter spacer (s)
on the side closest to the brake caliper and longer spacer (l) on the opposite.
2 - Handlebars
Begin by unfolding the scooter, by pressing down on the FOLDING HANDLE with
one hand while gently pulling up on the handlebars with the other. Fully extend
the handlebars to their upright position until you feel the locking mechanism
click into place.
5

Adjust the silver clamp at the top of the handlebar post. Be sure to orient the
bars in the correct riding position with the throttle on the rider’s right side.
Remove the nut from the front bolt, slip the headlight bracket over the bolt
and replace the nut. Secure the handlebars to the post by tightening the bolts
on the clamp with the enclosed Allen wrench as shown.
Adjust the hand brakes in place by using the provided Allen Wrench to first
loosen the tension bolts. Shift the levers to a comfortable position and
retighten the bolts. NOTE: Be careful not to pull on the wire while securing the
handlebars and brake levers
3 - Fuse
Release the locking tabs on the both undersides of the footboard and lift it as
shown. Located and open the fuse holder, insert the included 30 amp fuse into
the fuse holder and then reclose the holder. Lower the footboard back into
position and secure it with the locking tabs.
6

4 - Seat
Insert the seat post into the seat post receiver. Carefully lay the scooter on its
side and insert the bolt into the post holder on the bottom of the frame,
making sure to tighten the bolt.
Ensure the silver locking clamp is in place at the top of the seat post as shown.
Pull out the upper portion of the seat post to the desired height and tighten
the lock clamp securely. Attach the seat to the upper seat post and tighten the
seat bolts securely.
Your Cobra scooter should now be fully assembled. Your Cobra does not
come fully charged and it is recommended to do so before your first use.
See page #9 for charging instructions.
7

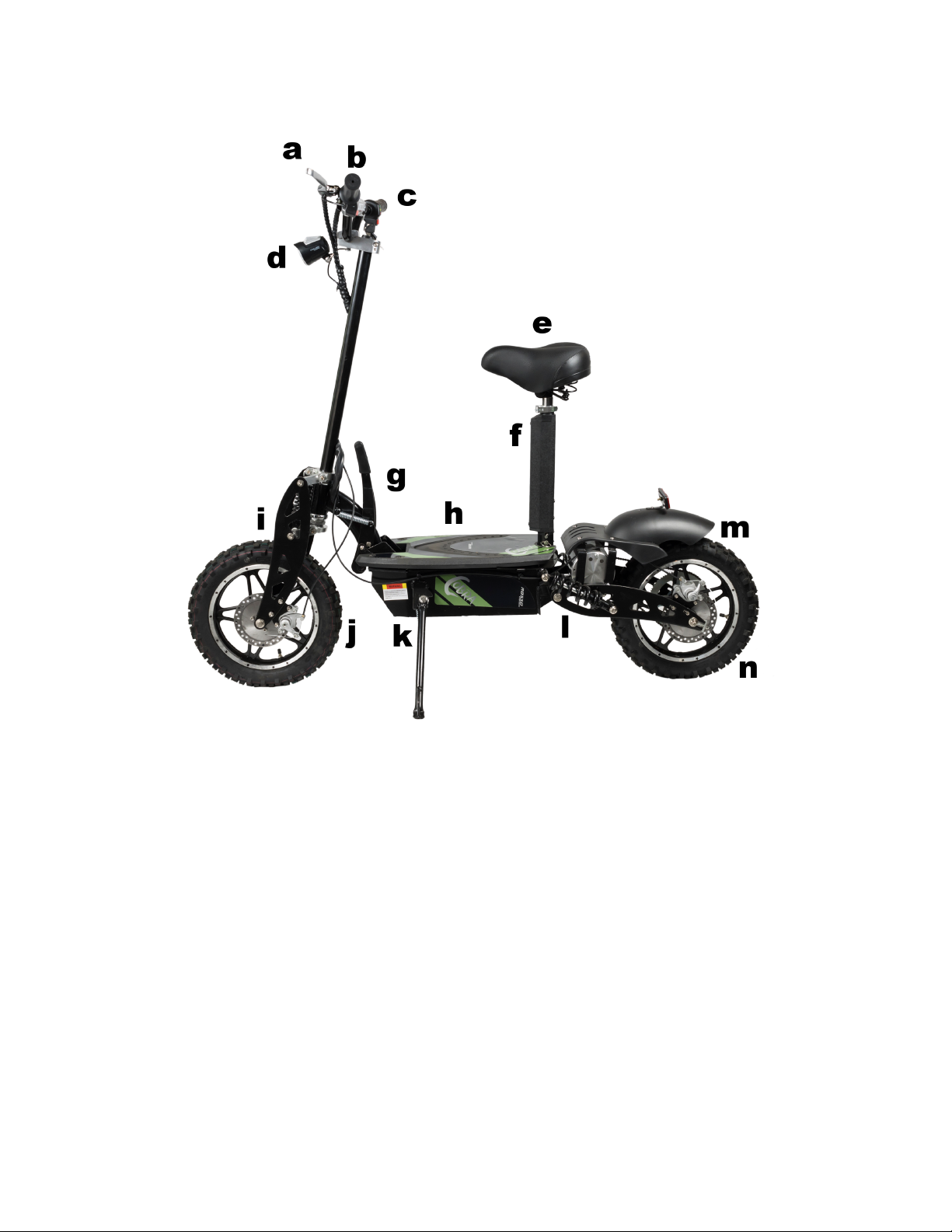

SCOOTER COMPONENTS
a
Rear brake lever,
throttle, battery gauge
h
Footboard,
battery (internal)
b
Front brake lever, light
switch
i
Head unit, front shock
c
Ignition switch
j
Front wheel, front brakes
d
Headlight
k
Kickstand (left), charging
port (right)
e
Seat
l
Rear shocks, motor
f
Seat post
m
Rear fender
g
Folding handle
n
Rear wheel, rear brakes
8

OPERATING YOUR SCOOTER
Charging your scooter
Your scooter comes with minimal charge to preserve battery life. We
recommend fully charging your scooter prior to its first use, after each use and
prior to storage.
NOTE: Always follow recommended battery care (pg #11) and do not allow the
battery to completely discharge, this may damage the battery
To charge, first, make sure your scooter is turned off. Open the charging socket
cover located on the right side of the scooter frame under the footboard. First
plug the charger socket end of your charger into the scooter and then plug the
other end into a wall outlet.
When plugged in, the charger’s red light will illuminate, indicating that the
charging process has started. Once the greenlight on the charger illuminates
indicating charging is complete, you may remove the charger and close the cap
protecting the charger socket.
Riding
When turned on, your scooter will display the current battery power via the
gauge on the right handlebar. At full power all 3 lights including the green
“full” light will be lit. At half power only the light up to the yellow “half” light
will be lit. When the scooter is low on power and needs recharging only the red
“empty” light will be illuminated on the battery gauge.
9

To start the scooter, first ensure the kickstand is in the upright position, then
insert the key into the ignition and turn to the “ON” position. Put one foot on
the deck of the scooter while pushing off with the other foot, gently rotate the
THROTTLE GRIP, on the right handlebar. The scooter will begin to move on its
own power.
NOTE: Your scooter has a variable speed hand throttle. You can control the
speed of your scooter by the amount of pressure you use when rotating the
hand throttle. The more you rotate, the faster you will go.
To turn your scooter off, come to a complete stop and turn the key in the
ignition switch to the off position.
NOTE: If the scooter is turned on for more than 10-15 minutes without moving,
an automatic power saving feature activates and the scooter will shut itself off.
To reset, turn switch “OFF”, wait a few seconds, back “ON” again.
Braking
To brake, release the throttle and squeeze both brake levers simultaneously.
Applying the brakes will also disengage power to the motor, this means your
motor will not reengage while the brakes are being squeezed.
Folding your Scooter
When you are done riding the scooter you can fold it down for compact storage
and transportation. First remove the seat post and seat, then using one hand,
push down on the folding handle while gently pushing down on the handlebars.
Push down until you feel the locking mechanism click into the down position.
NOTE: Be careful not to hit yourself in the head and keep hands clear of the
folding point.
10

MAINTENANCE & CARE
Proper care of your scooter will ensure optimal performance and longer life.
Maintenance Checklist:
Clean you scooter with a soft damp cloth (do not spray with water)
Visually inspect the scooter for damages (bent parts, frayed wires, etc)
Check Tire pressure (30-36PSI)
Ensure Brakes functioning properly
Check fasteners for tightness
Lubricate chain with silicone spray (roughly once a month or if visibly dry)
Battery Care
Proper care of your battery during use and storage will ensure a maximum life
expectancy from it
Always turn off your scooter when not in use. Not only will this prevent battery
drain but also the possibility of unintentional movement.
Charge after each use. Do not allow the battery to completely discharge.
Charge the scooter for 6-8 hours or until the red and green lights on the
charger both illuminate. For safety purposes, DO NOT charge for over 24 hours.
Charge the battery ONLY with the supplied charger. The charger should be
regularly examined for damage to the cord, plug, wires, etc. In the event of
such damage, the scooter must not be charged until it has been repaired or
replaced.
When your scooter is not in regular use or when storing, the battery MUST
receive a charge once a month to maintain its life. To ensure long battery life,
never store the battery in below freezing temperatures. Freezing may
permanently damage the battery. Avoid storing the battery near sources of heat
and in direct sunlight.
Note: If the charger gets warm during regular use, this is a normal response and
is no cause for concern. If your charger does not get warm during use, it does
not mean that it is not working properly
11

Adjustments
Your scooter comes fully adjusted from the factory and should be ready to ride
once assembled and charged. Inspection prior to first use and periodically is
recommended however as adjustments may need to be made due to
shifting/vibration during shipping and from normal usage.
Brakes
NOTE: Brakes may squeak before they are broken in. This is normal and will not
affect the function or performance of the brakes. With continued use the
squeak should go away.

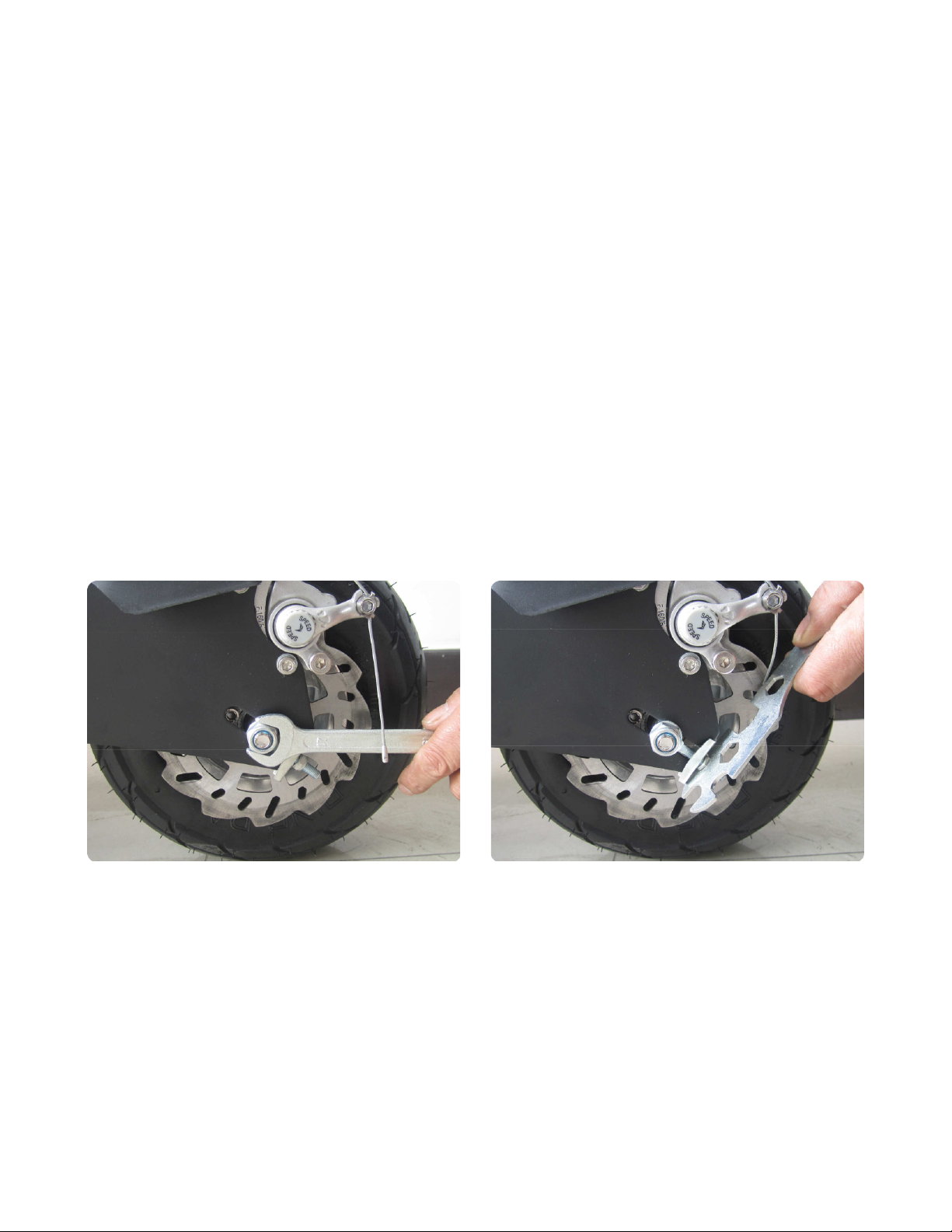

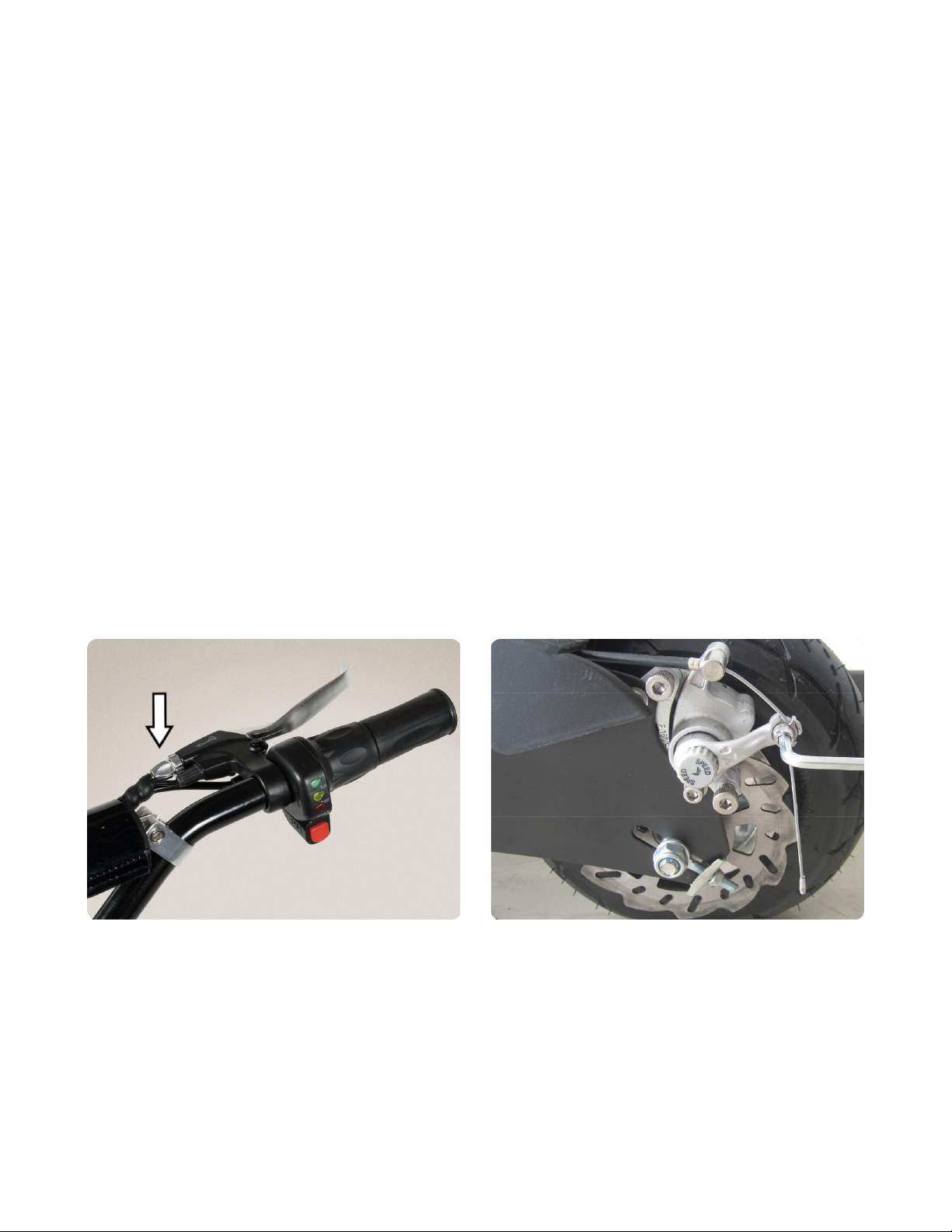

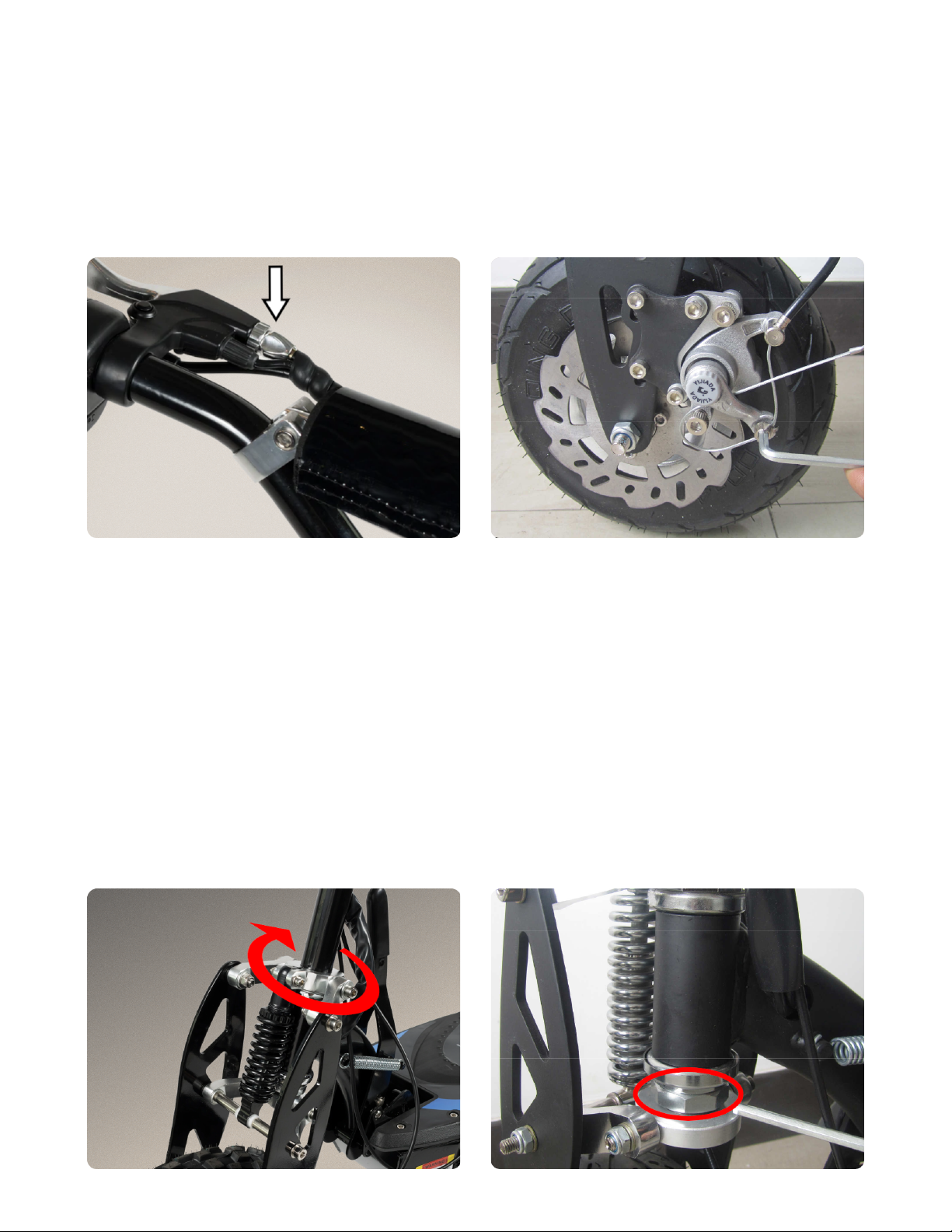

Rear brakes
For brakes that are too loose, adjust the tension screw on the right hand brake
lever by rotating it counter-clockwise until the wheel spins freely. For brakes
that are too tight, adjust the tension screw on the right hand brake lever by
rotating it clockwise until the wheel has a slight drag.
For further rear brake adjustment, locate the adjustment screw on the
rear brake assembly, located on the left of the back wheel. Tighten or
loosen as necessary.
12

Front Brakes
For brakes that are too loose, adjust the tension screw on the left hand brake
lever by rotating it counter-clockwise until the wheel spins freely. For brakes
that are too tight, adjust the tension screw on the left hand brake lever by
rotating it clockwise until the wheel has a slight drag.
For further front brake adjustment, locate the adjustment screw on the front
brake assembly, located on the left of the front wheel. Tighten or loosen as
necessary.
Head Unit
To tighten a head unit that has loosened from use, first rotate the handle bar
as far right as it will go to expose the head unit. Using a large adjustable
wrench, gently turn the bearing lock clockwise to tighten. Do not over tighten
or it will damage the bearings.
13

Chain
To get the longest possible life out of your chain, it must be well properly
tensioned and aligned onto the sprockets in order to avoid uneven wear.
Signs of an improperly tensioned chain:
●The chain is skipping/jumping on the sprocket, or has fallen off
completely, due to being too loose.
●The chain is making a humming sound when the wheel is turning, or has
snapped due to being too tight.
To adjust the chain first slightly loosen the two axle bolts (a) on both sides of
the rear wheel. Then slowly equally adjust the nuts on the two tensioner bolts
on each side of the rear tire until the chain reaches the proper tension. Your
chain should appear snug but give slightly with finger pressure and snap back
into place.
Rotate the rear wheel to make sure the chain is aligned. Finally, lock and
tighten the rear axle bolts prior to riding.
14

Troubleshooting
This following is a list of basic occurrences and some possible solutions, for
more complex problems or if you need any further assistance, please contact us
directly via email at: [email protected]
Symptom
Possible Cause
Solution
Charger light turns
green & red right away.
Battery is fully charged
Check battery gauge
Bad Fuse or open
connection
between charger
socket and batteries
Check Fuse, look for
loose or disconnected
wires
Damaged or faulty
battery
Replace battery
Batteries do not
charge.
Battery is damaged,
faulty, or reached the
end of its life
Replace battery
Charger is damaged or
faulty
Replace charger
Unit moves
intermittently
or very slow
Battery is not fully
charged
Charge battery
Loose connection
Check for loose or
damaged wires
Bad throttle or
controller
Replace throttle or
controller
Unit will not move when
throttle lever is
activated
Batteries not fully
charged
Charge battery
Brakes engaged
triggering motor cutoff
Adjust brakes
Unit stops abruptly
during use
Fuse blown
Replace fuse
Loose or broken
wire
Check for loose or
damaged wires
15

Warranty
ROSSO MOTORS warranties this product to be free of manufacturing defects for
a period of 6 months from date of purchase. This Limited Warranty does not
cover normal wear and tear, (tires, tubes or cables) or any damage, failure or
loss caused by improper assembly, maintenance, storage or use of your Cobra
eScooter.
This Limited Warranty voided if the product is:
• Used in a manner other than for recreation;
• Modified in any way;
• Rented.
ROSSO MOTORS is not liable for incidental or consequential loss or damage due
directly or indirectly to the use of this product.
For more information on your warranty please see our FAQ section online:
www.rossomotors.com/pages/faq
For any request regarding warranty, spare parts or replacement devices do not
hesitate to contact us by phone or e-mail. Have your order number ready
before contacting us.
E-Mail: [email protected] - Tel: [phone]
16

11400 Twigg Place Unit 1
Richmond, BC, V6V3C1
CANADA
E-Mail: [email protected]
Website: www.rossomotors.com
Tel: [phone]
© Rosso Motors, 2022. All Rights Reserved
