Rotel RSX-03 User manual
Owner’s manual
RSX-03
Surround Sound Receiver
STANDBY
BAND
RSX-03
TUNING
VIDE O2
PHONO
2CH
VIDEO1
MULT I
INPUT
TAPE
DSP
VIDEO3
MUTE
VIDEO4
REC
TUNER
DTS
Neo: 6
CD
DOLB Y
PLII /3ST
This symbol means that this unit is double insulated. An
earth or ground connection is not required.
Rotel products are designed to comply with international directives on the Re-
striction of Hazardous Substances (RoHS) in electrical and electronic equipment
and the disposal of Waste Electrical and Electronic Equipment (WEEE). The
crossed wheelie bin symbol indicates compliance and that the products must
be appropriately recycled or processed in accordance with these directives.
Notice
The COMPUTER I/O connection should be handled by authorized
person only.
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instruction, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Reorient or relocate the receiving antenna.(TV, radio, etc.)
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for addi-
tional help.
Caution
This device complies with part 15 of the FCC Rules operation is subject
to the following to conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE TO CATV SYSTEM INSTALLER: Call the CATV system or antenna
installer’s attention to Article 820-40 of the NEC. This provides guidelines
for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to
the point of cable entry as practical. See installation diagram.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against interference
in a residential installation. This equipment generates and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause interference to radio or TV communications.
There is no guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on,
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and the television tuner.
• Connect the unit to an AC power outlet on a different electrical cir-
cuit.
• Consult your authorized Rotel retailer for assistance.

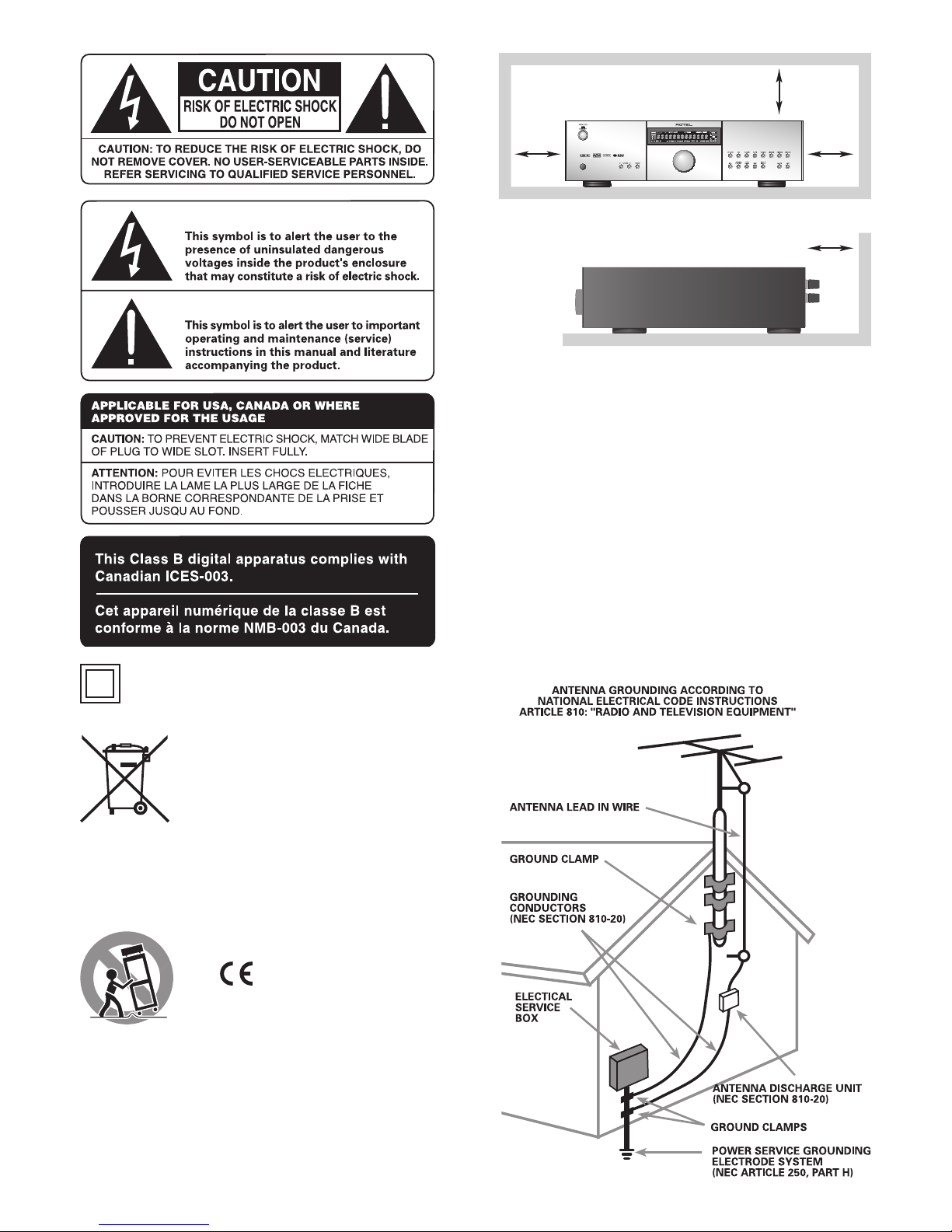

Important Safety Instructions
WARNING: There are no user serviceable parts inside. Refer all servic-
ing to qualified service personnel.
WARNING: To reduce the risk of fire or electric shock, do not expose
the unit to moisture or water. Do not expose the unit to dripping or splash-
ing. Do not place objects filled with liquids, such as vases, on the unit. Do
not allow foreign objects to get into the enclosure. If the unit is exposed
to moisture, or a foreign object gets into the enclosure, immediately dis-
connect the power cord from the wall. Take the unit to a qualified service
person for inspection and necessary repairs.
Read all the instructions before connecting or operating the component.
Keep this manual so you can refer to these safety instructions.
Heed all warnings and safety information in these instructions and on the
product itself. Follow all operating instructions.
Clean the enclosure only with a dry cloth or a vacuum cleaner.
Do not use this unit near water.
You must allow a minimum 10 cm or 4 inches of unobstructed
clearance around the unit. Do not place the unit on a bed, sofa, rug,
or similar surface that could block the ventilation openings. If the unit is
placed in a bookcase or cabinet, there must be ventilation of the cabinet
to allow proper cooling.
Keep the component away from radiators, heat registers, stoves, or any
other appliance that produces heat.
The unit must be connected to a power supply only of the type and voltage
specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz)
Connect the component to the power outlet only with the supplied power
supply cable or an exact equivalent. Do not modify the supplied cable. A
polarized plug has two blades, with one wider than the other. A grounding
plug has two blades plus a third grounding prong. These are provided for
your safety. Do not defeat grounding and/or polarization safety provisions.
If the supplied plug does not fit your outlet, please consult an electrician
for replacement of the obsolete outlet. Do not use extension cords.
The main plug of the power cordset is a disconnect device of the appa-
ratus. In order to completely disconnect the apparatus from the supply
mains, the main plug of the power cordset should be unplugged from the
mains (AC) outlet. The stand-by LED indicator will not be lit up to show
the power cord is unplugged.
Do not route the power cord where it will be crushed, pinched, bent, ex-
posed to heat, or damaged in any way. Pay particular attention to the
power cord at the plug and where the cord exits the back of the unit.
The power cord should be unplugged from the wall outlet during a lightning
storm or if the unit is to be left unused for a long period of time.
Use only accessories specified by the manufacturer.
Use only with a cart, stand, rack, bracket or shelf system recommended
by Rotel. Use caution when moving the unit in a stand or rack to avoid
injury from a tip-over.
Use Class 2 wiring for speaker connections to ensure proper installation
and minimize the risk of electrical shock.
Immediately stop using the component and have it inspected and/or ser-
viced by a qualified service agency if:
• The power supply cord or plug has been damaged.
• Objects have fallen or liquid has been spilled into the unit.
• The unit has been exposed to rain.
• The unit shows signs of improper operation
• The unit has been dropped or damaged in any way
WARNING: The master power switch is located on the rear panel. The
unit must be located in the open area allowing unobstructed access to
the main power switch.
4
RSX-03 Surround Sound Receiver
1: Controls and Connections
OFF
ON
POWER
STANDBY
BAND
RSX-03
TUNING
VIDEO2
PHONO
2CH
VIDEO1
MULTI
INPUT
TAPE
DSP
VIDEO3
MUTE
VIDEO4
REC
TUNER
DTS
Neo:6
CD
DOLBY
PLII/3 ST
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
1
35
5
English
2: RR-1060 Remote
1 2 3
4 5 6
7 8 9
+10 0 X
CM
SR
ENT
FRQ DIRECT
MENUGUIDE
TUNE PRESET
FM MONO BAND
CTR
SUB SUR
SEARCH
-
SEARCH+
OSD
ON OFF
SMT
MUTE
CH VOL
POWER
SMART
MEM
AUD CD TUN TAPE EXT
V1 V2 V3 V4
V5
DEVICE / INPUT
RR-1060
LIGHT
DVD
RESUME REPEAT SLOWGOTOA - B
INPUT 1 INPUT 2 RECORDTV/VCRINPUT 3
ASPECT DISP OUTPUTPOPPIP
1 2 3
4 5 6
7 8 9
+10 0 X
ON OFF
SMT
MUTE
CM
SR
ENT
FRQ DIRECT
MENUGUIDE
TUNE PRESET
FM MONO BAND
CTR
SUB SUR
SEARCH
-
SEARCH+
OSD
CD
DISC2DISC1 DISC3 DISC4 DISC5
PROG RANDOM REPEAT DISC
-
DISC+
DISPLAY AUDIO ZOOMSBTITLEANGLE
DISP
TAPE2 PHONO
TONE D-SLT
EQ DYN REC
ZONE SUR+
2CH PL M 5CH 7CH
PL C
CH VOL
POWER
SMART
MEM
DIGEST OPENP-SCANTITLE
SCAN
PTY P-TUN
TP TA
POWER SETUP
6
RSX-03 Surround Sound Receiver
3: Connecting the Speakers
SUBWOOFER
INPUT
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
7
English
4: Connecting the TV
5: Connecting Cable, Satellite, or HDTV
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
8
RSX-03 Surround Sound Receiver

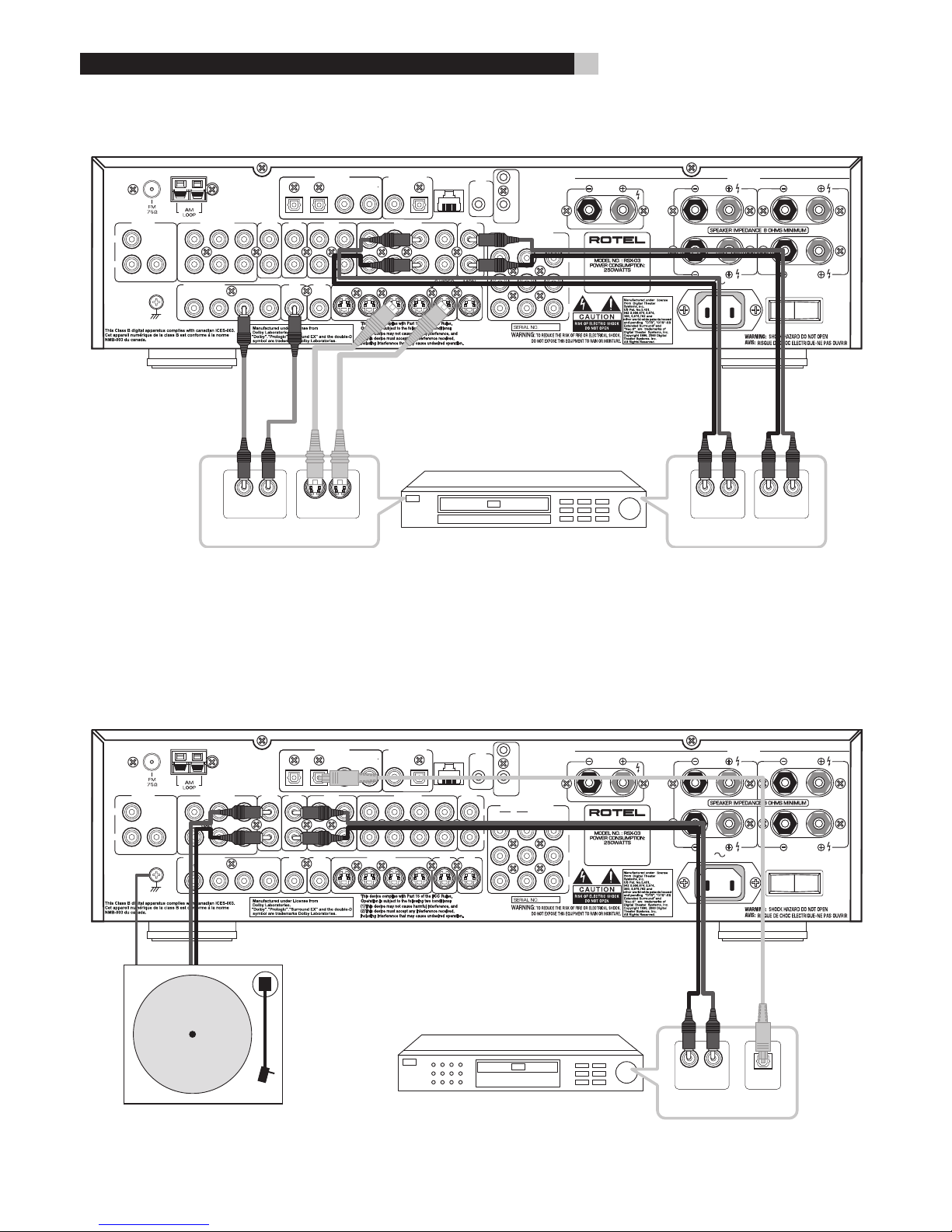

6: Connecting a VCR
7: Connecting a CD Player/CDR Recorder and Turntable
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
9
English
8: Connecting an Audio Recorder
9: Connecting a DVD Player
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
10
RSX-03 Surround Sound Receiver
11: Connecting AM and FM antennae
10: Connecting a DVD-A or SACD Player
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
OFF
ON
POWER
DIGITAL INPUT
Y
PR
PB
2
1
2
1
L
R
L
R
11
English
12: On-Screen Menus
12
RSX-03 Surround Sound Receiver
Contents
Boxed numbers refer to RSX-03 illustration. Boxed
letters refer to RR-1060 illustration.
Important Safety Instructions ..................3
1: Controls and Connections .................................4
2: RR-1060 Remote .............................................5
3: Connecting the Speakers ..................................6
4: Connecting the TV ............................................7
5: Connecting Cable, Satellite, or HDTV .................7
6: Connecting a VCR .............................................8
7: Connecting a CD Player/CDR Recorder and
Turntable ........................................................8
8: Connecting an Audio Recorder ..........................9
9: Connecting a DVD Player .................................9
10: Connecting a DVD-A or SACD Player .............10
11: Connecting AM and FM antennae .................10
12: On-Screen Menus .........................................11
About Rotel ..........................................14
Getting Started .....................................14
Key Features .....................................................14
Unpacking .........................................................14
Placement ........................................................14
CONNECTIONS 15
Analog Audio Inputs & Outputs .............. 15
PHONO Inputs .............................................15
CD Inputs ....................................................15
TAPE Inputs .................................................15
TAPE Outputs ...............................................15
VIDEO IN 1–4 Audio Inputs ..........................15
VIDEO OUT Audio Outputs ............................15
MULTI Inputs ..............................................15
Speaker Outputs ..........................................15
Preamp Outputs .........................................16
Video Inputs & Outputs .........................16
VIDEO 1–4 Composite Video Inputs .............16
COMPOSITE Video Output ............................16
VIDEO 1–4 S-Video Inputs ..........................16
S-VIDEO Video Output .................................16
VIDEO 1–2 Component Video Inputs ...........16
TV Monitor Outputs .........................16
Digital Audio Input & Outputs ................16
Digital Inputs ..............................................16
Digital Outputs ............................................16
Other Connections .................................17
AC Input ......................................................17
Master Power Switch ....................................17
12V TRIGGER Connections ............................17
EXT REM IN Jacks .......................................17
Computer I/O .............................................17
Making Connections .............................17
Turntable ..............................................17
CD Player ..............................................17
DVD Player ........................17
Cable, Satellite, or HDTV Tuner
..........................................17
Audio Recorder ...............................18
VCR or Digital Video Recorder
.................18
DVD-A or SACD Player .................................18
TV Monitor ......................................18
Speakers .....................................................18
Optional Amplifier 6.1/7.1 channel systems
.............................................................19
Connecting a Subwoofer ..............................19
AM Antenna ................................................19
FM Antenna ..............................................19
OPERATING THE RSX-03 19
Front Panel Overview ...........................19
Front-panel Display .....................................19
Remote Sensor ............................................20
Remote Control Overview .....................20
Using the RR-1060
AUDIO Button .............................................20
Overview of Buttons and Controls .........20
STANDBY Button
POWER Button .............................................20
ON/OFF Buttons ..........................................20
VOLUME Knob
VOLUME Buttons ..........................................20
MUTE Buttons ........................................20
LIGHT Button ...............................................20
DEVICE/INPUT Buttons ....................20
D-SLT Button ...............................................20
REC Buttons ..........................................20
UP/DOWN Cursor Buttons ............................20
+/– Buttons ...............................................20
Speaker Selection Buttons ............................20
EQ Button ...................................................21
TONE Button ................................................21
Surround Mode Buttons .........................21
SUR+ Button ...............................................21
DYN Button .................................................21
MENU/OSD Button ......................................21
ENTER Button ..............................................21
BAND Buttons .......................................21
TUNING Buttons ....................................21
MEM Button ................................................21
NUMERIC Buttons ........................................21
13
English
FRQ DIRECT Button ......................................21
FM MONO Button ........................................21
TUNE Button
PRESET Button
P-TUN Button ..............................................21
SCAN Button ................................................21
RDS/RBDS Buttons ......................................21
Basic Controls ....................................... 21
Power and Standby On/Off .......21
Volume Adjustments ..............................22
Muting the Sound ..................................22
Selecting Inputs.....................................22
Input Buttons ...........................22
Selecting a Source Input from the Front Panel
.......................................................22
Selecting a Source from the Remote
................................................22
Selecting Digital Inputs ................................22
Overview of Surround Formats ..............22
Dolby Surround
Dolby Pro Logic II ..............................................23
Dolby Digital .....................................................23
DTS 5.1 .............................................................23
DTS Neo:6 .........................................................23
Dolby Digital Surround EX
DTS-ES6.1 and 7.1 Channel Surround .................23
Dolby Pro Logic IIx
6.1 and 7.1 Channel Surround ...........................24
Rotel XS6.1 and 7.1 Channel Surround ...............24
DSP Music Modes ...............................................24
2Ch/5Ch/7Ch Stereo Formats ............................24
Other Digital Formats ........................................24
Automatic Surround Modes ....................25
Manually Selecting Surround Modes .......25
Dolby Digital 5.1 discs
Dolby Digital Surround EX discs ..26
Dolby Digital 2.0 discs ..............26
DTS 5.1 discs
DTS-ES 6.1 discs .......................26
MPEG Multichannel discs ...........27
Digital Stereo discs(PCM, MP3, and HDCD)
................................................27
Analog Stereo ...........................27
Other Settings ......................................28
Speaker Level .......................................28
Dynamic Range ...........................................28
Tone Settings .........................................28
Cinema EQ ..................................................29
Tuner Controls .......................................29
BAND Buttons .......................................29
TUNING Buttons ....................................29
MEMORY Button ..........................................29
NUMERIC Buttons: Station Presets ................29
FRQ DIRECT Button .....................................30
FM MONO Button .......................................30
TUNE Button
PRESET Button
P-TUN Button ............................................30
SCAN Button ................................................30
RDS and RBDS Tuning ............................30
DISP Button ................................................31
PTY Button ..................................................31
TP Button ....................................................31
TA Button ....................................................31
SETUP 31
Menu Basics .........................................32
Navigation Buttons ................................32
System Status ....................................................32
Main Menu ........................................................32
Configuring Inputs ................................. 32
Input Setup .......................................................32
Multi Input Setup ...............................................33
Dolby Pro Logic IIx ............................................34
DTS Neo:6 .........................................................34
Configuring Speakers and Audio .............34
Understanding Speaker Configuration ................34
Speaker Setup ...................................................35
Advance Speaker Setup ......................................36
Subwoofer Setup ...............................................36
Test Tone ...........................................................37
Delay Setup .......................................................38
Tone Setup ........................................................38
Miscellaneous Settings ..........................38
Other Options ....................................................38
Default Setup ....................................................39
MORE INFORMATION 40
Troubleshooting .....................................40
Hum and Noise .....................................41
Specifications ........................................ 41
Audio ................................................................41
Video ................................................................41
FM Tuner ...........................................................41
AM Tuner ..........................................................41
General .............................................................41
14
RSX-03 Surround Sound Receiver
About Rotel
A family whose passionate interest in music
led them to manufacture high fidelity com-
ponents of uncompromising quality founded
Rotel over forty years ago. Through the years
that passion has remained undiminished and
the family goal of providing exceptional
value for audiophiles and music lovers re-
gardless of their budget, is shared by all
Rotel employees.
The engineers work as a close team, listening
to, and fine tuning each new product until it
reaches their exacting musical standards. They
are free to choose components from around
the world in order to make that product the
best they can. You are likely to find capacitors
from the United Kingdom and Germany, semi
conductors from Japan or the United States,
while toroidal power transformers are manu-
factured in Rotel’s own factory.
Rotel’s reputation for excellence has been
earned through hundreds of good reviews
and awards from the most respected review-
ers in the industry, who listen to music every
day. Their comments keep the company true
to its goal - the pursuit of equipment that is
musical, reliable and affordable.
All of us at Rotel, thank you for buying this
product and hope it will bring you many
years of enjoyment.
Getting Started
Thank you for purchasing the Rotel RSX-03
Surround Sound Receiver. The RSX-03 is four
products in one:
1. A digital audio/video processor for a
wide range of formats including Dolby
Surround®, Dolby Digital®, DTS® and
HDCD® source material.
2. A full-featured audio/video control cen-
ter for analog and digital source compo-
nents.
3. A high-quality AM/FM tuner with RDS
capability.
4. A 5-channel power amplifier to drive two
front speakers (or two center back speak-
ers), a center channel speaker, and two
rear surround speakers.
Key Features
• Rotel’s Balanced Design Concept combines
advanced circuit board layout, compre-
hensive parts evaluation, and extensive
listening tests for superior sound and long
term reliability.
• Dolby® Pro Logic IIx® decoding (for 5.1,
6.1, and 7.1 channel systems) with im-
proved separation and frequency response
for Dolby Surround® matrix encoded re-
cordings. Can be optimized for Music or
Cinema sources.
• Automatic Dolby Digital® decoding Dolby
Digital® 2.0, Dolby Digital® 5.1, and Dolby
Digital Surround EX® recordings.
• Automatic decoding for DTS® 5.1 chan-
nel, DTS-ES® Matrix 6.1 channel, and
DTS-ES® Discrete 6.1 channel, digital
recordings.
• Rotel XS (eXtended Surround) automatically
ensures proper decoding and optimum
performance from any multichannel digital
signal on 6.1 and 7.1 channel systems.
Always active in any system with center
back speaker(s), Rotel XS even works with
signals that would not otherwise activate
the proper decoding (such as non-flagged
Dolby Surround EX discs) or for which
there is no extended surround decoder
(such as DTS 5.1, Dolby Digital 5.1, and
even Dolby Pro Logic II decoded Dolby
Digital 2.0 recordings).
• DTS® Neo:6® Surround modes for deriv-
ing surround channels for 5.1, 6.1 or 7.1
channel systems from 2-channel stereo or
matrix surround recordings. Can be opti-
mized for Music or Cinema sources.
• Automatic HDCD® decoding for signals
from High Definition Compatible Digital®
compact discs.
• Surround modes for playback of surround
sound material on 2 channel and 3 chan-
nel systems for total compatibility.
• Automatic decoding of digital signals from
MP3 (MPEG-1 Audio Layer 3) players.
• Digital and analog input and output con-
nections for digital signals, composite
video, S-Video, and Component Video.
• Five built-in amplifier channels, each de-
livering 40 watts (all channels driven).
• AM/FM tuner with 30 station presets,
direct access tuning, and auto-tuning.
• RDS (Radio Data Systems) and RBDS (Ra-
dio Broadcast Data Service) capability.
• MULTI Input for outboard adaptor and
future upgradeabilty
• User friendly ON-SCREEN DISPLAY with
programmable labels for video compo-
nents. Choice of languages.
• Universal learning remote control to oper-
ate the RSX-03 and other components.
• Upgradeable microprocessor software to
accommodate future upgrades.
Unpacking
Remove the unit carefully from its packing.
Find the remote control and other acces-
sories. Save the box as it will protect the
RSX-03 if you move or need to return it for
maintenance.
Placement
Place the RSX-03 on a solid, level surface
away from sunlight, heat, moisture, or vibra-
tion. Make sure that the shelf can support the
weight of the unit.
Place the RSX-03 close to the other compo-
nents in your system and, if possible, on its
own shelf. This will make initial hookup, and
subsequent system changes easier.
The RSX-03 can generate heat during normal
operation. Do not block ventilation open-
ings. Allow a minimum of 10 cm or 4
inches of unobstructed space around
the unit. If installed in a cabinet, make sure
that there is adequate ventilation.
Don’t stack other components or objects on
top of the RSX-03. Don’t let any liquid fall
into the unit.
“DTS”, “DTS-ES Extended Surround”, “DTS ES® Matrix 6.1”,
and “DTS ES® Discrete 6.1”, and “DTS Neo:6®”are trade-
marks of Digital Theater Systems, Inc.
Manufactured under license from Dolby Laboratories. “Dol-
by”, “Pro Logic”, and the double-D symbol are trademarks of
Dolby Laboratories.
, HDCD®, High Definition Compatible Digital ® and
Pacific Microsonics™ are either registered trademarks or
trademarks of Pacific Microsonics, Inc. in the United States
and/or other countries. HDCD system manufactured under
license from Pacific Microsonics, Inc. This product is covered
by one or more of the following: In the USA: 5,479,168,
5,638,074, 5,640,161, 5,808,574, 5,838,274,
5,854,600, 5,864,311, 5,872,531, and in Australia:
669114. Other patents pending.
15
English
CONNECTIONS
Connecting the RSX-03 to your system is
straightforward. Each of the source com-
ponents in the system is connected to the
RSX-03 inputs with a pair of standard RCA
cables for analog audio, a video connection
(composite, S-Video, or Component Video),
and an optional digital audio cable (coax
or optical).
NOTE: The RSX-03 can only decode digital
surround formats (such as Dolby Digital and
DTS) when a digital input signal is avail-
able. For this reason, you should always
connect your DVD player’s digital outputs to
the RSX-03, using either an optical or digital
coax cable.
The outputs of RSX-03 are sent to up to five
speakers with standard two-conductor speaker
cable or to optional power amplifier(s) with
standard RCA cables from preamp audio
outputs. The video signal from the RSX-03 is
sent to the TV monitor using composite video,
S-Video, or Component Video connections.
In addition, the RSX-03 has MULTI input con-
nections for a source component that does its
own surround decoding, remote IR sensor in-
puts, and 12V trigger connections for remote
turn-on of other Rotel components.
NOTE: Do not plug any system component
into an AC source until all connections have
been properly made.
Video cables should have a 75 ohm imped-
ance. The S/PDIF digital audio interface
standard also specifies a 75 ohm imped-
ance and all good digital cables adhere to
this requirement. Do NOT substitute audio
interconnect cables for digital or video sig-
nals. Audio interconnects will pass these sig-
nals, but their limited bandwidth may reduce
performance.
When making signal connections, connect
LEFT channels to LEFT channel jacks and
RIGHT channels to RIGHT channel jacks. All
RCA-type connections on the RSX-03 follow
these standard color codes:
Left channel audio: white RCA jack
Right channel audio: red RCA jack
Composite video: yellow RCA jack
NOTE: Each source input must be properly
configured using the INPUT SETUP menu of
the OSD menu system. We recommend go-
ing to this menu after connecting each source
to configure it as desired. See Input Setup of
the Setup section for information.
Analog Audio Inputs &
Outputs
Use the following connections for connect-
ing analog audio signals to and from the
RSX-03. See the Making Connections topic
for specific instructions on connecting each
type of component.
NOTE: Normally, the RSX-03 converts analog
inputs to digital signals for processing. All of
the digital processing features are available
including bass management, digital cross-
overs, speaker level and delay settings, and
a number of surround mode options. Alter-
natively, there is an analog bypass surround
mode that routes 2-ch and Multi Input analog
signals directly to the Volume control and out-
puts, bypassing the digital processing entirely
for pure analog stereo.
PHONO Inputs
A left/right pair of RCA analog audio in-
puts for connecting a turntable and phono
cartridge.
CD Inputs
A left/right pair of RCA analog audio inputs
for connecting a CD player.
TAPE Inputs
A left/right pair of RCA analog audio in-
puts, labeled TAPE IN, for connecting the
outputs from an audio tape deck or record-
ing device.
TAPE Outputs
A left/right pair of RCA outputs, labeled TAPE
OUT, for sending analog audio signals for
recording to the inputs on a tape deck or
recording device.
NOTE: These outputs should be connected to
the inputs of the same tape deck connected
to the TAPE IN inputs.
VIDEO IN 1–4 Audio Inputs
Four pair of RCA inputs, labeled VIDEO IN 1
–4, provide connections for left/right analog
audio signals from four source components
such as VCRs, satellite TV tuners, or DVD play-
ers. There are corresponding video inputs.
NOTE: The VIDEO IN 1 –4 inputs may also
be used for audio-only components, omitting
the corresponding video connections.
VIDEO OUT Audio Outputs
A pair of RCA jacks, labeled VIDEO OUT,
sends line level left/right analog audio signals
for recording to the line inputs of a VCR. .
NOTE: The VIDEO OUT connections can be
used for an audio-only tape deck, simply omit-
ting the corresponding video connection.
MULTI Inputs
A set of RCA inputs accept up to 5.1 chan-
nels of analog signals from a DVD-A or SACD
player. There are inputs for FRONT L & R,
REAR L & R, CENTER, and SUB.
These inputs bypass all digital processing
in the RSX-03 and are routed directly to the
Volume control and outputs.
There are two subwoofer options for the MULTI
input. Normally, the .1 channel input is passed
through directly to the subwoofer output. An
optional bass redirect feature duplicates the
5 main channels, sums them, and sends this
mono signal through a 100 Hz analog low
pass filter to the subwoofer output. This pro-
vides an unaltered analog bypass for the
main channels along with a subwoofer signal
derived from those channels.
Speaker Outputs
The RSX-03 has five built-in amplifiers, two
for the front (right and left), one for the cen-
ter channel, and two for the rear surround
speakers (right and left). There are five pair
of binding post connections (one pair for
each speaker) which accept bare wire,
spade lugs, or banana plug connectors (in
some markets).
NOTE: The RSX-03 has a speaker redirect fea-
ture which allows you to use the front chan-
nel amplifiers to drive center back speakers
when a separate power amplifier is used for
the front speakers. This feature is configured
in the Default Setup menu.
16
RSX-03 Surround Sound Receiver
Preamp Outputs
A group of three RCA analog audio outputs
sends the RSX-03’s line level output signals to
external amplifiers and powered subwoofers.
These outputs are variable level, adjusted by
the RSX-03 volume control. These three con-
nectors provide output for CENTER BACK 1
& 2 (or FRONT LEFT & RIGHT) and a SUB-
WOOFER.
Video Inputs & Outputs
These connections are used for connecting
video signals to and from the RSX-03. See
the Making Connections section for specific
instructions for each type of component.
The RSX-03 provides Composite, S-Video, and
Component Video connections. Composite
video connections simplify system configura-
tion; however, S-Video connections provide
better picture quality. Component Video con-
nections are required for HDTV or progressive
scanned DVD video. Consider the following
for your system configuration:
On Screen Display: The RSX-03 OSD
menus are available on the TV only with com-
posite video or S-Video connections from the
TV MONITOR outputs to the TV set.
NOTE: When using a progressive scan or
1080i video signal, the TV monitor cannot
display the OSD menus.
Many digital HDTV monitors adjust scan rates
and other video parameters depending on
the type of input connection. You may wish to
make multiple connections between the RSX-03
and the TV monitor, switching inputs on the
TV to take advantage of these features.
VIDEO 1–4
Composite Video Inputs
Four inputs accepts standard composite video
signals from source components using stan-
dard 75 ohm RCA video cables.
COMPOSITE Video Output
An RCA jack, labeled COMPOSITE OUT,
sends a composite video signal for recording
to a VCR or other recording device.
NOTE: The RSX-03 cannot convert S-Video or
Component Video to composite video. There-
fore, only signals from the composite video
inputs are available at these outputs.
VIDEO 1–4 S-Video Inputs
Four inputs, labeled S-VIDEO IN 1–4 ac-
cept S-Video input signals from source com-
ponents.
S-VIDEO Video Output
An S-VIDEO jack, labeled S-VIDEO OUT,
sends an S-Video signal for recording to a
VCR or other recording device.
NOTE: The RSX-03 cannot convert composite
video or Component Video signals to S-Vid-
eo. Only signals received at the S-Video in-
puts are available at these outputs.
VIDEO 1–2
Component Video Inputs
Component Video connections split the video
into three signals – luminance (Y) and chro-
minance (CBPB and CRPR) signals, allowing
delivery of a reference quality picture with
high definition signals. Component Video
connections should be used for progressive
scan DVD players and high-definition televi-
sion receivers. Each of these signals is car-
ried by a separate 75 ohm video cable with
RCA connectors.
Two sets of inputs, labeled COMPONENT
VIDEO IN 1–2 accept Component video
signals from source components.
TV Monitor Outputs
The TV MONITOR outputs of the RSX-03
send the video signal to your TV monitor.
Three types of video output connections are
provided – RCA composite video, S-Video,
and Component Video.
The composite video output only sends signals
from composite video inputs to the TV monitor.
The S-Video output only sends signals from
S-Video video inputs to the TV. The Component
Video outputs only send signals from Compo-
nent Video source inputs to the TV.
If you have connected all of your source com-
ponents with the same type of connection,
then you only need to make one connection
from the RSX-03 to the TV monitor, using that
same type of connection. If you have a mix-
ture of composite video, S-Video, and Com-
ponent Video components, you will need to
make multiple connections from the RSX-03
to the TV monitor.
Digital Audio
Input & Outputs
The RSX-03 provides digital connections which
may be used in place of, or in addition to, the
analog audio input and output connections
described in the previous sections. These con-
nections include four digital inputs and two
digital outputs (for recording).
These digital connections can be used with
any source component that supplies a digital
signal, such as a DVD player, CD player, or
satellite TV tuner.
NOTE: With a digital connection, the RSX-03
will be used to decode the signal, rather than
the source component’s internal decoders.
In general, you must use digital connections
for a DVD player or other component that
supplies a Dolby Digital or DTS signal; oth-
erwise the RSX-03 will not be able to decode
these formats.
Digital Inputs
The RSX-03 accepts digital inputs from source
components such as CD players, satellite TV
tuners, and DVD players. The built-in digital
processor senses the correct digital sampling
rate and decodes the signal.
There are four digital inputs on the rear panel,
two coaxial and two optical. These digital
inputs can be assigned to any of the input
sources using the INPUT SETUP screen during
the setup process. For example, you can as-
sign the COAXIAL 1 digital input connector
to the VIDEO 1 source and the OPTICAL 2
digital input to the VIDEO 3 source.
NOTE: When using digital connections, you
should also make the analog audio input
connections described previously. The analog
connection is necessary to record to an ana-
log recorder in some circumstances.
Digital Outputs
The RSX-03 has two digital outputs (one co-
axial and one optical) to send the digital sig-
nal from any of the digital inputs to a digital
recorder or outboard digital processor. When
a digital input source signal is selected for
listening, that signal is automatically sent to
both digital outputs for recording.
17
English
NOTE: Only digital signals from source com-
ponents are available at these outputs. Ana-
log signals cannot be converted and are not
available at the digital outputs.
Other Connections
AC Input
Your RSX-03 is configured at the factory for the
proper AC line voltage in the country where
you purchased it (USA: 120 volts/60Hz
AC or CE: 230 volts /50 Hz AC ). The AC
line configuration is noted on a decal on the
back of your unit.
Plug the supplied cord into the AC INPUT
receptacle on the back of the unit.
NOTE: Memorized settings and video labels
are preserved indefinitely, even if the RSX-03
is disconnected from AC power.
Master Power Switch
The large rocker switch on the rear panel is
a master power switch. When it is in the OFF
position, power to the unit is completely off.
When it is in the ON position, the front panel
STANDBY and remote control ON/OFF but-
tons can be used to activate the unit or put it
into standby mode.
NOTE: After all connections are completed,
the rear panel master power switch should
be put in the ON position and usually left in
that position.
12V TRIGGER Connections
Many Rotel amplifiers offer the option of turn-
ing them on and off using a 12 volt trigger.
These two connections send a 12 volt trigger
signal from the RSX-03. When the RSX-03 is
activated, a 12 volt DC signal is sent to the
amplifiers to turn them on. When the RSX-03
is put in STANDBY mode, the trigger signal is
interrupted and the amplifiers turn off.
To use the remote turn on feature, connect
one of the RSX-03’s 12V TRIG OUT jacks to
the 12 volt trigger input of a Rotel amplifier,
using a cable with mono 3.5 mm mini-plugs
on both ends. The +12 V DC signal appears
at the “tip” connector.
EXT REM IN Jacks
One 3.5 mm mini-jack (labeled EXT REM IN)
receives command codes from an industry-
standard infrared receivers (Xantech, etc.),
used when the IR signals from a hand held
remote control cannot reach the front panel
IR sensor.
The EXT REM IN jack is used with an out-
board IR receiver to duplicate the front panel
IR sensor. This feature is useful when the unit
is installed in a cabinet and the front panel
sensor is blocked.
Consult your authorized Rotel dealer for
information on external receivers and the
proper wiring of 3.5 mm mini-plugs to fit the
EXT REM IN jack.
Computer I/O
The RSX-03 can be operated from a computer
with audio system control software from third-
party developers. This control is accomplished
by sending operating codes from the computer
via a hard-wired RS-232 serial connection. In
addition, the RSX-03 can be updated using
special software from Rotel.
The COMPUTER I/O input provides the neces-
sary network connections on the rear panel. It
accepts standard RJ-45 8-pin modular plugs,
such as those commonly used in 10-BaseT
UTP Ethernet cabling.
For additional information on the connections,
cabling, software, and operating codes for
computer control or updating of the RSX-03,
contact your authorized Rotel dealer.
Making Connections
Turntable
See Figure 7
Connect the left and right analog outputs
from the turntable to the PHONO jacks (left
and right). Connect the ground wire from the
turntable to the ground screw on the back of
the RSX-03.
CD Player
See Figure 7
Connect the left and right analog outputs
from the CD player to the CD jacks (left
and right).
Optional: Connect the digital output of the
CD player to any of the Optical or Coax
digital inputs on the RSX-03, using the INPUT
SETUP screen to assign that digital input to
the CD source.
There are no video connections for a CD
Player.
DVD Player
See Figure 9
DVD connections can be made to the VIDEO
1, 2, 3, or 4 inputs.
Connect a video cable (Composite Video,
S-Video, and/or Component Video from the
output of the DVD player to the appropriate
VIDEO IN 1–4 input. If you intend to use
the progressive scan feature with an HDTV
monitor, you should use Component Video
connections.
Connect the digital output of the DVD player
to any one of the OPTICAL IN or COAXIAL
IN digital inputs on the RSX-03. Use the
INPUT SETUP screen to assign that digital
input to the same video input source used
above. For example, if you use the Video 4
inputs above, assign the digital input to the
VIDEO 4 input.
If you want to record the audio signal from the
DVD player, connect the left and right analog
outputs from the DVD player to the left and
right AUDIO IN jacks corresponding to the
VIDEO IN input selected above.
Cable, Satellite, or HDTV Tuner
See Figure 5
TV tuner connections can be made to the
VIDEO 1, 2, 3, or 4 inputs. Connect a video
cable (Composite Video, S-Video, and/or
Component Video) from the output of the TV
tuner to the appropriate VIDEO IN 1–4 input.
For HDTV signals, you should use Component
Video connections.
Connect the left and right analog outputs from
the TV tuner to the left and right AUDIO IN
jacks corresponding to the VIDEO IN input
selected above.
Optional: Connect the digital output of the
TV tuner to any one of the OPTICAL IN or
COAXIAL IN digital inputs on the RSX-03.
Use the INPUT SETUP screen to assign that
digital input to the same video input source
18
RSX-03 Surround Sound Receiver
used above. For example, if you use the Video
4 inputs above, assign the digital input to the
VIDEO 4 input.
Audio Recorder
See Figure 8
Connect the left and right analog outputs
from an audio tape deck to the TAPE IN jacks
(left and right).
Connect the left/right TAPE OUT jacks to the
inputs on the audio tape deck.
Optional: For a digital recording device,
connect the digital output of the recorder
to one of the OPTICAL IN or COAXIAL IN
digital inputs on the RSX-03. Use the INPUT
SETUP screen to assign that digital input to the
TAPE source. If the recording device accepts
a digital recording input, connect one of the
OPTICAL OUT or COAXIAL OUT connections
to the digital input of the recorder.
No video connections are required for an
audio recording device.
VCR or Digital Video Recorder
See Figure 6
Connect video cables (Composite Video,
S-Video, or Component Video) from the out-
put of the VCR to the appropriate VIDEO IN
1–4 input.
Connect video cables (Composite Video or
S-Video) from the VIDEO OUT jacks to the
VCR video inputs.
Connect the left and right analog outputs from
the VCR to one pair of the AUDIO IN jacks
labeled VIDEO 1–4.
Connect the left and right VIDEO OUT jacks to
the analog audio line inputs on the VCR.
Optional: For a digital recording device,
connect the digital output of the recorder
to one of the OPTICAL IN or COAXIAL IN
digital inputs on the RSX-03. Use the INPUT
SETUP screen to assign that digital input to
the VIDEO source (VIDEO 1, 2, 3, or 4) used
for the previous connections. If the recording
device accepts a digital recording input, con-
nect one of the OPTICAL OUT or COAXIAL
OUT connections to the digital input of the
recorder.
DVD-A or SACD Player
See Figure 10
To hook up a DVD-A player, SACD player, or
any external surround decoder, use audio RCA
cables to connect the outputs of the player to
the RCA jacks labeled MULTI INPUT, making
sure that you observe proper channel consis-
tency, i.e. connect the right front channel to
the R FRONT input, etc. Depending on your
system configuration, make up to six connec-
tions (FRONT L & R, SURROUND L & R, CEN-
TER, and SUBWOOFER).
The MULTI inputs are analog bypass inputs,
passing signals directly through to the Volume
Control and preamp outputs, bypassing all of
the digital processing. The RSX-03 provides
an optional bass redirect feature that dupli-
cates the main channels and passes them
through an analog 100 Hz low pass filter,
creating a summed mono subwoofer output
derived from the main channels. See the IN-
PUT SETUP menu in the Setup section of this
manual for details.
TV Monitor
See Figure 4
Connect the TV MONITOR output to the cor-
responding input on your television monitor,
using composite video, S-Video, and/or
Component Video cables.
NOTE: The RCA composite video output only
sends signals from RCA composite video
source inputs to the TV monitor. The S-Video
output only sends signals from S-Video source
inputs to the TV.
Speakers
See Figure 3
The RSX-03 has built-in amplifiers to power
up to five speakers. There are five pairs of
binding post connections (one pair for each
speaker) which accept bare wire, spade
lugs, or banana plug connectors (in some
markets).
NOTE: Speakers should have an impedance
of 8 ohms or higher.
Each pair of connectors is color-coded for
polarity: red for positive and black for nega-
tive. All speakers and all speaker wire is also
marked for polarity. For proper performance,
you must maintain this polarity at all speaker
connections. Always connect the positive ter-
minal of each speaker to the corresponding
red speaker terminal on the RSX-03 and the
negative speaker terminal to the correspond-
ing black connector on the RSX-03.
There are connectors for FRONT LEFT/CB1,
FRONT RIGHT/CB2, SURROUND LEFT, SUR-
ROUND RIGHT, and CENTER. Connect each
of the five speakers to the proper terminal on
the RSX-03.
Route the wires from the RSX-03 to the speak-
ers. Leave enough slack so you can move the
components to allow access to the speaker
connectors. If you are using banana plugs,
connect them to the wires and then plug into
the backs of the binding posts. The collars
of the binding posts should be screwed in
all the way (clockwise). If you are using ter-
minal lugs, connect them to the wires. If you
are attaching bare wires directly to the bind-
ing posts, separate the wire conductors and
strip back the insulation from the end of each
conductor. Be careful not to cut into the wire
strands. Unscrew the binding post collars.
Place the connector lug or the twisted bare
wire around the binding post shaft. Turn the
collars clockwise to clamp the connector lug
or wire firmly in place.
1. Connect the front right speaker to the bind-
ing posts labeled FRONT RIGHT/CB2.
2. Connect the front left speaker to the bind-
ing posts labeled FRONT LEFT/CB1.
3. Connect the center channel speaker to
binding posts labeled CENTER.
4. Connect the surround right speaker to bind-
ing posts labeled SURROUND RIGHT.
5. Connect the surround left speaker to bind-
ing posts labeled SURROUND LEFT.
NOTE: Be sure that no loose wire strands can
touch adjacent wires or connectors.
After you have connected the speakers, you
need to configure the RSX-03 for the size and
style of speakers in your system and calibrate
the relative volume levels of the speakers us-
ing the built-in test tones. See the Setup sec-
tion of this manual.
19
English
Optional Amplifier
6.1/7.1 channel systems
In addition to the five built-in amplifers, the
RSX-03 has a pair of preamp output jacks
that allow you to connect an additional ste-
reo amplifier. This amplifier can be used to
power up to two additional channels in a 6.1
channel or 7.1 channel system. Or, it can
be used in place of the built-in front channel
amplifiers in a 5.1 channel system.
In a 6.1/7.1 channel system, the additional
amplifier can be used to drive one or two cen-
ter back speakers. Alternatively, the RSX-03
has a Redirect feature that allows the built-in
amplifier to drive the center back speakers
when an optional amplifier is used to drive
the two front speakers.
To hook up an optional power ampli-
fier to drive the center back speak-
ers, connect the CB/FRONT LEFT and RIGHT
PREOUT jacks to the left and right inputs of
the optional power amplifier. Connect the
speaker outputs of the amplifier to the center
back speakers in a 7.1 channel system. For
this configuration, the REDIRECT setting on
the DEFAULT SETUP menu must be set to the
factory default NO setting.
NOTE: In a 6.1 channel system, connect the CB/
FRONT LEFT PREOUT jack to a single amplifier
channel to drive one center back speaker.
To hook up an optional power am-
plifier to drive the front speakers in
a 6.1/7.1 channel system connect the
CB/FRONT LEFT and RIGHT PREOUT jacks to
the left and right inputs of the optional power
amplifier. Connect the speaker outputs of the
amplifier to the front channel speakers.
Use the Redirect feature to power center back
speakers in a 6.1 or 7.1 channel system:
1. Connect the center back speaker in a
6.1 channel system or the center back left
speaker in a 7.1 channel system to the
binding posts labeled FRONT LEFT/CB1.
2. Connect the center back right speaker to
binding posts labeled FRONT RIGHT/
CB2.
3. Go to the DEFAULT SETUP screen of
the ON-SCREEN MENU system and
change the REDIRECT setting from NO
to FRONT>CB. See Setup section for de-
tailed instructions.
Connecting a Subwoofer
See Figure 3
To hook up a powered subwoofer, connect
a standard RCA audio cable from the PRE-
OUT jack labeled SUB to the input on the
subwoofer’s power amp.
After you have connected the subwoofer, you
need to configure the RSX-03 to use the sub-
woofer and calibrate the relative volume level
of the subwoofer using the built-in test tones.
See the Setup section of this manual.
AM Antenna
See Figure 11
The RSX-03 includes a plastic loop antenna
to receive AM radio signals. Remove this
antenna from the box and locate it near the
RSX-03. It can be tacked to a wall, using the
mounting tab provided. Alternatively, you
can fold the center portion of the antenna to
form a tabletop stand.
Connect the 300 ohm twin-conductor wire
from the loop antenna to the push terminals
labeled AM LOOP, attaching one wire to
each terminal. It does not matter which wire
attaches to which terminal, but make sure
that the connections are solid and that the
two wires do not touch.
You may need to rotate or otherwise reorient
the antenna to find the best position.
NOTE: To use an outdoor antenna, connect its
300 ohm twin-conductor wire to the terminals
in place of the loop antenna.
FM Antenna
See Figure 11
The RSX-03 is supplied with a T-shaped indoor
FM antenna. Connect the coax F-type plug to
the FM antenna connector on the RSX-03. For
best reception, unfold the T-shaped antenna.
Eyelets at both ends of the T allow tacking the
antenna to a wall, if desired. Experiment with
positioning for best reception.
NOTE: To use an outdoor antenna, connect its
75 ohm coax lead wire to the FM connec-
tor instead of the indoor wire antenna, only
after a professional contractor has installed
the antenna system in accordance with local
electrical codes.
OPERATING THE RSX-03
Considering its large number of features, set-
tings, and options, the RSX-03 is easy to oper-
ate from either the front panel or the remote
control, which provides more complete control
options. Initial setup and configuration of the
RSX-03 is done using a comprehensive set of
On-Screen Display (OSD) menus.
To guide you through the operation of the
RSX-03, this section of the manual starts with
explaining the basic layout and function of the
front panel and the remote control. Then, we
explain the basic operations such as turning
the unit on and off, adjusting volume, selecting
a source for listening, etc. Following that is a
detailed explanation of surround sound modes
and how to configure the RSX-03 for various
types of recordings. Finally, there are instruc-
tions for additional features. The last section
of the manual (Configuration) details options
that may be selected during initial setup and
configuration of the unit, many of which will
be set once and left untouched.
Throughout this manual, numbers in gray box-
es refer to the RSX-03 illustration at the front
of this manual. Letters refer to the RR-1060
remote illustration. When both appear, the
function is found on both the RSX-03 and the
remote. When only one appears, that function
is found only on the RSX-03 or the remote.
Front Panel Overview
The following is a brief overview of the control
and features on the front panel of the RSX-03.
Details concerning the use of these controls
are provided in subsequent sections of this
manual describing various tasks.
Front-panel Display
The fluorescent (FL) display in the upper
portion of the RSX-03 provides information
about the status of the unit, tuner reception,
and activation of special features. The main
portion of the display typically shows major
information such as the current input source
(or radio station frequency) and the current
volume setting.
Icons along the left side of the display show
the currently selected digital input. Icons at the
right of the display show individual surround
channels and are used in configuring the sys-
20
RSX-03 Surround Sound Receiver
tem. Icons across the bottom of the display
show the current surround mode and other
special features. Icons at the top of display
assist in tuning radio stations and operation
of RDS/RBDS features.
The FL display can be turned off, if desired. See
the MENU button section for instructions.
Remote Sensor
This sensor receives IR signals from the remote
control. Do not block this sensor.
NOTE: The remainder of the buttons and con-
trols on the front panel are described in the
Overview of Buttons and Controls section.
Remote Control Overview
The RSX-03 includes a full-function learning
remote control that can operate the RSX-03
plus eight other audio/video components.
A separate manual gives detailed instructions
on programming and using the RR-1060 to
replace all of the remote controls in your sys-
tem. The RR-1060 manual covers many extra
features (such as custom labeling of remote
buttons that appear in its LCD display). To
avoid duplication, we provide only basic
information about using the RR-1060 to op-
erate the RSX-03 in this manual.
Many of the RR-1060 functions duplicate
the front panel controls. For that reason, we
cover the controls on the remote under appro-
priate topics throughout this manual. Letters
in gray boxes next to the name of a function
refers to the labeled illustration of the remote
at the front of this manual.
Using the RR-1060
AUDIO Button
To operate the RSX-03 with the remote, make
sure that the AUDIO mode is active by press-
ing the AUD button on the remote before you
start. If one of the other buttons (CD, TAPE,
etc.) is pressed, the remote will control another
component, not the RSX-03. The AUDIO mode
will stay active until another DEVICE/INPUT
button is pressed.
Overview of Buttons
and Controls
This section provides a basic overview of the
buttons and controls on the front panel and
the remote control. Detailed instructions on
the use of these buttons are provided in the
more complete operating instructions in the
following sections. Buttons or controls identi-
fied with a number appear on the front panel.
Those identified with a letter appear on the
remote control. When both a number and a
letter appear, the control is duplicated on both
the front panel and the remote control.
STANDBY Button
POWER Button
The front panel STANDBY button and the
remote control POWER button activate or
deactivate the unit. The rear panel master
POWER switch must be in the ON position for
the remote standby function to operate.
ON/OFF Buttons
The power ON and OFF buttons on the remote
provide discrete ON and OFF commands to
activate the unit or put it in standby mode.
The rear panel master POWER switch must
be in the ON position for the remote standby
function to operate.
VOLUME Knob
VOLUME Buttons
The buttons on the remote and the large rotary
control on the front panel provide the master
VOLUME control, adjusting the output level
of all channels simultaneously.
MUTE Buttons
Push the MUTE button once to turn the sound
off. An indication appears in the front panel
and on-screen displays. Press the button again
to restore previous volume levels.
NOTE: Pressing the volume buttons on the re-
mote also cancels the muting function.
LIGHT Button
Press this button on the side of the remote to
turn the backlighting on for using the remote
in a dark room.
DEVICE/INPUT Buttons
The top row of buttons on the front panel plus
the MULTI INPUT button are used to select
source inputs for listening/viewing.
These buttons are duplicated on the remote,
except that the MULTI INPUT button is la-
beled EXT and the remote buttons have two
functions:
Short press: A short press of any button
changes the device that the remote oper-
ates, but does not change the RSX-03’s in-
put selection.
Long press: A longer press changes the re-
mote control device and changes the source
input for listening/viewing.
The V5 button on the remote is not used with
the RSX-03.
NOTE: A long press of the EXT button changes
the input to the 5.1 channel analog MULTI
INPUT. Pressing the AUD button only changes
the remote device; there is no input source
associated with this button.
D-SLT Button
Press this button to change the digital input
associated with the current source input.
REC Buttons
Press either of these buttons before pressing
(long press on the remote) any DEVICE/INPUT
button to select a source for recording. The
signal from the selected source appears at the
TAPE OUT and VIDEO OUT connectors.
UP/DOWN Cursor Buttons
These two cursor buttons on the remote are
used to move the cursor up or down to select
lines in the OSD menus. These buttons are
also used in conjunction with the TONE but-
ton to make TONE adjustments.
+/– Buttons
These two buttons on the remote are used
to change settings on a selected line in the
OSD menus. Also used for selecting options
in some surround modes.
Speaker Selection Buttons
These three buttons on the remote are used
to select a speaker or group of speakers for
temporary level adjustments.
