Rotel RSX-1056 User manual

Technical
Manual
SURROUND SOUND RECEIVER
RSX-1056
Table of Contents
Specification......................................1

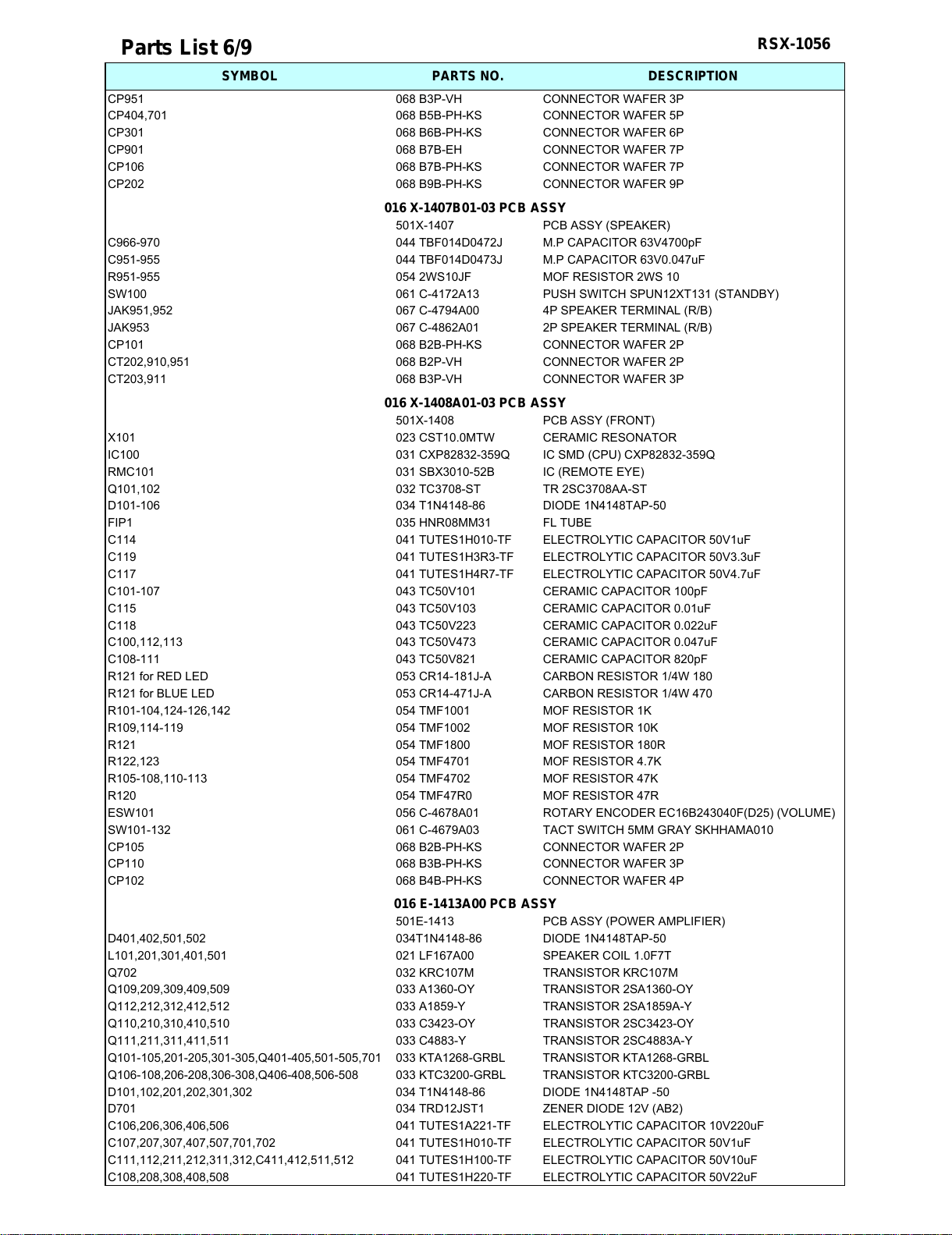

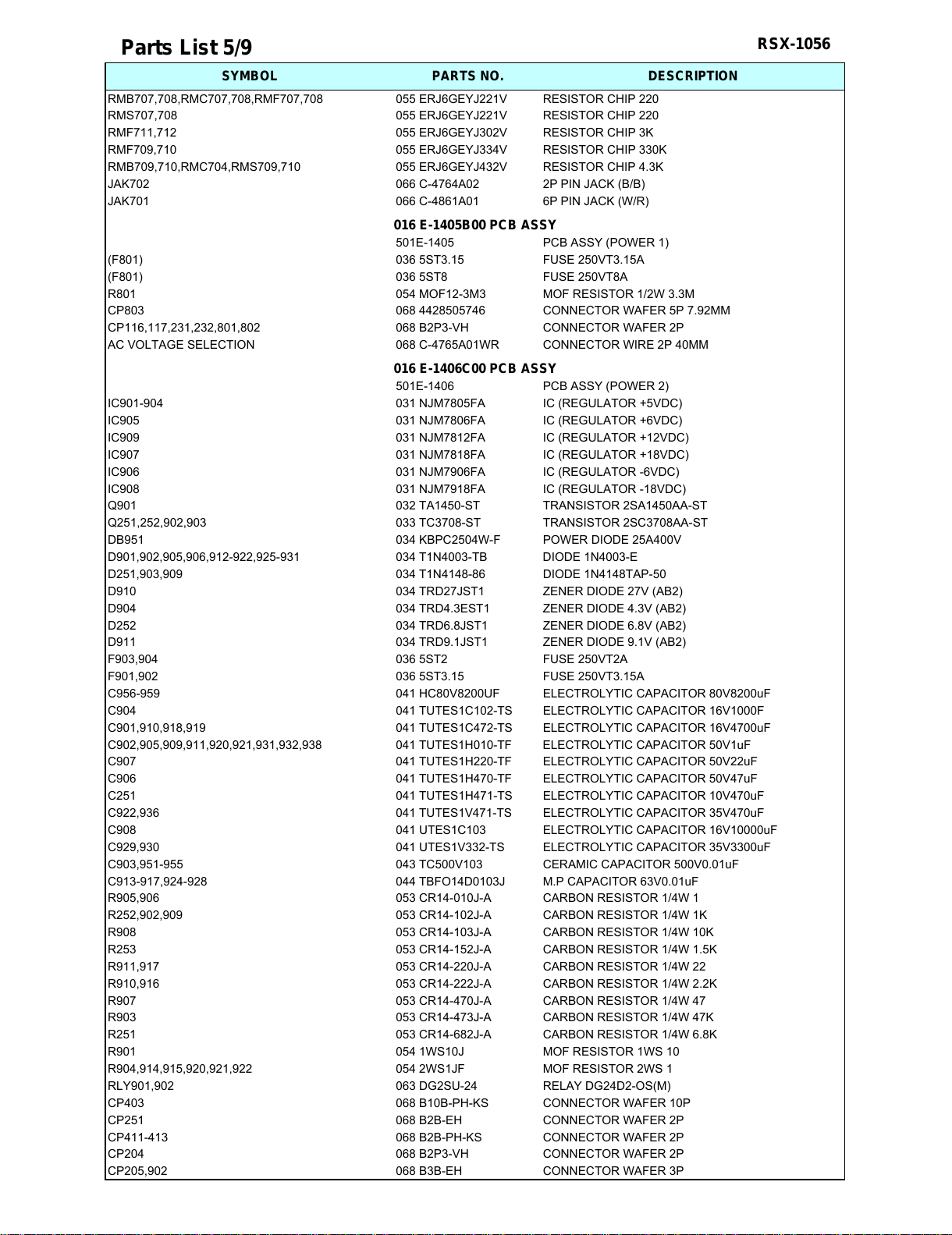

Parts List...........................................2~13

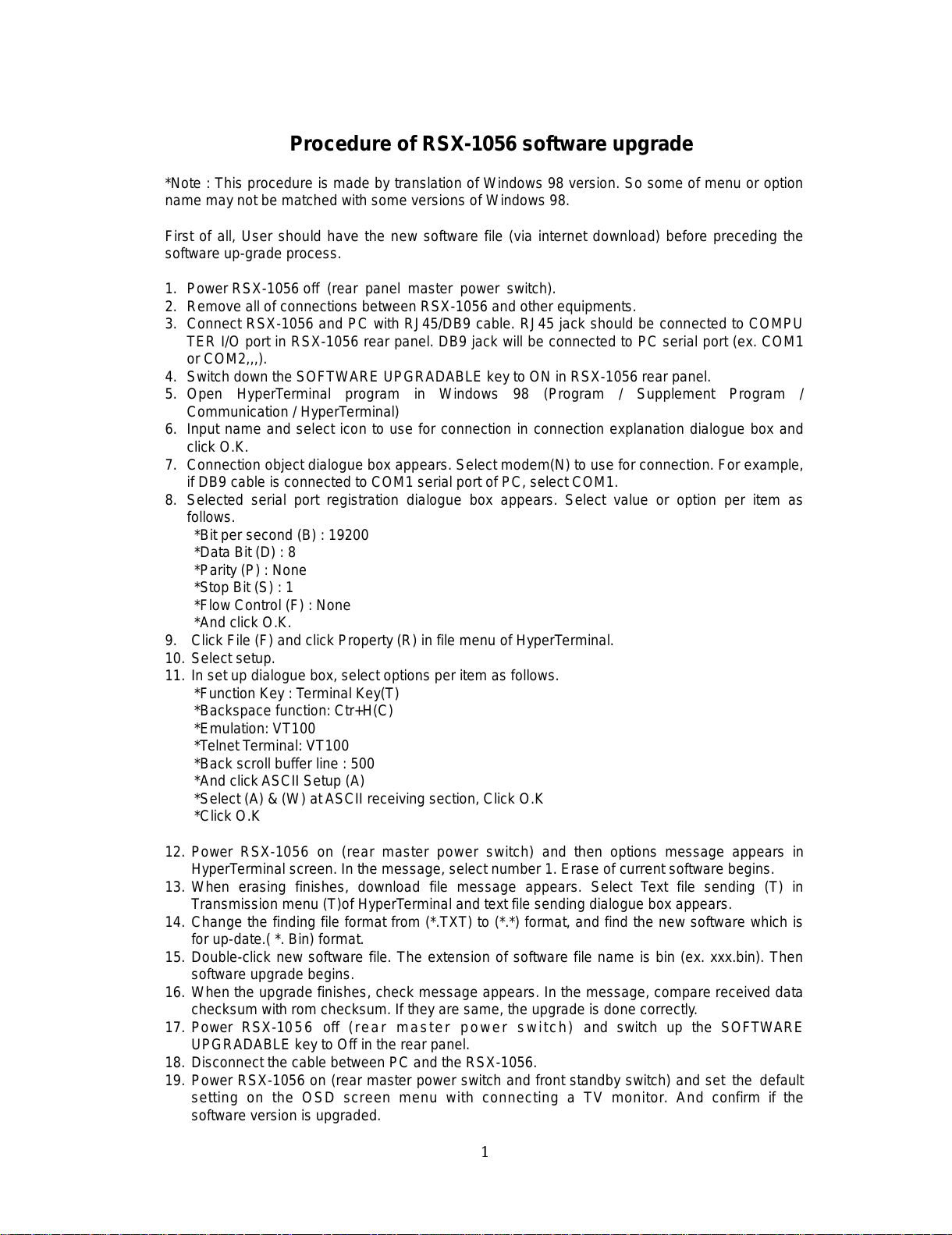

Upgrade............................................14

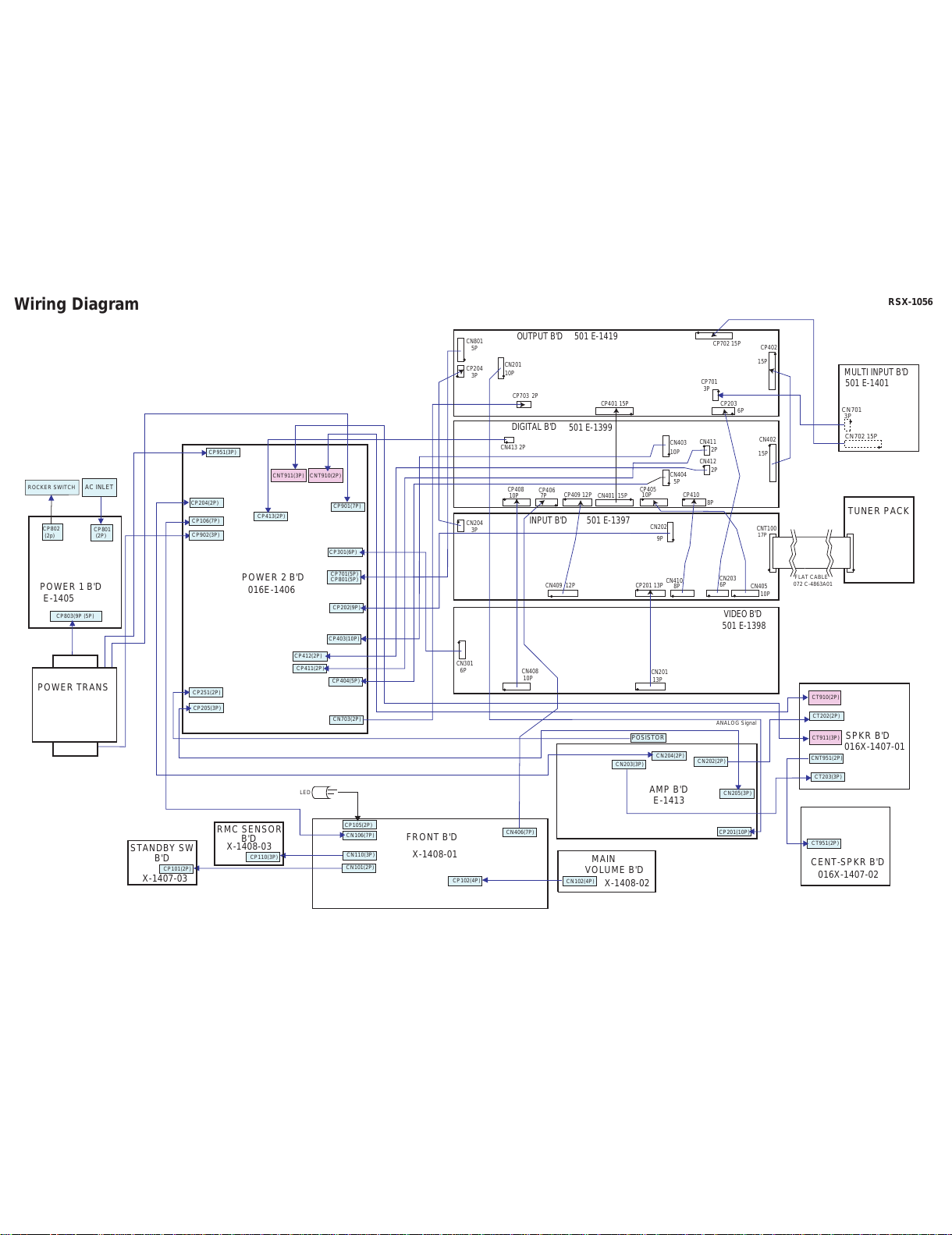

Wiring................................................15
PCB Assembly..................................16~22
Schematic Diagram ..........................23~38
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
Beginning
®
Quality Uncompromised
Y-376A-0405/pdf
THE ROTEL CO., LTD.
Specifications
Audio
Continuous Amplifier Power
(five channels driven)
75 watts/ch (20-20k Hz, <0.05% THD, 8 ohms)
Continuous Amplifier Power
(two channels driven)
100 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN)
Total Harmonic Distortion
<0.09%
Intermodulation Distortion (60 Hz :7 kHz)
<0.05%
Frequency Response
10 Hz – 120 kHz, ±3dB (analog bypass)
10 Hz – 95 kHz, ±3dB (digital input)
Signal to Noise Ratio (IHF A-weighted)
95dB (analog bypass)
92dB (Dolby Digital, dts) 0dBFs
Input Sensitivity/Impedance
Line Level: 200 mV/100K ohms
Preamp Output Level/Output Impedance
1.0 V / 1K ohms
Contour (LF/HF)
±6dB at 50 Hz/15 kHz
Decodable Digital Input Signals
Dolby Digital, Dolby Digital EX, DTS, DTS-ES,
DTS 96/24, LPCM (up to 192K), HDCD, MP3,
MPEG Multichannel
Video
Frequency Response
3 Hz – 10 MHz, ± 3dB (Digital Input)
3 Hz – 100 MHz, ± 3dB (Component Video)
Signal to Noise Ratio
45dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1.0 volt
FM Tuner
Usable Sensitivity
14.2dBf
Signal to Noise Ratio (at 65dBf)
70dBf
Harmonic Distortion (at 65dBf)
0.03%
Stereo Separation (1 kHz)
45dB
Output level
1 V
Antenna Input
75 ohms unbalanced
AM Tuner
Sensitivity
500 V/m
m
Signal to Noise Ratio
40dBf
Output level
500 mV
Antenna Input
Loop Antenna
General
Power Consumption:
450 watts
78 watts (idle)
8 watts (standby)
Power Requirements (AC)
115 volts, 60Hz (USA version)
230 volts, 50Hz (CE version)
Weight
17.2 Kg/37.8 lb.
Dimensions (W x H x D)
432 x 162 x 442 mm
17.01" x 6.38" x 17.40"
Front Panel Height
(feet removed/for rack mount)
150 mm / 5.91"
All manuals and user guides at all-guides.com
all-guides.com

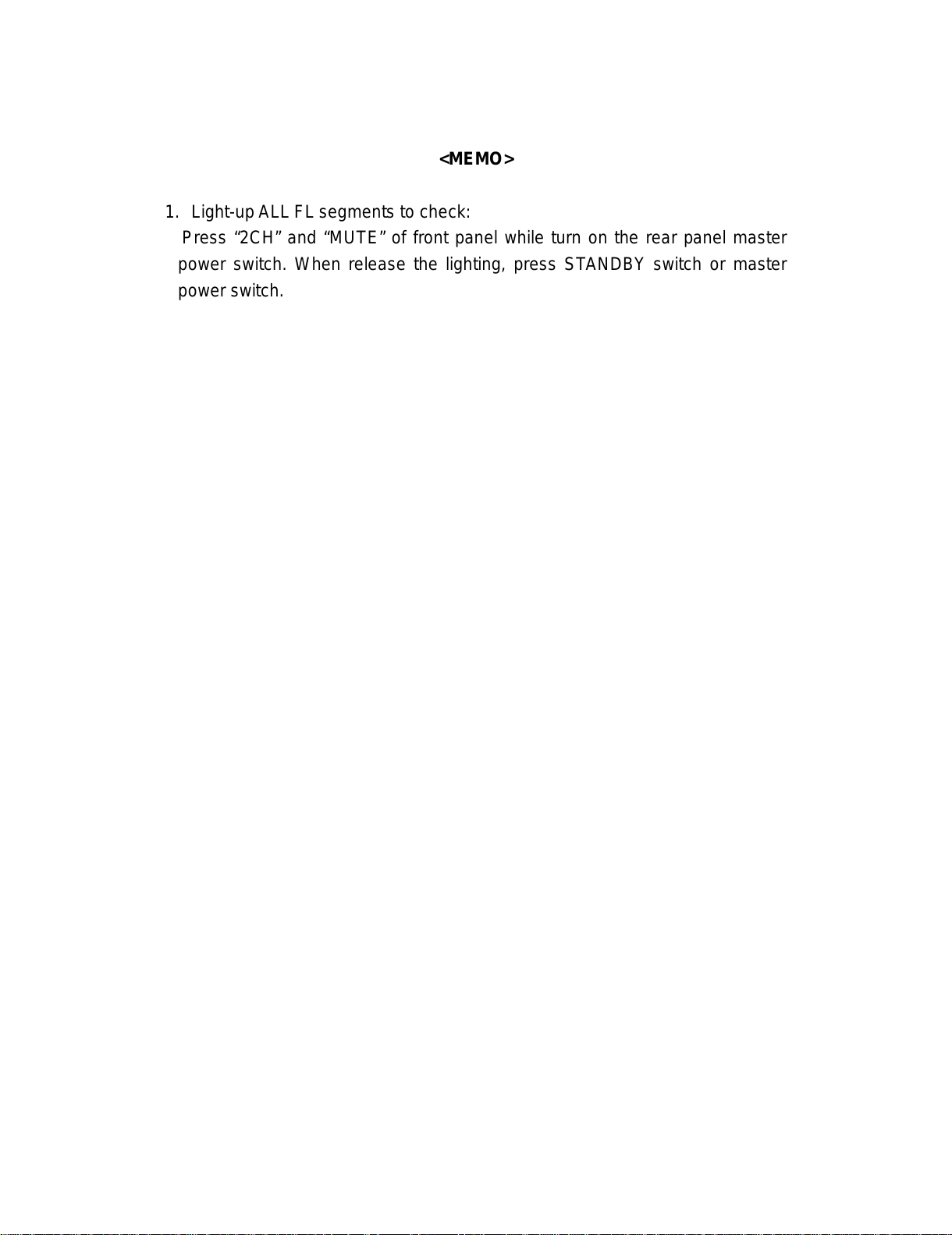

SPEAKERS FRONT/CB/ZONE
RIGHT/2
LEFT/1
ANTENNA
OFF
ON
POWER
SURROUNDCENTER
RIGHT
LEFT
2CH DOLBY
PLII/3ST DTS Neo 6 DSP MULTI INPUT MUTE RECZONE
CD TUNER TAPE1
SURROUND SOUND RECEIVER RSX-1056
STANDBY
VIDEO1 VIDEO2 VIDEO3 VIDEO5VIDEO4
6 7 8 9 0 DIRECT MEMORYMONO
12345 TUNING VOLUME
BAND
Manufactured under license from Digital
Theater Systems, Inc. US Pat. No. 5,451,942,
5,956674, 5,974,380, 5,978,762, and other
world-wide patents issued and pending.
"DTS" and "DTS Digital Surround" are
registered trademarks of Digital Theater
Systems, Inc. Copyright 1996, 2000 Digital
Theater Systems, Inc. All rights reserved.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Manufactured under license from Dolby
Laboratories. "Dolby", "Pro Logic", "Surround
EX", and the double-D symbol are trademarks
of Dolby Laboraties Licensing Corporation.
SURROUND SOUND
RECEIVER
MODEL NO. : RSX-1056
POWER CONSUMPTION:
450 WATTS
2132
1435IN OUT VIDEO OUT
DIGITAL INPUT DIGITAL OUT
VIDEO INTAPECD
ZONE
OUT
COMPOSITE IN
23451
21
23123451S-VIDEO IN S-VIDEO OUT
213
SOFTWARE
UPGRADABLE
COMPUTER I/O
COMPONENT VIDEO IN
MON
OUT
YP
BYP
R
PRPB
3
2
1
21
COAXIAL COAXIAL OPTICAL
321
OPTICAL
IR OUT
2 ZONE1
12V TRIG OUT
EXTZONE
REM IN
CB 1REAR LFRONT L SUB 1CENTER 1
CB 2REAR RFRONT R SUB 2CENTER 2
CB 1
REAR L
FRONT L CENTER
CB 2REAR RFRONT R SUB
L
R
MON
OUT
MON
OUT
ZONE
OUT
COMPOSITE OUT
Appearance RSX-1056
All manuals and user guides at all-guides.com

Parts List 1/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
501E-1397-B PCB ASSY (INPUT)
L301 021 LAL02TB100M MICRO INDUCTOR 10uH
L302 021 LAL02TB101M MICRO INDUCTOR 100uH
XT301 023 HC49U-001WR CRYSTAL 14.31818MHZ
IC230-232 031 ADG704BRM IC SMD (4CH MPX) ADG704BRM
IC233,235 031 ADG774BR IC SMD (MPX) ADG774BR
IC211,212 031 HEF4094BT IC SMD (SHIFT REGISTER) HEF4094BT
IC236 031 KS5520-1 IC (SCREEN DISPLAY) KS5520-01
IC234 031 LT1397CS IC SMD (OPEAMP) LT1397CS
IC201-207 031 NJM5532M IC SMD (OPEAMP) NJM5532M
IC223 031 NJM7812FA IC (REGULATOR +12VDC)
IC208-210,215 031 TC9163AF IC SMD (SWITCH ALLEY) KIC9163AF
IC222 031 TC9459F IC SMD (VOLUME) KIC9459F
IC213,214,216-221,224 031 TL072CD IC SMD (OPE DUAL) TL072CD
Q201-205 032 KRA107S TRANSISTOR CHIP KRA107S
Q206-218,224,225 032 KRC231S TRANSISTOR CHIP KRC231S
Q221 032 KTA1271 TRANSISTOR KTA1271
D204 037 KDS226RTK DIODE CHIP KDS226RTK
D201-203 037 KDS226RTK DIODE CHIP KDS226RTK
C349,354-361,365,369-372,390,392 041 TUTES1A101-TF ELECTROLYTIC CAPACITOR 10V100uF
C366-368,C374,386,389 041 TUTES1A471-TF ELECTROLYTIC CAPACITOR 10V470uF
C229,258-281,298-309,397,398 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
C376,380 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C230-257,282-287,296,297,310-326 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C379,382 041 TUTES1HR47-TF ELECTROLYTIC CAPACITOR 50V0.47uF
C387,388 043 TC50VCH220 CERAMIC CAPACITOR 22pF
C377,378 043 TC50VCH560 CERAMIC CAPACITOR 56pF
C383 047 ECJ2VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C294,295 047 ECJ2VB1H153K CERAMIC CAPACITOR CHIP 0.015uF
C290-293,351,352,399,288,289 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C375,385 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF
C201-228,327-334,347,348,384,343,344,381 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
R395-398,399,417,444 055 ERJ6GEYJ100V RESISTOR CHIP 10
R419,418 055 ERJ6GEYJ101V RESISTOR CHIP 100
R447,201-214,216-221,226,282-285,300,301 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R316-323,340-347,353,354,359,360,373,374 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R436,437 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R352,369,370,375,400 055 ERJ6GEYJ103V RESISTOR CHIP 10K
R230-243,332-339,357,358,365,366,371,372 055 ERJ6GEYJ104V RESISTOR CHIP 100K
R392-394,439,294,295,348-351,376,411-414 055 ERJ6GEYJ104V RESISTOR CHIP 100K
R446 055 ERJ6GEYJ105V RESISTOR CHIP 1M
R443 055 ERJ6GEYJ122V RESISTOR CHIP 1.2K
R450 055 ERJ6GEYJ181V RESISTOR CHIP 180
R367,368,296,297 055 ERJ6GEYJ182V RESISTOR CHIP 1.8K
R438 055 ERJ6GEYJ204V RESISTOR CHIP 200K
R258-281,302-315,361,362,457,458 055 ERJ6GEYJ221V RESISTOR CHIP 220
R441 055 ERJ6GEYJ222V RESISTOR CHIP 2.2K
R442 055 ERJ6GEYJ223V RESISTOR CHIP 22K
R405-410,415,416 055 ERJ6GEYJ271V RESISTOR CHIP 270
R435 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2
R286-289,324-331,355,356,451,452 055 ERJ6GEYJ334V RESISTOR CHIP 330K
R445 055 ERJ6GEYJ392V RESISTOR CHIP 3.9K
R222-225,455,456 055 ERJ6GEYJ393V RESISTOR CHIP 39K
R401-404,448,449 055 ERJ6GEYJ470V RESISTOR CHIP 47
R244-257,290-293,453,454 055 ERJ6GEYJ472V RESISTOR CHIP 4.7K
R440 055 ERJ6GEYJ512V RESISTOR CHIP 5.1K
R380-391 055 ERJ6GEYJ750V RESISTOR CHIP 75
R298,299 055 ERJ6GEYJ821V RESISTOR CHIP 820
RLY201 063 A12W-K RELAY A12W-K
JAK201-204 066 C-4792A01 6P PIN JACK (W/R)
JK206,207 066 C-4833A01 6P PIN JACK (G/BLU/R)
CP201 068 B13B-PH-KS CONNECTOR WAFER 13P
CNT100 068 C-4867A01 FPC CONNECTOR 17P(TOP TI)
016 E-1397C00 PCB ASSY
All manuals and user guides at all-guides.com

Parts List 2/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
501E-1398-B PCB ASSY (VIDEO)
L301,303 021 LAL02TB100M MICRO INDUCTOR 10uH
L302,304 021 LAL02TB101M MICRO INDUCTOR 100uH
XT303 023 CSB500F23 RESONATOR CSB500 F23
XT301,302 023 HC49U-001WR CRYSTAL 14.31818MHZ
XT304 023 HC49US-010 CRYSTAL HC49US3.579545MHZ
XT305 023 HC49US-011 CRYSTAL HC49US4.433619MHZ
IC303,309 031 KS5520-1 IC (SCREEN DISPLAY) KS5520-01
IC312 031 UPC1830GT IC SMD (VIDEO CONVERTER) UPC1830GT
IC301,302,307,308 031 TC9163AF IC SMD (SWITCH ALLEY) KIC9163AF
IC304-306,310,311,313 031 TSH94ID IC SMD (VIDEO AMP) TSH94ID
Q305 032 KRA107S TRANSISTOR CHIP KRA107S
Q301,302,304 032 KRC107S TRANSISTOR CHIP KRC107S
Q303 032 KRC231S TRANSISTOR CHIP KRC231S
Q306 032 KTA1271 TRANSISTOR KTA1271
D302,303 037 KDS184RTK DIODE CHIP KDS184RTK
D301 037 KDS226RTK DIODE CHIP KDS223RTK
C326-331,341-344,371,374,375,390-393 041 TUTES1A101-TF ELECTROLYTIC CAPACITOR 10V100uF
C311,320,325,346,355,360 041 TUTES1A471-TF ELECTROLYTIC CAPACITOR 10V470uF
C314,316,349,351,387 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C380 041 TUTES1H0R1-TF ELECTROLYTIC CAPACITOR 50V0.1uF
C305-309,337-340,389 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C370,388 041 TUTES1H2R2-TF ELECTROLYTIC CAPACITOR 50V2.2uF
C382 041 TUTES1H4R7-TF ELECTROLYTIC CAPACITOR 50V4.7uF
C315,318,350,353 041 TUTES1HR47-TF ELECTROLYTIC CAPACITOR 50V0.47uF
C323,324,358,359 043 TC50VCH220 CERAMIC CAPACITOR 22pF
C312,313,347,348 043 TC50VCH560 CERAMIC CAPACITOR 56pF
C377,384 044 TBF014D0224J M.P CAPACITOR 63V0.22uF
C383 044 TBF074D0105J M.P CAPACITOR 63V1uF
C378,379 047 CL21C150JBNC CERAMIC CAPACITOR CHIP 15pF
C319,354,381 047 ECJ2VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C369 047 ECJ2VB1H472K CERAMIC CAPACITOR CHIP 4700pF
C301-304,334-336 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C372,373,376,385,386 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C310,321,332,345,356,361 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF
C317,322,352,357 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
C365 047 ECJ2VG1H102J CERAMIC CAPACITOR CHIP 1000pF
C366 047 ECJ2VG1H221J CERAMIC CAPACITOR CHIP 220pF
C367 047 ECJ2VG1H271J CERAMIC CAPACITOR CHIP 270pF
C368 047 ECJ2VG1H391J CERAMIC CAPACITOR CHIP 390pF
RV401,402 051 EVM3Y-B24 SEMI-FIXED RESISTOR 20KB
R334,368-373,411-414,421,427,459,466,467 055 ERJ6GEYJ100V RESISTOR CHIP 10
R340-348,393-398,430-432 055 ERJ6GEYJ101V RESISTOR CHIP 100
R322,323,326-329,349-364,367,389-392 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R399-408,415,416,428,434,439,440,458 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R338,425,463 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R441,442,460,461 055 ERJ6GEYJ103V RESISTOR CHIP 10K
R330,417,438 055 ERJ6GEYJ104V RESISTOR CHIP 100K
R339,426 055 ERJ6GEYJ105V RESISTOR CHIP 1M
R337,424 055 ERJ6GEYJ122V RESISTOR CHIP 1.2K
R462 055 ERJ6GEYJ152V RESISTOR CHIP 1.5K
R451 055 ERJ6GEYJ153V RESISTOR CHIP 15K
R453 055 ERJ6GEYJ184V RESISTOR CHIP 180K
R331,418 055 ERJ6GEYJ204V RESISTOR CHIP 200K
R456,457 055 ERJ6GEYJ220V RESISTOR CHIP 22
R320,321,324,325,385-388,455 055 ERJ6GEYJ221V RESISTOR CHIP 220
R443,333,420 055 ERJ6GEYJ222V RESISTOR CHIP 2.2K
R335,422 055 ERJ6GEYJ223V RESISTOR CHIP 22K
R448 055 ERJ6GEYJ242V RESISTOR CHIP 2.4K
R445 055 ERJ6GEYJ272V RESISTOR CHIP 2.7K
R429,437 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2
R444 055 ERJ6GEYJ331V RESISTOR CHIP 330
R336,365,366,409,410,423 055 ERJ6GEYJ392V RESISTOR CHIP 3.9K
016 E-1398E00 PCB ASSY
All manuals and user guides at all-guides.com

Parts List 3/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
R446 055 ERJ6GEYJ432V RESISTOR CHIP 4.3K
R454 055 ERJ6GEYJ433V RESISTOR CHIP 43K
R449 055 ERJ6GEYJ471V RESISTOR CHIP 470
R332,419 055 ERJ6GEYJ512V RESISTOR CHIP 5.1K
R452 055 ERJ6GEYJ684V RESISTOR CHIP 680K
R301-319,375-384,433,435,436,464,465 055 ERJ6GEYJ750V RESISTOR CHIP 75
R450 055 ERJ6GEYJ821V RESISTOR CHIP 820
R447 055 ERJ6GEYJ914V RESISTOR CHIP 910K
SW305,306 066 4TR-2964#10 3P PIN JACK (YEL)
SW301-303 066 C-4604A02 3P MINI DIN JACK YKF51-5520
SW304 066 C-4860A01 4P PIN JACK (YEL)
501E-1399-B PCB ASSY (DIGITAL)
XT402 023 CXO-002 CRYSTAL 12.288MHZ
XT401 023 HC49U-009 CRYSTAL HC49U24.576MHZ
IC438 031 39VF040 IC (MPR) SST39VF040-70-4C-NH
IC440 031 74HC00 IC (QUAD NAND GATE) 74HC00
IC436,446 031 74HC125 IC (QUAD BUFFER) 74HCT125D
IC441,442 031 74HC157 IC (QUAD MPX) 74VHC157
IC445 031 74HC244 IC (OCTAL BUFFER) 74VHC244
IC431 031 AK4114VQ IC SMD (DIR) AK4114VQ
IC447-450 031 AK4395VF IC SMD (D/A CONVERTER) AK4395VF
IC432 031 AK5383VS IC SMD (A/D CONVERTER) AK5383VS
IC403 031 AM29F004BT-X56 IC PLCC (FLASH MEMORY) AM29F004BT70JI
IC443 031 AME1117BCBT IC (REGULATOR 2.5V)
IC444 031 AME1117CCGT IC SMD (REGULATOR 3.3V)
IC404 031 AT24C16PI-2.7 IC (EEPROM) AT24C16PL
IC437 031 CS49400 IC SMD (DSP) CS49400-3
IC405 031 HIN232CB IC SMD (RS232) HIN232CB
IC402 031 IS62C256 IC SMD (SRAM) IS62C256
IC439 031 K4S161622D IC SMD (MEMORY) K4S161622D
IC406,407 031 LTV817 IC SMD (PHOTO COUPLER)
IC433-435,451-454 031 TL072CD IC SMD (OPE DUAL) TL072CD
IC401 031 TMP95C063F IC SMD (CPU) TMP95C063F
Q401,QCW451,QFL/R451 032 KRC107S TRANSISTOR CHIP KRC107S
Q402-404 032 KRC231S TRANSISTOR CHIP KRC231S
D401-407 037 KDS184RTK DIODE CHIP KDS184RTK
C430 041 SCDA5R5104V BACKUP CAPACITOR 5.5V 0.1F
C480,481,484,487,C406 041 TUTES1A101-TF ELECTROLYTIC CAPACITOR 10V100uF
C454-462,512-519,CAL/R401-404 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
CCB455,CCW455,CF455,CS455 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
C418-421 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C414,417,438,439,441-443,453,482,483 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C485,486,CBL/R454,CCB454,456,CCT454 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
CCW454,456,CF454,456,CFL/R454 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
CS454,456,CSL/R454,CSW454 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C503 041 TUTES1H2R2-TF ELECTROLYTIC CAPACITOR 50V2.2uF
C416 041 TUTES1H3R3-TF ELECTROLYTIC CAPACITOR 50V3.3uF
C415 041 TUTES1HR22-TF ELECTROLYTIC CAPACITOR 50V0.22uF
C440 041 TUTES1HR47-TF ELECTROLYTIC CAPACITOR 50V0.47uF
CAL/R408,CSW452,453 047 ECJ2VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
CCT455,CFL/R455 047 ECJ2VB1H223K CERAMIC CAPACITOR CHIP 0.022uF
C501 047 ECJ2VC1H122J CERAMIC CAPACITOR CHIP 1200pF
C409-411,422-428,436,437,447,450,451 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C467-479,488-490,493-496,498,500 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C504-509,520-523,CCB451-453 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
CCW451-453,CF451-453,CS451-453 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C401-405,407,408,429,431-435,444-446,448 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C452,463-465,491,499,510,511 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
CAL/R405 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C449,C5383 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF
CBL/R452,453,CCT452,453,CFL/R452,453 047 ECJ2VG1H121J CERAMIC CAPACITOR CHIP 120pF
CSL/R452,453 047 ECJ2VG1H121J CERAMIC CAPACITOR CHIP 120pF
C412,413 047 ECJ2VG1H270J CERAMIC CAPACITOR CHIP 27pF
016 E-1399C00 PCB ASSY
All manuals and user guides at all-guides.com

Parts List 4/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
CBL/R451,CCT451,CFL/R451,CSL/R451,CSW451 047 ECJ2VG1H331J CERAMIC CAPACITOR CHIP 330pF
CAL/R406,407 047 ECJ2VG1H471J CERAMIC CAPACITOR CHIP 470pF
C502 047 ECJ2VG1H680J CERAMIC CAPACITOR CHIP 68pF
RM410-420 055 CN43-101 RESISTOR CHIP NETWORK 100
RM403-409 055 CN43-103 RESISTOR CHIP NETWORK 10K
RM401,402 055 CN43-332 RESISTOR CHIP NETWORK 3.3K
R407,408,426,444,445 055 ERJ6GEYJ100V RESISTOR CHIP 10
R405,406,409-411,458,4395 055 ERJ6GEYJ101V RESISTOR CHIP 100
R427,428,448,451,459-462,476-479,418 055 ERJ6GEYJ101V RESISTOR CHIP 100
RBL/R458,RCT458,RFL/R458,RSL/R458 055 ERJ6GEYJ102V RESISTOR CHIP 1K
RSW458 055 ERJ6GEYJ102V RESISTOR CHIP 1K
R415-417,430,1056,401,402,412-414,447 055 ERJ6GEYJ103V RESISTOR CHIP 10K
RAL/R401,402,404,405 055 ERJ6GEYJ103V RESISTOR CHIP 10K
RBL/R457,RCT457,RFL/R457,RSL/R457 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RSW457 055 ERJ6GEYJ104V RESISTOR CHIP 100K
R403 055 ERJ6GEYJ105V RESISTOR CHIP 1M
R446 055 ERJ6GEYJ183V RESISTOR CHIP 18K
R480,RAL/R408,411 055 ERJ6GEYJ220V RESISTOR CHIP 22
R452-457,466-473,435-438 055 ERJ6GEYJ221V RESISTOR CHIP 220
R463. 055 ERJ6GEYJ302V RESISTOR CHIP 3K
RAL/R406,409 055 ERJ6GEYJ302V RESISTOR CHIP 3K
R464,465 055 ERJ6GEYJ332V RESISTOR CHIP 3.3K
R439-443 055 ERJ6GEYJ471V RESISTOR CHIP 470
R404,420-425,419 055 ERJ6GEYJ472V RESISTOR CHIP 4.7K
R429,449,450,474,475,4394,5383 055 ERJ6GEYJ473V RESISTOR CHIP 47K
RAL/R403 055 ERJ6GEYJ473V RESISTOR CHIP 47K
RBL/R451-453,455,456,RCT451-453,455,456 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K
RFL/R451-453,455,456,RSW451-453,455,456 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K
RSL/R451-453,455,456 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K
R431-434 055 ERJ6GEYJ750V RESISTOR CHIP 75
RAL/R407,410 055 ERJ6GEYJ911V RESISTOR CHIP 910
RBL/R454,RCT454,RFL/R454,RSL/R454 055 ERJ6GEYJ912V RESISTOR CHIP 9.1K
RSW454 055 ERJ6GEYJ912V RESISTOR CHIP 9.1K
RLY401-403 063 A12W-K RELAY A12W-K
SW401 064 KSP02H DIP SWITCH
JAK407-413 065 YKB21-5103A 3.5DIA MINIATURE JACK (ST)
JAK401,402 066 C-4859A01 2P PIN JACK AU (BLACK)
JAK406 066 SY010-8P/K JACK RJ45 SY010-8P/K
JAK404,405 066 TORX179L JACK OPTICAL RECEIVER
JAK403 066 TOTX179L JACK OPTICAL TRANSMITTER
CP405,408 068 B10B-PH-KS CONNECTOR WAFER 10P
CP409 068 B12B-PH-KS CONNECTOR WAFER 12P
CP406 068 B7B-PH-KS CONNECTOR WAFER 7P
CP410 068 B8B-PH-KS CONNECTOR WAFER 8P
IC403,438 068 PLCC32TS IC SOCKET 32P
501E-1401-B PCB ASY (MULTI INPUT)
IC715-718 031 TL072CD IC SMD (OPE DUAL) TL072CD
CMB707,708,CMC707,708,CMF707,708 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
CMS707,708 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
CMB703,704,CMC702,CMF703,704 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
CMS703,704,CMW702 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C713,714 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
CMB705,706,CMC703,CMF705,706,CMS705,706 047 ECJ2VG1H100D CERAMIC CAPACITOR CHIP 10pF
CMB701,702,710,711,CMC701,710 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
CMF701,702,710,711,CMS701,702,710,711 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
CMW701,703,710 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
RMB701,702,RMC701,RMF701,702 055 ERJ6GEYJ101V RESISTOR CHIP 100R
RMS701,702,RMW701 055 ERJ6GEYJ101V RESISTOR CHIP 100R
RMB705,706,RMB711,712,RMC703,705 055 ERJ6GEYJ103V RESISTOR CHIP 10K
RMF705,706,RMS705,706,711,712 055 ERJ6GEYJ103V RESISTOR CHIP 10K
RMB703,704,RMC702,RMF703,704 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RMS703,704,RMW702 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RMW703,704 055 ERJ6GEYJ123V RESISTOR CHIP 12K
016 E-1401A00 PCB ASSY
All manuals and user guides at all-guides.com
all-guides.com

Parts List 5/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
RMB707,708,RMC707,708,RMF707,708 055 ERJ6GEYJ221V RESISTOR CHIP 220
RMS707,708 055 ERJ6GEYJ221V RESISTOR CHIP 220
RMF711,712 055 ERJ6GEYJ302V RESISTOR CHIP 3K
RMF709,710 055 ERJ6GEYJ334V RESISTOR CHIP 330K
RMB709,710,RMC704,RMS709,710 055 ERJ6GEYJ432V RESISTOR CHIP 4.3K
JAK702 066 C-4764A02 2P PIN JACK (B/B)
JAK701 066 C-4861A01 6P PIN JACK (W/R)
501E-1405 PCB ASSY (POWER 1)
(F801) 036 5ST3.15 FUSE 250VT3.15A
(F801) 036 5ST8 FUSE 250VT8A
R801 054 MOF12-3M3 MOF RESISTOR 1/2W 3.3M
CP803 068 4428505746 CONNECTOR WAFER 5P 7.92MM
CP116,117,231,232,801,802 068 B2P3-VH CONNECTOR WAFER 2P
AC VOLTAGE SELECTION 068 C-4765A01WR CONNECTOR WIRE 2P 40MM
501E-1406 PCB ASSY (POWER 2)
IC901-904 031 NJM7805FA IC (REGULATOR +5VDC)
IC905 031 NJM7806FA IC (REGULATOR +6VDC)
IC909 031 NJM7812FA IC (REGULATOR +12VDC)
IC907 031 NJM7818FA IC (REGULATOR +18VDC)
IC906 031 NJM7906FA IC (REGULATOR -6VDC)
IC908 031 NJM7918FA IC (REGULATOR -18VDC)
Q901 032 TA1450-ST TRANSISTOR 2SA1450AA-ST
Q251,252,902,903 033 TC3708-ST TRANSISTOR 2SC3708AA-ST
DB951 034 KBPC2504W-F POWER DIODE 25A400V
D901,902,905,906,912-922,925-931 034 T1N4003-TB DIODE 1N4003-E
D251,903,909 034 T1N4148-86 DIODE 1N4148TAP-50
D910 034 TRD27JST1 ZENER DIODE 27V (AB2)
D904 034 TRD4.3EST1 ZENER DIODE 4.3V (AB2)
D252 034 TRD6.8JST1 ZENER DIODE 6.8V (AB2)
D911 034 TRD9.1JST1 ZENER DIODE 9.1V (AB2)
F903,904 036 5ST2 FUSE 250VT2A
F901,902 036 5ST3.15 FUSE 250VT3.15A
C956-959 041 HC80V8200UF ELECTROLYTIC CAPACITOR 80V8200uF
C904 041 TUTES1C102-TS ELECTROLYTIC CAPACITOR 16V1000F
C901,910,918,919 041 TUTES1C472-TS ELECTROLYTIC CAPACITOR 16V4700uF
C902,905,909,911,920,921,931,932,938 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C907 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF
C906 041 TUTES1H470-TF ELECTROLYTIC CAPACITOR 50V47uF
C251 041 TUTES1H471-TS ELECTROLYTIC CAPACITOR 10V470uF
C922,936 041 TUTES1V471-TS ELECTROLYTIC CAPACITOR 35V470uF
C908 041 UTES1C103 ELECTROLYTIC CAPACITOR 16V10000uF
C929,930 041 UTES1V332-TS ELECTROLYTIC CAPACITOR 35V3300uF
C903,951-955 043 TC500V103 CERAMIC CAPACITOR 500V0.01uF
C913-917,924-928 044 TBFO14D0103J M.P CAPACITOR 63V0.01uF
R905,906 053 CR14-010J-A CARBON RESISTOR 1/4W 1
R252,902,909 053 CR14-102J-A CARBON RESISTOR 1/4W 1K
R908 053 CR14-103J-A CARBON RESISTOR 1/4W 10K
R253 053 CR14-152J-A CARBON RESISTOR 1/4W 1.5K
R911,917 053 CR14-220J-A CARBON RESISTOR 1/4W 22
R910,916 053 CR14-222J-A CARBON RESISTOR 1/4W 2.2K
R907 053 CR14-470J-A CARBON RESISTOR 1/4W 47
R903 053 CR14-473J-A CARBON RESISTOR 1/4W 47K
R251 053 CR14-682J-A CARBON RESISTOR 1/4W 6.8K
R901 054 1WS10J MOF RESISTOR 1WS 10
R904,914,915,920,921,922 054 2WS1JF MOF RESISTOR 2WS 1
RLY901,902 063 DG2SU-24 RELAY DG24D2-OS(M)
CP403 068 B10B-PH-KS CONNECTOR WAFER 10P
CP251 068 B2B-EH CONNECTOR WAFER 2P
CP411-413 068 B2B-PH-KS CONNECTOR WAFER 2P
CP204 068 B2P3-VH CONNECTOR WAFER 2P
CP205,902 068 B3B-EH CONNECTOR WAFER 3P
016 E-1406C00 PCB ASSY
016 E-1405B00 PCB ASSY
All manuals and user guides at all-guides.com

Parts List 6/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
CP951 068 B3P-VH CONNECTOR WAFER 3P
CP404,701 068 B5B-PH-KS CONNECTOR WAFER 5P
CP301 068 B6B-PH-KS CONNECTOR WAFER 6P
CP901 068 B7B-EH CONNECTOR WAFER 7P
CP106 068 B7B-PH-KS CONNECTOR WAFER 7P
CP202 068 B9B-PH-KS CONNECTOR WAFER 9P
501X-1407 PCB ASSY (SPEAKER)
C966-970 044 TBF014D0472J M.P CAPACITOR 63V4700pF
C951-955 044 TBF014D0473J M.P CAPACITOR 63V0.047uF
R951-955 054 2WS10JF MOF RESISTOR 2WS 10
SW100 061 C-4172A13 PUSH SWITCH SPUN12XT131 (STANDBY)
JAK951,952 067 C-4794A00 4P SPEAKER TERMINAL (R/B)
JAK953 067 C-4862A01 2P SPEAKER TERMINAL (R/B)
CP101 068 B2B-PH-KS CONNECTOR WAFER 2P
CT202,910,951 068 B2P-VH CONNECTOR WAFER 2P
CT203,911 068 B3P-VH CONNECTOR WAFER 3P
501X-1408 PCB ASSY (FRONT)
X101 023 CST10.0MTW CERAMIC RESONATOR
IC100 031 CXP82832-359Q IC SMD (CPU) CXP82832-359Q
RMC101 031 SBX3010-52B IC (REMOTE EYE)
Q101,102 032 TC3708-ST TR 2SC3708AA-ST
D101-106 034 T1N4148-86 DIODE 1N4148TAP-50
FIP1 035 HNR08MM31 FL TUBE
C114 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C119 041 TUTES1H3R3-TF ELECTROLYTIC CAPACITOR 50V3.3uF
C117 041 TUTES1H4R7-TF ELECTROLYTIC CAPACITOR 50V4.7uF
C101-107 043 TC50V101 CERAMIC CAPACITOR 100pF
C115 043 TC50V103 CERAMIC CAPACITOR 0.01uF
C118 043 TC50V223 CERAMIC CAPACITOR 0.022uF
C100,112,113 043 TC50V473 CERAMIC CAPACITOR 0.047uF
C108-111 043 TC50V821 CERAMIC CAPACITOR 820pF
R121 for RED LED 053 CR14-181J-A CARBON RESISTOR 1/4W 180
R121 for BLUE LED 053 CR14-471J-A CARBON RESISTOR 1/4W 470
R101-104,124-126,142 054 TMF1001 MOF RESISTOR 1K
R109,114-119 054 TMF1002 MOF RESISTOR 10K
R121 054 TMF1800 MOF RESISTOR 180R
R122,123 054 TMF4701 MOF RESISTOR 4.7K
R105-108,110-113 054 TMF4702 MOF RESISTOR 47K
R120 054 TMF47R0 MOF RESISTOR 47R
ESW101 056 C-4678A01 ROTARY ENCODER EC16B243040F(D25) (VOLUME)
SW101-132 061 C-4679A03 TACT SWITCH 5MM GRAY SKHHAMA010
CP105 068 B2B-PH-KS CONNECTOR WAFER 2P
CP110 068 B3B-PH-KS CONNECTOR WAFER 3P
CP102 068 B4B-PH-KS CONNECTOR WAFER 4P
501E-1413 PCB ASSY (POWER AMPLIFIER)
D401,402,501,502 034T1N4148-86 DIODE 1N4148TAP-50
L101,201,301,401,501 021 LF167A00 SPEAKER COIL 1.0F7T
Q702 032 KRC107M TRANSISTOR KRC107M
Q109,209,309,409,509 033 A1360-OY TRANSISTOR 2SA1360-OY
Q112,212,312,412,512 033 A1859-Y TRANSISTOR 2SA1859A-Y
Q110,210,310,410,510 033 C3423-OY TRANSISTOR 2SC3423-OY
Q111,211,311,411,511 033 C4883-Y TRANSISTOR 2SC4883A-Y
Q101-105,201-205,301-305,Q401-405,501-505,701 033 KTA1268-GRBL TRANSISTOR KTA1268-GRBL
Q106-108,206-208,306-308,Q406-408,506-508 033 KTC3200-GRBL TRANSISTOR KTC3200-GRBL
D101,102,201,202,301,302 034 T1N4148-86 DIODE 1N4148TAP -50
D701 034 TRD12JST1 ZENER DIODE 12V (AB2)
C106,206,306,406,506 041 TUTES1A221-TF ELECTROLYTIC CAPACITOR 10V220uF
C107,207,307,407,507,701,702 041 TUTES1H010-TF ELECTROLYTIC CAPACITOR 50V1uF
C111,112,211,212,311,312,C411,412,511,512 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
C108,208,308,408,508 041 TUTES1H220-TF ELECTROLYTIC CAPACITOR 50V22uF
016 X-1407B01-03 PCB ASSY
016 X-1408A01-03 PCB ASSY
016 E-1413A00 PCB ASSY
All manuals and user guides at all-guides.com

Parts List 7/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
C703 041 TUTES1H470-TF ELECTROLYTIC CAPACITOR 50V47uF
C105,205,305,405,505 041 TUTES1H4R7-FB ELECTROLYTIC CAPACITOR 50V4.7uF
C109,110,209,210,309,310,C409,410,509,510 041 TUTES1J471-TS ELECTROLYTIC CAPACITOR 63V470uF
C104,204,304,404,504 043 TC50V181 CERAMIC CAPACITOR 180pF
C102,202,302,402,502 043 TC50V271 CERAMIC CAPACITOR 270pF
C101,201,301,401,501 043 TC50V391 CERAMIC CAPACITOR 390pF
C103,203,303,403,503 043 TC50VCH5R6-A CERAMIC CAPACITOR 5.6pF
R705,706 054 2WS1KJF MOF RESISTOR 2WS 1K
R141,241,341,441,541 054 MPR5W0.27RJ METAL PLATE RESISTOR 5W 0.27
R136,137,236,237,336,337,436,437,536,537 054 TMF1000 METAL FILM RESISTOR 1/4W 100
R101,102,201,202,301,302,401,402,501,502 054 TMF16-1001 METAL FILM RESISTOR 1/6W 1K
R113,213,313,413,513 054 TMF16-1002 METAL FILM RESISTOR 1/6W 10K
R702 054 TMF16-1003 METAL FILM RESISTOR 1/6W 100K
R126,127,226,227,326,327,426,427,526,527 054 TMF16-1200 METAL FILM RESISTOR 1/6W 120
R109,110,209,210,309,310,409,410,509,510 054 TMF16-1201 METAL FILM RESISTOR 1/6W 1.2K
R112,212,312,412,512 054 TMF16-1500 METAL FILM RESISTOR 1/6W 150
R704 054 TMF16-1503 METAL FILM RESISTOR 1/6W 150K
R105,106,205,206,305,306,405,406,505,506 054 TMF16-15R0 METAL FILM RESISTOR 1/6W 15
R128,228,328,428,528 054 TMF16-1801 METAL FILM RESISTOR 1/6W 1.8K
R129,229,329,429,529 054 TMF16-2001 METAL FILM RESISTOR 1/6W 2K
R116-118,216-218,316-318,416-418,516-518 054 TMF16-2202 METAL FILM RESISTOR 1/6W 22K
R703 054 TMF16-3301 METAL FILM RESISTOR 1/6W 3.3K
R103,104,203,204,303,304,403,404,503,504 054 TMF16-3302 METAL FILM RESISTOR 1/6W 33K
R132-135,232-235,332-335,432-435,532-535 054 TMF16-39R0 METAL FILM RESISTOR 1/6W 39
R115,215,315,415,515 054 TMF16-4300 METAL FILM RESISTOR 1/6W 430
R114,214,314,414,514 054 TMF16-4302 METAL FILM RESISTOR 1/6W 43K
R119-125,219-225,319-325,419-425,519-525 054 TMF16-5600 METAL FILM RESISTOR 1/6W 560
R131,231,331,431,531 054 TMF16-6801 METAL FILM RESISTOR 1/6W 6.8K
R701 054 TMF16-6802 METAL FILM RESISTOR 1/6W 68K
R111,211,311,411,511 054 TMF16-68R0 METAL FILM RESISTOR 1/6W 68
R107,108,207,208,307,308,407,408,507,508 054 TMF16-7500 METAL FILM RESISTOR 1/6W 750
R130,230,330,430,530 054 TMF16-9100 METAL FILM RESISTOR 1/6W 910
R140,240,340,440,540 054 TMF2200 METAL FILM RESISTOR 1/4W 220
R138,139,238,239,338,339,438,439,538,539 054 TMF3R30 METAL FILM RESISTOR 1/4W 3.3
CP201 068 B10B-PH-KS CONNECTOR WAFER 10P
501E-1419 PCB ASSY (OUTPUT)
IC702 031 TC9162AF IC SMD (SWITCH ALLEY) KIC9162AF
IC701 031 TC9163AF IC SMD (SWITCH ALLEY) KIC9163AF
IC709,710 031 TC9482F IC SMD (VOLUME) KIC9482F
IC707,708,IC703-706,711-714 031 TL072CD IC SMD (OPE DUAL) TL072CD
QC702,QCB701,QF701,QS701,QSW702 032 KRA107S TRANSISTOR CHIP KRA107S
Q701-703,QBL/R701,QC701,QFL/R701 032 KRC231S TRANSISTOR CHIP KRC231S
QSL/R701,QSW701 032 KRC231S TRANSISTOR CHIP KRC231S
D701,702,DC701,DCB701,DF701,DS701,DSW701 037 KDS184RTK DOIDE CHIP KDS184RTK
C701-705,707,709,711,CB701,702 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
CCB703,704,CCW701-704,CF701-704 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
CMW710,711,CS701-704 041 TUTES1E470-TF ELECTROLYTIC CAPACITOR 25V47uF
CBL/R702,704,705,708,CCT702,704,705,708 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
CFL/R702,704,705,708,CMW705 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
CSL/R702,704,705,708,CSW702,704,705,708 041 TUTES1H100-TF ELECTROLYTIC CAPACITOR 50V10uF
CMW707 047 ECJ2VB1H333K CERAMIC CAPACITOR CHIP 0.033uF
C706,708,710,712,713,714 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
CCB705,CCT709,CF705,CS705,CSW709 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
CMW706 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF
CBL/R707,CCT707,CFL/R707,CSL/R707 047 ECJ2VG1H100D CERAMIC CAPACITOR CHIP 10pF
CBL/R701,703,706,CCT701,703,706 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
CFL/R701,703,706,CSW701,703,706,707 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
CSL/R701,703,706,CMW704 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
CMW708,709 047 ECJ2VG1H222J CERAMIC CAPACITOR CHIP 0.0022uF
1056J1-1056J5,J701 055 ERJ6GEY0R00V RESISTOR CHIP 0
RBL/R705,RCT705,RFL/R705,RSL/R705,RSW705 055 ERJ6GEYJ101V RESISTOR CHIP 100
RBL/R701,707,RCT701,707,RFL/R701,707 055 ERJ6GEYJ101V RESISTOR CHIP 100
RMW709,RSL/R701,707,RSW701,707 055 ERJ6GEYJ101V RESISTOR CHIP 100
016 E-1419A00 PCB ASSY
All manuals and user guides at all-guides.com

Parts List 8/9 RSX-1056
SYMBOL PARTS NO. DESCRIPTION
R703-705,708-710,713-715,718-720 055 ERJ6GEYJ102 RESISTOR CHIP 1K
RBL/R712,RCT712,RFL/R712,RMW712,713 055 ERJ6GEYJ102 RESISTOR CHIP 1K
RSL/R712,RSW710,712,R721-728 055 ERJ6GEYJ102 RESISTOR CHIP 1K
RBL/R709,RCT709,RFL/R703,709 055 ERJ6GEYJ103V RESISTOR CHIP 10K
RMW711,715,716,RSL/R709 055 ERJ6GEYJ103V RESISTOR CHIP 10K
RBL/R706,RCB705,RCT706,713,RFL/R706 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RS705,RSL/R706,RSW706,713 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RBL/R702,708,711,RCB706,RCT702,708,711,714 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RF705,706,RFL/R702,708,711,RMW710,714 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RS706,RSL/R702,708,711,RSW702,708,711,714 055 ERJ6GEYJ104V RESISTOR CHIP 100K
RBL/R704,RCT704,RSL/R704 055 ERJ6GEYJ122V RESISTOR CHIP 1.2K
RBL/R703,RCT703,RMW706,707,RSL/R703 055 ERJ6GEYJ123V RESISTOR CHIP 12K
RSW709 055 ERJ6GEYJ153V RESISTOR CHIP 15K
R729,730,RMW705 055 ERJ6GEYJ182V RESISTOR CHIP 1.8K
RSW703 055 ERJ6GEYJ203V RESISTOR CHIP 20K
R701,702,706,707,711,712,716,717 055 ERJ6GEYJ221V RESISTOR CHIP 200
RB701,702,RCB703,704,RCW701-704 055 ERJ6GEYJ221V RESISTOR CHIP 200
RF701-704,RMW717,718,RS701-704 055 ERJ6GEYJ221V RESISTOR CHIP 200
RBL/R710,RCT710,RFL/R710,RSL/R710 055 ERJ6GEYJ222V RESISTOR CHIP 2.2K
RMW708 055 ERJ6GEYJ273V RESISTOR CHIP 27K
RSW704 055 ERJ6GEYJ332V RESISTOR CHIP 3.3K
RFL/R704 055 ERJ6GEYJ392V RESISTOR CHIP 3.9K
RA731,733 055 ERJ6GEYJ472V RESISTOR CHIP4.7K
RA732,734 055 ERJ6GEYJ562V RESISTOR CHIP 5.6K
RY701,702 063 A12W-K RELAY A12W-K
TER702 066 C-4784A02 4P PIN JACK (B/B)
TER701 066 C-4792A01 6P PIN JACK (W/R)
CP401,402,702 068 B15B-PH-KS CONNECTOR WAFER 15P
CP703 068 B2B-PH-KS CONNECTOR WAFER 2P
CP204,701 068 B3B-PH-KS CONNECTOR WAFER 3P
CP203 068 B6B-PH-KS CONNECTOR WAFER 6P
017 UF3-08A01 HEAT SINKER BOARD
Q115,215,315,415,515 032 C4137-V TRANSISTOR
Q114,214,314,414,514 033 A1386-OPY TRANSISTOR 2SA1386A-OPY
Q113,213,313,413,513 033 C3519-OPY TRANSISTOR 2SC3519A-OPY
019 TO-220 MICA SHEET TBM-51W-15 #9036
019 TO-3P MICA SHEET TBM-51W-15 #9043
CP251 034 P43T7D200BW20 POSISTOR
011 FP-571-B BLACK PANEL ASSY
011 FP-571-S SILVER PANEL ASSY
011 UF3-01B00 H/S PANEL H150
012 RV4-09A00 PUSH BUTTON 14Φ(BLACK)
012 RV4-09A01 PUSH BUTTON 14Φ(SILVER)
012 TB3-18A00 TACT BUTTON 16KEY (BLACK)
012 TB3-18A01 TACT BUTTON 16KEY (SILVER)
014 UF3-06A00 UPPER COVER
019 4TSH-19#2 PLASTIC FOOT 50Φ(BLACK)
019 C-4714A00 POWER KNOB RING 14Φ(BLACK)
019 C-4714A01 POWER KNOB RING 14Φ(SILVER)
019 PR4-12B00 KNOB RING(RED) 46Φ
019 PR4-12B01 KNOB RING(BLU) 46Φ
022 T-1097U02 POWER TRANSFORMER
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5
061 C-4838A00 ROCKER SWITCH SR1N6BB
068 C-4701A06 CONNECTOR WIRE 2P 120MM
068 C-4748A04WR CONNECTOR WIRE 2P 90MM
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
072 C-4621A01 AC CORD SET SJT AWG16/2C for USA
072 C-4622A01 AC CORD SET for AUSTRALIA
072 C-4624A01 AC CORD SET for EUROPE
O T H E R S
HEAT SINK ASSEMBLY
All manuals and user guides at all-guides.com
