Rotel RSX-1058 User manual

Technical
Manual
SURROUND SOUND RECEIVER
RSX-1058
Table of Contents
Specification.....................................1
Parts List...........................................2~15
Upgrade Procedure..........................16~20
Wiring...............................................21~22
PCB Assembly..................................23~30
Schematic Diagram ..........................31~52
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Serial. NO.
Beginning
®
Quality Uncompromised
Y-404A-0706/pdf
THE ROTEL CO., LTD.
Specifications
FM Tuner
Usable Sensitivity
14.2 dBf
Signal to Noise Ratio (at 65 dBf)
70 dBf
Harmonic Distortion (at 65 dBf)
0.03%
Stereo Separation (1 kHz)
Output level
1V
Antenna Input
75 ohms unbalanced
AM Tuner
Sensitivity
500 µV/m
Signal to Noise Ratio
40 dB
Output level
500 mV
Antenna Input
Loop Antenna
General
Power Consumption
450 watts
100 watts (idle)
4.7 watts (standby)
Power Requirements (AC)
120 volts, 60 Hz (USA version)
230 volts, 50 Hz (CE version)
Weight
17.4 Kg/38.4 lb.
Dimensions (W x H x D)
432 x 162 x 442 mm
17.01"x 6.38"x 17.40"
Front Panel Height
(feet removed/for rack mount)
150 mm / 5.91"
Audio
Continuous Amplifier Power
(five channels driven)
75 watts/ch(20–20k Hz, <0.05% THD, 8 ohms)
Continuous Amplifier Power
100 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN)
Total Harmonic Distortion
<0.09%
Intermodulation Distortion (60 Hz:7 kHz)
<0.05%
Frequency Response
Signal to Noise Ratio(IHF A-weighted)
95dB(analog bypass)
92dB(Dolby Digital,dts) 0dBFs
Input sensitivity /Impedance
Line Level :200mV/100K ohms
Video
Input Resolutions
480i/576i,480p/576p,720p,1080i
Signal to Noise Ratio
45 dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1.0 volt
±6dB at 50 Hz/15 kHz
10Hz-120kHz, ±3dB (analog bypass)
10Hz-95kHz, ±3dB (digital input)
(two channels driven)
Preamp Output Level/Output Impedance
1.0V/1K ohms
Contour (LF/HF)
Decodable Digital Input Signals
Dolby Digital, Dolby Digital EX, DTS, DTS-ES, DTS
96/24, LPCM(up to 192k), HDCD, MP3
1080p (HDMI only)
Output Resolutions
480i/576i(Composite,S-Video only),480p/576p
720p,1080i
1080p (HDMI only)
HDMI Input/Output:
Version 1.1
45dB

SURROUND SOUND RECEIVER RSX-1058
CD TUNER TAPE1 VIDEO1 VIDEO2 VIDEO3 VIDEO4 VIDEO5
2CH DSP
MULTI
INPUT MUTE RECZONE
1 2 3 4 5
6 7 8 9 0 MEMORYDIRECT
BAND
TUNUING
MONO
VOLUME
DTS
Neo 6
STANDBY
PL x
MODE
Appearance RSX-1058
2

Parts List 1/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
501 X-1407-C PCB ASSY (SPEAKER)
C966-970 044 BQ014E0472J M.P CAPACITOR 100V4700pF
C951-955 044 BQ014E0473J M.P CAPACITOR 100V0.047uF
R951-955 054 2WS10JF MOF RESISTOR 2W 10
SW100 061 C-4172A13 PUSH SWITCH SPUN12XT131
JAK951,952 067 C-4794A00 4P SPEAKER TERMINAL (R/B)
JAK953 067 C-4862A01 2P SPEAKER TERMINAL (R/B)
CP101 068 B2B-PH-KS CONNECTOR WAFER 2P
CT202,910,951 068 B2P-VH CONNECTOR WAFER 2P
CT203,911 068 B3P-VH CONNECTOR WAFER 3P
501 X-1408-C PCB ASSY (FRONT)
X101 023 CSTLS10M0G53BO CERAMIC RESONATOR
IC100 031 CXP82832-366Q IC SMD (CPU)
RMC101 031 RPM7138H9 IC (REMOTE RECEIVER)
Q101,102 032 TC3708-ST TRANSISTOR 2SC3708AA-ST
D101-106 034 T1N4148-86 DIODE 1N4148TAP-50
FIP1 035 HNA08MM37 FL TUBE
C114 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1uF
C119 041 TUTES1H3R3-7TF ELECTROLYTIC CAPACITOR 50V3.3uF
C117 041 TUTES1H4R7-7TF ELECTROLYTIC CAPACITOR 50V4.7uF
C101-107 043 TC50V101 CERAMIC CAPACITOR 100pF
C115 043 TC50V103 CERAMIC CAPACITOR 0.01uF
C118 043 TC50V223 CERAMIC CAPACITOR 0.022uF
C100,112,113 043 TC50V473 CERAMIC CAPACITOR 0.047uF
C108-111 043 TC50V821 CERAMIC CAPACITOR 820pF
R101-104,124-126,142 054 TMF1001 METAL FILM RESISTOR 1/4W 1K
R109,116-119 054 TMF1002 METAL FILM RESISTOR 1/4W 10K
(R127-141) 054 TMF1203 METAL FILM RESISTOR 1/4W 120K
(R121) 054 TMF1800 METAL FILM RESISTOR 1/4W 180
(R121) 054 TMF4700 METAL FILM RESISTOR 1/4W 470
R122,123 054 TMF4701 METAL FILM RESISTOR 1/4W4.7K
R105-108,110-113 054 TMF4702 METAL FILM RESISTOR 1/4W 47K
R120 054 TMF47R0 METAL FILM RESISTOR 1/4W 47
R114,115 054 TMF16-1002 METAL FILM RESISTOR 1/6W 10K
ESW101 056 C-4678A01 ROTARY ENCODER (VOLUME)
SW101-132 061 C-4679A03 TACT SWITCH HV061050GS
CP105 068 B2B-PH-KS CONNECTOR WAFER 2P
CP110 068 B3B-PH-KS CONNECTOR WAFER 3P
CP102 068 B4B-PH-KS CONNECTOR WAFER 4P
501 E-1413-C PCB ASSY (5CH AMP)
L101,201,301,401,501 021 LF167A01 SPEAKER COIL 1.0F7T
Q702 032 KRC107M TRANSISTOR KRC107M
Q109,209,309,409,509 033 A1360-OY TRANSISTOR 2SA1360-OY(Q)
Q112,212,312,412,512 033 A1859-Y /033 A1930-Q TRANSISTOR 2SA1859A-Y
Q110,210,310,410,510 033 C3423-OY /033 C5171-Q TRANSISTOR 2SC3423-OY(Q)
Q111,211,311,411,511 033 C4883-Y TRANSISTOR 2SC4883A-Y
Q101-105,201-205,301-305 033 KTA1268-GRBL TRANSISTOR KTA1268-GRBL
Q401-405,501-505,701 033 KTA1268-GRBL TRANSISTOR KTA1268-GRBL
Q106-108,206-208,306-308,406-408,506-508 033 KTC3200-GRBL TRANSISTOR KTC3200-GRBL
D101,102,201,202,301,302 034 2058322101 DIODE 1N4148TAP 5MMPICH
D401,402,501,502 034 T1N4148-86 DIODE 1N4148TAP-50
C106,206,306,406,506 041 TUTES1A221-7TF ELECTROLYTIC CAPACITOR 10V220uF
C107,207,307,407,507,701,702 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1uF
016 E-1413B00 PCB ASSY
016 X-1408B01-03 PCB ASSY
016 X-1407C01-03 PCB ASSY
3

Parts List 2/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
C111,112,211,212,311,312,411,412,511,512 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C108,208,308,408,508 041 TUTES1H220-7TF ELECTROLYTIC CAPACITOR 50V22uF
C105,205,305,405,505 041 TUTES1H4R7-7TF ELECTROLYTIC CAPACITOR 50V4.7uF
C109,110,209,210,309,310,409,410,509,510 041 TUTES1J471-7TS ELECTROLYTIC CAPACITOR 63V470uF
C104,204,304,404,504 043 TC50V181 CERAMIC CAPACITOR 180pF
C102,202,302,402,502 043 TC50V271 CERAMIC CAPACITOR 270pF
C101,201,301,401,501 043 TC50V391 CERAMIC CAPACITOR 390pF
C103,203,303,403,503 043 TC50VCH5R6-A CERAMIC CAPACITOR (AXIAL) 5.6pF
VR101,201,301,401,501 051 SFR001-102 SEMI-EIXED RESISTOR VM6CKPH1S-1K
R141,241,341,441,541 054 MPR5W0.27RJ-T MPR 5W0.27RX2 WITH TERMINAL
R136,137,236,237,336,337,436,437,536,537 054 TMF1000 METAL FILM RESISTOR 1/4W 100
R140,240,340,440,540 054 TMF2200 METAL FILM RESISTOR 1/4W 220
R138,139,238,239,338,339,438,439,538,539 054 TMF3R30 METAL FILM RESISTOR 1/4W 3.3
R101,102,201,202,301,302,401,402,501,502 054 TMF16-1001 METAL FILM RESISTOR 1/6W 1K
R113,213,313,413,513 054 TMF16-1002 METAL FILM RESISTOR 1/6W 10K
R702 054 TMF16-1003 METAL FILM RESISTOR 1/6W 100K
R126,127,226,227,326,327,426,427,526,527 054 TMF16-1200 METAL FILM RESISTOR 1/6W 120
R109,110,209,210,309,310,409,410,509,510 054 TMF16-1201 METAL FILM RESISTOR 1/6W 1.2K
R112,212,312,412,512 054 TMF16-1500 METAL FILM RESISTOR 1/6W 150
R704 054 TMF16-1503 METAL FILM RESISTOR 1/6W 150K
R105,106,205,206,305,306,405,406,505,506 054 TMF16-15R0 METAL FILM RESISTOR 1/6W 15
R128,228,328,428,528 054 TMF16-1801 METAL FILM RESISTOR 1/6W 1.8K
R129,229,329,429,529 054 TMF16-2001 METAL FILM RESISTOR 1/6W 2K
R116-118,216-218,316-318,416-418,516-518 054 TMF16-2202 METAL FILM RESISTOR 1/6W 22K
R703 054 TMF16-3301 METAL FILM RESISTOR 1/6W 3.3K
R103,104,203,204,303,304,403,404,503,504 054 TMF16-3302 METAL FILM RESISTOR 1/6W 33K
R132-135,232-235,332-335,432-435,532-535 054 TMF16-39R0 METAL FILM RESISTOR 1/6W 39
R114,214,314,414,514 054 TMF16-4302 METAL FILM RESISTOR 1/6W 43K
R119-125,219-225,319-325,419-425,519-525 054 TMF16-5600 METAL FILM RESISTOR 1/6W 560
R131,231,331,431,531 054 TMF16-6801 METAL FILM RESISTOR 1/6W 6.8K
R701 054 TMF16-6802 METAL FILM RESISTOR 1/6W 68K
R111,211,311,411,511 054 TMF16-68R0 METAL FILM RESISTOR 1/6W 68
R107,108,207,208,307,308,407,408,507,508 054 TMF16-7500 METAL FILM RESISTOR 1/6W 750
R130,230,330,430,530 054 TMF16-9100 METAL FILM RESISTOR 1/6W 910
CP201 068 B10B-PH-KS CONNECTOR WAFER 10P
501 E-1486 PCB ASSY (AUDIO)
IC312,325 031 MM1631XJBE IC SMD (AUDIO SWITCH)
IC304-311,316-320,322-324,326-343 031 NJM2068M IC SMD (OPE DUAL)
IC301 031 KIA7809AF-RTF/P IC SMD (REG. +9VDC) KIA7809AF
IC302 031 TC9162CFG IC SMD (SWITCH ALLEY)
IC321 031 TC9163CFG IC SMD (SWITCH ALLEY)
IC303,313-315 031 TC9482BFG IC SMD (VOLUME)
Q309,311,313,322 032 KRA107S TRANSISTOR CHIP KRA107S
Q310,312,314 032 KRC107S TRANSISTOR CHIP KRC107S
Q301-308,315-321 032 KRC231S TRANSISTOR CHIP KRC231S
C353,422 041 TUTES1C101-7TF ELECTROLYTIC CAPACITOR 16V100uF
C331,423 041 TUTES1E220-7TF ELECTROLYTIC CAPACITOR 25V22uF
C301-305,307,308,311,312,314,333,334,337 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C338,341,342,348,373,374,383,384,387,388 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C390,392,393,396,397,399,400,415,420,421 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C425,426,437-444,456,457,459-470,489,490 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C306,309,310,313,315,316,317,318,321,322 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C332,335,336,339,340,343,360-367,372,375 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C377,378,380-382,385,386,389,391,394,395 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C398,424,427-435,445,446,448-455,458 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C479-488,491-504,511,512,515,516,519,520 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
016 E-1486B00 PCB ASSY
4

Parts List 3/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
C523,524,544-571 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C535 047 ECJ2VB1H333K CERAMIC CAPACITOR CHIP 0.033uF
C622-707,716-722 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C447,509 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF
C326,330,347,352,478,525,534,536-543 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
C586-593,608-621,708-715 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
C323-325,327-329,356-359 047 ECJ2VG1H220J CHIP CERAMIC CAPACITOR 22pF
C403-410,471-477,526-533 047 ECJ2VG1H220J CHIP CERAMIC CAPACITOR 22pF
C354,355,436 047 ECJ2VG1H222J CERAMIC CAPACITOR CHIP 0.0022uF
C319,320,344-346,349-351,368-371,376,379 047 ECJ2VG1H470J CERAMIC CAPACITOR CHIP 47pF
C401,402,411-414,416-419,505-508,510 047 ECJ2VG1H470J CERAMIC CAPACITOR CHIP 47pF
C513,514,517,518,521,522,572-585,594-607 047 ECJ2VG1H470J CERAMIC CAPACITOR CHIP 47pF
R307-311,313,314,317,318,321,336-338,355 055 ERJ6ENF1000V RESISTOR CHIP 100
R356,359,360,372,392,393,396,397 055 ERJ6ENF1000V RESISTOR CHIP 100
R400,401,404,405,414-416,418,419,425,431 055 ERJ6ENF1000V RESISTOR CHIP 100
R432,435,436,439,440,443,444,448,473,478 055 ERJ6ENF1000V RESISTOR CHIP 100
R487-490,492,493,496,497,499,501,502,505 055 ERJ6ENF1000V RESISTOR CHIP 100
R506,508,509,512-519,524-536,545-554,563 055 ERJ6ENF1000V RESISTOR CHIP 100
R566-568,577,578,611,614,615,618,619,622 055 ERJ6ENF1000V RESISTOR CHIP 100
R623,626,627,630,631,634,635,638,677,680 055 ERJ6ENF1000V RESISTOR CHIP 100
R681,684,685,688,689,692,693,696,697 055 ERJ6ENF1000V RESISTOR CHIP 100
R700,701,704 055 ERJ6ENF1000V RESISTOR CHIP 100
R301-306,312,315,316,319,320,323,324,327 055 ERJ6ENF1001V RESISTOR CHIP 1K
R328,330-332,335,352,354,357,358,361,370 055 ERJ6ENF1001V RESISTOR CHIP 1K
R371,411-413,426,429,438,441,442,445-447 055 ERJ6ENF1001V RESISTOR CHIP 1K
R469-472,474,475,537-544,587-590,639,641 055 ERJ6ENF1001V RESISTOR CHIP 1K
R643,645,647,649,651,653,655-660 055 ERJ6ENF1001V RESISTOR CHIP 1K
R705-721,731-738,746 055 ERJ6ENF1001V RESISTOR CHIP 1K
R739-745 055 ERJ6ENF1002V RESISTOR CHIP 10K
R351,353,363,364,366-369,373-376,391,394 055 ERJ6ENF1003V RESISTOR CHIP 100K
R395,398,399,402,403,406-410,417,420,449 055 ERJ6ENF1003V RESISTOR CHIP 100K
R452,476,477,479-486,491,494,495,498,500 055 ERJ6ENF1003V RESISTOR CHIP 100K
R503,504,507,520,521,564,565,569-576 055 ERJ6ENF1003V RESISTOR CHIP 100K
R603-610,612,613,616,617,620,621,624,625 055 ERJ6ENF1003V RESISTOR CHIP 100K
R628,629,632,633,636,637,640,642,644,646 055 ERJ6ENF1003V RESISTOR CHIP 100K
R648,650,652,654,661,664,665,668,669,672 055 ERJ6ENF1003V RESISTOR CHIP 100K
R673,676,678,679,682,683,686,687,690,691 055 ERJ6ENF1003V RESISTOR CHIP 100K
R694,695,698,699,702,703,722-730,747 055 ERJ6ENF1003V RESISTOR CHIP 100K
R377,378 055 ERJ6ENF10R0V RESISTOR CHIP 10
R600,602 055 ERJ6ENF1202V RESISTOR CHIP 12K
R599 055 ERJ6ENF1801V RESISTOR CHIP 1.8K
R340,341,344,346,379,382,384,385,388,389 055 ERJ6ENF2001V RESISTOR CHIP 2K
R322,325,326,329,461,464,465,468 055 ERJ6ENF2201V RESISTOR CHIP 2.2K
R591,593,595,597,601,663,667,671,675 055 ERJ6ENF2702V RESISTOR CHIP 27K
R362,365 055 ERJ6ENF3300V RESISTOR CHIP 330
R421-424,430,433,434,437,510,522,555-562 055 ERJ6ENF3301V RESISTOR CHIP 3.3K
R339,342,343,383,386,387,390,450,451 055 ERJ6ENF4701 RESISTOR CHIP 4.7K
R453-460,511,523,592,594,596,598,662 055 ERJ6ENF4701 RESISTOR CHIP 4.7K
R666,670,674 055 ERJ6ENF4701 RESISTOR CHIP 4.7K
R333,334,427,428 055 ERJ6ENF4703V RESISTOR CHIP 470K
R347-350,462,463,466,467 055 ERJ6ENF5601V RESISTOR CHIP 5.6K
R579-586 055 ERJ6ENF5602V RESISTOR CHIP 56K
R345,380,381 055 ERJ6ENF7501V RESISTOR CHIP 7.5K
JAK307 066 C-4784A02 4P PIN JACK (BLK)
JAK301-304,306 066 C-4792A01 6P PIN JACK (WHT.RED)
JAK305 066 C-4832A01 4P PIN JACK (W.BK)
CP402 068 B3B-PH-KS CONNECTOR WAFER 3P
5

Parts List 4/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
501 E-1487 PCB ASSY (DIGITAL)
L401-404 021 288800012 DIGITAL COIL
IC410 023 CXOSMD-003 CRYSTAL 24.576MHz
XT401 023 HC49U-009 CRYSTAL 24.576MHz
L411,416 025 BK2125HS101 BEAD COIL CHIP BK2125HS101-T
L405,407-409,412,414,415,421 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
L406,410,413,417-420 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
IC413 031 39SF040-X58 IC PLCC (SOFT WRITING) MAIN FLASH
IC405 031 74HC157 IC SMD (QUAD MPX) 74VHC157
IC412 031 74HC244 IC SMD (OCTAL BUFFER) 74VHC244
IC406 031 74HCT125 IC SMD (QUAD BUFFER) 74HCT125D
IC403 031 AK4114VQ IC SMD (D/A TRANSCEIVER) AK4114VQP
IC418 031 AME1117CCGT IC SMD (REGULATOR) ABF AME1117CCGTZ
IC409 031 AT24C16A10PU-2.7 IC DIP (EEPROM)
IC420-423 031 DSD1791DB IC SMD (DAC)
IC411 031 ES29LV160E-X58 IC SMD (SOFT WRITING) DSP ROM
IC401 031 HIN232CB IC SMD (TRANSMITTER RECEIVER) HIN232CBZ
IC415 031 IS62C256 IC SMD (SRAM) IS62C256-45UL
IC404 031 K4S641632K-UC75 IC SMD (MEMORY)
IC425,426,428-431,433 031 NJM2068M IC SMD (OPE DUAL)
IC419 031 PCM1804DBG4 IC SMD (ADC)
IC402,407 031 SN74LVC1G125DBV IC SMD (BUFFER)
IC408 031 SN74LVC1G3157DB IC SMD (ANALOG SWITCH)
IC416 031 TMS320DA610 IC SMD (DSP)
Q401 032 KRC107S TRANSISTOR CHIP KRC107S
D401 037 KDS184RTK DIODE CHIP KDS184RTK
C478,532,535,553,555,557,559,561 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100uF
C494 041 TUTES1A471-7TF ELECTROLYTIC CAPACITOR 10V470uF
C439,443,513,514,517,565,568 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C600,603,606,609,613,615-627,629,634 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C411,421-423,554,556,558,560 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1uF
C579,580 041 TUTES1H0R1-7TF ELECTROLYTIC CAPACITOR 50V0.1uF
C402,417,428,430,518,520,522,524 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C547,548,612,614,628,630 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C431 041 TUTES1H3R3-7TF ELECTROLYTIC CAPACITOR 50V3.3uF
C438 041 TUTES1HR22-7TF ELECTROLYTIC CAPACITOR 50V0.22uF
C419 041 TUTES1HR47-7TF ELECTROLYTIC CAPACITOR 50V0.47uF
C571-578 047 ECJ1VB1H182K CERAMIC CAPACITOR CHIP 1800pF
C566,567,569,570 047 ECJ1VB1H222K CERAMIC CAPACITOR CHIP 2200pF
C533,534 047 ECJ1VB1H223K CERAMIC CAPACITOR CHIP 0.022uF
C408,410,414,416,424,426,526 047 ECJ1VC1H100D CERAMIC CAPACITOR CHIP 10pF
C549-552 047 ECJ1VC1H101J CERAMIC CAPACITOR CHIP 100pF
C444,445 047 ECJ1VC1H270J CERAMIC CAPACITOR CHIP 27pF
C581-588,592-599 047 ECJ1VC1H561J CERAMIC CAPACITOR CHIP 560pF
C401,403-407,409,412,413,415,418,420,425 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C427,429,432-437,440-442,446-477,479-493 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C495-512,515,516,519,521,523,525,527-531 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C536-546,562-564,589-591,601,602,604,605 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C607,608,610,611,631-633,635 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
RM410,411 055 CN43-101 NETWORK RESISTOR CHIP 100
RM401-409 055 CN43-220 NETWORK RESISTOR CHIP 22
R408,411,416,417,421-425,431-433 055 ERJ3EKF1000V RESISTOR CHIP 100
R436-439,451,477,493,494 055 ERJ3EKF1000V RESISTOR CHIP 100
R560-562,565,568,569,571-574,593,594 055 ERJ3EKF1000V RESISTOR CHIP 100
R576,579,580,583,584,587,588,591 055 ERJ3EKF1001V RESISTOR CHIP 1K
R413,418,420,426-428,434,435,445,446 055 ERJ3EKF1002V RESISTOR CHIP 10K
016 E-1487A00 PCB ASSY
6

Parts List 5/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
R457,459,461,472,503,504,532-534 055 ERJ3EKF1002V RESISTOR CHIP 10K
R577,578,581,582,585,586,589,590 055 ERJ3EKF1003V RESISTOR CHIP 100K
R442 055 ERJ3EKF1004V RESISTOR CHIP 1M
R401,429,430,443,444,460,492 055 ERJ3EKF10R0V RESISTOR CHIP 10R
R531,535,570,575,596,599,600 055 ERJ3EKF10R0V RESISTOR CHIP 10R
R495,498,499,502 055 ERJ3EKF1501V RESISTOR CHIP 1.5K
R520,523 055 ERJ3EKF1502V RESISTOR CHIP 15K
R440,441,447,448,453,456,464,466,468-470 055 ERJ3EKF1801V RESISTOR CHIP 1.8K
R506-509,512-515,518,519,521,522,526-529 055 ERJ3EKF1801V RESISTOR CHIP 1.8K
R415 055 ERJ3EKF1802V RESISTOR CHIP 18K
R473-476,480-491 055 ERJ3EKF22R1V RESISTOR CHIP 22.1
R406,407,409,410 055 ERJ3EKF2700V RESISTOR CHIP 270
R505,510,511,516,517,524,525,530,538,539 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R544,545,550,551,556,557,563,564,566,567 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R454,455,465,467,471 055 ERJ3EKF3901V RESISTOR CHIP 3.9K
R405,450 055 ERJ3EKF4700V RESISTOR CHIP 470
R419,592,595,597,598 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R496,497,500,501 055 ERJ3EKF47R0V RESISTOR CHIP 47
R536,537,540-543,546-549,552-555,558,559 055 ERJ3EKF6800V RESISTOR CHIP 680
R402-404,449,452,462,479 055 ERJ3EKF75R0V RESISTOR CHIP 75
R478 055 ERJ3RQF2R2V RESISTOR CHIP 2.2R
R414 055 ERJ3RQF4R7V RESISTOR CHIP 4.7
JAK401,402 065 YKB21-5103A 3.5ΦJACK (ST)
SW401,402 066 C-4859A01 2P PIN JACK (BLK)
JAK403 066 SY010-8P/K RJ45 TERMINAL (8P)
IC424,427,432,434 066 TORX142L OPTICAL RECEIVER TORX142L-F
IC414 066 TOTX142L OPTICAL TRANSMITTER TOTX142L-F
CP501 068 B11B-PH-KS CONNECTOR WAFER 11P
CP303 068 B12B-PH-KS CONNECTOR WAFER 12P
CP606 068 B14B-PH-KS CONNECTOR WAFER 14P
CP304 068 B15B-PH-KS CONNECTOR WAFER 15P
CP607 068 B6B-PH-KS CONNECTOR WAFER 6P
CP406,603 068 B7B-PH-KS CONNECTOR WAFER 7P
501 E-1488 PCB ASSY (HDMI SWITCH)
L601-616 021 ACM2012D EMC FILTER COIL ACM2012D-900-2P
L617-620 021 ACM2012H EMC FILTER COIL ACM2012H-900-2P
IC631 023 CXOSMD-004 CRYSTAL SMD 27.000MHz
XT605 023 HC49USMD-013 CRYSTAL SMD 13.500MHz
XT601 023 HC49USMD-014 CRYSTAL SMD 28.322MHz
XT604 023 HC49USMD-015 CRYSTAL SMD 5.000MHz
L652,655-657 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
L623,624,626,628,640-642,645-648 025 BK2125HS102 BEAD COIL CHIP BK2125HS102-T
L653,654,661-665 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
L621,622,625,627,629,633-639,643,644 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
L649-651,666 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
L630-632 025 CM2012F100K INDUCTOR CHIP 10uH
ZD601 031 AD1580BRTZ IC SMD (VOLTAGE REFERENCE)
IC629 031 ADV7322KSTZ IC SMD (VIDEO ENCODER)
IC623 031 ADV7401BSTZ-110 IC SMD (VIDEO DECODER)
IC610,617 031 AME1117ACGT IC SMD (REGULATOR) ABE AME1117ACGTZ
IC640 031 AME1117BCGT IC SMD (REGULATOR) AKE AME1117BCGTZ
IC621,624,638 031 AME1117CCGT IC SMD (REGULATOR) ABF AME1117CCGTZ
IC625,641 031 AME1117ECGT IC SMD (REGULATOR) AXH AME1117ECGTZ
IC611 031 AME8801SEEV IC SMD (REGULATOR) AME8801SEEVZ
IC602,604,606,608,642 031 BR24L08F-W IC SMD (EEPROM)
IC628 031 FLI2300-LF-CF IC SMD (CONVERTER)
016 E-1488D00 PCB ASSY
7

Parts List 6/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
IC620 031 K4S643232H-UC60 IC SMD (SDRAM)
IC615 031 NC7SZ08M5-NL IC SMD (AND GATE)
IC632-634,637 031 NC7SZ125M5-NL IC SMD (TRISTATE BUFFER)
IC614 031 NJW1320FP1 IC SMD (VIDEO SWITCH)
IC644 031 PI6CV304LE IC SMD (CLOCK BUFFER)
IC616 031 SIL9030CTU-7 IC SMD (TRANSMITTER)
IC622 031 SIL9031CTU-7 IC SMD (RECEIVER)
IC635,643 031 SN74ALVC244PWR IC SMD (BUFFEDRIVER)
IC630 031 SN74ALVCH162827GR IC SMD (BUFFEDRIVER)
IC627 031 SN74CB3Q3305 IC SMD (BUS SWITCH) SN74CB3Q3305PER
IC636 031 SN74LVC257APWR IC SMD (MULTIPLEXER)
IC613,618 031 THS7353PW IC SMD (VIDEO BUFFER)
IC612 031 TMDS341 IC SMD (SWITCH)
IC601,603,605,607 031 TS5A23157DGSR IC SMD (ANALOG SWITCH)
IC639 031 UPD70F03701GB-X58 IC SMD (SOFT WRITING) Scaler CPU and Flash
Q601-604,607 032 2N7002 FET 2N7002
Q613-615,617,621-624 032 KRC107S TRANSISTOR CHIP KRC107S
Q608-610,625 032 KRC107S TRANSISTOR CHIP KRC107S
Q616,618-620 032 KTA1504S TRANSISTOR CHIP KTA1504S
Q611,612 032 NDC7002N TRANSISTORANSISTOR CHIP
Q626-630 032 UPA672T TRANSISTOR CHIP UPA672T
CV601-610 034 AVRL101 VARISTOR DIODE
ZD602,603,608-611 034 KDZ6.2V ZENER DIODE 6.2V
D605-614 034 RCLAMP0514M DIODE RCLAMP0514M.TBT
D616 034 T1N4004-TB DIODE 1N4004-F
D601-604,621 037 KDS184RTK DIODE CHIP KDS184RTK
ZD604-607 037 KDS226RTK DIODE CHIP KDS226RTK
D615 037 KDS226RTK DIODE CHIP KDS226RTK
C635,643,673,686,721,736,741 047 ECFS1A221M ELECTROLYTIC CAPACITOR SMD 10V220uF
C617-619,735,737 047 ECFS1A471M ELECTROLYTIC CAPACITOR SMD 10V470uF
C608-616,622,626,628,630,632-634,637 047 ECFS1C100M ELECTROLYTIC CAPACITOR SMD 16V10uF
C641,646-648,652-654,664,671,683,691 047 ECFS1C100M ELECTROLYTIC CAPACITOR SMD 16V10uF
C705,716,717,719,720 047 ECFS1C100M ELECTROLYTIC CAPACITOR SMD 16V10uF
C623,667,672,678,680,687,690 047 ECFS1C101M ELECTROLYTIC CAPACITOR SMD 16V100uF
C715,722,728,730,743,749 047 ECFS1C101M ELECTROLYTIC CAPACITOR SMD 16V100uF
C621,624,642,644,645,665,676,677,694 047 ECFS1C470M ELECTROLYTIC CAPACITOR SMD 16V47uF
C701-703,718 047 ECFS1C470M ELECTROLYTIC CAPACITOR SMD 16V47uF
C620,625,627,629 047 ECFS1E470M ELECTROLYTIC CAPACITOR SMD 25V47uF
C711,724,943,944,955 047 ECFS1E4R7M ELECTROLYTIC CAPACITOR SMD 25V4.7uF
C631 047 ECFS1H010M ELECTROLYTIC CAPACITOR SMD 1uF
C750,791,810,821,884,885,895,898,899 047 ECJ1VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C904,905,908,909,911,912,916,922-925 047 ECJ1VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C929,930,936-940,942,948-950 047 ECJ1VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C606,607,675,679,689,692,695,696,699 047 ECJ1VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C700,704,708,709,723,739,748 047 ECJ1VB1H103K CERAMIC CAPACITOR CHIP 0.01uF
C682 047 ECJ1VB1H392K CERAMIC CAPACITOR CHIP 3900pF
C809 047 ECJ1VB1H822K CERAMIC CAPACITOR CHIP 8200pF
C808 047 ECJ1VB1H823K CERAMIC CAPACITOR CHIP 0.082uF
C945-947 047 ECJ1VC1H020C CERAMIC CAPACITOR CHIP 2pF
C640 047 ECJ1VC1H050C CERAMIC CAPACITOR CHIP 5pF
C830,831,840,933-935 047 ECJ1VC1H100D CERAMIC CAPACITOR CHIP 10pF
C807,822,827,828,837,838,845,846 047 ECJ1VC1H180J CERAMIC CAPACITOR CHIP 18pF
C712,713,755,756,841-843 047 ECJ1VC1H220J CERAMIC CAPACITOR CHIP 22pF
C753,754 047 ECJ1VC1H330J CERAMIC CAPACITOR CHIP 33pF
C681 047 ECJ1VC1H821J CERAMIC CAPACITOR CHIP 820pF
C650,656-660,824,880,881 047 ECJ1VF1C105Z CERAMIC CAPACITOR CHIP 16V1uF
C751,752,757-783,785-790,792,793 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
8

Parts List 7/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
C795-805,811-820,823,826,829,833-836 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C839,844,847-879,882,883,887-892,897 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C900-903,910,913-915,917-921,926-928 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C601-605,636,639,649,651,655,661-663 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C666,668-670,684,685,693,697,698 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C706,707,710,714,725-727,729,731-734 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C738,740,742,744-747,932,941 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C674,886,806,825,832,906,931 047 ECJ1VG1H102J CERAMIC CAPACITOR CHIP 1000pF
R713,727 054 1WS2.2JF MOF RESISTOR 1W 2.2
R623,624,640,647,652,655-658,664,666 055 CN43-220 NETWORK RESISTOR CHIP 22
R668,670,679,682,686-690,706,707 055 CN43-220 NETWORK RESISTOR CHIP 22
R748-751,756,780,815,820,830 055 ERJ3EKF1000V RESISTOR CHIP 100
R626,628,631,680,694,703,704,716,717 055 ERJ3EKF1000V RESISTOR CHIP 100
R720-725,732,734,735,737,739,741,743,745 055 ERJ3EKF1000V RESISTOR CHIP 100
R757,777,821,828,918-921 055 ERJ3EKF1001V RESISTOR CHIP 1K
R606-608,619,683,685,691-693,695,698 055 ERJ3EKF1002V RESISTOR CHIP 10K
R700,701,810,827,834-837,852,864,865 055 ERJ3EKF1002V RESISTOR CHIP 10K
R868,871,880,904,917,925 055 ERJ3EKF1002V RESISTOR CHIP 10K
R784 055 ERJ3EKF1004V RESISTOR CHIP 1M
R601-605,764 055 ERJ3EKF10R0V RESISTOR CHIP 10
R822,909 055 ERJ3EKF1200V RESISTOR CHIP 120
R798-800,877-879,881 055 ERJ3EKF1500V RESISTOR CHIP 150
R824,831-833,842,862 055 ERJ3EKF1501V RESISTOR CHIP 1.5K
R781 055 ERJ3EKF1691V RESISTOR CHIP 1.69K
R761 055 ERJ3EKF1820V RESISTOR CHIP 182
R786 055 ERJ3EKF2000V RESISTOR CHIP 200
R845,872,874,875,907,912 055 ERJ3EKF2001V RESISTOR CHIP 2K
R913-916 055 ERJ3EKF2002V RESISTOR CHIP 20K
R891-893 055 ERJ3EKF2202V RESISTOR CHIP 22K
R767-769,771,774,776,779,927 055 ERJ3EKF22R1V RESISTOR CHIP 22.1
R620,625,630,634,641,650,651,653,654 055 ERJ3EKF22R1V RESISTOR CHIP 22.1
R659-661,663,671-677,684,696,697,699,702 055 ERJ3EKF22R1V RESISTOR CHIP 22.1
R789,790 055 ERJ3EKF2701V RESISTOR CHIP 2.7K
R665 055 ERJ3EKF2702V RESISTOR CHIP 27K
R635-637 055 ERJ3EKF3000V RESISTOR CHIP 300
R638,642 055 ERJ3EKF3001V RESISTOR CHIP 3K
R846,873 055 ERJ3EKF3301V RESISTOR CHIP 3.3K
R669 055 ERJ3EKF3303V RESISTOR CHIP 330K
R840 055 ERJ3EKF4641V RESISTOR CHIP 4.64K
R807 055 ERJ3EKF4700V RESISTOR CHIP 470
R752-755,763,782,783,787,829,847,853-855 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R857,863,869,895,896,898,899,901,902 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R648,649,708-712,715,718,719,729-731 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R733,736,738,740,742,744,908,911,926 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R616,617,705,905,906,928-935 055 ERJ3EKF4702V RESISTOR CHIP 47K
R758 055 ERJ3EKF4703V RESISTOR CHIP 470K
R856 055 ERJ3EKF4750V RESISTOR CHIP 475
R646,662,778 055 ERJ3EKF47R0V RESISTOR CHIP 47
R794-797,801,805 055 ERJ3EKF6040V RESISTOR CHIP 604
R639 055 ERJ3EKF6800V RESISTOR CHIP 680
R841 055 ERJ3EKF6802V RESISTOR CHIP 68K
R823,910,922-924 055 ERJ3EKF7500V RESISTOR CHIP 750
R610,870,876,759,760,762,882-890 055 ERJ3EKF75R0V RESISTOR CHIP 75
R618,627,629,633,643-645,667,678,681 055 ERJ3GEY0R00V RESISTOR CHIP 0
R714,726,728,746,747,765,766,775,785 055 ERJ3GEY0R00V RESISTOR CHIP 0
R788,791-793,806,808,894,897,900,903,937 055 ERJ3GEY0R00V RESISTOR CHIP 0
R612,867,866 055 ERJ3RQF1R0V RESISTOR CHIP 1
9

Parts List 8/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
R632 055 ERJ3RQF2R2V RESISTOR CHIP 2.2
L658-660 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2
JK601,602 066 C-4833A01 2x3P PIN JACK (G/B/R)
J601-605 066 C-4963A01 HDMI SOCKET
501 E-1489 PCB ASSY (VIDEO)
L501-503 021 TLAL02TB100K MICRO INDUCTOR 10uH
L504,506,509,512 021 TLAL02TB4R7K MICRO INDUCTOR 4.7uH
L505,507,508 021 TLAL02TB6R8K MICRO INDUCTOR 6.8uH
XT501 023 HC49U-001WR CRYSTAL 14.31818MHz
L510,511 025 BK2125HS601 BEAD COIL CHIP BK2125HS601-T
IC516,517,521 031 AD8063ART IC SMD (AMP) ADV8063ARTZ-R2
IC524 031 MB90050PF-G-001 IC SMD (OSD)
IC522 031 MM1108XFFE IC SMD (SYNC SEPARATOR)
IC504,505,515 031 MM1227XFBE IC SMD (VIDEO SWITCH)
IC506-514,518-520 031 MM1508XNRE IC SMD (VIDEO SWITCH)
IC525 031 NJM7805FA IC (REG. +5VDC) KIA7805API
IC523 031 NJM7808FA IC (REG.+8VDC) KIA7808API
IC501-503 031 TEA6425D IC SMD (VIDEO SWITCH)
Q503 032 KRC107S TRANSISTOR CHIP KRC107S
Q501,502,504,505 032 KTC3875S-Y TRANSISTOR KTC3875S-Y-RTK
D501-503 037 KDS226RTK DIODE CHIP KDS226RTK
C503,505,507-515,522-524,528,529 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100uF
C541-550,560,567-569 041 TUTES1A101-7TF ELECTROLYTIC CAPACITOR 10V100uF
C502,504,506,519-521,572-574 041 TUTES1A471-7TF ELECTROLYTIC CAPACITOR 10V470uF
C583,587 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C552 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1uF
C501,530-540,551,553-555,557-559 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C561,562,566,570,575,582,584-586 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C580 041 TUTES1H3R3-7TF ELECTROLYTIC CAPACITOR 50V3.3uF
C647,652,653 047 3535200122 CERAMIC CAPACITOR CHIP 20pF
C581,589-632,634,639,643-646,648-651 047 3535104122 CERAMIC CAPACITOR CHIP 0.1uF
C516-518,525-527 047 3535224122 CERAMIC CAPACITOR CHIP 0.22uF
C578 047 3535392122 CERAMIC CAPACITOR CHIP 3900pF
C564,571,633 047 ECJ1VC1H100D CERAMIC CAPACITOR CHIP 10pF
C642 047 ECJ1VC1H101J CERAMIC CAPACITOR CHIP 100pF
C577 047 ECJ1VC1H102J CERAMIC CAPACITOR CHIP 1000pF
C637,638,641 047 ECJ1VC1H220J CERAMIC CAPACITOR CHIP 22pF
C556,579 047 ECJ1VC1H561J CERAMIC CAPACITOR CHIP 560pF
C635,636,640 047 ECJ1VC1H820J CERAMIC CAPACITOR CHIP 82pF
R602,605 054 1WS10J MOF RESISTOR 1W 10
R544-547,561,566,576,591,620 055 ERJ3EKF1000V RESISTOR CHIP 100
R521,523,594,612-614 055 ERJ3EKF1001V RESISTOR CHIP 1K
R578-581,586,593,616,617 055 ERJ3EKF1002V RESISTOR CHIP 10K
R596,604 055 ERJ3EKF1003V RESISTOR CHIP 100K
R501,528,529,550,551,553-560,562,563 055 ERJ3EKF10R0V RESISTOR CHIP 10
R575,577,582,583 055 ERJ3EKF10R0V RESISTOR CHIP 10
R520,522 055 ERJ3EKF2001V RESISTOR CHIP 2K
R599,601 055 ERJ3EKF2202V RESISTOR CHIP 22K
R587,588 055 ERJ3EKF2701V RESISTOR CHIP 2.7K
R572,573,597 055 ERJ3EKF3000V RESISTOR CHIP 300
R571 055 ERJ3EKF3303V RESISTOR CHIP 330K
R606,607 055 ERJ3EKF33R0V RESISTOR CHIP 33
R530-543,552,589,592,600 055 ERJ3EKF4701V RESISTOR CHIP 4.7K
R564,565 055 ERJ3EKF5600V RESISTOR CHIP 560
R567,569,584,621-623 055 ERJ3EKF6040V RESISTOR CHIP 604
R511-519 055 ERJ3EKF68R0V RESISTOR CHIP 68
016 E-1489A00 PCB ASSY
10

Parts List 9/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
R502-510 055 ERJ3EKF75R0V RESISTOR CHIP 75
R595 055 ERJ3EKF8202V RESISTOR CHIP 82K
R524,608-611,615 055 ERJ3GEY0R00V RESISTOR CHIP 0
R598,603 055 ERJ3RQF1R0V RESISTOR CHIP 1
R525-527 055 ERJ3RQF2R2V RESISTOR CHIP 2.2
JK501-503 066 C-4964A01 2P PIN JACK + DIN JACK
CP601 068 B12B-PH-KS CONNECTOR WAFER 12P
CP605 068 B4B-PH-KS CONNECTOR WAFER 14P
501 E-1490 PCB ASSY (ZONE)
IC711 031 HEF4094BT IC SMD (SHIFT REGISTER)
IC715-718 031 LTV817 IC DIP (PHOTO COUPLER)
IC701,702,704-706,712-714 031 NJM2068M IC SMD (OPE DUAL)
IC710 031 NJM7812FA IC (REG. +12VDC) KIA7812API
IC707 031 TC9163CFG IC SMD (SWITCH ALLEY)
IC709 031 TC9482BFG IC SMD (VOLUME)
Q702,708 032 KRA107S TRANSISTOR KRA107S
Q707,709-714 032 KRC107S TRANSISTOR KRC107S
Q721-728 032 KRC231S TRANSISTOR KRC231S
Q701,703,704 032 KRC231S TRANSISTOR KRC231S
Q715-720 032 TA1450-ST TRANSISTOR 2SA1450AA-ST
D701,702 037 KDS184RTK DIODE CHIP KDS184RTK
C702 041 TUTES1C471-7TF ELECTROLYTIC CAPACITOR 16V470uF
C714,715,725,726,740,741,744,745 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C748,749,752,753,761,762 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C703,704,707,708,719-724,735-739 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C742,743,746,747,750,759,765-776 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF
C781,782 047 ECJ2VB1H153K CERAMIC CAPACITOR CHIP 0.015uF
C799-810,813,816,819,820,836-842 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C701,709,710,751,754-756,760,793,794 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF
C833-835 047 ECJ2VG1H100D CERAMIC CAPACITOR CHIP 10pF
C777,778,787-792,795,796,821-832 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF
C783,784,811,812,814,815,817,818 047 ECJ2VG1H470J CERAMIC CAPACITOR CHIP 47pF
C713,718,727-732 047 ECJ2VG1H470J CERAMIC CAPACITOR CHIP 47pF
R714,715,748,751,778,781,789,790 055 ERJ6ENF1000V RESISTOR CHIP 100
C843-846,859-872 055 ERJ6ENF1000V RESISTOR CHIP 100
R701,703,704,707,725,728,731,734,737 055 ERJ6ENF1001V RESISTOR CHIP 1K
R740,752,755,760,763,764,767,768 055 ERJ6ENF1001V RESISTOR CHIP 1K
R771-774,779,780,782-788,799,834-839 055 ERJ6ENF1001V RESISTOR CHIP 1K
R873 055 ERJ6ENF1002V RESISTOR CHIP 10K
R702,705,706,726,727,732,733,738,739 055 ERJ6ENF1003V RESISTOR CHIP 100K
R749,750,753,754,761,762,765,766,769 055 ERJ6ENF1003V RESISTOR CHIP 100K
R770,793-798,800,819-824,853,854 055 ERJ6ENF1003V RESISTOR CHIP 100K
R801-806 055 ERJ6ENF1202V RESISTOR CHIP 12K
R724,729,730,735,736,741 055 ERJ6ENF1501V RESISTOR CHIP 1.5K
R840-842 055 ERJ6ENF2002V RESISTOR CHIP 20K
R828-833 055 ERJ6ENF3902V RESISTOR CHIP 39K
R712,713,718-721,742-747,807-818 055 ERJ6ENF4701V RESISTOR CHIP 4.7K
R825-827 055 ERJ6ENF75R0V RESISTOR CHIP 75
R847-852 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2
JAK701-705 065 HSJ1002-016020 3.5ΦMINI JACK
SW702 066 C-4829A01 1P PIN JACK (B)
SW701 066 C-4764A03 2P PIN JACK (Y/Y)
SW703 066 C-4792A01 6P PIN JACK (WHT.RED)
CP301 068 B14B-PH-KS CONNECTOR WAFER 14P
CP305 068 B15B-PH-KS CONNECTOR WAFER 15P
CP502 068 B6B-PH-KS CONNECTOR WAFER 6P
016 E-1490B00 PCB ASSY
11

Parts List 10/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
CP201 068 B8B-PH-KS CONNECTOR WAFER 8P
CNT700 068 C-4867A01 FPC CONNECTOR 17P
NT401 068 C-4867A04 FFC CONNECTOR 31P
501 X-1491 PCB ASSY (POWER)
T201 022 T-1075N02 SUB TRANSFORMER
Q201 032 TA1450-ST TRANSISTOR 2SA1450AA-ST
Q202-204 033 TC3708-ST TRANSISTOR 2SC3708AA-ST
D216,217 034 KBL406 POWER DIODE 400V6A
D214,215,218 034 KBP206 POWER DIODE 200V6A
DB201 034 KBPC2504W-F POWER DIODE 400V25A
D201,204,205,207,210,212,213,219-221 034 T1N4004-TB DIODE 1N4004-F
D209 034 T1N4148-86 DIODE 1N4148TAP-50
D203 034 TRD27JST1 ZENER DIODE 27V (AB2)
D208,211 034 TRD5.1JST1 ZENER DIODE 5.1V (AB3)
D206 034 TRD6.8JST1 ZENER DIODE 6.8V (AB4)
D202 034 TRD9.1JST1 ZENER DIODE 9.1V (AB5)
F201* for 230V 036 5ST3.15-R FUSE 250V3.15A
F202 036 5ST315-R FUSE 250V315mA
F203-206 036 5ST4-R FUSE 250V4A
F201* for 120V 036 5ST8-R FUSE 250V8A
C202,203 041 AM1K153 ELECTROLYTIC CAPACITOR 80V15000uF
C227 041 TUTES1A471-7TF ELECTROLYTIC CAPACITOR 10V470uF
C212,221 041 TUTES1C102-7TS ELECTROLYTIC CAPACITOR 16V10000uF
C223 041 TUTES1E470-7TF ELECTROLYTIC CAPACITOR 25V47uF
C230-237 041 UTWE1E472-7TS ELECTROLYTIC CAPACITOR 25V4700uF
C238-243,253-255 041 TUTES1H010-7TF ELECTROLYTIC CAPACITOR 50V1uF
C211 041 TUTES1H220-7TF ELECTROLYTIC CAPACITOR 50V22uF
C210 041 TUTES1H470-7TF ELECTROLYTIC CAPACITOR 50V47uF
C205-209 043 TC500V103 CERAMIC CAPACITOR 500V0.01uF
C213,244-252 043 TC50V104 CERAMIC CAPACITOR 0.1uF
C201,204 044 3549472109 AC CAPACITOR 400V 0.0047uF
C214-220,222,224,225,226,228,229 044 BQ014E0103J M.P CAPACITOR 100V0.01uF
R203,204 053 CR14-010J-A CARBON RESISTOR 1/4W 1
R208 053 CR14-101J-A CARBON RESISTOR 1/4W 100
R206,210,211,216 053 CR14-102J-A CARBON RESISTOR 1/4W 1K
R205,217-220 053 CR14-103J-A CARBON RESISTOR 1/4W 10K
R209 053 CR14-152J-A CARBON RESISTOR 1/4W 1.5K
R212,215 053 CR14-222J-A CARBON RESISTOR 1/4W 2.2K
R201,207 053 CR14-470J-A CARBON RESISTOR 1/4W 47
R213 053 CR14-472J-A CARBON RESISTOR 1/4W 4.7K
R214 053 CR14-562J-A CARBON RESISTOR 1/4W 5.6K
R202* for 120V 054 MSR1/2W4M7J MOF RESISTOR 1/2W 4.7M
RLY201 063 DG1U-12 RELAY DG12D1-O(M)-2
CP203 068 4428503746 CONNECTOR WAFER 3P
CP201 068 4428505746 CONNECTOR WAFER 5P
CP404 068 B14B-PH-KS CONNECTOR WAFER 14P
CP207 068 B2B-EH CONNECTOR WAFER 2P
CP403 068 B2B-PH-KS CONNECTOR WAFER 2P
CP202,CT201,202,CTA201-204,CTS201,202 068 B2P3-VH CONNECTOR WAFER 2P
CNT203 068 B2P-VH CONNECTOR WAFER 2P
CP205 068 B3B-EH CONNECTOR WAFER 3P
CP204 068 B4B-PH-KS CONNECTOR WAFER 4P
CP302 068 B5B-PH-KS CONNECTOR WAFER 5P
CP211 068 B7B-EH CONNECTOR WAFER 7P
CP106 068 B7B-PH-KS CONNECTOR WAFER 7P
CP604 068 B8B-PH-KS CONNECTOR WAFER 8P
016 X-1491A01-03 PCB ASSY
12

Parts List 11/11 RSX-1058
SYMBOL PARTS NO. DESCRIPTION
505 HSRSX-1058 HEAT SINKER ASSY (with 501 E-1413-C)
017 UF3-08A01 HEAT SINKER BOARD
019 TO-126 MICA SHEET TBM-51W-15 #9524
019 TO-3P MICA SHEET TBM-51W-15 #9043
Q115,215,315,415,515 032 C4137-V TRANSISTOR
Q114,214,314,414,514 033 A1386-OPY TRANSISTOR 2SA1386A-OPY
Q113,213,313,413,513 033 C3519-OPY TRANSISTOR 2SC3519A-OPY
CP251 034 P43T7D200BW20 POSISTOR
505 SHSRSX-1058 HEAT SINKER ASSY (with 501 E-1491-02)
017 WQ3-05B00 HEAT SINKER BOARD
IC202,203,205 031 KIA278R05PI IC KIA278R05PI/P (REG.+5VDC)
IC204 031 NJM317F IC (REGULATOR)
IC201 031 NJM7805FA IC (REG. +5VDC) KIA7805AP
IC208,209 031 NJM7812FA IC (REG. +12VDC) KIA7812AP
IC207 031 NJM7815FA IC (REG. +15VDC) KIA7815AP
IC206 031 NJM7915FA IC (REG. -15VDC) KIA7915PI
011 FP-625-B BLACK PANEL ASSY
011 FP-625-S SILVER PANEL ASSY
011 UF3-01B00 H/S PANEL
012 C-4711A03 KNOB 43ΦNO MARK (BLACK)
012 C-4711A03S KNOB 43ΦNO MARK (SILVER)
012 RV4-09A00 PUSH BUTTON 14Φ(BLACK)
012 RV4-09A01 PUSH BUTTON 14Φ(SILVER)
012 TB3-18A00 TACT BUTTON 16 KEY (BLACK)
012 TB3-18A01 TACT BUTTON 16 KEY (SILVER)
014 WH3-03A00 UPPER COVER
019 4TSH-19#2 PLASTIC FOOT 50Φ(BLACK)
019 C-4714A00 POWER KNOB RING 14Φ(BLACK)
019 C-4714A01 POWER KNOB RING 14Φ(SILVER)
021 RLA172A00 AM LOOP ANT
022 T-1109U01 POWER TRANSFORMER
(CP105)* 034 SEL1124R LED (RED) 1X5
(CP105)* 034 SEL1E24W LED (BLU) 1X5
061 C-4838A00 ROCKER SWITCH SR1N6BB
069 C-4629A01 AC 2P INLET 6102.3100 (WIRING)
072 4TR-3228 T TYPE ANTENNA
072 C-4621A03 AC CORD SET SJT AWG16 for U.S.A
072 C-4622A02 AC CORD SET for AUSTRALIA
072 C-4623A02 AC CORD SET for UK
072 C-4624A03 AC CORD SET for EUROPE
072 C-4786A00 COMPUTER I/O CABLE (4-P)
CNT700 072 C-4863A00 FLAT CABLE 17P 150mm
CNT401 072 C-4863A07 FLAT CABLE 31P 150mm
081 WQ3-07A00 INSIDE CARTON
081 WQ3-08A00 SHIPPING CARTON
081 ZE-208 ETHAFOAM MOULDING
082 OMRSX-1058 OWNER'S MANUAL
092 MB114MA1-1B TUNER PACK
092 RR-1060 REMOTE CONTROL UNIT
O T H E R S
HEAT SINK ASSEMBLY (5CH AMP)
HEAT SINK ASSEMBLY (POWER)
13

RSX1058
SYMBOL PARTS DESCRIPTION
011 FP-625-B BLACK PANELASSY
011 FP-625-S SILVER PANELASSY
011 UF3-01B00 H/S PANEL H150
012 C-4711A03 KNOB 43F NO MARK (BLK)
012 C-4711A03S KNOB 43F NO MARK (SLV)
012 RV4-09A00 PUSH BUTTON 14F (BLK)
012 RV4-09A01 PUSH BUTTON 14F (SLV)
012 TB3-18A00 TACT BUTTON 16 KEY (BLK)
012 TB3-18A01 TACT BUTTON 16 KEY (SLV)
034 SEL1124R LED (RED) 1X5
034 SEL1E24W LED (BLU) 1X5

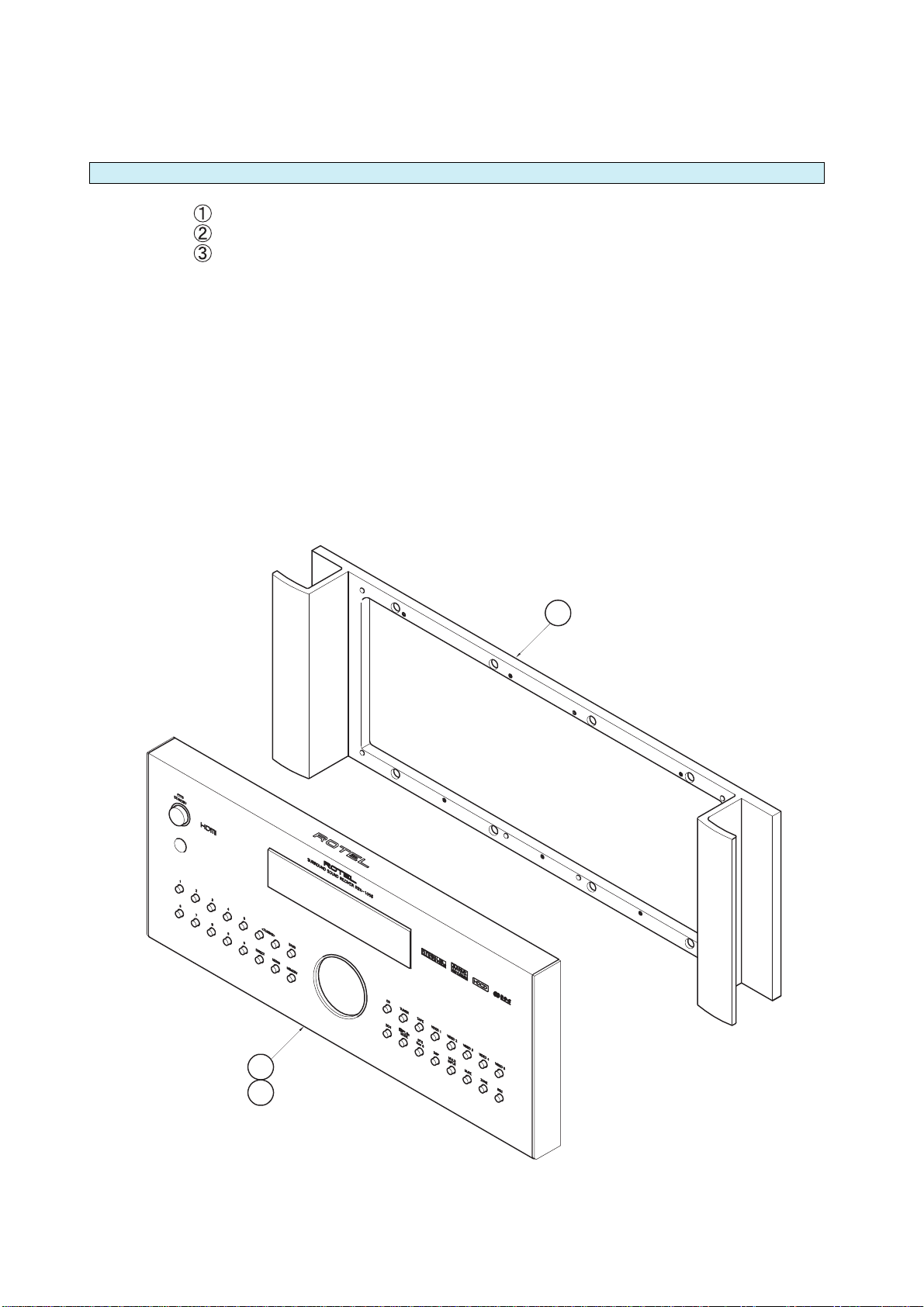

Addendum List for Black and Silver
Panel Assy is included:
Panel Window
Side Cap
Knob Ring
Tact buttons
LED
3
1
2
14

Instruments : DC milli–voltmeter
Notes : Prior to Bias Adjustment, run about 5minutes with rated output(8ohms) and
warm up Power Transistor and Heat Sink. Set input off.
Step
ONE SIDE OF R541 E-1413 PCB VR501
1
ONE SIDE OF R141 E-1413 PCB VR101
2
ONE SIDE OF R341 E-1413 PCB VR301
3
ONE SIDE OF R441 E-1413 PCB VR401
4
ONE SIDE OF R241 E-1413 PCB VR201
5
Coupling Location Adjust forAdjust
DC milli–voltmeter reads 4mV
Adjustment
<MEMO>
RSX-1058
RSX1058 will get FL full illumination from "Direct" and "Always ON" setting
Press "2CH" and "MUTE" of front panel while turn on the rear panel master
power switch. When release the lighting, press STANDBY switch or master
power switch.
Light-up ALL FL segments to check:
on Power Option menu.
15

RSX-1058Main Software Upgrade Procedure
1. Click "Open File" -> Select Upgrade file
4. Power off the main switch of rear. And on again.
5. Click "Next" button.
Install the "Main FlashUp" program which is provided by ROTEL in the computer. And connect RS232
Cable with DB-9 to RJ45 terminations.
2. Confirm Port and Baud Rate setting. Then, click
"Next" button. (ref: RSX-1058Baud Rate is 38400)
3. Communucation port initializing …..
Wait. Then, click "Next" button.
6. The device's current version is displyed. Click "Next"
button.
16

7. The sector is erasing. Wait a moment.
11. Finish.
10. Completed all procedure. Power off and on again
on main switch of rear. Click "Exit" button to finish the
9. If the writing and checksum is OK, wait a next
procedure.
8. The sector is erased. The flash is writing
automatically. Wait a while.
17

ŪŨū
RSX-1058 Scalar (VIDEO) Upgrade Software Procedure
1. Execute nec flash upgrade.exe then will be created new folder as "C:\Program Files\nec upgrade".
2. Connect upgrade cable between RSX-1058 and PC.
3. Set upgrade enviornment on OSD Menu
"OSD Main Menu-> VIDEO/HDMI -> Video Upgrade -> yes " press Enter.
4. Copy Object file(.HEX) and INI file (video_scaler.ini) file, and save it in temporary same folder.
5. Execute nec_flash_upgrade.exe from Program list.
6. Load INI file b
y
p
ushin
g
"Load INI" button.
load video_scaler.ini for video scaler CPU of the RSX1058.
7. Load HEX file by pushing "Load HEX" button.
load scaler1058vxxx.hex for video scaler CPU of the RSX1058.
18

ūŨū
8. After pushing "COM" button placed at "HEX" button upper, and choosing COM1~COM4.
(connecting PC's COM1 ~COM4 and cable).
>>>>>
9. Push "Connect" button placed at program's below left side,and BaudRate placed next to "COM"
button will be displayed if the above process is OK.
10. Click "Write" button placed next to "Connect" button .
11
12 AC Power "OFF" and "ON" again to save.
After finshing "Write", then the total writing time
will be displayed.
19

RSX-1058 DSP Upgrade Manager V1.0.0 Procedure Dec.25.’06
Install the “DSP Upgrade Manager_V100” program which is provided by ROTEL in the
computer. And connect RS232 Cable with DB-9 to RJ45 terminations.
1. Click “Open File” -> select Upgrade file 2. Confirm Port and Baud Rate setting. Then, click “Next”
button. (ref: RSX-1058 Baud Rate is 38400)
3. Communication port initializing ……
Wait. Then click “Next” button.
5. Click “Next” button.
11. Finish
6. The device’s current version is displayed. Click
“Next” button.
8. The sector is erased. The flash is writing
automatically. Wait a while.
4. Press the “Next” button for starting the procedure.
7.The sector is erasing. Wait a moment.
10. Completed all procedure. Power off and
on again on main switch of rear. Click “Exit”
button to finish the “Upgrade Manager”
program.
9. If the writing and checksum is OK, wait a
next procedure.
20
