Royal Sovereign HSH-1300 User manual

Royal Sovereign International, Inc.
LAMINATOR
Owner's Manual
Please read and retain these instructions.
To register your product, please go to www.royalsovereign.com USA.
Click the Customer Support Tab then Registration Tab.
www.royalsovereign.com
HSH-1300

LAMINATION
INTRODUCTION
Thank you for purchasing a Royal Sovereign HSH-1300 Laminating Machine.
It has been designed and manufactured to provide years of continuous service.
To insure high quality lamination, please read this instruction manual thoroughly.
This manual will provide you with complete operating and maintenance information.
Model HSH-1300

CONTENTS
Introduction 2
Safety Instructions 4
Major Parts  5
Control Panel Instructions 6
Hot Laminating Procedure 9
Cold Laminating Procedure 10
Color Foil Laminating Procedure 11
Maintenance 11
Reverse/Auto Reverse Procedure 12
Auto Stand-by/Auto Power-off Procedure 12
Troubleshooting 13
Specifications 13
Pouch Film Settings 14
Warranty 15
Página en Español 17
Page en Français 33

4

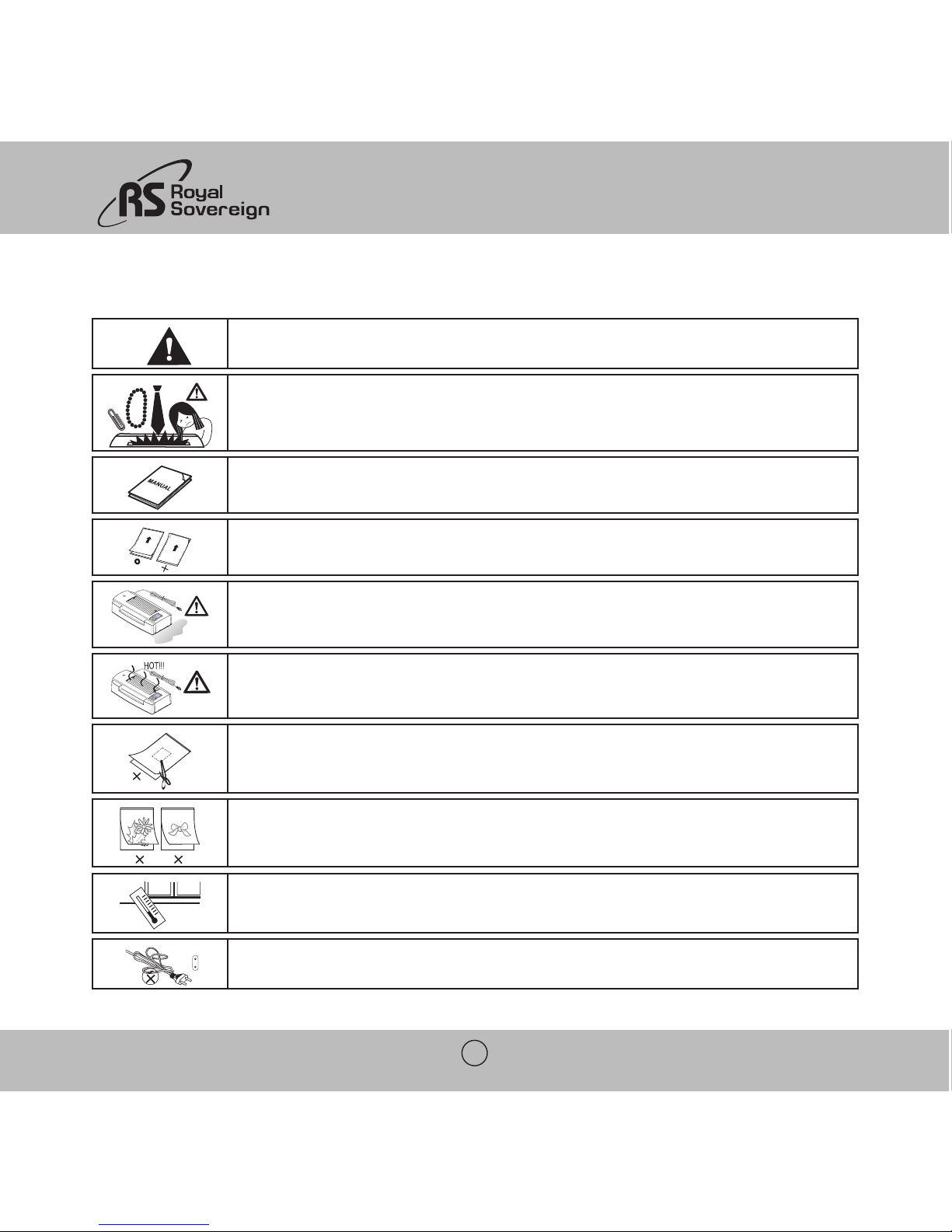

SAFETY INSTRUCTIONS
The safety recommendations outlined in this section are to be read, understood and followed
before operating the machine. Keep this information for future reference.
1. To prevent the possibility of fire or injury, do not allow articles of clothing (neckties, scarves,
or paperclips etc.) inside the machine.
2. Do not attempt to laminate items that exceed total recommended material thickness.
3. Do not insert pouch film with the back end first.(Front of film: sealed side,Back of film:
unsealed side.)This may cause the pouch to jam the rollers
4. To prevent the possibility of electric shock, do not immerse the laminator in water or permit
liquids inside the machine.
5. Because the laminator creates heat, keep out of reach of children.
6. Do not cut pouch before inserting into laminator.(This will cause the laminator to jam.)
7. Do not operate machines for any other purpose other than its intended use. Do not laminate
leaves, flowers, clothes etc.
8. This machine is for indoor use only.
9. Do not operate the machine if the outlet or power cord is damaged. Contact a qualified electrician.

HSH-1300
5
MAJOR PARTS
COVER ROLLER COVER
TEMPERATURE CONTROL SWITCH
POUCH MATERIAL THICKNESS SETTINGS
LCD PANEL
POWER SWITCH
FRONT OPENING
BASE

6

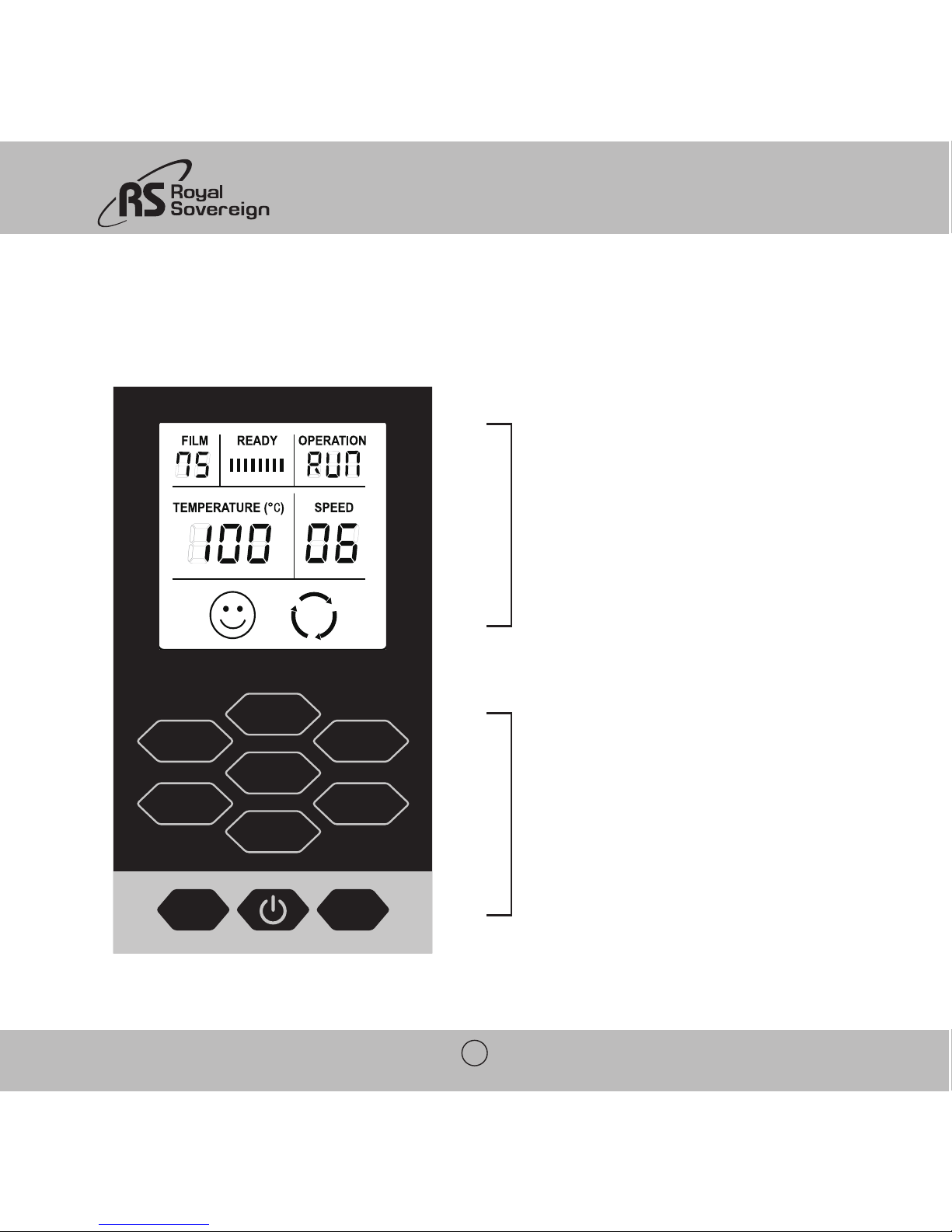

CONTROL PANEL INSTRUCTIONS
Appropriate speed and temperature may be set, using the LCD controller.
CONTROL PANEL SETTINGS
TEMP ▼ SPEED ▼
SPEED ▲
STAND BY
T-CHECK
HOT/COLD
TEMP ▲
SET REVERSE
LCD DISPLAY
BUTTONS

HSH-1300
7
LCD DISPLAY
FILM
This displays the current film thickness.
7 film settings
75 mic=3 mil, 100 mic=4 mil,125 mic= 5 mil
150mic=6mil,175 mic=7 mil, 200mic=8mil
250mic=10mil
SPEED
12 speed options (1-12)
TEMPERATURE
This displays the current temperature.
Displayed when desired temperature is met.
Indicates that the current temperature is either higher or lower than
the preset temperature. Wait until the indicator stops blinking.
Indicates what direction the rollers are moving in (FWD/REV).
Indicates if the machine is ON or OFF.
SPEED SETTING
Speed 1 2 3 4 5 6 7 8 9 10 11 12
(mm/min) 600 800 1000 1200 1400 1600 1800 2040 2280 2520 2760 3000
(ft/min) 1.97 2.62 3.28 3.94 4.59 5.25 5.91 6.69 7.48 8.27 9.06 9.84

8
CONTROL PANEL FUNCTIONS
TEMP ▼ SPEED ▼
SPEED ▲
STAND BY
T-CHECK
HOT/COLD
TEMP ▲
SET REVERSE
HOT/COLD Press this to choose the Hot/Cold function T-CHECK Press this to check the current temperature
TEMP Press this to increase the temperature STAND BY Sets temperature to 80°C(176°F) speed 2
TEMP Press this to decrease the temperature SET Press this to scroll through preset settings
SPEED Press this to increase the speed REVERSE Reverse function
SPEED Press this to decrease the speed Power ON/OFF
NOTE:
The temp can be controlled 40°C(104°F) ~ 140°C(284°F)in unit of 1°C,
The "Hot" can be controlled 80°C(176°F) ~ 140°C(284°F) in unit of 1°C,
The "Cold" can be controlled 40°C(104°F) ~ 60°C(140°F) in unit of 1°C.

HSH-1300
9
HOT LAMINATING PROCEDURE
1. Place and use the laminator on a sturdy, flat work surface.
2. Plug in the laminator after verifying the correct outlet voltage.
3. Press the power button.
4. Make sure the machine is in the HOT lamination mode by pressing the HOT/COLD button.
5. Select the correct pouch thickness by pressing the SET button.
6. Set the temperature and speed according to the pouch thickness. Please refer to the SPECIFICATIONS section for
recommended settings
7. The symbol will appear and you will hear 3 beeps when your desired temperature is met. The machine is now
ready for lamination.
8. Place the item to be laminated into the laminating pouch.
9. Insert the pouch (sealed side first) into the front opening of the machine.
10. The laminated item will exit out the rear of the machine when completed.
11. If you laminate several items continuously the may disappear, please wait until it is displayed again before
continuing lamination.
12. When the machine is on for an extended period of time, use a slightly lower temperature setting as the internal
temperature of the machine may actually be higher than the preset temperature, which may cause the document to
bend.
13. When you are finished laminating, press the OFF button. The cooling fan might continue to run and the rollers will
continue to roll until the temperature decreases to 60°C (140°F).
NOTE: • Your laminated item will be hot and can easily bend. To keep your laminated item flat, place on a flat surface
and allow to cool.
•
When laminating material does not drop off completely from back of the machine, please gently pull out the material
• Do not use films smaller than name card sizes (65mm×95mm / 2.56"×3.7")

10
COLD LAMINATING PROCEDURE
1. Set the laminator in the COLD lamination mode by pressing the HOT/COLD button. set temperature
60°C(140°F)
2. The symbol will appear and you will hear 3 beeps when the machine is in the cold temperature mode. The
machine is now ready for lamination.
3. Place the document to be laminated on the adhesive side of the cold film with the document face down.
4. Insert the document to be laminated into the front opening of the machine.
Remove the paper liner from the cold film slowly while the document is being inserted into the machine.
NOTE: When switching the machine from the hot to cold mode, please wait until the rollers cool down. It will take
approximately 20-30 minutes.
The symbol will appear and you will hear 3 beeps.
COLOR FOIL LAMINATING PROCEDURE
IMPORTANT: Carrier is required for Foil Lamination
1. Set the temperature and speed according to the pouch thickness (FOIL).
Please refer to the SPECIFICATIONS section for recommended settings.
2. The READY ( ) symbol will stop blinking and a symbol will appear when the correct temperature is met.
The machine is now ready for lamination.
3. Position the color foil on the document with the color side facing up. When you are applying the foil to small areas or
using different colors, use the tape that’s included to hold the foil in place.
4. Place the document into the paper carrier.
5. Insert the carrier into the front opening of the machine.
6. The carrier will exit out the rear of the machine when completed.
NOTE: Your laminated item will be hot and can easily bend. To keep your laminated item flat, place on a flat surface and
allow to cool.

HSH-1300
11
MAINTENANCE
When adhesives from film build up on the rollers, the quality of lamination will decrease and jamming may occur. Please
clean the rollers regularly.
Standby
Hot/Cold
POWER
1. Turn on the laminator and set the temperature to 100°C(212°F) and set
the mil thickness to 75mic.
2. Insert a sheet of clean thick paper (about 0.5mm to 1/50" thick) into the
front opening of the machine 2-3 times to remove excess adhesives from
the rollers.
3. To thoroughly clean the rollers make sure the machine is in the COLD mode
and the rollers are completely cool.
4. Unscrew the 2 screws on the cover using a screwdriver. Once the screws
are off, remove the top cover.
5. Use a cleaning solvent such as Laminex Poly-off or something equivalent on
a lint free cloth to clean residue on the rollers.
(Do not use alcohol or petroleum based cleaning solvents or abrasives).
6. Place the cover and screws back into place and tighten.
7. Use and store this unit in a dry area, damp area may damage the machine.

12
MANUAL REVERSE/AUTO REVERSE FUNCTION
1. Manual reverse function
During lamination, if the material is tilted towards one side, press "reverse" button to pull out the film.
2. Auto reverse function
If a jam occurs, the motor will automatically reverse until the pouch exits the front of the machine.
After removing the pouch from the front, the user can re-start lamination.
AUTO STAND-BY MODE AND POWER-OFF MODE
1. Auto stand-by mode
Stand-by mode: If no activity is made within 1 hour after each use, the machine will automatically switch into stand-by
mode. (Sets temperature to 80°C(176°F) speed 2)
2. Auto power-off mode
Auto power-off mode: If no activity is made for 30 minutes at Stand-by mode, the machine will automatically power
off.
If any activity is made while in stand-by or auto power-off mode the machine will return to it's previous stage.
NOTE:
To change to stand-by mode, press "ST/BY" button. (when in stand-by mode, temperature will automatically reset to
80°C(176°F) and all the buttons on the control panel are disabled) Press "ST/BY" mode button to resume normal
operation.

HSH-1300
13
TROUBLESHOOTING
Problem Possible Cause Possible Solution
Motor doesn’t work - Power cord may not be plugged in.
- Power switch is off.
- Check and plug in the power cord.
- Check and turn on the power.
Pouches are not laminating
correctly
- If laminating heat sealed pouches,
the machine may be set in the COLD
mode.
-The temperature may be set too low.
-The speed is set too high.
- Make sure the machine is in the HOT
mode.
- Check the temperature is set
according to pouch thickness.
- Adjust to a lower speed.
SPECIFICATIONS
Model HSH- 1300
Dimensions 610×295×150 (mm) / 24.0" ×11.6"×5.9" (in)
Maximum Laminating Width 330 (mm) / 13 (in)
Maximum Laminating Thickness 1mm / 1/30" (in)
Film Thickness 75 ~ 250mic / 3-10 (mil)
Heat method Hot Roller
Warm up time 7 min
Cooling system DC FAN
Motor Type DC GEARED MOTOR
Maximum Laminating Speed 3000 (mm/min) / 9.84 (ft/min)
Number of rollers 6
Unit weight 16.5Kg / 36. 4 (lbs)
Voltage supply 100V/120V/220~240V(50~60Hz)
Power Consumption 1350 W

14
POUCH FILM SETTINGS GUIDE
Please refer to the settings below if you are laminating a few items.
Film Settings Based on 20˚C(68°F)
Film Thickness Paper (g/m²) Temp(°C) Temp(°F) Speed
75mic
(3mil)
80 100 212 6
120 100 212 5
200 100 212 4
100mic
(4mil)
80 110 230 6
120 110 230 5
200 110 230 4
125mic
(5mil)
80 115 239 5
120 115 239 4
200 115 239 3
150mic
(6mil)
80 120 248 4
120 120 248 3
200 120 248 2
175mic
(7mil)
80 125 257 4
120 125 257 3
200 125 257 2
200mic
(8mil)
80 130 266 3
120 135 275 3
200 135 275 2
250mic
(10mil)
80 140 284 4
120 140 284 3
200 140 284 2
WARNING
Film setting standard guide is just for your reference. It is best for you to adjust the
temperature and speed according to the environment of your workstation.

HSH-1300
15
WARRANTY
Royal Sovereign International warrants the equipment sold is free from defects in material and workmanship for a period
of One (1) year for Parts and Labor from the date of installation, excluding lamination rollers which are warranted for
Six (6) months. This warranty is extended only to the original purchaser. This warranty is the only warranty made by
Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s sole and exclusive liability and the
customer’s sole and exclusive remedy under this warranty shall be, at Royal Sovereign’s option, to repair or replace any
such defective part or product. These remedies are only available if Royal Sovereign’s examination of the product
discloses to Royal Sovereign’s satisfaction that such defects actually exist and were not caused by misuse, neglect,
attempt to repair, unauthorized alternation or modification, incorrect line voltage, fire, accident, flood or other hazard.
All warranty claims must be filed through the authorized Royal Sovereign dealer or reseller through which the equipment
was originally purchased. Model, serial number and date of delivery are required for all claims.
The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or
merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or personal
injury (unless primarily caused by its negligence), loss of profit, or other incidental or consequential damages arising out
of the use or inability to use this equipment.
LIMITED WARRANTY
This warranty specifically does not cover damage to laminating rollers caused by knives, razor blades, or any sharp
objects or abrasives, or failure caused by adhesives, or damage caused by lifting, tilting or improper use of the machine.
Warranty repair or replacement by Royal Sovereign or its authorized Reseller(s) does not extend the warranty beyond the
initial one year period from the date of installation. Unauthorized customer alterations will void this warranty.

CORPORATE HEADQUARTERS
Royal Sovereign International Inc.
2 Volvo Drive, Rockleigh, NJ 07647 U.S.A.
TEL : [phone] FAX : [phone]
RS EUROPE LIMITED.
66 SALISBURY ROAD, WORCESTER PARK,
SURREY KT4 7DE UK
TEL: [phone]
RS Canada Inc.
5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA
TEL : [phone] FAX : [phone]
TF : [phone]
RS International Australia PTY. LTD.
30 Prime Drive, Seven Hills, NSW 2147, Australia
TEL : [phone]
FAX : [phone]
08.2013

Royal Sovereign International, Inc.
LAMINATOR
Manual de instrucciones
Por favor lea y guarde estas instrucciones.
Para registrar su producto, visite www.royalsovereign.com EE.UU..
Haga clic en la lengüeta de soporte al cliente y luego Tab registro..
www.royalsovereign.com
HSH-1300
Spanish

LAMINADO
INTRODUCCIÓ
Gracias por comprar un Royal Sovereign HSH-1300 Máquina laminadora usted.
Ha sido diseñado y fabricado para proporcionar años de servicio continuo.
Para asegurar la laminación de alta calidad, por favor lea este manual de instrucciones.
Este manual le proporcionará la información de mantenimiento completo y operativo.
MODELO HSH-1300

CONTENIDOS
INTRODUCCIÓ 18
INSTRUCCIONES DE SEGURIDAD  20
PIEZAS PRINCIPALES 21
FUNCIONES DEL PANEL DE CONTROL 22
PROCEDIMIENTO DE LAMINADO CALIENTE 25
PROCEDIMIENTO DE LAMINADO EN FRÍO 26
COLOR ALUMINIO LAMINADO PROCEDIMIENTO 27
MANTENIMIENTO 27
MANUAL DE ATRÁS / REVERSE FUNCIÓN AUTO 28
AUTO STAND-BY Y EL MODO APAGADO 28
SOLUCIÓN DE PROBLEMAS 29
ESPECIFICACIONES 29
BOLSA FILM GUÍA DE CONFIGURACIÓN 30
GARANTÍA 31
Página en Español 17
Page en Français 33

20
INSTRUCCIONES DE SEGURIDAD
Las recomendaciones de seguridad indicadas en este apartado se van a leer, comprender y seguir.
Antes de utilizar la máquina. Guarde esta información para futuras consultas.
1. Para evitar la posibilidad de incendio o lesiones, no permita que las prendas de vestir (corbatas,
pañuelos, o clips, etc) dentro de la máquina.
2. No trate de productos laminados que superan el espesor del material recomendado total.
3. No inserte película de la bolsa con la parte de atrás primero (Frente de la película:. Lado sellado,
Volver de la película: lado no sellado.) Esto puede causar que la bolsa para tocar los rodillos
4. Para evitar la posibilidad de descargas eléctricas, no sumerja el laminador en agua o permitir
líquidos en el interior de la máquina.
5. Debido a que el laminador genera calor, mantener fuera del alcance de los niños.
6. No corte la bolsa antes de insertarlo en laminador. (Esto hará que el laminador se atasque.)
7. No opere máquinas para ningún otro propósito que no sea el uso previsto. No lo hagas
laminado hojas, flores, ropa, etc
8. Esta máquina es sólo para uso en interiores.
9. No utilice el equipo si el cable de salida o de alimentación está dañado. Póngase en contacto con un
electricista calificado.
