RPB Nova 3 User manual
INSTRUCTION
MANUAL
RPB Safety T: 1-866-494-4599 F: 1-866-494-4509 E: info@rpbsafety.com

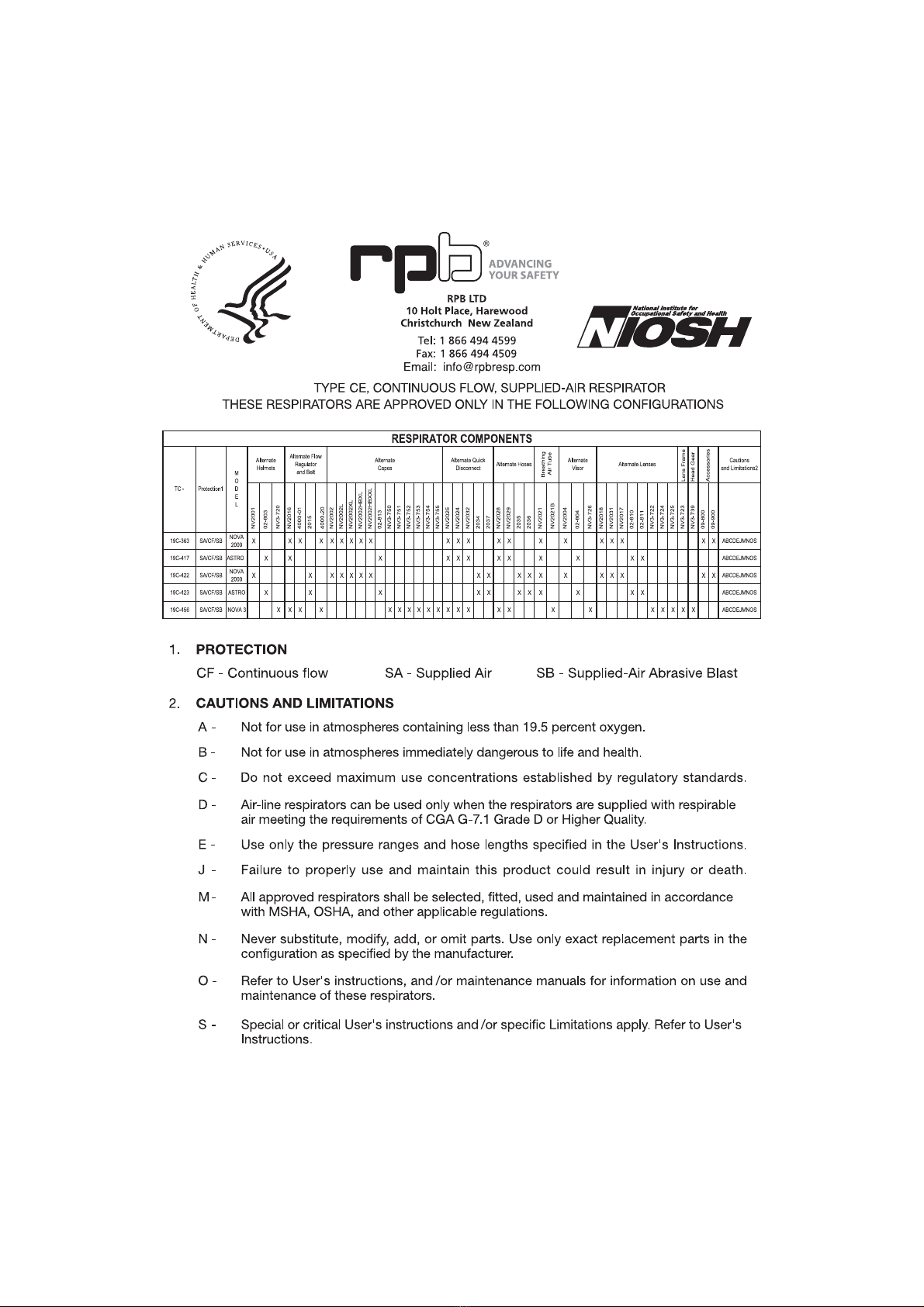

Approval Label
Introduction
Respiratory Component Concept
Warnings
Respirator Operation
Breathing Air Pressure Table
Respirator Setup and Use
Inspection, Maintenance, Cleaning & Storage
Parts and Acessories
Read all instructions & warnings before using this product. Keep this manual for future reference.
www.rpbsafety.com
INDEX
RPB, advancing your safety and NOVA 3 are registered trademarks of RPB Safety
For technical assistance contact out Customer Service Department on 1-866-494-4599
or email: customerservice@rpbsafety.com
RPB 155 /1
2
3
4
5
9
11
12
17
22
1
2
INTRODUCTION
3
The NOVA 3 Supplied Air Respirators are designed to provide
protection from airborne contaminants in atmospheres NOT
IMMEDIATELY DANGEROUS TO LIFE OR HEALTH, and from
which a user can escape without the aid of the respirator, or that
do not exceed concentrations allowed by OSHA, EPA, NIOSH
or ACGIH regulations and recommendations.
The NOVA 3 is NIOSH approved (TC-19C-456 Type CE
Supplied Air Respirator) to provide respiratory protection in
general applications including abrasive blasting. The helmet
meets ANSI Z89.1 Type 1C Head Protection and the Inner Lens
meets ANSI Z87.1 for Eye Protection. The cape is designed to
NOVA 3 Respirators are NIOSH Approved for use with the
NV2016 Flow Control Valve, 4000-01 Cold Air Tube and the
4000-20 Hot Air Tube.
All RPB Safety products are covered by a manufactures warranty of 3
months. The manufacturer warranty covers defects in material, workmanship
obligation and your exclusive remedy shall be to repair, replace or refund
the purchase price of such parts or products upon the presentation of
proof of purchase.Maximum liability is in no case to exceed the value of
the RPB Safety product involved.
4
The NOVA 3 Supplied Air Respirator consists of 4 main
components:
Respirator Helmet Assembly
Respirator Cape
Breathing Tube Assembly
Air Supply Hose
All 4 components must be present and properly assembled
to constitute a complete NIOSH Approved Respirator.
Failure to use genuine RPB Safety NIOSH approved parts and
components voids the approval of the entire respirator assembly.
RESPIRATOR COMPONENT CONCEPT
!WARNING!
Fig: 1.1
1. Respirator Helmet Assembly
2. Respirator Cape
3. Breathing Tube Assembly
4. Air Supply Hose
®
Inspect all components of the respirator daily for signs of
damage or wear and tear that may reduce the level of
protection originally provided.
Do not use silica sand or abrasives containing silica, lead,
arsenic or sharp glass particles - use of abrasive containing
these elements could result in serious injury or death.
Do not wear this respirator until you have passed a complete
physical exam including a lung X-ray conducted by qualified
medical personnel.
Improper use of this respirator or use not in accordance with
this User Instruction Manual may cause injury or death.
Improper use may also cause life threatening delayed lung
diseases such as silicosis, pneumoconiosis or asbestosis.
This respirator, when properly fitted and used, significantly
reduces but does not completely eliminate the breathing of
contaminates by the respirator wearer.
Be certain your employer has determined that the breathing air
source provides at least a Grade D breathable air as specified
in the compressed gas association commodity specification
G-7.1. The respirator must be supplied with clean breathable
air at all times. A carbon monoxide monitor must be used at all
times. Contact your RPB distributor for a Radex 08-200 CO
Monitor.
RPB Safety cannot accept any liability of whatsoever nature
arising directly or indirectly from the use or misuse of
7.
8.
9.
10.
11.
5.
6.
6
®
RPB Safety products, including purposes that the products
are not designed for. RPB Safety is not liable for damage,
loss or expense resulting from the failure to give advice or
information or the giving of incorrect advice or information,
of its employees, agents or sub-contracters.
toxic gases, inert gases or other unbreathable non Grade D
air sources. Check the air source before using the respirator.
This apparatus is not designed for use with mobile air supply
systems i.e. cylinders. Failure to connect the supply hose to
the proper air source could result in serious injury or death.
If this respirator is used in confined spaces ensure the area is
well ventilated and that all contaminate concentrations are
below those recommended for this respirator. Follow all
procedures for confined space entry, operation and exit as
defined in applicable regulations and standards.
Leave work immediately if:
NOVA 3 Respirators do not provide hearing protection.
Earplugs or earmuffs must be properly fitted when exposed
exposure levels.
14
15
12
13
7
AIR QUALITY
This respirator must be supplied with clean breathable air at
all times. Breathable air must at least meet the requirements
for Type 1 gaseous air described in the Compressed Gas
Association Commodity Specifications G.7.1 (Grade D or
higher) and as specified by Federal Law 42 CFR 84, subpart
J.84.141(b) and 29 CFR 1910.134 (i) the NOVA 3 does not
purify air or filter contaminants.
AIR SOURCE
Locate the air source in a clean air environment, always use a
filter on the inlet of your air source. Do not park vehicles
beside your air inlet as this will cause carbon monoxide to be
drawn into your air supply. Always use suitable after coolers /
dryers with filters and carbon monoxide alarms to ensure
clean breathable air is supplied at all times. The air should be
regularly sampled to ensure that it meets Grade D
requirements.
BREATHING AIR SUPPLY HOSES AND FITTINGS
NIOSH approved RPB Safety air supply hoses and fittings
must be used between the point of attachment and the
The hose sections must be within the approved length and
the amount of sections must be within the number specified
in the breathing air pressure table on page 11.
OPERATION
9
RESPIRATOR
BREATHING AIR PRESSURE
The air pressure must be continually monitored at the point of
attachment. Air pressure must be read from a reliable
pressure gauge whilst the respirator has air flowing through it.
WARNING: Failure to supply the minimum required air
pressure at the point of attachment for the length of air supply
hose could result in contaminants being inhaled as the
pressure in the helmet may become negative due to peak
inhalation flow when working at very high work rates.
The NOVA 3 Breathing Air Pressure table on page 11 defines
the air pressure ranges needed to provide the respirator with
a volume of air which falls in the required range of 6-15cfm or
170-425 Its/min.
Make sure you understand the Breathing Air Pressure table
before using this respirator.
Determine your air source (column 1)
Identify your breathing tube assembly (column 2)
Confirm the part number of the air supply hose you are using
(column 3)
Check your RPB Safety Air Supply Hose is within the NIOSH
approved length (column 4)
Set the air pressure at the point of attachment within the
range specified (column 6) for your breathing tube assembly,
hose length and number of hose sections. (column 5)
Make sure air is flowing through your respirator when setting
the air pressure.
!WARNING!
1.
2.
3.
4.
5.
10
®
BREATHING AIR PRESSURE TABLE
This table lists air pressure ranges needed to provide the
NOVA 3 with the volume of air that falls within the required
range of 6-15cfm or 170-425 lts/min according to U.S
government regulations.
Fig. 2.1
1.
Air Source
Portable or
Stationary
Compressor
NV2021B/NV20
16
Flow Control
Valve assembly
NV2028
NV2029
25
50
100
150
200
250
300
1
1
2
3
4
5
6
27-28
28-29
30-31
33-34
36-37
38-39
41-43
2.
Breathing Tube
Assembly
3.
Air Supply
Hose
4.
Supply Hose
Length (ft)
5.
Max number
of sections
6.
Pressure
Range
(PSIG Air)
Portable or
Stationary
Compressor
NV2021B/4000-
01
Cold Air Tube
Assembly
NV2028
NV2029
25
50
100
150
200
250
300
1
1
2
3
4
5
6
55-56
56-57
60-62
65-67
70-72
77-78
80-82
Portable or
Stationary
Compressor
NV2021B/4000-
20
Hot Air Tube
Assembly
NV2028
NV2029
25
50
100
150
200
250
300
1
1
2
3
4
5
6
67-68
69-70
73-74
77-78
81-82
86-87
91-92
The NOVA 3 Supplied Air Respirator must be supplied with respirable air
meeting the requirements of CGA G-7.1 Grade D or higher quality.
!WARNING!
11
Fig. 3.1
INNER LENS
SETUP & USE
RESPIRATOR
12
®
Place RPB Inner lens (NV3-722) into the left of the
Inner lens frame (NV3-723) and work it round
locating it into the frame and finally clipping it into
place on the right.
To remove the Inner lens frame pull frame from the
visor hinge mount rolling it round and then dislocate
the locating pins from the Visor latch mount.
Fig. 3.2
Fig. 3.3
Secure locating Inner lens frame pins into visor
latch mount rolling the frame round the inner
lens seal and securing it onto the clips at the
visor hinge mount.
Fig. 3.4
Place 3 Tear Off Lenses p/n:N3-725 and 1 Outer
Lens p/n: N3-724 on top of each other, make
sure the tabs are folded the same way.
TEAR OFF AND OUTER LENSES
TEAR OFF AND OUTER LENSES (cont.)
Place the lenses onto the Lens
Locator at the centre of the visor
p/n: N3-726.
Fig. 3.4
Slide the lenses under the lens
locators that are positioned at the
sides of the visor.
Fig. 3.5

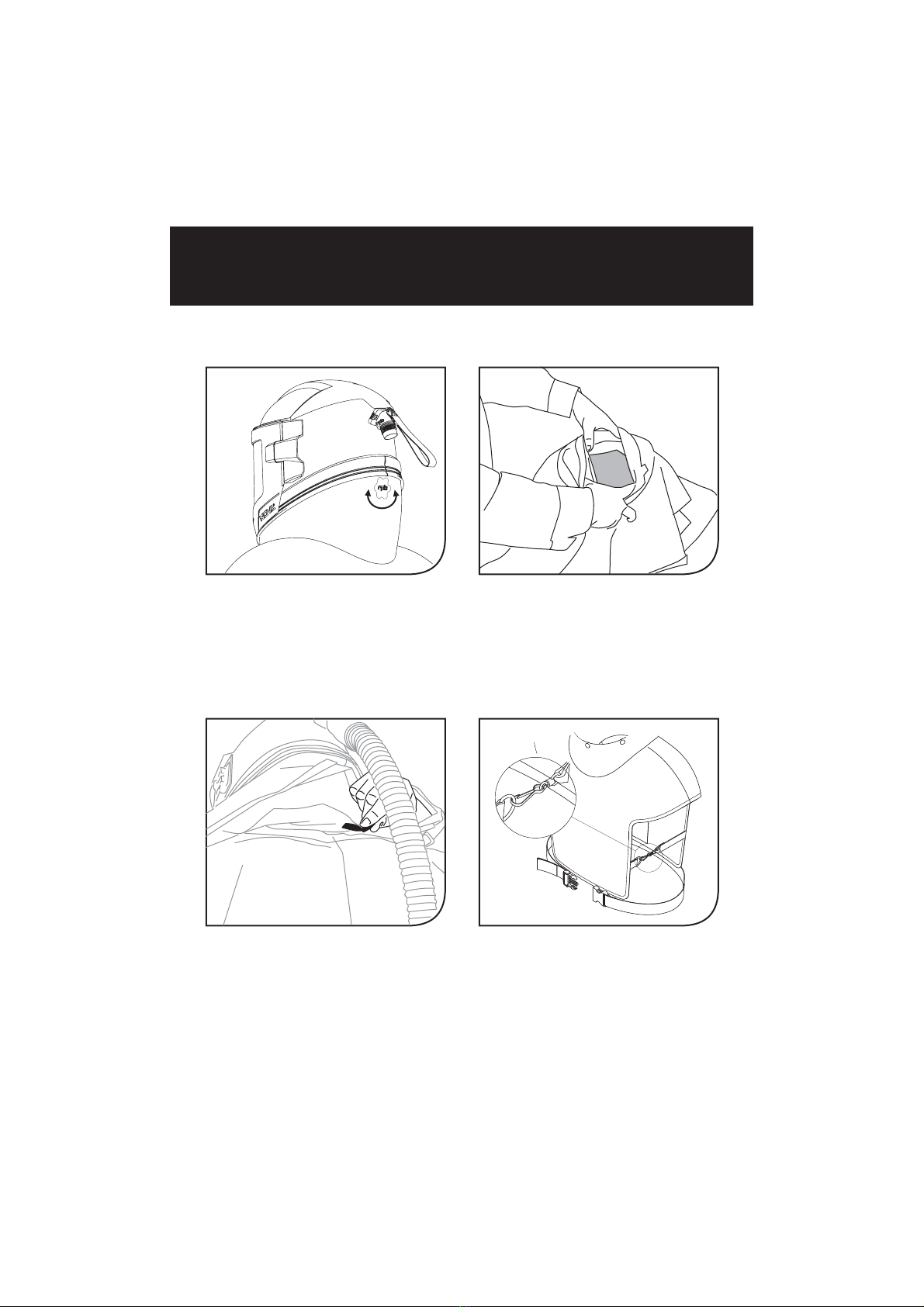

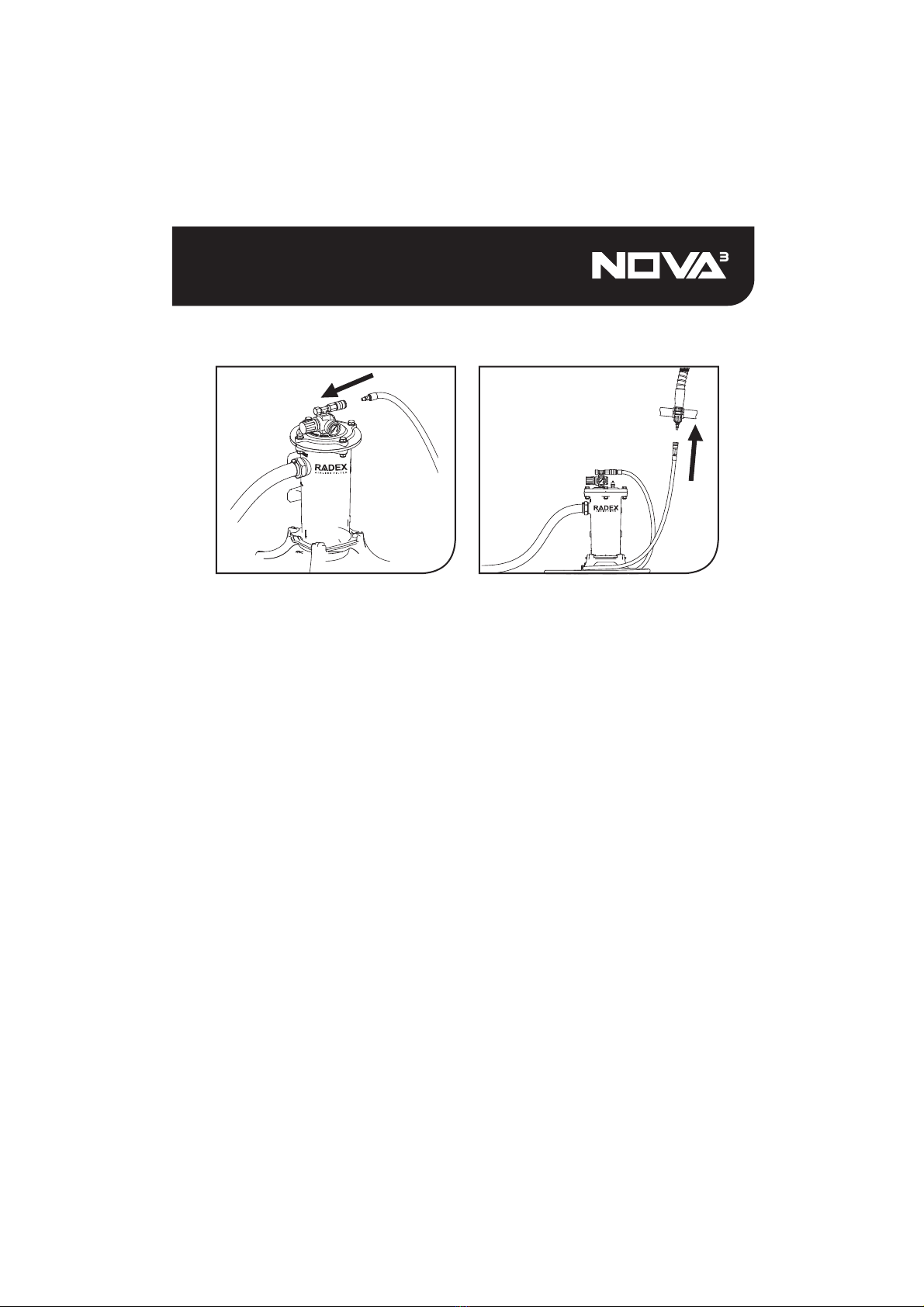

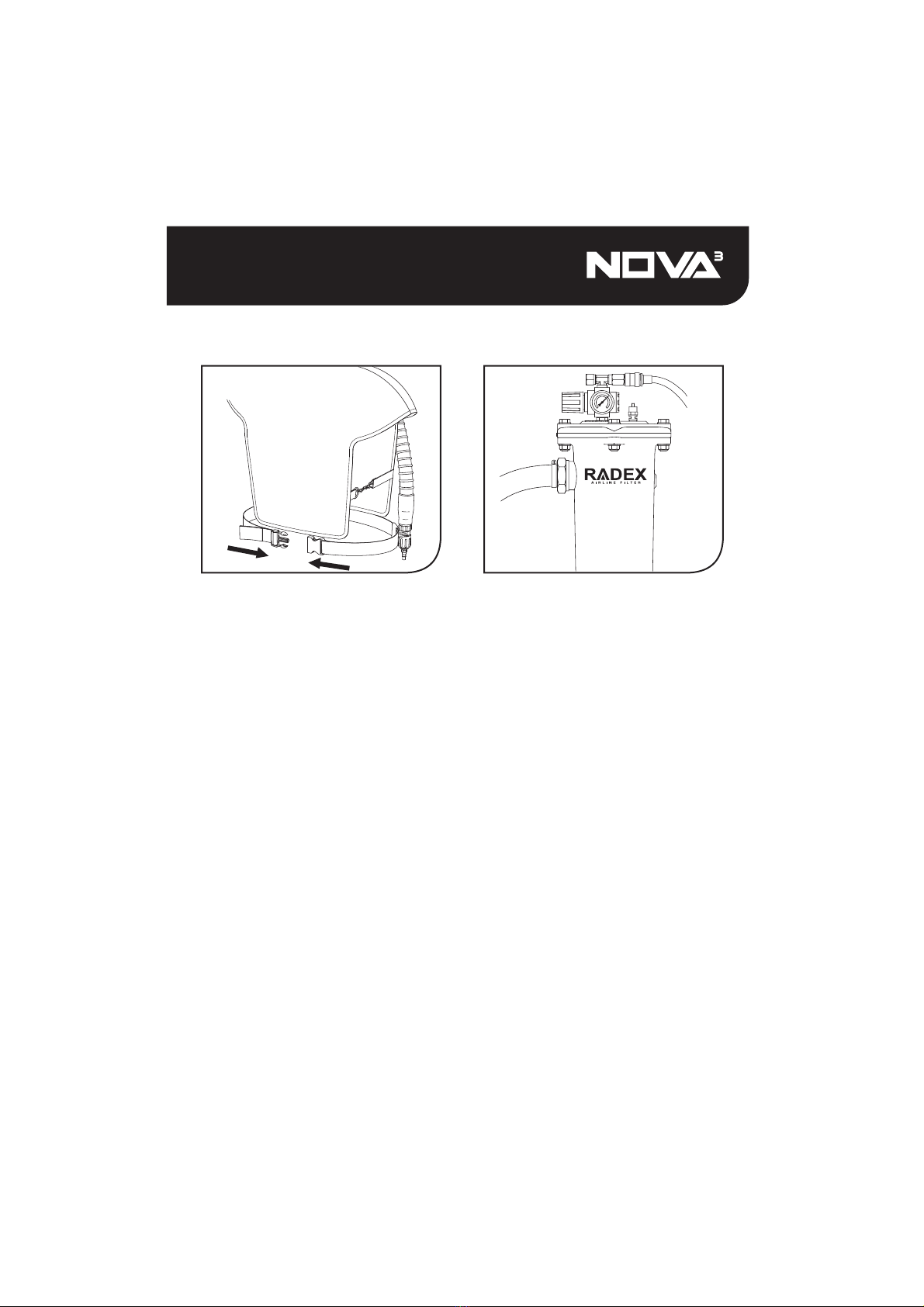

CONNECTING THE AIR SUPPLY
Thread on the loose running nut of
the NV2021B Breathing Tube on
to the Flow Control Device
(NV2016, 4000-01 or 4000-20).
Screw the running nut in a
clockwise direction until tight.
Connect the NV2021B Breathing
Tube to the Helmet. This end is
labelled ( Attach this end to
helmet”). Turn anti clockwise until
tight.
Fig. 3.6 Fig. 3.7
13

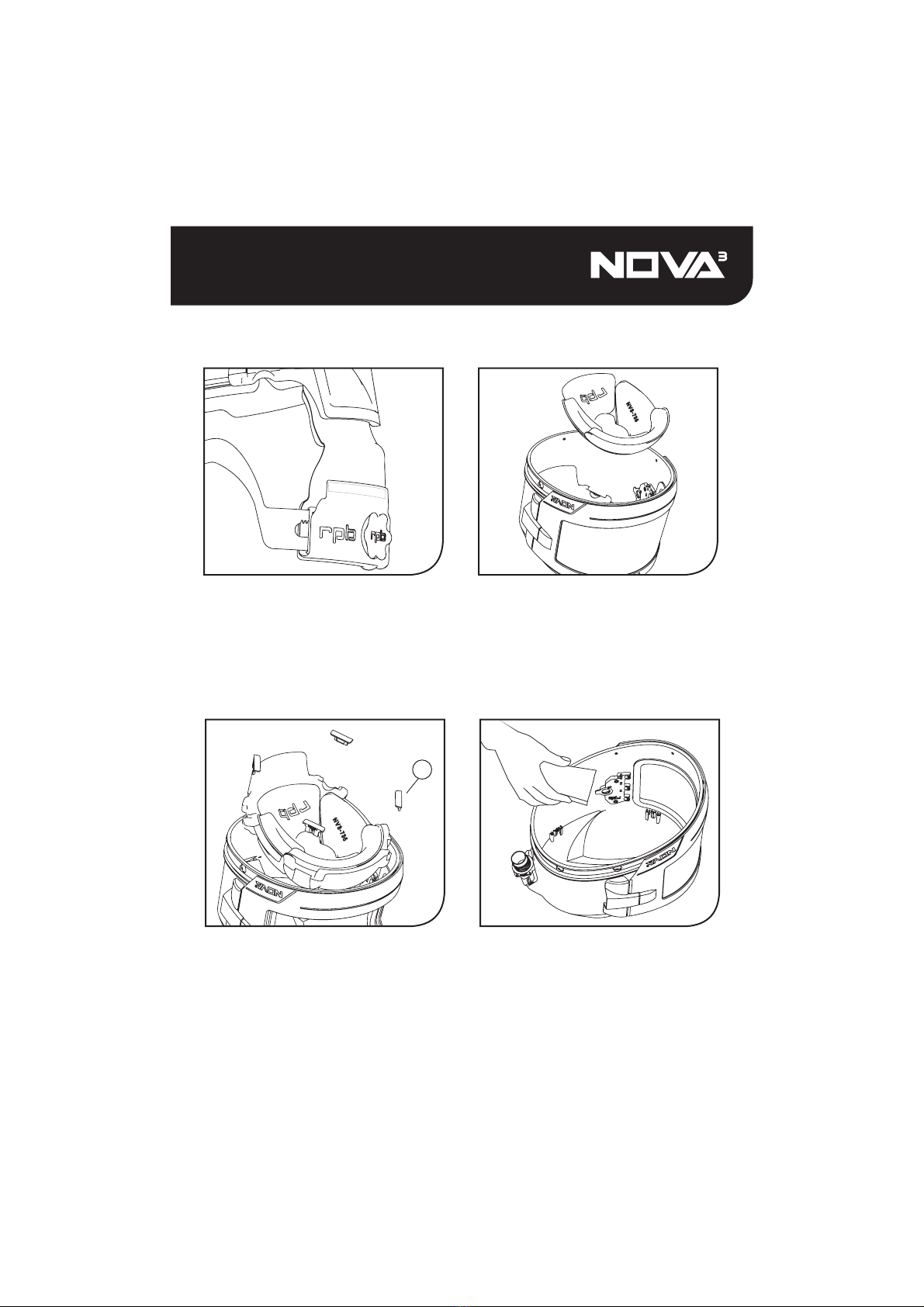

HELMET AND LININGS
The side padding is mounted on a
hinge and can be removed by
pulling away from the helmet.
Fig. 5.1 Fig. 5.2
As the NOVA 3 Supplied Air Respirator has a limited service
life, a regular inspection and replacement programme must be
conducted. Before using the Respirator all parts should be
inspected for damage or wear and tear. Replace all worn or
damaged parts immediately. Use only NIOSH approved RPB
Safety parts. Refer to Parts and Accessories section on
pages 22-25 part numbers.
CLEANING
–
STORAGE
17
INSPECTION – MAINTENANCE
WARNING
Do not clean this respirator with volatile chemicals.
The covers can be removed from
the padding and washed in a
conventional washing machine or
with light detergent and water.
a
VISOR ASSEMBLY
LENSES AND LENS GASKETS
There is an Allen Key mounted in
the padding connector. Rotate the
Allen Key out of the holder then
pull down to remove.
Fig. 5.7
Check Inner Lens Gasket p/n NV3-721 and the Inner Lens
Frame p/n NV3-723 for splits, cracks or wear and tear.
Replace any damaged or worn parts immediately with RPB
Safety genuine parts. The Inner Gasket and Inner Lens fame
can be sponged with warm water and a gentle
detergent, rinsed and air dried.
19
BREATHING TUBE ASSEMBLY
Inspect the Breathing Tube NV2021B for splits or excessive
wear. Check that the fittings are secured into the tube and are
not allowing any air to escape.
Replace the tube as soon as signs of damage or excessive
wear become evident. Do not remove the foam that is inside
the Breathing Tube as it reduces the noise level of the
incoming air.
Other manuals for Nova 3
4
Table of contents
Other RPB Respiratory Product manuals
