RPB T-Link User manual

EMPLOYERS: read this manual and the flow control device instruction
manual and carry out the employer responsibilities (page 9).
PRODUCT USERS: read this manual and the flow control device instruction
manual and follow the product user safety instructions (page 11).
Manuals are regularly updated. Make sure this manual is available to all
users for reference.
CURRENT VERSION OF MANUAL AND OTHER LANGUAGES:
rpbsafety.com/respirators/t-link
The Respiratory Protection Brand®
ENGLISH 2
NEDERLANDS 37
EN
NL
INSTRUCTION MANUAL
EN14594:2005 3B
EN12941:1998 +A2:2008
TH3 P R SL
RESPIRATORY PROTECTION
EN352-3:2002
HEARING PROTECTION
Only in conjunction with 18-533 earmuffs.
EN397:2003+A1:2009
HARD HAT PROTECTION
IMPACT CLAUSES
Not all configurations conform to this standard.
Please visit rpbsafety.com for more details.
EN166:2001 CLASS 1F
EYE & FACE PROTECTION
Not all configurations conform to this standard.
Please visit rpbsafety.com for more details.
2797

2
®
EXPLANATION OF SIGNAL WORDS AND SYMBOLS 2
INTRODUCTION 3
IMPORTANT SAFETY INFORMATION
PROTECTION PROVIDED AND LIMITATIONS 4
RESPIRATORY COMPONENT DIAGRAMS - CAUTIONS & LIMITATIONS 6
AIR SOURCE, FITTINGS, AND PRESSURE 8
EMPLOYER RESPONSIBILITIES 9
PRODUCT USER SAFETY INSTRUCTIONS 11
BREATHING AIR PRESSURE TABLE 14
RESPIRATOR SETUP AND CARE 16
DONNING AND DOFFING 23
STORAGE 24
COMMUNICATIONS
COMMS-LINK™COMMUNICATION SYSTEM 26
RADIO CONNECTOR COMPATIBILITY 28
PARTS AND ACCESSORIES 30
WARRANTY AND LIABILITY STATEMENT 36
NEDERLANDS 37
CONTENTS
RPB®Safety LLC is an ISO9001 certified company.
EXPLANATION OF SIGNAL WORDS AND SYMBOLS
The following signal word and safety symbols are used in this manual and product labeling:
WARNING indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
DANGER Indicates a hazardous situation that, if not avoided, will result
in death or serious injury.
Read the Instruction Manual.
Additional copies of RPB®manuals can be found at rpbsafety.com.
WARNING
DANGER
CERTIFIED BY:
BSI Group The Netherlands B.V., Say Building, John M. Keynesplein 9, 1066 EP, Amsterdam,
NL

3
RPB®SAFETY - GLOBAL HEADQUARTERS
2807 Samoset Rd, Royal Oak, MI 48073, USA.
T: 1-866-494-4599 F: 1-866-494-4509 E: [e-mail] rpbsafety.com
RPB®SAFETY - APAC
1 Ivan Jamieson Place, Christchurch Airport, Christchurch 8053 New Zealand.
T: [phone] F: [phone] E: [e-mail] rpbsafety.com
RPB®SAFETY - EMEA
T: [phone] E: [e-mail] rpbsafety.com
Copyright ©2019 RPB Safety, LLC. All rights reserved. All materials contained on this
website are protected by United States copyright law and may not be reproduced, distributed,
transmitted, displayed, published or broadcast without the prior written permission of RPB
Safety, LLC. You may not alter or remove any trademark, copyright or other notice from
copies of the content.
All trademarks, service marks, and logos used in this publication, both registered and
unregistered, are the trademarks, service marks, or logos of their respective owners. All
rights in the RPB Intellectual Property contained in this publication, including copyright,
trademarks, service marks, trade secret, and patent rights are reserved. RPB Intellectual
Property means any patent, patented articles, patent applications, designs, industrial designs,
copyrights, software, source code, database rights, moral rights, inventions, techniques,
technical data, trade secrets, know-how, brands, trademarks, trade names, slogans, logos,
and any other common law and proprietary rights, whether registered or unregistered
anywhere in the world, that are owned by, developed in whole or in part by, or licensed by
RPB Safety, LLC.
For technical assistance contact our Customer Service Department at 1-866-494-4599 or
email: [e-mail]
Form #: 7.20.544
Rev: 6
The T-LINK®is a multiuse respirator for a number of different applications where there is a need
for protection from airborne contaminants, eye/face protection and head protection; such as
painting, chemical handling and other industrial applications. When the Zytec®material is used,
the hood can be used for grinding, brazing, and other industrial applications where fire retardant is
needed. The optional QUIET-LINK™Ear Defender earmuff system can add hearing protection.
Additionally, the VISION-LINK™light attachment is available to provide light to the work
area and the COMMS-LINK™in-helmet communication system allows for hands free radio
communication.
This product must be inspected and maintained in accordance with this instruction manual at
all times.
See PROTECTION PROVIDED AND LIMITATIONS (page 4) for details.
INTRODUCTION

4
®
RESPIRATION
The RPB®T-L INK®is approved an respirator in the categories as follows:
Powered Air
The RPB®T-L INK®Respirator, when properly fitted and used with all required components,
including the Breathing Tube Assembly and the RPB®PX5®or the RPB®PX4 AIR®Powered
Air Purifying Respirator, is approved to EN 12941:1998 +A1: 2003 +A2: 2008 TH3 P R SL
as a powered air purifying respirator with a nominal protection factor of 500. As such, it
significantly reduces, but does not completely eliminate, the breathing of contaminates by the
respirator wearer. Specific protection depends on the filter selected for use in the RPB®PX5®
or the RPB®PX4 AIR®PAPR (see the PX5®or the PX4 AIR®Instruction Manual).
Supplied Air
The RPB®T-L INK®Respirator, when properly fitted and used with all required components,
including the Breathing Tube Assembly, 03-102 Constant Flow Valve or the 03-502 C40™
Climate Control Device, and RPB®Breathing Air Line is approved to EN 14594: 2005 Class
3B as a supplied air respirator with a nominal protection factor of 500. As such, it significantly
reduces, but does not completely eliminate, the breathing of contaminates by the respirator
wearer. Use with an airline filter, such as the 04-900 RPB®RADEX®Airline Filter. Specific
protection depends on the setup of the airline filter (see the RPB®RADEX®Instruction
Manual).
HAZARD LIMITATIONS
The RPB®T-L INK®Respirator is NOT FOR USE if:
In atmospheres immediately dangerous to life or health (IDLH).
Wearer cannot escape without the aid of the respirator.
PROTECTION PROVIDED AND LIMITATIONS
Improper selection, fit, use, or maintenance of this product can result in
injury; life threatening delayed lung, skin or eye disease; or death.
This product is intended for occupational use in accordance with applicable standards or
regulations for your location, industry, and activity (see Employer Responsibilities, page 9).
Familiarity with standards and regulations related to the use of this protective equipment is
recommended, even if they do not directly apply to you. If self-employed or if used in a non-
occupational setting, refer to Employer Responsibilities and Product User Safety Instructions. Go
to rpbsafety.com/important-safety-information for helpful links to CE standards and other content.
Employers: Read this manual and the air supply device Instruction Manual and carry out the
Employer Responsibilities (page 9).
Product users: Read this manual and the air supply device Instruction Manual and follow the
Product User Safety Instructions (page 11).
Check website for updates. Product manuals are regularly updated.
Visit rpbsafety.com/resources for the most recent version of this manual before using the product.
IMPORTANT SAFETY INFORMATION
WARNING

5
Atmosphere contains less than 21% ±1% oxygen.
In abrasive blasting applications.
For protection against hazardous gases (e.g., carbon monoxide).
Contaminants are in excess of regulations or recommendations.
Contaminants or contaminant concentrations are unknown.
Work area is poorly ventilated.
The temperature is outside the range of -10°C to +60°C (14°F to 140°F).
A flammable or explosive atmosphere is present when used with systems including
electrical parts that are not intrinsically safe, PX5®, PX4 AIR®, Vision-Link™, 16-922
COMMS-LINK™or 09-913 PTT.
FACE AND EYES:
The T-LINK®with Safety Lens meets EN 166:2002 (AS/NZS 1337.1:2010) face shield
requirements and is designed for grinding, painting, and other industrial applications.
The T-LINK®is not designed or tested to provide protection against molten metals or
corrosive liquids.
Note: Safety glasses may be required to be worn depending on the job hazard analysis.
The T-LINK®does not protect against the potential transfer of impact to glasses worn
underneath the hood. It does not provide complete eye and face protection against severe
impact and penetration and is not a substitute for good safety practices and engineering
controls.
HEAD:
The T-LINK®, when equipped with the standard lightweight helmet, is designed to act as a
bump cap, with minimal head protection. It does not meet the EN 397:2012+A1:2012 (AS/
NZS 1801:1997) requirements in this configuration.
The T-LINK®, when equipped with the optional hard hat, meets the EN 397:2012+A1:2012
(AS/NZS 1801:1997) requirements for physical head protection as a hard hat. The helmet
is design to provide limited head protection by reducing the force of falling objects striking
the top of the head. Ensure the helmet is adjusted to properly fit the user by adjusting the
head harness and sidepads or QUIET-LINK™if installed.
HEARING:
When used with the T-LINK®, the QUIET-LINK™Ear Defender system provides an Noise
Reduction Rating (NRR) of 25. Refer to the QUIET-LINK™instruction manual to ensure
proper installation and fit .
If QUIET-LINK™is not used, other hearing protection, such as earplugs, must be properly
fitted and worn where noise levels exceed the permissible exposure levels.
PPE REGULATION
The T-LINK®conforms to the PPE Regulation (EU) 2016/425.
The Declaration of Conformity can be found at rpbsafety.com/resources/
See the Storage section for information on packaging and protection required for
transportation.

6
®
FIGURE 1.1
1. RESPIRATOR
HELMET
ASSEMBLY
2. BREATHING
TUBE
ASSEMBLY
3. AIR SUPPLY
PAPR
RESPIRATOR COMPONENT DIAGRAM - PAPR
CAUTIONS AND LIMITATIONS
POWERED AIR
A. Not for use in atmospheres containing
less than 21% ±1% oxygen.
B. Not for use in atmospheres immediately
dangerous to life or health.
C. Do not exceed maximum use
concentrations established by regulatory
standards.
F. Do not use powered air-purifying
respirators if airflow is less than 115 lpm
(4 cfm) for tight fitting face pieces or 170
lpm (6 cfm) for hoods and/or helmets.
H. Follow established cartridge and canister
change schedules or observe ESLI to
ensure that cartridge and canisters are
replaced before breakthrough occurs.
I. Contains electrical parts that may cause
an ignition in flammable or explosive
atmospheres.
J. Failure to properly use and maintain this
product could result in injury or death.
L. Follow the manufacturer’s User’s
Instructions for changing cartridges,
canister and/or filters.
M. All approved respirators shall be
selected, fitted, used and maintained in
accordance with applicable regulations.
N. Never substitute, modify, add or omit
parts. Use only exact replacement parts
in the configuration as specified by the
manufacturer.
O. Refer to user’s instructions, and/or
maintenance manuals for information
on use and maintenance of these
respirators.
P. This respirator is not evaluated as a
surgical mask..
The RPB®T-L INK®Respirator consists of 3 main components, as shown in Figure 1.1. All 3
components must be present and properly assembled to constitute a complete approved to
EN 12941:1998 +A1: 2003 +A2: 2008 as power air purifying respirator.

7
RESPIRATOR COMPONENT DIAGRAM - SAR
FIGURE 1.2
1. RESPIRATOR
HOOD
ASSEMBLY 
2. BREATHING
TUBE
ASSEMBLY
AND FLOW
CONTROL
DEVICE 
3. AIR SUPPLY 
CAUTIONS AND LIMITATIONS
SUPPLIED AIR
A. Not for use in atmospheres containing
less than 21% ±1% oxygen.
B. Not for use in atmospheres immediately
dangerous to life or health.
C. Do not exceed maximum use
concentrations established by regulatory
standards.
D. Air-line respirators can be used only
when the respirators are supplied with
respirable air meeting the requirements
of EN 12021 (AS/NZS 1715) or higher
quality.
E. Use only the pressure ranges and
hose lengths specified in the user’s
instructions.
J. Failure to properly use and maintain this
product could result in injury or death.
M. All approved respirators shall be
selected, fitted, used and maintained in
accordance with applicable regulations.
N. Never substitute, modify, add or omit
parts. Use only exact replacement parts
in the configuration as specified by the
manufacturer.
O. Refer to user’s instructions, and/or
maintenance manuals for information
on use and maintenance of these
respirators.
S. Special or Critical User Instructions and/
or specific limitations apply. Refer to
“Breathing Air Pressure Table” on page
14 before donning.
The RPB®T-L INK®Respirator consists of 3 main components, as shown in Figure 1.2. All 3
components must be present and properly assembled to constitute a complete approved to
EN 14594: 2005 as a supplied air respirator.

8
®
AIR SOURCE, FITTINGS, AND PRESSURE
AIR SOURCE
Powered Air
Check that the contaminated area is within the limits of use for a Powered Air Purifying
Respirator and determine the type of contamination. Once the contamination level has
been confirmed you can then determine the filter cartridge to be used for the application,
to make sure that you are sufficiently protected. Make sure that the area is well ventilated
and that regular air samples are taken to confirm the atmosphere stays within the levels
recommended by the governing bodies. Follow the PX5®or the PX4 AIR®PAPR Instruction
Manual for more details.
The Manufacturer Minimum Designed Flow for the PX4 AIR®is 170 l/min, Speed 1 - 10
hours, Speed 2 - 7 hours, and Speed 3 - 6 hours when used with the 03-985 P3 filter. The
Manufacturer Minimum Designed Flow is 170 l/min, Speed 1 - greater than 4 hours, Speed
2 and Speed 3 are not recommended when used with the 03-995 A2P3 Gas Cartridge.
The Manufacturer Minimum Designed Flow for the PX5®is 170 l/min, Speed 1 - 10 hours,
Speed 2 - 7 hours, and Speed 3 - 6 hours when used with the 03-892 P3 filter. The
Manufacturer Minimum Designed Flow is 170 l/min, Speed 1 - greater than 4 hours, Speed
2 and Speed 3 are not recommended when used with the 03-893 or the 03-894 Gas
Cartridge.
Supplied Air
Locate the air source in a clean air environment, always use a filter on the inlet of your air
source. Make sure the air source is somewhere that vehicles, forklifts, and other machinery
are not running near the air inlet, as this will cause carbon monoxide to be drawn into your
air supply. Always use suitable after coolers/dryers with filters and carbon monoxide alarms
to ensure clean breathable air is supplied at all times. A Radex®Airline Filter (04-900) and
a GX4®Gas Monitor (08-400) are recommended. The air should be regularly sampled to
ensure that it meets EN 12021 (AS/NZS 1715) or higher requirements.
AIR QUALITY
This respirator must be supplied with clean breathable air at all times. Breathable air must at least
meet the requirements for EN 12021 (AS/NZS 1715). The RPB®T-LINK®does not purify air or filter
contaminants. A carbon monoxide monitor must be used at all times.
Do not connect the respirator’s air supply hose to nitrogen, toxic gases,
inert gases or other unbreathable EN 12021 (AS/NZS 1715) non-
compliant air sources. Check the air source before using the respirator. This apparatus is not
designed for use with mobile air supply systems i.e. cylinders. Connecting the supply hose to a
non-breathable air source will result in serious injury or death.
BREATHING AIR SUPPLY HOSES AND FITTINGS
RPB®air supply hoses and fittings must be used between the point of attachment and the
respirator breathing air connection at the wearer’s belt. The hose sections must be within
DANGER

9
EMPLOYER RESPONSIBILITIES
Your specific responsibilities may vary by location and industry, but in general RPB®expects that
employers will:
Follow all applicable standards and regulations for your location, industry, and activity.
Depending on your location and industry, a number of standards and regulations may
apply to your selection and use of respirators and other personal protective equipment.
These may include such things as national, local, or military standards and regulations
and consensus standards such as CE and AS/NZS. There are also requirements specific to
particular contaminants, e.g. silica (see rpbsafety.com/important-safety-information/ for
more information), asbestos, organic pathogens, etc. Know which requirements apply to your
location and industry.
Have appropriate safety programs in place.
Have and follow:
A workplace safety program.
A written respiratory protection program in accordance with applicable standards and
regulations.
In accordance with the above,
Perform a hazard analysis and select appropriate equipment for each activity. A hazard
analysis should be performed by a qualified person. Controls should be in place as
appropriate and a qualified person should determine what kind of respiratory, face
and eye, head, and hearing protection is appropriate for the intended activities and
environments of use. (For example, select a respirator appropriate to the specific airborne
hazards, with consideration of workplace and user factors and with an Nominal Protection
Factor (NPF) that meets or exceeds the required level for employee protection, select
welding face and eye protection appropriate to the type of welding to be done, etc.)
As applicable, check your workplace safety program, respiratory protection program, and
standards and regulations for your activity or industry for related protection requirements,
and see this manual (Protection Provided and Limitations, page 4) and the PX5®, PX4
AIR®PAPR or Supplied Air Device Instruction Manual for product specifications.
Be sure employees are medically qualified to use a respirator.
Have a qualified physician or other licensed health care professional (PLHCP) perform
medical evaluations using a medical questionnaire or an initial medical examination.
the correct length and the amount of sections must be within the number specified in the
breathing air pressure table on page 14.
BREATHING AIR PRESSURE
The air pressure must be continually monitored at the point of attachment. Air pressure must
be read from a reliable pressure gauge whilst the respirator has air flowing through it.

10
®
Train employees in the T-LINK®’s use, maintenance, and limitations.
Appoint a qualified individual who is knowledgable about the RPB®T-LINK®to provide
training:
Qualifications of the Respirator Trainer. Anyone providing respirator training shall:
a) be knowledgable in the application and use of the respirator(s);
b) have practical knowledge in the selection and use of respirator(s) and work practices
at the site;
c) have an understanding of the site’s respirator program; and
d) be knowledgable of applicable regulations.
Train each T-LINK®user in the product’s use, application, inspection, maintenance, storage,
fitting, and limitations in accordance with the content of this Instruction Manual and the
approved air supply device Instruction Manual and standard or regulatory requirements.
Ensure that each intended user reads both these manuals.
Ensure that equipment is properly set up, used, and maintained.
Make sure that equipment is properly set up, inspected, fitted, used, and maintained,
including selection of the appropriate air filter cartridge and, when applicable, welding
filter shade adjustments, for the application.
Measure and monitor airborne contaminants in the work area.
Measure and monitor airborne contaminant levels in the work area in accordance with
applicable requirements. Make sure work area is well ventilated.
If you have any questions, contact RPB®.
Call Customer Service Department at:
Tel: [phone]
Email: [e-mail]
Web: rpbsafety.com
EMPLOYER RESPONSIBILITIES

11
PRODUCT USER SAFETY INSTRUCTIONS
BEFORE INITIAL USE - BE TRAINED AND MEDICALLY QUALIFIED
Do not use this respirator until you have read this manual and the PX5®, PX4 AIR®PAPR or the
flow control device Instruction Manual (additional copies available at rpbsafety.com) and been
trained in the respirator’s use, maintenance, and limitations by a qualified individual (appointed by
your employer) who is knowledgable about the RPB®T-LINK®Respirator.
Do not wear this respirator until you have passed a medical evaluation using a medical
questionnaire or an initial medical examination by a qualified physician or other licensed health
care professional (PLHCP).
Allergens: No known common allergens are used in this product.
Some materials could cause an allergic reaction in susceptible individuals. If you have a known
allergy or develop irritation, inform your employer. Irritation may occur from lack of cleaning.
Follow all cleaning and care instructions provided in the instruction manuals for this and any
other RPB®products you are using.
MAKE SURE THE SYSTEM IS READY FOR USE
Make sure you have a complete system. Verify that you have all required components for the
T-LINK®to serve as a complete approved respirator:
Respirator Hood Assembly (T-LINK®)
Breathing Tube Assembly and Flow Control Device (SAR - Constant Flow Valve or
C40®Climate Control Device)
Breathing Air Line (SAR), PX5®or the PX4 AIR®(PAPR)
See Respirator Component Diagram (page 6-7). The RPB®T-LINK®is only approved to be used
with the RPB®PX5®, PX4 AIR®PAPR, RPB®C40™Climate Control Device, or the RPB®Constant
Flow Valve. Use only authentic RPB®brand parts and components that are part of the approved
respirator assembly. Using incomplete or inappropriate equipment, including the use of counterfeit
or non-RPB®parts, can result in inadequate protection and will void the approval of the entire
respirator. Do not modify or alter any part of this product.
Inspect all components daily for signs of damage or wear and tear that may reduce the level of
protection originally provided. Remove any damaged component or product, including any hood
or helmet that has been subject to impact, from service until repaired or replaced. Scratched or
damaged lenses or other components should be replaced with genuine RPB®brand replacement
parts. When the hood is replaced, make sure to remove any additional protective film from both
sides of the lens. If the film is left in place, it could affect the optical clarity of the lens and cause
eye strain. Inspect the inside of the respirator for respirable dust or other foreign objects. Keep the
inside of the respirator clean at all times.
Make sure that the helmet is correctly assembled in the configuration that suits your application.
An incomplete or improperly installed hood could provide inadequate impact and respiratory
protection. See Respirator Setup and Care (page 16) See Donning (page 25) for fit information.

12
®
VERIFY THAT YOU HAVE THE APPROPRIATE EQUIPMENT FOR YOUR ACTIVITY
Verify that the T-LINK®provides appropriate protection for your activity. As applicable, check your
workplace safety program, respiratory protection program, and standards and regulations for your
activity or industry. (See PROTECTION PROVIDED AND LIMITATIONS, page 4.)
BEFORE DONNING THE T-LINK®:
Verify airborne contaminants are within recommended limits for respirator use:
Determine the type and level of contamination. Verify that airborne contaminant
concentrations do not exceed those allowed by applicable regulations and
recommendations for powered air purifying respirators or supplied air respirators.
Filtering the breathing air:
PAPR: Once the contamination level has been confirmed, determine the correct filter
cartridge to be used for the application, to make sure that you are sufficiently protected.
Follow the PX5®or the PX4 AIR®PAPR Instruction Manual.
SAR: Once the contamination levels have been confirmed, check to make sure the airline
filter is working correctly. Follow the Radex®Airline Filter Instruction Manual.
Make sure the area is ventilated and monitored:
Make sure that the area is well ventilated and that regular air samples are taken to
confirm the atmosphere stays within the levels recommended by the governing bodies.
For Supplied Air, it is recommended to use a GX4®Gas Monitor. Follow the GX4®Gas
Monitor Instruction Manual.
If you have any questions, ask your employer.
DO NOT ENTER THE WORK AREA if any of the following conditions exist:
Atmosphere is immediately dangerous to life or health.
You cannot escape without the aid of the respirator.
Atmosphere contains less than 21% ±1% oxygen.
A flammable or explosive atmosphere is present when used with systems including
electrical parts that are not intrinsically safe, PX5®, PX4 AIR®, VISION-LINK™, 16-922
COMMS-LINK™or 09-913 PTT.
Contaminants are in excess of regulations or recommendations.
Contaminants or contaminant concentrations are unknown.
Work area is poorly ventilated.
The temperature is outside the range of -10°C to +60°C (14°F to 140°F).
LEAVE THE WORK AREA IMMEDIATELY IF:
Any product component becomes damaged.
Vision is impaired.
Airflow stops or slows down, or alarm sounds. Do not use Powered Air Purifying Respirators if
airflow is less than 170 lpm (6 cfm).
PRODUCT USER SAFETY INSTRUCTIONS CONTINUED

13
Breathing becomes difficult.
You become dizzy, nauseous, too hot, too cold, or ill.
Your eyes, nose, or skin become irritated.
The work area is a confined space (unless proper measures are taken for confined spaces).
You taste, smell, or see contaminants inside the helmet.
You have any other reason to suspect that the respirator is not providing adequate protection .
PRODUCT CARE
Never place the helmet on hot surfaces. Do not apply paints, solvents, adhesives or self-
adhesive labels except as instructed by RPB®. This product may be adversely affected by certain
chemicals.
See the “Respirator Setup and Care” section (page 16) for more specific cleaning instructions.
INSTRUCTIONS FOR SPECIFIC USES OR ENVIRONMENTS
Confined Spaces
If this respirator is used in confined spaces, ensure the area is well ventilated and that all
contaminant concentrations are below those recommended for this respirator. Follow all
procedures for confined space entry, operation, and exit as defined in applicable regulations and
standards.

14
®
S - SPECIAL OR CRITICAL USERS INSTRUCTIONS - SAR TABLE 1.1
This table lists air pressure ranges needed to provide the RPB®T-LINK®with the volume of air
that falls within the required range of 170-325 lts/min according to government regulations.
Maximum working pressure of the compressed air supply tube is 20.7 BAR.
Make sure you understand the Breathing Air Pressure table before
using this respirator.
1. Use the correct air source. Do not use an ambient air pump, as it does not supply enough
pressure (column 1).
2. Confirm the part number of the air supply hose you are using (column 2) and the flow
control device (column 3) you are using..
3. Check your RPB®Safety Breathing Air LIne is within the correct length (column 4) and the
correct number of hose sections (column 5).
4. Set the air pressure at the point of attachment within the range specified (column 6).
Make sure air is flowing through your respirator when setting the air pressure.
Failure to supply the minimum required air pressure at the point of attachment for the length
of air supply hose will decrease the level of protection provided. Check that the capacity
of the air supply systems can provide sufficient air to all users, with a maximum of 5 users
connected simultaneously per air supply unit. In addition, could result in contaminants being
inhaled as the pressure in the helmet may become negative due to peak inhalation flow when
working at very high work rates. Low airflow will decrease the level of protection provided.
ALWAYS WEAR EAR PLUGS WHEN WEARING THIS APPARATUS.
BREATHING AIR PRESSURE TABLE
WARNING
1. AIR SOURCE 2. AIR SUPPLY
HOSE
3. FLOW
CONTROL
DEVICE USED
WITH 04-835
BREATHING
TUBE ASSEMBLY
4. SUPPLY
HOSE
LENGTH
(METRES)
5. MAX
NUMBER
OF
SECTIONS
6. PRESSURE
RANGE
(BAR)
PORTABLE OR
STATIONARY
COMPRESSOR
04-322-25 (7.5M)
04-322-50 (15M)
04-322-100 30M)
03-102
CONSTANT FLOW
VALVE ASSEMBLY
7.5
15
30
45
60
75
90
1
1
1
2
2
3
3
0.65 - 0.75
0.77 - 0.87
0.97 - 1.07
1.17 - 1.27
1.45 - 1.60
1.70 - 1.85
1.90 - 2.05
03-502
C40®CLIMATE
CONTROL DEVICE
ASSEMBLY
7.5
15
30
45
60
75
90
1
1
1
2
2
3
3
3.79 - 4.48
4.14 - 4.83
4.48 - 5.52
4.83 - 5.52
5.17 - 5.86
5.52 - 6.21
6.21 - 6.55

15
RESPIRATOR SETUP AND CARE
Insert the helmet into the hood with front of
the Helmet towards the lens of the hood.
Do the same thing on the other side to fully
secure the lens and the hood to the Helmet.
Line up the tabs of the lens with the clips
on the sides of the helmet. 1. Slide the 1st
side under the front side of the clip and slide
back. 2. Snap the 2nd side of over the back
of the clip.
PLACING THE HELMET INTO THE HOOD
FIGURE 2.1
1.
2.
FIGURE 2.2
1.
2.
FIGURE 2.3
The T-LINK®Supplied Air Respirator must be supplied with
respirable air meeting the requirements of EN 12021 (AS/NZS 1715) or higher quality and
meets other governing body requirements. The moisture content of the breathable air
should controlled within the limits in accordance with EN 12021, to avoid the air freezing
the apparatus. Do not use oxygen enriched air.
WARNING

16
®
Insert the bayonet end of the breathing tube
into the outlet of the PX5®or the PX4 AIR®
PAPR and twist it in until it is secure.
FOR USE WITH RPB®PX5®OR THE
PX4AIR®- SEE THE PAPR USER MANUAL
When the T-LINK®Respirator is being used
in conjunction with the RPB®PX5®or the
PX4 AIR®PAPR, please refer to the RPB®
PX5®or the PX4 AIR®Instruction Manual
for set up and use of the assembly.
Note: The RPB®PX5®and the PX4 AIR®
are Powered Air Purifying Respirators,
therefore care must be taken when
selecting the correct filter for the application
the respirator will be used in.
FIGURE 3.3
POWERED AIR
RESPIRATOR SETUP AND CARE CONTINUED
Without a hood on the T-LINK®helmet
assembly, insert the breathing tube adapter
into the inlet of the T-LINK®by threading
it in until tight. A wrench may be required.
Be careful not to over tighten and crack the
inlet area of the T-LINK®.

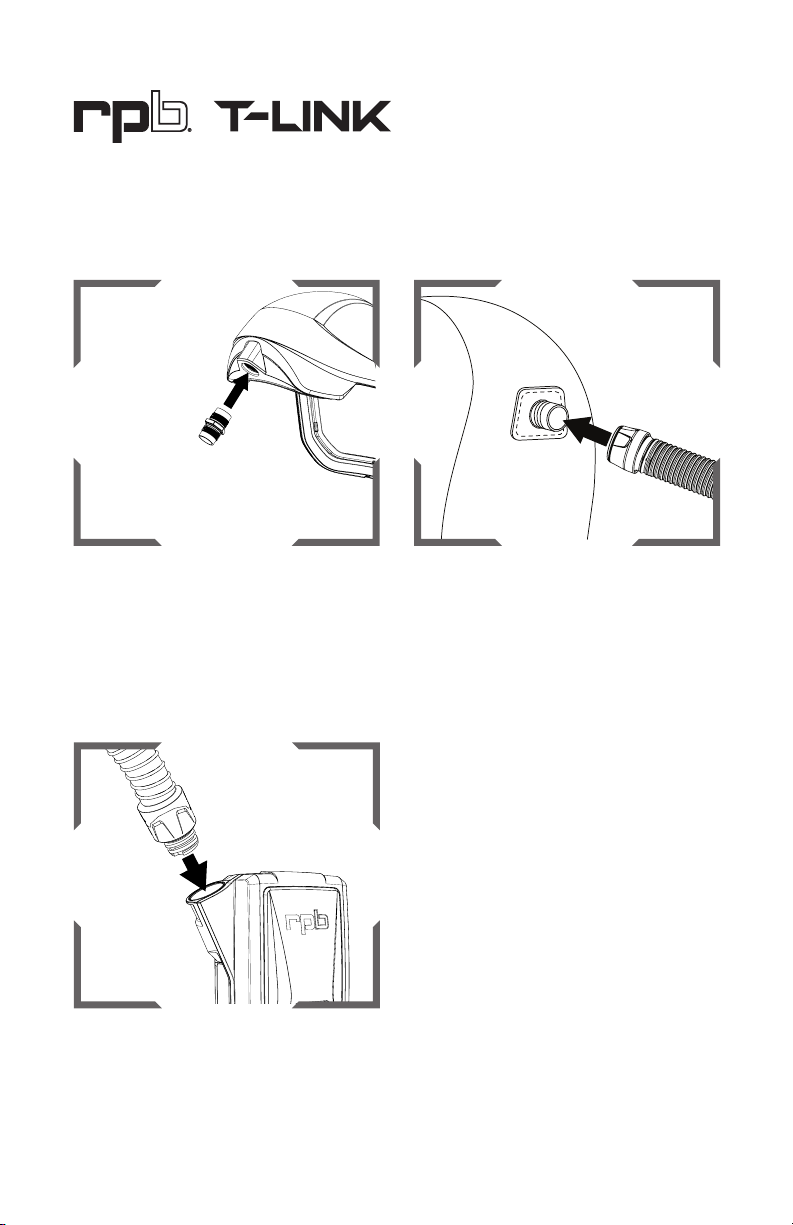

INSERTING THE BREATHING TUBE
ADAPTOR TO RETROFIT OLDER MODELS
FIGURE 3.1
Install a the T-LINK®hood. Line up the
adaptor with the inlet seal. Attach breathing
tube to the adaptor by screwing it on
completely without over tightening. Be
mindful of the hood to keep it from twisting
as the breathing tube is tightened. Breathing
Tube 04-831, 04-833 or 04-837 required.
FIGURE 3.2
ATTACH THE BREATHING TUBE

17
With air flowing through the respirator
adjust the air pressure at the point of
attachment to the recommended pressure
as specified in the Breathing Air Pressure
Table (page 14).
Connect the Breathing Air Supply Hose to
the point of attachment (04-900 Radex®
Airline Filter) shown.
SUPPLIED AIR
Connect the Breathing Tube to the flow
control device.
NOTE: Check the hose connections for any
air leaks and tighten if necessary – replace
any worn parts.
Now connect the Breathing Air Supply Hose
to the Flow Control Device. Air should be
now flowing through the Respirator.
FIGURE 4.1 FIGURE 4.2
FIGURE 4.3
FIGURE 4.4

18
®
The head harness can be tightened or
loosened using the ratchet knob on the back
of the headband.
The height of the head harness can be
adjusted at the four attachment points by
switching which of the three slots is used.
HEAD HARNESS ADJUSTMENT
The position of the head harness can be
adjusted by loosening the screws that hold
the front bracket and sliding it forward or
backwards into the desired slot. Once in
position, tighten the screws.
Airflow can be directed by positioning the
air flow director so that the air flows more
towards the visor or towards the face.
FIGURE 5.1 FIGURE 5.2
FIGURE 5.3 FIGURE 5.4
RESPIRATOR SETUP AND CARE CONTINUED

19
While wearing the T-LINK®, tighten the
ratchet adjustment until the helmet and side
pads sit comfortably on the head and ears.
Detach the head harness ratchet at the pivot
points.
Slide the tab on the side pad covers into
one of the three T-shaped slots in the head
harness depending on the desired height
of the side pads. Reinsert the ratchet pivot
points.
Slide the ends of the head harness into the
slots on the side pad covers and reattach
the head harness ratchet.
SIDE PADDING SYSTEM
FIGURE 6.1 FIGURE 6.2
FIGURE 6.3
FIGURE 6.4

20
®
Remove the side pads from the covers that
are attached with hook and loop.
Wash the pads with mild detergent. Once
dry, reattach them to the side pad covers.
SIDE PADDING SYSTEM CLEANING AND DISINFECTING
CLEAR-VISION CASSETTE LENSES
Peel off the backing of the cassette lenses
and apply the lenses to the outside of the
lens sewn into the hood.
Use the folded over tabs to remove each
lens as needed.
FIGURE 7.1 FIGURE 7.2
FIGURE 8.1
FIGURE 8.2
RESPIRATOR SETUP AND CARE CONTINUED
