RPB T100 Series User manual

Table of Contents
Read all instructions before using this product. Keep this manual for future reference.
1. Approval Label 1
2. Introduction 2
3. Warnings 4
4. Respirator Operation 5
5. Respirator Assembly & Setup 8
6. Donning The Respirator 10
7. 13
8. Inspection Cleaning & Storage 14

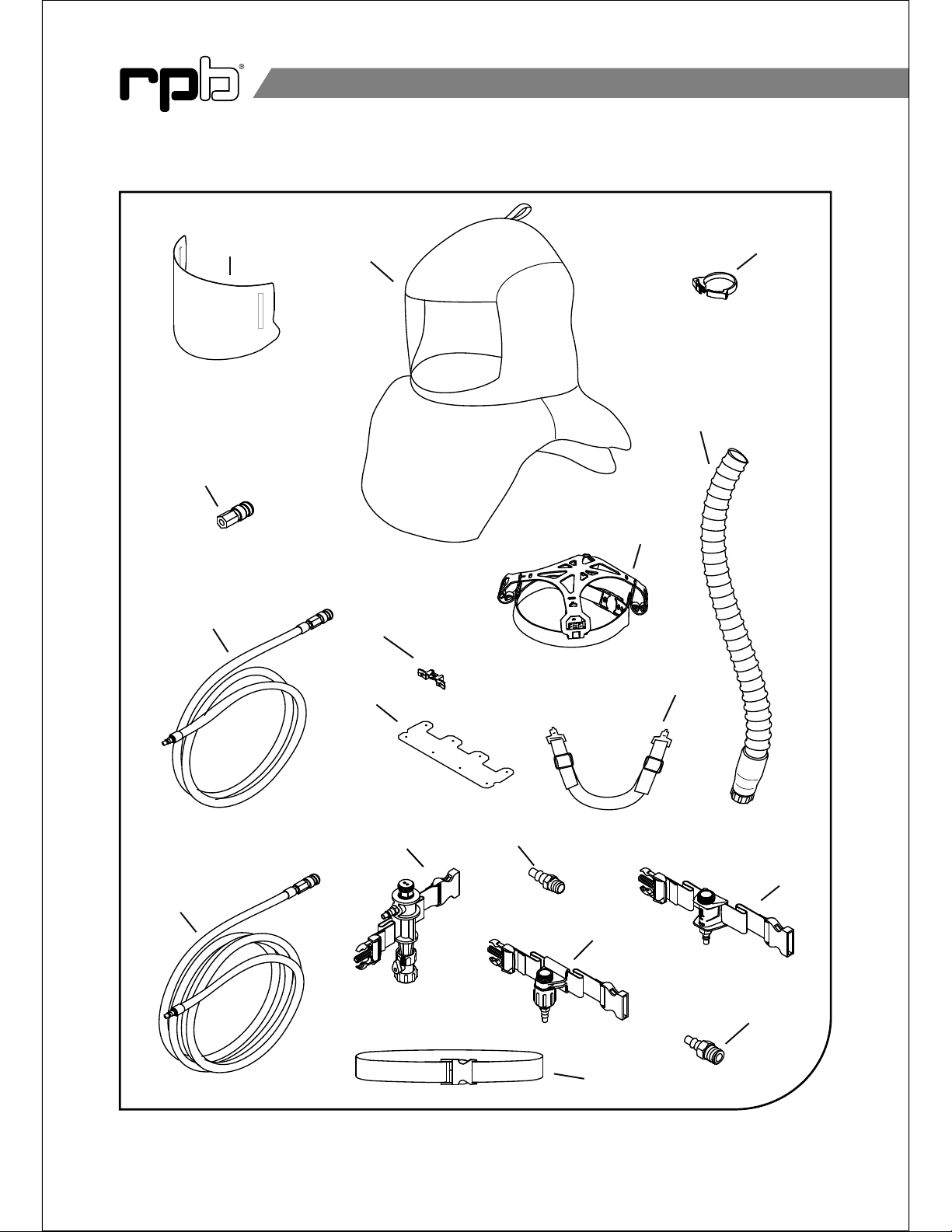

9. Parts List 16

1
1. PROTECTION
CF – Continuous Flow SA – Supplied Air
2. CAUTIONS AND LIMITATIONS
A - Not for use in atmospheres containing less than 19.5% oxygen.
B - Not for use in atmospheres immediately dangerous to life or health.
C - Do not exceed maximum use concentrations established by regulatory standards.
D - Air-line respirators can be used only when the respirators are supplied with respirable
air meeting the requirements of CGA G-7.1 Grade D or higher quality.
E - Use only the pressure ranges and hose lengths speci ed in the User's Instructions.
J - Failure to use and maintain this product properly could result in injury or death.
M - All approved respirators shall be selected, tted, used and maintained in accordance
with MSHA, OSHA, and other applicable regulations.
N - Never substitute, modify, and, or omit parts. Use only exact replacement parts in the
co guration speci ed by the manufacturer.
O - Refer to user instruction and/or maintenance manuals for information about use and
maintenance of these respirators.
S - Special or critical User's Instructions and/or speci c use limitations apply. Refer to User's
Instructions before donning.
RESPIRATORY COMPONENTS
TC No.
Protection1
Model
Hood Suspension Breathing Tube Alternate Flow Control Devices Alternate Hoses Accessories
Cautions and
Limitations2
07-110 07-920 NV2021F 03-101 NV2016 4000-40 NV2028 NV2029 07-123 07-926
TC-19C-480 SA / CF T100 X X X X X X X X X X ABCDEJMNOS

2
INSTRUCTION MANUAL
2. INTRODUCTION
The T100 is approved by NIOSH as a Type C continuous ow supplied air respirator. It
can be used for general purpose applications, including Pharmaceutical
Manufacturing, Chemical and Pesticide Handling, Tank Cleaning, Spray Painting, and
other industrial or agricultural applications in which respiratory protection is needed.
The T100 has been designed for use in atmospheres that are NOT IMMEDIATELY
DANGEROUS TO LIFE OR HEALTH (IDLH); and from which the user can escape without
EPA, NIOSH, or ACGIH regulations and recommendations.
The T100 is approved for use with any one of the following ow control devices:
All RPB Respiratory products are covered by a manufactures warranty of 3 months. The
manufacturer warranty covers defects in material, workmanship and does not cover
damage caused by misuse or abuse. RPB Respiratory’s only obligation and your exclusive
remedy shall be to repair, replace or refund the purchase price of such parts or products
upon the presentation of proof of purchase. Maximum liability is in no case to exceed the
value of the RPB Respiratory Product involved.
03-101 Constant Flow Valve (High Pressure)
NV2016 Flow Control Valve
4000-40 Cool Air Tube
the aid of the respirator; or that do not exceed the concentrations allowed by OSHA,

3
T100 INSTRUCTION MANUAL
2.1 RESPIRATORY COMPONENT CONCEPT
The T100 consists of 3 main components:
Air Supply Hose
Assembly
Failure to use genuine RPB Respiratory NIOSH approved parts and
components will void the approval of the entire respirator assembly.
Respirator
Hood
Breathing Tube
Assembly

4
3. WARNINGS
3.1 AIR FILTRATION & CARBON MONOXIDE MONITORING
It is an OSHA requirement that the T100 supplied air respirator be supplied with
CGA G-7.1 Grade D air. To achieve this, RPB recommends using the Radex™ Airline Filter
(04-900) and a Radex™ Carbon Monoxide Monitor (08-200). Further information is
available by contacting RPB Respiratory on 1-866-494-4599 or from your nearest
authorized RPB Respiratory distributor.

5
INSTRUCTION MANUAL
T100 INSTRUCTION MANUAL
3.2 NIOSH – CAUTIONS & LIMITATIONS
A) Not for use in atmospheres containing less than 19.5 percent oxygen.
B) Not for use in atmospheres immediately dangerous to life or health.
C) Do not exceed maximum use concentrations established by regulatory standards.
D) Air-line respirators can be used only when the respirators are supplied with
respirable air meeting the requirements of CGA G-7.1 Grade D or higher quality.
E) Use only the pressure ranges and hose lengths speci ed in the user’s instructions
J) Failure to properly use and maintain this product could result in injury or death.
M) All approved respirators shall be selected, tted, used and maintained in
accordance with MSHA, OSHA, and other applicable regulations.
N) Never substitute, modify, add or omit parts. Use only exact replacement parts in
the con guration as speci ed by the manufacturer.
O) Refer to user’s instructions, and/or maintenance manuals for information on use
and maintenance of these respirators.
S) Special or critical user’s instructions and/or speci c limitations apply. Refer to user
Instructions on page 7 (breathing air pressure table) before donning.
4. RESPIRATOR OPERATION
4.1 AIR QUALITY
This respirator must be supplied with clean breathable air at all times. Breathable air
must at least meet the requirements for Type 1 gaseous air described in the
Compressed Gas Association Commodity Speci cations G.7.1 (Grade D or higher) and
as speci ed by Federal Law 42 CFR 84, subpart J.84.141(b) and 29 CFR 1910.134 (i) the
T100 does not purify air or lter contaminants.
4.2 AIR SOURCE
Locate the air source in a clean air environment; always use a lter on the inlet of your
air source. Do not park vehicles beside your air inlet as this will cause carbon monoxide
to be drawn into your air supply. Always use suitable after coolers / dryers with lters
and carbon monoxide alarms to ensure clean breathable air is supplied at all times. The
air should be regularly sampled to ensure that it meets Grade D requirements.

6
INSTRUCTION MANUAL
4.3 BREATHING AIR SUPPLY HOSES & FITTINGS
NIOSH approved RPB Respiratory air supply hoses an
the point of attachment and the respirator breathing air connection at the wearer’s
belt. The hose sections must be within the approved length and the amount of
page 7.
4.4 BREATHING AIR PRESSURE
The air pressure must be continually monitored at the point of attachment
meets Grade D requirements. Air pressure must be read from a reliable pressure gauge
whilst t
The T100 ssure ranges
needed to provide the respirator with a volume of air which falls in the required range
of 6-15cfm (170-425 Its/min).
Make sure you understand the Breathing Air Pressure table
before using this respirator.
!Determine your air source (column 1)
!Identify your breathing tube assembly (column 2)
!the part number of the air supply hose you are using (column 3)
!Check your RPB Respiratory Air Supply Hose is within the NIOSH approved
length (column 4)
!Set the air pressure at the point of attachment within the ran
(column 6) for your breathing tube assembly, hose length and number of hose
sections. (column 5)
when setting the air pressure.
WARNING: failure to supply the minimum required air pressure (for the length of air
supply hose) at the point of attachment could result in contaminants being inhaled.
This risk is due to the pressure in the helmet becoming negative when the peak
inh w (at high work rates) exceeds that of the supplied air.

7
INSTRUCTION MANUAL
T100 INSTRUCTION MANUAL
4.5 BREATHING AIR PRESSURE TABLE
This table lists air pressure ranges needed to provide the T100 with the volume of air
that falls within the required range of 6-15cfm or 170-425 lts/min according to U.S
government regulations.
1. Air
Source
2. Breathing
Tube Assembly
3. Air Supply
Hose
4. Supply
Hose Length
(ft)
5. Max
Number of
Sections
6. Pressure
Range
(PSIg)
Portable or
Stationary
Compressor
NV2021F /
03-101
Constant Flow
Valve Assembly
(High Pressure)
NV2028
NV2029
NV2029
NV2029
NV2029
NV2029
NV2029
25
50
100
150
200
250
300
1
1
2
3
4
5
6
Portable or
Stationary
Compressor
NV2021F /
NV2016
Flow Control
Valve Assembly
NV2028
NV2029
NV2029
NV2029
NV2029
NV2029
NV2029
25
50
100
150
200
250
300
1
1
2
3
4
5
6
28-30
30-33
33-36
36-38
38-39
39-43
Portable or
Stationary
Compressor
NV2021F /
4000-40
Climate Control
Tube Assembly
(Silenced Cooler)
NV2028
NV2029
NV2029
NV2029
NV2029
NV2029
NV2029
25
50
100
150
200
250
300
1
1
2
3
4
5
6
55-56
55-57
60-62
65-67
70-72
10-11
12-14
17-19
21-23
25-27
28-31
31-34
75-77
78-80
27-28

8
INSTRUCTION MANUAL

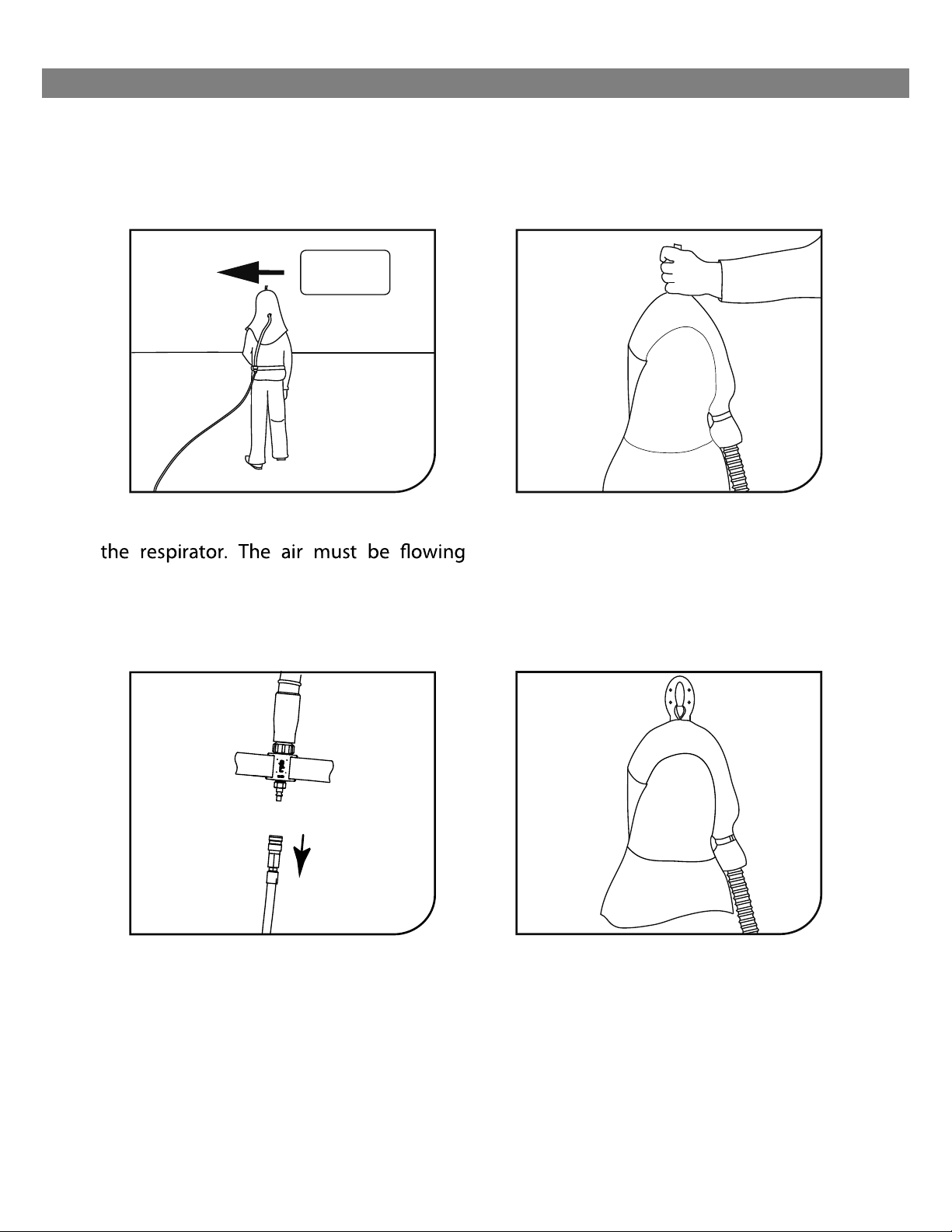

5. RESPIRATOR ASSEMBLY & SETUP
5a Attach Head Suspension 5b Attach Flow Control Device
device to the Breathing Tube (NV2021F).
by hand.
5c Connect Breathing Tube. 5d Connect air supply hose
Place the head suspension inside the
respirator and connect it by sliding up
into the two mounts located at the top of
the lens.
Place the breathing tube into the inlet at
the rear of the hood. Tighten the clamp to
hold it in position. Test the connection by
pulling down on the Breathing Tube.
Connect an approved RPB Air Supply
Hose insuring the maximum sections and
lengths are within the speci cations on
page 7.

9
INSTRUCTION MANUAL
T100 INSTRUCTION MANUAL

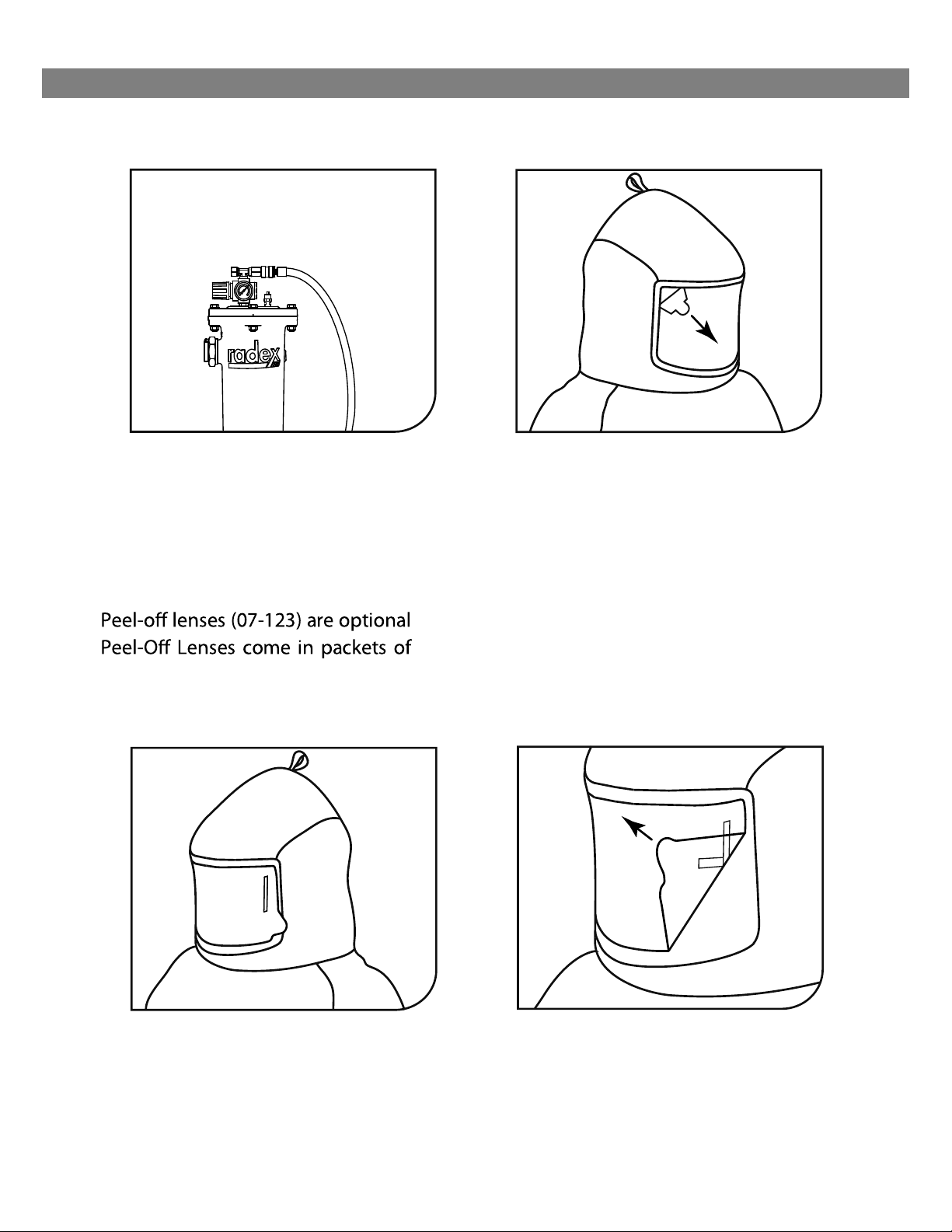

5e Adjust Air Pressure 5f Uncover Lens
Remove the protective covering from
over the lens.
5.1 PEEL-OFF LENSES
5g Apply Lens
Remove tape backing and adhere lens
onto the center of the main lens on the
respirator
5h Remove Lens
Pull on the tab and the adhesive will give
way.
Adjust the air pressure at the point of
attachment according to the Breathing Air
Pressure Table on page 7.
and are used to increase the life of your main lens.
50 each with double sided tape already in place.

10
INSTRUCTION MANUAL

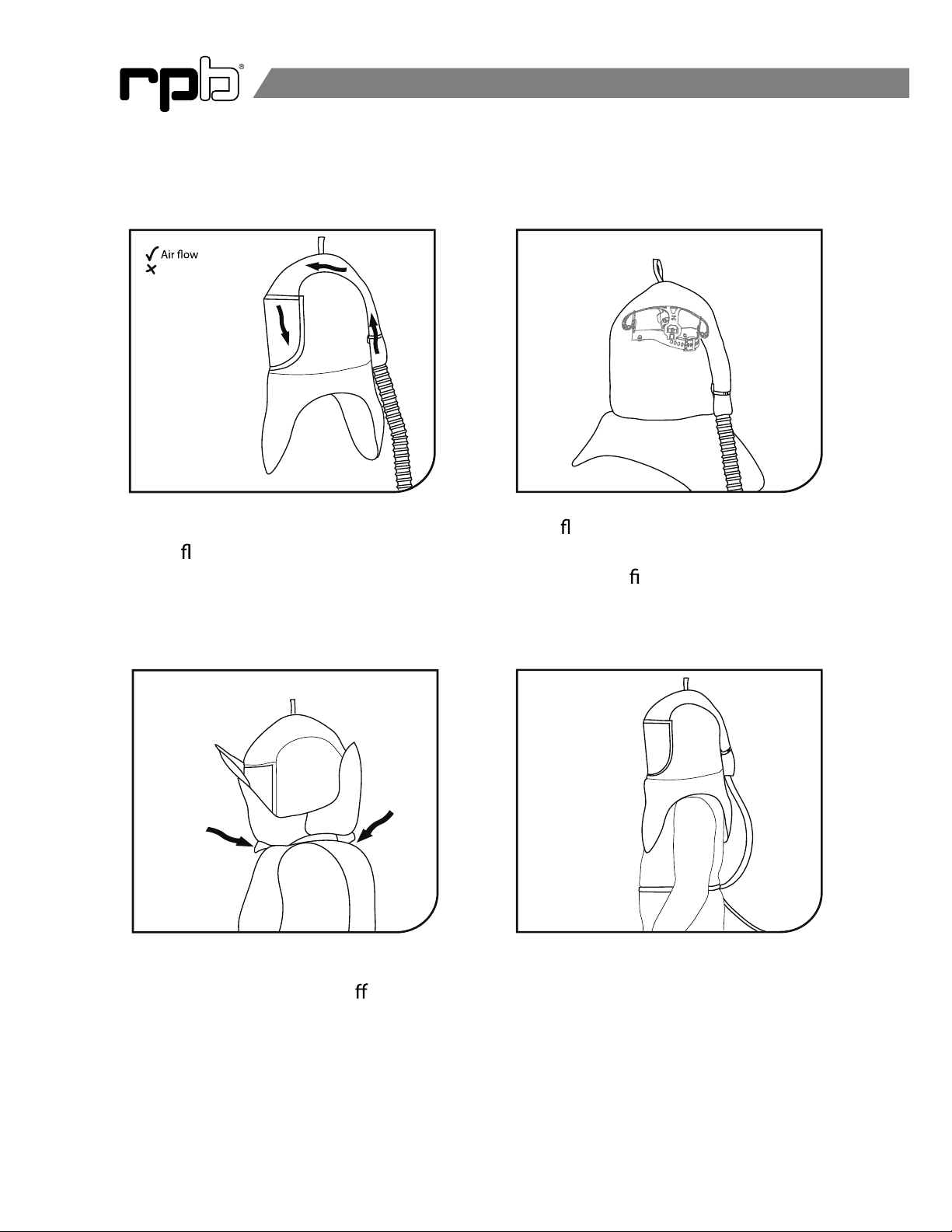

6. DONNING THE RESPIRATOR
6a Check Air Flow
Before donning your 07-100, check that
the air is owing into it and it contains no
dust, dirt or contaminates.
6b Put on Respirator
With air owing, place the Respirator over
your head, and make sure that the head
suspension is tting comfortably and
securely on your head.
6c Tuck in inner collar
Tuck the inner collar into your clothing to
create a positive pressure e ect for the
respirator. The air can also aide in cooling
your body.
6d Flatten Bib
Pull the outer collar down at the front,
back and sides.
Contaminants

11
T100 INSTRUCTION MANUAL
6e Fasten Belt
Connect the Flow Control device belt
around your waist. It is recommended to
have the device situated over your hip.
6f Check Air Pressure
Re-check the air pressure at the point of
attachment and adjust it if necessary.
of air inside the respirator.
You are now ready to enter the work area
I m m e d i a t e l y l e a v e t h e w o r k a r e a a n d r e m o v e t h e
r e s p i r a t o r i f a n y o f t h e f o l l o w i n g o c c u r :
!w of air ceases or decreases.
!You feel ill (nauseous, dizzy, hot or cold)
!
!Any component in the respirator assembly becomes damaged.
!The pressure at the point of attachment dips below that recommended.
!You can see, smell or taste contaminates inside the respirator.
!You cannot see clearly

12
INSTRUCTION MANUAL
DO NOT USE THE 4000-40 when ambient temperature is below 68° (20°C) as
ice could form in the cold air outl
WARMER
COOLER

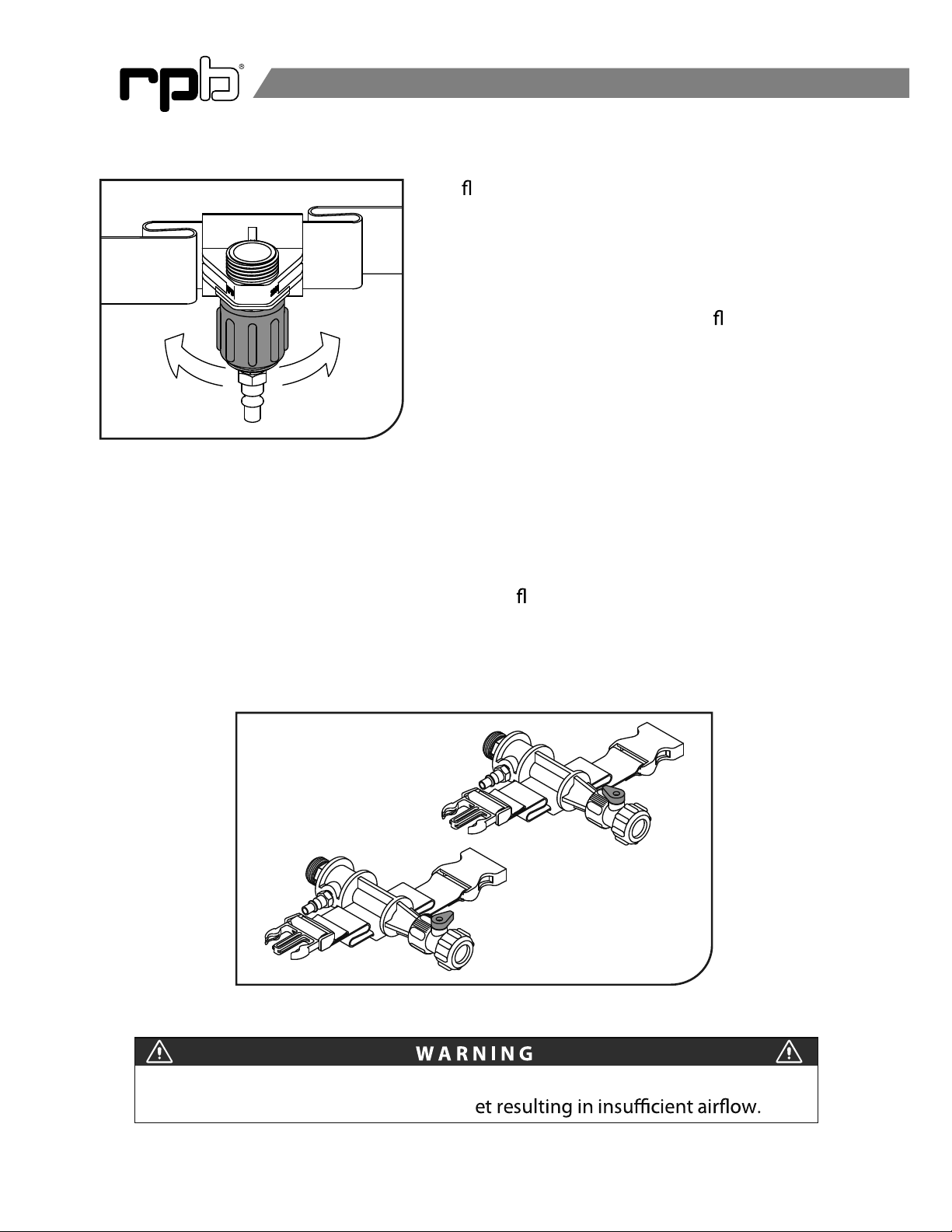

6.1 NV2016 - ADJUSTING THE FLOW RATE
Air owing into the respirator is controlled by
the NV2016 as shown in the illustration to the
left.
Note: With the pressure set according to the
Breathing Air Pressure Table the ow rate of air
through the respirator should always exceed the
minimum of 170 l/min.
6.2 4000-40 - ADJUSTING THE TEMPERATURE
To obtain cooler air turn the regulator control knob anticlockwise so it is aligned along
the length of the tube. This will increase the air ow out of the exhaust port. Similarly,
turn the knob clockwise 90°, this will increase the temperature of the air closer to the
ambient temperature of your air supply.
MORE
AIR
LESS
AIR
M
A
X
M
I
N

13
INSTRUCTION MANUAL
T100 INSTRUCTION MANUAL
7. DOFFING YOUR RESPIRATOR
7a Leave Work Area 7b Remove Respirator
Once in a clean environment, undo the
belt and remove the respirator.
7c Disconnect Air Supply
It is now safe to disconnect the air supply
hose using the quick disconnect coupler.
7d Store the Respirator
Always hang the respirator and its
components in a clean environment while
not in use.
Exit
Leave the work area while still wearing
into the respiratory until you have
departed from the contaminated area.

14
INSTRUCTION MANUAL
8. INSPECTION CLEANING & STORAGE
8.1 RESPIRATOR
!Inspect the material for rips, tears, or damage including loose or missing
threads, that may reduce the protection of t .rotaripsereh
!Inspect the lenses for cracks, scratches, or distortions that may reduce the
clarity or protection of the lens. Do not wipe the lens with strong solvents, as
they may damage, or distort the lens.
!Inspect the inner bib for elasticity and to ensure that there are no tears,
missing treads, or other damage.
!If any part is damaged, replace them with approved parts only, or dispose of
the respirator, and replace it with a new one.
!Cleaning the Respirator is not recommended. When the Respirator becomes
dirty, it should be replaced or disposed of.
8.2 HEAD SUSPENSION
!Remove the Head Suspension from the Respirator. Inspect for cracks, worn
adjustment slots, or broken parts. Any parts that are damaged or worn must
be replaced immediately.
!
The T100 has a limited service life, and therefore a regular inspection and replacement
program must be conducted. All components of this Respirator Assembly including the
Air Supply Hoses should be inspected for damage and wear and tear, before use. If any
damaged or worn parts are found, they should be replaced immediately, or the
Respirator disposed of. Use only the NIOSH approved parts as set out in this
instruction manual. Refer to the parts list on page 16 for the correct part numbers.
The brow pad can be removed, and cleaned in a conventional washing
machine, or be rinsed with a light detergent and water. Do not clean with
volatile chemicals.

15
INSTRUCTION MANUAL
T100 INSTRUCTION MANUAL

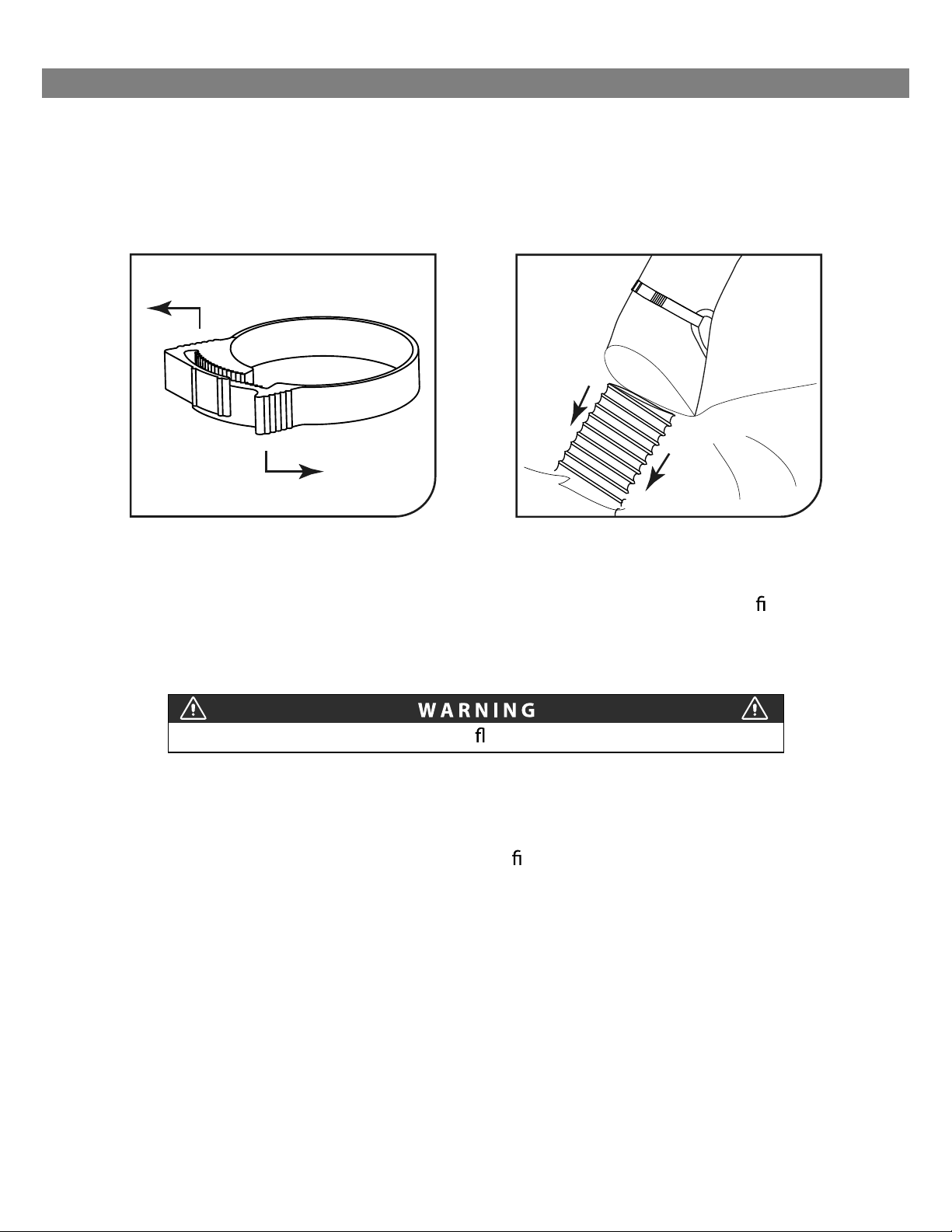

8.3 BREATHING TUBE ASSEMBLY
Disconnecting the Breathing Tube
8a Remove Hose Clamp
Release the hose clamp by sliding the
locks sideways in opposite directions.
8b Detach Tube From Respirator
Remove the Breathing Tube
respirator
Inspect the Breathing Tube for cracks or excessive wear. Check that the ttings are
secured into the hose tightly and are not allowing any air to escape. Replace the
Breathing Tube as soon as signs of damage or excessive wear become evident.
Air leaks will cause a drop in air ow resulting in less protection.
8.4 AIR SUPPLY HOSES
Inspect the Air Supply Hose for cuts, cracks, blisters and excessive wear. Ensure the
hose has not been crushed or kinked and that ttings are tightly crimped to the hose
so air cannot escape. Replace the hose immediately if there are any signs of damage or
wear. Do not run water through the inside of the hose. Check Quick Disconnect
Couplings and use compressed air to remove any particles that may jam the coupler.
8.5 STORAGE
After the respirator and the components have been inspected and cleaned, place them
in an air tight container, or plastic bag. Store Respirator parts away from contaminates,
direct sunlight, heat, extreme cold, moisture, or harmful chemicals.

16
9. PARTS LIST
B1
C1
D1
D2
C2
A1
B4
C4
E1
D3
C5
B2 B3
C3
C8
C6
C7

17
Tychem® is a registered trademark of E.I. du Pont de Nemours and Company
RPB® is a registered trademark of RPB Limited
Item Description Part Number
A1 ........... Tychem® QC Respirator Hood Only (Pkt. of 10)....... 07-110
B1............ Head Suspension ............................................................. 07-920
B2............ Head Suspension Brow Pad (Pkt. of 5) ....................... 07-924
B3............ Optional Chin Strap......................................................... 07-926
B4 ........... Head Suspension Mount................................................ 07-121
C1 ........... Breathing Tube............................................................ NV 2021F
C2 ........... Hose Clamp for Breathing Tube................................... 07-122
C3 ........... Replacement Belt...........................................................NV 2022
C4 ........... Constant Flow Valve........................................................ 03-101
C5 ........... Quick Disconnect Tail, ” NPT .................................... 03-111
C6 ........... Cold Air Tube (Silenced)............................................... 4000-40
C7
..........
.
Quick Disconnect Tail, ” BSPT................................. 4000-06
D1........... Air Supply Hose 25ft......................................................NV 2028
D2........... Air Supply Hose 50ft......................................................NV 2029
D3........... Quick Disconnect Coupler, ” BSPP........................NV 2025
E1 .......... (Pkt. of 50)............................................. 07-123
Packages
07-101: 07-110 + 07-920 + 07-122 + NV2021F + 03-101
07-102: 07-110 + 07-920 + 07-122 + NV2021F + NV2016
07-103: 07-110 + 07-920 + 07-122 + NV2021F + 4000-40
..........
C8 .
Flow Control Valve.........................................................NV 2016
Use only genuine RPB, NIOSH Approved components.
Failure to adhere will void all NIOSH approvals.

I022/0
