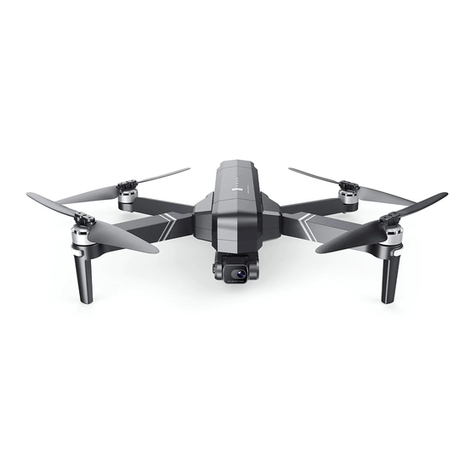

RUKO F11 GIM User manual

14+
for age
v1.0
Quick Start Guide

Copyright ©2021 Ruko All Rights Reserved. 1
Self-equipped
Download App
1
Charge the Batteries
RUKO DRONE App
RUKO DRONE
15W
RUKO DRONE
Download on the
App Store
Download for
Android

Copyright ©2021 Ruko All Rights Reserved.2
2
1
2
Lift and then pull
1
2
3

Copyright ©2021 Ruko All Rights Reserved. 3
Unfold the handle
Unfold the antenna
3
1
2
3

Height≥65ft
4
Select an Open Flight Area
Copyright ©2021 Ruko All Rights Reserved.4

Note: Please turn on the Aircraft firstly, then the Transmitter.
Otherwise, they will not be paired.
5
Copyright ©2021 Ruko All Rights Reserved. 5
Short-press to power on the Transmitter.
2
Press and hold the button until the Aircraft plays startup sound.
1

Rotate the aircraft horizontally 360°.
Rotate the aircraft vertically 360°.
6
Calibrate the Compass
Connect to Wi-Fi
Copyright ©2021 Ruko All Rights Reserved.6
Connect the mobile device to the Aircraft's Wi-Fi and enter the app operation page.
Please refer to user manual (page 32) for more details.
RUKO-GIM-******
F11 GIM
CONTROLS
LEARN VIDEO
GUIDE
( About 1-2 turns )
( About 1-2 turns )
Tap "CONTROLS" icon

7
Copyright ©2021 Ruko All Rights Reserved. 7
Calibrate the Gyroscope
Push joysticks to 11 & 1 o'clock position.
( About 2 seconds )
Gimbal Self-inspection
Put on a level surface.
( About 20 seconds )
A level ground

Copyright ©2021 Ruko All Rights Reserved.8
Take off
Push up the left stick.
Start the Motors
Push joysticks to 5 & 7 o'clock position.
( About 2 seconds )
Search for GPS Automatically
Tips: 1. The searching time depends on the flight environment.
2. If unsuccessful, the motors can't be started.
GPS ≥3 bars
Solid blue lights
GPS search successfully
