RUNDEER Hummer User manual

COPYRIGHT © 2022 RUNDEER. ALL RIGHTS RESERVED.
The manufacturer reserves the rights to make changes to the product and manual at any time
Visit www.rundeers.com for more detailed information about the products.
USER MANUAL
Rundeer Hummer
ELECTRIC BIKE

1
Contents
Home Page -------------------------------------------------------------------------- 01
Product Safety Notice ------------------------------------------------------------- 02
Warning Message ----------------------------------------------------------------- 03
Package Contents ----------------------------------------------------------------- 04
Product Overview ----------------------------------------------------------------- 05
Assembly --------------------------------------------------------------------------- 06
Battery Key Positions ------------------------------------------------------------- 12
Start-up Procedure ---------------------------------------------------------------- 13
Remove the Battery --------------------------------------------------------------- 14
Charge Your E-Bike -------------------------------------------------------------- 15
Display and Setting ---------------------------------------------------------------- 17
Personalized Setting --------------------------------------------------------------- 20
Troubleshooting -------------------------------------------------------------------- 27
Specifications------------------------------------------------------------------------ 28
FAQS--------------------------------------------------------------------------------- 29
Limited Warranty ------------------------------------------------------------------ 30
Contact Us -------------------------------------------------------------------------- 33
Congratulations
on your purchase!
This user manual will help you assemble and
operate your new electric bike. Be sure to read
all of the information in this manual before
riding.
NOTE TO ALL RIDERS UNDER 18 YEARS
OF AGE: It's very important that you get
parental permission before riding your electric
bike.

21
Product Safety Notice
Don't Ride Until You Read This:
1
Always wear a helmet when riding your electric bike.
2
Keep the two keys properly. If the unique keys are lost, you will not be able to turn on
the bike or replace the battery.
If necessary, you should get more spare keys (We don't have a backup key).
3
Make sure your electric bike has a full battery before taking it out to ride.
4
Always be aware of local road laws, and follow them.
5
feet causing injury. Wet conditions may damage the electronics and void the warranty.
6
Do not ride the bike under the influence of drugs or alcohol.
7
Always respect pedestrians.
8
Do not ride under wet conditions. The electric bike may slide from under your feet
causing injury. Wet conditions may damage the electronics and void the warranty.
Warning Message
1. Avoid prolonged exposure to sun or rain and avoid storage in places with high temperatures or
corrosive gas.
2. Abuse - We do not cover physical damage due to negligent care and extreme riding.
3. Whenever you ride the Rundeer Electric Bike, you risk severe injury or even death from loss of
control, collisions, and falls. Use caution and ride at your own risk.
4. Do not modify the product from manufacturer's original design.
5. Do not exceed the posted speed limit and obey all traffic laws.
6. Avoid touching the charging port directly and do not let it make contact with a metal object.
7. Keep hands and all body parts away from moving parts while operating the electric bike.
8. Before riding - be sure to check the electric bike over and make sure the electric bike is operating
correctly before each use.
9. Before riding - be sure to check that the braking system is functioning properly; also be sure to
check that all safety labels are in place and you understand the safety warnings.
10. Before riding - be sure that any and all axle guards, chain guards, or other covers or guards
supplied by the manufacturer are in place and in serviceable condition.
11. Before riding - be sure to check that the tires are in good condition, inflated properly, and have
sufficient tread remaining.
12. Never exceed the 350 lbs (160 kg) maximum load rating.
13. The electric bike should never be used by children under the age of 18.
14. Maximum Speed - Your electric bike goes at a maximum speed of 35 mph.
15. Make note that additional insurance may be required to cover situations you encounter while
riding an electric bike. It is recommended that you contact an insurance company or broker for
advice and consultation.
16. To conserve electricity, use assist mode and avoid zero starting, frequent braking, driving
against the wind, carrying heavy loads including other people, and riding with insufficient air
pressure.

25
Package Contents
Carefully check package contents, if anything is missing or damaged, please contact
Rundeer Customer Service for support:[e-mail]
Unpack the bike. Open the bike box and remove the small box inside. With the help of another person
capable of safely lifting a heavy object, remove the bike from the bike box. Carefully remove the
packaging material protecting the bike frame and components. Please recycle packaging materials
especially cardboard and foam whenever possible. Open the small box and carefully set out all contents.
Product Overview

23
Assembly 1
Assembly 2
Visit https://www.youtube.com/watch?v=CZBbdOkz_Pw&t=93s for additional help with
assembly, including a step-by-step video walk-through.
If you do not feel comfortable assembling the bike yourself we recommend taking your new bike to a bike shop for
assembly and inspection. If you are willing to assemble the bike yourself be sure to follow all instructions, properly
adjust gears and brakes, and set tire pressure.
1. Be careful not to position your fingers between the latch
and the frame. Doing so may result in injury.
2. Unfold the rear wheel/ section and hold your e-bike
upright with the kickstand. Push the latch closed so that it's
parallel with the bike's frame then turn the latch lock down
towards the latch to lock it in place.
3. Open the kick stand and place the entire bike.
1. Take out the stem and insert it
into the front frame.
4. Fold the headtube
perpendicularto the ground.
2. Adjust the handlebar to
perpendicular to the tire.
3. Push the button on the latch so
that release it and unlock the
folding mechanism.
5. Tighten the screws to fix
the headtube.
6. After the adjustment, fold the
tube back and lock the latch.

24
Assembly 3
For better pedaling, safety and overall riding comfort, positioning the seat at the right height is important. The rider's leg
length is used to determine the seat's position. When you pedal, your hips should remain level and your legs should be
almost fully extended at the bottom of the pedal stroke, but not over-extended.
To determine the right seat height, sit on the E-bike with one pedal at its lowest point and place the ball of your foot on the
pedal. Your leg should be almost fully extended(not lockedout) with a slight bend at the knee.
Assembly 4
（
1）

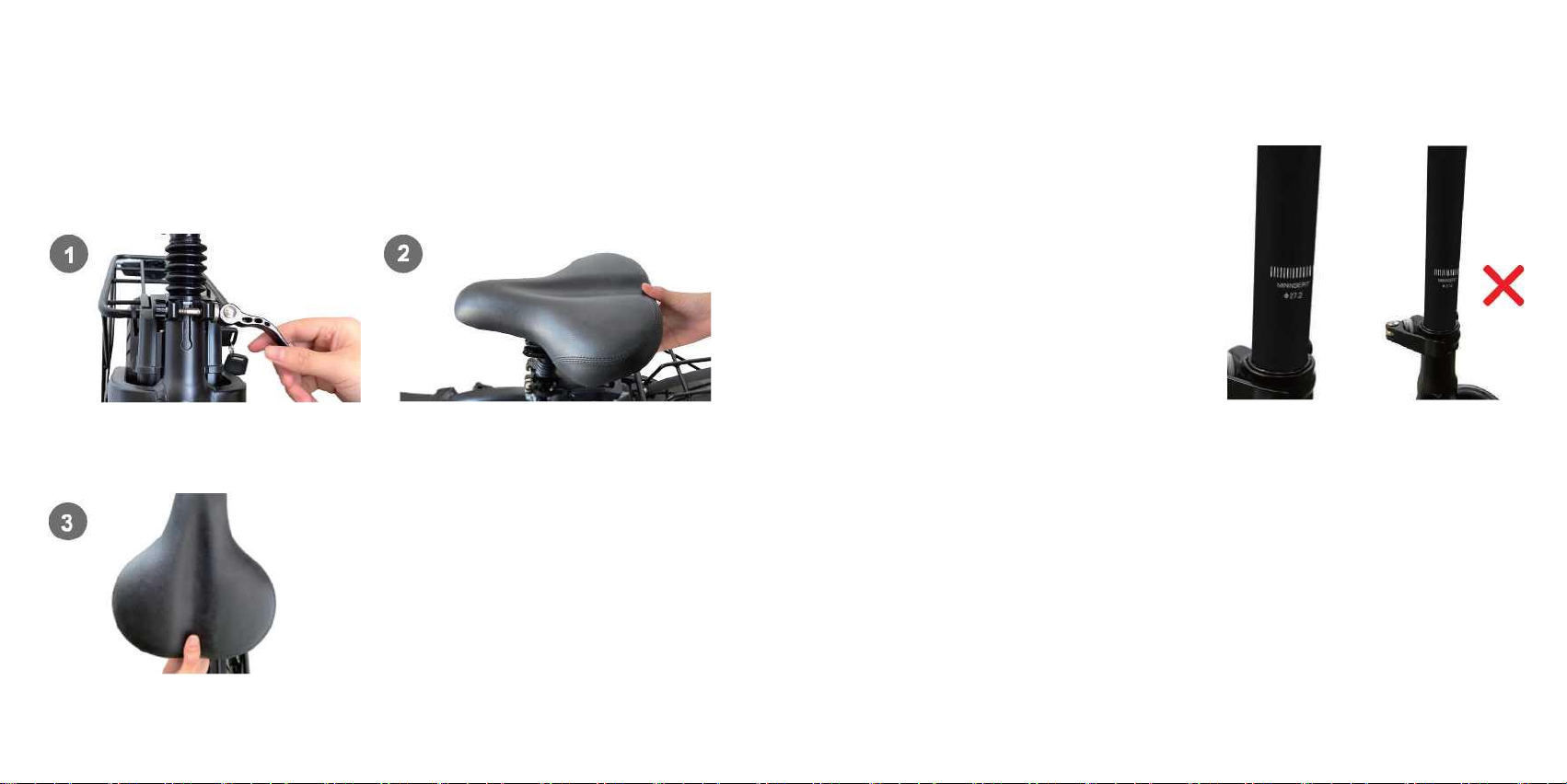

NOTICE: Ensure the seatpost and seat are
properly adjusted before riding. DO NOT raise
the seatpost beyond the minimum inserbon
marking etched into the seatpost tube (as
shown at right). If the seatpost projects from
the frame beyond these markings (shown far
right), the seatpost or frame may break, which
could cause a rider to lose control and fall.
Ensure the minimum inserbon markings on the
seatpost are inside the seat tube of the frame.
Open the quick release lever by swinging the
lever open and outward fully.
Move the seat up and down by sliding the seatpost in
or out of the seat tube. DO NOT raise the seatpost
beyond the minimum insertion marking etched into
the seatpost tube.
Adujst the seat and the head ofthe seat is
parallel with the top tube. After that close
the quick release lever using your palm or
finger.
(2) Before using the bike, always check to ensure all latches, levers, and quick releases are
properly secured and undamaged. Check that they are correctly secured before every
ride and after every time the bike is left unsupervised, even for a short time. Otherwise,
the handlebar stem and/or seatpost may come loose and can result in loss of control,
damage to the bike, property, serious injury, and/or death.

25
Assembly 5
Adjusting the Suspension Fork
The suspension fork can move up and down up to 80mm to
cushion bumps in the riding surface, which can make riding on
a rough road or trail smoother and more comfortable.
Depending on a rider's preference, the suspension fork can be
locked out as a rigid fork, which will typically yield higher
efficiency while pedaling.
The lockout lever (1), located on top of the right side of the
suspension fork, can be turned counterclockwise until it stops
to completely lock out the suspension fork's travel. To unlock
the lockout lever, turn the knob clockwise until it stops. When
the lockout lever is unlocked, resistance can be adjusted by
turning.
The preload adjustment knob (2), located on the top of the left side of the suspension fork. To
soften the ride, subtract resistance by turning the preload adjustment knob
counterclockwise, in the direction of the small on the knob. To make the suspension stiffer
when going over bumps, add resistance by turning the preload adjustment knob clockwise,
in the direction of the small on the knob.
Note: If the pedal/ chain doesn't run smoothly or something seems misaligned, please contact Rundeer
Support.
Assembly 6
Thread the right pedal onto the right crank gently by hand,
turning clockwise. Then tighten pedal by alien wrench.
Locate the right-side/ left side pedal, which is
marked "R ： "L/should have an Wsticker
attached.
Thread the left pedal onto the left crank gently by
hand, turning counter-clockwise. Then tighten pedal
by alien wrench.
Check the chain alignment. Rotate the right pedal and
crank toward the back of the bike as though pedaling
backward. Watch the chain and ensure the chain runs
through the drivetrain (the rear cog, chain tensioner; and
around the front chainring) smoothly.

26
Battery Key Positions
Start-up procedure

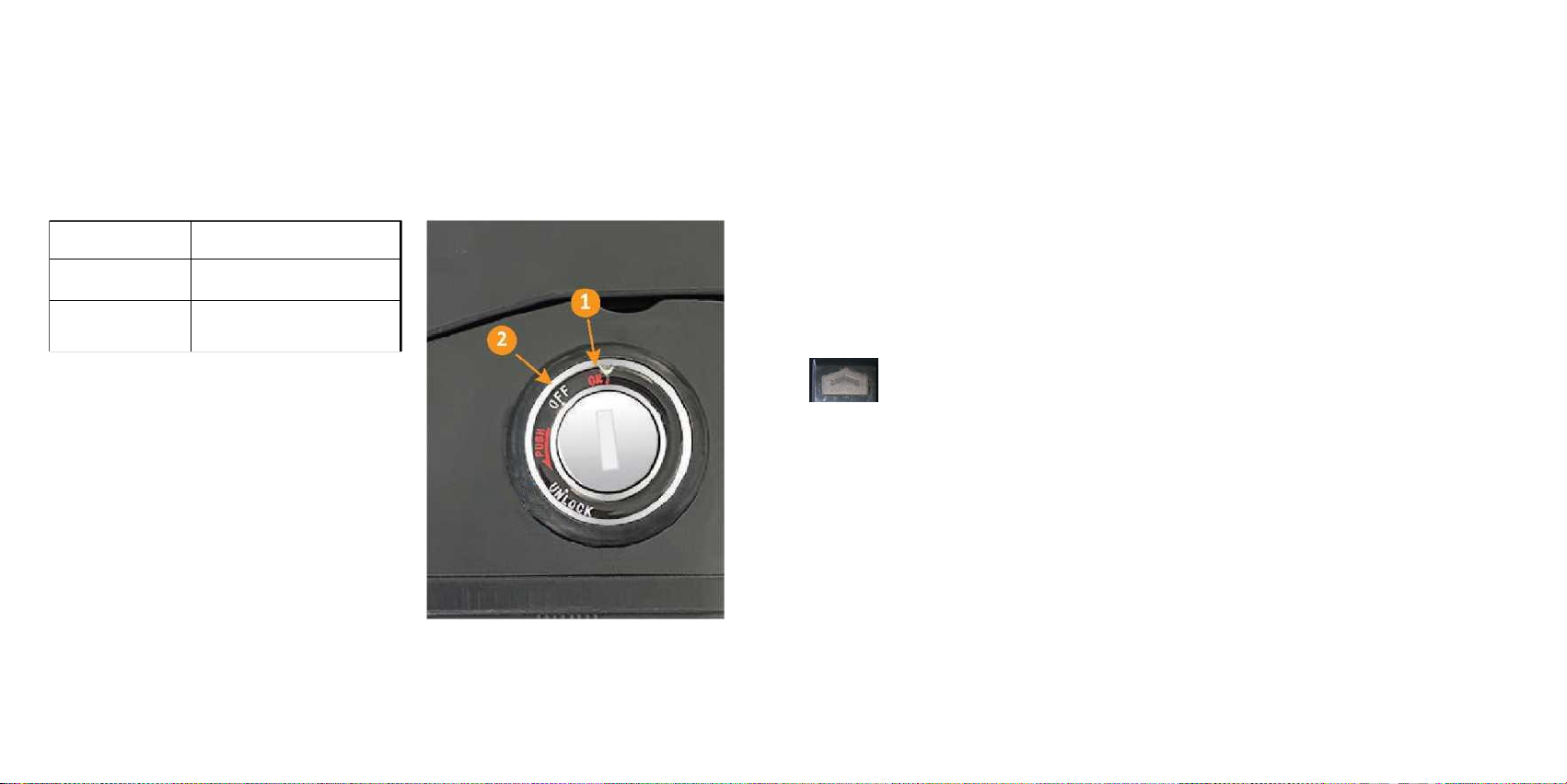

Familiarize yourself with the key port and key positions before riding the bike. The photo below
shows the key port aligned in key position 1, in line with the ON icon. In key position 1, the battery is
in the "on" position, with the battery locked to the frame, and the key can't be removed.
• If the battery is in key position 2, (OFF,unlocked to the frame) no buttons or controls can be activated, the bike will
remain off, and the battery can be removed.
NOTICE: You have to press the key then you can switch to unlock position After the bike has
been properly assembled according to the assembly video, all components are secured correctly, a certified,
reputable mechanic has checked the assembly, and you have read this entire manual, turn on the bike and
select a pedal assist level following the steps below:
1. Test the battery lock security. Ensure the key port is aligned with the OFF icon, which indicating the
battery is off and locked onto the frame mount. Carefully use both hands to pull up on the battery to test
that the lock is secure.
2. Ensure proper handlebar and seat adjustment. Note that lowering the seat so the rider can put one or
both feet flat on the ground without dismounting from the seat may offer a safer and more comfortable
Introduction to operating the bike. Ensure the handlebar faceplate bolts and seatpost quick release are fully
and properly secured.
3. Turn the bike on. Insert the key and turn clockwise to the ON positon. Locate the LCD Display (near
the left handlebar grip). Hold down the center M power button for approximately 2 seconds until power is
delivered to the LCD Display.
4. Turn on the headlight and taillight if needed or desired. Once the LCD Display is on, long press
buttons to turn on the lights,
5. Select the desired level of pedal assistance (PAS) between level 0 through 5 using the + and - on the
display remote. Level 1 corresponds to the lowest level of pedal assistance, and level 5 corresponds to the
highest level of pedal assistance. Level 0 indicates pedal assistance is inactive. Start in PAS level Oor 1 and
adjust from there.
6. Begin riding carefully. With the proper safety gear and rider knowledge, you may now operate your
bike. On a flat surface, in a low gear (1 or 2), most riders should be able to begin pedaling the bike with
pedal assist level 0 or 1. You may also use the throttle to accelerate and maintain your desired speed.
7. The throttle is used by slowly and carefully rotating the throttle backward toward the rider. Do not use
the throttle unless you are on the bike.
NOTICE:
Do not use the throttle while dismounted. Avoid accidental application of the throttle while
dismounted; anytime you are moving the bike while dismounted^ ensure the bike is powered
off to prevent accidental application of the throttle.
Key Position/lcon
Directions
1
ON, Locked to Frame
2
OFF, Locked to Frame
•Anytime the battery is in key position 1, (ON, locked to
the frame) the display power button will turn the bike on
and off, but the battery cannot be removed.

27

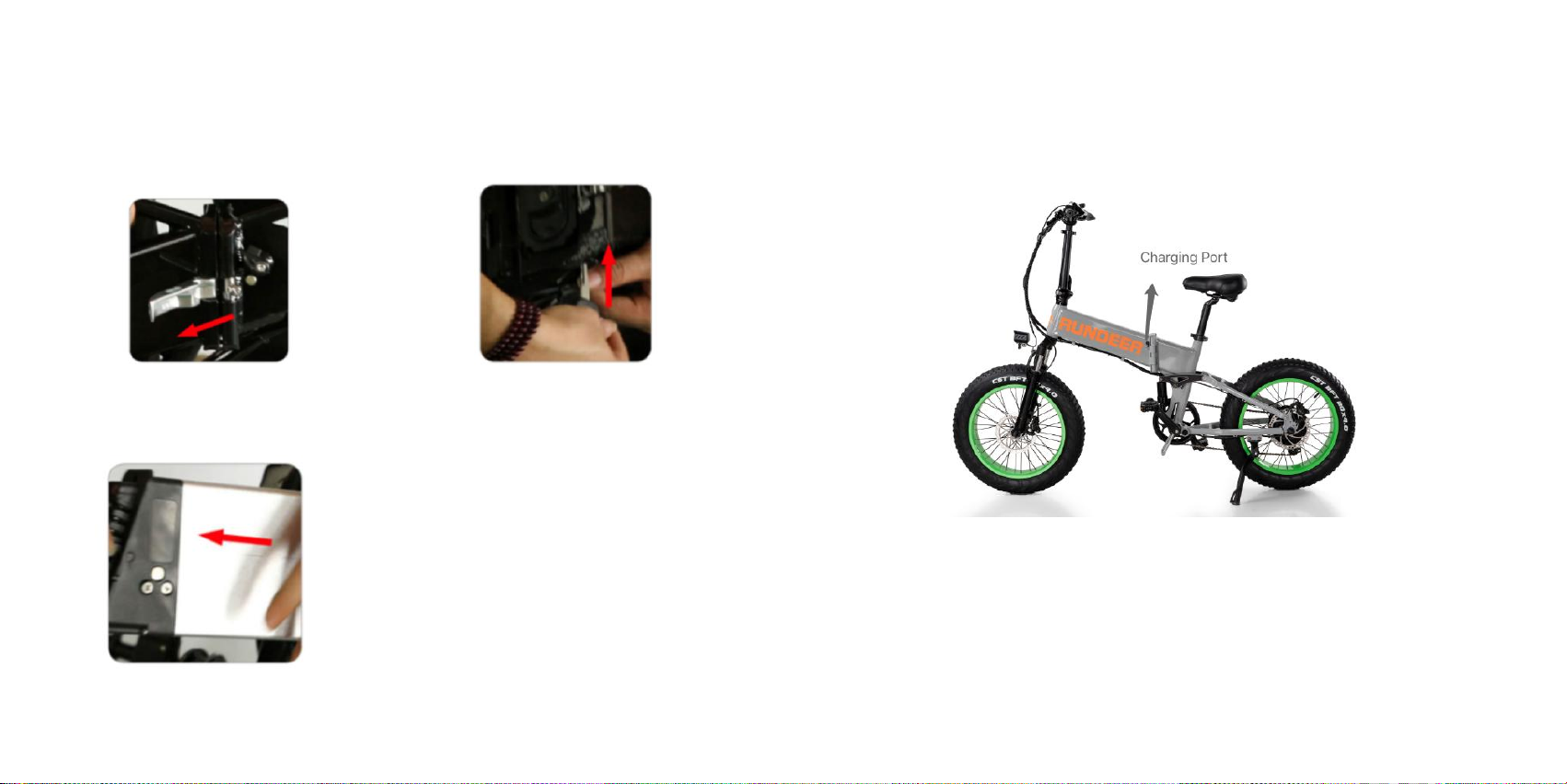

Remove the battery
For your convenience, the Rundeer Hummer ebike battery can be
removed.
Press and rotate the key to the UNLOCK icon.
Open and lossen the folder.
To reinstall the battery, align the slot at
the bottom of the battery and reinsert it
into the frame. Turn the key to the
locked position.
If you want to know the battery level
without turn on the bike, long press the
button on the top of the battery to
display the current capacity.
Carefully slide the battery and move it off from the
frame.
Charge Your E-Bike
Before using the electric bike, you must fully charge the battery.
1. Ensure the battery is off by rotating the key to align with the off icon.
2. Remove the rubber cover on the charging port on the opposite side of the battery from the key switch.
3. Plug the charger into the battery's charging port. With the battery on or off the bike, place the charger in a flat,
secure place, and connect the DC output plug from the charger to the charging port on the side of the battery.
4. Plug the charger into a power outlet, charging should initiate and will be indicated by the LED charge status lights
on the charger turning red. Once fully charged, the charging indicator light turning green. Unplug the charger
from the wall outlet first and then remove the charger output plug from the battery charging port.

28

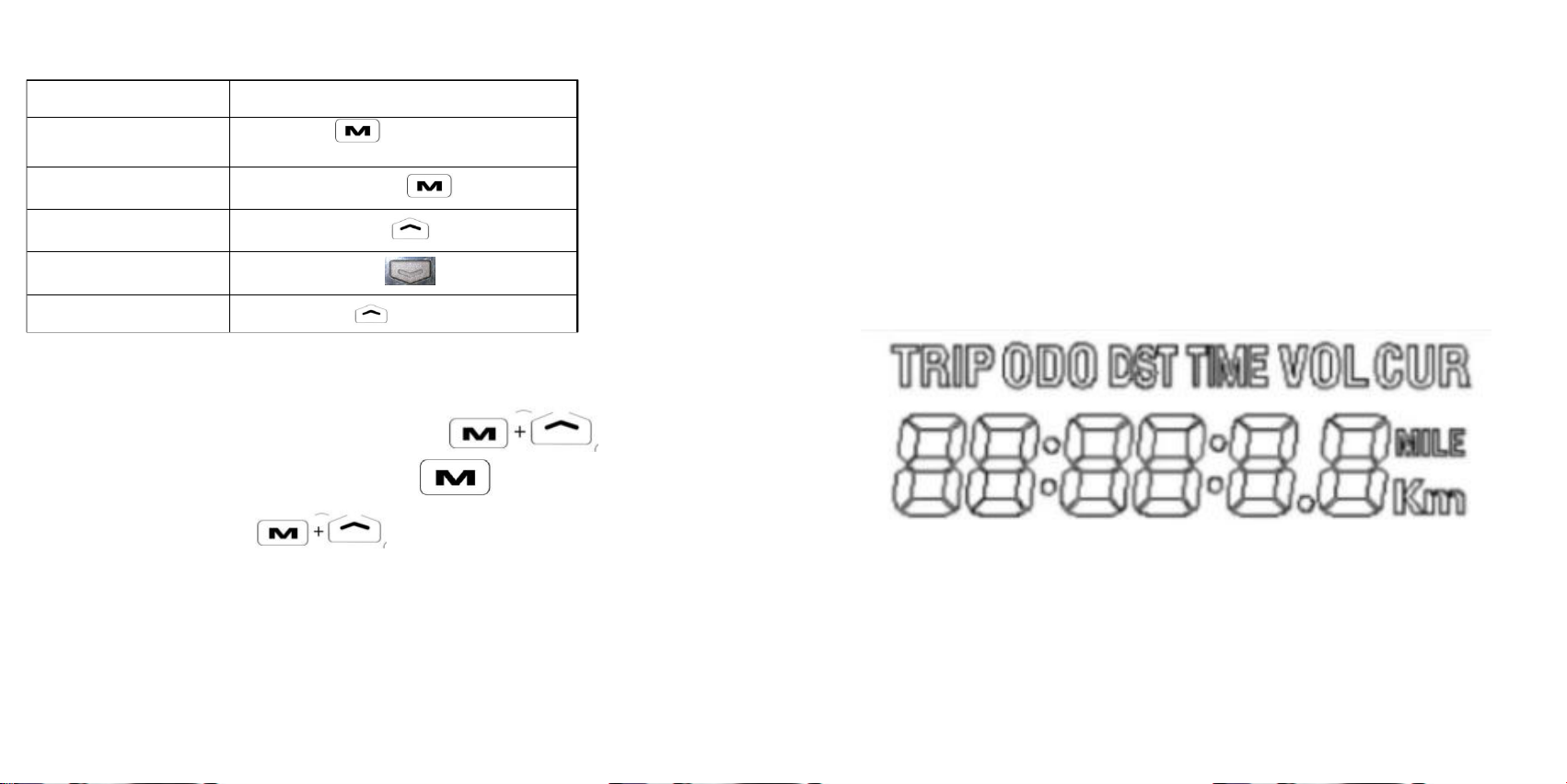

TRIP:
These numbers show distance data for a single trip. Data is automatically cleared when the bike is
powered off.
ODO: These numbers show odometer data(i.e., cumulative distance). MAXS: These numbers
show maximum speed data for a single trip.
SPEED: These numbers show average speed data for a single trip.
Battery Level: This icon indicates how much battery life you have left.
PAS(POWER ASSISTED MODE): 0,1,2,3,4,5：Displays the current pedal assisted level.
Charge Your E-Bike
Display and Setting
The battery can be charged off the bike. To remove the battery, turn
the key to the UNLOCK position.
(see the previous remove battery section for details), Then carefully
pull the battery up until the battery detaches from the receptacle.
Remove the rubber cover on the charging port on the opposite side of
the battery from the key switch. Connect the DC output plug from
the charger to the charging port on the side of the battery.
Plug the charger into a power outlet, charging should initiate and
will be indicated by the LED charge status lights on the charger
turning red. Once fully charged, the charging indicator light turning
green. Unplug the charger from the wall outlet first and then
remove the charger output plug from the battery charging port.
