Rutland County Empingham 6ft tool store User manual

Assembly Instructions
T
Empingham 6ft
tool store
1
Before you commence the assembly process we recommend that you read these instructions
thoroughly beforehand to familiarise yourself with the assembly process and to also check that you have
the correct components. If for any reason you need assistance, you can find our contact details on the
final page of these instructions.
We highly recommend that any assembly is carried out on a flat, level surface if possible and that you
use another person to assist you if necessary.
Package contents
Tools required
3 x Doors
2 x End panels
3 x Back panels
1 x Base
1 x Lattice
1 x Roof
1 x Partition panel
4 x Centre Posts
65mm Screws
16 x 75mm Screws (For the Base only)
12 x 38mm black screws
2 x Spacer Blocks
Electric screwdriver with No2 Pozidrive bit
Or No2 Pozidrive Screwdriver
Empingham 6ft Tool Store

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
2
Step 1
Step 2

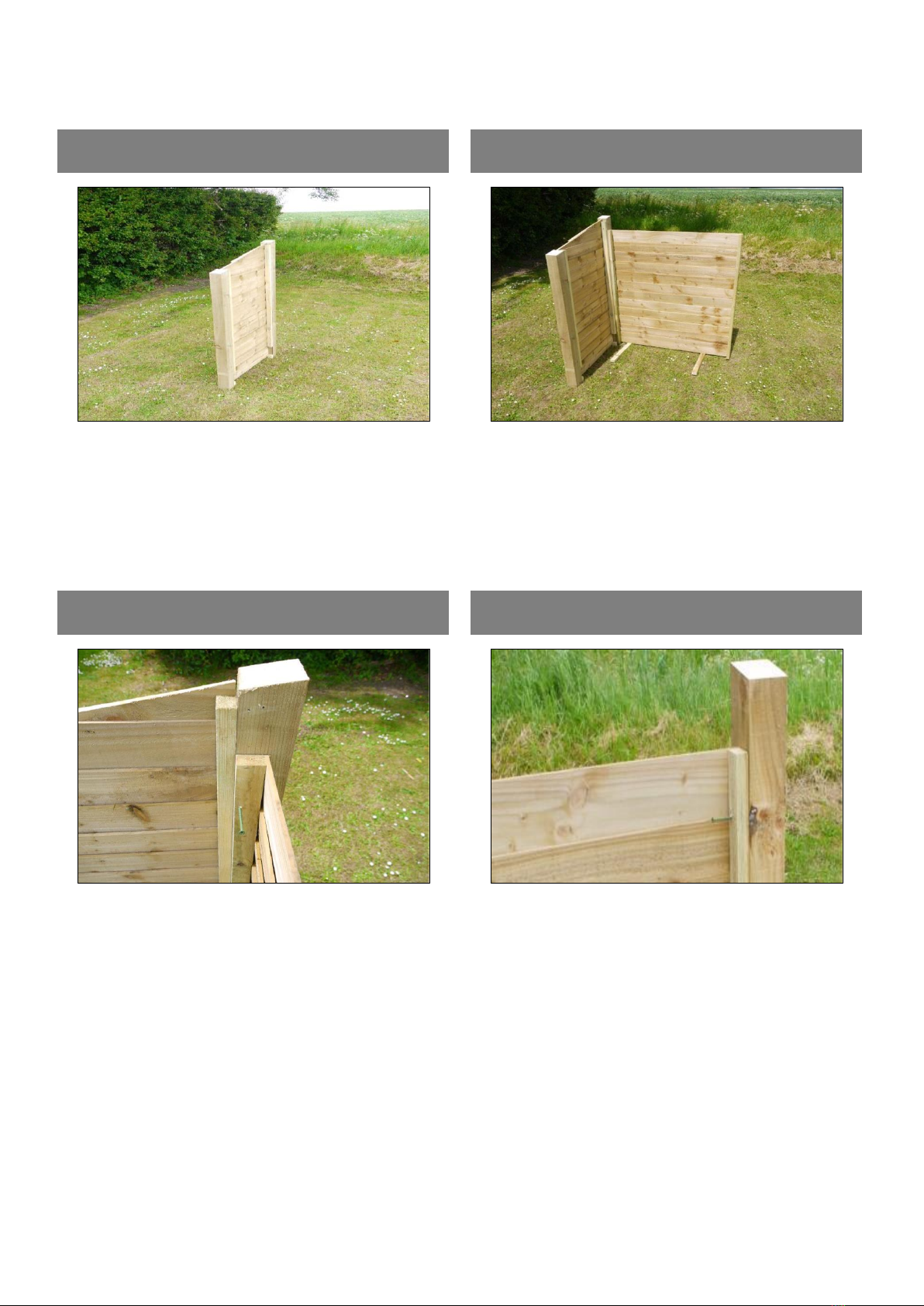

Stand the left hand end panel (or right hand for the
reversed roof version) upright on a flat, level surface.
Arrange the 2 spacer blocks on the ground, adjacent
to the end panel as shown in the photo above. Now
place a back panel on the blocks, at 90° to the end
panel, aligning the 2 panels ready for fixing.
Step 3
Step 4
Using the 65mm screws provided, attach the batten
on the back panel to the post of the end panel,
ensuring that the batten remains vertically aligned to
the post.
Align one of the longer posts (shorter for a reversed
roof) with the other end of the back panel.

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
3
Step 5
Step 6

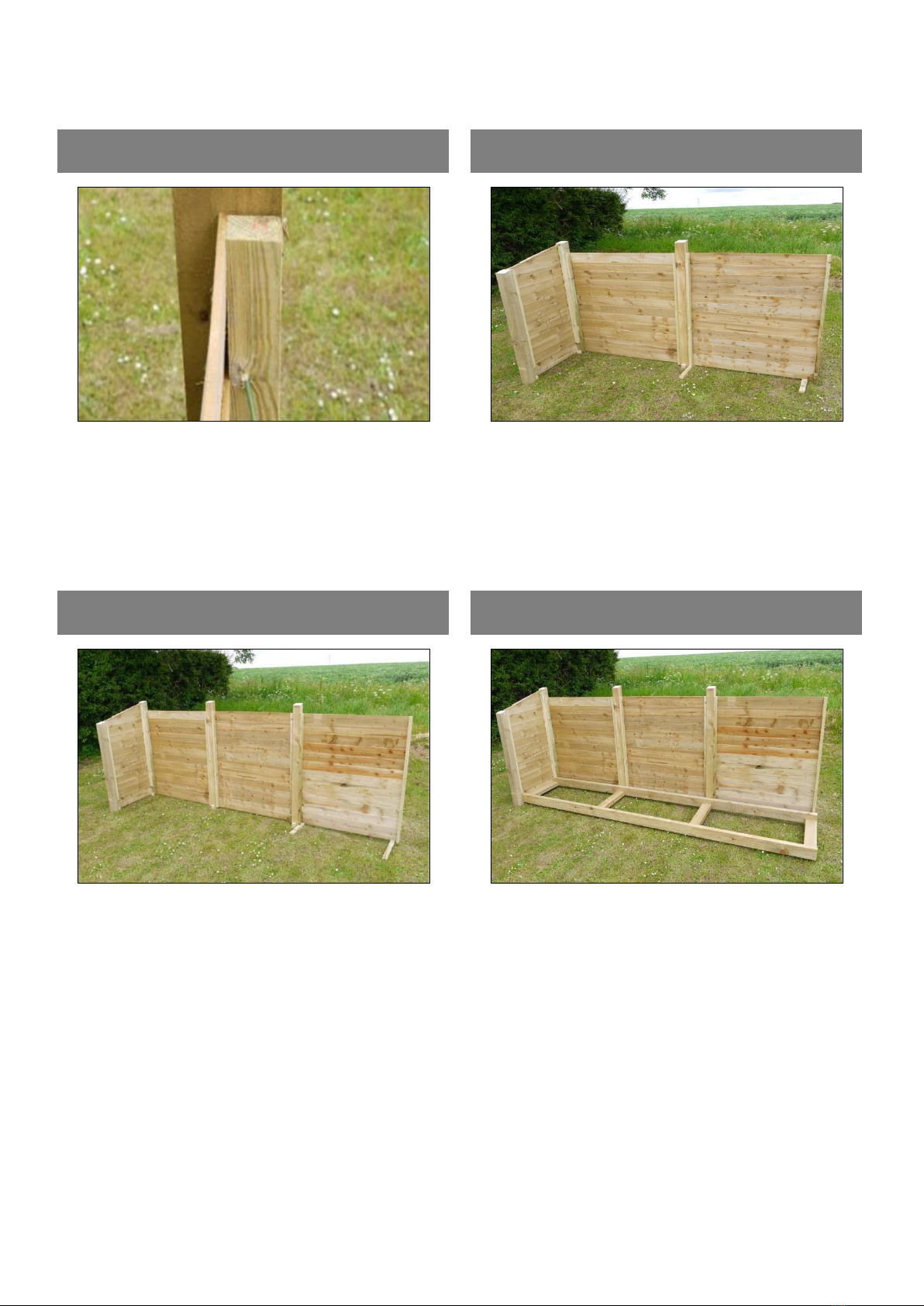

Attach the panel to the post by screwing through the
batten using 65mm screws as before.
Rearrange the spacer blocks and offer up the next
panel, aligning and attaching it as before.
Step 7
Step 8
Repeat step 6 so that all 3 back panels are now
attached.
Remove the blocks from beneath the 3rd panel and
then slide the base into position as shown.

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
4
Step 9
Step 10

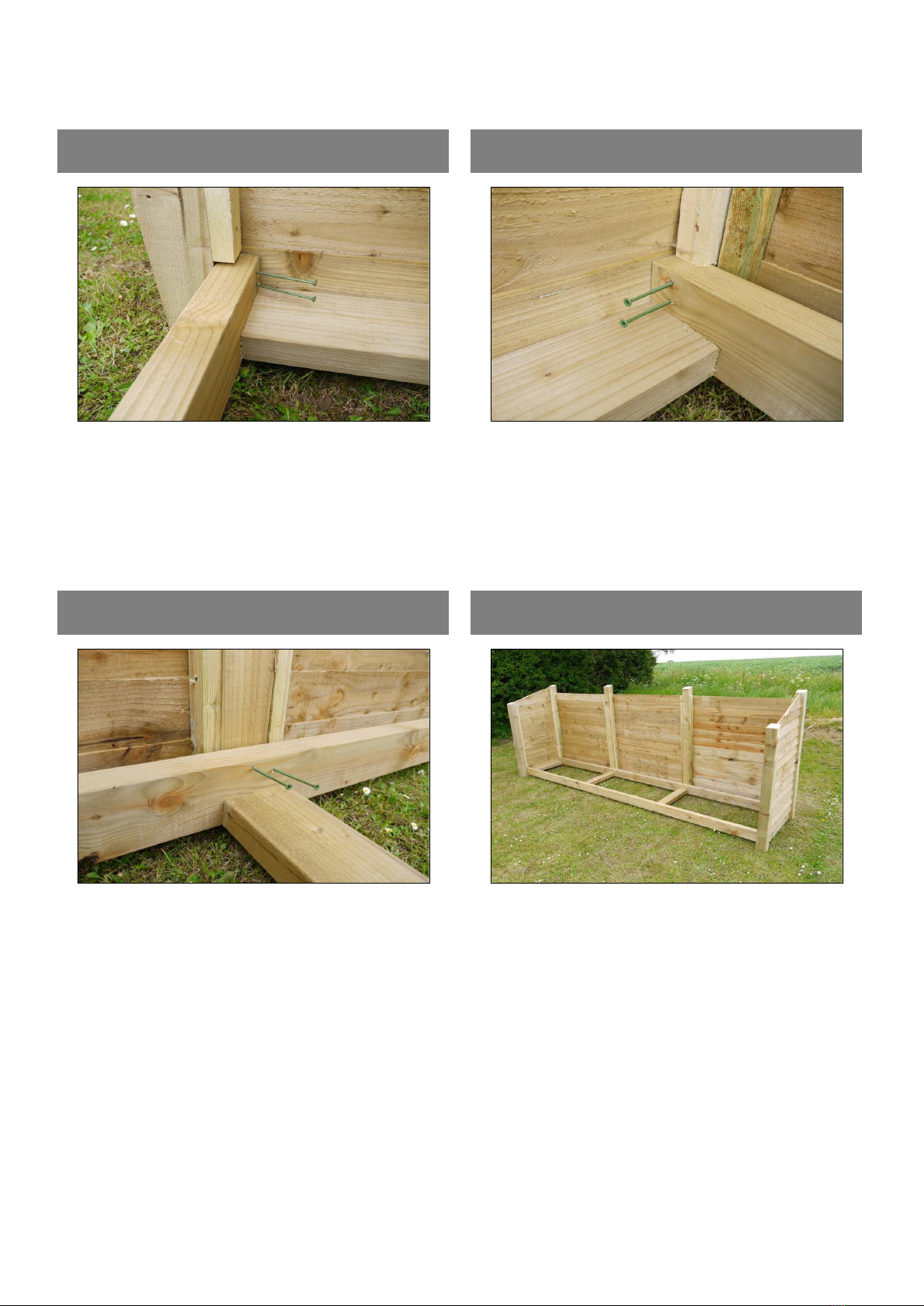

Attach the base to the end panel front post first,
using 2 of the 75mm screws.
Now attach the base to the end panel rear post using
two more 75mm screws.
Step 11
Step 12
Using more of the 75mm screws now attach the base
to the rear posts as shown.
Slide the remaining end panel into place as shown
above and attach it to the frame as you did with the
first end panel with 75mm screws into the front and
rear posts. If you are fitting a kindling shelf, omit
steps 13 -15 and attach the front posts before fitting
the kindling shelf, lattice and then attaching the roof.

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
5
Step 13
Step 14
Carefully place the roof on top of the end panel posts
ensuring that the batten ends sit flush with the posts
as shown. Now attach the roof to each end panel
post with 65mm screws.
Secure the rear of the roof using 65mm screws as
shown.
Step 15
Step 16
Having established which side of the store your door
(with the solid floor) is to be fitted on, sit the lattice
in the store so that it is leaning against the back panel
as shown above, so that you have enough clearance
to attach the front posts as shown in the next step.
Locate the pencil guide marks on the front face of the
base. This is where the centre posts will be fitted.

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
6
Step 17
Step 18
With the centre post lined up with the guide marks
on the base, locate the top of the post between the
central roof battens, flush with the batten ends, and
secure in place with 2 of the 65mm screws.
Check the positioning of the post within the guide
marks once again before securing the bottom of the
centre post with 2 more of the 75mm screws. Repeat
steps 16 - 18 for the remaining centre post. You can
then lower the lattice into its proper position.
Step 19
Step 20
Place a spacer block at the front of the log store
adjacent to the front end post and rest the hinge side
of the appropriate door on the block, aligning it
vertically and horizontally for a good fit. Now use four
of the supplied black hinge screws to affix the hinge
to the post.
Align the top hinge in place, ensuring that the gap
between the door and post is consistent at top and
bottom.

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
7
Step 21
Step 22
Secure the top hinge in place using more of the black
hinge screws. Repeat steps 19 - 21 for any further
doors as required.
Next affix the partition panel to the centre posts of
the store….
Step 23
Step 24
…by standing it in position and using the 65mm
screws, fix it to the rear post. The dividing panel
needs to be a tight fit but if too snug then release the
front centre post at the roof point...
...then pull the post forward slightly to allow room to
slot the panel into place, now reposition the post and
fix again at the roof. Now screw the dividing panel to
the front post.

Empingham 6ft tool store
Rutland County Garden Furniture Ltd, Ashbourne House, 2 Dovecote Meadows,
Aslackby, Sleaford, Lincs, NG34 0HZ.
Company No: 11025348 VAT No: 282569762
8
Step 21
Step 22
The tool store section of the store is now complete
and ready for the final stage.
The hasp is already screwed onto the front of the
door. Close the door and hold the hasp horizontal,
then position the staple and fix into place.
Step 23
Your Empingham log and tool store is now complete.
We hope that you found your product quick and easy to assemble but if not and you require any
further assistance or have any questions you can contact us by telephone on: 01778 440803
Email: [email protected]
www.rutlandcountygardenfurniture.co.uk
