Ryobi P118B User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
18 VOLT BATTERY CHARGER
CHARGEUR DE PILES DE 18 V
CARGADOR DE BATERÍA DE 18 V
P118B
Safety Rules for Charger ....................2
Symbols..............................................3
Assembly............................................3
Operation.........................................4-5
Maintenance.......................................5
Illustrations .........................................6
Parts Ordering/Service........Back page
Règles de sécurité pour le chargeur ..2
Symboles............................................3
Assemblage........................................3
Utilisation.........................................4-5
Entretien .............................................5
Illustrations .........................................6
Commande de pièces
et réparation......................Page arrière
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
Reglas de seguridad para el
empleo del cargador.......................... 2
Símbolos............................................ 3
Armado.............................................. 3
Funcionamiento..............................4-5
Mantenimiento................................... 5
Ilustraciones ...................................... 6
Pedidos de piezas
y servicio........................Pág. posterior
ADVERTENCIA: Para reducir
elriesgo delesiones, elusuario debeleer
y comprender el manual del operador
antes de usar este producto.
AVERTISSEMENT : Pour
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendre lemanuel d’utilisationavant
d’employer ce produit.
TABLE DES MATIÈRES ÍNDICE DE CONTENIDOTABLE OF CONTENTS
**************** **************** ****************
SAVE THIS MANUAL FOR
FUTURE REFERENCE
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS

2 — English
Keep cord and charger from heat to prevent damage
to housing or internal parts.
Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Failure to do so could result
in objects being thrown into your eyes resulting in possible
serious injury.
An extension cord should not be used unless absolutely
necessary. Use of improper extension cord could result
in a risk of fire and electric shock. If extension cord must
be used, make sure:
a. That pins on plug of extension cord are the same
number, size and shape as those of plug on charger.
b. That extension cord is properly wired and in good
electrical condition; and
c. That wire size is large enough for AC ampere rating
of charger as specified below:
Cord Length (Feet) 25’ 50’100’
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
Do not operate charger with a damaged cord or plug,
which could cause shorting and electric shock. If damaged,
have the charger replaced by an authorized serviceman.
Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take
it to an authorized serviceman for electrical check to de-
termine if the charger is in good working order.
Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of electric
shock.
Disconnect charger from the power supply when not in
use. This will reduce the risk of electric shock or damage
to the charger if metal items should fall into the opening.
It also will help prevent damage to the charger during a
power surge.
Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to preven t misuse of the product and possible injury.
SAFETY RULES FOR CHARGER
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure
to follow all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
Before using charger, read all instructions and cautionary
markings in this manual, on charger, battery, and product
using battery to prevent misuse of the products and
possible injury or damage.
WARNING:
Charge only one lithium-ion rechargeable battery at a time.
Other types of batteries may burst, causing personal injury,
fire, or damage. For compatible battery packs see tool/
appliance/battery pack/charger correlation supplement
987000-432.
Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
WARNING:
Do not charge a battery that is wet or has been wet or
exposed to liquids.
Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
fire, electric shock, or injury to persons. Following this
rule will reduce the risk of electric shock, fire, or serious
personal injury.
Donotchargebatteryinadamporwetlocation.Do
not use, store, or charge battery packs or products in
locations where the temperature is less than 50°F or
more than 100°F. Do not store outside or in vehicles.
Do not abuse cord or charger. Never use the cord to carry
the charger. Do not pull the charger cord rather than the
plug when disconnecting from receptacle. Damage to the
cord or charger could occur and create an electric shock
hazard. If cord or charger is damaged, have the charger
replaced by an authorized serviceman.
Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges or
moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury, and damage to the cord, which could
result in electric shock.
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS - DANGER: TO REDUCE RISK OF FIRE
OR ELECTRIC SHOCK CAREFULLY FOLLOW THESE INSTRUCTIONS.
This manual contains important safety and operating instructions for battery charger P118B.
2. Before using battery charger, read all instructions and cautionary markings on battery charger, battery, and product
using battery.
3. CAUTION: To reduce the risk of injury, charge only lithium-ion rechargeable batteries. Other types of batteries
may burst, causing personal injury or damage.

3 — English
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Wet Conditions Alert Riskoffireandburns. Do not expose battery,batterycompartment,
or electronic components to rain, water, or liquids.
V Volts Voltage
Hz Hertz Frequency (cycles per second)
W Watt Power
Alternating Current Type of current
Direct Current Type or a characteristic of current
SYMBOL NAME DESIGNATION/EXPLANATION
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or
moderate injury.
NOTICE:(Without Safety Alert Symbol) Indicates information considered important, but
not related to a potential injury (e.g. messages relating to property damage).
ASSEMBLY
WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
or with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories or attachments not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

4 — English
OPERATION
WARNING:
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
APPLICATIONS
You may use this product for the following purpose:
Charging Ryobi™18V Li-ion battery packs
NOTICE:
If at any point during the charging process none of the
LEDs are lit, remove the battery pack from the charger
to avoid damaging the product. DO NOT insert another
battery. Return the charger and battery to your nearest
authorized service center for service or replacement.
NOTICE:
Charge in a well-ventilated area. Do not block charger
vents. Keep them clear to allow proper ventilation.
KEY HOLE HANGER
See Figure 1, page 6.
To mount the charger, only use the key hole hanging feature.
Screws should be installed so that the center distance is
2-1/2 in.
CHARGING
See Figure 2, page 6.
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
them before first use. If the charger does not charge your
battery pack under normal circumstances, return both the
battery pack and charger to your nearest repair center for
electrical check.
Charge time is approximately 1 hour, and is dependent upon
the type of battery pack.
Make sure the power supply is normal household voltage,
120 volts, AC only, 60 Hz.
Connect the charger to a power supply.
Attach the battery pack to the charger by aligning the
raised ribs on the battery pack with the grooves in the
charger, then insert the battery pack into the charger.
Press down on the battery pack to be sure contacts on
the battery pack engage properly with contacts in the
charger. Latches should snap into place to ensure charger
is correctly connected.
Do not place the charger in an area of extreme heat or
cold. It will work best at normal room temperature.
The battery pack may become slightly warm to the touch
while charging. This is normal and does not indicate a
problem.
After charging is complete, the green LED will remain on.
To remove the battery pack from the charger, depress
latches and pull up on the battery pack.
When the battery pack is fully charged, remove it from
the charger.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the battery pack may
become hot. A hot battery pack may be placed directly onto
the charger port but charging will not begin until the battery
temperature cools to within acceptable temperature range.
When a hot battery pack is placed on the charger, the red
LED will begin flashing and the green LED will be off. When
the battery pack cools, the charger will automatically begin
charging.
CHARGING A COLD BATTERY PACK
A cold battery pack may be placed directly onto the charger
port but charging will not begin until the battery temperature
warms to within acceptable temperature range. When a cold
battery pack is placed on the charger, the red LED will begin
flashing and the green LED will be off. When the battery
pack warms, the charger will automatically begin charging.

5 — English
LED FUNCTION OF CHARGER
OPERATION
MAINTENANCE
WARNING:
When servicing use only identical replacement parts. Use
of any other parts can create a hazard or cause product
damage.
WARNING:
To avoid serious personal injury, always remove the bat-
tery pack from the tool when cleaning or performing any
maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which can result in serious personal injury.
STORAGE
Always remove the battery pack before storing the charger
or any time the charger is unplugged.
CHARGER LED
INDICATOR
BATTERY PACK
STATUS
RED
LED
GREEN
LED ACTION
POWER
Without
battery pack
ON OFF Ready to charge battery pack.
EVALUATE
Hot battery pack
Flashing OFF
When battery pack reaches cooled temperature,
charger begins charge mode.
Cold battery pack When battery pack reaches warmed temperature,
charger begins charge mode.
Deeply discharged Charger pre-charges battery until normal voltage is
reached, then begins charge mode.
ERROR
Pack inserted Flashing Flashing Battery pack or charger error.
• Try to repeat the conditions a second time by removing and reinstalling the battery pack. If the LED Error status
repeats a second time, try charging a different battery.
• If a different battery charges normally, dispose of the pack that received the Error (see your battery pack manual
for instructions).
• If a different battery also indicates Error, the charger should be replaced.
CHARGING Pack inserted OFF Flashing Charging
FULLY
CHARGED Pack inserted OFF ON Charging complete
NOTE: ILLUSTRATIONS START ON PAGE 6 AFTER FRENCH AND SPANISH
LANGUAGE SECTIONS.

6
Fig. 1
Fig. 2
A - Red LED (témoin rouge, indicador de rojo)
B - Green LED (témoin vert, indicador de verde)
C - Battery port (port de pile, port de batería)
D - Key hole hanger (trou de serrure pour la suspension, colgador tipo bocallave)
A - Red LED (témoin rouge, indicador de rojo)
B - Green LED (témoin vert, indicador de verde)
A
B
C
D
C - Depress latches to remove battery pack
(enfoncer les attaches pour retirer le bloc-pile,
para extraer el paquete de baterías oprima los
pestillos)
A
B
2-1/2 in.
(63 mm)
C
C

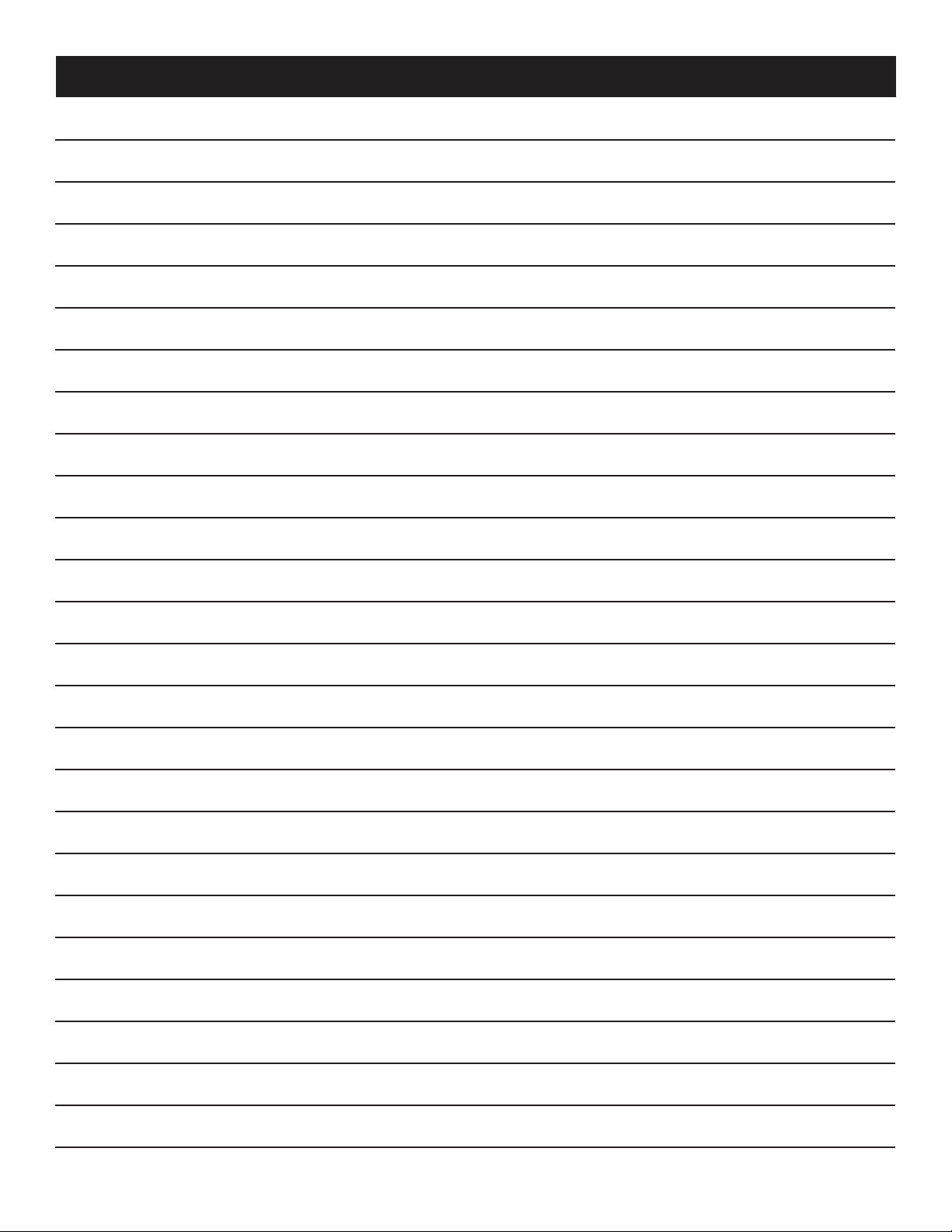

NOTES / NOTAS

995000562
11-20-19 (REV:10)
OPERATOR’S MANUAL/BATTERY CHARGER
MANUEL D’UTILISATION/CHARGEUR DE PILES
MANUAL DEL OPERADOR/CARGADOR DE BATERÍA
P118B
RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
RYOBI est une marque de Ryobi Limited et est utilisée en vertu d’une licence accordée par Ryobi Limited.
To request service, purchase replacement parts,
locate an Authorized Service Center and obtain Customer or Technical Support:
Visit www.ryobitools.com or call 1-800-525-2579
If any parts or accessories are damaged or missing,
do not return this product to the store. Call 1-800-525-2579 for immediate service.
Please obtain your model and serial number from the product data plate.
This product is covered under a 3-year limited Warranty. Proof of purchase is required.
MODEL NUMBER _______________ SERIAL NUMBER ____________________________
Pour faire une demande de réparations ou obtenir des pièces de rechange, trouver un
Centre de réparations agréé pour obtenir un soutien technique ou le Service à la clientèle :
Visiter www.ryobitools.com ou en téléphonant au 1-800-525-2579
Si des pièces ou accessoires sont manquantes ou endommagées, ne pas retourner
ce produit au magasin. Appeler immédiatement au 1-800-525-2579 pour obtenir de l’aide.
Inscrire les numéros de modèle et de série inscrits sur la plaque d’identification du produit.
Ce produit est couvert par une garantie limitée de trois (3) ans. Une preuve d’achat est exigée.
NUMÉRO DE MODÈLE _______________ NUMÉRO DE SÉRIE ____________________________
RYOBI es una marca de Ryobi Limited y se utiliza conforme a una licencia otorgada por Ryobi Limited.
Para obtener servicio, comprar piezas de repuesto, localizar un centro de servicio autorizado
y obtener Servicio o Asistencia Técnica al Consumidor:
Visite www.ryobitools.com (en la EE.UU.) o www.ryobitools.mx (en México)
o llame al 1-800-525-2579 (en la EE.UU.) o 01-800-843-1111 (en México).
Si hay alguna pieza o accesorios dañada o faltante, no devuelva este producto a la tienda.
Llame al 1-800-525-2579 (en la EE.UU.) o 01-800-843-1111 (en México) para servicio técnico inmediato.
Obtenga su modelo y número de serie de la placa de datos del producto.
Este producto está cubierto con una garantía limitada de 3 años. Se solicita prueba de la compra.
NÚMERO DE MODELO _______________ NÚMERO DE SERIE ____________________________
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622 • Phone [phone]
États-Unis, Téléphone 1-800-525-2579 • USA, Teléfono 1-800-525-2579
www.ryobitools.com

SAFETY RULES
Do not charge in an area of extreme heat or cold. It will
workbestatnormalroomtemperature.Toreducetherisk
of serious personal injury, do not store outside or in vehicles.
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and water.
If liquid gets into your eyes, flush them with clean
water for at least 10 minutes, then seek immediate
medical attention. Following this rule will reduce the risk
of serious personal injury.
When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause sparks, burns,
or a fire.
Always remove battery pack from your tool when you
are assembling parts, making adjustments, cleaning,
or when not in use. Removing battery pack will prevent
accidental starting that could cause serious personal
injury.
Always remove battery pack before storing the device.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Failure to do so could result
in objects being thrown into your eyes and other possible
serious injuries.
Keep battery pack dry, clean, and free from oil and
grease. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean battery pack.
Do not use a battery pack that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of injury.
Do not modify or attempt to repair a battery pack that
has been damaged.
Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130°C) may cause explosion.
Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature
range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may
damage the battery and increase the risk of fire.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result
in electric shock, fire and/or serious personal injury.
Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when changing
accessories. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and possibly
injury.
Do not crush, drop or damage battery pack. Do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
serious personal injury, never use any cordless product
in the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
Do not charge battery tool in a damp or wet location.
Following this rule will reduce the risk of electric shock.
Charge only with RYOBI™ONE+™18V dual-chemistry
battery chargers. Use of other chargers may result in
personal injury, fire, or damage.
To register your RYOBI™product, please visit:
http://register.ryobitools.com
Use this battery pack for RYOBI™ONE+™18V cordless
products only. Refer to the Operator’s Manual provided with
product. Always mention the model number above when
communicating with us regarding this battery pack.
OPERATOR’S MANUAL
18 V, 1.5 AhLITHIUM-ION
BATTERY PACK
P189
1 - English

2 - English
LITHIUM-ION BATTERY PACKS
Lithium-ion batteries deliver fade free power for their entire
run time. Lithium-ion tools will not gradually lose power
due to decreasing battery charge. Instead, power from the
battery pack will drop from full to zero once the full charge
has been drained from the battery. Once this happens,
recharging of the battery is required. It is not necessary to
drain the battery pack completely before recharging.
BATTERY PROTECTION FEATURES
Lithium-ion battery packs are designed with features that
protect the lithium-ion cells and maximize battery life.
If the tool stops during use, release the trigger to reset and
resume operation. If the tool still does not work, the battery
needs to be recharged.
COLD WEATHER OPERATION
The lithium-ion battery pack can be used in temperatures
down to 32°F (0°C). Put the battery pack on a tool and use
the tool in a light duty application. After about a minute, the
pack will warm up and begin operating normally.
CHARGING THE BATTERY PACK
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
prior to first use. If the charger does not charge the battery
pack under normal circumstances, return both the battery
pack and charger to your nearest Authorized Service Center
for electrical check.
Charge the battery pack only with the recommended
charger.
Refer to charger operator’s manual for charging instruc-
tions.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the battery pack may
become hot. A hot battery pack may be placed directly onto
the charger port but charging will not begin until the battery
temperature cools to within acceptable temperature range.
Whenahotbatterypackisplacedonthecharger,thecharger
may indicate the pack is not ready to charge. Please refer
to charger operator’s manual. When the battery pack cools,
the charger will automatically begin charging.
CHARGING A COLD BATTERY PACK
A cold battery pack may be placed directly onto the charger
port but charging will not begin until the battery temperature
warms to within acceptable temperature range. When a
cold battery pack is placed on the charger, the charger may
indicate the pack is not ready to charge. Please refer to
charger operator’s manual. When the battery pack warms,
the charger will automatically begin charging.
BATTERIES
These batteries have been designed to provide maximum
trouble-freelife.However,likeallbatteries,they will eventually
wear out. Do not disassemble battery pack and attempt to
replace the batteries. Handling of these batteries, especially
whenwearingringsandjewelry, could resultinaseriousburn.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below
80°F and away from moisture.
Store battery packs in a 30%-50% charged condition.
Every six months of storage, charge the pack as normal.
BATTERY PACK REMOVAL AND PREPARATION
FOR RECYCLING
To preserve natural resources, please recycle
or dispose of batteries properly.
This product contains lithium-ion batteries.
Local, state or federal laws may prohibit
disposal of lithium-ion batteries in ordinary
trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.
WARNING!
Upon removal, cover the battery pack’s terminals with
heavy-duty adhesive tape. Do not attempt to destroy or
disassemble battery pack or remove any of its compo-
nents. Batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects and/
or body parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
result in fire and/or serious injury.
MAINTENANCE
OPERATION
SAVE THESE INSTRUCTIONS

OPERATOR’S MANUAL/18 V, 1.5 AhLITHIUM-ION BATTERY PACK
MANUEL D’UTILISATION/18 V, 1.5 AhBLOC-PILE DE LITHUM-ION
MANUAL DEL OPERADOR/PAQUETE DE BATERÍAS 18 V, 1.5 AhIONES DE LITIO
P189
RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
Model number on product may have additional letters at the end. These letters designate
manufacturing information and should be provided when calling for service.
RYOBI est une marque de Ryobi Limited et est utilisée en vertu d’une licence accordée par Ryobi Limited.
Le numéro de modèle sur le produit peut contenir des lettres supplémentaires à la fin. Ces lettres désignent
les informations du fabricant et doivent être fournies lors d’un appel de demande de service.
RYOBI es una marca de Ryobi Limited y se utiliza conforme a una licencia otorgada por Ryobi Limited.
El número de modelo que figura en el producto podría tener letras adicionales al final. Estas designan información
de fabricación y deben suministrarse cuando llame para obtener asistencia o servicio.
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622 • Phone [phone]
États-Unis, Téléphone 1-800-525-2579 • USA, Teléfono 1-800-525-2579
www.ryobitools.mx 01-800-843-1111 (en México)
www.ryobitools.com
995000214
3-26-20 (REV:05)

1 - English
SAFETY RULES
the battery terminals together may cause sparks, burns,
or a fire.
Always remove battery pack from your tool when you
are assembling parts, making adjustments, cleaning,
or when not in use. Removing battery pack will prevent
accidental starting that could cause serious personal
injury.
Always remove battery pack before storing the device.
When battery becomes fully charged, unplug the
charger from the power supply and remove the battery
pack from the charger.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Failure to do so could result
in objects being thrown into your eyes and other possible
serious injuries.
Keep battery pack dry, clean, and free from oil and
grease. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean battery pack.
Do not use a battery pack that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of injury.
Do not modify or attempt to repair a battery pack that
has been damaged.
Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130°C) may cause explosion.
Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Fail-
ure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and possibly
injury.
Do not crush, drop or damage battery pack. Do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
serious personal injury, never use any cordless product
in the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
Do not charge battery tool in a damp or wet location.
Following this rule will reduce the risk of electric shock.
Charge only with RYOBI™18V battery chargers. Use
of other chargers may result in personal injury, fire,
or damage.
Do not charge in an area of extreme heat or cold. It
will work best at normal room temperature. To reduce
the risk of serious personal injury, do not store outside or
in vehicles.
Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water. If
liquid gets into your eyes, flush them with clean water
for at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of serious
personal injury.
When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make
a connection from one terminal to another. Shorting
To register your RYOBI™product, please visit:
http://register.ryobitools.com
Use this battery pack for RYOBI™ONE+™18 V cordless products
only. Refer to the Operator’s Manual provided with product. Always
mention the model number above when communicating with us
regarding this battery pack.
LITHIUM-ION BATTERY PACKS
Lithium-ion batteries deliver fade free power for their entire
run time. Lithium-ion tools will not gradually lose power due
to decreasing battery charge. Instead, power from the battery
pack will drop from full to zero once the full charge has been
drained from the battery. Once this happens, recharging of
the battery is required. It is not necessary to drain the battery
pack completely before recharging.
BATTERY PROTECTION FEATURES
Lithium-ion battery packs are designed with features that
protect the lithium-ion cells and maximize battery life.
If the tool stops during use, release the trigger to reset and
resume operation. If the tool still does not work, the battery
needs to be recharged.
COLD WEATHER OPERATION
The lithium-ion battery pack can be used in temperatures
down to 14°F (-10°C). Put the battery pack on a tool and use
the tool in a light duty application. After about a minute, the
pack will warm up and begin operating normally.
OPERATION
18 V LITHIUM-ION
BATTERY PACK
P197

2 - English
MAINTENANCE
Fig. 1
CHARGE LEVEL
INDICATOR BUTTON
CHARGE LEVEL
INDICATOR
BATTERY FUEL GAUGE
To display the amount of charge left in the battery, press the
charge level indicator button.
LED FUNCTIONS CHARGE STATUS
0 - 10%
10 - 25%
25 - 50%
50 - 75%
75 - 100%
CHARGING THE BATTERY PACK
See Figure 1.
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
prior to first use. If the charger does not charge the battery
pack under normal circumstances, return both the battery
pack and charger to your nearest Authorized Service Center
for electrical check.
Charge the battery pack only with the recommended
charger.
Refer to charger operator’s manual for charging instruc-
tions.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the battery pack may
become hot. A hot battery pack may be placed directly
onto the charger port but charging will not begin until the
battery temperature cools to within acceptable temperature
range. When a hot battery pack is placed on the charger,
the charger may indicate the pack is not ready to charge.
Please refer to charger operator’s manual. When the battery
pack cools, the charger will automatically begin charging.
CHARGING A COLD BATTERY PACK
A cold battery pack may be placed directly onto the charger
port but charging will not begin until the battery temperature
warms to within acceptable temperature range. When a
cold battery pack is placed on the charger, the charger may
indicate the pack is not ready to charge. Please refer to
charger operator’s manual. When the battery pack warms,
the charger will automatically begin charging.
BATTERIES
These batteries have been designed to provide maximum
trouble-free life. However, like all batteries, they will even-
tually wear out. Do not disassemble battery pack and at-
tempt to replace the batteries. Handling of these batteries,
especially when wearing rings and jewelry, could result in
a serious burn.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below
80°F and away from moisture.
Store battery packs in a 30%-50% charged condition.
Every six months of storage, charge the pack as normal.
BATTERY PACK REMOVAL AND PREPARATION
FOR RECYCLING
To preserve natural resources, please recycle
or dispose of batteries properly.
This product contains lithium-ion batteries.
Local, state or federal laws may prohibit
disposal of lithium-ion batteries in ordinary
trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.
WARNING!
Upon removal, cover the battery pack’s terminals with
heavy-duty adhesive tape. Do not attempt to destroy or
disassemble battery pack or remove any of its compo-
nents. Batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects and/
or body parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
result in fire and/or serious injury.
SAVE THESE
INSTRUCTIONS

OPERATOR’S MANUAL/18 V LITHIUM-ION BATTERY PACK
MANUEL D’UTILISATION/18 V BLOC-PILE DE LITHUM-ION
MANUAL DEL OPERADOR/PAQUETE DE BATERÍAS 18 V IONES DE LITIO
P197
RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
Model number on product may have additional letters at the end. These letters designate
manufacturing information and should be provided when calling for service.
RYOBI est une marque de Ryobi Limited et est utilisée en vertu d’une licence accordée par Ryobi Limited.
Le numéro de modèle sur le produit peut contenir des lettres supplémentaires à la fin. Ces lettres désignent
les informations du fabricant et doivent être fournies lors d’un appel de demande de service.
RYOBI es una marca de Ryobi Limited y se utiliza conforme a una licencia otorgada por Ryobi Limited.
El número de modelo que figura en el producto podría tener letras adicionales al final. Estas designan información
de fabricación y deben suministrarse cuando llame para obtener asistencia o servicio.
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622 • Phone [phone]
États-Unis, Téléphone 1-800-525-2579 • USA, Teléfono 1-800-525-2579
www.ryobitools.com
995000317
3-19-20 (REV:04)

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
P215/P215VN DRILL-DRIVER
PERCEUSE-TOURNEVIS
TALADRO-DESTORNILLADOR
P235A/P235AVN IMPACT DRIVER
CLÉ À CHOCS
DESTORNILLADOR DE IMPACTO
P215/
P215VN
P235A/
P235AVN
TABLE OF CONTENTS
****************
General Power Tool Safety
Warnings.........................................2-3
Safety Instructions for Drills/Impact
Drivers.............................................3-4
Symbols ..........................................4-5
Assembly ...........................................5
Operation ........................................5-7
Maintenance ......................................9
Illustrations..................................10-11
Parts Ordering and
Service ................................Back page
TABLE DES MATIÈRES
****************
Avertissements de sécurité générales
relatives aux outils électriques..... 2-3
Avertissements de sécurité
relatifs perceuse/tournevis et
clé à chocs................................... 3-4
Symboles ..................................... 4-5
Assemblage......................................5
Utilisation ..................................... 5-7
Entretien...........................................9
Illustrations............................... 10-11
Commande de pièces et
dépannage ..................... Page arrière
ÍNDICE DE CONTENIDO
****************
Advertencias de seguridad para
herramientas eléctrica ................... 2-3
Advertencias de seguridad de
taladro/destornillador y
destornillador de impacto..................4
Símbolos............................................5
Armado..............................................6
Funcionamiento............................. 6-8
Mantenimiento...................................9
Illustraciones.............................. 10-11
Pedidos de piezas y
servicio .........................Pág. posterior
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
ADVERTENCIA: Para reducir
elriesgo delesiones, elusuario debeleer
y comprender el manual del operador
antes de usar este producto.
AVERTISSEMENT : Pour
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendre lemanuel d’utilisationavant
d’employer ce produit.
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE

2 — English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed
or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suitable
for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoid-
able, use a ground fault circuit interrupter (GFCI) pro-
tected supply. Use of a GFCI reduces the risk of electric
shock.
Use this product only with batteries and chargers listed
in tool/appliance/battery pack/charger correlation
supplement 987000-432.
PERSONAL SAFETY
Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites ac-
cidents.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within
a fraction of a second.
Do not wear loose clothing or jewelry. Contain long hair.
Loose clothes, jewelry, or long hair can be drawn into air
vents.
Do not use on a ladder or unstable support. Stable foot-
ing on a solid surface enables better control of the power
tool in unexpected situations.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
P215/P215VN DRILL-DRIVER AND P235A/P235AVN IMPACT DRIVER

3 — English
GENERAL POWER TOOL
SAFETY WARNINGS
DRILL/DRIVER / IMPACT DRIVER SAFETY WARNINGS
P215/P215VN DRILL/DRIVER
SAFETY INSTRUCTIONS FOR ALL
OPERATIONS
Hold the power tool by insulated gripping surfaces,
when performing an operation where the cutting ac-
cessory or fasteners may contact hidden wiring. Cutting
accessory or fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give
the operator an electric shock.
SAFETY INSTRUCTIONS WHEN USING LONG
DRILL BITS
Never operate at higher speed than the maximum
speed rating of the drill bit. At higher speeds, the bit is
likely to bend if allowed to rotate freely without contacting
the workpiece, resulting in personal injury.
Always start drilling at low speed and with the bit tip in
contact with the workpiece. At higher speeds, the bit is
likely to bend if allowed to rotate freely without contacting
the workpiece, resulting in personal injury.
Apply pressure only in direct line with the bit and do
not apply excessive pressure. Bits can bend causing
breakage or loss of control, resulting in personal injury.
P235A/P235AVN IMPACT DRIVER
SAFETY INSTRUCTIONS FOR ALL
OPERATIONS
Hold the power tool by insulated gripping surfaces,
when performing an operation where the fastener may
contact hidden wiring. Fasteners contacting a “live” wire
may make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
ADDITIONAL SAFETY INSTRUCTIONS
Know your power tool. Read operator’s manual care-
fully. Learn its applications and limitations, as well as
the specific potential hazards related to this power tool.
Following this rule will reduce the risk of electric shock, fire,
or serious injury.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1 when assembling parts, op-
erating the tool, or performing maintenance. Following
this rule will reduce the risk of serious personal injury.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manu-
facturer. A charger that is suitable for one type of battery
pack may create a risk of fire when used with another
battery pack.
Use power tools only with specifically designated bat-
tery packs. Use of any other battery packs may create a
risk of injury and fire.
When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally oc-
curs, flush with water. If liquid contacts eyes, addition-
ally seek medical help. Liquid ejected from the battery
may cause irritation or burns.
Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
Do not expose a battery pack or tool to fire or exces-
sive temperature. Exposure to fire or temperature above
265°F may cause explosion.
Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage the
battery and increase the risk of fire.
SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Never service damaged battery packs. Service of battery
packs should only be performed by the manufacturer or
authorized service providers.
GENERAL POWER TOOL SAFETY WARNINGS
SAFETY INSTRUCTIONS FOR DRILLS / IMPACT DRIVERS
P215/P215VN DRILL-DRIVER AND P235A/P235AVN IMPACT DRIVER

4 — English
ASSEMBLY
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s
Manual
To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Eye Protection Always wear eye protection with side shields marked to comply with ANSI
Z87.1.
Wet Conditions
Alert Do not expose to rain or use in damp locations.
Hot Surface To reduce the risk of injury or damage, avoid contact with any hot surface.
Recycle Symbol
This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws
may prohibit disposal of batteries in ordinary trash. Consult your local waste
authority for information regarding available recycling and/or disposal options.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or
moderate injury.
NOTICE:(Without Safety Alert Symbol) Indicates information considered important, but
not related to a potential injury (e.g. messages relating to property damage).
Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not us-
ing your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and possibly
injury.
Do not crush, drop or damage battery pack. Do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
SAFETY INSTRUCTIONS FOR DRILLS / IMPACT DRIVERS
Batteries can explode in the presence of a source of
ignition, such as a pilot light. To reduce the risk of seri-
ous personal injury, never use any cordless product in the
presence of open flame. An exploded battery can propel
debris and chemicals. If exposed, flush with water imme-
diately.
Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water. If
liquid gets into your eyes, flush them with clean water
for at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of serious
personal injury.
Save these instructions. Refer to them frequently and use
them to instruct others who may use this tool. If you loan
someone this tool, loan them these instructions also.

5 — English
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
min Minutes Time
Direct Current Type or a characteristic of current
n
o
No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
ASSEMBLY
WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
or with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories or attachments not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to pos-
sible serious personal injury.
If any parts are damaged or missing, please call 1-800-525-2579 for assistance.
WARNING:
Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict serious injury.
WARNING:
Always remove battery pack from the tool when you are
assembling parts, making adjustments, cleaning, or when
not in use. Removing battery pack will prevent accidental
starting that could cause serious personal injury.
OPERATION
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes and other possible
serious injuries.
WARNING:
Do not use any attachments or accessories not recom-
mended by the manufacturer of this product. The use of
attachments or accessories not recommended can result
in serious personal injury.

6 — English
P215/P215VN DRILL-DRIVER AND P235A/P235AVN IMPACT DRIVER
APPLICATIONS
You may use these producst for the purposes listed below:
P215/P215VN
Drilling and driving screws in all types of wood products
(lumber, plywood, paneling, composition board, and hard
board), ceramics, plastics, fiberglass, laminates, metals;
Driving screws into wood and drywall with screwdriver bits
P235A/P235AVN
Driving and removing screws/lag bolts; tightening screws,
nuts, and bolts
VARIABLE SPEED SWITCH TRIGGER
See Figure 1, page 10 (P215/P215VN).
See Figure 1, page 11 (P235A/P235AVN).
The variable speed switch trigger delivers higher speed with
increased trigger pressure and lower speed with decreased
trigger pressure.
To turn the drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger and allow the chuck to come
to a complete stop.
NOTE: A whistling or ringing noise coming from the switch
during use is a normal part of the switch function.
NOTE: Running at low speeds under constant usage may
cause the drill to become overheated. If this occurs, cool the
drill by running it without a load and at full speed.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
See Figure 1, page 10 (P215/P215VN).
See Figure 1, page 11 (P235A/P235AVN).
Set the direction of rotation selector in the OFF (center lock)
position to lock the switch trigger and help prevent accidental
starting when not in use.
Position the direction of rotation selector to the left of the
switch trigger for forward drilling. Position the selector to the
right of the switch trigger to reverse the direction.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
NOTICE:
To prevent gear damage, always allow the chuck to
come to a complete stop before changing the direction
of rotation.
WARNING:
Battery tools are always in operating condition. Lock
the switch when not in use or carrying at your side,
when installing or removing the battery pack, and when
installing or removing bits.
INSTALLING/REMOVING BATTERY PACK
See Figure 2, page 10 (P215/P215VN).
See Figure 2, page 11 (P235A/P235AVN).
Lock the switch trigger.
Insert the battery pack into the product as shown.
Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured in the
product before beginning operation.
Depress the latches to remove the battery pack.
Forcompletecharging instructions,seetheoperator’s manu-
als for your battery pack and charger.
OPERATION
INSTALLING/REMOVING BITS
See Figures 3 - 4, page 10.
The arrows on the keyless chuck indicate which direction
to rotate the chuck sleeve to tighten or release the drill bit.
Do not use a wrench to tighten or loosen the chuck jaws.
To install bits: Lock the switch trigger and remove the
battery pack.
Open or close the chuck jaws until the opening is slightly
larger than the bit size you intend to use.
Raise the front of the drill slightly and insert the drill bit.
OPERATION
P215/P215VN DRILL-DRIVER
WARNING:
Make sure to insert the drill bit straight into the chuck
jaws. Do not insert the drill bit into the chuck jaws at
an angle, then tighten. This could cause the drill bit to
be thrown from the drill, resulting in possible serious
personal injury or damage to the chuck.
Rotate the chuck sleeve to close and tighten the chuck
jaws.
