Ryobi DBJ50 Operation manual

SAVE THIS MANUAL FOR FUTURE REFERENCE
OWNER'S OPERATING MANUAL
DETAIL BISCUIT JOINER / DBJ50
DOUBLE INSULATED
THANK YOU FOR BUYING A RYOBI DETAIL BISCUIT JOINER.
Your new detail biscuit joiner has been engineered and manufactured to Ryobi's high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire owner's manual before using your new detail biscuit joiner.
PaycloseattentiontotheRulesforSafeOperation,Warnings,andCautions.Ifyouuseyourdetailbiscuitjoinerproperlyand
only for what it is intended, you will enjoy years of safe, reliable service.
Thank you again for buying Ryobi tools.
SPECIFICATIONS:
No Load Speed 19,000 rpm
Rating 120 volts, 60 Hz, AC
3.5 Amperes
Fence Angles 45°and 90°
Fence Height Adjustment
With Fence Angle Set on 90°0 - 3/4 in.
With Fence Angle Set on 45°5/16 in. - 13/16 in.
Depth Of Cut
With Micro Depth Of Cut Adjustment 0 - 9/32 in. (0 - 7 mm)
Net Weight 3.625 lbs (1.65 kg.)
1
2
1
23
3
0
5
16
3
4
45°
90°

Page 2
RULES FOR SAFE OPERATION
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident
prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL:
Indicates caution or warning. May be used in conjunction with other symbols or pictographs.
DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others. Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others. Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
CAUTION:Failuretoobeyasafetywarningmayresultinpropertydamageorpersonalinjurytoyourself
or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal
injury.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.
IMPORTANT
Servicing of a tool with double insulation requires
extreme care and knowledge of the system and should
be performed only by a qualified service technician.
For service we suggest you return the tool to your
nearest RYOBI AUTHORIZED SERVICE CENTER for
repair. When servicing use only identical Ryobi
replacement parts.
DOUBLE INSULATION
Double insulation is a concept in safety, in electric power
tools, which eliminates the need for the usual three-wire
grounded power cord. All exposed metal parts are isolated
from the internal metal motor components with protecting
insulation.Doubleinsulatedtoolsdonotneedtobegrounded.
DANGER:
To avoid serious personal injury, keep hands out of
blade path.
WARNING:
The double insulated system is intended to protect the
user from shock resulting from a break in the tool's
internal wiring. Observe all normal safety precautions
related to avoiding electrical shock.
WARNING:
Do not attempt to operate this tool until you have read
thoroughly and understand completely all instructions,
safety rules, etc. contained in this manual. Failure to
comply can result in accidents involving fire, electric
shock, or serious personal injury. Save owner's manual
and review frequently for continuing safe operation, and
instructing others who may use this tool.

Page 3
1. KNOWYOURPOWERTOOL.Readowner's
manual carefully. Learn its applications and
limitations as well as the specific potential
hazards related to this tool.
2. GUARD AGAINST ELECTRICAL SHOCK
BY PREVENTING BODY CONTACT WITH
GROUNDED SURFACES. For example:
Pipes, radiators, ranges, refrigerator
enclosures.
3. KEEPWORKAREACLEAN.Clutteredareas
and benches invite accidents.
4. AVOID DANGEROUS ENVIRONMENT.
Don'tusepowertoolsindamporwetlocations
or expose to rain. Keep work area well lit.
5. KEEP CHILDREN AND VISITORS AWAY.
Allvisitorsshouldwearsafetyglassesandbe
keptasafedistancefromworkarea.Donotlet
visitors contact tool or extension cord.
6. STORE IDLE TOOLS. When not in use tools
should be stored in a dry, high or locked-up
place – out of the reach of children.
7. DON'TFORCETOOL.Itwilldothejobbetter
andsaferattherateforwhichitwasdesigned.
8. USE RIGHT TOOL. Don't force small tool or
attachment to do the job of a heavy duty tool.
Don't use tool for purpose not intended – for
example–Don't useacircular sawforcutting
tree limbs or logs.
9. DRESS PROPERLY. Do not wear loose
clothing or jewelry. They can be caught in
moving parts. Rubber gloves and nonskid
footwear are recommended when working
outdoors. Also, wear protective hair covering
to contain long hair and keep it from being
drawn into air vents.
10. ALWAYS WEAR SAFETY GLASSES WITH
SIDE SHIELDS. Everyday eyeglasses have
only impact resistant lenses; they are NOT
safety glasses.
11. PROTECT YOUR LUNGS. Wear a face or
dust mask if operation is dusty.
12. PROTECT YOUR HEARING. Wear hearing
protection during extended periods of
operation.
13. DON'T ABUSE CORD. Never carry tool by
cord or yank it to disconnect from receptacle.
Keep cord from heat, oil, and sharp edges.
14. SECURE WORK. Use clamps or a vise to
holdwork.It's saferthanusingyourhandand
it frees both hands to operate tool.
15. DON'T OVERREACH. Keep proper footing
and balance at all times. Do not use on a
ladder or unstable support.
16. MAINTAIN TOOLS WITH CARE. Keeptools
sharp at all times, and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
17. DISCONNECT TOOLS. When not in use,
before servicing, or when changing
attachments, blades, bits, cutters, etc., all
tools should be disconnected.
18. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to see
thatkeysandadjustingwrenchesareremoved
from tool before turning it on.
19. AVOID ACCIDENTAL STARTING. Don't
carryplugged-intoolwithfingeronswitch.Be
sure switch is off when plugging in.
20. MAKE SURE YOUR EXTENSION CORD IS
IN GOOD CONDITION. When using an
extension cord, be sure to use one heavy
enough to carry the current your product will
draw.Anundersizedcordwill causea dropin
line voltage resulting in loss of power and
overheating. A wire gage size (A.W.G.) of at
least 16 is recommended for an extension
cord50feetorlessinlength.Acordexceeding
100feet is notrecommended.If in doubt,use
the next heavier gage. The smaller the gage
number, the heavier the cord.
21. OUTDOOR USE EXTENSION CORDS.
Whentoolisusedoutdoors,useonlyextension
cords intended for use outdoors. Outdoor
approvedcordsaremarkedwiththesuffixW-
A, for example - SJTW-A or SJOW-A.
22. KEEPBLADESCLEANANDSHARP.Sharp
blades minimize stalling and kickback.
23. KEEP HANDS AWAY FROM CUTTING
AREA.Keephandsawayfromblades.Donot
reachunderneathworkwhilebladeisrotating.
WARNING:BLADESCOASTAFTERTURN
OFF.
24. NEVER USE IN AN EXPLOSIVE
ATMOSPHERE.Normalsparkingofthemotor
could ignite flammable liquids, gases, or
fumes.
READ ALL INSTRUCTIONS

Page 4
RULES FOR SAFE OPERATION (Continued)
25. INSPECT TOOL CORDS PERIODICALLY
andifdamaged,haverepairedatyournearest
authorized service center. Stay constantly
aware of cord location and keep it well away
from the rotating blade.
26. INSPECT EXTENSION CORDS PERIODI-
CALLY and replace if damaged.
27. KEEP HANDLES DRY, CLEAN, AND FREE
FROM OIL AND GREASE. Always use a
clean cloth when cleaning. Never use brake
fluids, gasoline, petroleum-based products,
or any strong solvents to clean your tool.
28. STAY ALERT AND EXERCISE CONTROL.
Watch what you are doing and use common
sense.Donotoperatetoolwhenyouaretired.
Do not rush.
29. CHECK DAMAGED PARTS. Before further
use of the tool, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and
perform its intended function. Check for
alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any
otherconditionsthat may affect its operation.
A guard or other part that is damaged should
be properly repaired or replaced by an
authorized service center.
30. DONOTUSE TOOLIFSWITCHDOES NOT
TURN IT ON AND OFF. Have switches
replaced by an authorized service center.
31. DRUGS, ALCOHOL, MEDICATION. Do not
operate this tool while under the influence of
drugs, alcohol, or any medication.
32. GUARD AGAINST KICKBACK. Kickback
occurs when the blade stalls rapidly and the
biscuitjoinerisdriveninthedirectionopposite
blade rotation. Release switch immediately if
blade binds or joiner stalls.
33. USE ONLY 1-1/2 in. (38 mm) DIAMETER
SPECIFIEDBLADES.Donotusebladeswith
incorrectsizeholes.Neverusebladewashers
or bolts that are defective, incorrect, or not
specified.
34. AVOID CUTTING NAILS. Inspect for and
remove all nails from lumber before cutting.
35. NEVERtouchthebladeorothermovingparts
during use.
36. NEVER start a tool when the blade is in
contact with the workpiece.
37. NEVER lay a tool down before the blade has
come to a complete stop.
38. POLARIZED PLUGS. To reduce the risk of
electricshock,thisequipmenthasapolarized
plug (one blade is wider than the other). This
plug will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any way.
39. WHENSERVICING USE ONLY IDENTICAL
RYOBI REPLACEMENT PARTS.
40. SAVETHESEINSTRUCTIONS.Refertothem
frequently and use them to instruct others
who may use this tool. If you loan someone
this tool, loan them these instructions also.
WARNING:
Somedustcreatedbypowersanding,sawing,grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these
chemicals are:
•lead from lead-based paints,
•crystalline silica from bricks and cement and other
masonry products, and
•arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
asthosedustmasksthatarespeciallydesignedtofilter
out microscopic particles.
SAVE THESE INSTRUCTIONS

Page 5
TABLE OF CONTENTS
■Rules For Safe Operation...........................................................2-4
■Table of Contents / Introduction .....................................................5
■Typical Applications .......................................................................6
■Features .....................................................................................7-8
■Adjustments..............................................................................9-10
■Operation................................................................................11-16
■Maintenance...........................................................................17-19
■Optional Accessories ...................................................................19
■Troubleshooting...........................................................................20
■Service Information......................................................................22
Spline joinery is one of the strongest methods of joinery
used in woodworking. When glue is properly applied to a
spline and to the joint area of the wood pieces being
connected, a large surface area receives the adhesion
properties of the glue. This forms a very strong joint.
Traditional spline joinery requires cutting slots with a router
or table saw. Small, thin strips of wood must then be cut to
fit inside the slots and act as splines.
Newer methods of spline joinery use a plate or biscuit
joiner to cut precise mating oval slots in adjoining boards.
Your new biscuit joiner is a fast, simple, and accurate
plunge cutting tool that can be used for this purpose. It can
be used to cut slots in hardwood, softwood, plywood, par-
ticle board, and other pressed woods.
Football shaped wafers, called biscuits, are then placed
inside the slots with glue and used to help line up adjoining
surfaces. When a water based glue is used, the biscuits
swell in the joint, making an extremely strong and firm
bond. White glue, yellow glue, carpenters glue, hide glue,
and aliphatic resin glue are examples of water based glues.
This bonding technique has traditionally been limited to
making edge-to-edge joints. However, with the use of your
new biscuit joiner, biscuits can now be easily used to
connect butt, miter, and T-joints. Biscuit joining can be as
strong as mortise and tenon, tongue and groove, standard
spline, and doweled joints. In most cases the material
around the biscuit will break before the biscuit itself will
break. A greater surface area is exposed to glue in a biscuit
joint, making the seams stronger.
INTRODUCTION
Lookforthissymboltopointoutimportantsafetyprecautions.
It means attention!!! Your safety is involved.
The operation of any biscuit joiner can result in foreign objects being thrown into your
eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields and a full face shield
when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or
standard safety glasses with side shields.
GLASSES
SAFETY
WEAR YOUR
FORESIGHT IS BETTER
THAN NO SIGHT
WARNING:

Page 6
EDGE-TO-EDGE JOINTS
DETAIL BISCUIT JOINER / DBJ50
TYPICAL APPLICATIONS
BUTT JOINTS
T- JOINTMITER JOINTS
0
1
2
3
1
2
5
16
3
4
45°
90°

Page 7
FEATURES
WARNING:
Your detail biscuit joiner should never be connected to power supply when you are assembling parts, making
adjustments, assembling or removing blades, cleaning or when not in use. Disconnecting your detail biscuit joiner will
prevent accidental starting that could cause serious personal injury.
Fig. 1
Yourdetail biscuitjoiner hasbeen designedfor makingfast,
accurate, and simple plunge cuts in wood, etc. so that
biscuits can be used to join two or more boards together.
When used properly and only for what it is intended, this
versatiletoolwillgiveyouyearsoftrouble-freeperformance.
It is professionally engineered, but its ease of operation
allows the amateur to produce beautiful and precise work.
SWITCH
To turn your biscuit joiner ON, depress the switch trigger.
Release switch trigger to turn your biscuit joiner OFF.
MOTOR
Yourbiscuitjoinerhasapowerfulmotorwithsufficientpower
to handle tough cutting jobs. It develops a no load speed of
19,000 RPM.
BLADE
Your biscuit joiner has a 1-1/2 in. (38 mm) 6 tooth blade for
cutting biscuit slots.
BISCUITS
See Figure 1.
Biscuits are available in three standard sizes:
#R1 (7/32 in. x 5/8 in.)
#R2 (9/32 in. x 3/4 in.)
#R3 (1/2 in. x 1 in.)
NOTE: Store biscuits in a dry place because they swell
rapidly upon contact with water-based woodworking glues.
REVERSIBLE FENCE FOR 45°AND 90°CUTS
Your biscuit joiner has a reversible fence. By loosening the
heightadjustmentknobs,the fencecanberemovedthrough
keyholeslots.Onceremoved,itcanberotated180°changing
the angle of cut from 90°to 45°or vice versa. The height of
the fence at 90°can be set between 0 to 3/4 in. from the
centerofthe blade.Theheightof thefenceat 45°can beset
between 5/16 in. to 13/16 in. from the center of the blade.
The fence should always be used to guide and balance your
biscuit joiner, providing ease of operation and maintaining
safe control.
NONSKID BACKING PAD
The fence on your biscuit joiner is padded with a nonskid
backing pad to hold it stationary against the workpiece. It
helps prevent skidding when making cuts. It also prevents
marring of the workpiece from biscuit joiner when cutting.
INDICATOR MARKS
Centerlineandlineofcutindicatormarkshavebeenprovided
on your biscuit joiner. See Figure 2.
APPLICATIONS
(Use only for the purpose listed below)
■Cutting precise mating oval slots in hardwood, softwood,
plywood,particleboard,etc.forsplinejoineryapplications.
ELECTRICAL CONNECTION
Your biscuit joiner has a precision built electric motor. It
should be connected to a power supply that is 120 volts,
60 Hz, AC only (normal household current). Do not
operatethistoolondirectcurrent(DC).Asubstantialvoltage
drop will cause a loss of power and the motor will overheat.
If your biscuit joiner does not operate when plugged into an
outlet, double-check the power supply.
DEPTH ADJUSTMENT KNOB
A spring loaded depth adjustment knob makes it possible to
make proper settings for three standard size biscuits. Fine
adjustmentstothecuttingdepth can be madewith aknurled
adjustment knob and jam nut located behind the depth
adjustment knob. Once the correct depth setting has been
madeforonebiscuitsize,theothertwodepthsettingswillbe
automatically set.
3
2
#R1 = 7/32 in. x 5/8 in.
#R2 = 9/32 in. x 3/4 in.
#R3 = 1/2 in. x 1 in.
O
A
b
p

Page 8
1
2
1
23
3
0
5
16
3
4
45°
90°
0
5
16
3
4
45°
90°
FEATURES

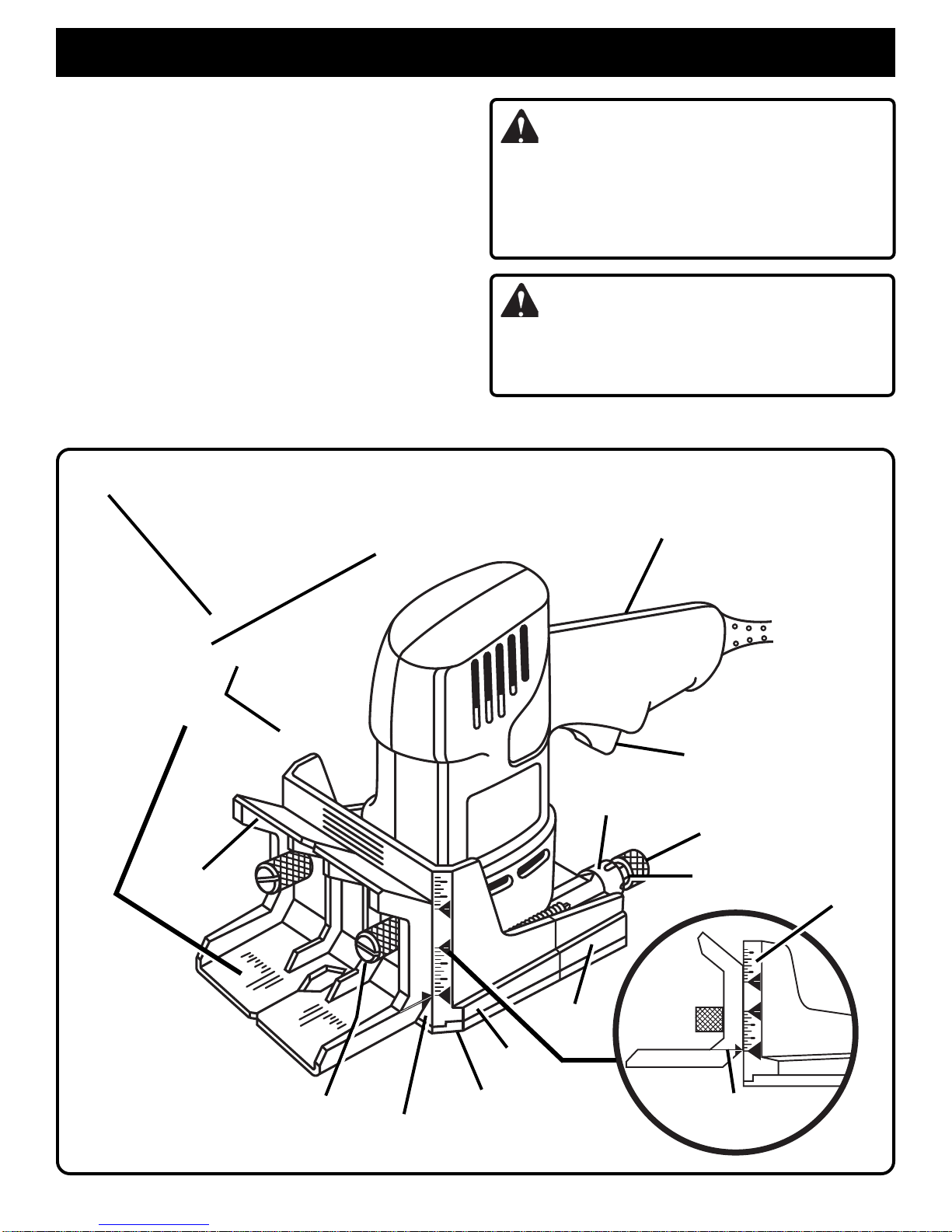

KNOW YOUR DETAIL BISCUIT JOINER
See Figure 2.
Your biscuit joiner has been shipped completely assembled
and ready for use. An owner's manual and warranty
registrationarealsoincluded.Inspectyournewbiscuitjoiner
carefullytomakesurenobreakageordamagehasoccurred
duringshipping.Ifanypartsaredamagedormissing,contact
your local Ryobi factory or authorized service center to
obtain replacement parts before attempting to operate your
biscuit joiner.
Beforeattemptingtouseany tool familiarizeyourself withall
operating features and safety requirements.
Fig. 2
WARNING:
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict severe injury.
HEIGHT
SETTING SCALE
HEIGHT
INDICATOR MARK
SWITCH
TRIGGER
KNURLED
ADJUSTMENT
KNOB
DEPTH
ADJUSTMENT
KNOB
JAM
NUT
REAR HANDLE
REAR
BASE
LINE OF
CUT WINDOW
CENTERLINE / LINE
OF CUT INDICATOR
MARK(S)
WIDTH OF
CUT SCALE
FENCE
HEIGHT
ADJUSTMENT
KNOBS (2)
FRONT
BASE
BOTTOM
SHOE
NONSKID
BACKING PAD

Page 9
3
2
ADJUSTMENTS
WARNING:
If any parts are missing, do not operate tool until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
DEPTH OF CUT ADJUSTMENTS
Your biscuit joiner can be adjusted to three standard
cuttingdepthstoaccommodatethreestandardsizebiscuits
—#R1,#R2,and#R3.Adjustmentsaremadebyengaging
slotsondepthadjustmentknobwithtabsonrearbase.For
example, when using a #R1 size biscuit, rotate the depth
adjustment knob until the slot marked 1 aligns with the
depth indicator mark on the rear base. When using a #R2
sizebiscuit,rotatethedepthadjustmentknobuntil the slot
marked 2 aligns with the depth indicator mark on the rear
base, and when using a #R3 size biscuit rotate the depth
adjustment knob until the slot marked 3 aligns with the
depth indicator mark on the rear base. See Figure 3.
TO SET DEPTH ADJUSTMENT KNOB
■Unplug your detail biscuit joiner.
WARNING:
Failure to unplug biscuit joiner could result in accidental
starting causing possible serious personal injury.
■Pullknurled adjustmentknob and jam nut in the direction
of the arrow shown in figure 3.
NOTE: Knob and jam nut are spring loaded, therefore
pulling them in the direction of the arrow shown puts
pressure on the spring and releases pressure from the
depth adjustment knob.
■Rotate depth adjustment knob until desired slot setting
aligns with tabs on rear base — 1, 2, or 3.
■Nextreleaseknurledadjustmentknobandjamnutapplying
pressure from spring on depth adjustment knob.
Make a test cut in a scrap piece of wood. Fit the correct size
biscuit into biscuit slot. If biscuit slot is too deep or too
shallow, fine adjustments to the depth setting can be made
by loosening knurled adjustment knob and making fine
adjustmentswiththejamnut.Turningjamnutforwardwillcut
shallow biscuit slots. Turning jam nut backwards will cut
deeperbiscuit slots. Thebiscuit slotshouldbe deepenough
toallowslightlymorethanone-halfofthebiscuitintotheslot.
This extra room allows for proper alignment of the wood
being joined.
TO MAKE FINE ADJUSTMENTS
See Figure 4.
■Unplug your detail biscuit joiner.
■Loosen knurled adjustment knob. This knob is used as a
lock nut only. Loosen by twisting it in the opposite direc-
tion away from jam nut.
■Turn jam nut forward for a more shallow cut, or
backwards for a deeper cut.
■Oncedesireddepthof cutis reached,holdjamnut so that
it will not move out of adjustment. Next, tighten knurled
adjustment knob against jam nut.
■Recheck depth setting by making a test cut in a scrap
piece of wood. Also periodically check depth setting for
accuracy. See Figure 4.
TURN BACKWARDS FOR
DEEPER BISCUIT SLOTS
Fig. 4
KNURLED ADJUSTMENT KNOB USED AS A LOCK NUT.
JAM NUT USED TO MAKE FINE ADJUSTMENTS.
Fig. 3
3
2
ROTATE TO
DESIRED SETTING
1, 2, OR 3
PULL AND HOLD TO
ROTATE DEPTH
ADJUSTMENT KNOB
REAR
BASE
TURN FORWARD
FOR SHALLOW
BISCUIT SLOTS
RELEASE TO APPLY
PRESSURE AGAINST DEPTH
ADJUSTMENT KNOB
TABS
SLOT
KNURLED
ADJUSTMENT
KNOB
DEPTH
ADJUSTMENT
KNOB
JAM
NUT
DEPTH
INDICATOR
MARK

Page 10
1
2
1
23
3
0
5
16
3
4
45°
90°
0
5
16
3
4
45°
90°
FENCE ORIENTATION
FOR 90°ANGLES
ADJUSTMENTS

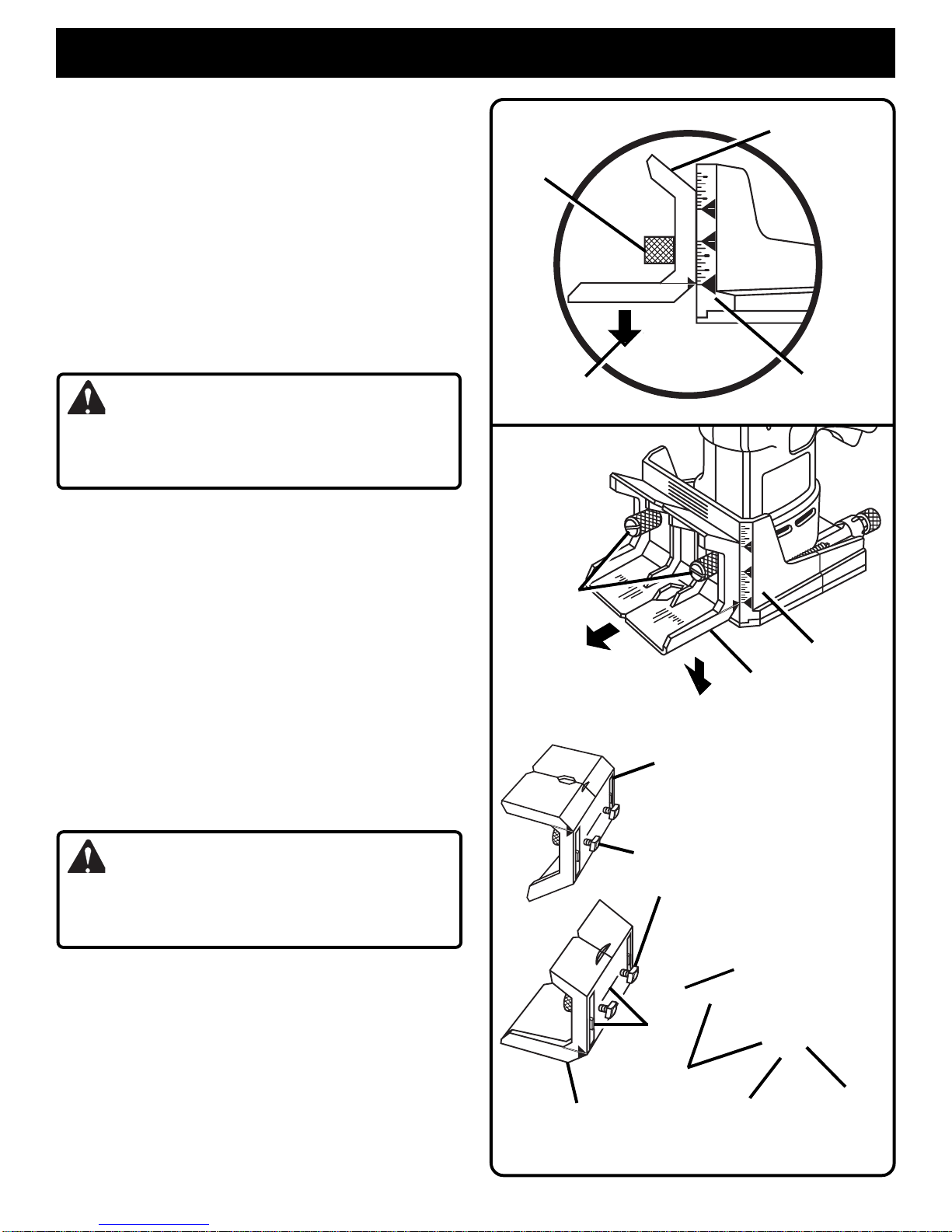

FENCE HEIGHT ADJUSTMENT
See Figure 5.
The fence on your biscuit joiner can be moved up and down
to adjust the position of the blade in relation to the top of the
workpiece. A scale on both sides of the front base indicates
height settings for both 45°and 90°angles. The fence and
heightindicatormarkcanbepositionedfrom5/16in.to13/16
in. from the center of the blade for 45°angles. It can be
positionedfrom0to3/4in.fromthecenterofthebladefor90°
angles. Scale marks are in increments of 1/16 in.
TO ADJUST HEIGHT SETTING
See Figure 5.
■Unplug your detail biscuit joiner.
WARNING:
Failure to unplug your detail biscuit joiner could result in
accidental starting causing possible serious personal
injury.
■Loosen the two height adjustment knobs.
■Pull the fence forward and slide it up or down until the
height indicator mark is aligned with the desired dimen-
sion on the scale.
NOTE: Slots in the front base align with a tab on the
backside of the fence. See Figure 6. This alignment
keeps the fence square at each height setting.
■Tighten height adjustment knobs securely.

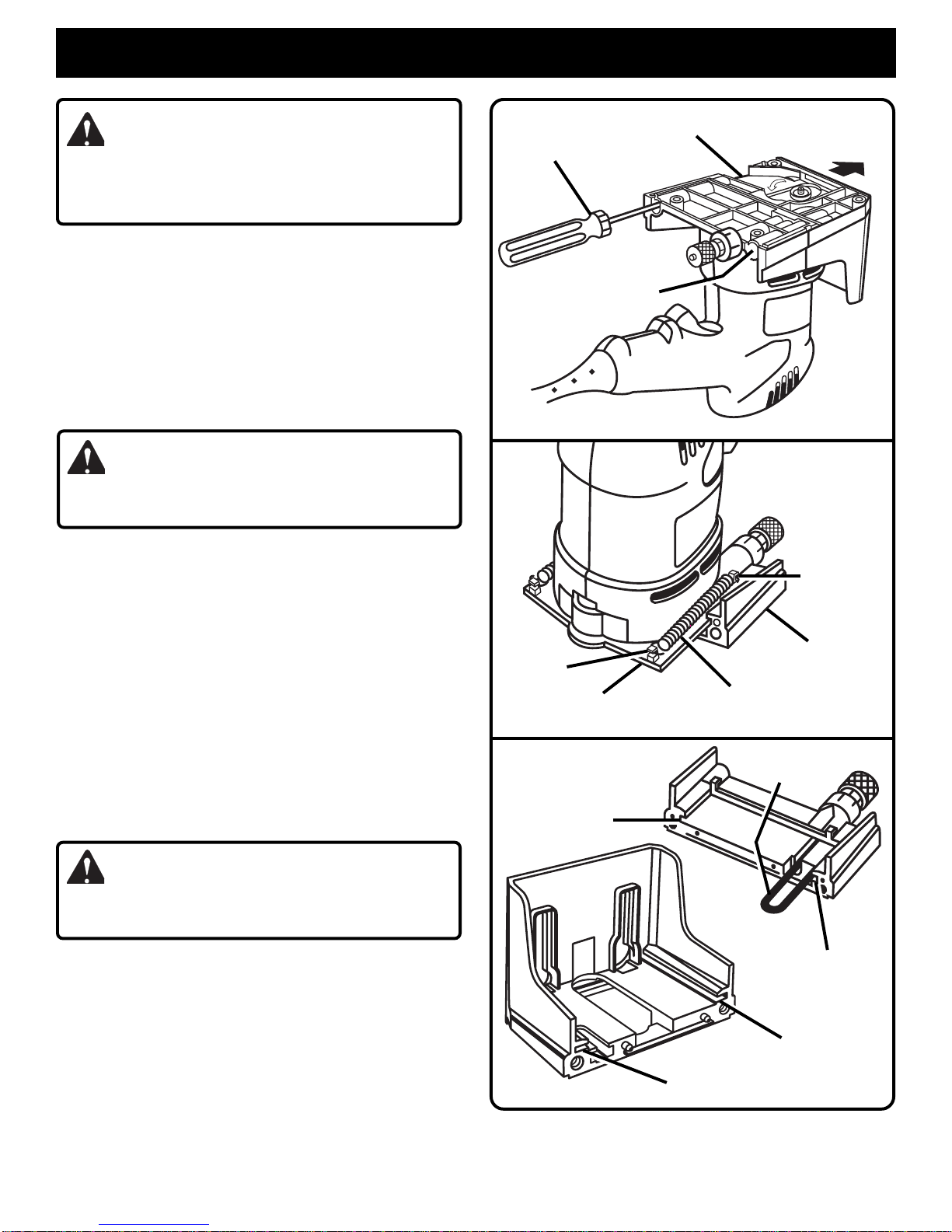

FENCE ROTATION / ANGLE ADJUSTMENT
See Figure 6.
The fence on your biscuit joiner can be rotated 180°and set
at either 45°or 90°angles.
TO ROTATE FENCE / CHANGE ANGLE SETTING
See Figure 6.
■Unplug your detail biscuit joiner.
WARNING:
Failure to unplug your detail biscuit joiner could result in
accidental starting causing possible serious personal
injury.
■Loosen the two height adjustment knobs.
■Pullthefenceforwardandslideitdownthefrontbaseuntil
it can be removed through the key hole slots.
■Rotate the fence 180°.
■Reinstallthefenceonthefrontbase.Placeheightadjust-
mentknobboltsinkeyholeslotsandalignboltheadswith
the slots on back of front base.
■Slide fence up the front base to desired depth of cut.
■Tightenheight adjustmentknobs securely. See Figure6.
Fig. 5
HEIGHT
SETTING SCALE
HEIGHT
ADJUSTMENT
KNOB(S)
Fig. 6
HEIGHT
ADJUSTMENT
KNOBS
FRONT
BASE
HEIGHT
ADJUSTMENT
KNOB BOLT(S)
FRONT
BASE
SLOT(S)
FENCE
KEY
HOLE
SLOTS
FENCE
(1) PULL
FORWARD
(2) SLIDE
DOWN
TABS
SLOTS
FENCE ORIENTATION
FOR 45°ANGLES
TO LOWER
FENCE

Page 11
1
2
3
1
23
OPERATION
Fig. 8
Fig. 7
■Place the fence against the board and align the indicator
marks on the fence with the centerline mark(s) on the
board. See Figure 7.
■Depress the switch trigger and let the motor build to its
maximumspeed,thengraduallypushbiscuitjoinerforward
to extend the blade into the wood.
■When the base assembly bottoms out against the depth
ofcutadjustmentknobsetting,pullbackreleasingpressure
on the spring. Blade will retract from biscuit slot.
■Repeat this procedure for all desired biscuit slots.
■Once all biscuit slots have been cut, place a biscuit in
each joint and dry assemble the workpieces. Make sure
each joint lines up and fits.
■Finally, disassemble the workpieces and place a bead of
glue in each slot. Also, spread a bead of glue over the
entire surface of the joint. Reinsert the biscuits and
assemble the workpieces. See Figure 8.
■Clamp workpieces together until the glue sets up.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could
result in objects being thrown into your eyes, resulting in
possible serious injury.
A variety of spline joints can be made using your biscuit
joiner. The number and size biscuits needed for each joint
depends on the thickness of the wood and the length of the
joint. In general, the small #R1 biscuits should be used for
mitercuts insmall, thinmaterials. Thelarger biscuitsshould
be used for edge-to-edge joinery.
When joining thick materials, stack two biscuits, one above
the other. For example, joining 2 in. x 4 in. dressed lumber.
See Figure 9. When joining even thicker materials, use
additional biscuits, stacked above each other.
Whenmakingedge-to-edgejointsthemorebiscuitsyouuse,
the stronger the joint will be.
The following sections illustrate how to make various spline
joints using your biscuit joiner.

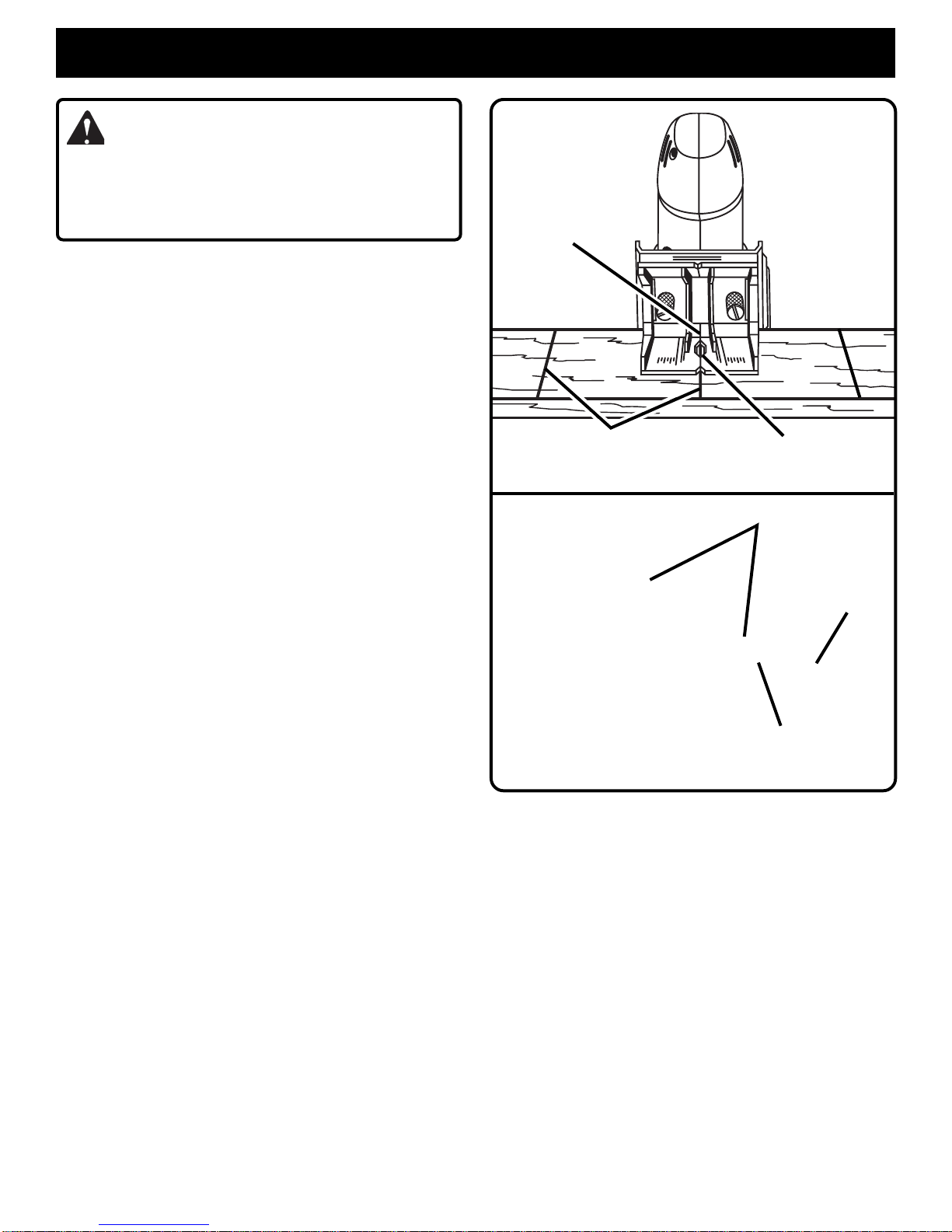

EDGE-TO-EDGE JOINTS
See Figures 7 and 8.
Edge-to-edge joinery is one of the most basic and easiest
joints to construct. In general, two basic adjustments have
to be made for all biscuit joinery applications. One is the
depth of cut and the other is the location of the cut.
HOW TO MAKE EDGE-TO-EDGE JOINTS
■Unplug your detail biscuit joiner.
■Prepare the workpieces by laying them side by side on a
workbench in the order in which they will be assembled.
■Using a square, determine the location of each biscuit
spline joint and mark the center of each joint by drawing
a line across each workpiece. Mark the edges 1 in. from
the ends of workpieces. The joint will be stronger if you
use multiple biscuits placed close together.
■Set fence angle at 90°.
■Loosen height adjustment knobs, then pull and slide the
fence up or down until the indicator point is aligned with
the desired dimension on the scale. REMEMBER: The
scale indicates the height of the fence from the center of
blade.
■Tighten height adjustment knobs securely.
■Selectthecorrectdepthofcutsettingtomatch thebiscuit
size you are planning to use. We suggest that you make
a test cut in a scrap piece of wood from the same
workpiece if possible.
■Clamp workpiece securely so that it will not move during
the cut.
■Plug your biscuit joiner into power supply and prepare to
make your first cut. Grasp and hold your biscuit joiner
securely with both hands.
EDGE-TO-EDGE JOINTS
CENTERLINE
MARKS
BISCUIT(S)
BISCUIT SLOT(S)
TOP VIEW OF DETAIL BISCUIT JOINER
LINE OF
CUT WINDOW
INDICATOR
MARK(S)
CENTERLINE
MARK(S)

Page 12
OPERATION
BUTT JOINTS
See Figure 9.
A butt joint is one of the weakest joints in woodworking.
This type of joint is mating the end grain of one board with
the edge grain of another. The bonding of glue on this type
of surface is poor. However, by using biscuits you can
create a very strong joint that gives a mortise-and-tenon
effect.
HOW TO MAKE BUTT JOINTS
■Unplug your detail biscuit joiner.
■Place the two pieces of wood to be joined on a level
workbench. Align them against each other in the
arrangement in which they will be assembled.
■Using a square, determine the location of each biscuit
spline joint and mark the center of each joint by drawing
a line across the edges of the two boards.
■Set fence angle at 90°.
■Loosen height adjustment knobs, then pull and slide the
fence up or down until the indicator point is aligned with
the desired dimension on the scale. REMEMBER: The
scale indicates the height of the fence from the center of
the blade.
■Tighten height adjustment knobs securely.
■Selectthecorrectdepthofcutsettingtomatch thebiscuit
size you are planning to use. We suggest that you make
a test cut in a scrap piece of wood from the same
workpiece if possible.
■Clamp workpiece securely so that it will not move during
the cut.
■Plug your biscuit joiner into power supply and prepare to
make your first cut. Grasp and hold your biscuit joiner
securely with both hands.
■Place the fence against the board and align the indicator
marks on the fence with the centerline mark(s) on the
board.
■Depress the switch trigger and let the motor build to its
maximumspeed,thengraduallypushbiscuitjoinerforward
to extend the blade into the wood.
■When the base assembly bottoms out against the depth
ofcutadjustmentknobsetting,pullbackreleasingpressure
on the spring. Blade will retract from biscuit slot.
■Repeat this procedure for cutting the slot in the mating
workpiece.
■Once all biscuit slots have been cut, place a biscuit in
each joint and dry assemble the workpieces. Make sure
each joint lines up and fits.
■Finally, disassemble the workpieces and place a bead of
glue in each slot. Also, spread a bead of glue over the
entire surface of the joint. Reinsert the biscuits and
assemble the workpieces.
See Figure 9.
■Clamp workpieces together until the glue sets up.
OFFSET BUTT JOINTS
See Figure 10.
The rails of a table or workbench are often offset from the
front of the table legs. When offsets are required, it is
necessary to cut the slots in the rails first, then re-adjust the
fence to cut the slots in the legs.
Keepingthisoneexceptioninmind,theprocedureforcutting
offset butt joints is identical to the procedure for cutting butt
joints.
For example — If a 1/4 in. offset is desired, you would mark
the centerlines for cutting a butt joint as mentioned in the
proceduresforcuttingbuttjoints,andcuttheslotsintheends
of the rails. Next you would raise the fence 1/4 in. to the
desired offset and cut the slots in the legs.
BISCUIT
BISCUIT
SLOT(S)
Fig. 10
Fig. 9
OFFSET BUTT JOINT
BUTT JOINTS
BISCUIT
SLOT
CENTERLINE
MARK(S)
BISCUIT(S)
CENTERLINE
MARK(S)
MULTIPLE
BISCUITS STACKED

Page 13
1
2
3
0
3
4
5
16
90°
45°
T- JOINT
OPERATION
T- JOINTS
See Figures 11-15.
A T-joint is used when the end of a board is joined to the
face of another board as shown in figure 11. Attaching
shelves to bookcases and inner support braces to frames
are typical applications. Actual cutting of a T-joint is as
simple as any other cut. However, it is critical that you mark
the centerlines, mark the intersection points for each slot,
and cut each slot correctly.
See Figure 11.
HOW TO MAKE T- JOINTS
■Unplug your detail biscuit joiner.
■Place the two pieces of wood to be joined on a level
workbench as shown in figure 12. The inside face of the
vertical board should be facing up.
■Determine the location of each biscuit joint and mark the
centerlines on each board as shown. The centerlines for
both boards must line-up with each other. Measure
carefully, these measurements must be accurate and
precise. TIP: Measure twice and cut once. In addition to
the centerlines lining up, the spacing of the biscuit slots
from side-to-side must also match.
■Plug your biscuit joiner into power supply and cut slots in
all boards that require end slots.
See Figure 13. Follow
proceduresexplainedin"Edge-To-EdgeJoints".Rotate
fence angle to 90°, set fence height at desired dimension
on the scale, select the correct depth of cut setting for the
biscuit size you plan to use, clamp workpiece securely,
then cut each slot at the marked centerline intersection.
■Next, you must remove the fence from your biscuit joiner
in order to cut slots into the face of the vertical board.
TO REMOVE FENCE:
■Unplug your detail biscuit joiner.
■Loosen height adjustment knobs, pull fence forward and
slideitdownthefrontbaseuntilitcanberemovedthrough
the key hole slots. See Figure 14. Next, select the correct
depth of cut setting for the biscuit size you plan to use,
clampworkpiecesecurely,andcuteachslotatthemarked
centerline intersection.
WARNING:
When the fence is removed, the cutter may be exposed.
Use extreme caution to avoid serious personal injury.

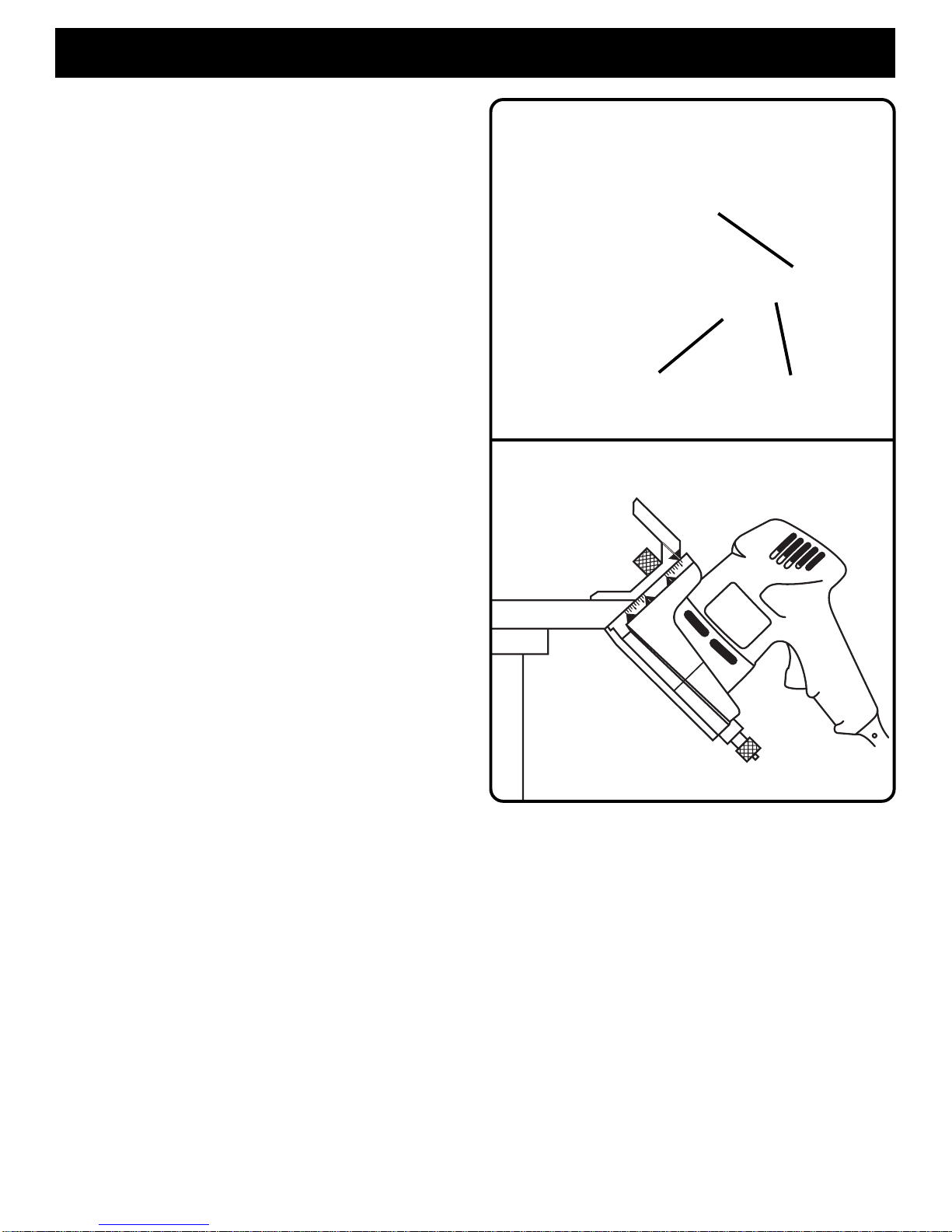

■Place your biscuit joiner on vertical board as shown in
figure 15 and align indicator marks on bottom shoe with
centerline on vertical board.
■Place a straight piece of wood on the vertical board and
securelyclampitflushagainstthebottomshoe.Thispiece
ofwoodisusedforafenceorguide.Itmustbesquarewith
the sides of the vertical board and parallel with the
centerline.
■Aligncenterlineonbottomofshoewithmarkedintersection
for biscuit slot.
CENTERLINE
MARK(S)
Fig. 11
Fig. 13
BISCUIT(S)
HORIZONTAL BOARD
BISCUIT SLOT(S)
BOARD
CENTERLINES
BISCUIT SLOT
CENTERLINE MARK(S)
Fig. 12
VERTICAL BOARD
CLAMP
HORIZONTAL BOARD
TO CUT END SLOTS IN
HORIZONTAL BOARDS

Page 14
CENTERLINE MARK
ON WORKPIECE
OPERATION
Fig. 16
Fig. 15

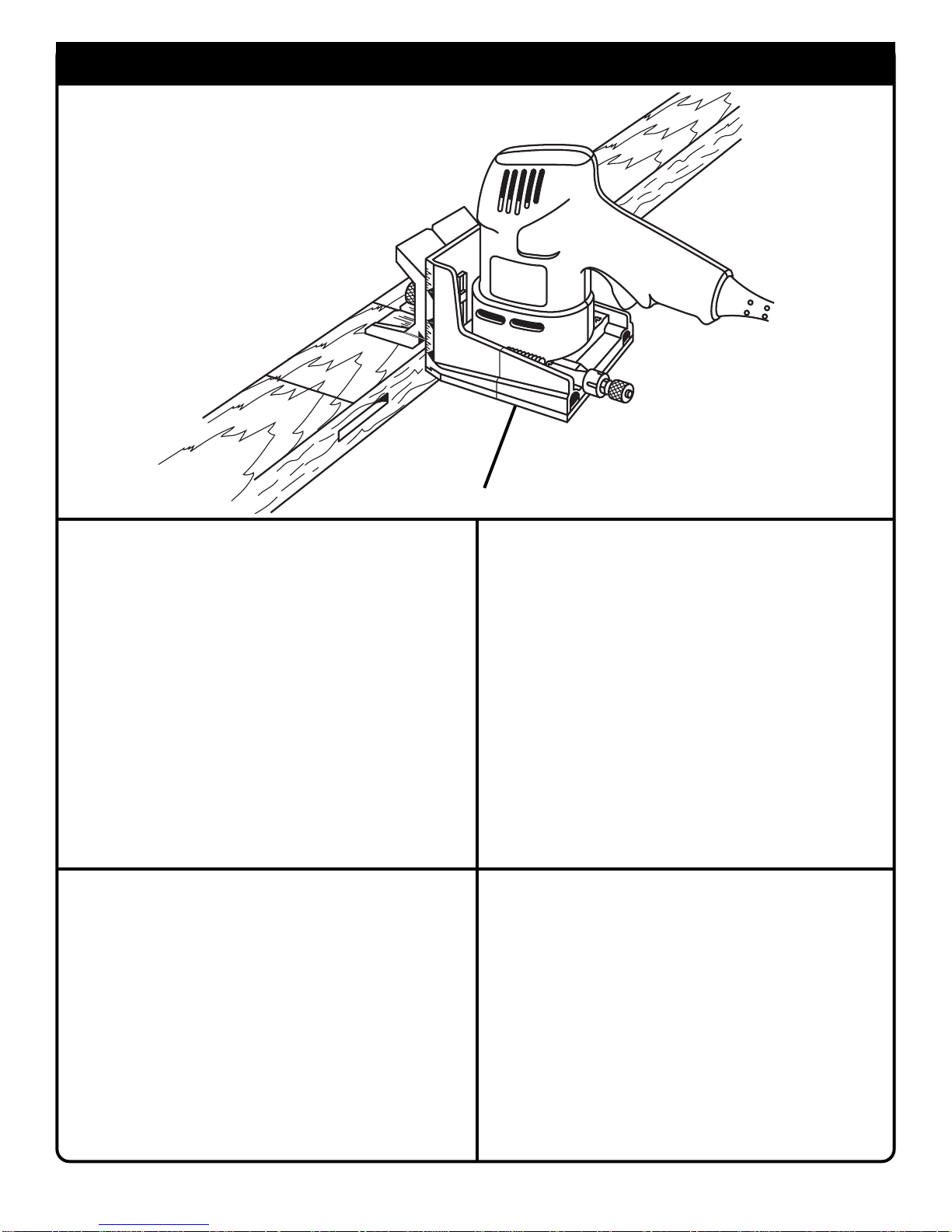

FLAT MITER JOINTS BISCUIT
CENTERLINE
MARK(S)
BISCUIT
SLOT
VERTICAL
BOARD
TO CUT SLOTS IN VERTICAL BOARDS
CLAMP
HORIZONTAL
BOARD
INDICATOR
MARK
BOTTOM SIDE OF BOTTOM SHOE
Fig. 14
REMOVE FENCE TO MAKE
FACE CUTS IN VERTICAL BOARDS
0
5
16
3
4
45°
90°
T-JOINTS (Continued)
■Plug your biscuit joiner into power supply and prepare to
cut slot.
■Depress the switch trigger and let the motor build to its
maximumspeed,thengraduallypushbiscuitjoinerforward
to extend the blade into the wood.
■Whenthebaseassemblybottomsoutagainstthedepthof
cut adjustment knob setting, pull back releasing pressure
on the spring. Blade will retract from biscuit slot.
■Repeat this procedure for cutting all required slots in
vertical boards.
■Once all slots have been cut, place a biscuit in each joint
and dry assemble the workpieces. Make sure each joint
lines up and fits.
■Finally, disassemble the workpieces and place a bead of
glue in each slot. Also, spread a bead of glue over the
entire surface of the joint. Reinsert the biscuits and
assemble the workpieces.
See Figure 11.
■Clamp workpieces together until the glue sets up.
Upon completion of a T-joint cutting operation, reinstall
the fence on the front base by reversing "TO REMOVE
FENCE" procedure. Place height adjustment knob bolts in
key hole slots and align bolt heads with the slots on back of
front base. Slide fence up the front base to desired depth of
cut. Tighten height adjustment knobs securely.
MITER JOINTS
See Figures16-18.
There are two types of miter joints that can be made using
biscuits: flat miters and edge miters. Flat miters are used
when making picture frames. Edge miters are used when
making boxes or things where you don't want to show the
end grain of the wood. Butt joints show the end grain in
wood.
HOW TO MAKE FLAT MITER JOINTS
■Unplug your detail biscuit joiner.
WARNING:
Failure to unplug your detail biscuit joiner could result in
accidentalstarting causing possibleseriouspersonal injury.
■Place the pieces of wood to be joined on a level
workbench as shown in figure 16.
■Using a combination square, draw a line through the
center of each joint perpendicular to the mitered edges.
■Setfenceangleat90°,setfenceheightatdesireddimension
on the scale, select the correct depth of cut setting for the
biscuitsizeyouplantouse,andclampworkpiecesecurely.
■Align indicator mark on fence with the centerline on the
workpiece.
■Plug your biscuit joiner into power supply and prepare to
cut slot.

Page 15
0
5
16
3
4
45°
90°
OPERATION
Fig. 17
BISCUIT
SLOT
CENTERLINE
MARK(S)
EDGE MITER JOINTS
BISCUIT
Fig. 18
CUTTING EDGE MITER SLOT
FROM LONG SIDE OF WORKPIECE
FLAT MITER JOINTS (Continued)
■Depress the switch trigger and let the motor build to its
maximumspeed,thengraduallypushbiscuitjoinerforward
to extend the blade into the wood.
■Whenthebaseassemblybottomsoutagainstthedepthof
cut adjustment knob setting, pull back releasing pressure
on the spring. Blade will retract from biscuit slot.
■Repeat this procedure for cutting mating slot and all
required miter joint slots.
■Once all slots have been cut, place a biscuit in each joint
and dry assemble the workpieces. Make sure each joint
lines up and fits.
■Finally, disassemble the workpieces and place a bead of
glue in each slot. Also, spread a bead of glue over the
entire surface of the joint. Reinsert the biscuits and
assemble the workpieces. See Figure 16.
■Clamp workpieces together until the glue sets up.
HOW TO MAKE EDGE MITER JOINTS
■Unplug your detail biscuit joiner.
■Placethepiecesofwoodtobejoinedonalevelworkbench
as shown in figure 17.
■Mark centerline of the joint on each board.
■Whenmakingedgemiterjointswithworkpiecesthathave
different thicknesses, clamp securely to a workbench
with the long sides up. This will assure that the outside
surfaces will match. See Figure 18.
■Set fence angle at 45°.
■Slidethe fence upordown untilfenceheight is atdesired
setting.
■Tighten height adjustment knobs securely.
■Place your biscuit joiner on workpiece with the fence
resting on the long side of workpiece as shown in figure
18. The front base should be against the mitered edge of
the workpiece.
■Recheck fence height setting to make sure it will not cut
through the workpiece.
■Align indicator mark on fence with the centerline on the
workpiece. Make sure the front base is pressed flat
against the mitered edge of the workpiece.
■Plug your biscuit joiner into power supply and prepare to
cut slot.
■Depress the switch trigger and let the motor build to its
maximumspeed,thengraduallypushbiscuitjoinerforward
to extend the blade into the wood.
■When the base assembly bottoms out against the depth
of cut adjustment knob setting, pull back releasing pres-
sure on the spring. Blade will retract from biscuit slot.
■Repeat this procedure for cutting mating slot and all
required miter joint slots.
■Once all slots have been cut, place a biscuit in each joint
and dry assemble the workpieces. Make sure each joint
lines up and fits.
■Finally,disassembleworkpiecesandplaceabeadofglue
in each slot. Also, spread a bead of glue over the entire
surface of the joint. Reinsert the biscuits and assemble
workpieces. See Figure 17.
■Clamp workpieces together until the glue sets up.

Page 16
OPERATION
Fig. 19
EXTENSION CORDS
Theuseofanyextensioncordwillcausesomelossofpower.
Tokeepthelosstoaminimumandtopreventtooloverheating,
use an extension cord that is heavy enough to carry the
current the tool will draw.
Awire gagesize (A.W.G.)of atleast 16 isrecommended for
an extension cord 50 feet or less in length. When working
outdoors, use an extension cord that is suitable for outdoor
use. The cord's jacket will be marked WA.
WARNING:
Check extension cords before each use. If damaged,
replace immediately. Never use tool with a damaged
cord since touching the damaged area could cause
electrical shock resulting in serious injury.
CAUTION:
Keep extension cords away from the cutting area and
position the cord so that it will not get caught on lumber,
tools, etc. during cutting operations.
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit under
normaloperatingconditions.Therefore,nofurtherlubrication
is required.
HINGE JOINTS
See Figure 19.
Hinge joints are used when joining two boards using hinges
supplied in one of Ryobi's optional hinge kits. Jewelry boxes,
doors on clocks, recipe boxes, etc. are typical applications.
HOW TO MAKE HINGE JOINTS
■Unplug your detail biscuit joiner.
■Prepare the workpieces to be joined by laying them side
by side on a workbench in the order in which they will be
hinged.
■Determine the location of each hinge joint and mark the
centerofeachjointbydrawingalineacrosseachworkpiece.
■Set fence angle at 90°.
■Loosen height adjustment knobs, then pull and slide the
fence down the scale until the height indicator mark is set
atzerodepthofcut.REMEMBER:Thescaleindicatesthe
height of the fence from the center of the blade, which is
approximately .050 of an inch.
■Tighten height adjustment knobs securely.
■Select the #3 depth of cut setting. We suggest that you
make a test cut in a scrap piece of wood from the same
workpiece if possible.
■Clamp workpiece securely so that it will not move during
the cut.
■Plug your biscuit joiner into power supply and prepare to
make your first cut. Grasp and hold your biscuit joiner
securely with both hands.
■Place the fence against the board and align the indicator
marks on the fence with the centerline mark(s) on the
board.
See Figure 19.
■Depress the switch trigger and let the motor build to its
maximumspeed,thengraduallypushbiscuitjoinerforward
to extend the blade into the wood.
■When the base assembly bottoms out against the depth
ofcutadjustmentknobsetting,pullbackreleasingpressure
on the spring. Blade will retract from hinge slot.
■Repeat this procedure for all desired hinge slots.
■Onceall hingeslots havebeen cut,place a hinge in each
slot and dry assemble the workpieces. Make sure each
slot lines up and fits.
■Finally, assemble the hinges to the workpieces and
secure with the fasteners supplied.
HINGE
SLOT(S)
HINGE
FASTENERS
HINGE

Page 17
3
2
3
2
MAINTENANCE
Fig. 20
Fig. 21
Fig. 22
FRONT BASE
BLADE
SCREWS (4)
BOTTOM
SHOE
3
2
BLADE SCREW
BLADE
INNER
BLADE
WASHER
BLADE
FLATS
OUTER
BLADE WASHER GEAR
SPINDLE
FLATS
GEAR
SPINDLE
#1 PHILLIPS SCREWDRIVER
OR 3/16 in. DIAMETER PIN

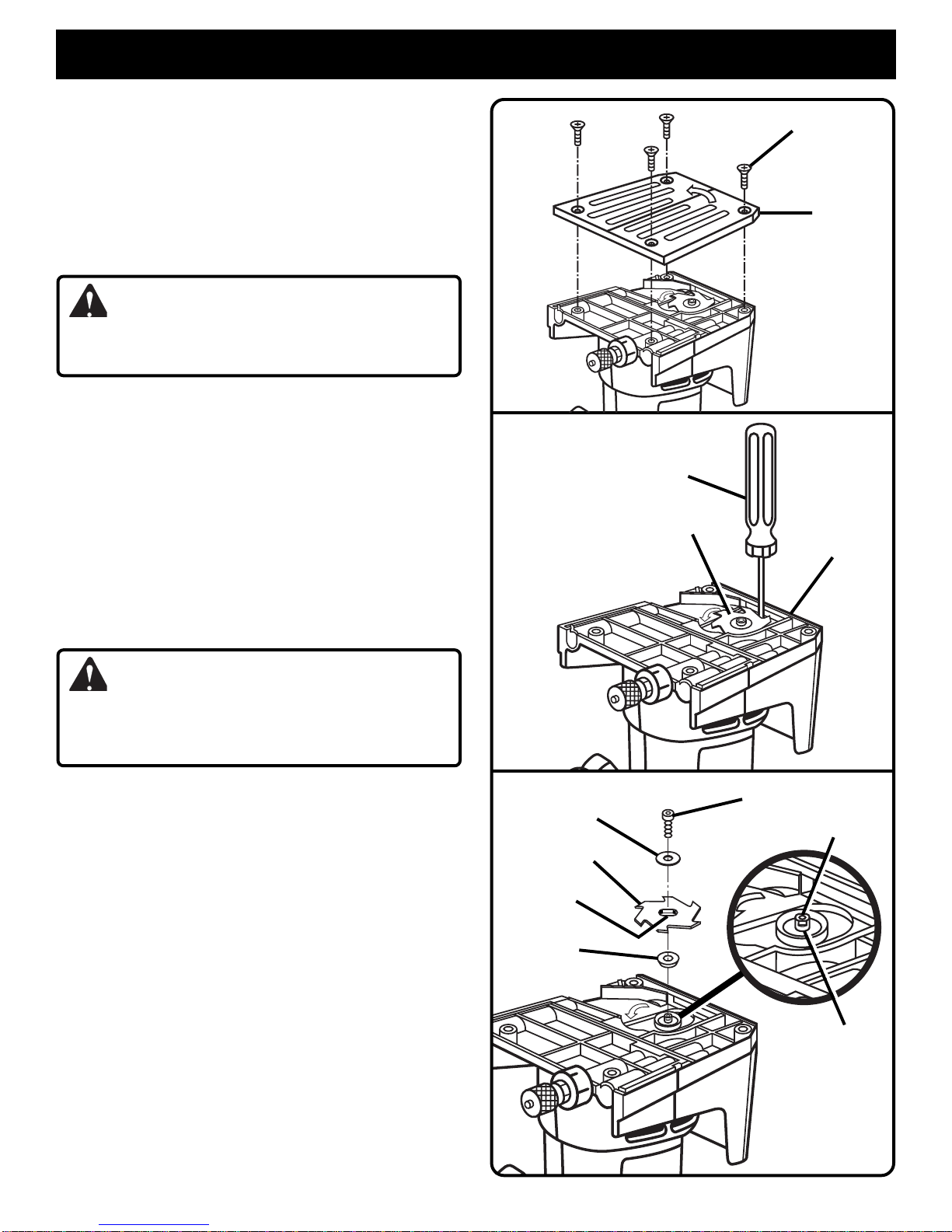

BLADE REPLACEMENT
See Figures 20– 22.
After extended use, the blade on your biscuit joiner may
become dull. If you accidentally hit a nail or other blunt
object, it will dull or break the blade. These situations
require replacing the blade.
HOW TO REPLACE THE BLADE
■Unplug your detail biscuit joiner.
WARNING:
Failure to unplug your detail biscuit joiner could result in
accidentalstarting causing possibleseriouspersonal injury.
■Placeyourbiscuitjoinerupsidedownonaworkbenchand
removethebottomshoescrews(4)andbottomshoe. See
Figure 20.
■Place a #1 Phillips screwdriver or 3/16 in. diameter pin
between the blade and front base. See Figure 21.
■Placeoneofthebladeteethagainstthescrewdriverorpin
and lock blade preventing it from rotating.
■Using a 9/64 in. hex key, remove blade screw.
NOTE: Turn blade screw counterclockwise to remove.
See Figure 22.
■Remove outer blade washer and blade.
■Clean wood particles and resin from blade washer and all
surrounding parts.
WARNING:
If inner blade washer has been removed, replace it
before installing new blade. Failure to do so could cause
an accident since blade screw will not tighten properly.
■Placeinnerbladewasherongearspindle. SeeFigure22.
■Placenewbladeontogearspindleandalignflatsonblade
with flats on gear spindle.
■Secure with outer blade washer and blade screw.
■Place a #1 Phillips screwdriver or 3/16 in. diameter pin
between the blade and front base. See Figure 21.
■Placeoneofthebladeteethagainstthescrewdriverorpin
and lock blade preventing it from rotating.
NOTE: Blade teeth point toward the right of your biscuit
joiner when held in normal operating position. An arrow
on the bottom shoe also indicates direction of blade
rotation. See Figure 20.
■Tighten blade screw securely.
NOTE: Turn blade screw clockwise to tighten.
■Reassemble bottom shoe.
■Replace screws (4) and tighten securely.

Page 18
3
2
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other part may create a hazard or
cause product damage.
CLEANING BASE ASSEMBLY
See Figures 23-25.
After extended use, wood particles and resin may build up
inside the base assembly of your biscuit joiner and clog the
path for wood particles going through dust exhaust opening.
Wood particles packing up in this area makes cutting biscuit
slots more difficult.
HOW TO CLEAN BASE ASSEMBLY
■Unplug your detail biscuit joiner.
WARNING:
Failure to unplug your detail biscuit joiner could result in
accidentalstarting causing possibleseriouspersonal injury.
■Placeyourbiscuitjoinerupsidedownonaworkbenchand
remove the bottom shoe screws (4) and bottom shoe.
■Remove the blade. See "Blade Replacement" section.
■With your biscuit joiner still upside down on a workbench,
remove front base screws (2). See Figure 23.
■Pullfrontbaseinthedirectionshownbythearrowinfigure
23 and remove.
■Using a pair of needle nose pliers, stretch and release
springs from tabs on bearing plate. See Figure 24.
■Lift adjustment rod away from bearing plate and remove
rear base.
■Withfront and rearbase assemblies removed,place your
biscuit joiner upside down on a workbench and clean
woodparticlesandresinfrombearingplateandsurrounding
areas. NOTE: Also clean the blade, blade washers, etc.
CAUTION:
Blade tips are sharp. Be carefull not to cut yourself
when cleaning.
■Cleanwoodparticlesandresinfromslotsandsurrounding
areas on front and rear base. See Figure 25. Apply a thin
coatofgeneralpurposegreaseinslotsoronbearingplate
where base slides.
■Replace rear base. Position adjustment rod in its proper
place as shown in figure 24.
■Secure rear base in place with the two springs. Hook one
end of each spring in notch on each side of rear base.
Using needle nose pliers, stretch each spring and hook it
over tabs on bearing plate.
■Reassemble front base. Replace screws and tighten se-
curely.
■Reinstall blade. Tighten blade screw securely.
■Reassemble bottom shoe. Tighten screws (4) securely.
REAR
BASE SLOT
FRONT
BASE SLOT
FRONT
BASE SLOT Fig. 25
SCREW
HOLE
TO
REMOVE
FRONT BASE
SCREWDRIVER
ADJUSTMENT
ROD
REAR
BASE SLOT
REAR BASE
SPRING(S)
BEARING
PLATE
TAB(S)
Fig. 24
NOTCH(ES)
Fig. 23

Page 19
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
When electric tools are used on fiberglass it has been
found that they are subject to accelerated wear and possible
premature failure, as the fiberglass chips and grindings are
highly abrasive to bearings, brushes, commutator, etc.
Consequently it is not recommended that this tool be used
for extended work on any fiberglass material. During any
use on fiberglass it is extremely important that the tool is
cleaned frequently by blowing with an air jet.
OPTIONAL ACCESSORIES
MAINTENANCE
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc. come in contact
with plastic parts. They contain chemicals that can
damage, weaken or destroy plastic. WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
The following recommended accessories are current and were available at the time this manual was printed:
Item No. Description Quantity
4600411 Size #R1 Accu Biscuits™, Canister Pack 110 Pcs.
4600412 Size #R2 Accu Biscuits™, Canister Pack 100 Pcs.
4600413 Size #R3 Accu Biscuits™, Canister Pack 90 Pcs.
4600415 Size #R3 Value Pack Total 1000 Pcs.
4600435 High Speed Steel Blade 1
4600450 Brass Hinge Kit 6 Pcs.
4600451 Chrome Hinge Kit 6 Pcs.
HELPFUL HINTS
✓Study all safety rules and do the job safely.
✓NEVER place your hands in jeopardy.
✓Make certain clamps can’t loosen while in use.
✓Test difficult set-ups on scrap—Don’t waste lumber.
✓Plan each operation before you begin.
✓Provide for smoother operation by cleaning your bis-
cuit joiner frequently. Shake biscuit joiner or blow with
an air jet to remove wood particle build-up.
✓DO NOT ABUSE POWER TOOLS. Abusivepractices
can damage tool as well as workpiece.
✓THINK SAFETY BY THINKING AHEAD.
✓Always clamp workpiece securely before cutting.
✓A safe operator is one who thinks ahead.
✓Always wear eye protection when cutting slots.
✓Makeset-upadjustmentscarefully.Thendoublecheck.
Measure twice and cut once.
✓Always dry assemble your project before gluing it
together.
✓Forloosefitsituations,wetbiscuitstomakethemswell.
✓The more biscuits used, the stronger the joint will be.
✓Keep blade clean. When the blade becomes dull,
replace it.
✓Don’t let familiarity make you careless.

Page 20
TROUBLESHOOTING
A. Biscuit slots are too deep or too shallow. Make fine
adjustments to depth setting. See "TO MAKE FINE
ADJUSTMENTS" section on page 9.
B. Biscuitthicknessmaybeoutoftolerance.Compress
biscuits in a vise if they are too thick.
C. Check to see if biscuits are the correct size for the
size slots that have been cut: #1, #2, or #3.
D. Checktoseeifbiscuitshavegottenwetandswollen.
E. If biscuits fit loose in slots, wet them to take up the
loose fit.
1. Biscuitsdo notfitslots. Biscuits notfittingslots may
also cause misalignment of boards being joined.
PROBLEM SOLUTION
2. Wood particles begin to backup on front of unit. A. Dust exhaust may be clogged preventing wood
particles from going through dust exhaust opening.
Remove bottom shoe and clean blade, bearing
plate, base assembly slots, and surrounding areas.
See "CLEANING BASE ASSEMBLY" section on
page 18.
3. Blade becomes difficult to push in when cutting
slots. Blade does not retract properly when cutting
slots.
A. Wood particles and resin have built up on base
assembly slots and surrounding areas. Remove
front and rear base assemblies and clean blade,
bearingplate,baseassemblyslotsandsurrounding
areas. Apply a thin coat of general purpose grease
in slots or on bearing plate where base slides. See
"CLEANING BASE ASSEMBLY" section on page
18.
4. Cutting performance is poor and there is a loss of
power or stalling of motor when cutting slots. A. Blade is dull. Replace blade. See "BLADE REPLACEMENT" section on page 17.
B. Resin has built up on blade. Remove blade and
clean it with gum and pitch remover. See "BLADE
REPLACEMENT" section on page 17 for blade
removing instructions. Once clean, follow "BLADE
REPLACEMENT"instructionstoreplacetheblade.
