Ryobi RBC52FSBHO User manual

ORIGINAL INSTRUCTIONS
Grass Trimmer/
Brushcutter
RBC52FSBHO

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your grass trimmer/brushcutter.
INTENDED USE
The grass trimmer/brushcutter is intended to be used only
by adults who have read and understood the instructions
and warnings in this manual and can be considered
responsible for their actions. The product is only intended
for use outdoors in a well ventilated area. For safety
reasons, the product must be adequately controlled by a
two-handed operation.
7KH SURGXFW ¿WWHG ZLWK WKH JUDVV WULPPHU KHDG DQG
appropriate guard) is intended for cutting long grass, pulpy
weed, and similar vegetation at or about ground level.
:KHQ¿WWHGZLWKWKHEODGHDQGDSSURSULDWHJXDUGLWFDQ
DOVRFXWEXVKHV7KHSURGXFWLVQRWGHVLJQHGWREH¿WWHG
with a saw blade.
The cutting plane should be approximately parallel to the
ground surface. The product should not be used to cut or
trim hedges, bushes or other vegetation where the cutting
plane is not parallel to the ground surface.
Do not use the product for any other purpose.
WARNING
To reduce the risk of injury, the user must read and
understand the operator’s manual.
WARNING
Do not attempt to operate the product until you
have read thoroughly and understood completely all
instructions and safety rules contained in this manual.
Failure to comply may result in accidents involving fire,
electric shock, or serious personal injury. Save the
operator’s manual and review frequently for continuing
safe operation, and instructing others who may use the
product.
WARNING
The product is not intended to be used by children or
persons with reduced physical, mental, or sensory
capabilities. Children should be adequately supervised
to ensure they do not play with the product.
GENERAL SAFETY WARNINGS
ŶFor safe operation, read and understand all instructions
before using the product. Follow all safety instructions.
Failure to follow all safety instructions listed below, can
result in serious personal injury.
ŶSome regions have regulations that restrict the use of
the product. Check with your local authority for advice.
ŶNever allow children or untrained individuals to use the
product.
ŶNever start or run the engine in a closed or poorly
ventilated area; breathing exhaust fumes can kill.
ŶClear the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string, which can be thrown or become entangled in the
string head.
ŶWear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
ŶHearing protection may restrict the operator’s ability
to hear warning sounds, pay particular attention to
potential hazards around and inside the working area.
ŶWear heavy, long trousers, non-slip protective footwear
and gloves. Do not wear loose fitting clothing, short
trousers, jewellery of any kind, or use with bare feet.
ŶSecure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
ŶKeep all bystanders, children, and pets at least 15 m
away. Stop the product if anyone enters the area.
ŶNever use the product when you are tired, ill, or under
the influence of alcohol, drugs, or medicine.
ŶDo not use in poor lighting. The operator needs clear
unrestricted vision to identify potential hazards.
ŶKeep firm footing and balance at all times. Do not
overreach. Overreaching can result in loss of balance
or exposure to hot surfaces.
ŶKeep all parts of your body away from any moving part.
ŶDo not touch area around the silencer or cylinder of the
product, these parts get hot from operation.
ŶAlways stop the engine and allow it to cool down before
making any adjustments.
ŶDo not smoke when mixing fuel or filling fuel tank.
ŶMix and store fuel in a container approved for fuel.
ŶMix fuel outdoors where there are no sparks or flames.
Wipe up any fuel spillage. Move 9 m away from
refuelling site before starting engine.
ŶStop the engine and allow to cool down before refueling
or storing the product.
ŶAllow the engine to cool down; empty the fuel tank and
secure the product from moving before transporting in
a vehicle.
ŶTurn off the engine. Make sure all moving parts have
come to a complete stop:
Ɣbefore servicing
Ɣbefore clearing a blockage
Ɣbefore checking, cleaning, and working on the
product
Ɣbefore changing accessories
Ɣbefore removing the blade
Ɣbefore installing the blade
Ɣafter striking a foreign object
Ɣwhenever leaving the product unattended
Ɣwhenever performing maintenance
Ɣwhenever the product starts to vibrate abnormally
WARNING
Never use cutting means or attachments, which are not
specified by RYOBI in this manual. This includes the
use of metal multi-piece pivoting chains and flail-blades.
These items are known to break up during use and
present a high risk of serious injury to the operator or
bystanders.

2
WARNING
Inspection after dropping or other impacts: Thoroughly
inspect the product and identify any problems or damage
to it. Any part that is damaged should be properly
repaired or replaced by an authorised service centre.
GRASS TRIMMER SAFETY WARNINGS
ŶReplace the string head if cracked, chipped, or
damaged in any way. Be sure the string head is
properly installed and securely fastened. Failure to do
so can cause serious injury.
ŶAvoid using on wet grass.
ŶDo not walk backwards when using the product.
ŶWalk, never run.
ŶThe small blade fitted to the cutting attachment guard
is designed to trim the new extended line to the correct
length for safe and optimum performance. It is very
sharp; do not touch it, particularly when cleaning the
product.
ŶAlways ensure that ventilation openings are kept clear
of debris.
ŶBefore use and after any impact, check that there are
no damaged parts. Examine the cutting means for signs
of cracking or other damage. A defective switch or any
part that is damaged should be properly repaired or
replaced by an authorised service centre.
ŶMake sure the head attachment is properly installed
and securely fastened.
ŶMake sure all guards, deflectors, handles, bolts, and
fasteners are properly and securely attached.
ŶDo not modify the product in any way. This may
increase the risk of injury to yourself or others.
ŶUse only the manufacturer’s replacement line in the
cutting head. Do not use any other cutting attachment.
ŶNever use the product without the cutting attachment
guard in place and in good condition.
ŶMaintain a firm grip on both handles while trimming.
Keep string head below waist level. Never cut with the
string head located over 76 cm above the ground.
BRUSHCUTTER SAFETY WARNINGS
ŶIn addition to the above rules, these additional
instructions are appropriate when using the product in
brushcutter mode.
ŶUse heavy-duty gloves while installing or removing the
blades, they have sharp edges.
ŶDo not attempt to touch or stop the blade when it is
rotating.
ŶA moving blade can cause severe injury. Maintain
proper control of the product with both hands until the
blade has completely stopped rotating.
ŶReplace any blade that has been damaged. Always
make sure the blade is installed correctly and securely
fastened before each use.
ŶUse only the manufacturer’s replacement blade. Do not
use any other cutting attachment.
ŶNever cut any material over 13 mm diameter.
ŶYour brushcutter is fitted with a harness. Carefully
adjust the harness to fit comfortably and help to support
the weight of the product at your right side.
ŶIdentify the quick release mechanism and practice using
it before you start using the product. Its correct use may
prevent serious injury in case of an emergency. Never
wear additional clothing over the harness or otherwise
restrict access to the quick release mechanism.
ŶCover the blade with the blade protector before storing
the product, or during transportation. Always remove
the blade protector before using the product. If not
removed, the blade protector could become a thrown
object as the blade begins to turn.
ŶExercise extreme caution when using the blade with
the product. Blade thrust is the reaction that may occur
when the spinning blade contacts anything it cannot
cut. This contact may cause the blade to stop for an
instant, and suddenly “thrust” the product away from the
object that was hit. This reaction can be violent enough
to cause the operator to lose control of the product.
Blade thrust may occur without warning if the blade
snags, stalls, or binds. This is more likely to occur in
areas where it is difficult to see the material being cut.
ŶFor cutting ease and safety, approach the weeds being
cut from the right to the left. In the event an unexpected
object or woody stock is encountered, this practice
could minimise the blade thrust reaction. Both hands
must be used at all times to control the product.
TRANSPORTATION AND STORAGE
ŶStop the engine and allow it to cool down before storing
or transporting.
ŶClean all foreign materials from the product.
ŶIf a cutting blade is fitted, cover it with the blade
protector.
ŶDrain all fuel from tank into a container approved for
petrol. Remember to properly replace and tighten the
fuel cap.
ŶRun the engine until it stops, this will remove all fuel
that could become stale and leave varnish and gum in
the fuel system.
ŶStore the product in a cool, dry, and well-ventilated
place that is inaccessible to children. Keep away from
corrosive agents, such as garden chemicals and de-
icing salts. Do not store outdoors.
ŶWhen transporting the product in a vehicle, secure it
against movement or falling to prevent injury to persons
or damage to the product.
ŶNever carry or transport the product while the engine
is running.
ŶAbide by all government and local regulations for
the safety storage and handling of petrol. Excess
fuel should be used in other 2-cycle engine powered
equipment.
Short term
ŶStop the engine, and allow it to cool down before
storing.
ŶClean all foreign materials from the product.

3
ŶStore the product in a cool, dry, and well-ventilated
place that is inaccessible to children.
ŶKeep away from corrosive agents such as garden
chemicals and de-icing salts.
ŶDo not store outdoors.
MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can
cause possible injury, contribute to poor performance,
and may void your warranty.
WARNING
The cutting attachment must not rotate in idle mode. If
this requirement is not satisfied, the clutch has to be
adjusted or the product needs urgent maintenance by a
qualified technician.
WARNING
Note that the blade nut is a Nylon locking nut, which is
to be used for one time assembly only. Do not reuse
the Nylon locking nut. When installing/reinstalling, use
a new Nylon locking nut. Failure to follow this procedure
can result in serious injury. When installing/reinstalling
blades, use a new Nylon locking nut.
ŶYou may make adjustments and repairs described
in this manual. For other repairs, have the product
serviced by an authorised service centre.
ŶConsequences of improper maintenance may include
excess carbon deposits resulting in loss of performance
and discharge of black lubricant residue dripping from
the muffler.
ŶMake sure all guards, straps, deflectors, and handles
are properly and securely attached to avoid the risk of
personal injury.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise in use, and the
operator should pay special attention to avoid the following:
Ŷinjury caused by contact with cutting means
–Ensure that the blade protectors are fitted when the
product is not in use. Keep hands and feet away
from the blades at all times.
Ŷinjury caused by vibration
–Hold the product by designated handles and restrict
working time and exposure.
Ŷinjury caused by exposure to noise
–Wear hearing protection and limit exposure.
Ŷinjury caused by flying debris
–Wear eye protection at all times.
Ŷinjury caused by falling objects
–Wear head protection if there is any risk of falling
objects.
Kickback can occur when using the brushcutter. Ensure
proper control by using both hands on the designated
handles. Read and follow the directions elsewhere in this
manual to help reduce the risk of kickback.
RISK REDUCTION
It has been reported that vibrations from handheld tools
may contribute to a condition called Raynaud’s Syndrome.
Symptoms may include tingling, numbness, and blanching
RI WKH ¿QJHUV XVXDOO\ DSSDUHQW XSRQ H[SRVXUH WR FROG
Hereditary factors, exposure to cold and dampness, diet,
smoking and work practices are all thought to contribute to
the development of these symptoms. There are measures
that can be taken by the operator to possibly reduce the
effects of vibration:
ŶKeep your body warm in cold weather. When operating
the product, wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
ŶAfter each period of operation, exercise to increase
blood circulation.
ŶEnsure that the product is correctly located in a
designated working position before starting the product.
ŶLimit the amount of exposure per day. Take frequent
work breaks.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
WHAT’S IN THE BOX
Ŷ8SSHUVKDIWSRZHUKHDG
ŶStraight shaft attachment
ŶREEL EASY grass trimmer head
ŶPRO CUT II grass trimmer head
ŶCutting attachment guard
ŶBlade
ŶHarness
ŶOperator’s manual
Ŷ(QJLQHRLOP/
ŶCombination wrench
ŶWrench X 1 pc.
ŶAllen wrenches X 2 pcs.
Ŷ&XWWLQJOLQHPP[SFV

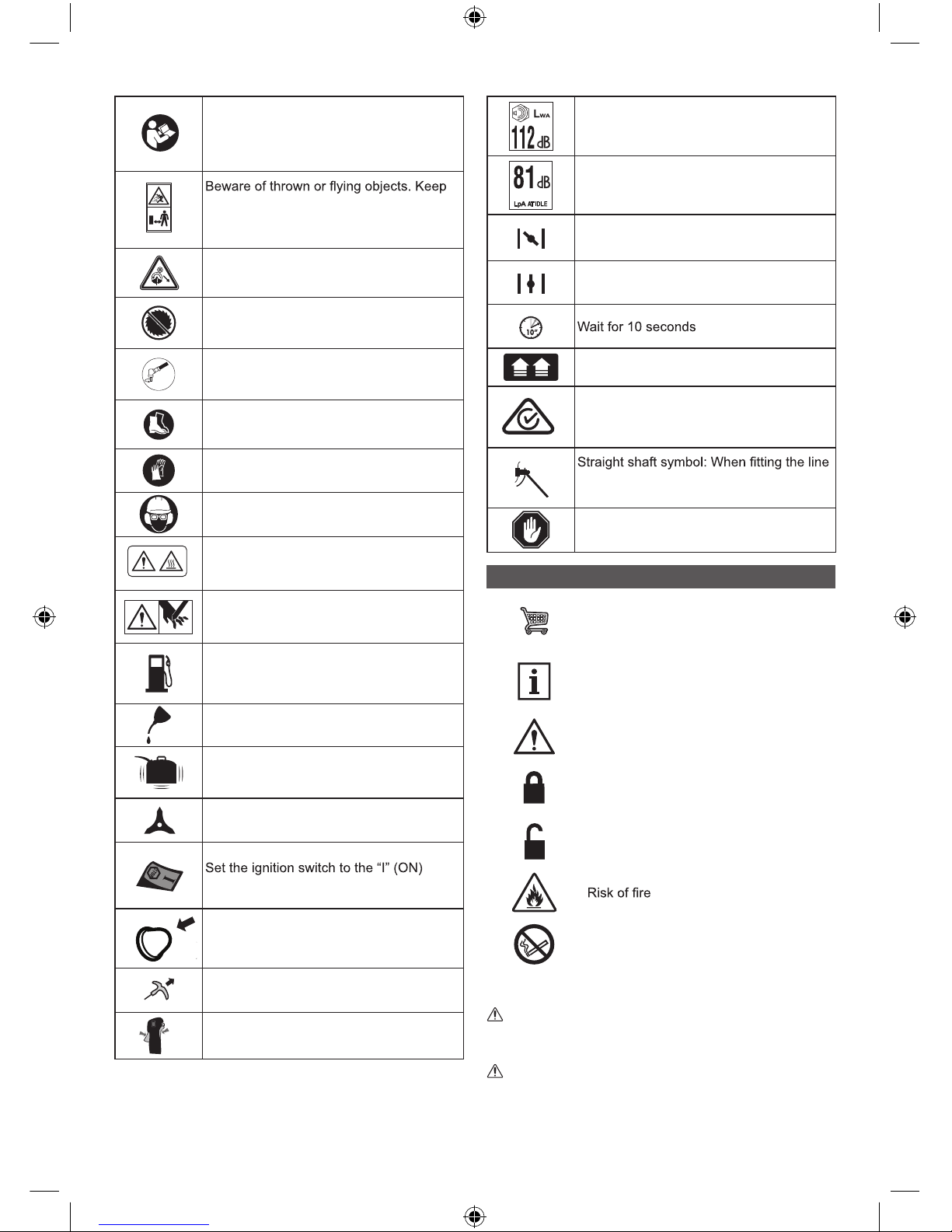

SYMBOLS ON THE PRODUCT
Safety alert

4
To avoid serious personal injury, do not
attempt to use the product until you read
thoroughly and understand completely the
operator’s manual.
all bystanders, especially children and
pets, at least 15 m from the operating
area.
Beware of blade thrust.
The guard is not intended for use with a
toothed saw type blade.
7,370
min -1
Rotational direction and maximum speed
of the shaft for the cutting attachment.
Wear non-slip safety footwear when using
the product.
Wear non-slip, heavy-duty gloves.
Wear eye, ear, and head protection.
To reduce the risk of injury or damage,
avoid contact with any hot surface.
Keep hands away from blades.
Use unleaded petrol intended for motor
vehicle use with an octane rating of 91 or
higher.
Use 2-stroke oil for air cooled engines.
Mix the fuel mix thoroughly and also each
time before refueling.
Blade
position.
Fully press and release the primer bulb
Pull the starter grip to start the engine.
Squeeze throttle trigger to run.
Guaranteed sound power level
Sound pressure level at idle
Choke closed
Choke open
Pull: Quick release tab
Regulatory compliance mark
spool to the cutting means, this symbol
should be visible to the operator
Stop the product
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning
Lock
Unlock
Do not smoke
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.

5
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
ASSEMBLY
UNPACKING
The product requires assembly.
ŶCarefully remove the product and any accessories from
the box. Make sure that all items listed in the packing
list are included.
ŶInspect the product carefully to make sure no breakage
or damage occurred during shipping.
ŶDo not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
WARNING
If any parts are damaged or missing, do not operate
the product until the parts are replaced. Failure to heed
this warning could result in serious personal injury.
WARNING
Do not attempt to modify the product or create
accessories not recommended for use with the
SURGXFW $Q\ VXFK DOWHUDWLRQ RU PRGL¿FDWLRQ LV
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Never attach or adjust any attachment while
the power head is running. Failure to stop the
engine may cause serious personal injury.
WARNING
Be certain all knobs and fasteners are fully tightened
before operating the product. Periodically check
for tightness during use to avoid serious injury.

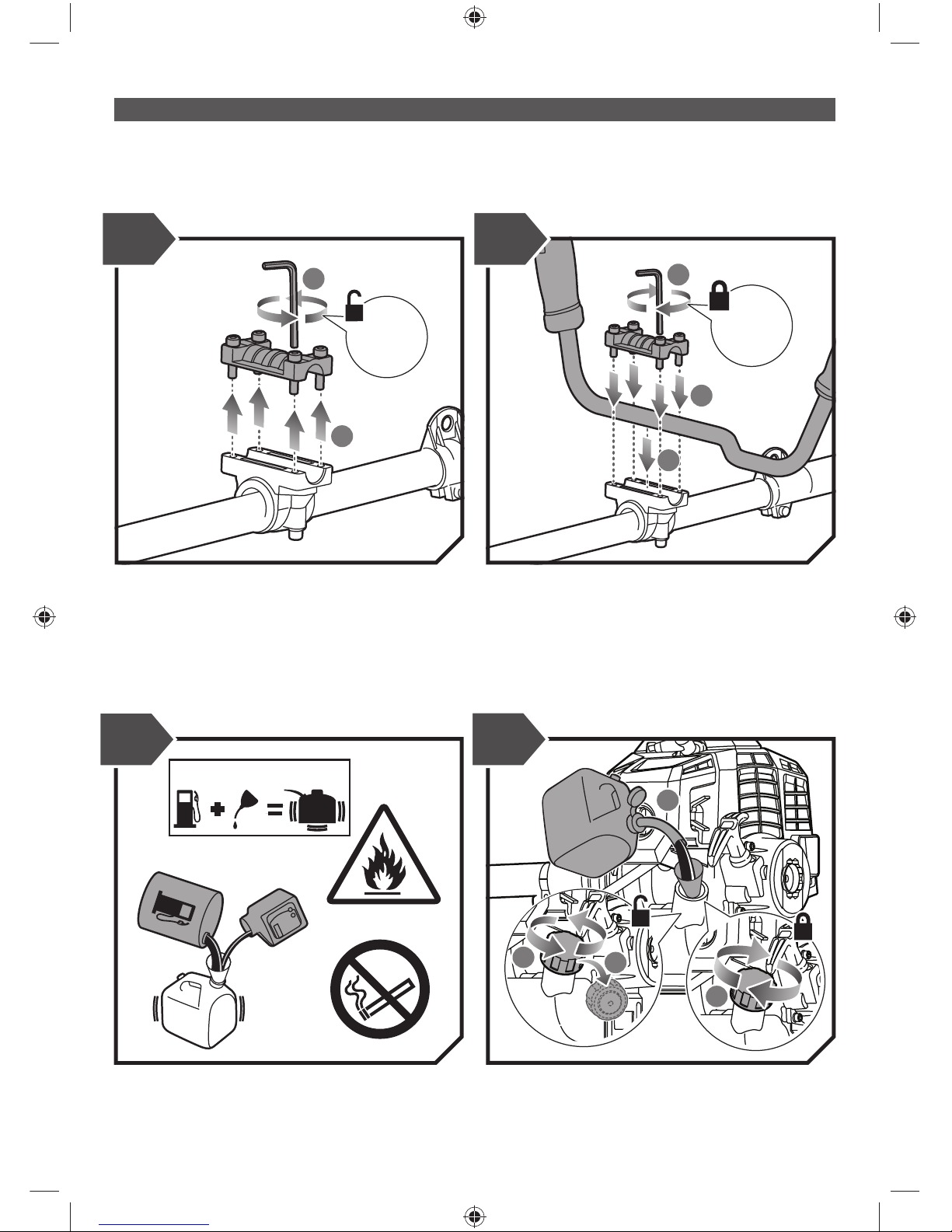

SETTING UP THE HANDLE
ŶLoosen the clamp.
ŶLift the handle to the desired position.
ŶTighten the clamp securely.
WARNING
Periodically check the knob for tightness to avoid serious
injury.
ATTACHING THE CUTTING ASSEMBLY TO THE
POWER HEAD
A cutting assembly is attached to the power head by means
of a coupler device.
Ŷ6WRSWKHHQJLQHE\VHWWLQJWKHVZLWFKWR³6723´2))
position.
ŶLoosen the knob on the coupler of the power head shaft
and remove the end cap from the attachment.
ŶPull the retaining pin located on the power head shaft
and rotate 1/4 turn. Rotating allows the pin to lock out
of the shaft even when released.
ŶAlign the hole in the attachment shaft with the retaining
pin on the power head shaft and slide the two shafts
together.
ŶRotate the retaining pin 1/4 turn to allow the pin to fully
seat through the hole in the attachment shaft.
NOTE: If the pin does not release completely in the
positioning hole, the shafts are not locked into place.
Slightly rotate from side to side until the pin is locked
into place.
ŶTighten the knob securely.

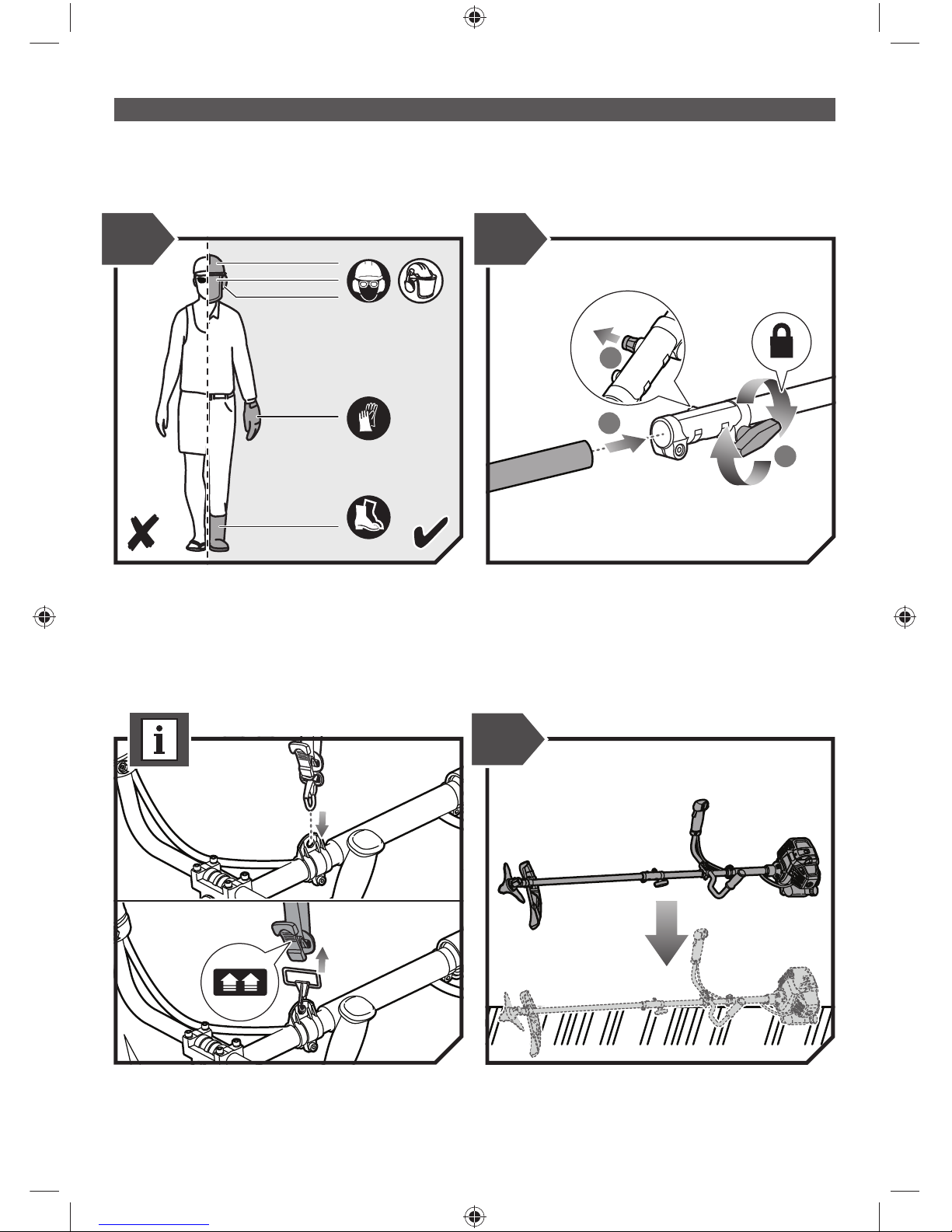

ATTACHING THE HARNESS
ŶConnect the latch on the harness to the strap hanger.
ŶAdjust the strap hanger to a balanced position where
the blade or cutter attachment will suspend between
PPWRPPDERYHWKHJURXQGVXUIDFH
NOTE: Always use the harness with the product.
NOTE: To quickly release the product from the harness,
sharply pull the quick release tab.
ATTACHING THE BLADE GUARD
ŶStop the engine.
ŶRemove the grass deflector.
ŶAttach the blade guard to the mounting bracket and
align the screw holes on the blade guard to the screws
on the mounting bracket.
ŶTighten screws securely.
CONVERTING FROM BRUSHCUTTER TO GRASS
TRIMMER
WARNING
Be certain all knobs and fasteners are fully tightened
before operating the product. Periodically check
for tightness during use to avoid serious injury.
Removing the blade
ŶStop the engine.
ŶPlace the Allen wrench through the hole in the upper
flange washer and the hole in the gear head. Turn
blade nut clockwise to remove.
ŶRemove the blade nut, blade washer, cupped washer,
and blade and retain for later use.
ŶAttach the grass deflector to the blade guard by placing
the two locking tabs into the two notches; tighten the
screw.
NOTE: Store the disassembled parts together for later
use.

6
WARNING
When using the grass trimmer string head, the
JUDVV GHÀHFWRU PXVW EH DWWDFKHG WR WKH EODGH JXDUG
Installing the REEL EASY grass trimmer head
ŶInstall the drive connector and string head housing
into the gear shaft. Place the Allen wrench through
the hole in the upper flange washer and the hole in the
gear head. Using the wrench, turn the drive connector
counterclockwise to tighten securely.
ŶReinstall the spool. For the straight shaft attachment
with the REEL EASY string trimmer head, the spool
should be placed so “This side out for straight shaft” is
visible on the line spool.
ŶReplace the bump knob by inserting it into the centre
of the line spool.
ŶReplace the grass trimmer head cover, aligning latches
with openings in the grass trimmer head. Press cover
and grass trimmer head together until both latches
snap securely into the openings.
Ŷ,QVWDOOWKHFXWWLQJOLQHPPOLQHGLDPHWHU5HIHUWR
“String replacement” later in the manual for additional
information.
ŶInstall the grass deflector into the blade guard.
Installing the PRO CUT II
ŶStop the engine.
ŶRemove the installed line head.
ŶInstall the cupped washer. Install the drive shaft into the
gear shaft. Place the Allen wrench through the hole in
the upper flange washer and the hole in the gear head.
Using the combination wrench, turn the small drive
shaft counterclockwise and tighten securely.
ŶInstall the PRO CUT II grass trimmer head on the drive
shaft until fully seated.
ŶInstall the spool retainer and turn counter-clockwise.
ŶInstall the cutting line. See “Installing the line to the
PRO CUT II head”.
Installing the line to the PRO CUT II head
8VH D PRQR¿ODPHQW OLQH ZLWK D GLDPHWHU RI  PP
Use original manufacturer’s replacement line for best
performance. A 2.4 mm line is not compatible with the PRO
CUT II head. For the head to secure the line safely, a 2.7
mm line must be used.
ŶStop the engine.
ŶRemove the old line by pulling it from the holes located
on the top of the line head.
ŶGather two of the pre-cut lengths of trimmer line
provided or cut two pieces of trimmer line 28 cm each.
ŶInsert the line into the LOAD slots located on the sides
of the line head. This line should be pushed in until
approximately 2 cm protrudes from the holes on the top
of the line head.
ŶOnce the line protrudes 2 cm from the holes on the top
of the line head, gently pull back slightly to ensure the
line is gripped properly.
CONVERTING FROM GRASS TRIMMER TO BRUSH-
CUTTER (BLADE)
WARNING
When using the REEL EASY grass trimmer head and
PRO CUT II WKH JUDVV GHÀHFWRU PXVW EH DWWDFKHG
to the blade guard. When using the blade, the grass
GHÀHFWRU PXVW EH UHPRYHG IURP WKH EODGH JXDUG
Removing the REEL EASY grass trimmer head
ŶStop the engine.
ŶOpen the REEL EASY grass trimmer head by
depressing the latches on each side. The contents of
the bump head are spring loaded, so keep your other
hand over the string head cover while depressing the
latches.
ŶRemove the string head cover, bump knob, and line
spool.
ŶPlace the Allen wrench through the hole in the upper
flange washer and the hole in the gear head. Using a
wrench, turn the drive connector clockwise to remove.
ŶRemove the drive connector and string head housing
from the gear head.
NOTE: Store the disassembled parts together for later use.
ŶRemove the grass deflector from the blade guard.
Installing the blade
WARNING
Be certain all knobs and fasteners are fully tightened
before operating the product. Periodically check
for tightness during use to avoid serious injury.
WARNING
Please note that the blade nut is a Nylon locking nut,
to be used for one time assembly only. After the Nylon
locking nut has been assembled once, it must not be
re-used. When installing/re-installing the blade onto the
gearbox assembly, use a new Nylon locking nut. Failure
to follow this procedure can result in serious injury.
To reduce the risk of injury, keep the blade protector on the
blade at all times. Remove the blade protector only during
cutting operations.
ŶCentre the blade on the upper flange washer and make
sure the blade sits flat. Install the cupped washer and
make sure it sits well into the gear shaft. Install the
blade washer with the raised centre away from the
blade.
ŶInstall the blade nut.
ŶPlace the Allen wrench through the hole in the upper
flange washer and the hole in the gear head. Using the
wrench, turn the blade nut at least 4 turns after finger
WLJKWFRXQWHUFORFNZLVHWRWLJKWHQ1P

7
OPERATION
FUEL AND REFUELING
Handling the fuel safely
ŶAlways handle the fuel with care. It is highly flammable.
ŶAlways refuel outdoors where there are no sparks and
flames. Do not inhale fuel vapour. Do not smoke.
ŶDo not let petrol or lubricant come in contact with your
skin.
ŶKeep petrol and lubricant away from the eyes. If petrol
or lubricant comes in contact with the eyes, wash them
immediately with clean water. If irritation is still present,
see a physician immediately.
ŶClean up spilled petrol immediately.
MIXING THE FUEL
ŶThe product is powered by a 2-stroke engine and
requires pre-mixing petrol and 2-stroke lubricant. Pre-
mix unleaded petrol and 2-stroke engine lubricant in a
clean container approved for petrol.
Ŷ7KLV HQJLQH LV FHUWL¿HG WR RSHUDWH RQ XQOHDGHG SHWURO
intended for motor vehicle use with an octane rating of
91 or higher.
ŶDo not use any type of pre-mixed petrol/lubricant from
fuel service stations.
ŶUse synthetic, 2-stroke lubricant only. Do not use
automotive lubricant or 2-cycle outboard lubricant.
ŶMix 2% synthetic 2-stroke lubricant into the petrol. This
LVDUDWLR
ŶMix the fuel thoroughly and also each time before
refueling.
ŶMix in small quantities. Do not mix quantities larger than
XVDEOHLQDGD\SHULRG$V\QWKHWLFVWURNHOXEULFDQW
containing a fuel stabiliser is recommended.
 /LWUH  PO 
 /LWUHV  PO
 /LWUHV  PO  
 /LWUHV  PO 
 /LWUHV  PO
FILLING THE TANK
ŶClean surface around fuel cap to prevent contamination.
ŶLoosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
ŶCarefully pour the fuel mixture into the tank. Avoid
spillage.
ŶPrior to replacing the fuel cap, clean and inspect the
gasket.
ŶImmediately replace the fuel cap and hand tighten. Wipe
up any fuel spillage. Move 9 m away from refueling site
before starting engine.
NOTE: It is normal for smoke to be emitted from a new
engine during and after first use.
WARNING
Always shut off the engine before fueling. Never
add fuel to a machine with a running or hot
HQJLQH 0RYH DW OHDVW  P  IW IURP UHIXHOLQJ
site before starting the engine. Do not smoke.
STARTING AND STOPPING
Choke closed position
Choke open position
WARNING
Never start or run the engine inside a closed or poorly
ventilated area. Breathing exhaust fumes can kill.

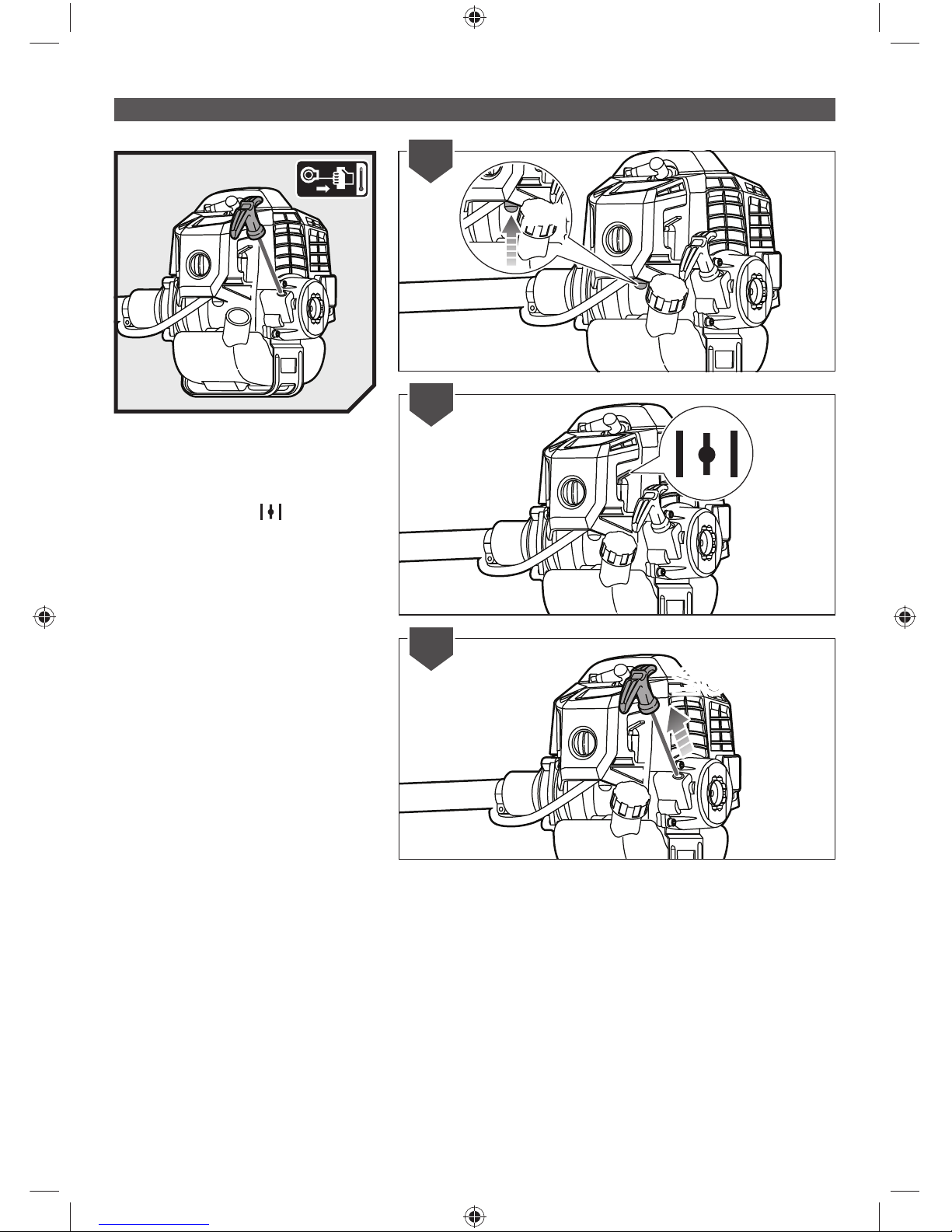

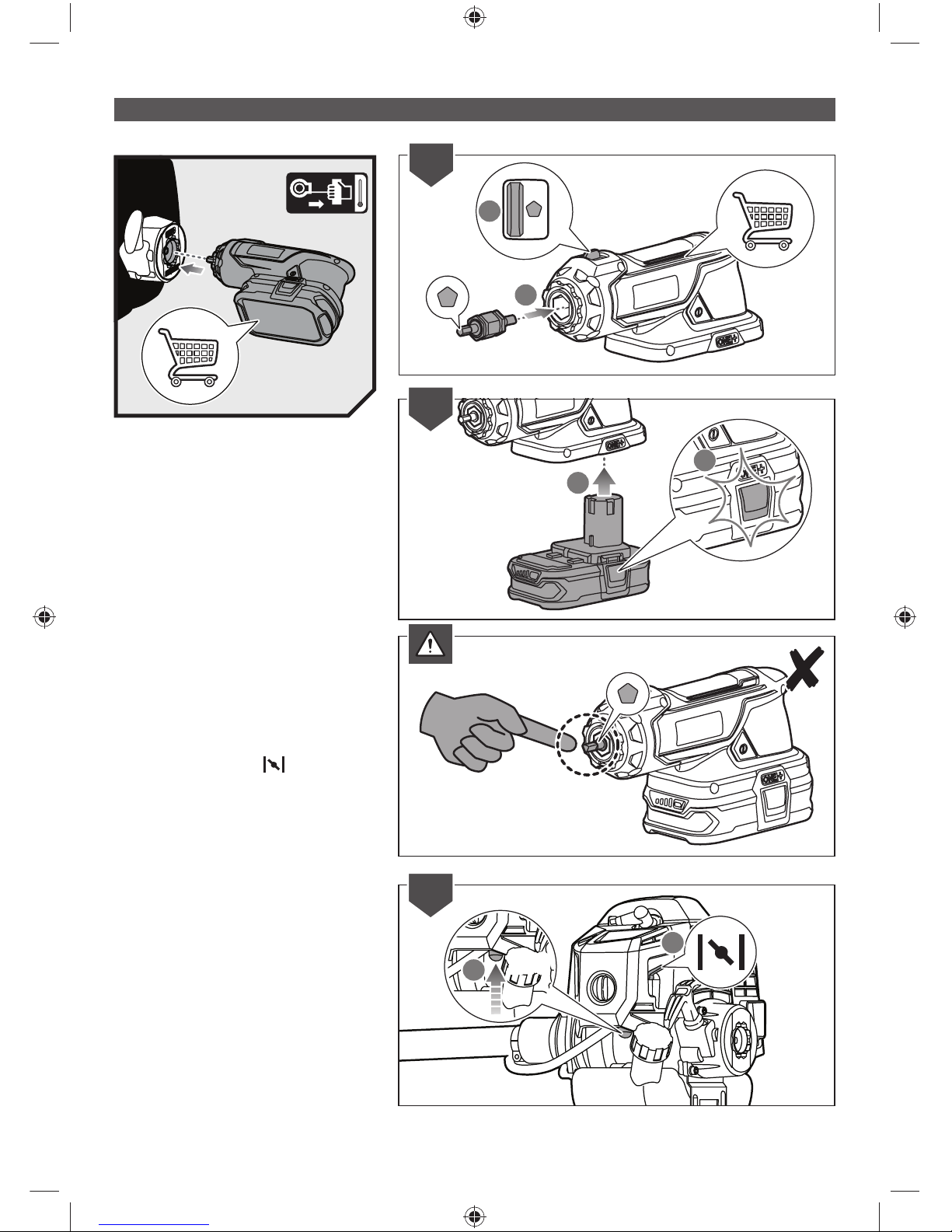

Starting a cold engine:
ŶLay the product on a flat, bare surface.
Ŷ6HWWKHLJQLWLRQVZLWFKWRWKH³,´21SRVLWLRQ
Ŷ3XVKWKHSULPHUEXOEDSSUR[LPDWHO\WLPHV
ŶSet the choke lever to position.
ŶPull the starter grip with a quick firm and consistent
upward motion until the engine attempts to start. Do not
pull the starter grip more than 4 times.
ŶSet the choke lever to position.
ŶPull the starter grip until the engine starts. Do not pull
the starter grip more than 6 times.
NOTE: If the engine does not start, repeat the procedure
from step 4.
Ŷ$OORZ HQJLQH WR ZDUP XS IRU  VHFRQGV SULRU WR
operation.
To start a warm engine:
ŶLay the product on a flat, bare surface.
Ŷ6HWWKHLJQLWLRQVZLWFKWRWKH³,´21SRVLWLRQ
Ŷ3XVKWKHSULPHUEXOEDSSUR[LPDWHO\WLPHV
ŶSet the choke lever to position.
ŶPull the starter grip with a quick firm and consistent
upward motion until the engine starts.
Stopping the engine:
6HWWKHLJQLWLRQVZLWFKWRWKH³2´2))SRVLWLRQ
OPERATING THE GRASS TRIMMER
ŶHold the product with the right hand on the trigger
handle and the left hand on the left handle. Keep a firm
grip with both hands while in operation.
ŶThe product should be held at a comfortable position
with the trigger handle about hip height.
ŶAlways operate the product at full throttle. Prolonged
cutting at partial throttle will result in lubricant dripping
from the silencer.
ŶCut tall grass from the top down to prevent grass from
wrapping around the shaft housing and string head,
which may cause damage due to overheating.
ŶIf grass becomes wrapped around the string head, stop
the engine. Wear heavy-duty gloves to prevent injury

8
from the sharp blades and carefully remove the debris.
CUTTING TIPS
ŶDo not push into the grass to be cut. Move from side to
side, moving forward a little at the end of each sweep.
ŶKeep the product tilted towards the area being cut.
ŶDo not use in dangerous environments.
ŶUse the tip of the string to do the cutting; do not force
the string head into the uncut grass.
ŶWire and picket fences cause extra string wear, even
breakage. Stone and brick walls, kerbs, and wood may
wear string rapidly.
ŶAvoid trees and shrubs. Tree bark, wood mouldings,
cladding and fence posts can be easily damaged by
the string.
ADVANCING THE REEL EASY LINE
Line advance is controlled by tapping the string head on
grass while running engine at full throttle.
ŶRun engine at full throttle.
ŶTap the knob on ground to advance string. The string
advances each time the knob is tapped. Do not hold the
knob on the ground.
ŶThe string should advance until it is cut to length by
the line cutting blade located on the cutting attachment
guard.
OPERATING THE BRUSHCUTTER
ŶTo help reduce the risk of kickback, do not push into
the material to be cut. Move from right to left in steady
sweeps, moving forward a little at the beginning of each
new sweep.
ŶHold the product with the right hand on the trigger
handle and the left hand on the left handle. Keep a firm
grip with both hands while in operation.
ŶThe product should be held at a comfortable position
with the trigger handle about hip height.
ŶMaintain your grip and balance on both feet. Position
yourself so that you will not be thrown off balance by the
kickback reaction of the cutting blade.
ŶAdjust the strap hanger to a comfortable position.
BLADE
The blade is suitable for cutting pulpy weeds and vines
only. When the blade becomes dull, it can be turned over to
extend its life. Do not sharpen the blade.
CUTTING TECHNIQUE
WARNING
The blades are very sharp and can injure even if they
are not moving. Exercise extreme caution when using
the blade with the product. Safe operation of the
product requires that you read and understand this
RSHUDWRU¶VPDQXDODQGDOOODEHOVDI¿[HGWRWKHSURGXFW
ŶBoth hands must be used at all times to control the
product. Keep a firm grip with both hands while in
operation.
ŶMaintain your grip and balance on both feet. Position
yourself so that you will not be drawn off balance by the
kickback reaction of the cutting blade.
ŶInspect and clear the area of any hidden objects such
as glass, stones, concrete, fencing, wire, wood, and
metal.
ŶNever use blades near footpaths, fencing, posts,
buildings or other immovable objects.
ŶNever use a blade after hitting a hard object without
first inspecting it for damage. Do not use if any damage
is detected.
ŶFor cutting ease and safety, approach the weeds being
cut from the right to the left.
REPLACING THE REEL EASY LINE
Ŷ(QVXUHWKHSURGXFWLVLQWKH³6723´2))SRVLWLRQ
ŶUse a 2.4 mm diameter monofilament string.
ŶCut one piece of string approximately 6 m in length.
ŶRotate the knob on the string head until the line on knob
aligns with the arrows on the top of string head.
ŶInsert one end of the string into the eyelet located on the
side of the string head and push until the string comes
out through the eyelet on the other side. Continue to
push the string until its middle section is inside the
string head and the string outside the string head is
evenly divided on each side.
ŶRotate the knob on the string head clockwise to wind
the string.
Ŷ:LQG WKH VWULQJ XQWLO DSSUR[LPDWHO\  FP UHPDLQV
protruding from the string head.
BLADE PROTECTOR
Always place the blade protector on the blade when the
product is not in use. The blade protector has clips round
the edges to snap over the blade and keep it in place. Wear
gloves and be cautious when handling the blade.
NOTE: Always remove the blade protector before using the
product. If not removed, the blade protector could become
a thrown object as the blade begins to turn.
CLEANING THE EXHAUST PORT AND SILENCER
Depending on the type of fuel used, the type and amount of
oil used, and/or your operating conditions, the exhaust port
and silencer may become blocked with carbon deposits.
If you notice a power loss with your petrol-powered tool,
D TXDOL¿HG VHUYLFH WHFKQLFLDQ ZLOO QHHG WR UHPRYH WKHVH
deposits to restore performance.
CLEANING THE AIR FILTER
ŶMake sure the product is in the “off” position.
ŶRemove the air filter knob and air filter cover.
ŶRemove the air filter and clean it with warm soapy
water.
ŶRinse, and let the air filter dry completely.

9
ŶReplace the air filter.
NOTE: If damaged, replace immediately.
ŶReplace the air filter cover.
ŶTighten the air filter knob.
NOTE: 7KH DLU ¿OWHU VKRXOG EH UHSODFHG DQQXDOO\ IRU WKH
best performance.
CHECKING THE FUEL CAP
WARNING
$OHDNLQJIXHOFDSLVD¿UHKD]DUGDQGPXVWEHUHSODFHG
immediately.
7KH IXHO FDS FRQWDLQV D QRQVHUYLFHDEOH ¿OWHU DQG D
FKHFN YDOYH $ FORJJHG IXHO ¿OWHU ZLOO FDXVH SRRU HQJLQH
performance. If performance improves when the fuel cap is
ORRVHQHGWKHFKHFNYDOYHPD\EHIDXOW\RUWKH¿OWHUPD\EH
clogged. Replace fuel cap if required.
REPLACING THE SPARK PLUG
The product’s engine uses an L8RTF/BOSCH spark plug
RU HTXLYDOHQW ZLWK  PP HOHFWURGH JDS 8VH DQ H[DFW
replacement.
WARNING
Be careful not to cross-thread the spark plug.
Cross-threading will seriously damage the engine.
To properly tighten the spark plug, apply a torque
RI a 1P RQO\ RU half a turn after finger tight.
CLEANING THE SPARK ARRESTOR
Follow these steps to clean the spark arrestor.
Ŷ0DNHVXUHWKHSURGXFWLVLQWKH³6723´2))SRVLWLRQ
ŶLocate the spark arrestor through the hole on the
muffler exit hole.
ŶRemove the spark arrestor using needle-nosed pliers.
ŶClean the spark arrestor with a small wire brush.
ŶReplace the spark arrestor.

10
UNPACKING
x 1 x 1 x 1
x 1 x 1
x 1
x 10
x 1
x 1
x 1
2.7mm

11
OVERVIEW
2
4
5
18
17
11
12
3
1
14
13
15
16
19
20
21
22
6
7
8
9
10

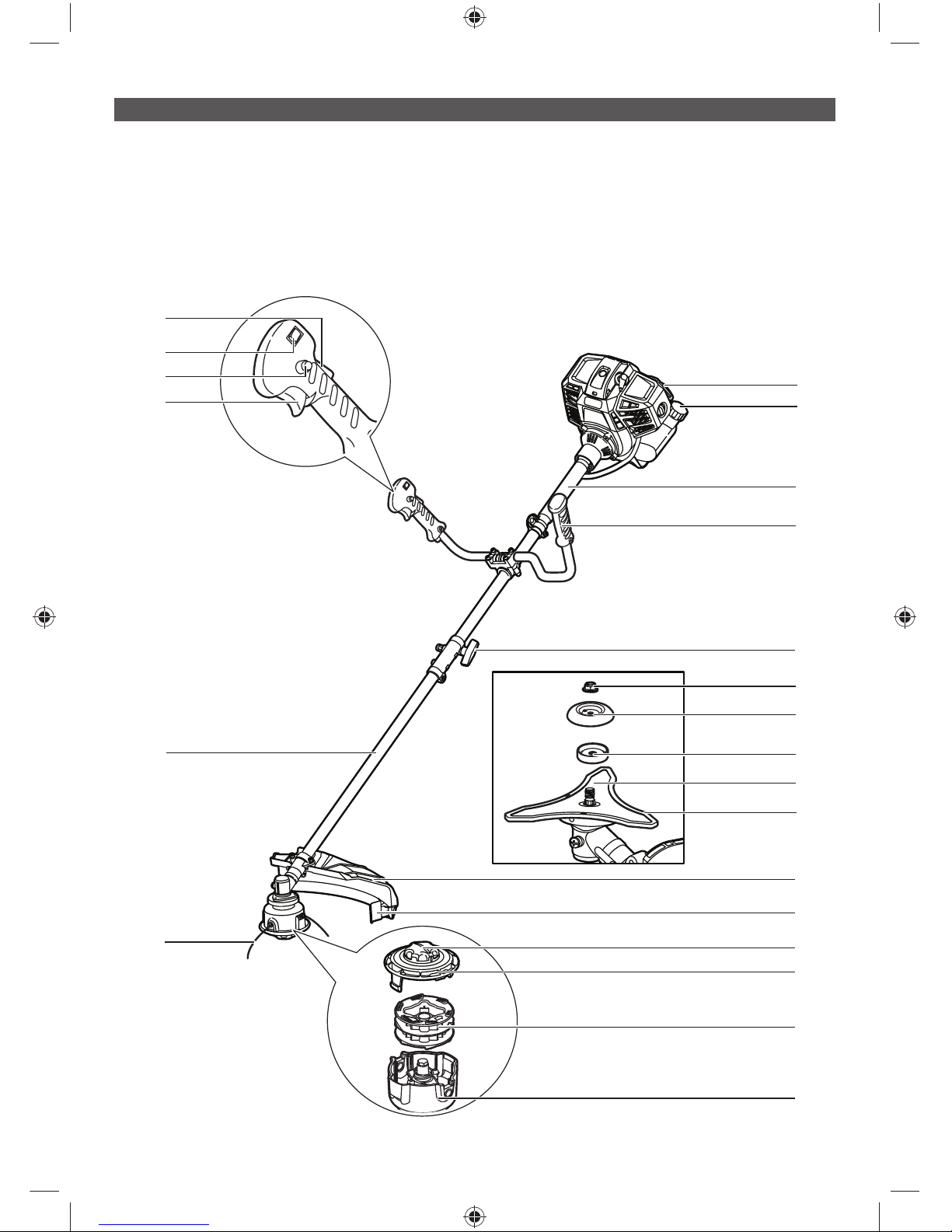

1. Starter grip
2. Fuel cap
3. Power head shaft
4. Left handle
5. Tightening knob
6. Blade nylon nut
7. Blade washer
8. Cupped washer
9. Point blade
Blade cover
11. Blade guard
12. Grass deflector
13. 6WULQJKHDGNQRE5HHO(DV\
14. 6WULQJKHDGFRYHU5HHO(DV\
15. 6SRRO5HHO(DV\
16. 6WULQJKHDGKRXVLQJ5HHO(DV\
17. Cutting line
18. Lower shaft
19. Throttle trigger
Throttle interlock
21. Switch
22. Throttle lock out

12
GETTING STARTED
1
5
2
3
1
2
Always wear safety goggles or safety glasses with side shields
when operating the product. Failure to do so could result in objects
being thrown into your eyes resulting in possible serious injury.
When handling the trimmer assembly, wear non-slip, heavy-duty
protective gloves. Wear non-skid, protective footwear that will
protect your feet and improve your footing on slippery surfaces.
Install the lower shaft.
Attach the shoulder strap hanger. Lay the product on the ground.

13
GETTING STARTED
3
4
12
7
(50 : 1)
50 : 1 / 2%
6
1
2
x4
3
1
2
3
x4
4
Remove the clamp using the allen wrench to install the trimmer
handle.
Install the handle. Make sure to secure it with the clamp as shown.
Use synthetic 2-stroke lubricant only. Do not use automotive
lubricant or 2-stroke outboard lubricant. Mix 2% synthetic 2-stroke
lubricant into the petrol. This is a 50:1 ratio.
Loosen the fuel cap. Remove the fuel cap. Carefully pour fuel
mixture into the tank. Avoid spillage. Immediately replace fuel cap
and hand tighten.

14
OVERVIEW
p.24
p.21
p.16-17 p.18-20
p.27p.26 p.31
Operating the brushcutter
Operating the trimmer
Brushcutter to trimmer Installing line Pro Cut II
Starting the product Electrical starter
Trimmer to brushcutter

15
OVERVIEW
p.32
p.30
p.34 p.35
p.38p.28 p.37
Air filter cleaning Spark plug replacement
Spool replacement
Pro Cut II Assembly
Cleaning Storage
Muffler cleaning

16
OPERATION
x10x10
1
2
44
VIVI
2
1
66
VIVI
1
2
3
30
4
STARTING A COLD ENGINE
1. Lay the product on the ground. Press the
SULPHUEXOEWLPHV
NOTE: After the 7th press, the fuel should
be visible in the primer bulb. If not, continue
pressing until the fuel is visible.
Set the choke lever to choke position.
2. 3XOO WKH VWDUWHU JULS ZLWK D TXLFN ¿UP DQG
consistent upward motion until the engine
attempts to start. Do not pull the starter grip
more than 4 times.
3. Set the choke lever to position. Pull the
starter grip until the engine starts. Do not pull
the starter grip more than 6 times.
NOTE: If the engine does not start, repeat
the procedure again from setting the choke
lever to choke position.
4. $OORZWKHHQJLQHWRUXQIRUVHFRQGV

17
OPERATION
x10x10
66
VIVI
1
2
3
STARTING A WARM ENGINE
1. Lay the product on the ground. Set the
LJQLWLRQVZLWFKWRWKH³,´21SRVLWLRQ3UHVV
WKHSULPHUEXOEWLPHV
2. Set the choke lever to position. Pull the
VWDUWHUJULS ZLWK D TXLFN ¿UP DQG FRQVLVWHQW
upward motion until the engine starts.
3. Do not pull the starter grip more than 6 times.

18
OPERATION
1
2
x10x10
1
2
2
3
1
2
1
STARTING A COLD ENGINE BY ELEC-
TRICAL STARTER
1. Install the starter bit into the electrical starter
with the pentagon bit facing outside. Push
the F/R button to the left until the pentagon
symbol shows on the F/R button.
2. Insert the battery pack into the electrical
starter until it clicks into place.
WARNING: Keep your hands away from
the starter bit to avoid injury.
3. Lay the product on the ground and
make sure that the cutting means does
not come in contact with anything. Press
WKHSULPHUEXOEWLPHV
NOTE : After the 7th press, the fuel
should be visible in the primer bulb. If
not, continue pressing until the fuel is
visible.
Set the choke lever to choke position.
