Sagem MYX-4 Guide




SITE TECHNICAL DOCUMENTATION

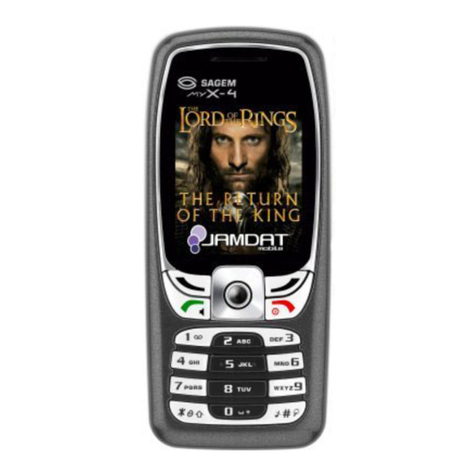

MyX-4
Doc. No. : SCT U38 SSC DTS 0022
Version : A
Date : July 30, 2004
Produced by 
2, rue du Petit Albi, 95800 Cergy Saint-Christophe, France
Tel [phone] - Fax [phone]
Copyright 2002
SAGEM
Cergy Saint-Christophe, France

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - July 30, 2004 Page I
NO DISCLOSURE AGREEMENT
This document is SAGEM SA property. It can not be copied or communicated without written authorisation.

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page III
CONTENTS
CHAPTER 1 - FOREWORD
1.1 HOW TO USE THE SITE TECHNICAL DOCUMENTATION.............................................................1-1
1.2 ABREVIATIONS .................................................................................................................................1-2
1.3 COMMENTS SHEET..........................................................................................................................1-3
CHAPTER 2 - DESCRIPTION - OPERATION
2.1 REMINDERS ABOUT THE GENERAL CHARACTERISTICS OF GSM AND PCS NETWORKS.....2-1
2.2 REMINDERS ABOUT THE CHARACTERISTICS OF myX-4............................................................2-3
2.4 DATA/ AUDIO/ CHARGE CONNECTOR...........................................................................................2-5
2.4.1 Connector description................................................................................................................2-5
2.4.2 Signal description.......................................................................................................................2-5
2.5 IDENTIFICATION ...............................................................................................................................2-7
2.5.1 Illustration...................................................................................................................................2-7
2.5.2 Description.................................................................................................................................2-7
2.5.3 Description after reparation .......................................................................................................2-7
2.6 PHONE BLOCK DIAGRAM................................................................................................................2-8
2.6.1 myX-4 block diagram .................................................................................................................2-8
2.6.2 Standards and environment.......................................................................................................2-9
2.7 EQUIPEMENTS..................................................................................................................................2-9
2.7.1 Battery packs .............................................................................................................................2-9
2.7.2 Mains modules.........................................................................................................................2-10
CHAPTER 3 - SYMPTOMS
3.1 GENERAL...........................................................................................................................................3-1
3.2 LIST OF REPORTED DEFECTS .......................................................................................................3-2
3.3 ERROR MESSAGES DURING START UP .......................................................................................3-4
3.4 OTHER ERROR MESSAGES............................................................................................................3-4
3.5 LIST OF OBSERVED DEFECTS .......................................................................................................3-6
SYMPTOM SHEET ....................................................................................................................................3-7
SYMPTOM SHEET 01 : ENDURANCE BATTERY CHARGER………………………………………………3-8
SYMPTOM SHEET 02 : COMMUNICATION………….……………………………………………………... 3-9
SYMPTOM SHEET 03 : NO FAULT GIVEN ............................................................................................3-10
SYMPTOM SHEET 04 : DISPLAY...........................................................................................................3-11
SYMPTOM SHEET 05 : KEYPAD............................................................................................................3-12

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page III
SYMPTOM SHEET 06 : RING TONES.……………………………………………………………………… 3-13
SYMPTOM SHEET 07 : VIBRATE……………………………………………………………………………...3-14
SYMPTOM SHEET 08 : MICROPHONE / LOUDSPEAKER ...................................................................3-15
CHAPTER 4 - TESTS AND CHECKS
4.1 GENERAL ABOUT TESTS ................................................................................................................4-1
4.2 TEST TOOLS .....................................................................................................................................4-1
4.3 INSTALLING ON A WORKSTATION.................................................................................................4-2
4.3.1 Minimum required configuration ................................................................................................4-2
4.3.2 Installing the CRA downloading kit ............................................................................................4-2
4.3.3 SMT functions............................................................................................................................4-2
TEST SHEET ..............................................................................................................................................4-3
TEST SHEET 01 : TEST CHECK BY SMT …………………………………………………...........................4-4
TEST SHEET 02 : CHARGER TEST……………………………………………………………………………4-13
TEST SHEET 03 : BATTERY TEST…………………………………………………………………...............4-14
TEST SHEET 04 : CONSUMPTION TEST…………………………….......................................................4-15
TEST SHEET 05 : "HOTLINE" MENU …………………………… .............................................................4-16
TEST SHEET 06 : RADIO TEST………………………….. ........................................................................4-17
CHAPTER 5 – MAINTENANCE PROCEDURES
5.1 TECHNICAL WORK LEVELS.............................................................................................................5-1
5.2 SHORT LOOP PROCESS..................................................................................................................5-2
5.3 MAINTENANCE TOOLS ....................................................................................................................5-4
LEVEL 0 MAINTENANCE ..............................................................................................................................5-5
PROCEDURE SHEET 0 01 : REMOVING AND REPLACING THE BACK COVER .................................5-6
PROCEDURE SHEET 0 02 : REMOVING AND REPLACING THE BATTERY ........................................5-8
PROCEDURE SHEET 0 03 : REMOVING AND REPLACING THE FRONT COVER…………….……. 5-10
PROCEDURE SHEET 0 04 : REMOVING AND REPLACING THE KEYPAD…..……………………..….5-12
PROCEDURE SHEET 0 05 : REMOVING AND REPLACING THE KNOB LOCK………….…………….5-14

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page I
LEVEL 1 MAINTENANCE ............................................................................................................................5-16
PROCEDURE SHEET 1 01 : REMOVING AND REPLACING THE ASSEMBLY FLANGE....................5-17
PROCEDURE SHEET 1 02 : REMOVING AND REPLACING THE DYSPLAY ......................................5-19
PROCEDURE SHEET 1 03 : REMOVING AND REPLACING THE KEYPAD LIGHT GUIDE................5-21
PROCEDURE SHEET 1 04 : REMOVING AND REPLACING THE ELECTRONIC BOARD..................5-23
PROCEDURE SHEET 1 05 : REMOVING AND REPLACING THE METAL DOME...............................5-25
PROCEDURE SHEET 1 06 : REMOVING AND REPLACING THE JOYSTICK .....................................5-27
PROCEDURE SHEET 1 07 : REMOVING AND REPLACING LOUDSPEAKER....................................5-29
PROCEDURE SHEET 1 08 : REMOVING AND REPLACING THE VIBRATING DEVICE.....................5-31
PROCEDURE SHEET 1 09 : ELECTRONIC BOARD EXCHANGE........................................................5-33
LEVEL 3 MAINTENANCE ............................................................................................................................5-36
PROCEDURE SHEET 3 01 : RETURN TO SAGEM FACTORY.............................................................5-38
PROCEDURE SHEET 3 02 : RETURN TO CUSTOMER........................................................................5-39
OUT OF WARRANTY INTERVENTION .......................................................................................................5-40
PROCEDURE SHEET 4 01 : REMOVING AND REPLACING THE DATA/ AUDIO/ CHARGE
CONNECTOR ..........................................................................................................................................5-41
CHAPTER 6 - ACCESSORIES
6.1 12 V / 24 V CHARGERS.....................................................................................................................6-1
6.1.1 Description.................................................................................................................................6-1
6.1.2 Characteristics ...........................................................................................................................6-1
6.2 DESKTOP CHARGERS AND CRADLES ..........................................................................................6-2
6.2.1 Description.................................................................................................................................6-2
6.2.2 Characteristics ...........................................................................................................................6-2
6.3 CAR CRADLE.....................................................................................................................................6-3
6.3.1 Description.................................................................................................................................6-3
6.3.2 Characteristics ...........................................................................................................................6-3
6.4 FULL DUPLEX CAR HANDSFREE KIT.............................................................................................6-4
6.4.1 Description.................................................................................................................................6-4
6.4.2 Characteristics ...........................................................................................................................6-4
6.5 PEDESTRIAN HANDSFREE KIT.......................................................................................................6-6
6.5.1 Description.................................................................................................................................6-6
6.5.2 Characteristics ...........................................................................................................................6-6

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page I
6.6 DATA CABLES...................................................................................................................................6-7
6.6.1 Description.................................................................................................................................6-7
6.6.2 Characteristics ...........................................................................................................................6-7
CHAPTER 7 – TECHNICAL INFORMATION BULLETIN
7.1 PURPOSE ..........................................................................................................................................7-1
7.2 APPLICATION ....................................................................................................................................7-1
APPENDIX 1 – COMPOSITION TABLE

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page 1-1
CHAPTER 1 - FOREWORD
This document is common to all myX-4 phones in the SAGEM. It is composed of independent sheets:
−Symptom sheets = Symp Sheet XX
−Test and check sheet = Test Sheet XX
−Maintenance procedure sheet = Proc Sheet X XX
The applicability of a procedure is indicated in the independent sheets title block.
These sheets are updated from time to time in Technical Information Bulletins (TIB).
The information contained in this document is non-contractual, since phone characteristics can change.
Phones are managed based on SAGEM handset codes; any order for spare parts must refer to these codes
(typical code 25 xxx xxx-x).
1.1 HOW TO USE THE SITE TECHNICAL DOCUMENTATION
This is a modular document. Each sheet is single and independent. In some cases several sheets may have
to be used in order to determine the complete procedure to be applied.
A troubleshooting chapter (chapter 3) is provided and is sorted according to the type of reported fault, to
determine the maintenance procedure to be carried out.
These sheets describe the procedure to be followed. They refer to test sheets or removal and replacement
maintenance sheets. Maintenance ,executed by the repair center, terminates either by returning the product
to the customer, or by dispatching it to level 3 maintenance (return to factory).
Symp Sheet (Chap. 3)
Test Sheet (Chap. 4)
Proc Sheet (Chap. 5)
Test Sheet (Chap. 4)
Customers
Symptoms
Maintenance
Tests
Checks
Return to SAGEM
level 3
level 0-1-2

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page 1-2
All sheets include illustrations to make it easier to read the procedure.
Chapter 1: Foreword, describes general data about this document.
Chapter 2: Description - Operation, describes general data and options available in the myX-4.
Chapter 3: Symptoms, contains troubleshooting procedures to be carried out on equipment.
Chapter 4: Tests and checks, contains tests and check procedures to be performed on the equipment.
Chapter 5: Maintenance procedures, contains level 0 to 2 maintenance procedures to be carried out
on the equipment, and the procedure to return to SAGEM level 3.
Chapter 6: Accessories, describes the characteristics of accessories for myX-4 phones.
Chapter 7: Technical Information Bulletins, contains the various modifications made to this
documentation.
Chapter 8: Illustrated Parts Catalogue, contains the various reference for spare parts.
Appendix 1: Composition table, contains the various Sagem references codes for equipment
described in this document.
1.2 ABREVIATIONS
AAC Advanced Audio Coder
ADPCM Adaptive Differential Pulse Codec Modulation
ALS Alternative Line Services
AOC Advice Of Charge
CCD Charged Coupled Device
CLI Calling Line Identification
CLIP Calling Line Identification Presentation
CSTN Colored Super Twisted Nematic
DCS Digital Cellular System
EFR Enhanced Full Rate
EMS Enhanced Message Service
FDN Fix Dial Number
GPRS General Packet Radio Service
GSM Global System for Mobile
IMEI International Mobile Equipment Identity
ISO International Standard Organisation
LCD Liquid Crystal Display
LU Livret d’Utilisation (User’s guide)
MMS Multimedia Message Service
OMM Outil de Maintenance des Mobiles (Mobile Maintenance Tools)
PIN Personal Identity Number
PUK PIN Unlocking Key
RF Radio Frequency

Technical Site Documentation - myX-4
Ref. SCT U38 SSC DTS 0022 – Index A - july 30, 2004 Page 1-3
SAR Specific Absortion Rate
SIM Subscriber Identify Module
SMS Short Message Service
SMS CB Short Service Message Cell Broadcast
TFT Thin Film Transistors
USSD Unstructured Supplementary Service Data
VGA Video Graphics Array
WAP Wireless Application Protocol
WiFi Wireless Fidelity
WSP Wireless Session Protocol
1.3 COMMENTS SHEET
Broad experience is very beneficial in several respects. Please let us know your comments so that we can
improve the contents and presentation of this document.
Your suggestions will be read carefully by :
- the design laboratory,
- production,
- the purchasing department,
- the after sales service,
- all users of this document.
All your suggestions are valuable, they will help us to better satisfy you.
Please photocopy and fill in the sheet 1-4.

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-4
Document title: Site Technical Document for myX-4
Reference :
Date :
Please fill in the following table :
Excellent Good Fairly good Passable
Easy to find the required information
Clarity of information provided
Quality and accuracy of information given
Document outline
Document presentation and appearance
Quality of illustrations
General satisfaction
Do you think this document could be improved ? if so, how ? :
Improve the overall view
Improve the table of contents
Improve the structure
Add illustrations
Add details
Add information
Comments : ___________________________________________________________________________
_____________________________________________________________________________________
___________________________________________
Would you like to discuss the problems mentioned in this questionnaire? If so, state :
Name of the person to be contacted : ________________________ Phone : ________________
Company : _____________________________________________ Date : _________________
Address : ________________________________________________________________
THANK YOU FOR PARTICIPATING IN THIS ENQUIRY. YOUR COMMENTS WILL HELP US CONTINUE
TO IMPROVE THE QUALITY OF OUR DOCUMENTATION AND THUS BETTER SATISFY YOUR
NEEDS.
When you have filled in this questionnaire, please send it :
-by fax, to [phone]
-by mail, to SAGEM S.A.
Support Service Client / URD 38
2 rue du petit Albi
BP 8250
95 801 Cergy Saint-Christophe

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-5
CHAPTER 2 - DESCRIPTION - OPERATION
2.1 REMINDERS ABOUT THE GENERAL CHARACTERISTICS OF GSM 900, DCS 1800 AND PCS
(GSM 1900) NETWORKS
Table 1 below gives the characteristics of the radio interface for the GSM 900, DCS 1800 and PCS 1900
systems :
GSM 900 DCS 1800 PCS 1900
Frequency Band (MHz) 880 - 915
925 - 960
1710 - 1785
1805 - 1880
1850 - 1910
1930 - 1990
Number of time intervals per TDMA
frame 8
Width 2 x W simplex (MHz) 2 x 25 2 x 75 2 x 60
Duplex spacing (MHz) 45 95 80
Modulation speed (kbit/s) 271
Speech throughput (kbit/s) 13 (5,6)
Maximum data throughput (kbit/s) 12
Multiple access Frequency and temporal multiplexing / frequency duplexing
Cell radius (km) 0,3 to 30 0,1 to 4 0,1 to 4
SAGEM terminal power (W) 2 1 1
Table 1 : Radio Interface
Table 2 shows powers as a function of the network:
GSM 900 DCS 1800 PCS 1900
Class
number Maximum nominal
power (W)
Allowable
interval (W) Maximum nominal
power (W)
Allowable
interval (W) Maximum nominal
power (W)
Allowable
interval (W)
1 - - 1 [0,63 ; 1,6] 1
2 8 [5,0 ; 12,7] 0,25 [0,16 ; 0,4] 0,25
3 5 [3,2 ; 7,9] 4 [2,5 ; 6,3] 2
4 2 [1,3 ; 3,2]
5 0,8 [0,5 ; 1,3]
Table 2: Terminals power class

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-6
Table 3 shows power classes :
Class 1 Class 2 Class 3 Class 4 Class 5
900
43 dBm 39 dBm 37 dBm 33 dBm 29 dBm
1800
30 dBm 24 dBm 36 dBm - -
1900
30 dBm 24 dBm 33 dBm - -
Table 3: RF power classes

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-7
2.2 REMINDERS ABOUT THE CHARACTERISTICS AND OPTIONS OF myX-4
GENERAL CHARACTERISTICS myX-4
Weight (in g) : 95g
Dimensions (in mm) : 104*46.5*17.8
Volume (cm3) 77
Standby (h) : 340
Talk time (h/mn) : 4.30
Screen size (pixels), Colour, Backlight : 128*160 pixels, 65K colors
Line / character number of the screen : 8 .up to 12
Battery Type Li Ion
Recharge Time Less than 3 hrs
RADIO CAPACITY
GSM 900, 1800 - EGSM, 1900 Yes (900/1800) and 850,1900 for second version
GPRS and type (2+1 / 3+1….) 4+1 / 3+2
Voice Quality FR, HR, EFR, AMR
COSMETIC
Color number Up to 5
Keypad Metallic
USEFULL FEATURES
WAP browser release 6.2
Downoad protocol WTP SAR
Built in Hands Free Yes
Vibrating device - Silent Mode Yes
Softkeys (programmable) Yes (2)
Predictive input (Y/N + type) Yes (T9)
IMPS No
EMS Yes (R5)
MMS Yes Audio , Picture , vCard
Calendar Vcal standard
Phonebook Vcard standard

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-8
ENTERTAINMENT / FUN FACTS
Mservices Yes
Bookmarks inserted in wallpapers and ringtones
menus Yes
Icons up to 50 (30 minimum embedded)
Wallpaper or fix screensaver 14 embedded
Animated Screensaver 3
Power ON and OFFanimations Yes
Photos No
Videos No
Ringtone 40 ore loaded
Games embedded 2
Games to download Yes
Java Yes CLDC1.0 ,MIDP2.0
Interchangeable covers Yes (front&back)
MULTIMEDIA
Picture display formats bmp, jpeg (baseline & progressive), png (fixed &
interlaced), gif fixed & animated)
Picture record formats N/A
Audio playback formats iMelody1.2, Midi, spMidi, Wave (pcm, adpcm, 11025Hz),
AMR (narrowband)
Audio record format AMR (narrowband)
Video playback formats N/A
Video record formats N/A
File reproduction forward lock defined in DRM1.0
MEMORY
Redial List / Notebook Yes , 20
Personal Objects (including the 3 games, the
ringtones, wallpapers and screensavers, power
ON and OFF videos, messages, voice memo,
phonebook and calendar)
4 Mbytes
DATA TRANSMISSION
USB Yes
Infrared Yes
Integrated modem (and fax application) Yes

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-9
2.3 DATA/ AUDIO/ CHARGE CONNECTOR
2.3.1 Connector description
This connector is located at the bottom of the transmission module and enables the connection to various
accessories. It comprises power supply pins and signals.
2.3.2 Signal description
SYMBOL PIN
CONNECTOR
No.
SIGNAL FUNCTION NATURE
E/S, Al, Ana
CHARGEUR 1 Phone set power ON and power supply signal. POWER SUPPLY
VBAT 2 POWER SUPPLY IMAGE VOLTAGE, connect
this signal to «CHARGER» (pin n°1) to switch
the module on.
POWER SUPPLY
OUTPUT
ON* 3 SIGNAL RESERVED FOR USE BY SAGEM
(car handsfree kit). OPEN DRAIN OUTPUT
VPP 4 Flash programming voltage POWER SUPPLY
SDAI2C 5 DATA SIGNAL RESERVED FOR SAGEM
SPECIFIC ACCESSORIES. LOGICAL
INPUT/OUTPUT
GND 6 ZERO VOLT SIGNAL GROUND
SCLI2C 7 CLOCK SIGNAL RESERVED FOR SAGEM
SPECIFIC ACCESSORIES. OPEN DRAIN
INPUT/OUTPUT
INTI2C 8 INTERRUPT SIGNAL RESERVED FOR
SAGEM SPECIFIC ACCESSORIES. LOGICAL INPUT
USB_DM 9 USB INTERFACE DIFFERENTIAL DATA LOGICAL INPUT
DATA/ AUDIO/ CHARGE

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-10
RXD1 10 SERIAL DATA TO BE TRANSMITTED. LOGICAL INPUT
TXD1 11 SERIAL DATA RECEIVED. LOGICAL OUTPUT

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-11
SYMBOL PIN
CONNECTOR
No.
SIGNAL FUNCTION NATURE
E/S, Al; Ana
USB_DP 12 USB INTERFACE DIFFERENTIAL DATA LOGICAL INPUT
ITDATA 13 Interruption signal keep for SAGEM
accessories. LOGICAL INPUT
GND 14 ZERO VOLT. SIGNAL GROUND
HSOR 15 STEREO AND MONO AUDIO OUTPUT ANALOG OUTPUT
HSOL 16 STEREO AND MONO AUDIO OUTPUT ANALOG OUTPUT
HSCMICN
(BFTXN) 17 DIFFERENTIAL INPOUT FOR EXTERNAL
MICROPHONE ANALOG INPUT
HSMICIP
(BFTXP) 18 DIFFERENTIAL INPOUT FOR EXTERNAL
MICROPHONE ANALOG INPUT

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-12
2.4 IDENTIFICATION
All phones are identified with an identification label sticked on the antenna.
2.4.1 Illustration
2.4.2 Description
a : IMEI (bar code),
b : IMEI (15 characters)
c : Reference of product / aesthetic used .
d : Sim card Indication (Sim 3V…),
e : Production area Indication,
f : Production date (date code) + Production level,
Ex. F260/03 = (F) fabrication area (F : Fougères), (260) day of year, (03) last digit of year
(03→2003).
g : Logo and agreement.
h : Product designation
2.4.3 Description after repair
A new sticker is positioning by Repairing Centre on the antenna:
This extra line will appear if the mobile has already been repaired.
-CRA XXX N°of CRA,
-260/03 Date of repair (260), repairing day (04), last digit of year (04→2004).

Technical Site Documentation – myX-4
______________________________________________________________________________________________
Ref. SCT U38 SSC DTS 0022 – Index A -July 30, 2004 Page2-13
2.5 PHONE BLOCK DIAGRAM
2.5.1 myX-4 block diagram
LCD/KEYPAD
BASEBAND RADIO
Microphone
Loudspeaker
2.5.2 Standards and environment
The phone complies with the following standards.
Directive EEC 1999 / 5 / CE
Safety (security) EN 60950
CEM EN 301 489-1 / EN 301 489-7
Voltage 73 / 23 / EEC
Network 3GPP TS 51.010-1 v 5.2.0 with included GCF-CC V 3.10.0
Requirements GT01 v 4.7.0 / TBR 19 edition 5 / TBR 20 edition 3
TBR 31 edition 2 / TBR 32 edition 2 / EN 301 419-1 / EN 301511
Health EN 50360 / EN 50361
