Salda EKS User manual

Subject to technical modication
EKS_P0082_AZ_0002

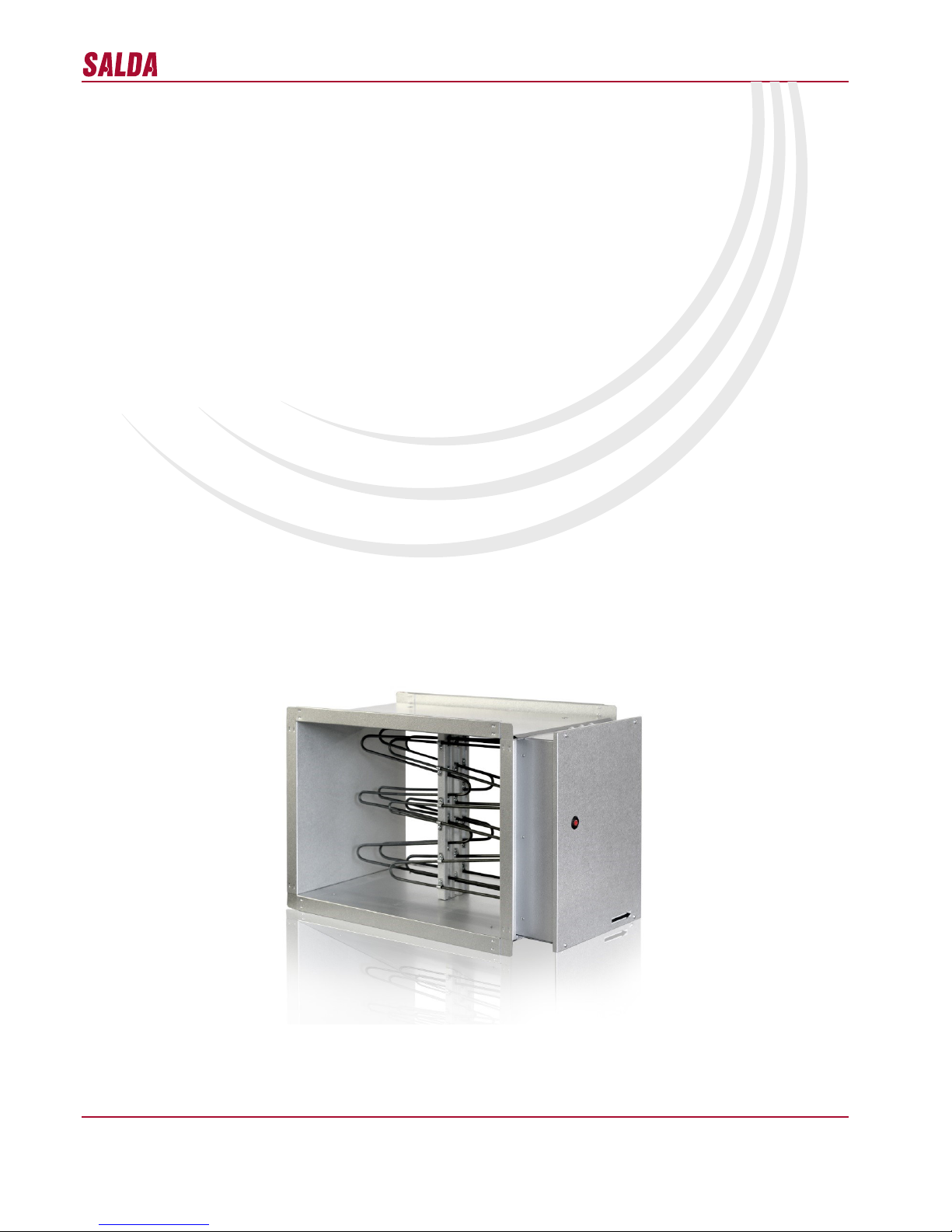

ELECTRIC DUCT HEATERS
EKS
EKS NI
EKS NIS
EKS NV
EKS NV PH
EKS NV PTC/PS
USER MANUAL

2
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
Safety instructions and precautions 3
WARNING! SAFETY REQUIREMENTS 3
TRANSPORTING AND STORING 3
RECEIVING AND HANDLING 3
SERVICE 3
QUALITY 3
INGRESS PROTECTION (IP) RATING 3
MARKING 4
INSTALATION 4
Electrical connection 4
WIRING DIAGRAMS 5
HEATERS DESCRIPTION & STRUCTURE 6
Double overheat protection 6
Duct connection 6
CONTROL 7
External control of three-phase heaters 7
External control of one-phase & two-phase heaters 7
Heaters with built-in control 7
Air velocity 7
CIRCULAR DUCT HEATER TYPES 7
Appendix A. CIRCULAR DUCT HEATERS POWER &
DIMENSIONS 8
TROUBLESHOOTING 10
NOTES 11
WARRANTY 12
WARRANTY CLAIM FORM 12

3
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
Improper use of this heater can result in serious bodily injury due to hazards of re and explosion, burn and electrical shock.
The electrical heater’s model and serial number are located on the label of the product.
Parts of the heater become very hot when operating and immediately after operating.
Severe burns may occur if the heater is not allowed to cool down properly before servicing.
Use only with electrical voltage and frequency specied on model label.
Do not perform any service with heater plugged in. Serious injury or death may occur if personnel come in contact with high voltage
lead.
All products are packed by producer for normal transporting conditions. For unloading and storing use proper lifter to prevent product
damage and employees injuries. Do not lift product by power supply cable, connection box. Avoid impacts and impact loads.
Until nal installation store products in dry place with humidity not more 70% (20°C), average ambient temperature must be 5-40°C.
Storing place must be covered from water and dirt. Avoid long term storing. It is not recommended to store products more then 1 (one)
year.
Inspect heater for any possible shipping damage. Inspect heater element wire for any deformation that could cause a short circuit or
ground. Make sure that casing of the heater is not damaged.
We care about quality. 100% of heaters are tested before shipment.
No special service is required for electrical heaters, only to check electrical connection not less then 1 time per year.
First Numeral Protection against contact and ingress of foreign bodies: most wires, screws, etc.
Second Numeral Protection against water: water splashing against the enclosure from any direction shall have no harmful eect. Heat-
ers type EKS, EKS NI, EKS NIS protection rating is IP44/IP55.
Heaters type EKS NV, EKS NV PTC/PS, EKS NV PH protection rating is IP30.
Thank you for your purchase of this product. This manual describes how to use and install the supplied product. Be sure that you have
read and understood its contents before using the heater.

4
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
EKS NV 40 x 20 / 21 PTC / PS
Heater with installed pressure sensor
PTC/PS type can be marked also as NV PH if temperature setpoint of the heater -20°C to -5°C
Heater with installed air ow sensor
Power of heater kW
Heaters width
Heater height cm
Heater type.
Type NV - you can set temperature of heater with potentiometer installed on heaters casing.
Type NI - you can set temperature from distance with wired remote potentiometer TR5K
Type NIS – heater control from distance with 0 – 10 V signal.
Circular duct heater
Heater can be installed in any position (see picture below) except electrical connection box downward. If heater is installed in such way that can be
accidental contact with heating elements, protective grill must be installed. Air ow through heater must be not less 1,5 m/s. Heaters can not be in-
stalled in explosive and aggressive substances atmosphere. Heaters can be used only for clean air heating. Heaters intended for inside installation.
Heaters installation position:
EKS NV PTC/PS, EKS NV PH installation
Casing and air duct before heater should be insulated with rock wool 10 cm (R~2,4m²K/W). It is recommended to install air lter before the
heater.
*AHU – air handling unit with heat recovery. F – lter for supply air.
Depending on the installation location of the heater in the duct relative to the engine (before or behind the engine), the pressure hose therefore has to
be attached to a “+” or the “-” tube. If heater is installed behind engine “-” tube inside, “+” tube before the engine.
3xH – we recommend install duct temperature sensor in minimum distance multiplied by the heater’s height. For example: heater EKS
height 200mm, sensor’s installation length will be: 200x3=600 mm.
INDICATION of LED lamps on EKS NV PTC/PS, EKS NV PH casing
1. LED1 Flashing 1 time per 3 seconds – EKR KN warming up (~30 s)
Flashing 1 time within second – EKR KN ready, Lights up – fault of duct temperature sensor T J-K10K, or air ow sensor PTC fault.
2. LED2 Lights up – load is on (heating).
1. Electrical connection can be made only by qualied electrician according legal international and national electrical installation standards.
2. Power supply source must conform with data on heater label.
3. Power supply cable must be selected corresponding to heater electrical data.
4. Automatic circuit breaker with at least 3 mm contact gap must be installed. Automatic circuit breaker must and relay be selected corresponding to
technical data table.
5. Heater must be grounded.
6. For heaters install duct temperature sensor and connect as in wiring diagram.

5
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt

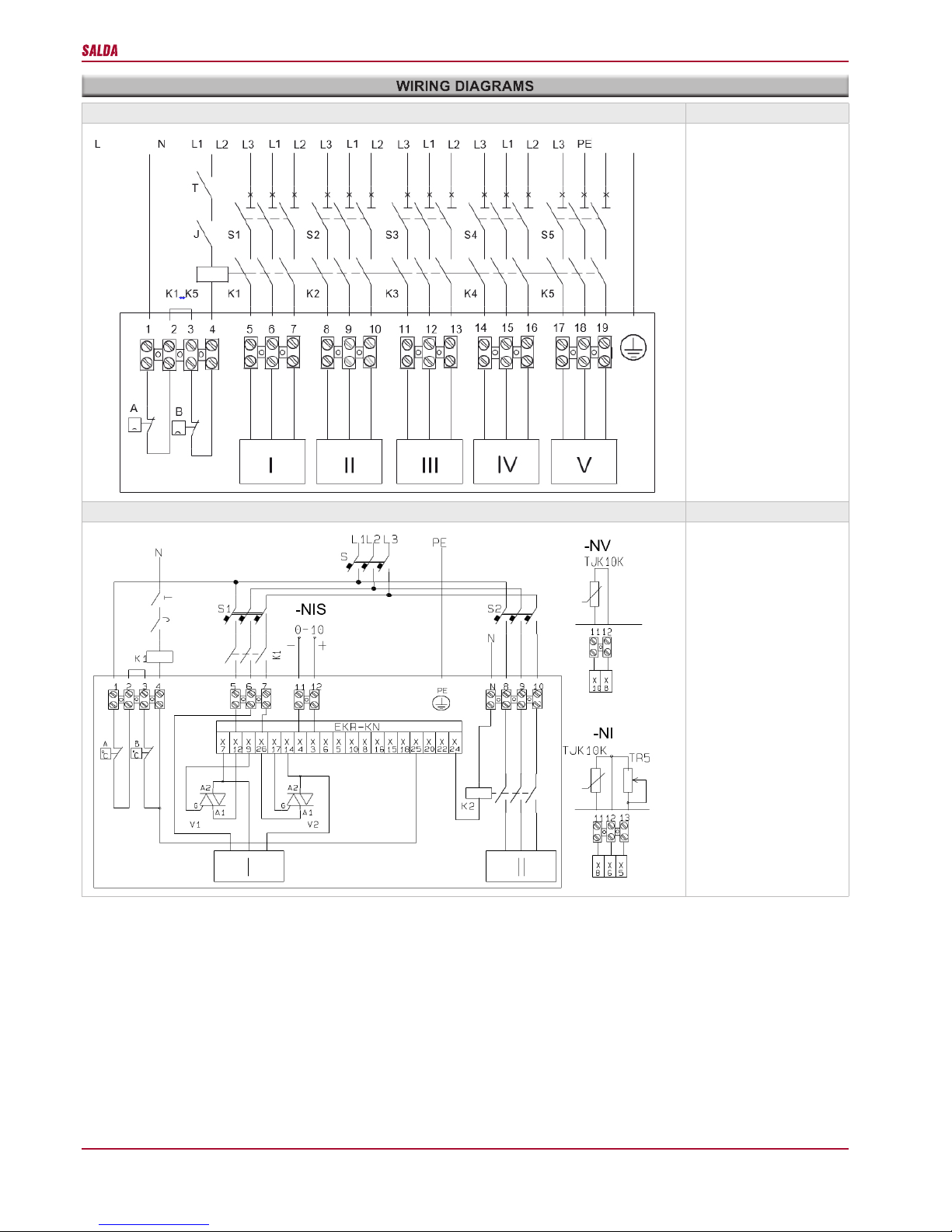

EKS (3X400V)
I..V – heater steps
B - protection from overheat-
ing 50°C (automatic),
A - protection from overheat-
ing 100°C (manually),
J - Switch
K1..K5 - Contactor
S..S5 - Automatic circuit
breaker
T – Thermostat
V1, V2 – Triac
EKR-KN – Control board
TR 5 – external potentiom-
eter
TJK10K – Temperature
sensor
X3...X26 – the control board
contacts (see. on PCB)
EKS NV, EKS NI, EKS NIS (3x400V)
I..V – heater steps
B - protection from overheat-
ing 50°C (automatic),
A - protection from overheat-
ing 100°C (manually),
J - Switch
K1..K5 - Contactor
S..S5 - Automatic circuit
breaker
T – Thermostat
V1, V2 – Triac
EKR-KN – Control board
TR 5 – external potentiom-
eter
TJK10K – Temperature
sensor
X3...X26 – the control board
contacts (see. on PCB)

6
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
EKS duct heaters are designed to heat clean air in ventilation systems and to preheat air handling units. Corrosion resistant casing with excellent
thermal reectivity is made from AluZinc. Duct connection is with rolled rubber seals, duct heater elements are made from stainless steel. To ensure
safety in duct heaters are installed 2 protection thermostats and screw terminals for easy connection.
To ensure long service time of heaters, casings are produced from AluZinc coated steel and heating elements from stainless steel AISI 304. AluZinc
for heaters casing was selected for it’s properties:
• Good corrosion resistance at high temperatures (up to 315 °C)
• Excellent thermal reectivity
• Good abrasion resistance because of its surface hardness
• Durability: under normal conditions the AZ 150 coating grade will protect the steel substrate from corrosion for a minimum period of 15 years.
To ensure security in case of re in all electric air heaters are installed 2 heat protection thermostats:
• First overheat protection automatically activates if temperature reaches 50°C, then protection disconnects heating elements,
until it has cooled. When the temperature falls to the working temperature, heater automatically switches on.
• Second overheat protection automatically activates if temperature reaches 100°C, then protection disconnects heating ele-
ments, until it has cooled. In this case need to gure the cause of the overheating of the heater. Heater needs to be reset manually
with the pushbutton on the heaters casing.
For easy duct connection heaters casing is with rolled rubber seals.
EKS NV PTC/PS, EKS NV PH (3X400V)
C – heating element
S1 - Automatic circuit
breaker
B - protection from overheat-
ing 50°C (automatic),
A - protection from overheat-
ing 100°C (manually),
J - Switch
K1..K5 - Contactor
PS – pressure relay
PTC - air ow sensor
V1, V2 – Triac
EKR-KN – Control board
TR 5 – external potentiom-
eter
TJK10K – Temperature
sensor
X3...X26 – the control board
contacts (see. on PCB)

7
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
Standard circular duct heaters type EKS has no internal controller, in this case can be used external heating controllers EKR 15.1, EKR 15.1P, EKR
30, EKR 30P and temperature sensor TJK 10 K. Controllers and sensor are not included in the package of product.
Model Controlled load [kW] Extra load control* Full load Relay output Voltage output
EKR15.1 15 Up to 12 kW 27 kW 1x5A/230V 3x230/3x400
EKR15.1P 15 Up to 225 kW 240 kW 4x5A/230V 3x230/3x400
EKR30 30 Up to 42 kW 42 kW 1x5A/230V 3x230/3x400
EKR30P 30 Up to 420 kW 450 kW 4x5A/230V 3x230/3x400
* Extra load control with contactor
For one-phase and two-phase heaters control we recommend to use proportional controller EKR6.1 and temperature sensor TJK10K. Controller and
sensor are not included in the package of product.
Model Controlled load [kW] Maximum controlled current [A] Voltage output
EKR6.1 6,4 kW/400V 16 A 2x400V
3.2 kW/230V 1x230V
Electric duct heaters with built-in control has installed internal controller EKR-KN which works by algorithm impulse/pause..., that enables ne tem-
perature control. Regulator controls load by triacs without moving parts, which causes no-noise commutation. Following models of heaters are with
internals controllers, and there are dierences between them:
Type NV - you can set temperature of heater with potentiometer installed on heaters casing.
Type NI - you can set temperature from distance with wired remote potentiometer TR5K
Type NIS – heater control from distance with 0 – 10V signal.
Type PTC – heater with installed air ow sensor.
Type PS – heater with installed pressure sensor
Type NV PTC/PS or NV PH – heater with installed air ow sensor and pressure sensor.
Heaters with built-in controls comes with temperature duct sensor in the package of the product (except type EKS NIS).
The duct heaters are designed for a minimum air velocity of 1,5 m/s. If the air ow is lower than 1.5 m/s it can often be activated overheat protection.
Model Control Control type
EKS External controller EKR External control
EKS NV Built-in controller EKR-KN Control on heaters casing, default temperature
setpoint 0°C ... +30°C
EKS NV PTC/PS, EKS NV PH Built-in controller EKR-KN
Control on heaters casing, default temperature
setpoint -10°C ... +50°C. Air ow sensor and
pressure sensor are installed inside the heater.
Dierence between heaters is EKS NV PTC/PS
and EKS NV PH, that EKS NV PH temperature
setpoint is -20°C iki -5°C.
EKS NI Built-in controller EKR-KN Remote control with wired potentiometer, de-
fault temperature setpoint 0°C ... +30°C
EKS NIS Built-in controller EKR-KN 0-10V control
In heaters type NV PTC/PS, NV PH are installed controllers with default temperature setpoint -10°C ... +50°C, on your needs we
can install controllers with dierent temperature setpoints:
-40 °C till -10 °C 0 °C till +30 °C -5 °C till 0 °C
-20 °C till -5 °C -10 °C till 0 °C -
Please inform about needed temperature setpoint before production, othervise heater will be produced with factory default
setpoint.

8
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
All circular duct heaters EKA regardless of the type can be produced in following dimensions and power:
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 400x200 (WxH)
Length (L) [mm] 370 420 520
Power [kW] 6 9 12 15 21
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 500x250 (WxH)
Length (L) [mm] 370 420 520 600 820 970
Power [kW] 9 12 15 21 24 36 45
EKS (NI, NIS, NV, NV PTC/PS, NV PH) (WxH)
Length (L) [mm] 370 440 520 600
Power [kW] 9 12 15 18 21 24 27 30 33 36 42 45
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 600x300 (WxH)
Length (L) [mm] 370 440 520 600
Power [kW] 9 12 15 18 21 24 27 30 33 36 42 45
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 600x350 (WxH)
Length (L) [mm] 370 420 500
Power [kW] 9 12 15 18 21 24 27 30 33 36 39 42 45
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 700x400 (WxH)
Length (L) [mm] 370 440 520
Power [kW] 9 12 15 18 21 24 27 30 33 36 42 45 51 60 66
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 800x500 (WxH)
Length (L) [mm] 370 420 440 500
Power [kW] 9 12 15 18 21 24 27 30 33 36 39 42 45 51 54 60 66
EKS (NI, NIS, NV, NV PTC/PS, NV PH) 1000x500 (WxH)
Length (L) [mm] 370 420 440 500
Power [kW] 9 12 15 18 21 24 27 30 33 36 39 42 45 51 54 60 66
* According to the technical inquiries can be made non-standard power, voltage, and dimensions heaters
IP55:
EKS NIS 500x300 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 6.0 9.0 15.0 6.0 9.0 15.0 (9+6)
EKS NIS 500x350 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 9.0 12.0 24.0 (15+9) 9.0 12.0 (9+3) 24.0 (9+15)
EKS NIS 600x350 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 9.0 18.0 (9+9) 30.0 (15+15) 9.0 18.0 (9+9) 30.0 (9+9+12)
EKS NIS 700x360 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 6.0 9.0 15.0 6.0 9.0 15.0 (9+6)
EKS NIS 707x490 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 9.0 12.0 24.0 (15+9) 9.0 12.0 (9+3) 24.0 (9+15)
EKS NIS 743x527 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230

9
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
Dimensions, mm
Power [kW] 9.0 18.0 (9+9) 30.0 (15+15) 9.0 18.0 (9+9) 30.0 (9+9+12)
EKS NIS 900x400 (WxH)
Length (L) [mm] 370 420 370 420
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 18.0 (9+9) 30.0 (15+15) 54.0
(15+9+12+18) 18.0 (9+9) 30.0 (9+9+12) 54.0
(9+12+15+18)
EKS NIS 950x350 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 12.0 24.0 (15+9) 42.0 (15+9+18) 12.0 (9+3) 24.0 (9+15) 42.0 (9+15+18
EKS NIS 1068x527 (WxH)
Length (L) [mm] 370
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 12.0 24.0 (15+9) 42.0 (15+9+18) 12.0 (9+3) 24.0 (9+15) 42.0 (9+15+18)
EKS NIS 1139x527 (WxH)
Length (L) [mm] 370 420 370 420
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 18.0 (9+9) 30.0 (15+15) 54.0
(15+9+12+18) 18.0 (9+9) 30.0 (9+9+12) 54.0
(9+12+15+18)
EKS NIS 1200x550 (WxH)
Length (L) [mm] 370 440 370 440
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 21.0 (12+9) 36.0 (15+9+12) 66.0
(15+15+18+18 21.0 (9+12) 36.0 (9+12+15) 66.0 (9+12+
15+15+15)
EKS NIS 1445x660 (WxH)
Length (L) [mm] 370 440 370 440
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 21.0 (12+9) 36.0 (15+9+12) 66.0
(15+15+18+18) 21.0 (9+12) 36.0 (9+12+15) 66.0 (9+12+15
+15+15)
EKS NIS 1600x585 (WxH)
Length (L) [mm] 370 420 600 370 420 600
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 27.0 (15+12) 48.0 (15+15+18) 90.0 (15+12+18
+21+24) 27.0 (9+9+9) 48.0
(9+12+12+15)
90.0 (9+12+15
+27+27)
EKS NIS 1810x660 (WxH)
Length (L) [mm] 370 420 600 370 420 600
Voltage [V/50Hz] 3~ x 400 3~ x 230
Power [kW] 27.0 (15+12) 48.0 (15+15+18) 90.0 (15+12+18
+21+24) 27.0 (9+9+9) 48.0
(9+12+12+15)
90.0 (9+12+15
+27+27)

10
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
No heat from heater 1. Manual reset thermostat is cut o. In this case need to gure the
cause of the overheating of the heater. Eliminate overheating cause,
press „RESET“ button on heaters cover.
2. No power supply to heater – check all external electrical connection
components (relays, switches, controllers)
Automatic circuit breaker switching o 1. Check circuit breakers data, it must correspond to heaters electrical
data.
2. Check isolation of connection cables, wires, check is heater grounded.
3. Check power supply source data, it must correspond to heaters elec-
trical data.
Protection thermostat cut o 1. Low air ow speed through heater. Check lters, fans, ducts of system.
Standard heaters EKS
No heating from heater 1. Manual reset thermostat is cut o. In this case need to gure the
cause of the overheating of the heater. Eliminate overheating cause,
press „RESET“ button on heaters cover.
2. No power supply to heater – check all external electrical connection
components (relays, switches, controllers).
3. Temperature sensor fault. Check sensor resistance, it must be 10 kΩ
at 25 °C.
4. External setpoint device fault. Check device potentiometer resistance,
it must be 5 kΩ.
5. PCB fault. Change PCB.
Heater gives full output, not by setpoint 1. Temperature sensor fault. Check sensor resistance, it must be 10 kΩ
at 25 °C.
2. External setpoint device fault. Check device resistance, it must be 5
kΩ.
3. Triacs fault. Check triacs conductance.
4. PCB fault. Change PCB.
Automatic circuit breaker switching o 1. Check circuit breakers data, it must correspond to heaters electrical
data.
2. Check isolation of connection cables, wires, check is heater grounded.
3. Check power supply source data, it must correspond to heaters elec-
trical data.
Protection thermostat cut o 1. Low air ow speed through heater. Check lters, fans, ducts of system.
Heaters with built-in controls EKS NV, EKS NI, EKS NIS
No heating from heater 1. Manual reset thermostat is cut o. In this case need to gure the
cause of the overheating of the heater. Eliminate overheating cause,
press „RESET“ button on heaters cover.
2. No power supply to heater – check all external electrical connection
components (relays, switches).
3. Temperature sensor fault. Check sensor resistance, it must be 10 kΩ
at 25 °C.
4. Pressure switch fault. Check if pressure in system is set correctly
(check the pressure when air ow is not less then 1,5 m/s).
5. PCB fault. Change PCB.
Heater gives full output, not by setpoint 1. Temperature sensor fault. Check sensor resistance, it must be 10 kΩ
at 25 °C.
2. Air ow sensor sensor fault. Check sensor resistance. It must be 22 Ω
between X15..X16 and 10 Ω between X15..X18. Sensor must be clear.
3. Triacs fault. Check triacs conductance.
4. PCB fault. Change PCB.
Automatic circuit breaker switching o 1. Check circuit breakers data, it must correspond to heaters electrical
data.
2. Check isolation of connection cables, wires, check is heater grounded.
3. Check power supply source data, it must correspond to heaters elec-
trical data.
Protection thermostat cut o 1. Low air ow speed through heater. Check lters, fans, ducts of system.
2. Pressure switch fault. Check if pressure in system is set correctly
(check the pressure when air ow is not less then 1,5 m/s).
Heaters with built-in controls EKS NV PTC/PS, EKS NV PH

11
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt

12
EKS (NI, NIS, NV, NV PH, NV PTC/PS)
www.salda.lt
1. Manufacture declare 2 years warranty term from the date of manufacturer’s invoice. Warranty is applied in case if all requirements of transporting,
storing, installation and electrical connection are fullled.
2. In case of damaged or faulty product during warranty term customer must inform producer in 5 days and deliver product to manufacture as soon as
possible at customer’s costs. In other case warranty is not valid.
3. Manufacture is not responsible for damages which occur during transportation or installation.
- Warranty Claim Form has to be COMPLETELY lled out and sent to the producer by e-mail or fax.
- Product or product part serial number and production date must be indicated.
- All defective products or product parts should be returned to factory with the copy of this form.
- If the above mentioned point No. 3 can not be fullled and there are serious reasons for that, all possible information (photos, descriptions
and etc.) has to be sent with this form. Photos must be taken in such a way that product or product part label and possible defect part is
clearly visible and identied.
- Warranty claim would not be accepted if product or product part is mechanically damaged or there were made any modications to the
product without written producer consent.
- An invoice has to be included to obtain warranty.
Date: Filled out by: Company:
Address:
Phone: Fax: E-mail:
Product or product part name:
Serial number: Production date: Malfunction date:
Reason why product or product part is not delivered back to the factory (if delivered, lling not needed):
Product installation place and environment (mounted on a wall, stand-
ing on the oor and etc.; living room, working place, surrounding area
and etc.):
Operating data:
Approximate number of working hours per day: ____
Working temperature from ____ to ____:
Humidity : ____ %
Date of last technical inspection: ____________
Full explanation of the malfunction:
Part to be lled out by producer
Warranty Claim Form reception date: Received by: Defective product delivered back to the factory
(yes/no):
Producer decision and explanation:
This manual suits for next models
5
Table of contents
Other Salda Heater manuals
