Samson 2412 Series Service manual

Translation of original instructions
EB 2512 EN
Edition April 2019

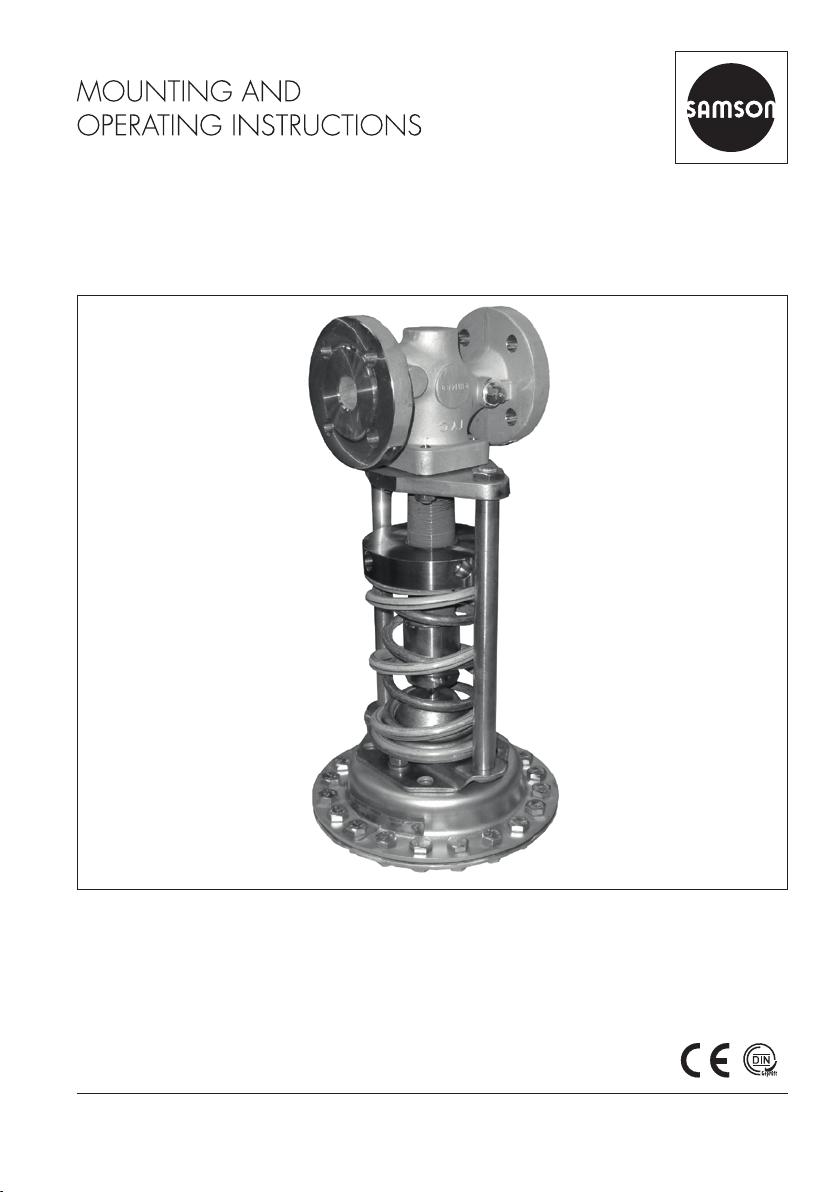

Type41-23 Universal Pressure Reducing Valve
Self-operated Pressure Regulators

Note on these mounting and operating instructions
These mounting and operating instructions assist you in mounting and operating the device
safely. The instructions are binding for handling SAMSON devices.
ÎFor the safe and proper use of these instructions, read them carefully and keep them for
later reference.
ÎIf you have any questions about these instructions, contact SAMSON‘s After-sales Service
Department (aftersalesser[email protected]).
The mounting and operating instructions for the devices are included in
the scope of delivery. The latest documentation is available on our website
at www.samson.de > Service & Support > Downloads > Documentation.
Denition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip
2 EB 2512 EN

Contents
EB 2512 EN 3
1 Safety instructions and safety measures .........................................................5
1.1 Notes on possible severe personal injury .........................................................8
1.2 Notes on possible personal injury ...................................................................8

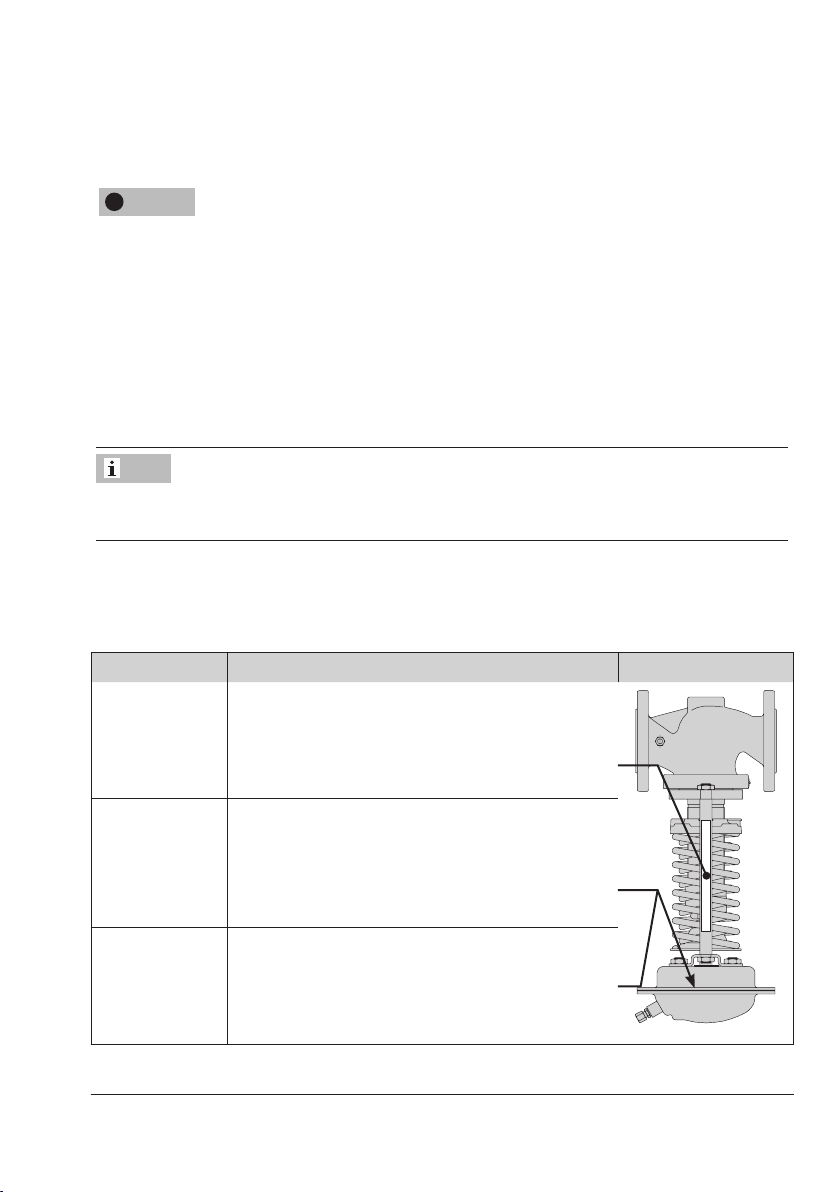

1.4 Warning markings on the regulator...............................................................11
2 Markings on the device ...............................................................................12
2.1 Nameplates.................................................................................................12
2.2 Locations of the nameplate ...........................................................................13
2.3 Warnings....................................................................................................13
2.4 Material number..........................................................................................13
2.4.1 Type 2412 Valve..........................................................................................13
2.4.2 Type2413Actuator .....................................................................................13
3 Design and principle of operation ................................................................14
3.1 Technical data .............................................................................................16
4 Measures for preparation before installation ................................................23
4.1 Unpacking ..................................................................................................23
4.2 Transport, lifting and storage ........................................................................23
4.2.1 Transport.....................................................................................................24
4.2.2 Lifting..........................................................................................................24
4.2.3 Storage.......................................................................................................25
5 Assembly....................................................................................................26
5.1 Preparation for installation............................................................................26
5.2 Checking the installation conditions...............................................................27
5.2.1 Mounting position........................................................................................27
5.2.2 Pipeline routing............................................................................................28
5.3 Control line, compensation chamber and needle valve....................................28
5.3.1 Control line .................................................................................................28
5.3.2 Control line kit .............................................................................................28
5.3.3 Compensation chamber................................................................................28
5.3.4 Needle valve ...............................................................................................29
5.4 Additionalttings.........................................................................................31
5.4.1 Strainer.......................................................................................................31
5.4.2 Bypass and shut-off valves ............................................................................31
5.4.3 Insulation ....................................................................................................31
5.4.4 Pressure gauges...........................................................................................32

Contents
4 EB 2512 EN
6 Start-up and operation ................................................................................32
6.1 Start-up.......................................................................................................32
6.1.1 Installing the regulator..................................................................................33
6.1.2 Pipelineushing...........................................................................................34
6.1.3 Pressure test.................................................................................................34
6.2 Operation ...................................................................................................35
6.3 Starting up the plant.....................................................................................35
6.3.1 Regulation of liquids.....................................................................................36
6.3.2 Regulation of steam......................................................................................36
6.4 Adjusting the set point..................................................................................36
7 Maintenance ...............................................................................................37
7.1 Replacing the actuator..................................................................................39
7.2 Replacing the set point springs......................................................................40
7.3 Replacing the seat and plug..........................................................................41
7.4 Replacing the operating diaphragm ..............................................................41
7.5 Tightening torques........................................................................................42
7.6 Lubricants and sealants ................................................................................43
7.7 Accessories .................................................................................................43
7.8 Prepare the regulator for return shipment .......................................................43
7.9 Ordering spare parts and operating supplies .................................................44
8 Malfunctions ...............................................................................................44
9 Decommissioning and removal ....................................................................47
9.1 Decommissioning.........................................................................................47
9.2 Disposal......................................................................................................47
10 Appendix....................................................................................................48
10.1 After-sales service........................................................................................48
10.2 Spare parts .................................................................................................48
10.3 Certicates ..................................................................................................50

EB 2512 EN 5
Safety instructions and safety measures
1 Safety instructions and safety measures
Intended use
TheSAMSONType41-23RegulatorconsistsofaType2412ValveandaType2413Actua-
tor. The valve and actuator (except for tested regulators) are delivered separately and must
be assembled together according to these instructions.
The self-operated regulator is used to control the downstream pressure p2in the pipeline to
the adjusted set point. Liquids, gases and vapors in processing and industrial plants can be
controlled by the regulator.
Theregulatorsaredesignedtooperateunderexactlydenedconditions(e.g.operating
pressure, process medium, temperature). Therefore, operators must ensure that the regulators
areonlyusedinoperatingconditionsthatmeetthespecicationsusedforsizingthedevices
at the ordering stage. In case operators intend to use the regulators in other applications or
conditionsthanspecied,contactSAMSON.
SAMSON does not assume any liability for damage resulting from the failure to use the de-
vice for its intended purpose or for damage caused by external forces or any other external
factors.
ÎRefertothetechnicaldataandnameplateforlimitsandeldsofapplicationaswellas
possible uses.
Reasonably foreseeable misuse
The regulators are not suitable for the following applications:
−Useoutsidethelimitsdenedduringsizingandbythetechnicaldata
−Useoutsidethelimitsdenedbytheaccessoriesmountedontheregulator
Furthermore, the following activities do not comply with the intended use:
−Use of non-original spare parts
−Performing service and repair work not described in these instructions
Qualications of operating personnel
The regulator must be mounted, started up, serviced and repaired by fully trained and quali-
edpersonnelonly;theacceptedindustrycodesandpracticesaretobeobserved.Accord-
ing to these mounting and operating instructions, trained personnel refers to individuals who
areabletojudgetheworktheyareassignedtoandrecognizepossiblehazardsduetotheir
specializedtraining,theirknowledgeandexperienceaswellastheirknowledgeoftheappli-
cable standards.

6 EB 2512 EN
Safety instructions and safety measures
Personal protective equipment
Werecommendcheckingthehazardsposedbytheprocessmediumbeingused(e.g.
uGESTIS(CLP)hazardoussubstancedatabase).
ÎProvide protective equipment (e.g. safety gloves, eye protection) appropriate for the pro-
cess medium used.
ÎWear hearing protection when working near the regulator.
ÎCheck with the plant operator for details on further protective equipment.
Revisions and other modications
Revisions,conversionsorothermodicationsoftheproductarenotauthorizedbySAMSON.
Theyareperformedattheuser'sownriskandmayleadtosafetyhazards,forexample.Fur-
thermore, the product may no longer meet the requirements for its intended use.
Warning against residual hazards
To avoid personal injury or property damage, plant operators and operating personnel must
preventhazardsthatcouldbecausedintheregulatorbytheprocessmedium,theoperating
pressureorbymovingpartsbytakingappropriateprecautions.Theymustobserveallhaz-
ard statements, warning and caution notes in these mounting and operating instructions, es-
pecially for installation, start-up and service work.
Wealsorecommendcheckingthehazardsposedbytheprocessmediumbeingused(e.g.
uGESTIS(CLP)hazardoussubstancedatabase).
ÎObservesafetymeasuresforhandlingthedeviceaswellasrepreventionandexplosion
protection measures.
Safety features
TheType41-23Regulatordoesnothaveanyspecialsafetyfeatures.Whenrelievedofpres-
sure, the regulator is opened by the force of the set point springs.
Responsibilities of the operator
The operator is responsible for proper operation and compliance with the safety regulations.
Operators are obliged to provide these mounting and operating instructions as well as the
referenced documents to the operating personnel and to instruct them in proper operation.
Furthermore, the operator must ensure that operating personnel or third persons are not ex-
posed to any danger.

EB 2512 EN 7
Safety instructions and safety measures
Responsibilities of operating personnel
Operating personnel must read and understand these mounting and operating instructions as
wellasthereferenceddocumentsandobservethespeciedhazardstatements,warnings
and caution notes. Furthermore, the operating personnel must be familiar with the applicable
health, safety and accident prevention regulations and comply with them.
Referenced standards and regulations
TheregulatorscomplywiththerequirementsoftheEuropeanPressureEquipmentDirective
2014/68/EU.RegulatorswithaCEmarkinghaveanEUdeclarationofconformity,which
includesinformationabouttheappliedconformityassessmentprocedure.ThisEUdeclaration
ofconformityisincludedintheAppendixoftheseinstructions(seesection10.3).
AccordingtotheignitionriskassessmentperformedinaccordancewithEN13463-1:2009,
section 5.2, the non-electrical regulators do not have their own potential ignition source even
in the rare incident of an operating fault. As a result, they do not fall within the scope of Di-
rective 2014/34/EU.
ÎForconnectiontotheequipotentialbondingsystem,observetherequirementsspeciedin
section6.4ofEN60079-14(VDE0165Part1).
Referenced documentation
The following documents apply in addition to these mounting and operating instructions:
−Mounting and operating instructions for
e.g. Acccessories: Compensation chamber uEB2595
e.g. Type2NI Strainer uEB1015
−Data sheets for
e.g. Accessories: Compensation chamber·Screw ttings·Control
line connection·Control line uT2595
e.g. Type2NI Strainer uT1015
−Mounting and operating instructions as well as data sheets for additional components
(e.g. shut-off valves, pressure gauges etc.).

8 EB 2512 EN
Safety instructions and safety measures
1.1 Notes on possible severe personal injury
DANGER
!
Risk of bursting in the regulator.
Regulators and pipelines are pressure equipment. Impermissible pressure or improper
opening can lead to regulator components bursting.
ÎObserve the maximum permissible pressure for regulator and plant.
ÎBeforestartinganyworkontheregulator,depressurizeallplantsectionsconcerned
as well as the regulator.
ÎDrain the process medium from all the plant sections concerned as well as the reg-
ulator.
ÎWear personal protective equipment.
1.2 Notes on possible personal injury
WARNING
!
Crush hazard arising from moving parts.
The regulator contains moving parts (actuator and plug stems as well as set point
spring),whichcaninjurehandsorngersifinsertedintothevalve.
ÎDonotinserthandsorngersbetweenthesetpointspringswhiletheregulatoris
in operation.
ÎBeforeperforminganyworkontheregulator,depressurizetheplant.Disconnector
shut off the external control line.
Damage to health relating to the REACH regulation.
If a SAMSON device contains a substance which is listed as being a substance of very
highconcernonthecandidatelistoftheREACHregulation,thiscircumstanceisindi-
cated on the SAMSON delivery note.
ÎInformation on safe use of the part affected, see uhttp://www.samson.de/reach-
en.html.

EB 2512 EN 9
Safety instructions and safety measures
1.2 Notes on possible personal injury
WARNING
!
Risk of personal injury due to residual process medium in the regulator.
While working on the regulator, residual process medium can escape and, depending
on its properties, may lead to personal injury, e.g. (chemical) burns.
ÎIf possible, drain the process medium from all the plant sections concerned and the
regulator.
ÎWear protective clothing, safety gloves and eyewear.
Risk of burn injuries due to hot or cold components and pipelines.
Depending on the process medium, regulator components and pipelines may get very
hot or cold and cause burn injuries.
ÎAllow components and pipelines to cool down or heat up.
ÎWear protective clothing and safety gloves.
Risk of personal injury due to loaded springs.
The set point springs of regulators with adjusted set point are preloaded and are under
tension.
ÎBefore starting any work on the springs, relieve the compression from the preload-
ed springs.
1.3 Notes on possible property damage
NOTICE
!
Risk of regulator damage due to incorrectly attached slings.
ÎDo not attach load-bearing slings to the actuator housing.

10 EB 2512 EN
Safety instructions and safety measures
1.3 Notes on possible property damage
NOTICE
!
Risk of regulator damage due to unsuitable medium properties.
Theregulatorisdesignedforaprocessmediumwithdenedproperties.
ÎOnlyusetheprocessmediumspeciedforsizing.
Risk of regulator damage due to contamination (e.g. solid particles) in the pipeline.
The plant operator is responsible for cleaning the pipelines in the plant.
ÎFlush the pipelines before start-up.
Risk of regulator damage due to the use of unsuitable lubricants.
The lubricants to be used depend on the regulator material. Unsuitable lubricants may
corrode and damage the surface.
ÎOnly use lubricants approved by SAMSON.When in doubt, consult SAMSON.
Risk of leakage and regulator damage due to excessively high or low tightening
torques.
Observethespeciedtorquesontighteningregulatorcomponents.Excessivelytight-
ened torques lead to parts wearing out quicker. Parts that are too loose may cause
leakage.
ÎObservethespeciedtighteningtorques(seesection7.5).
Risk of regulator damage due to the use of unsuitable tools.
Certain tools are required to work on the regulator.
ÎOnly use tools approved by SAMSON.When in doubt, consult SAMSON.
Risk of excess pressure damaging plant sections due to construction-related seat
leakage through the regulator.
ÎAlwaystasafetydevice(e.g.safetyexcesspressurevalveorsafetyreliefvalve)in
the plant.

EB 2512 EN 11
Safety instructions and safety measures
1.3 Notes on possible property damage
NOTICE
!
Incorrect control due to the formation of ice on the regulator.
Mediumtemperaturesbelow0°Cmaycauseicetoformontheregulator,depending
on the air humidity. This may affect, in particular, the functioning of the plug or dia-
phragm stem guide.
ÎPrevent the formation of ice by taking appropriate precautions (e.g. enclosure,
trace heater etc.). The plant operator is responsible for selecting and implementing
appropriateprecautions.Seesection5.4.3.
SAMSON's After-sales Service department can support you concerning lubricant, tighten-
ing torques and tools approved by SAMSON.
1.4 Warning markings on the regulator
Warning Meaning of the warning Location on the device
Attention! Do not
disassemble valve
without releasing
set point spring.
Warning to indicate that the set point springs are
loaded.
There is a risk of serious head or face injury through the
sudden release of the set point springs while unscrewing
the crossbeam with the loaded set point springs.
Completely relieve
the tension from
the set point
springs before
unthreading the
two nuts.
Warning to indicate that the set point springs are
loaded.
Thereisariskofinjurytohandsorngersthroughthe
sudden release of the actuator stem if they are inserted
between the crossbeam and set point springs while
exchanging the actuator.
Unlock/unlock the
plug stem
Warning indicates property damage at the bellows seal.
There is a risk of property damage at the bellows seal
due to the incorrect mounting or removal of the plug
stem.
Note

12 EB 2512 EN
Markings on the device
2 Markings on the device
Severalnameplatesareafxedtothedevice.Theregulatornameplateindicatesthedevice
numberofthenalassemblyofregulatorcomponents.Theindividualregulatorcomponents
havetheirownnameplates(seeFig.1)aswell.
2.1 Nameplates
Valve nameplate
DIN version ANSI version
2314 5
11109876
2314 5
11109876
ANSI version · DIN version
1 Valve type
2 Model number with index
3CongurationID
4 Order number or date
5 KVS/CV
6Set point range or spring
range
7Valvesize
8 Nominal pressure
9 Perm. differential pressure
10 Perm. temperature
11 Body material
Actuator nameplate
DIN/ANSI version
1 Actuator area (DIN/ANSI)
2 Type
2.1 Type
3CongurationID
4 ID number
5 ID number
6.2
Max. perm. pressure at the actuator,
based on the max. adjustable set
point(DIN/ANSI)·SeeTable2
7Valvesize(DIN/ANSI)
9 Set point range (DIN/ANSI)
10 Diaphragm material
11 Diaphragm material
12 Diaphragm material
DIN/ANSI version
6.2
22.1 34 1115
97 910 12
Fig.1: Nameplates of regulator parts

EB 2512 EN 13
Markings on the device
2.2 Locations of the nameplate
Location of the
nameplate on the
regulator
components
Fig.2: Nameplate of the Type2412 Valve and
on the Type2413 Actuator (diaphragm
or bellows)
2.3 Warnings
Theredadhesivelabelsindicatehazards
that may arise while working on the regula-
tor. Risk of personal injury.
ÎObservethewarnings(seesection1.4).
2.4 Material number
2.4.1 Type 2412 Valve
See the nameplate (12 for DIN version or 10
for ANSI version, body material). For more
detailsonthenameplate,seesection2.1.
2.4.2 Type2413 Actuator
SpecifyingthecongurationID,youcancon-
tactustondoutwhichmaterialisused.The
congurationIDisspeciedonthename-
plate(3,congurationID).Formoredetails
onthenameplate,seesection2.1.

14 EB 2512 EN
Design and principle of operation
3 Design and principle of oper-
ation
ÎRefertoFig.3
The Type 41-23 Pressure Reducing Valve
consistsofaType2412ClosingValveanda
Type2413Actuator.Thevalveandactuator
are delivered separately and must be assem-
bled according to the instructions in sec-
tion6.1.1.
The pressure reducing valve is used to main-
tain the pressure downstream of the valve to
an adjusted set point.
Theprocessmediumowsthroughthevalve
between seat (2) and plug (3) in the direc-
tion indicated by the arrow on the body. The
position of the valve plug determines the
owrateand,asaresult,thepressureratio
across the valve. The plug stem is sealed by
a frictionless bellows (5.1). The downstream
pressure p2is transmitted over the compen-
sation chamber (18) (for liquids above
150°Candforsteam)andthecontrolline
(17) to the operating diaphragm (12) (oper-
ating bellows (12.1) in the version with bel-
lows actuator) where it is converted into a
positioning force. This force is used to move
the valve plug depending on the force of the
set point springs (7). The spring force is ad-
justable at the set point adjuster (6). The
valves with KVS4andhigherhaveabalanc-
ing bellows (4). The upstream pressure acts
on the outside of the bellows and the down-
stream pressure on the inside of the bellows.
As a result, the forces produced by the up-
stream and downstream pressures acting on
the plug are balanced out.
Depending on the valve and actuator used,
the regulator can be upgraded to create a
pressurereducingvalveforlowowrates,a
steam pressure reducing valve or a pressure
reducing valve with increased safety (actua-
tor with two diaphragms).
The valve closes when the downstream pres-
sure rises.
Legend for Fig.3
1Valve body
2Seat
3Plug
4Balancing bellows
5Plug stem
5.1 Bellows
6Set point adjuster
7Set point springs
7.1 Spring plate
8Crossbeam
8.1 Pillar
(viewdrawnturnedby90°)
8.2 Nuts for pillars
8.3 Threaded holes
9Fastening nuts
10 Diaphragm actuator/bellows actuator
11 Actuator stem
12 Operating diaphragm
12.1
Operating bellows
13 Diaphragm plate
14 Diaphragm plate nut
15 Nuts and bolts
16
ControllineconnectionG¼
(with screw joint with restriction when used
with steam)
17 Control line (to be provided on site)
(available as control line kit for direct
pressure tapping at the body uT2595)
18 Compensation chamber
19 Filler plug
20 Travel stop cap with cotter pin

EB 2512 EN 15
Design and principle of operation
2
3
4
5
6
7
5.1
10
11
12 16
1819
17
1
8
9
15
20
13
14
8.2
8.1
8.2
p1p2
7.1
Type 2412 Valve
Type2413 Diaphragm Actuator
12.1
16
8.2
10
Bellows actuator for
DN15to50
8.3
10
16
Bellows actuator
forDN65to100
Type2413 Bellows Actuatorfor2to6,5to10,10to22and20to28bar
Fig.3: Functional diagram for regulators, DN32 to 100 with balancing bellows

16 EB 2512 EN
Design and principle of operation
3.1 Technical data
The valve and actuator nameplates provide
information on the valve and actuator ver-
sions(seesection2.1).
Process medium and scope of application
TheType41-23PressureReducingValveis
used to maintain the pressure downstream of
the regulator to an adjusted set point.
−For liquids, gases or vapors
−Max. temperature 350°C
−Set points from 0.05 to 28bar
−ValvesizeDN15 to 100
−Pressure ratings from PN16 to 40
The regulator is open when relieved of pres-
sure. The valve closes when the downstream
pressure rises.
Temperature range
Dependingonhowtheregulatoriscong-
ured, it can be used up to temperatures of
350°C(Table1).Theminimumtemperature
is limited by the accessories used and the ac-
tuator's diaphragm material (uT2595).
Leakage class
The metal-seated regulator has the leakage
classIaccordingtoIEC60534-4.
The soft-seated regulator has the leakage
classIVaccordingtoIEC60534-4.
Noise emission
SAMSON is unable to make general state-
ments about noise emission as it depends on
the regulator version, plant facilities, process
medium and operating conditions.
Risk of hearing loss or deafness due to loud
noise.
Wear hearing protection when working near
the regulator.
The Type41-23 Pressure Reducing Valve is
not a safety valve. If necessary, a suitable
overpressure protection must be installed on
site in the plant section.
Dimensions and weights
Table5providesasummaryofthedimen-
sions and weights. The lengths and heights
in the dimension diagrams are shown on
page22.
WARNING
!
Note

EB 2512 EN 17
Design and principle of operation
Table1: Technical data · All pressures in bar (gauge)
Valve Type2412
Valvesize DN15to50 DN65to80 DN100
Nominal pressure PN16,25or40
Max. permissible differential
pressure∆p 25bar 20bar 16bar
Max.
permissible
temperature
Valve uT2500∙Pressure-temperaturediagram
Valve plug Metal seal: 350°C·PTFEsoftseal:220°C
EPDMorFKMsoftseal:150°C · NBR soft seal: 80°C
Leakage class according to
IEC60534-4
Metalseal:leakageclassI(≤0.05%ofKVScoefcient)
Softseal:leakageclassIV(≤0.01%ofKVScoefcient)
Compliance
Diaphragm actuator Type2413
Actuator area cm² 640 320 160 80 40
Set point ranges bar 0.05 to 0.25
0.1 to 0.6 0.2 to 1.2 0.8 to 2.52) 2 to 5 4.5 to 10
8 to 16
Max. permissible
temperature
Gases350°C, however, max. 80°C at the actuator · Liquids 150°C,
with compensation chamber 350°C · Steam with compensation
chamber 350°C
Bellows actuator Type2413
Actuator area cm² 33 62
Set point ranges bar 10to22·20to28 2 to 61)·5to10bar
Set point spring 8000N
1) Setpointspring4400N
2) Versionwithactuatorwithtwodiaphragms:1to2.5bar

18 EB 2512 EN
Design and principle of operation
Table2: Max. permissible pressure at actuator
Set point ranges Max. perm. pressure above the set point adjusted at the
actuator
Diaphragm actuator
0.05to0.25bar·0.1to0.6bar 0.6bar
0.2to1.2bar 1.3bar
0.8to2.5bar 2.5bar
2to5bar 5bar
4.5to10bar·8to16bar 10bar
Bellows actuator
2to6bar·5to10bar 6.5bar
10to22bar 8bar
20to28bar 2bar
The maximum permissible pressure at the actuator depends on the currently adjusted set
point. Add the value listed in the table to it.
Example: Set point range: 0.2to1.2bar
Set point adjusted: 0.8bar
Max. permissible pressure at the actuator: 0.8bar+1.3bar=2.1bar
Note

EB 2512 EN 19
Design and principle of operation
Table3: KVS coefcients and xFZ values · Terms for noise level calculation according to
VDMA 24422 (edition 1.89)
Valve size DN 15 20 25 32 40 50 65 80 100
KVS1)·Standardversion 4.0 6.3 8.0 16 20 32 50 80 125
xFZ 0.5 0.45 0.4 0.35
KVS1)·Specialversion 1.0 1.0·4.0 4.0·8.0 322) 80
xFZ 0.6 0.5 0.45 0.4
KVS1)·Withowdivider 3.0 5.0 6.0 12 15 25 38 42 66
1) KVS≤4:valvewithoutbalancingbellows
2) Max.permissible∆p:25bar
Table4: Materials · Material numbers according to DIN EN
Valve Type2412
Nominal pressure PN16 PN 25 PN 40
Max. permissible temperature 300°C 350°C
Body Cast iron
EN-GJL-250
Spheroidal
graphite iron
EN-GJS-400-18-LT
Cast steel
1.0619
Stainless steel
1.4408
Seat CrNi steel CrNiMo steel
Plug Material CrNi steel CrNiMo steel
Seal PTFEwith15%glassber·EPDM·NBR·FKM
Guidebushing CrNi steel
Balancing bellows and bellows
seal Stainless steel 1.4571
Actuator Type2413
Diaphragm actuator Bellows actuator
Diaphragm cases SheetsteelS235JR(St37-2)1) –
Diaphragm EPDM·FKM·NBR·EPDM
withPTFEprotectivefacing –
Bellows housing – 1.5415/1.4301 (stainless steel only)
Bellows – 1.4571
1) In corrosion-resistant version (CrNi steel)

20 EB 2512 EN
Design and principle of operation
Table5: Dimensions in mm and weights in kg
Pressure reducing valve Type41-23
Valve size
DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
Length L 130 150 160 180 200 230 290 310 350
HeightH1 335 390 510 525
HeightH2 Forged steel 53 – 70 – 92 98 – 128 –
Other materials 44 72 98 118
Standard versionwithType2413DiaphragmActuator
Set point ranges
0.05 to
0.25bar
HeightH3) 445 500 620 635
Actuator ØD=380mm,A=640cm²
Valve spring force F 1750N
0.1 to
0.6bar
HeightH3) 445 500 620 635
Actuator ØD=380mm,A=640cm²
Valve spring force F 4400N
0.2 to
1.2bar
HeightH3) 430 480 600 620
Actuator ØD=285mm,A=320cm²
Valve spring force F 4400N
0.8 to
2.5bar2)
HeightH3) 430 485 605 620
Actuator ØD=225mm,A=160cm²
Valve spring force F 4400N
2 to
5bar
HeightH3) 410 465 585 600
Actuator ØD=170mm,A=80cm²
Valve spring force F 4400N
4.5 to
10bar
HeightH3) 410 465 585 600
Actuator ØD=170mm,A=40cm²
Valve spring force F 4400N
8 to
16bar
HeightH3) 410 465 585 600
Actuator ØD=170mm,A=40cm²
Valve spring force F 8000N
WeightforversionwithType2413DiaphragmActuator
1) +10%forallothermaterials
2) Actuatorwithtwodiaphragms:1to2.5bar
3) Actuatorwithtwodiaphragms:HeightH+50mm
