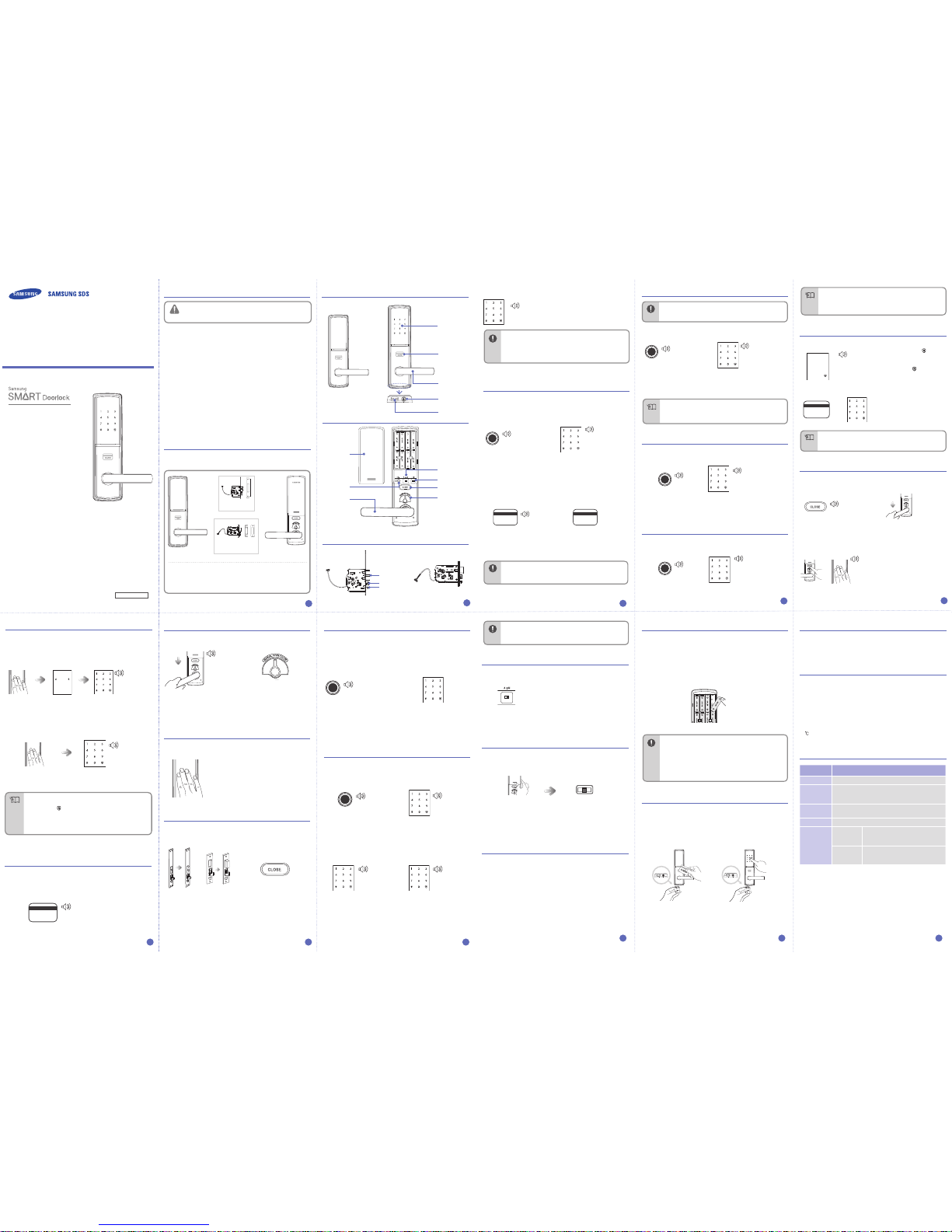

Samsung SHS-H625 User manual

Toot
Toot→Toot, toot
Place the card or key tag on the card reader.
The door will be opened after 1 second.
This section contains important information to ensure the user’s
safety and prevent potential damage to property. Please, read
this section carefully and use the product accordingly.
Warning
The product components used may vary depending on the installation
environment.
All registered data (password, card, key tag) are deleted. After initialization, the
password is set to ‘1234’, and the registered card, key tag data are erased.
Please register a new password after initialization.
When the number pad is lighted, enter
‘4560852580’ and then press the [] button.
- Success: Too~~~t
- Fail: Toot
Outer Body
1. Pressing the [Register] Button
(from the inside)
Press and hold the [Register] button
for 5 seconds.
SHS-H625
www.sds.samsung.com
GC68-02069A ED:03
64&3."/6"-
Convenient Opening
- User friendly access with
cards and password
Graphic Interface
- Shows the operation status
of the doorlock
Double Authorization
- Requires card & password
combination to open
Double Locking
- Prevents opening from outside
(Do not disturb)
Built-in Fire Detection
- Generates alarm in case of a fire
Security Function
- Prevents intrusion from the outside
2
The door can be opened from outside using a card or key tag.
Place the registered card or key tag on the card reader.
Pulling down the Door Lock Handle
Rotate the manual Open/Close lever
to the right or left to lock the door or
release the locking.
Rotating the Manual Open/Close
Lever to the Right or Left
Rotate the door lock handle of the inner
body downward.
When purchased, the product is set to Multi-leveled Security Code Entry Mode
initially. Please refer to “Multi-leveled Security Code Entry Mode setting” for
Common Mode setting.
CARD
Safety Cautions
Product Components
• The user shall not install or repair the
product without authorization.
• Do not install the product in the place
where the gap between the door and the
frame is 5mm or more.
• Make sure that no unauthorized person
has the access to the password.
• Do not operate the product with wet
hands, and keep liquids such as water
or drinks away from the product, or
the product may malfunction or be
damaged.
•
Do not use the excessive force or sharp
objects to push the lockbuttons, as this
can damage the product.
•
Make sure that the door is completely
closed when going outside. The
manufacturer does not assume the
responsibility for any harm caused
by engagement of the lock on an
improperly closed door.
•
Please do not hang on the product or
pull it.
• Be sure to correctly match the poles
(+/-) when installing the batteries. Install
the batteries with the correct poles (+/-).
•
Replace all batteries immediately after
they run out of power, and never mix
new batteries with used ones.
• Do not use water, benzene or alcohol
when cleaning the product, as these
fluids can cause product malfunction.
•
Replace the batteries within 1 week
after the battery replacement alarm
sounds.
Inner Body
KeyTag
Keytail
User Manual
‘AA’ Batteries (LR6)
Emergency Key (5EA)
Handle Shaft
Handle Shaft Spring
• Support Panel and Inner
Body Fastening Bolts
• Support Panel and Outer
Body Fastening Bolts
• Inner Fastening Bolts
• Strike Fastening Bolts
Number Pad Unlighted
Number Pad Lighted
Number Pad
Card Reader
Outer Body Handle
Battery Cover
Auto/Manual
Locking Switch
CLOSE Button
Manual Open-
and close
Lever
Sound Control
Switch
Inner body
Handle
Registration
Button
Outer Body Parts
Mortise
Emergency
Keyhole
Inner Body Parts
Opening the Door from Outside with a Password Opening the Door from the Inside
● Password must be entered after the light is on, and if does not, touch
[Number Pad] and re-enter.
● To cancel, press [ ] button and re-enter.
● If the password is wrong 5 times, “Toot~, Toot~, Toot~” warning alarm will
sound 20 times and the system will shut-down for about 3 minutes. When
malfunction happens, “Toot” will sound every 10 seconds, and stop mode will
be turned off automatically after 3 minutes with multiple ‘beeps’.
Note
Enter the password when the
number pad is lighted, and press
the [] button.
2. Common Mode
Touching [Number Pad] will
light up the number pad.
Touching [Number
Pad] will light up the
number pad.
1. Multi-leveled Security Code Entry Mode
When two arbitrary
buttons are lighted,
press the buttons in
order.
When the numbers on the
number pad are lighted,
enter the password and
press the [] button.
Success: Too~~~t
Fail: Toot
Opening the Door from Outside with a Card or
Key Tag
Closing the Door from the Outside
Closing the Door from the Inside
Closing the Door from the Inside In the Manual Locking Mode
The door is locked when the [Close]
button is pressed, or the manual Open/
Close lever is rotated.
Initialization (Password, Card, Key Tag)
2. Entering the Numbers for
Initialization (from the outside)
Password Change
The password can be 4~12 digits number. Only one password can be registered.
Enter the current password (‘1234’ after
initialization) when the number pad is lighted,
and press the [] button.
1. Pressing the [Register] Button
(from the inside)
Open the battery cover of the inner
body and briefly press the [Register]
button.
2. Entering the Current Password
(from the outside)
Enter the new password (4 to 12 digits)
and press the [] button.
- To prevent burglary, it is recommended
to use a password of 6 digits or longer.
(Only numbers between 0 and 9 can
be used.)
3. Entering a New Password
(from the outside)
Enter the new password again to check if the
new password is accurately configured, and
then press the [] button.
4. Reentering a New Password
(from the outside)
Placing the Card or Key Tag on the Card Reader
The sound that is generated when the number buttons are pressed, when the
door is locked or when the locked door is unlocked, can be set according to
the user’s preference. The product is set to generate all sounds at the factory.
Inside : The double locking sound is generated
when the [Close] button is pressed.
Outside :
The double locking sound is
generated, the double locking display
LED is lighted, and the door cannot
be opened when touch [number pad],
or a card is applied.
The double locking function prevents opening of a locked door from outside.
Activating Double Locking
Press the [Close] button for 2
seconds or longer from the inside
while the door is locked.
The double locking function is released
when the inner body handle is rotated
downward, or the manual Open/Close
lever is rotated to the right or left.
Setting Double Locking Releasing Double Locking
8 AA batteries
Item Specifications
Voltage 8 AA Alkaline 1.5 Batteries (LR6) (6V)
Emergency
Power
Source
9V Battery (6LF22) (Separately sold)
Operation
Method
Electronic Control Method (Password entry or card or
key tag reading)
Weight 2.6Kg (including both inner and outer bodies)
Product
Dimensions
Outer Body
(including
the handle)
81.9 mm(W) x 302.4 mm(H) x 66.1 mm(D)
Inner Body
(including
the handle)
79.0 mm(W) × 290.0 mm(H) × 80.3 mm(D)
Up to 20 cards, including the key tag, can be registered.
(Only ISO14443 A Type is available.)
3. Placing the Card or Key Tag
on the Card Reader (from the
outside)
Enter the password when the
number pad is lighted, and
press the [] button.
Place the card or key tag to be
registered on the card reader of the
outer body. You will know the card or
key tag has been registered when
“Too~~~t” sounds.
1. When the door is closed [ ]
of the outside body’s number
pad will light up.
2. Press and hold the [ ] button on the
outer body for 3 seconds while the
door is locked.
Apply the registered card or key tag to
the card reader, or enter the password
and then press the [] button.
Releasing the Security Function
Setting the Security Function
CARD
CARD
Or
You can set the security mode suitable for your use when you open the
door using a password.
Briefly press the [Register]
button on the inner body.
Double authorization mode requires both card and password to open the
door, ensuring more security.
The Automatic Locking mode allows for automatic locking of the door
when it is closed.
Set the [Automatic/Manual Locking] toggle switch of
the Inner Body to the ‘A’/‘M’ position.
- Automatic: The door is automatically locked 2 seconds after being closed.
- Manual: The door does not lock automatically, and [CLOSE] button must be
pressed from the inside, touch [Number Pad] to close the door.
- [ 0 ] Button: All sounds except the alarm sound are deactivated.
- [1] and [2] Buttons: All sounds are activated and the sounds get bigger as the step
become higher.
WTXTY
Put the [Sound Control] switch on
one of [0], [1], or [2], and close the
battery cover.
Open the battery cover on the
inner body.
This function generates the alarm sound when an attempt is made to
forcefully open the door from the inside or the outside.
(This is a basic function of the lock, and cannot be separately set or released.)
This function generates an alarm sound and deactivates lock operation
when it is improperly handled from the outside.
This alarm will sound if an attempt is made to open the door with an invalid card, or if
a wrong password is entered five times in a row.
The alarm sound is generated, and the lock is deactivated for 3 minutes. While the
door is in this inactive mode, a single “Toot” sound is generated every 10 seconds
and seven consecutive “Toot~, Toot~, Toot~” will sound after 3 minutes. Following
this, the lock is released from inactive mode.)
Press the [Register] button.
Outside
Apply the registered card or key tag to the card reader, or enter
the password and then press the [] button.
Inside
Battery Replacement Alarm Generation
If the melody of “Blues for Elise” sounds when opening the door with the
password or a card (key tag), it is time to replace the batteries.
(The low battery indicator is lighted when the melody sounds.)
Replacing the Battery
Replace all 8 batteries within a 1 week of the first alarm sound.
If the batteries are not replaced after their replacement time comes, they will
be completely discharged and the lock will not operate.
Purchase an emergency battery (9V) at the nearest store.
- As the alkaline batteries offer longer life, they are recommended over the
manganese batteries or rechargeable ones.
Place the card or key tag on the card reader, or enter the password, while
the 9V battery is connected to the external power port of the outer body.
This function generates the alarm sound when fire is detected so that the
residence can quickly respond. The built-in fire detection function is a basic
function of the lock, and cannot be released by the user.
When fire occurs, the temperature sensor detects it and flashes the [Close] button
while generating the alarm sound.
The door is automatically opened after the alarm sound has stopped.
(The lock resumes normal operation if the inside temperature returns to a normal
level.)
The built-in fire detection function is activated when the temperature rises around
60 , which may differ depending on the installation environment.
Or
● The contents of this user guide are subject to change without prior notice
to the user in order to enhance performance of the product.
To make sure the password has been
properly registered, check the new
password and close the door.
5. Checking New Password Operation (from the outside)
1. Pressing the [Register]
Button (from the inside)
Open the battery cover of the
inner body and briefly press the
[Register] button.
Place the registered card or key
tag to the card reader on the
outer body.
2. Entering the Password
(from the outside)
4. Confirming Card or Key Tag
Registration (from the outside)
CARD
Enter the password when the number
pad is lighted, and press the [] button.
- Success: Too~~~t
- Fail: Toot
1. Pressing the [Register]
Button (from the inside)
Open the battery cover of the
inner body and press and hold the
[Register] button for 3 seconds.
2. Entering the Password
(from the outside)
● Manage your password with care so that unauthorized people will not have
access to it. Regularly changing your password can reduce the risk of it
being leaked.
● A registered password cannot be deleted. Change the password to a new
one or initialize it to delete all registered data (password, card and key tag)
and then reregister them.
Warning
● Registered cards cannot be individually deleted. All card information is
deleted when the card delete function is selected. Previously registered
cards cannot be used to open the locked door after they are deleted.
Warning
[ 7]Button : Multi-leveledSecurity
CodeEntryMode
[9] Button: Common Mode
Press the [] button after pressing the
[7] or [9] button, and the security mode
will be set.
Briefly press the [Register]
button on the inner body.
[4] Button: Double authorization
modeon
[6] Button: Double authorization
modeoff
Press the [] button after pressing the
[4] or [6] button, and the authorization
mode will be set.
Or
● Register a new card after deleting the card data.
● To open the locked door from outside after deleting card data, use the
registered password.
● Deleting the card or key tag is available while the door is open.
Note
● To register multiple cards or key tags, lightly place another card or key tag
to the card reader within 20 seconds after registering the previous card or
key tag.
Warning
● If the poles of the batteries are not placed properly, the lock will not
operate normally.
● Liquid leaks from batteries can damage the product. Check the batteries
regularly (every 6 months).
● After the battery replacement alarm has sounded, password/card
information cannot be registered, changed, deleted, initialized or
configured until the batteries are replaced.
● The unit will stop operating suddenly if the batteries are not replaced.
Warning
● Please be cautious when using this function, since the door can only be
opened from the outside using the emergency key when this function
is set. Please be particularly careful of children accidentally setting this
function from the inside.
Warning
Releasing the Alarm
● The security function is automatically released when the locked door is
opened from outside by entering the registered password or applying the
card or key tag to the card reader.
Note
Note
3
4 5 6
10 11 12
789
Card and Key Tag Registration
Automatic/Manual Locking Setting
Sound Setting and Releasing
Alarm Sound (Prank Prevention Function)
Deleting the Card or Key Tag
Multi-leveled Security Code Entry Mode Setting
Double Authorization Mode Setting
Replacing the Batteries
Using the Emergency Battery
● The setup of double authorization mode only works when the door is open.
● When purchased, the product is not set to double authorization mode initially.
● To setup the double authorization mode, more than 1 card must be registered.
● Double authorization mode will automatically be turned off when all cards are
deleted.
Setting the Security Function
Setting the Double Locking
Intrusion Detection Function
Built-in Fire Detection Function
Product Specifications
External Power
Contact
Too~~t
Too~~~t
Too~~t
Too~~t
Too~~~t
Toot
Toot
Too~~~t
Too~~~t
Too~~~t
Too~~~t
Success: Too~~~t
Fail: Toot
Success: Too~~~t
Fail: Toot
Toot→Toot, toot
→Toot, toot, toot, toot
Toot
Too~~~t
Too~~~t
Too~~~t Too~~~t
Too~~~t
Touch [Number Pad]
If you go outside while in manual locking mode,
touch [Number Pad] on the outer body.
The door is automatically locked
2 seconds after the door is closed.
SHS-AML320 SHS-AML220
Strike
box
Mortise
(SHS-AML220)
Strike
Mortise
(SHS-AML320)
Strike
Or
Deadbolt
Latch bolt
Open-door sensor
SHS-AML320 SHS-AML220

室外侧锁体 室内侧锁体
迷你卡(KEY-TAG)
Key tail
使用说明书
‘AA’电池(LR6)
应急钥匙(5个)
把手连接杆
连接杆扣环
•
固定嵌板与室内侧锁
体的固定螺丝
•
固定嵌板与室外侧锁
体的固定螺丝
• 室内侧固定螺丝
•
锁扣板固定螺丝
άԅࢗֺ಴
卡、密码简单的开门方式
ᅱൟჰծٟટ
工作状态ＬＥＤ灯提示
ഀᄷఊᄃٟટ
卡和密码的双重认证功能
ഀᄷ്ٟટ
双重锁门功能强化安全
ݥၹث࿫ٟટ
内装火灾感应器
ֽԂٟટ
外出时启动防盗功能
SHS-H625
64&3."/6"-
www.sds.samsung.com GC68-02069A ED:03
为保证用户安全，避免给用户带来财产损失及使用不
便，请务必仔细阅读以下内容后正确使用本产品。
Warning
因安装的环境不同，产品零部件会有差异。
2
安全注意事项
使用前须知
• 禁止用户任意安装或修理本产品。
• 安装时，门与门框之间的间距不能
超过5mm以上。
• 请小心管理密码，并定期更换
密码，
以免他人知道。
• 禁止用湿手操作本产品，防止水、
饮料等液体进入锁体内部。
• 禁止过度用力或用尖锐的器具按电
子锁的按键。
• 外出时请务必确认门是否完全
上锁。
• 禁止用力下坠或用力拉本产品。
• 请按照电池正负极 (+/-)，正确
安装电池。
• 电池寿命已尽时，请同时更换所
有的电池，禁止新旧电池混合
使用。
• 请使用柔软的布清洁锁体，禁止
使用水、苯、酒精擦拭本产品。
• 产生电池更换警报音后，请务必
在一周之内及时更换新电池。
背景灯熄灭
背景灯亮起
号码键盘
电子卡感应区
室外侧把手
电池盖
自动/手动锁门
转换开关
[CLOSE]键
手动开关装置
音量调节开关
室内侧把手
设定键
室外锁体名称
锁芯总成 (MORTISE)
机械钥匙孔
室内侧锁体名称
3
将电子卡或迷你卡置于电子卡感应区。
稍候1 秒钟门即会打开。
从室外使用电子卡或迷你卡即可开门。请将已设定的电子卡、迷你卡正确
地置于电子卡感应区。
初始设置为双重安全模式，如果想设置为一般模式的话，请参考普通模式
设定方法。
CARD
从室外开门(密码)
● 应在号码键盘背光灯亮起时输入密码；背光灯熄灭时，请触摸
号码键盘处，背景灯亮起时重新输入。
● 若输入密码错误须取消时，应按一下[ ]键再重新输入。
● 连续5 次输错密码时，锁体会发出20 次“哔哩~哔哩~哔哩”的提示音，同
时电子锁会自动停止工作3分钟。电子锁在停止工作状态下，每隔10 秒钟发
出“哔”的声音。
3 分钟之后电子锁会发出“哔哔哔哔哔哔哔”的声音并自动恢复工作。
Note
号码键盘的背光灯全部亮起时，
输入密码后按下[]键即可。
2. 普通模式
触摸号码键盘处，号码键盘
的背光灯会亮起。
触摸号码键盘处，
号码键盘的背光灯
会亮起。
1. 双重安全模式
任意2 个键的背光灯亮
起时，按顺序按下亮起
背光灯的2 个数字。
号码键盘的背光灯全部亮
起时，输入密码后按下
[]键即可。
成功:
哔哩哩哩
失败:
哔
成功: 哔哩哩哩
失败: 哔
接触卡、Key Tag
4
从室外开门(电子卡、迷你卡)
把手往下拉
向左或向右转动室内侧锁体的手
动开关装置可以锁门或解除锁门
状态。
左/右转动手动开关装置
将室内侧锁体把手向下拉。
哔哩哩哩
从室内开门
从室外关门
触摸号码键盘处
在手动锁门模式中从室内打开门出来时，
触摸号码键盘处即可。
从室内关门
自动锁门模式 手动锁门模式
关门2 秒后自动上锁。 按[CLOSE]键或者旋转手动开关装置即
可进行锁门。
5
初始化会删除设定的所有信息。设定的信息初始化之后，密码自动设定
为“1234”，电子卡、迷你卡的信息自动删除。
号码键盘的背光灯亮起后输
入“4560852580”，再按下[]键即可。
- 成功: 发出“哔哩哩哩”提示音
- 失败: 发出“哔”提示音
哔 → 哔哔
→ 哔哔哔哔
1.按[设定]键(从室内)
持续按[设定]键5秒钟。
初始化方法 (密码、电子卡、迷你卡)
2. 输入初始化号码(从室外)
更改密码
密码可注册4~12位的一组，可注册一个密码，初始化操作后请重新注册密码。
输入当前密码（初始化后输入1234）后按
[]键。
哔
1. 按[设定]键（从室内）
按一下室内侧锁体（打开电池盖）
的[设定]键。
2. 输入密码（从室外）
输新密码（4~12 位）后按 []键。
- 为防密码被盗，尽可能用6位数以上
密码（0~9数字来组合）。
3. 输入新密码（从室外）
为证实输入新密码的准确性，再次输入新
密码后按 []键完成注册。
4. 再次输入新密码（从室外）
6
具有交通卡功能的信用卡就可以注册，包括Key Tag最多可注册20张。
（只兼容 ISO14443 A型号芯片）
3. 接触卡、Key Tag （从室外）
输入密码（当前密码）后按 []键。
将要注册的卡、Key Tag放到感应区，
随“DING DONG DENG”的声音完成注册。
CARD
密码是否被正常注册，关门之前请用
新密码测试确认后再关门。
5. 用新密码确认开启（从室外）
哔
1. 按[设定]键 （从室内）
打开电池盖按一下[设定]键。
注册过的卡、Key Tag放在感应区1~5秒
内锁会开启。
2. 输入密码（从室外）
哔哩哩哩
4. 接触卡、Key Tag（从室外）
CARD
● 注意管理密码，别泄漏给他人，一组密码不宜使用过长时间。
●
注册的密码不能删除，只能是更改为新密码或初始化操作
（此时密码、卡均被删除）后重新注册。
Warning
● 想注册多张开门卡时，先注册好使用中的卡，后在20 秒内一次将剩
余的几长卡放到感应区，如操作过程中间隔20 秒以上会自动终止。
Warning
7
注册卡、Key Tag
从室内 : 按下[CLOSE]键，电子锁会发出双重锁
门的声音。
从室外 : 按下[号码输入]则锁体就会发出双重
锁门的声音，号码键盘左下方的双重
锁门指示灯会亮起，同时门上锁。
双重锁门功能是为了防止从室外开门而设置的功能。
启动双重锁门功能
在门上锁的情况下，从室内按住
[CLOSE]键2 秒钟以上。
压下室内侧锁体的把手或者左右旋转手动
开关装置，即可解除双重锁门功能。
设定双重锁门功能 解除双重锁门功能
1. 若门上锁，室外侧号码键盘的
[ ]键会亮起背光灯。
2. 在3 秒以内按下[ ]键，
仅可设定防盗功能。
将设定的电子卡、迷你卡置于感应区
或者输入密码，然后按下[]键。
哔哩哩
解除防盗功能
设定防盗功能
CARD
或
哔哩哩
哔哩哩
使用密码开门时，可根据适用性设定认证模式。
短按室内侧锁体的[设定]键。
哔
双重认证模式是指开门时，需同时认证密码和卡的安全强化功能。根据使
用需要，可以设定或解除该模式。
哔哩哩哩
输入密码后按 []键。
成功: 哔哩哩哩
失败: 哔
哔 → 哔哔
1. 按[设定]键（从室内）
打开电池盖按3秒种[设定]键。
2. 输入密码（从室外）
哔哩哩哩
● 不可以个别删除，通过删除卡操作，已注册的卡信息会被全部删除，
需重新注册后才能开门。
Warning
[7] 键: 双重安全模式
[9] 键: 普通模式
按下[7] 或[9] 键后，按下[]键即可设定
认证模式。
哔哩哩哩
短按室内侧锁体的[设定]键。
[4]号: 设定双重认证模式
[6]号: 解除双重认证模式
按下[4]或[6]号键, 再按下[]键，
即可设定解除认证模式。
哔哩哩哩
或
● 删除卡信息后请重新注册使用。
●
在删除卡信息的状态下，请用密码开启。
●
卡、Key Tag 的删除只有在开门的状态下运作。
Note
● 即使设定了防盗功能，从室外输入设定的密码或者将电子卡、迷你卡置于
感应区将门打开后，防盗功能会自动解除。
Note
Note
8 9
删除卡、Key Tag
设定双重安全模式
设定双重认证模式
● 仅限在门打开的状态下可设定双重安全模式。
●
产品刚购买时双重认证模式未开启。
●
若想设定双重认证，应设定1 张以上的电子卡。
●
电子卡信息全部删除时，双重认证模式自动解除。
设定防盗功能
双重锁门功能的使用方法
● 若设定双重锁门功能，从外侧只能用应急钥匙开门，敬请注意。
防止儿童从室内任意设定此功能。
Warning
本产品可以设定按号码键盘、开门或关门时的声音。
本产品可设定关门时自动锁门的功能。
将室内侧锁体的[自动/手动锁门]转换开关
推至[自动/手动]置。
- 自动模式: 关门2 秒后自动上锁。但电池没电时不可正常工作。
- 手动模式: 关门后不会自动锁门，需按下室内侧锁体的[CLOSE]键室外侧锁
体的[号码输入]键方可锁门。
- [0]键: 所有的声音为静音状态。(警报音除外)
- [1]~[2]键: 所有的声音都开启，设定的数字越大声音越响。
WTXTY
将[音量调节]开关置于[0] ~ [2]
位置，盖好电池盖。
打开室内侧锁体电池盖。
在室外操作电子锁不正确时，电子锁有发出警报音并自动进入断电模式。
使用未设定的卡或密码输入错误超过5次时
(电子锁会发出警报音并会自动停止工作3 分钟。电子锁在停止工作状态下，
每隔10 秒钟发出“哔”的声音。3 分钟之后电子锁会发出“哔哔哔哔哔哔哔”的声
音并自动恢复工作。)
将设定的电子卡、迷你卡置于感应区或者输
入密码，然后按下[]键即可解除。
从室外
按下室内侧锁体的[CLOSE]键或[设定]键，
或者把手向下拉即可解除。
从室内
警报音的解除方法
10
设定自动/手动锁门
设定及解除声音模式
发出警报音时 (防恶作剧功能)
AA型电池×8节
项目 规格
正常电源 AA型1.5 V 碱性电池(LR6) 8 节(6 V)
应急电源 9 V电池(6LF22) 1节(单独购买)
工作方式 电子控制方式 (输入密码或电子卡、迷你卡)
重量 2.6 kg (包括室内侧和室外侧)
产品大小
室外侧
(包含把手) 81.9 mm(W) × 302.4 mm(H) × 66.1 mm(D)
室内侧
(包含把手) 79 mm(W) × 290 mm(H) × 80.3 mm(D)
在室内或室外，强制打开门时发出警报音的功能。
(此功能为产品基本功能，不可设定/删除。)
更换电池的提示音响起时...
使用密码或电子卡(迷你卡)开门响起“致爱丽丝”旋律时，开门后需更换电池。
(若更换电池的提示音响起，号码键盘右下侧的电池交换提示背光灯会亮起。)
更换电池
从第一次响起更换电池的提示音后，一周内必须将旧电池全部更换成新电池。
到了电池更换日期不更换继续使用时，电池会没电导致门锁不能正常工作。
请到附近的便利店或超市购买应急电池(9V)。
- 建议使用比普通电池和充电电池工作寿命长、可长期使用的碱性电池。
室外侧锁体的外部电源(应急电池)接口接入9V电池，此时使用电子卡或迷
你卡开锁，或者输入密码开锁。
发生火灾时电子锁会发出警报，告知住户赶快躲避的功能。
(火灾探测功能为基本设定的功能，用户不可随意解除。)
火灾发生时，温度探测器会感知，然后[CLOSE]键不停闪烁，同时电子锁发出警报音。
警报音结束后门会自动打开。
(室内温度下降到一定程度后，电子锁会恢复正常工作。)
火灾感知功能在室内温度达到60℃ 左右时启动，安装环境不同会多少有差异。
或● 为提高产品的功能，生产商可不经过用户的同意对使用说明书的内容作
出更改。
● 若电池正负极装反门锁不能正常工作，装入电池时请注意电池
的正负极是否安装正确。
●
电池液体泄漏时会损坏锁体，请务必定期（约6 个月间隔）进行确认。
●
更换电池的提示音响后，在更换新电池之前，无法执行密码/
感应钥匙信息的设定、更改、初始化和功能设定等。
●
更换电池的警示音响后，不更换电池继续使用时，可能会产生
电子锁突然停止工作的情况。
Warning
11 12
更换电池
应急电池的使用方法
入侵感知功能
火灾感知功能
产品规格
外部电源接口
成功:
哔哩哩哩
失败:
哔
哔哩哩哩
哔哩哩哩哔哩哩哩
哔哩哩哩
哔哩哩哩
哔
锁舌盒锁芯总成
(SHS-AML220)
盖板
锁芯总成
(SHS-AML320)
盖板
或
方舌
斜舌
感应器
SHS-AML320 SHS-AML220
SHS-AML320 SHS-AML220
配件名称 有毒有害物质或元素
Pb Hg Cd Cr(Ⅵ) PBB PBDE
金属配件
Ο Ο Ο Χ Ο Ο
印刷电路组件
(Printed Board Assembly)
Χ Ο Ο Ο Ο Ο
电缆 (Cable)
Ο Ο Ο Ο Ο Ο
塑料配件(Plastic)
Ο Ο Ο Ο Ο Ο
电池
Ο Ο Ο Ο Ο Ο
Ο: 配件中有毒有害物质含量不超过<含量限制标准GB/T 26572>所规定的标准值
Χ: 配件中有毒有害物质含量超过<含量限制标准GB/T 26572>所规定的标准值
上述表说明本产品所含的有害物质含量信息，配件别有害物质信息是根据合作公司所提供的
信息和内部鉴定结果来制成的。部分配件所含的有害物质，按照现在的技术水准是很难代替，
为了代替这个问题三星SDS(三星數据系統)会竭尽全力去努力的。
