Samsung SHP-DP920 User manual

SHP-DP920
Samsung SDS Door Lock
User and Reference Guide
Ver1.0.0

Product Specifications
Item
Spec.
Size
Exterior Unit
87.5mm(W)×391.8mm(H)×64.5mm(D)
Interior Unit
88.5mm(W)×357.6mm(H)×69.3mm(D)
Voltage
4 AA Alkaline 1.5V Batteries (LR6) (6V)
Emergency Power Source
9V Battery(6LF22) (Separately sold)
Battery Life
10 Months (based on an average of 6 uses per day)
Support Card Standard
ISO14443A (Mifare® )
Exterior Parts

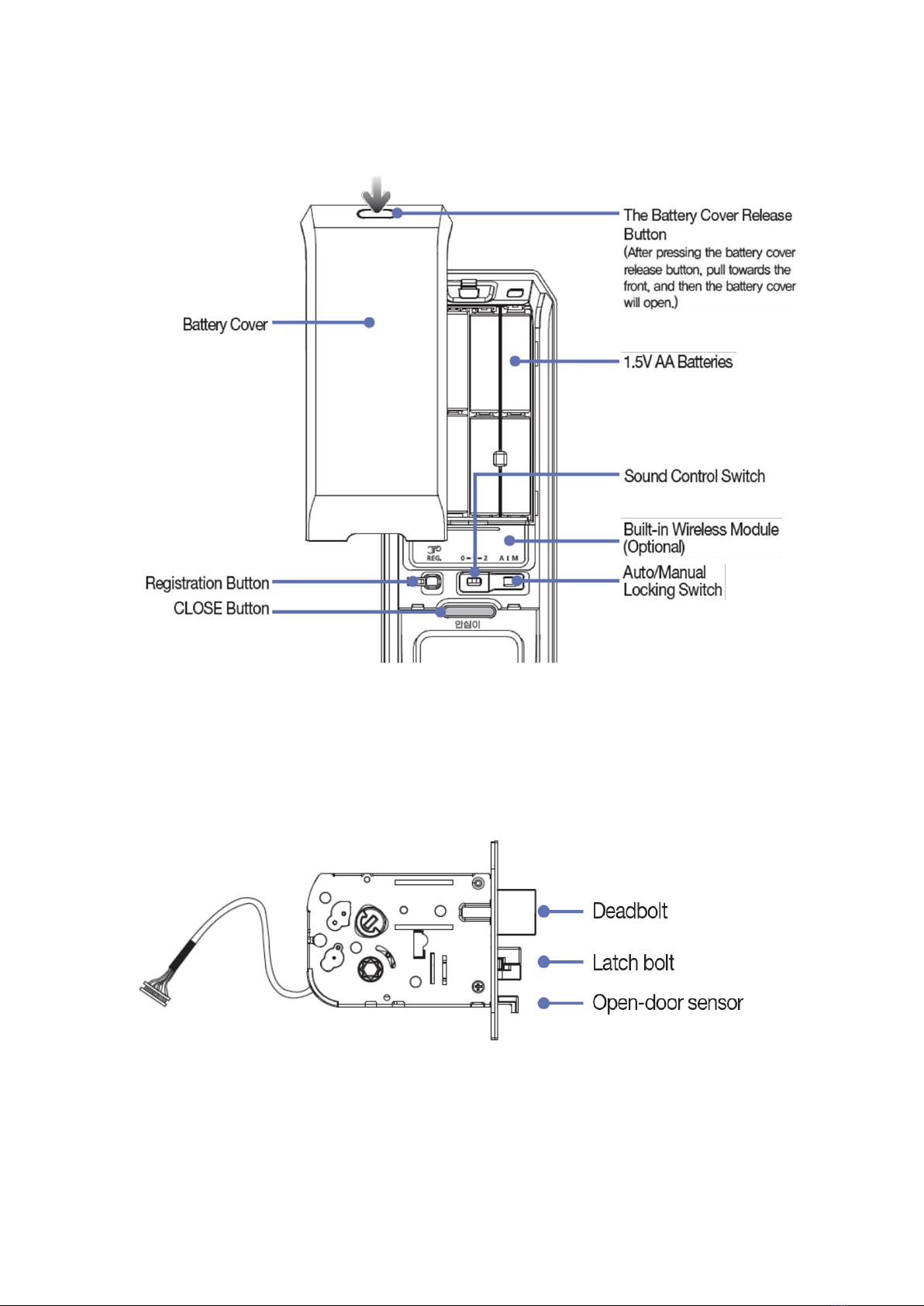

Interior Parts
Mortise

The Samsung SDS Z-Wave Door Lock is a security enabled Z-Wave Plus product that is able to use
encrypted Z-Wave Plus messages to communicate to other security enable Z-Wave Plus products.
The Samsung SDS Z-Wave Door Lock must be used in conjunction with a Security Enabled Z-Wave
Controller in other to fully utilize all implemented functions.
The Samsung SDS Z-Wave Door Lock can be included and operated in any Z-Wave network with
other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters regardless of vendor to increase reliability of
the network.
Z-Wave Specifications
Device Type : Door Lock –Keypad (SPECIFIC_TYPE_SECURE_KEYPAD_DOOR_LOCK)
Role Type : LSS (Listening Sleeping Slave)
Command Class Support/Control
Mandatory CC support :
Z-Wave plus info (MUST be place first in NIF) –(V2)
Manufacturer Specific (V2)
Security (V1)
Device Reset Locally (V1)
Battery (V1)
Power Level (V1)
Version (V2)
Door Lock (V2)
User Code (V1)
Association (V2)
Association Group Information (V1)
Recommended CC support
Notification (V4)
Configuration (V1)
Firmware update meta data (V2)
Schedule Entry Lock (V3)
Time Parameters (V1)
Time (V2)

Z-Wave plus info (V2)
- Z-Wave Plus Version : 02
- Role Type : LSS (Listening Sleeping Slave)
- Node Type : Z-Wave Plus Node
Manufacturer Specific (V2)
-Device ID Type : 01(Serial Number)
- Device ID Data Format : 01 (Binary)
- Device ID Data Length Indicator : 16
-Device ID : XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX
Version (V2)
- Z-Wave Protocol Library Type : 03
- Z-Wave Protocol Version : 04
- Z-Wave Protocol Sub Version : 05
- Firmware 0 Version : 01
- Firmware 0 Sub Version : 03
- Hardware Version : 01
Door Lock (V2)
- support Unsecure(0x00), Secure(0xFF)
Note : When using ‘Operation_Set’command, lock will execute ‘Unsecure(0x00)’then
perform ‘Auto Re-lock’if door is not open.
When using ‘Operation_Get’command, lock can response after executing
‘Operation_Set’command. (take about 2 seconds)
User Code (V1)
- Lock will accept maximum 130 pin codes that are 4-10 digits in length.
①Supported Users : 130
②User Type : Number, Card (Key Tag), Fingerprint, Bluetooth
⋅Card (Key Tag), Fingerprint, Bluetooth : Cannot be registered through Z-Wave
③ID Range
⋅Number : 1 ~ 130

⋅Card (Key Tag) : 1 ~ 20
⋅Bluetooth : 21 ~ 30
⋅Fingerprint : 31 ~ 130
Association (V2) & Association Group Information (V1)
- Lifeline between controller and SHP-DP920
- Supported command classes
: Battery report, Notification report, and Device Reset Locally notification
- Maximum supported node is 1EA
Notification (V4)
Notification Type
Event
Event Parameter
Access Control
(0x06)
Manual Lock Operation (0x01)
Manual Unlock Operation (0x02)
RF Lock Operation (0x03)
RF Unlock Operation (0x04)
Keypad Unlock Operation (0x06)
User ID
RF Not Fully Locked Operation (0x08)
Auto Lock Loced Operation (0x09)
Auto Lock Not Fully Operation (0x0A)
Lock Jammed (0x0B)
All user codes deleted (0x0C)
Single user code deleted (0x0D)
New user code added (0x0E)
New user code not added due to
duplicate code (0x0F)
New Program code Entered - Unique
code for lock configuration (0x12)
Home Security
(0x07)
Intrusion, Unkown Location (0x02)
Tampering, Invalid Code (0x04)

Motion Detection, Unknown Location
(0x08)
Emergency
(0x0A)
Contact Police (0x01)
Contact Fire Service (0x02)
Configuration (V1)
Name
Parameter
Number
Size
Value
Description
Security Function
0x01
1byte
0x00
0x01
0x02
0x03
0x04
0x05
Disable (Default)
Enable
System Disable1)
System Enable1)
Request for Enable1)
Fail1)
Privacy Mode
0x02
1byte
0x00
0x01
Disable (Default)
Enable
Registered User
ID
0x03
1byte
1 ~130
The number of registered user codes.2)
Platform
0x0A
1byte
0x00
0x01
Common (Default)
Samsung SDS3)
1) This value can be used when the device is connected with platform of Samsung SDS.
This function is not related to Z-Wave CC.
- 0x02 : Command for disable which is set by platform of Samsung SDS.
After setting, if you try to get value of Security Function , '0x00' will be reported.
- 0x03 : Command for enable which is set by platform of Samsung SDS.
After setting, if you try to get value of Security Function, '0x01' will be reported.
- 0x04 : 'Request for Enable' command which is reported by Doorlock. This cannot be set.
(8th function in manual)
- 0x05 : If the request for 'Request for Enable' command is failed in platform,
this will be set by platform of Samsung SDS.

Value of Security Function is not changed by this command.
2) This parameter is supported to ‘Configuration Get Command’only.
3) This value set by platform after device connected with platform of Samsung SDS.
Firmware update meta data (V2)
-Manufacturer ID : 0x022E (Samsung SDS)
Schedule Entry Lock (V3)
- Supported the Number of Slots Week Day : 0
- Supported the Number of Slots Year Day : 0
- Supported the Number of Slots Daily Repeating : 130
Glossary
Device or Node
Devices and nodes are all terms to describe an individual Z-Wave device. These
are all interchangeable when setting up your Z-Wave network
Unsecure /
Unsecured
Unlock / Unlocked
Secure / Secured
Lock / Locked
Inclusion
Add a Z-Wave device to the network
Exclusion
Delete a Z-Wave device from the network
Z-Wave Network
A collection of Z-Wave devices is controlled by primary and secondary controllers
operating on the same system. A Z-Wave network has its own unique ID code so
that controllers not in the network cannot control the system.
Association
Association is used to organize nodes in different groups allowing the device to
identify the nodes by a group identifier. The groups can also be copied to other
devices.

Note : Pressing the [REG] button is only available while the door is open. (Deadbolt must be
unsecured.)
Basic Functions
1. Factory Reset
All registered Master/User data will be deleted, and Master PIN Code is set to ‘1234’. Also Z-
Wave Door Lock is being removed from a network.
①Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)
②Press the [*] button after pressing the [4560852580] button.
(Success : Ding dong dang, Fail : Ding dong Ding dong)
※Use this procedure only in the event that the network primary controller is missing or
otherwise inoperable.
2. Changing the Master PIN Code
You can enter only one Master PIN Code. If changing the Master PIN code, All User PIN
Codes are deleted.
①Press the [REG] button. (Ding dong)
②Enter the new Master PIN Code, and press the [*] button.(4~12digits) (Ding dong dang)
3. Registering a User Card
You can register up to 20 User Card. (Supproted ISO14443 AType)
To register multiple cards, lightly place another card to the card reader within 20 seconds
after registering the previous card. Also you can add card later after completing registration.
①Press the [REG] button. (Ding dong)
②Place the card to be registered on the card reader of the exterior body.(Ding dong dang)
③Place the card on the card reader for the addtional registration or press the [REG] button
to quit.

4. Registering a Fingerprint
You can register up to 100 fingerprints.
①Press the [REG] button. (Ding dong)
②When LED light on the Fingerprint Reading Panel is on, touch the panel with the
fingerprint to be registered. When a “ding” sound is heard and LED light goes off, then
remove the finger. (Must do it 3 times)
③To end the registration, please press the [REG] button on the inner body.
5. Registering a Bluetooth
①Press the [REG] button. (Ding dong)
②Enter the [88] + [*] (Ding dong)
③Enter the Password + [*] (Ding dong deng →Ding ding)
④Check a pairing number from Smart Door Lock App of smartphone.
(First, please install the Smart Door Lock app in the smart phone.)
⑤Enter a Pairing number + [*] (Ding dong deng)
6. Inclusion / Exclusion into(from) Z-Wave Network
6.1 Inclusion into Z-Wave Network
①Click [Add] icon in Z-Wave PC Conroller Program.
②Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)
③Press the [*] button after pressing the [00] button.
(Success : Ding dong dang, Fail : Ding dong Ding dong)
6.2 Exclusion from Z-Wave Network
After exclusion from Z-Wave Netwokr, it will no longer be remotely-controlled via the
controller.
①Click [Remove] icon in Z-Wave PC Conroller Program.
②Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)
③Press the [*] button after pressing the [00] button.

(Success : Ding dong dang, Fail : Ding dong Ding dong)
7. Opening the Door with a PIN Code
①Touch the [Touchscreen].
②Enter the PIN Code and press the [*] button.
③The door opens whithin one second.
8. Opening the Door with a Card
①Place the Card on the Card Reader.
②The door opens whithin one second.
9. Opening the Door with a Fingerprint
①Press the [Open Fingerprint Cover] button and the lid of the Fingerprint Reading Panel
opens.
②Touch the Fingerprint Reading Panel with the registered fingerprint after LED light turns
on, the lid of the panel closes in approximately a second later.
③Then push the door handle to open the door.
10.Opening the Door with a Bluetooth
①Access the door lock from the outside or touch its number pad.
②The number pad will light up.
③Push message is sent to smartphone through Bluetooth.
④Press the icon of push message (from smartphone)
⑤Then push the door handle to open the door.

Addtional Function
11. Activation/Deactivation of the Bluetooth Mode
After the Bluetooth mode is activated, accessing the door lock from the outside or touching its
number pad can authenticate the registered Bluetooth smartphone to open the door.
The Bluetooth mode is activated by default.
①Open the battery cover, and press the [REG] button shortly..
②Press the [11] or [00] button and the [*] button to activate or deactivate the Bluetooth
mode.
[11] button: Activate the Bluetooth mode.
[00] button: Deactivate the Bluetooth mode.
12.Privacy Mode Function
Press and hold the [CLOSE] button for more than three seconds. (Ding dong dang)
As it is set from the inside, provides a secure lock for the convenience of the occupant(s).
When the privacy mode function is activated, the door cannot be unlocked(unsecured) from
the outside, so please be careful.
13. Setting the Security Function
This is a function to prevent any intrusion while you are out. Should the door be opend from
the inside while the intrusion prevention function is on, the emergency alert light will flash and
the alarm will make “beep beep beep~”sound.
①When the door is closed [ ] of the exterior body’s number pad will light up.
②Press the [ ] button on the exterior body within 3 seconds while the door is locked.
(Ding dong dang)
14. Lockout Mode
When more than 5 failed authentication attempts with unregistered PIN Code/Cards occur,
the alarm sound is generated, and the lock is deactivated for 3 minutes.

15. Intrusion Detection Function
When the Interior Unit is forcibly detached while the door is locked, it is detected by the door
open/close sensor, the alarm sounds. The Intrution Detection function is a basic function and
cannot be disabled.
16. Sound Setting
The sound that is generated when the number buttons are pressed, when the door is locked
or when the locked door is unloced, can be set according to the user’s preference.
Put the [Sound Control] switch on one of [0], [1] or [2].
[0] : Mute [1] : Normal [2] : Loud
17. Addtional Function Mode
