Samsung Ezon SHS-5120XM series User manual

1

1
Product Features
The door can be opened with a card as well
as a key tag.
The door can be opened with a transit card or a credit card with the
transit card function as well as a key pad contained in the product. Up
to 20 cards may be registered.
The door can also be opened with a password.
Once the user's password is registered, the door can be opened
without a key by entering the registered password.
The anti-panic function allows for easy
opening of a locked door from the inside.
When opening the locked door from the inside, just turn the handle.
The door does not have to be locked manually.
Using the automatic lock function, the door is automatically locked
when it closes, eliminating the need to lock it manually.
Double-locking function adds security.
The double-locking function adds security by preventing the door from
being opened from outside at night or at times when extra security is
needed.
Pranks played by children and juveniles can
be prevented.
When an unregistered card or key tag is used, or when an invalid
password is entered 3 or more times consecutively, an alarm sound is
generated and power to the lock is automatically cut off for one minute.
Fire-monitoring function helps occupants escape
in case of fire.
When the inside temperate rises to a certain level due to fire, an alarm
is automatically generated and the door is opened.

2
Table of Contents
Product Features 1
Safety Cautions 4
Notes before Operation 7
Model-by-Model Functions ......................................................... 7
Product Components................................................................... 8
Outdoor Unit Parts .....................................................................10
Indoor Unit Parts .......................................................................12
Mortise ....................................................................................13
Replacing the Batteries ..............................................................14
Using the Emergency Battery ......................................................15
Using the Emergency Key (Except for SHS-5120VMX model) ...........16
Basic Functions 17
Initialization (Password, Card, Key Tag and Remote Controller) ........17
Password Registration and Change ..............................................18
Card and Key Tag Registration ................................................... 20
Deleting the Card or Key Tag ..................................................... 22
Remote Controller Registration ................................................... 23
Deleting the Remote Controller ................................................... 25
Wireless HA Device Registration and Deletion............................... 26
Opening the Door from Outside with a Password ............................27
Opening the Door from Outside with a Card or Key Tag.................. 28
Opening the Door from Inside..................................................... 29
Closing the Door from Outside.....................................................31
Closing the Door from Inside .......................................................31

3
Additional Functions 32
Automatic/Manual Locking Setting...............................................32
Sound Setting and Releasing ......................................................33
Alarm Sound/Emergency Sound..................................................34
Troubleshooting 38
Operating Method Summary 40
Product Specifications 42
WARRENTY 43

4
Safety Cautions
This section contains important information to ensure the user's safety and prevent
potential damage to property. Please read this section carefully and use the product
accordingly.
Warning, Caution and Note Explained:
Warning
Information given under this heading is information the user must be aware of to
prevent physical harm.
Caution
Information given under this heading is information the user must be aware of to
prevent service problems or system damage.
Note
Information given under this heading provides additional information relating to the
text in this manual.
Description of Symbols
General warning or caution
Prohibited activity
Recommended activity

5
Cautions during Installation
Cautions during Operation
Do not use the excessive force or
sharp objects to push the door
lock buttons, as this can damage
the product.
The user shall not install or repair
the product without authorization.
The manufacturer does not assume
responsibility for damage to the
product resulting
from attempts to
the user to install
or repair it without
authorization.
Do not install the product in the
place where the gap between the
door and the frame is 5mm or
more.
If the gap is too wide,
the product may not
function properly.
Make sure that no unauthorized
person has the access to the
password.
To minimize the risk of
burglary, it is
recommended
that you
periodically change
the password.
Do not operate the product with
wet hands, and keep liquids such
as water or drinks away from the
product, or the
product may
malfunction or
be damaged.
Make sure that the door is completely
closed when going outside. The
manufacturer does not assume the
responsibility for
any harm caused
by engagement
of the lock on an
improperly closed
door.

6
Cautions during Operation
Cautions during Repair or Maintenance
Handle the remote controller with
care.
The remote controller
can be damaged
by a strong impact,
such as being
dropped.
Replace all batteries immediately
after they run out of power, and
never mix new batteries with
used ones.
This can cause
reduction of
product life or
a malfunction
in the product.
Do not use water, benzene or
alcohol when cleaning the product,
as these fluids can cause product
malfunction.
Use a soft and
dry cloth
instead.
Replace the batteries within 1 week
after the battery replacement alarm
sounds.
The product can
stop operating
if the batteries
are not replaced
in time.
Be careful not to trap fingers while
opening or closing the
number cover.
There is a risk of
fingers being
trapped in the gap.
Be sure to correctly match the
poles (+/-) when installing the
batteries. Install the batteries with
the correct poles (+/-).
Improperly installed
batteries can cause
rupture or battery
fluid leakage.

7
Notes before Operation
Model-by-Model Functions
The following table shows the functions available for each model of the SHS-5120 series.
No. Model Emergency
Key
Pass
word
Key Tag
(Card)
Remote
Controller
Interface to
Wireless
HA Devices
(One-way)
Interface to
Wireless
HA Devices
(Two-way)
1 SHS-
5120XMX ○ ○ ○ Ⅹ Ⅹ Ⅹ
2 SHS-
5120RMX ○ ○ ○ ○ Ⅹ Ⅹ
3 SHS-
5120REX ○ ○ ○ Ⅹ ○ Ⅹ
4 SHS-
5120EMX ○ ○ ○ Ⅹ Ⅹ ○
5 SHS-
5120VMX Ⅹ ○ ○ Ⅹ Ⅹ Ⅹ
※The last letter X in each model indicates color code.

8
Product Components
Mortise
User Guide
Strike
‘AA’ Batteries (LR6)
Outdoor Unit
Strike Box
Indoor Unit
Emergency Key
(Except for
SHS-5120VMX model)
Ke
y
Ta
g

9
Remote Controller
Options
'AAA' Batteries (LR03) Remote Controller Cradle
Handle Shaft
Support Panel and Indoor Unit
Fastening Bolts
FH+M4×8 (4EA)
Support Panel and Outdoor Unit
Fastening Bolts
OH+M5×25/TH+M5×20 (2EA)
Indoor Fastening Bolts
PW+#8×16 (4EA)
Strike Fastening Bolts
FH+U10-24×10 (4EA)
Handle Shaft Spring
The product components used may vary depending on the installation environment.

10
Outdoor Unit Parts
Number Pad Unlighted
Outdoor Unit
Handle
Card Reader
Number Pad
[Enter Number]
Button and
Running LED
External Power
Contact
Emergency Keyhole
(Except for SHS-
5120VMX model)
Number Pad Lighted

11
No. Name Description
1 Number Pad Enter numbers when registering, changing, or deleting the
password. The door can be opened by entering the registered
password onto the number pad.
2 [Enter Number]
Button and
Running LED
The number pad is lighted so that numbers can be entered well.
3 Card Reader The Card Reader is used to recognize a card or key tag before
opening the door.
4 Outdoor Unit
Handle
The door will be opened when the handle is rotated downward
after the lock is released.
5 Emergency
Keyhole
(Except for SHS-
5120VMX model)
When the lock stops operating because of batteries that have
been completely discharged or a circuit problem, the emergency
key can be used to unlock the door. After that, the door will be
opened when the outdoor unit handle is rotated downward.
6 External Power
Contact
Power can be supplied from the emergency battery after the main
batteries have been completely discharged (9V battery).

12
Indoor Unit Parts
Password Button
A
utomatic/Manual
Locking Toggle Switch
Indoor Unit Handle
Remote Controller
Button Open/Close Button
Registration Button
Manual Open/Close
Lever
Battery Cover

13
No. Name Description
1 Battery Cover The Battery Cover protects the batteries and the registration button.
2 Registration Button The Registration Button is used to register or delete a card or key tag.
3 Automatic/Manual
Locking Toggle
Switch
This switch is used to switch between automatic locking and manual
locking. If it is set for automatic locking, the door is automatically
locked when closed. If it is set for manual switching, the door is not
automatically locked when closed.
4 Remote Controller
Button
The Remote Controller Button is used to register or delete the wireless
remote controller.
5 Password Button This button is used to change the password.
6 Open/Close Button This button is used to lock the door from the inside and to set the
double locking function.
7 Manual
Open/Close Lever
This is used to lock or unlock the door manually in an emergency or
when the circuit is out of order.
8 Indoor Unit Handle The door will be opened when the handle of the indoor unit is rotated
downward.
Mortise
No. Name Description
1 Deadbolt It fastens the door to the door frame.
2 Latch Bolt It fastens the door and door frame when the door is closed.
3 Door Opening
Sensor
It monitors door opening and closing after the automatic locking
function is activated.
Latch Bolt
Deadbolt
Door Opening Sensor

14

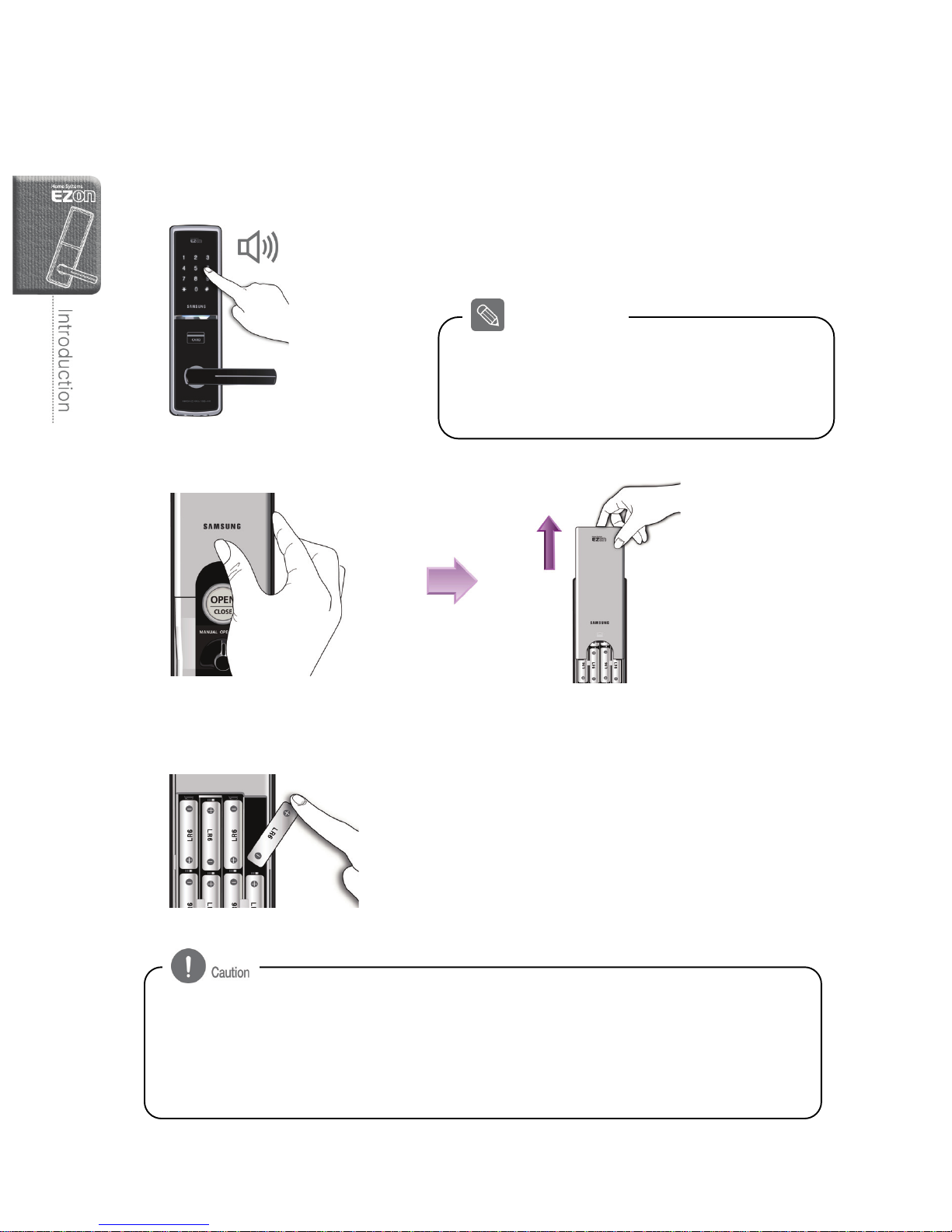

Replacing the Batteries
1. Battery Replacement Alarm Generation
If an alarm that sounds like a ‘Toot~’ sounds
when opening the door using the password or
card (key tag), it is time to replace the batteries.
2. Opening the Indoor Unit Cover
Lightly press on the battery cover of the indoor unit and push it up.
3. Replacing the Battery
Replace all 8 batteries within a week of the first
alarm sound.
- The unit will stop operating if the batteries are not
replaced.
A
lthough actual battery life differs depending on the
manufacturer, date of production and operation
environment, eight 1.5V AA alkaline batteries can last fo
r
one year, based on an average of 10 uses per day.
Battery Life
Warning
tune~
8 AA batteries
- If the poles of the batteries are not placed properly, the door lock will not operate normally.
- Liquid leaks from batteries can damage the product. Check the batteries regularly (every 6
months).
- After the battery replacement alarm has sounded, password/card information cannot be
registered, changed, deleted, initialized or configured until the batteries are replaced.

15

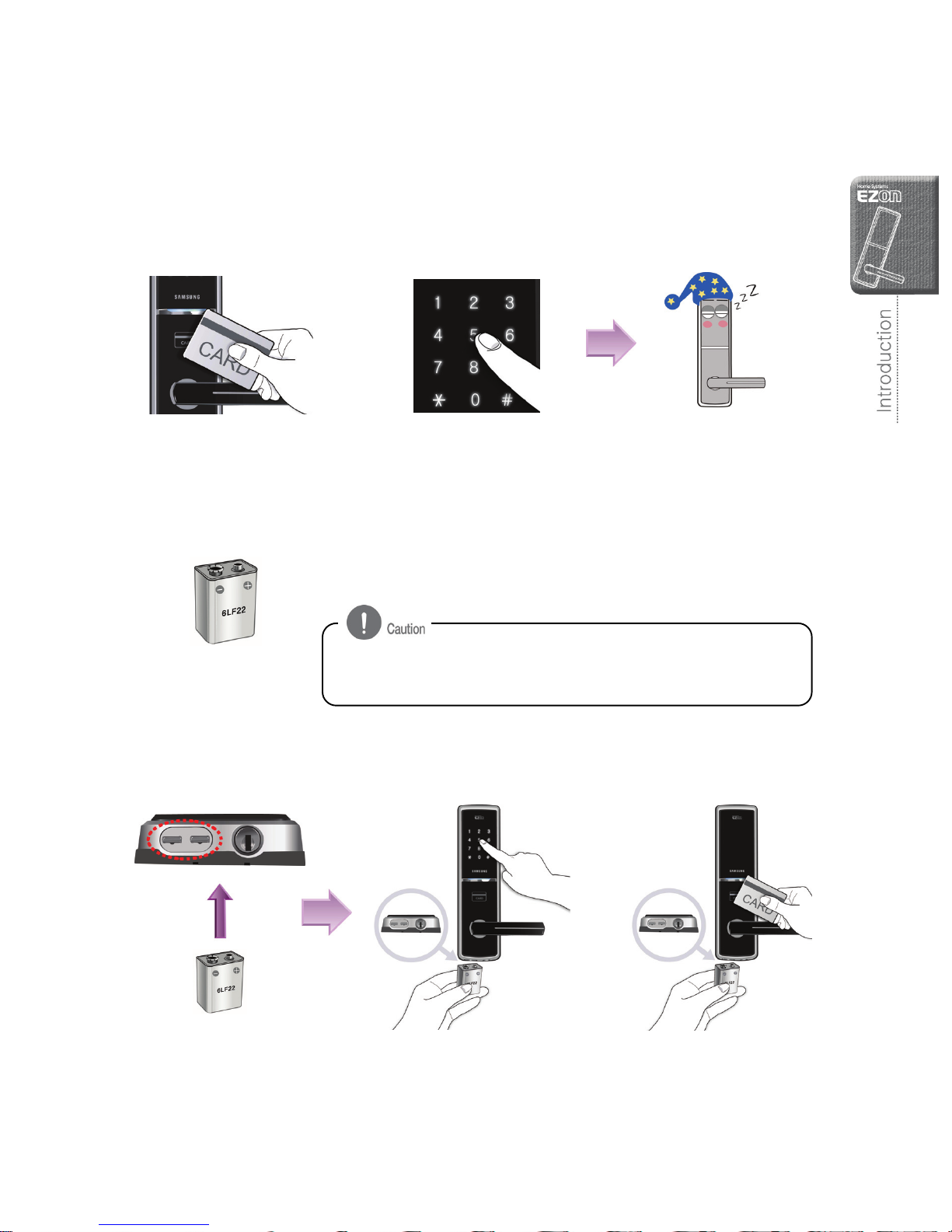

Using the Emergency Battery
1. When Lock Fails to Operate Due to Discharged AA Batteries
If the batteries are not replaced after their replacement time comes, they will be
completely discharged and the door lock will not operate.
2. Using 9V Battery
Buy an emergency battery (9V) at the nearest
store.
3. Opening the Door Using the Emergency Battery
Place the card or key tag on the card reader, or enter the password, while the 9V battery
is connected to the external power contact of the outdoor unit.
Or
Recognition of Card or Key Tag
Or
Password Entry The door is not opened.
A
s the alkaline batteries offer longer life, they are recommended
over the manganese batteries or rechargeable ones.

16
Using the Emergency Key (Except for SHS-5120VMX model)
The emergency key is used when the door lock does not operate due to discharged
batteries or a circuit problem.

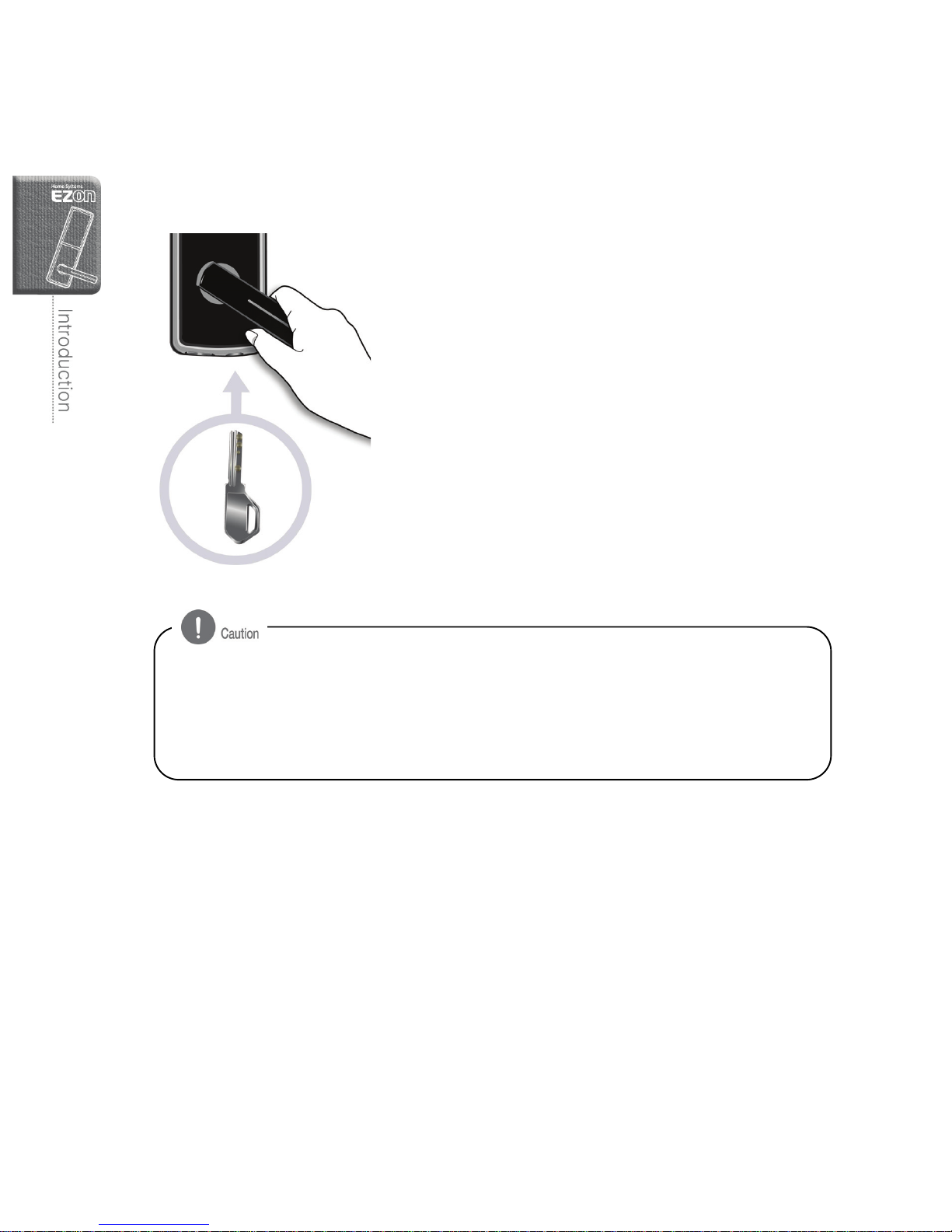

An emergency keyhole is located at the bottom
of the outdoor unit. Insert the key into the
keyhole and rotate it to the left and to the right
to release the door lock.
- Always carry one or more emergency keys, or store one in a secret place outside.
- If the emergency key is lost, it is recommended to replace the whole key cylinder unit.
Contact your local dealer. Replacement of the key cylinder unit is not a free service.
- Remove the emergency key from the keyhole after the door lock has been released, and
store it in a safe place.

17
Basic Functions
This section describes the ways to initialize the information registered in the door lock, to
register the password and card data, and to open or close the door.
Initialization (Password, Card, Key Tag
and Remote Controller)
All registered data (password, card and key tag) are deleted. After
initialization, the password is set to '12345', and the registered card and key
tag data are erased.
1. Opening the Cover (from inside)
Lightly press the battery cover and push it up,
as shown in the diagram.
2. Pressing the [Password] Button (from inside)
Press and hold the [Password] button for 5
seconds or longer.
- Successful: “TootÆToot, toot” sounds are generated.
3. Entering the Password (from outside)
Press the registered password, or
'4560852580' then press the [¹] button.
- Successful: "Too~~~t" sound is generated.
- Failed: "Toot~" sound is generated.
- After initializing the registered data, reregister the card and password.
- Initialization is available while the door is open.
- The registered HA device data can not be deleted.

18
Password Registration and Change
The password can be 5~12 digits number. Only one password can be registered.
Please register a new password after initialization.
1. Pressing the [Password] button (from inside)
Open the battery cover of the indoor unit and
briefly press the [Password] button.
2. Entering the Current Password (from outside)
Enter the current password ('12345' after
initialization) when the number pad is lighted,
and press the [¹] button.
Too~~t, toot, toot
Toot
A
lways hold the door open while registering or changing
the password. Open
