Samsung SHP-DS510 User manual

Please review all included documentation and use the product as intended. Safety precautions must be
followed to avoid personal injury or property damage.
Samsung Smart Door Lock
User Guide SHP-DS510

2
Smart
Door Lock SHP-DS510
3
|Table of Contents
Congratulations on the purchase of your Samsung Smart Door Lock! Your lock has a touch
sensitive number display pad and optionally a 13.56MHz Card reader. Up to 100 users can
be registered to gain access with unique Codes or Access Cards (supports ISO14443A type).
The touchscreen makes it convenient to enter the code and the Randomizer function helps
prevent lockpicking using ngerprint traces on the touchscreen. Other convenient functions
such as Automatic Locking / Sound Setting, etc. provide advanced security and peace of
mind.You can unlock the door using video intercom’s monitor after connecting a Samsung
video intercom. (Refer to page 9 for connection diagram to a video intercom).
|Helpful Tips
|Introduction
Do not attempt to repair the product yourself.
Change your codes regularly to ensure the security of your codes.
Minimize the lock’s exposure to moisture including wet hands and direct contact with liquids.
Do not exert excessive force or use sharp instrument on the touchscreen.
Insert the batteries according to correct polarity.
When the low-battery warning sounds, replace all batteries immediately.
Do not mix old batteries with new batteries.
Use soft, dry cloth to clean the lock and avoid cleaning with water, alcohol or other chemicals.
Introduction & Helpful Tips •••••••••••••••••••••••••••••••••••••••••••••••••2
Installation ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••3
Components & Tools ••••••••••••••••••••••••••••••••••••••••••••••••••••••3
Door Preparation ••••••••••••••••••••••••••••••••••••••••••••••••••••••• 4-5
Preparing the parts ••••••••••••••••••••••••••••••••••••••••••••••••••••••••6
Installing Lock •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••7
Setting of Right-Handed / Left Handed ••••••••••••••••••••••••••••••••••••••••10
Programming •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••11
Programming Features ••••••••••••••••••••••••••••••••••••••••••••••••••11-12
Denitions & Status Indicators•••••••••••••••••••••••••••••••••••••••••••• 12-14
Lock Activation & Changing the Master PIN Code ••••••••••••••••••••••••••••••••14
Managing User Pin Code/ Card••••••••••••••••••••••••••••••••••••••••••• 15-16
Basic Lock Operation Overview •••••••••••••••••••••••••••••••••••••••••••••17
Privacy Mode Functions •••••••••••••••••••••••••••••••••••••••••••••••••••17
Programming Through Menu Mode Using Master Code •••••••••••••••••••••••••••18
Miscellaneous ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••19
Miscellaneous Information •••••••••••••••••••••••••••••••••••••••••••••••••19
Troubleshooting •••••••••••••••••••••••••••••••••••••••••••••••••••••• 20-21
User Registration Table •••••••••••••••••••••••••••••••••••••••••••••••••••22
Product Specications ••••••••••••••••••••••••••••••••••••••••••••••••••••23
Warranty ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 25-26
Drilling Template ••••••••••••••••••••••••••••••••••••••••••••••••••••• 27-29
Tailpiece Setting •••••••••••••••••••••••••••••••••••••••••••••••••••••••••31

23
Smart
Door Lock SHP-DS510
|Components & Tools
Door Preparation
● 2-1/8˝(54mm) hole saw: Main Hole
● 1˝(25mm) hole saw: Dead bolt hole
● 1/8˝(2.5mm) drill bit: Dead bolt screw hole
● Chisel and hammer
● Drill
Lock Installation
● #2 Phillips screwdriver
● Pincers: Cut the tailpiece
Components and Drawing
Tools
INSTALLATION
Exterior Unit
A
Door Sensor Magnet
Interior Unit
BInterior Mounting
Plate
C
Adjustable Deadbolt
DStrike Parts
EMagnet sensor Set F
Screw for Strike and
Dead bolt
G1 Screw for
mounting plate
G2 Screw for Interior
unit
G3
Batteries
J
Mechanical Keys
IUser Manual
K
Spec: FH+T4x19 Spec: PH+M4x40
Spec: FH+M4x8
RF Tag
H
REG SET
Strike Dust Box
Screw for Reinforcement
plate
Spec: FH+T5x76
G5
Reinforcement
plate
G4
Spec: M4x15
Screw for Interior
unit

4
Smart
Door Lock SHP-DS510
5

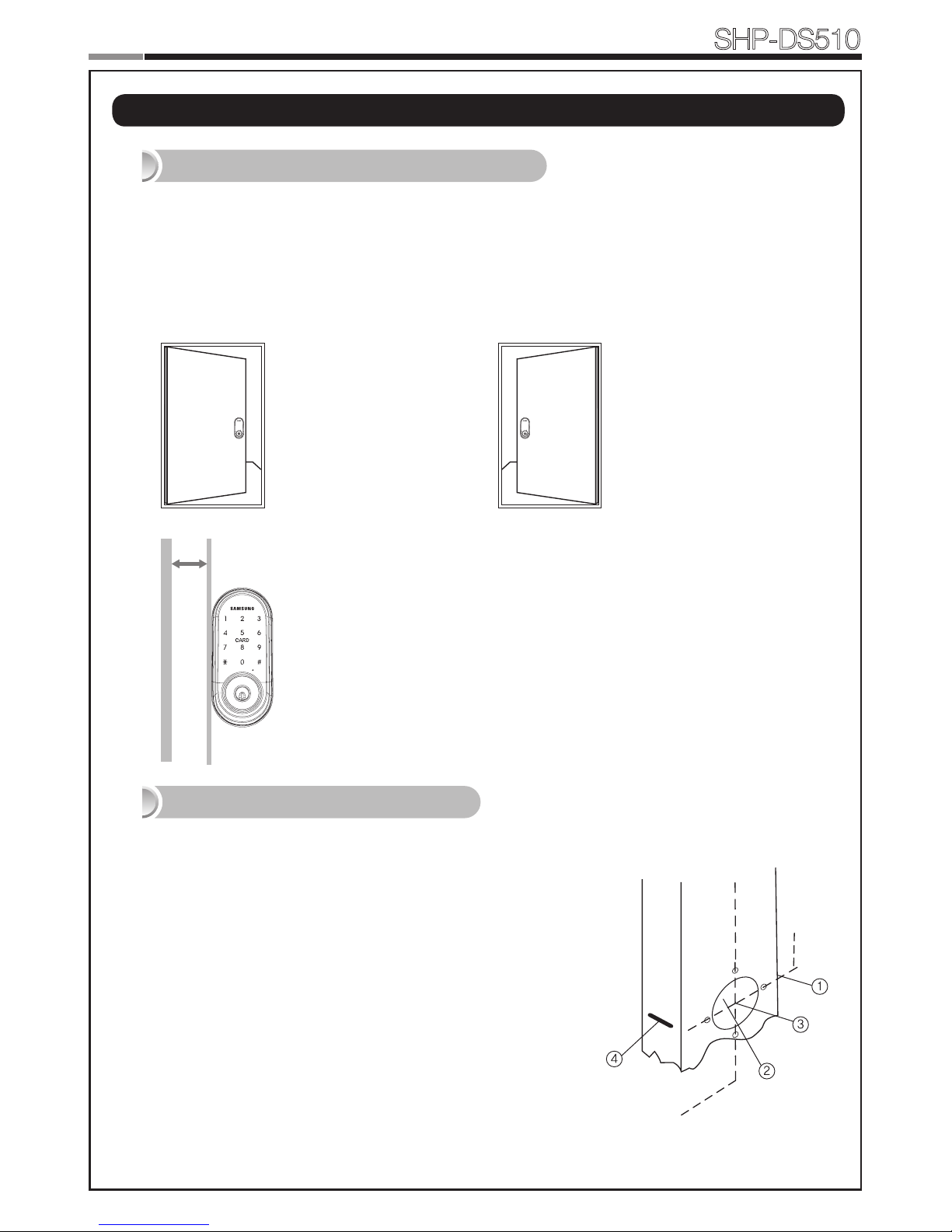

|Door Preparation
Step 1. Check the Door Status
1) This lock supports door thickness of 1-3/8” to 2-5/32” (35 to 55mm).
2) Using the provided lock template, ensure that there are no obstructions that would prevent
installing the lock properly.
3) Take note of which orientation the deadbolt will need to be installed, left hand or right
hand.
Check the location and direction of the deadbolt, attach the drilling template (page 27) on
the side of the door, and mark on it with a pen.
1) Align the horizontal line across the door.
2) Align the vertical line over the door.
3) Mark the centers of the holes with the drilling template.
4) Mark the centerline of the deadbolt by aligning it with the
vertical line.
Right-handed Door
When viewed from the Outside,
the hinge is on the right.
Left-handed Door
When viewed from the
Outside, the hinge is on the
left.
Step 2. Mark on the Door
Please, be aware of that there has be more than
50mm gap between the door frame.
Min. 50mm

4
5
Smart
Door Lock SHP-DS510
1) Drill a 2-1/8˝ (54 mm) diameter hole through the door, as indicated on
the template, using a hole saw.
2) Drill a 1˝ (25 mm) mortise hole using a hole saw.
3) Drill strike plate holes using a drill bit (1/8˝, 2.5 mm).
1) Using the template, locate the center horizontal
line for the deadbolt hole, which lines up with the
center of the 2-1/8˝ hole, and draw a horizontal line
on the door frame to mark where you will make the
deadbolt mortise hole.
2) Measure half the thickness of the door. Now,
measure that distance from where the door stops
at the frame when the door is closed toward the
door jamb and mark a straight, vertical line the
length of the door strike plate. Draw a horizontal
line from the mark you made in Step 1 toward the
vertical line. Where both lines cross, make a 1˝ (25
mm) diameter hole, 1/2˝ (13 mm) in depth.
3) Align the holes of the strike plate with the vertical
line. Trace the outline of the strike plate and
mortise with a 1/16˝ (1.6 mm) indentation. Attach
the strike plate with the 2 screws provided.

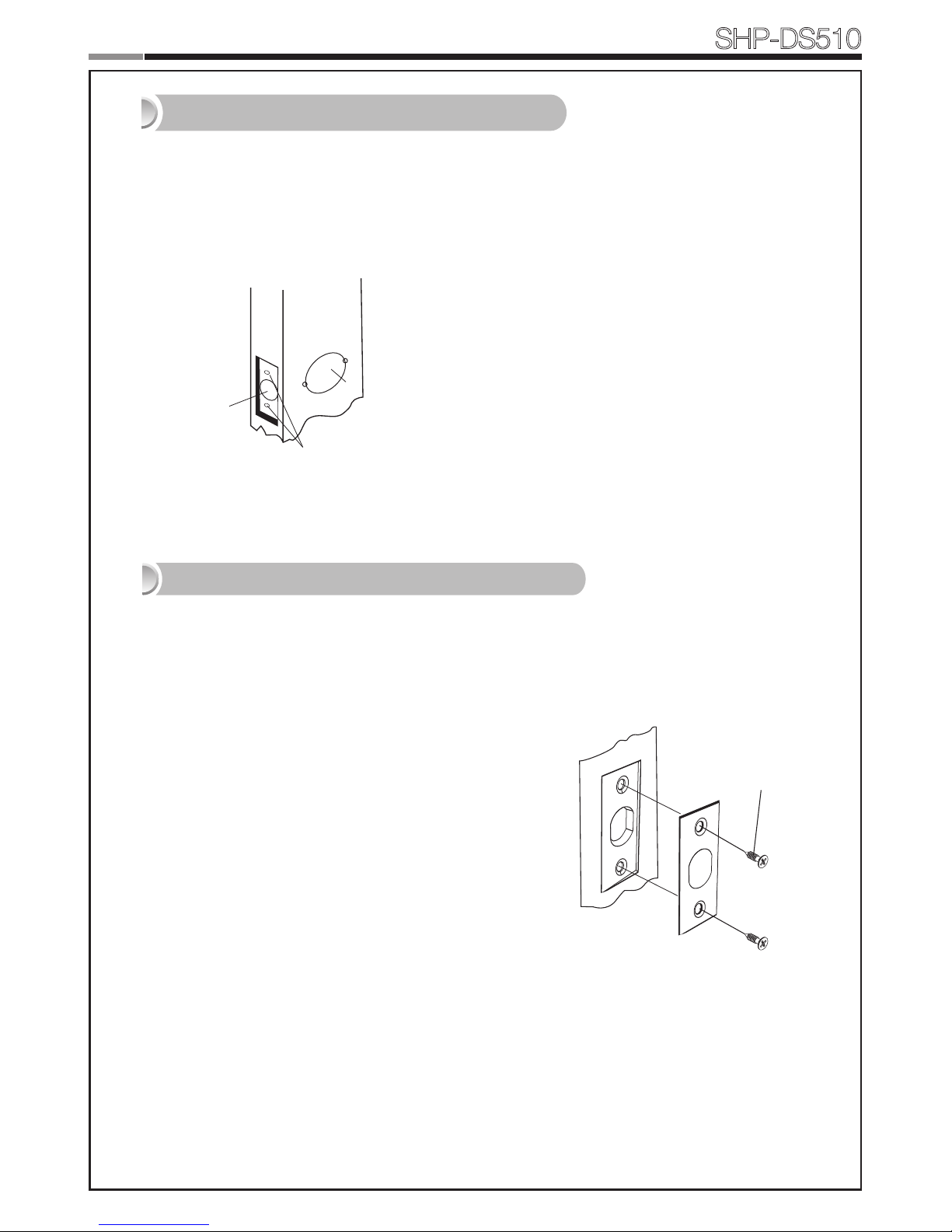

Step 3. Drilling
Step 4. Strike Plate Installation
FH+ T4 x 19
① 54mm
② 25mm
③ 2.5mm

6
Smart
Door Lock SHP-DS510
7
|Preparing the parts
1. Adjusting the length of the dead bolt
180°
Turn the body of the dead bolt to adjust the length
of the dead bolt.
It can be 60mm (2-3/8”) or 70mm (2-3/4”)
OR
Rectangle Strike hole
: No need to change.
2. Changing the faceplate of the dead bolt
Change the faceplate of the dead bolt following the size of a strike hole.
Round Strike hole
1. Remove the strike
faceplate with a
screw driver.
2. Turn the inner
faceplate to take
out it.
3. Insert the round
faceplate.
OR
OR
3. Adjusting the length of the tailpiece
How to cut
1. Press the V-cut line with pincers to make more cut line.
2. Hold the end of the tailpiece with pincers.(Cut the tailpiece 5mm longer than the door thickness.)
3. Bend it up and down until it is separated.
- For more information, refer to page 31.

6
7
Smart
Door Lock SHP-DS510
D
|Installing lock
Outside Inside
1. Installing the Dead Bolt(E)
1. Before installation
1) Check the faceplate type of your door.
2) Make sure the deabolt directon as shown before
inserting it into a door side.
2. Insert the deadbolt from the side of the door.
3. Fix the deadbolt using two FH+T4X19 screws.
*If there is round strike hole, change the faceplate, and
insert the deadbolt following right side drawing.
2. Installing the Exterior Unit
1. Ensure the Exterior Unit is aligned with the center hole of
the deadbolt and Cut the tailpiece 5mm longer than the
door thickness(refer to the page 31).
2. Attach the exterior unit.
CAUTION: The dead bolt must be in a retracted position.
In case of right-handed door, insert the tailpiece vertically.
In case of left-handed door, insert the tailpiece horizontally.
E
G1
D
Left-handed Right-handed
D
A
H
E
REG SET
C
F
B
J
D
A
G2
G3
G4
E
H

8
Smart
Door Lock SHP-DS510
9
4. Installing the Magnet Sensor Set
Install the door sensor.
It should be installed in right way of the door.
The user has an option not to use/install the
magnet sensor. In order to disable, the user
shall let the door sensor sense the magnet for
only once in installation for setting of right or left
handed use.
CAUTION: The gap of the door sensor between
the door side and the door-frame should be
within 3/4”(20mm). If the gap is to wide, pull out
the door sensor to adjust the gap enough to
detect.
5. Connecting the cable
B
REG SET
3. Installing the Mounting Plate
1. Detach the Interior Mounting Plate from
the interior unit.
2. Fasten the interior mounting plate with
three TH+M4x40 (G2) 90% of the way.
3. Align the Exterior Unit with the Interior
Mounting Plate and then tighten the
screws.
4. Cover the rubber pad on the Interior
Mounting plate.
CAUTION: Do not over-tighten, and check
the movement of dead bolt by the mechani-
cal key.
C
C
G2
3/4˝(20mm)
SET
REG
REG
Left-handedRight-handed
1. Connect the cable from the exterior unit
to the interior unit.
2. After connecting the cable, push the
cable into the hole of the door.

8
9
Smart
Door Lock SHP-DS510

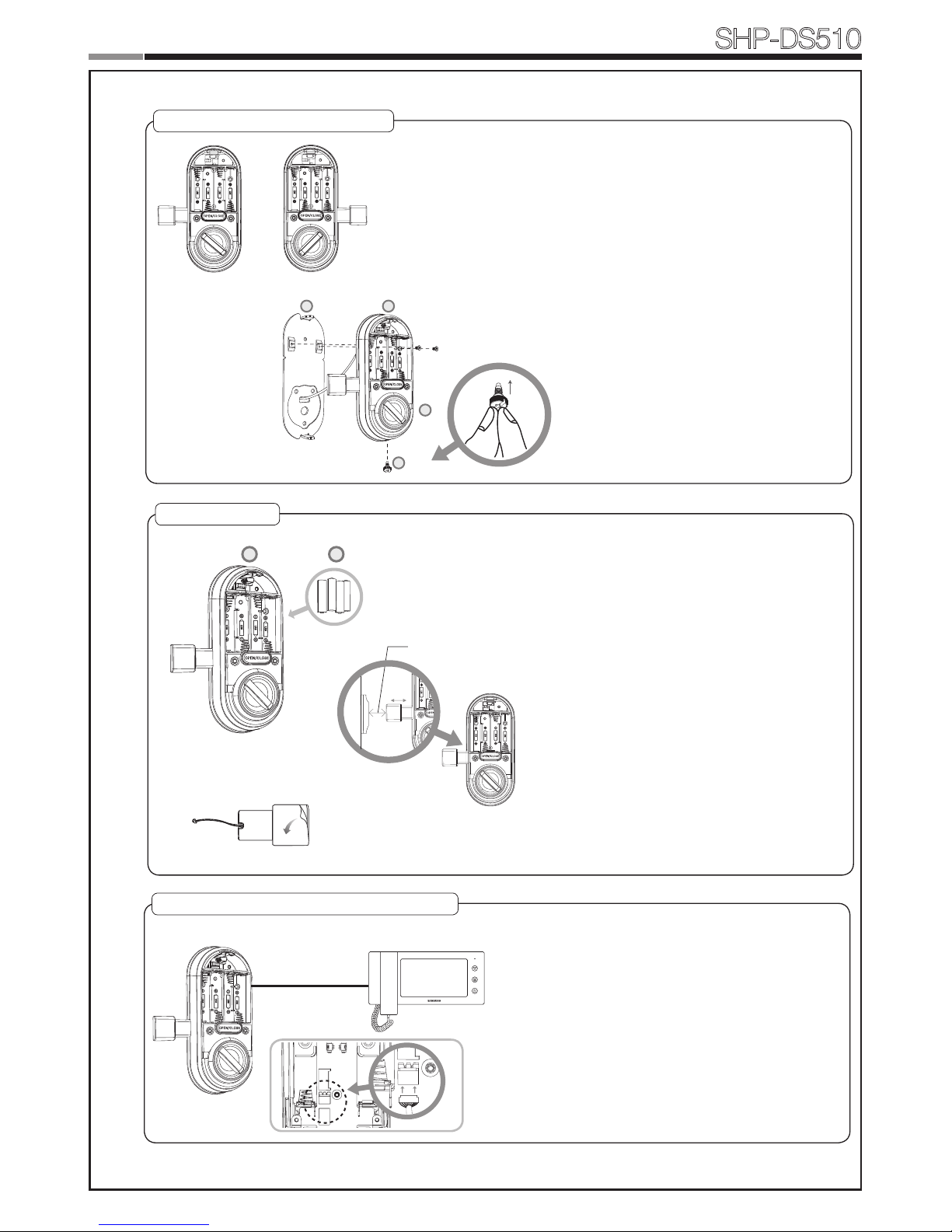

6. Fix Screw for the Interior Unit
1. Before installing the interior unit, check the
direction of the thumb turn while the dead bolt is
in the OPEN POSITION.
2. Open the battery cover.
3. Align the Interior Unit on to the Interior Mounting
Plate, and attach it with 3 screws.
CAUTION: Check the movement of the dead bolt
by the thumb turn.
7. Final Check
1. Install 4 batteries. A Melody will sound
when all 4 batteries are installed
correctly.
2. Close the door to detect the door
sensor. You can hear the beep sound
when the door sensor detects the
magnet. After that, press [OPEN/
CLOSE] button to check whether the
dead bolt works properly.
3. Stick the door sensor with attention
on the distance.
CAUTION: The gap between the door
sensor and the magnet should be close
enough to be detected.
OPTION : Connection for Video Intercom
Connect the cable of video intercom to the
Interior Unit.
SHP-DS510 receives 1 second of dry con-
tact signal to open the door remotely.
It is normally compatible with SHT-3006 and
other Samsung Video Intercom systems.
Dry Contact
Signal
3/4˝(20mm)
1
2
3
CB
G3
G4
REG SET
REG SET REG SET
Left-handed Right-handed
REG SET REG SET
B J
REG SET
REG SET
SET
REG
REG

10
Smart
Door Lock SHP-DS510
11
|Setting of Right-Handed / Left Handed
*All status should be checked while the dead bolt is in OPEN POSITION.
Right-handed
Left-handed
REG SET REG SET
REG SET REG SET
Tailpiece
Thumb turn
Left-handedRight-handed

10
11
Smart
Door Lock SHP-DS510
REG SET REG SET

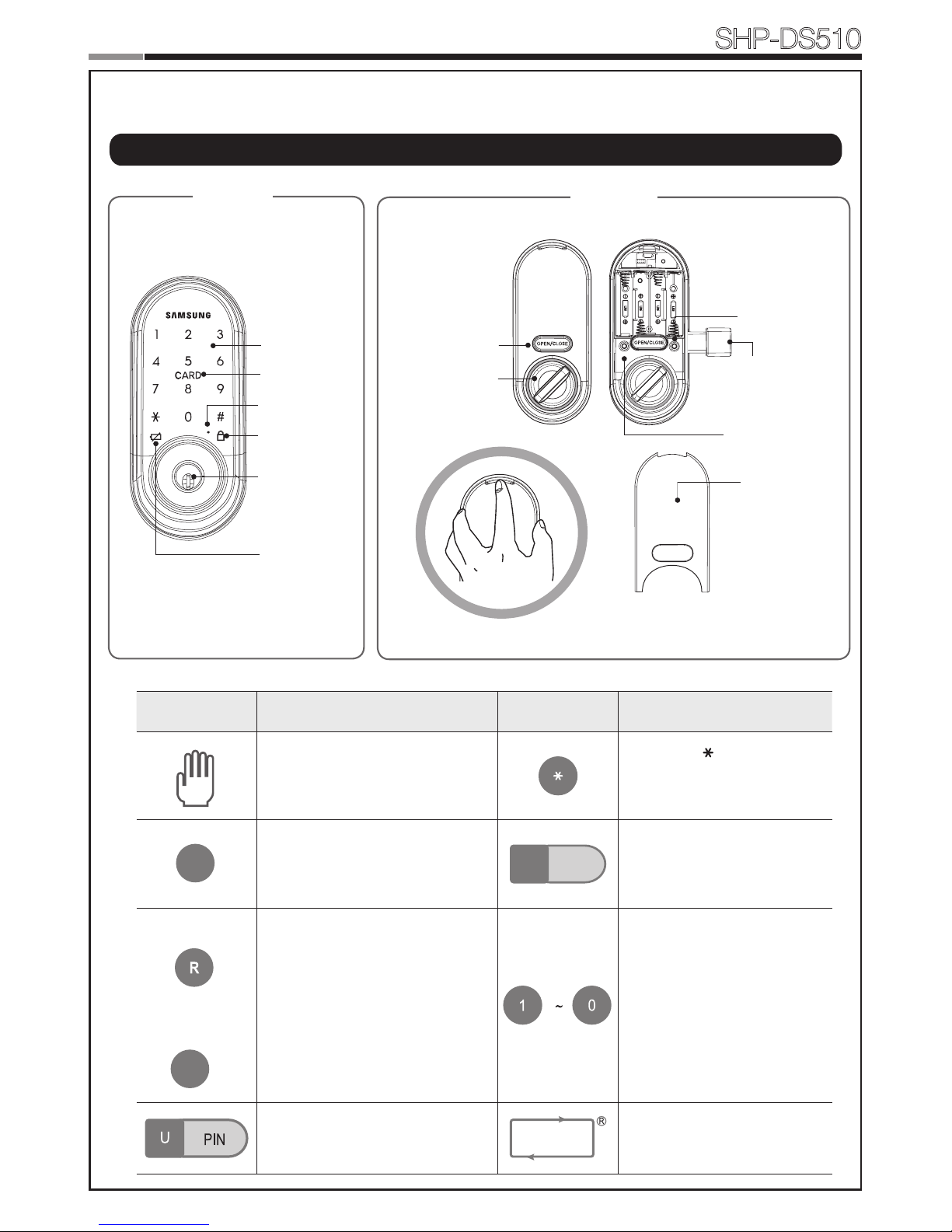

PROGRAMMING
Touchscreen
Emergency
Key Hole
Exterior Interior
Battery Cover
Open/Close Button
Thumbturn Lever
Restart Button
Card Reader
Magnetic Sensor
[REG] Button
[SET] Button
Privacy/Lockout
Mode Indicator
Low Battery
Indicator
Symbols Description Symbols Description
Touch the [Touchscreen].
Press the [ ] button. It is
used to complete number
entry.
SET: Used for setting the
Additional Functions.
Mstr PIN
Enter the Master PIN Code
(4~10 digits).
Factory Default: 1234
REG: Open the battery cover
of the Interior Unit and press
the [REG] button. It is used
to begin or exit the Program
mode.
REG3: Press the [REG] button for
3 seconds.
Press the Number buttons.
Enter the User PIN Code (4~10
digits).
Repeat the process inside
the rectangle.
|Programming Features
S
3
R

12
Smart
Door Lock SHP-DS510
13
Symbols Description Symbols Description
Touch the Card reader with the
User Card.
Press the [OPEN/CLOSE]
button.
U No
Enter the User Number. Can be
set from 1 to 100.
OPEN / CLOSE
Indicator Lamp : Indicates the operational status when the Card is being read or the lock is in
operation.
Locking Mode (Auto/Manual) : You can enable or disable the function for locking the door
automatically when it is closed. The factory default is ‘Auto mode’.
- Auto: The door is locked automatically 2 seconds after it is closed. However, it does not function if
the magnet is not used or the batteries are completely discharged.
- Manual: When the door does not lock automatically when it is closed, touch the [Touchscreen] or
the [OPEN/CLOSE] button on the Interior Unit will lock the door.
Lockout Mode (Protect Mode) : When more than 5 failed authentication attempts with unreg-
istered PIN Codes/Cards occur, the lock disables the keypad for 3 minutes for security reasons. The
keypad will display the remaining time until the keypad will be re-activated (e.g., “3” “2” “1”). The
lock is re-activated again automatically after 3 minutes and may still be operated using the home control
or security system.
Smart Re-locking (Auto Locking Mode only) : For security reasons the lock will automati-
cally lock itself after 7 seconds to prevent it from being unintentionally left unlocked unless the door
is physically opened.
Low Battery Indicator : Refers to the state when the operating voltage of the lock is lower than
the standard voltage, and activates the Low Battery Alarm (“Please change the batteries”) to indicate
that the batteries need to be replaced. Use the Emergency Key when the batteries are completely
discharged. In case of the low battery, the low-battery LED ickers when using doorlock.
Magnet Sensor Set : Detects the opening and closing of the door.
Thumbturn Lever : When the batteries are completely discharged, this device is used to me-
chanically lock or unlock the door from inside.
Master PIN Code : You can enter only one Master PIN (4-10 digits) Code. You can register the
User PIN Codes/Cards after authenticating with the Master PIN (4-10 digits) Code. You can open
the door with the Master PIN Code, and the factory default is ‘1234’.
OPEN/CLOSE Button : A one-touch button to open the locked door. (It is also used to lock the
door from inside in the Manual locking mode.)
Privacy Mode : Press and hold the [OPEN/CLOSE] button for more than three seconds, if three
beeps deactivate the keypad. As it is set from the inside, provides a secure lock for the convenience
of the occupant(s). Privacy mode disables remote control capabilities.
|Denitions

12
13
Smart
Door Lock SHP-DS510
Random Security Code : Press this code (two-digit random numbers) before the user PIN code
in order to prevent the intruder to see the ngerprint marks left on the touchscreen. You can also
disable this feature, but is enabled by default.
Registration Button : This button is used to change Master PIN Code/User PIN Codes/User
Cards or the lock settings. It is found below the battery cover of the Interior Unit. The length of time
the [REG] button is pressed varies depending on the function.
Resetting : Deletes all registered information and restores the factory default. After resetting,
change the Master PIN Code for security.
Restart Button : This button resets the lock when the lock stops functioning. Registered informa-
tion is not deleted.
Set Button : Used for setting the Additional Functions. It is found below the battery cover of the
Interior Unit.
Sound Setting : The volume during the input of numbers and opening or locking of the door can
be set from Level 0 ~ Level 2. The sound is muted at Level 0 and is at maximum volume at Level 2.
The registration mode operates at Level 1 regardless of the sound setting.
User Card : You can register up to 100 User Cards including the User PIN Codes. You can open
the door with a User Card.
User Number : It is the same number as the registered user’s address and can be set from 1 to
100. The User Number should be managed with caution as it is used to register or delete User PIN
Codes/Cards.
User PIN Code : You can register up to 100 User PIN Codes (4-10 digits) including the User
Cards. You can open the door with a User PIN Code.

14
Smart
Door Lock SHP-DS510
15
Touch the [Touchscreen].
Touch lock with back of
hand or ngers to acti-
vate.
Open the battery cover
of the Interior Unit and
press the [REG] button
briey.
When the touchscreen
is illuminated, enter the
current Master PIN Code
(default is ‘1234’) and
press the [ ] button.
Press the [ ] button after
pressing the [1] button.
Enter the new Master
PIN Code and press the
[ ] button.
Note: Master PIN Code
must be 4~10 digits.
REG SET
R
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
Lock Activation
Changing the Master PIN Code
Status Indicators
Privacy Mode Indicator
Low Battery Indicator

14
15
Smart
Door Lock SHP-DS510
Registering a User PIN Code/ Card
Open the battery cover of
the Interior Unit and press
the [REG] button briey.
When the touchscreen is il-
luminated, enter the current
Master PIN Code (default
is ‘1234’) and press the
[ ] button.
Press the [ ] button after
pressing the [2] button.
Enter a User Number(1~ 100)
to register the User PIN Code
and press the [ ] button.
*Choose a User Number that
has not already been used.
** If don’t enter a User Number
and press ( ) when registering,
the User Number is sequential-
ly assigned on the emprty User
Number from 1 to 100.
Enter a new User PIN Code
and press [ ] button.
Touch the Card reader with
the Card to register.
Note: User PIN Code must
be 4~10 digits.
Enter another User Num-
ber or press the [REG] but-
ton to quit.
REG SET
REG SET
Press the [ ] button after
pressing the [1] button.
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
|
Managing User PIN Code/ Card

16
Smart
Door Lock SHP-DS510
17

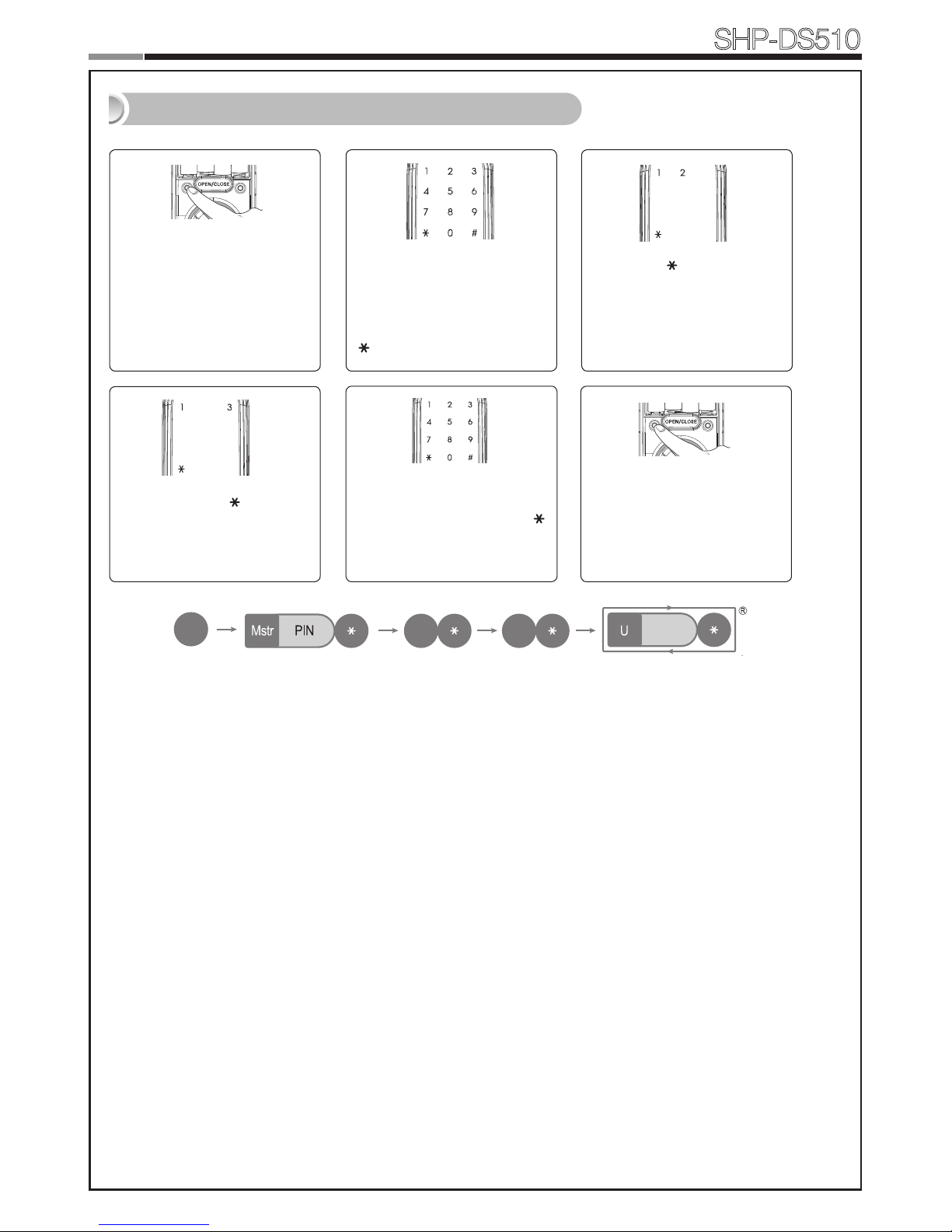

Deleting User PIN Code / User Card
Enter the User Number (1
to 100) and press the [ ]
button.
Open the battery cover of
the Interior Unit and press
the [REG] button briey.
When the touchscreen is il-
luminated, enter the current
Master PIN Code (default
is ‘1234’) and press the
[ ] button.
Press the [ ] button after
pressing the [2] button.
REG SET
Press the [ ] button
after pressing the [3] but-
ton.
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
No
1~100
No
1~100
No
1~100
No
1~100
R
2
2
2
3
3
3
Enter another User Num-
ber or press the [REG] but-
ton to quit.
REG SET

16
17
Smart
Door Lock SHP-DS510
Touch the Card reader
with an Access Card
|

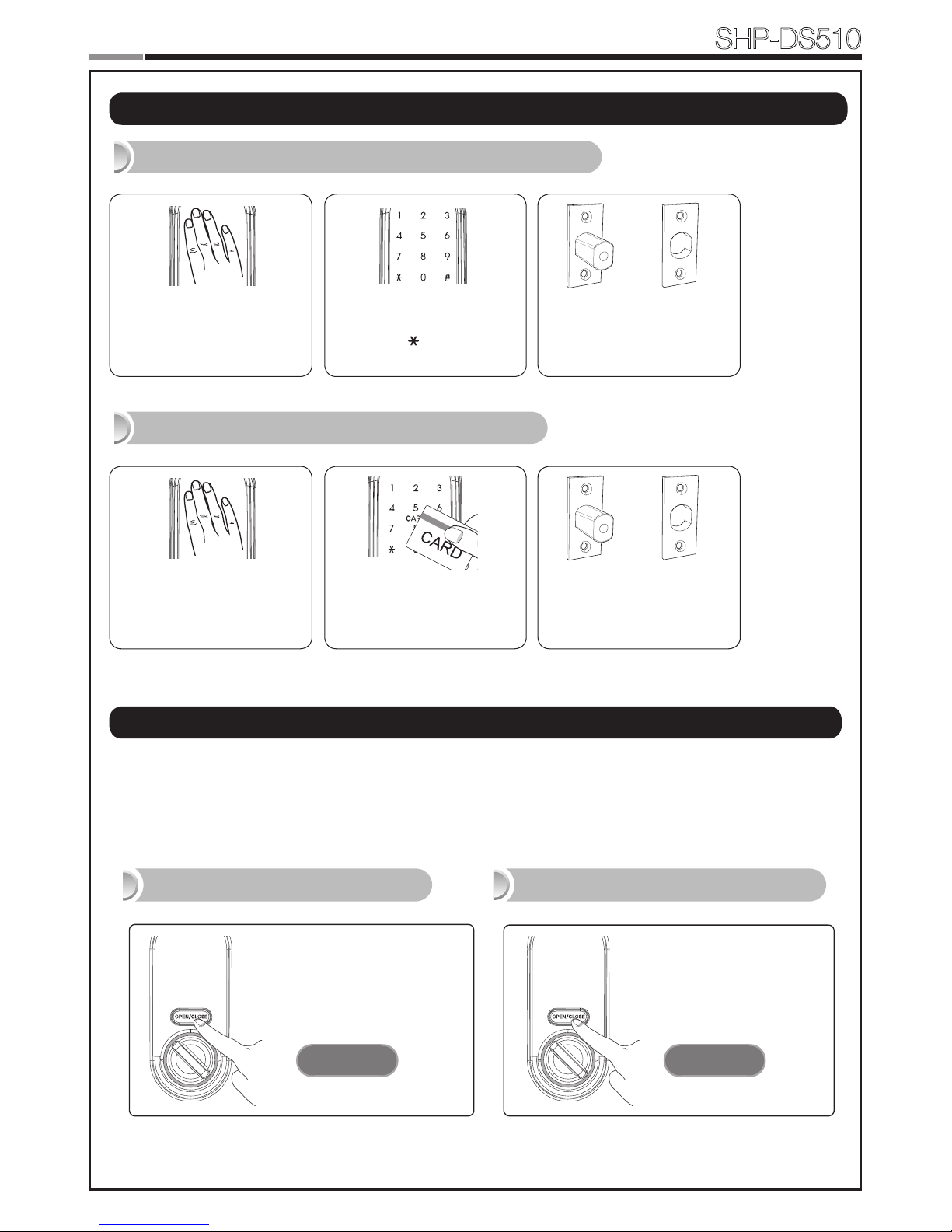

Basic Lock Operation Overview
Opening the Door with a PIN Code
Opening the Door with a Card
|Privacy Mode Functions
Press the [OPEN/
CLOSE] button for 3
seconds while the door
is locked.
Press the [OPEN/
CLOSE] button or turn
the Thumbturn lever.
Activating Privacy Mode Deactivating Privacy Mode
OPEN / CLOSEOPEN / CLOSE
3
Enter the PIN Code and
press the [ ] button.
Touch the [Touchscreen].
→
The door opens within one
second.
Touch the [Touchscreen].
→
The door opens within one
second.
Press and hold the [OPEN/CLOSE] button for more than three seconds,
if three beeps deactivate the keypad. As it is set from the inside, provides a
secure lock for the convenience of the occupant(s). Privacy mode disables
remote control capabilities.

18
Smart
Door Lock SHP-DS510
19

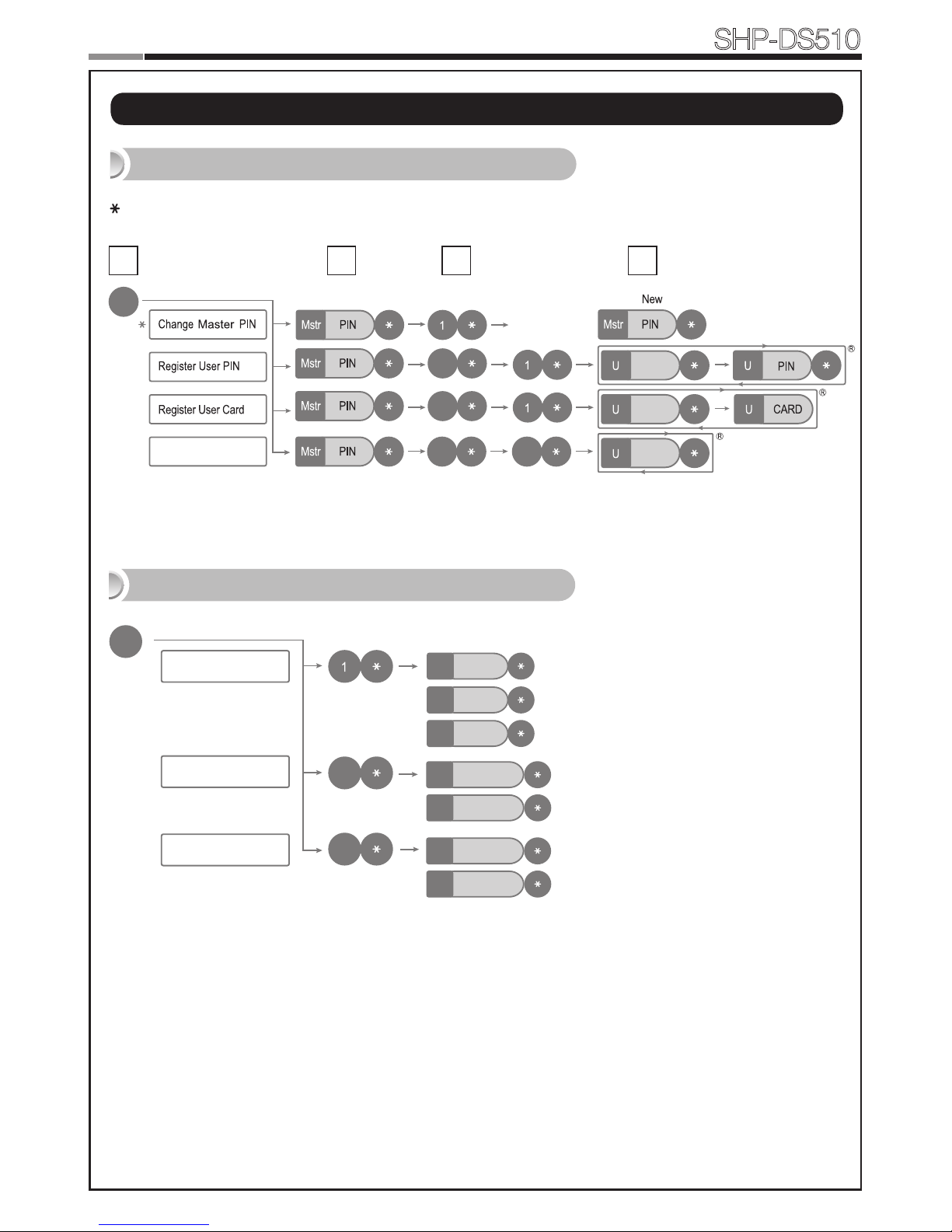

|Programming Through Menu Mode Using Master Code
Note: Maximum number of user registration is 100. (User PIN Codes, User Cards, Key Fobs)
Program Operation in Master Mode
32 4
: Master Program Mode Only
Delete User PIN / Card
No
1~100
No
1~100
No
1~100
R
2
2
2 3
1
Silent
1
Low ※ Default
※ Default
※ Default
2
High
3
Auto lock
1
Manual lock
3
Enable
1
Disable
3
Volume Setting
Locking Mode
Random Security Mode
S
2
3
Addtional Function Mode

18
19
Smart
Door Lock SHP-DS510

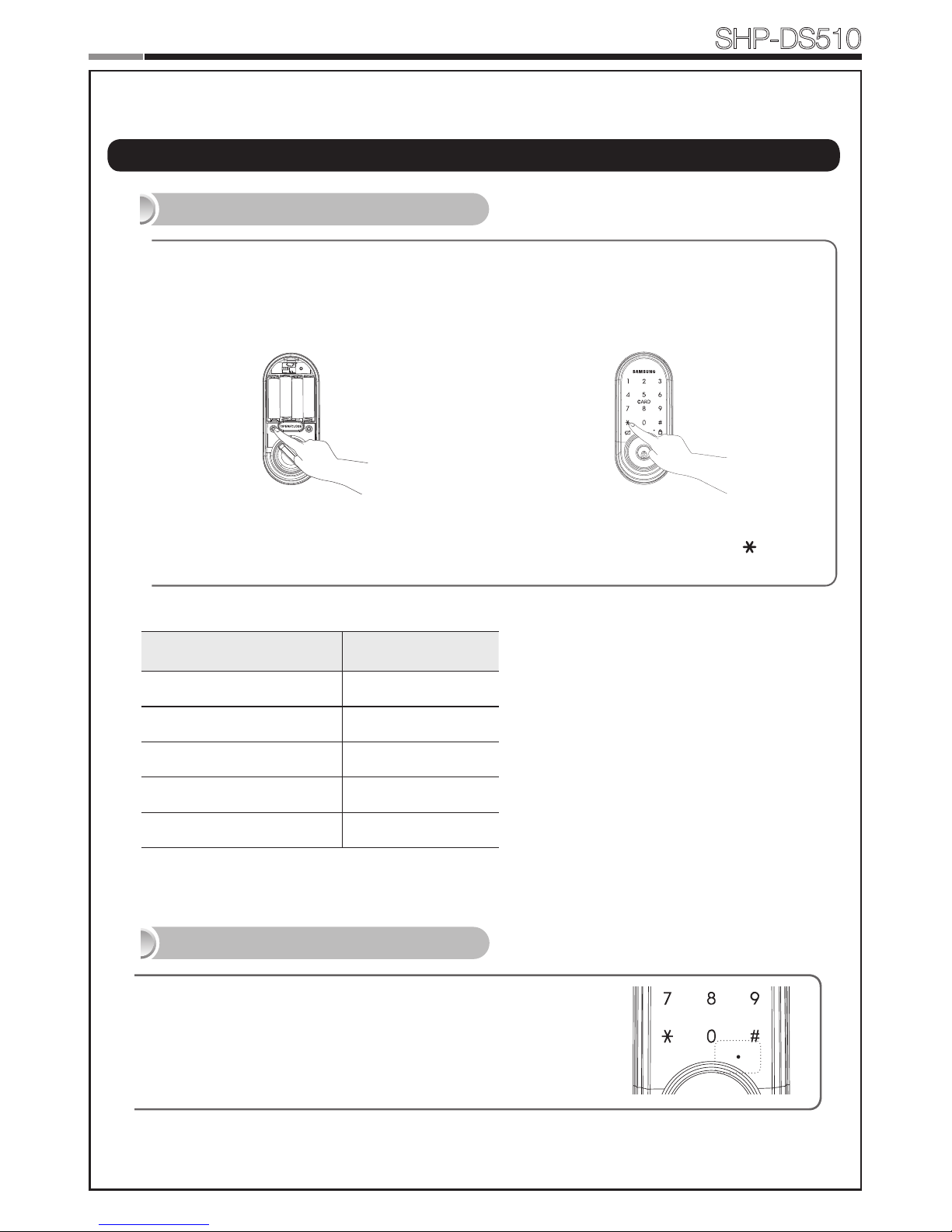

|Miscellaneous Information
Reset to Factory Default
Restart Function
Note: Restarting does not delete registered information.
If there is no response after touching the [Touchscreen],
use a pin to press the [Restart] button on the left of the
external power contact of the Exterior Unit.
REG SET
Press the [REG] button for 3 seconds. Enter the current Master PIN Code
or “4560852580” and press the [ ] button.
Resetting the lock will delete all registered information.
Note: All registered Master and user data will be deleted, and the lock will be reset
to default settings.
Function Factory Default
Master PIN Code 1234
Volume Low
User PIN Code/Card None
Locking Mode Auto
Random Security Disabled
MISCELLANEOUS

20
Smart
Door Lock SHP-DS510
When the lock doesn’t function correctly, please check the items below.
If you can’t resolve the problem, please contact the nearest service center.
Problem Resolution Reference
There is no power.
● Check if the batteries are inserted in the correct polarity.
● Check that the batteries have a full charge.
● Check that the Exterior Unit cable has not come loose.
-
I can’t change the
Master PIN Code.
● There was a delay while changing the PIN Code. The
touchscreen must be illuminated when changing the PIN
Code. Also, after entering the rst digit, the next digit must
be entered within 20 seconds.
● Replace the batteries if they are discharged.
● Refer to the ‘Changing the Master PIN Code’ section in
the user manual and try again. Ensure that the Master
PIN Code is 4~10 digits long.
Page 14
I can’t register the
User PIN Code.
● The User Number has already been used. Delete the de-
sired User Number and re-register.
● Ensure that the User PIN Code is 4~10 digits long.
Page 15
I can’t register the
User Card.
● The User Number has already been used. Delete the de-
sired User Number and re-register.
● Ensure that the card is touched to the card reader within
20 seconds of entering the User Number.
Page 15
I entered the PIN
Code and pressed
the [ ] button,
but the door won’t
open.
● Check that the registered PIN Code was entered cor-
rectly.
● If the touchscreen illumination turns off while entering the
PIN Code, the button input was not registered. Touch the
[Touchscreen] to illuminate the touchscreen and enter
the PIN Code again from the beginning. (The touchscreen
illumination is turned off automatically if there is no input
within 5 seconds.)
Page 17
I can’t unlock the
door with my Card.
● The Card is either unregistered or unrecognized.
● The Card must touch the Card reader correctly. Page 17
My PIN Code or
Card is authenti-
cated, but the door
won’t open.
The lock may be malfunctioning. Please contact service
center. -
|Troubleshooting
