Samsung Ezon SHS-3120 User manual

1
Product Features
The door can be opened with a card.
The door can be opened with a card fit for support standard as well as
a card contained in the product (Support for the ISO14443A-Type, Up
to 70 including the password can be registered).
The door can also be opened with a password.
Once the user's password is registered, the door can be opened
without a key by entering the registered password. (Up to 70 including
cards can be registered)
The door does not have to be locked manually.
Using the automatic locking function, the door is automatically locked
when it closes, eliminating the need to lock it manually.
Double locking function adds security.
The double locking function adds security by preventing the door from
being opened from outside at night or at times when extra security is
needed.
Pranks played by children and juveniles can
be prevented.
When an unregistered card is used, or when an invalid password is
entered 5 or more times consecutively, an alarm sound is generated
and power to the lock is automatically cut off for three minutes.

2
Table of Contents
Product Features 1
Safety Cautions 4
Notes before Operation 7
Product Components................................................................... 7
Outdoor Unit Parts ...................................................................... 8
Indoor Unit Parts ........................................................................ 9
Replacing the Batteries ..............................................................10
Using the Emergency Battery ...................................................... 11
Setting the Left Hand/Right Hand ................................................12
Basic Functions 13
Initialization (Master Password, Password and Card).......................13
Master Password Registration and Change....................................14
Password Registration ................................................................15
Card Registration....................................................................... 17
Deleting the Card and Password Individually .........................................19
Opening the Door from Outside with a
Master Password or a Password ................................................. 20
Opening the Door from Outside with a Card ...........................................21
Opening/Locking the Door from Inside ........................................ 22
Locking the Door from Outside ................................................... 22

3
Additional Functions 23
Double Security Mode Setting.....................................................23
Automatic/Manual Locking Setting...............................................24
Sound Setting and Releasing ......................................................25
Alarm Sound/Emergency Sound..................................................26
Troubleshooting 29
Operating Method Summary 31
Product Specifications 33
User Code Registration Table 34

4
Safety Cautions
This section contains important information to ensure the user's safety and prevent
potential damage to property. Please read this section carefully and use the product
accordingly.
Warning, Caution and Note Explained:
Warning
Information given under this heading is information the user must be aware of to
prevent physical harm.
Caution
Information given under this heading is information the user must be aware of to
prevent service problems or system damage.
Note
Information given under this heading provides additional information relating to the
text in this manual.
Description of Symbols
General warning or caution.
Prohibited activity.
Recommended activity.

5
Cautions during Installation
Cautions during Operation
The user shall not install or repair
the product without authorization.
The manufacturer does not assume
the responsibility for damage to the
product resulting from attempts to the
user to install or repair it without
authorization.
Make sure that no unauthorized
person has the access to the
password. To minimize the risk of
burglary, it is recommended that
you periodically change the
password.
Do not operate the product with
wet hands, and keep liquids
such as water or drinks away
from the product, or the product
may malfunction or be damaged.
Do not use the excessive force
or sharp objects to push the
door lock buttons, as this can
damage the product.
Make sure that the door is
completely closed when going
outside.
The manufacturer does assume the
responsibility for any harm caused by
engagement of the lock on an
improperly closed door.
Do not install the product in the
place where the gap between
the door and the frame is 5mm
or more.
If the gap is too wide,
the product may not
function properly.

6
Cautions during Repair or Maintenance
Replace the batteries within 1
week after the battery
replacement alarm sounds.
The product can stop operating if the
batteries are not replaced in time.
Do not use water, benzene or
alcohol when cleaning the
product, as these fluids can
cause product malfunction.
Use a soft and dry cloth instead.
Replace all batteries immediately
after they run out of power, and
never mix new batteries with
used ones.
This can cause reduction of product life
or a malfunction in the product.
Be sure to correctly match the
poles (+/-) when installing the
batteries. Install the batteries with
the correct poles (+/-).
Improperly installed batteries can cause
rupture or battery fluid leakage.

7
Notes before Operation
Product Components
No. Screw Quantity Description
1 FH+ M5 x 20 3 Out Housing + Plate In Fastening
2 OH+ M4 x 22 2 Out Housing + Deadbolt + Plate In Fastening
3 FH+ T4 x 25 5 Plate In + Wooden Door Fastening
4 FH+ M3 x 6 4 In Housing + Plate In Fastening
5 FH+ U10-24 x 9 4 Deadbolt, Striker, Iron Door Fastening
6 FH+ T4 x 15 4 Deadbolt, Striker, Wooden Door Fastening
Deadbolt
User Guide
'AA' Batteries (LR6)
Outdoor Unit
Indoor Unit
Tu r n S ha f t
Strike
Magnet
Support Panel
Card
The product components used may vary depending on the installation environment.

8
Outdoor Unit Parts
No. Name Description
1 Number Pad
This is used to enter the numbers when registering, changing
or deleting the password. Once registered, users can open the
door by entering the registered password.
2 Display Lamp This lamp displays how the doorlock operates, including
reading a card.
3 [Wake-up] Button This button is used to recognize a card, entering a password,
or finishing the registration mode.
4 Card Reader
The Card Reader is used to recognize a registered card before
opening the door. Touch the [Wake Up] button to operate the
Card Reader.
5 External Power
Contact
Power can be supplied from the emergency battery after the
main batteries have been completely discharged (9V battery).
6 Reset Button This button is used to reset the unit when it stops operating.
The registered data are not deleted.
Number Pad Turned Off
Number Pad Turned On
Number Pad
External Power
Contact
[Wake-up] Button
Card Reader
[Wake Up]
Button Touch
Display Lamp

9

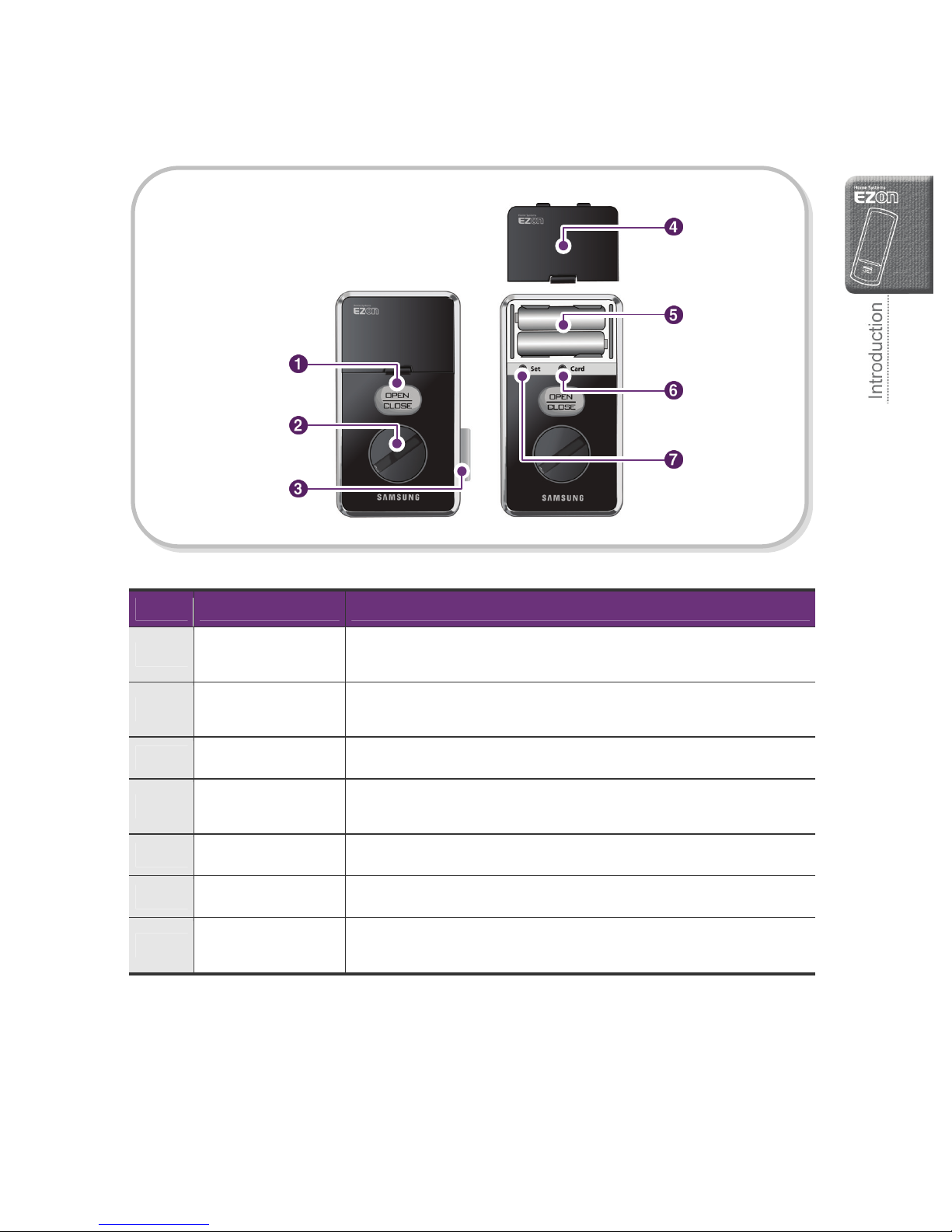

Indoor Unit Parts
No. Name Description
1 [OPEN] Button This is one touch button used to open the locked door. (It is also
used to lock the door from indoor in manual locking mode)
2 Manual Swichgear The Manual Switchgear is used to open or lock the door when
the batteries are completely discharged.
3 Magnetic Sensor This senses door opening and closing.
4 Battery Cover This cover protects the batteries, the [Set] button, and the [Card]
button.
5 Battery Holder This holds the batteries.
6 [CARD] Button This is used to register a card or delete the password/card data.
7 [SET] Button This is used to register the master password or change the
password. It is also used to change the doorlock setting.
Battery Cover
[OPEN] Button
Manual Switchgear
Magnetic Sensor
Battery Holder
[CARD] Button
[SET] Button

10
Replacing the Batteries
1. Battery Replacement Alarm Generation
If the melody of "Blues for Elise" sounds
when opening the door using the password
or a card, it is time to replace the batteries.
2. Opening the Indoor Unit Cover
Press on the hook at the bottom of the
battery cover on the indoor unit and pull the
cover upward.
3. Replacing the Battery
Replace all 4 batteries within a week of the first
alarm sound.
- The unit will stop operating if the batteries are not
replaced.
A
lthough actual battery life differs depending on the manu
f
acturer,
date of production and operation environment, four 1.5V AA
alkaline batteries can last for one year, based on an average of
10 uses per day.
Battery Life
4 AA batteries
Melody
- If the poles of the batteries are not placed properly, the door lock will not operate normally.
- Liquid leaks from batteries can damage the product. Check the batteries regularly
(once every 6 months).
- After the battery replacement melody has sounded, password/card information cannot be
registered, changed, deleted, initialized or configured until the batteries are replaced.

11
Using the Emergency Battery
1. When Lock Fails to Operate Due to Discharged AA Batteries
If the batteries are not replaced after their replacement time comes, they will be
completely discharged and the door lock will not operate.
2. Using 9V Battery
Buy an emergency battery (9V) at the
nearest store.
3. Opening the Door Using the Emergency Battery
Place the card on the card reader, or enter the password, while the 9V battery is
connected to the external power contact of the outdoor unit.
Or
Password Entry The door is not opened. Recognition of a Card
Or
A
s the alkaline batteries offer longer life, they are recommended
over the manganese batteries or rechargeable ones.

12

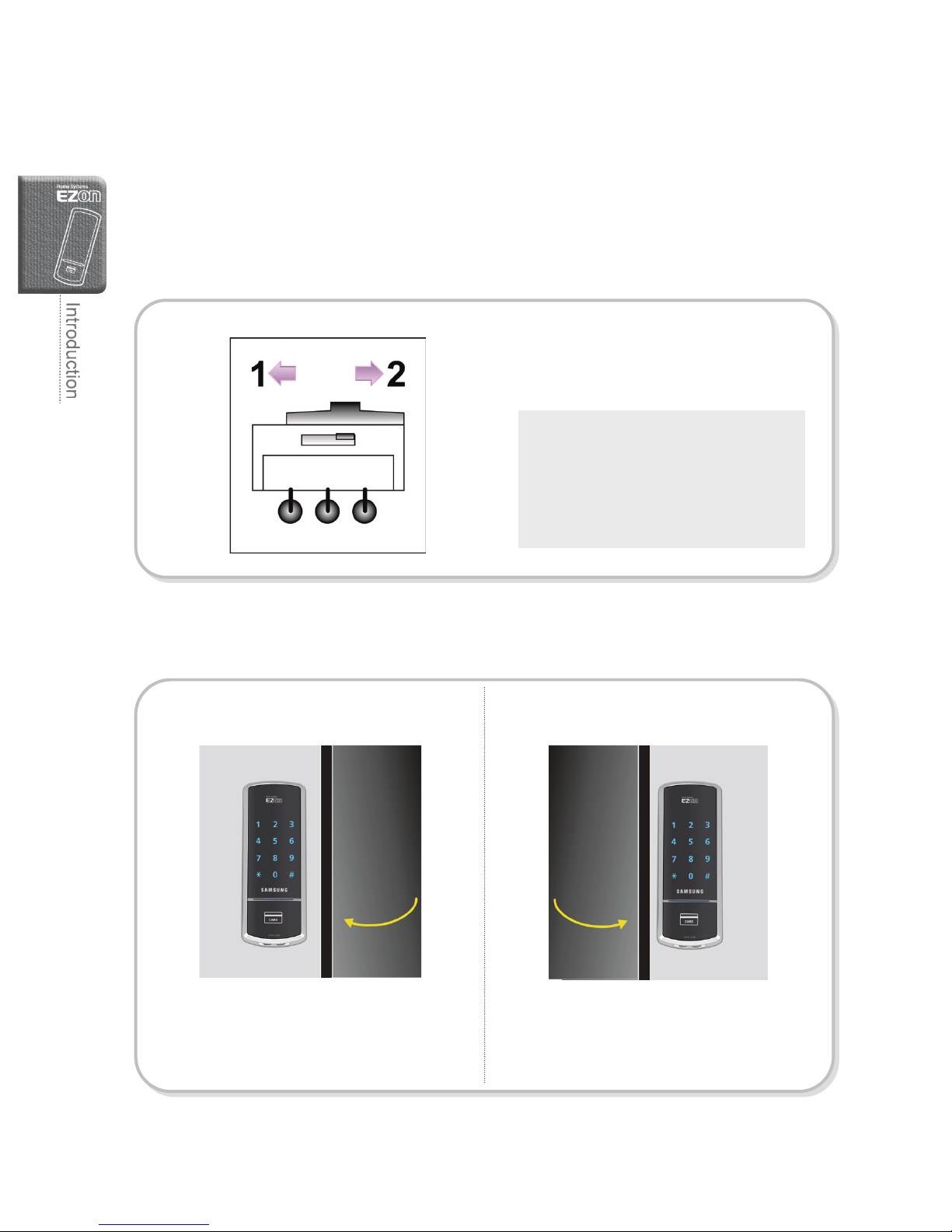

Setting the Left Hand/Right Hand
The opening or locking direction may change depending on the location in which
the unit is installed.
Adjust the [Left Hand/Right Hand] switch according to the location of the outdoor
unit before installing the indoor unit.
Status of Left Hand/Right Hand
The doorlock is installed on the right
of the door when it is viewed from
outside.
The doorlock is installed on the right
of the door when it is viewed from
outside.
Left Hand Right Hand
Left Hand Setting
Set the switch to 2.
Right Hand Setting
Set the switch to 1.

13
Basic Functions
This section describes the ways to initialize the information registered in the door
lock, to register the password and card data, and to open or close the door.

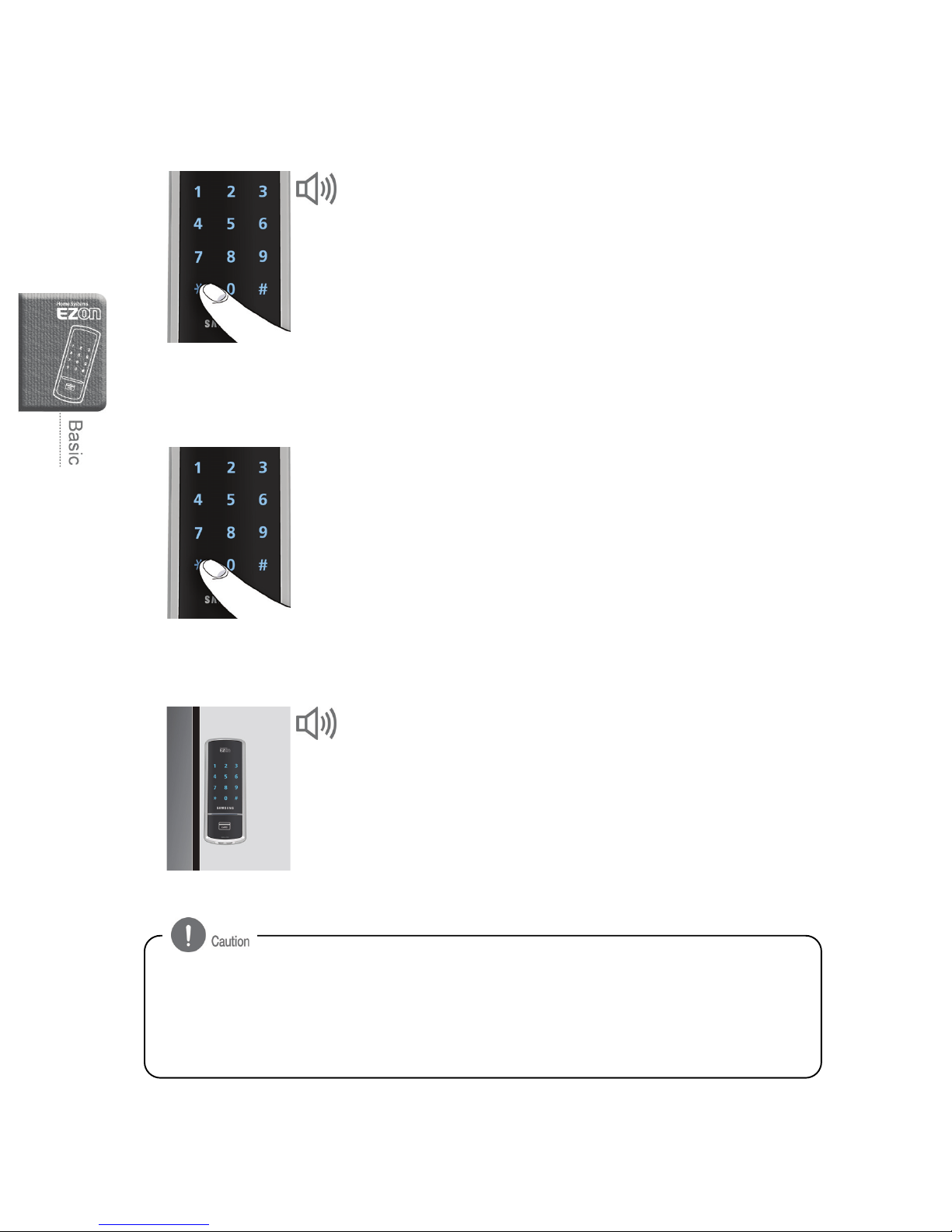

Initialization
(Master Password, Password and Card)
All registered data (master password, password and card) are deleted. After
initialization, the master password is set to '1234', and the registered password and
card data are all deleted.

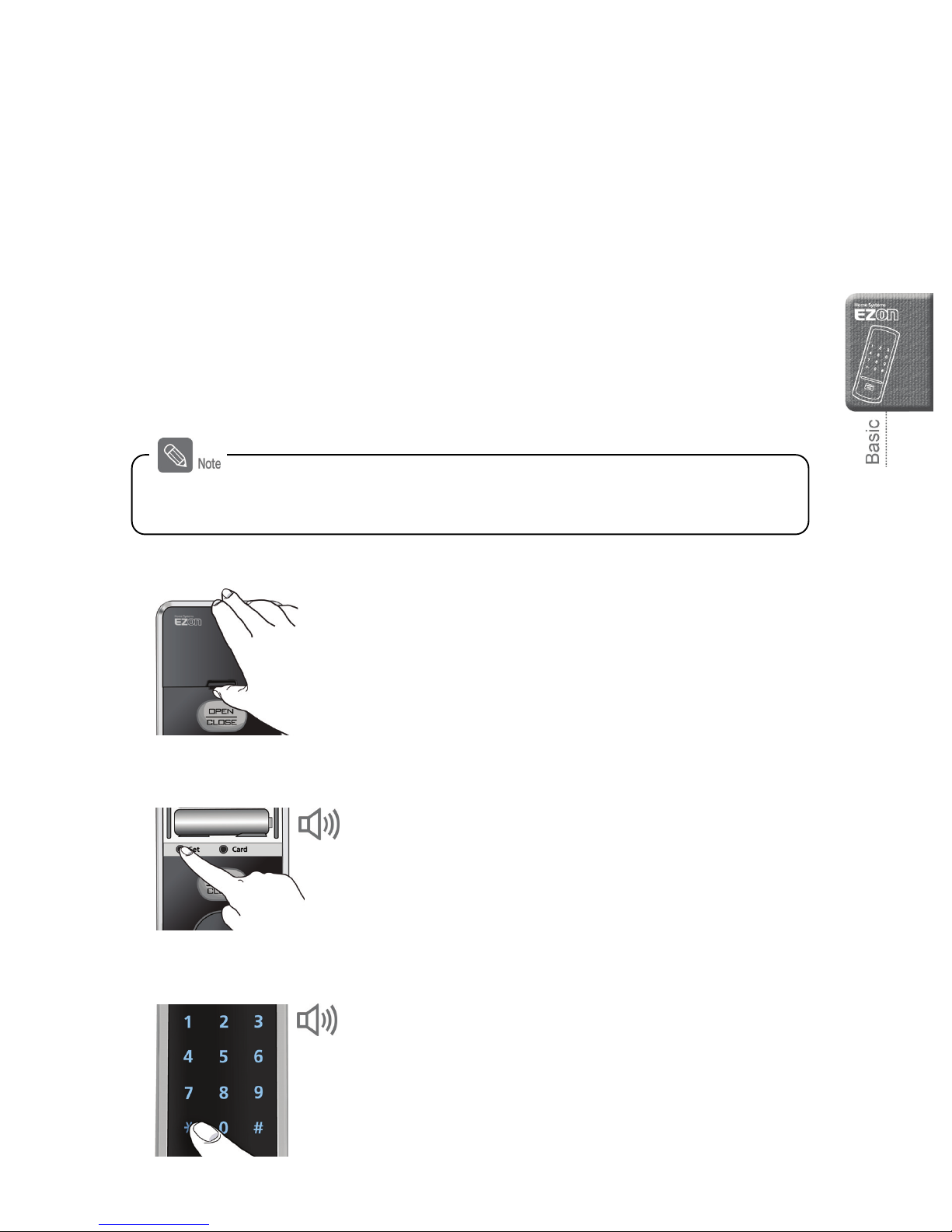

1. Opening the Cover (from inside)
Open the battery cover on the indoor unit.
2. Pressing the [Set] Button (from inside)
Press and hold the [Set] button for 10
seconds or longer.
- Successful: "Toot-->Toot, toot-->Toot, toot, toot,
toot' sounds are generated.
3. Entering the Master Password (from outside)
Enter the master password (press 1234 when
initialized), and then press the [¾] button.
- Successful: "Too~~~t" sound is generated.
- Failed: "Toot~" sound is generated.
A
fter initializing the registered data, reregister the card and password.
Initialization is available while the door is open.

14

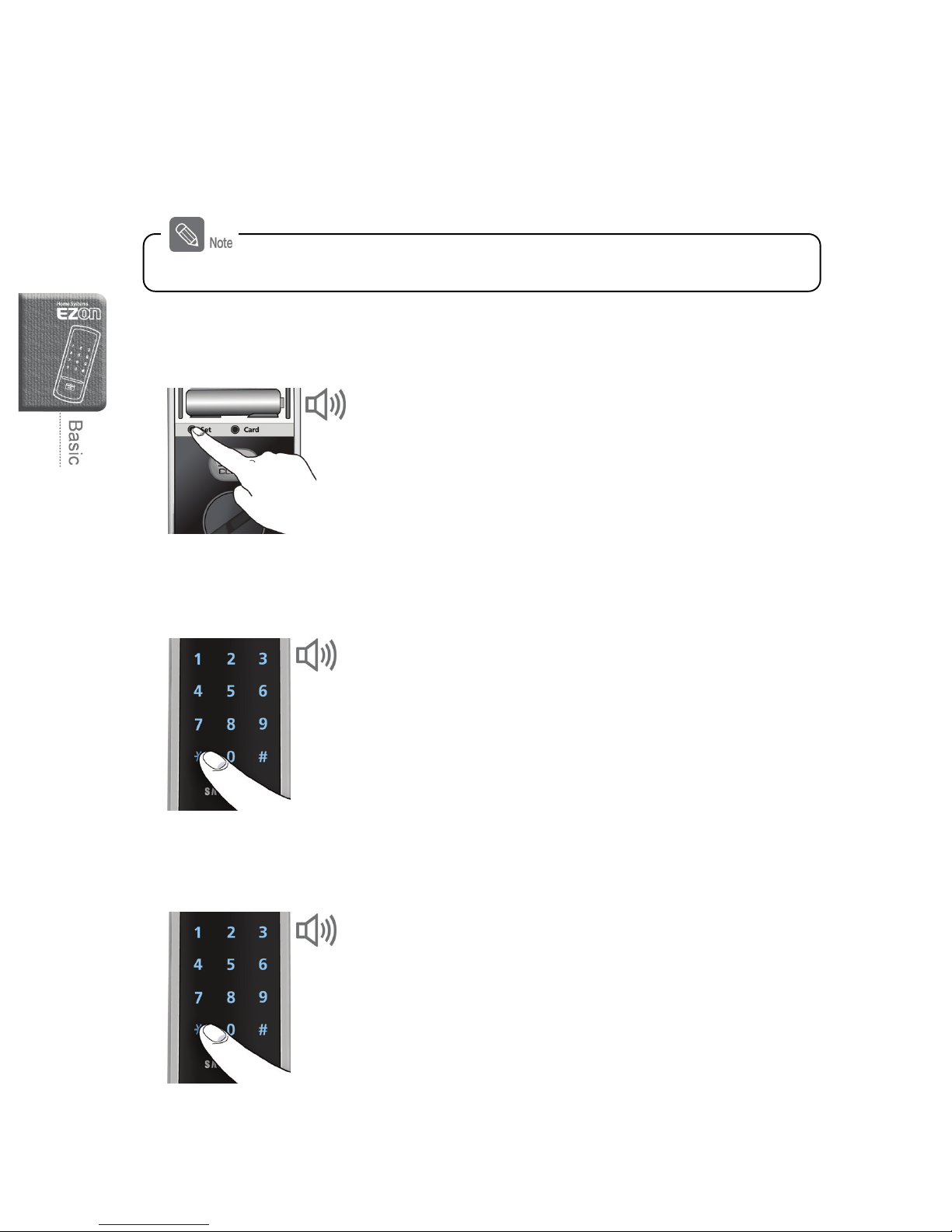

Master Password Registration and Change
The master password can be 4~12 digit number. Only one password can be
registered. Please register a new master password after initialization.
Pressing the [Set] Button (from inside)
Open the battery cover of the indoor unit
and press the [Set] button for 5 seconds.
2. Entering the Previous Master Password (from outside)
Enter the current password ('1234' after
initialization) and press the [¾] button.
3. Entering a New Password (from outside)
Enter a new master password and press the
[¾] button.
- To prevent burglary, it is recommended to use a
password of 6 digits or longer. (Only numbers
between 0 and 9 can be used.)
Successful: Toot~~~t
Failed: Toot~~
Successful: Too~~~t, toot, toot
Failed: Toot~~, toot, toot
Toot -> too, toot
Registering or changing the password is available while the door is open.

15
Password Registration
The password can be 4~12 digit number. Up to 70 including cards can be registered.
Please register a new password after initialization.
1. Pressing the [Set] Button (from inside)
Open the battery cover of the indoor unit
and briefly press the [Set] button.
2. Entering the Master Password (from outside)
Enter the master password when the
number pad is lighted and press the
[¾] button.
3. Entering the User Code (from outside)
Enter the user code (1 to 70) of the
password to be registered and press the
[¾] button.
- The already registered code is not available.
Successful: Too~~~t, toot, toot
Failed: Toot~~
Successful: Toot, toot
Failed: Toot~~
Toot
- The 70 user codes are allocated to register the password and card information.
- It is required to enter the user code of the registered password or card information to
be deleted in order to delete it. Make sure to manage the user code well when
registering the password or card information.
- Registering the password is available while the door is open.

16
4. Entering a New Password (from outside)
Enter a new password (4 to 12 digits) and
then press the [¾] button.
- To prevent burglary, it is recommended to use a
password of 6 digits or longer. (Only numbers
between 0 and 9 can be used.)
5. Registering in Series and Terminating
Repeat the Steps 3 and 4 to register
additional passwords.
- Press the [Wake Up] button to terminating
registration.
6. Checking New Password Operation (from outside)
To make ensure the password has been
properly registered, check the new password
and close the door.
- Please refer to "Opening the Door from Outside with
a Master Password or a Password" on page 20.
Too~~~t
Successful: Too~~~t
Failed: Toot~~
- Manage your password with care so that unauthorized people will not have access to it.
Regularly changing your password can reduce the risk of it being leaked.
- Check if the new password works properly while the door is open. When the door
opening sensor is pressed and the deadbolt comes out, refer to "Opening the Door from
Outside with a Password".

17
Card Registration
The door can be opened with the dedicated card contained in the product or the
ISO 14443A-Type card. Up to 70 including the password can be registered.
(Support for ISO14443A Type)

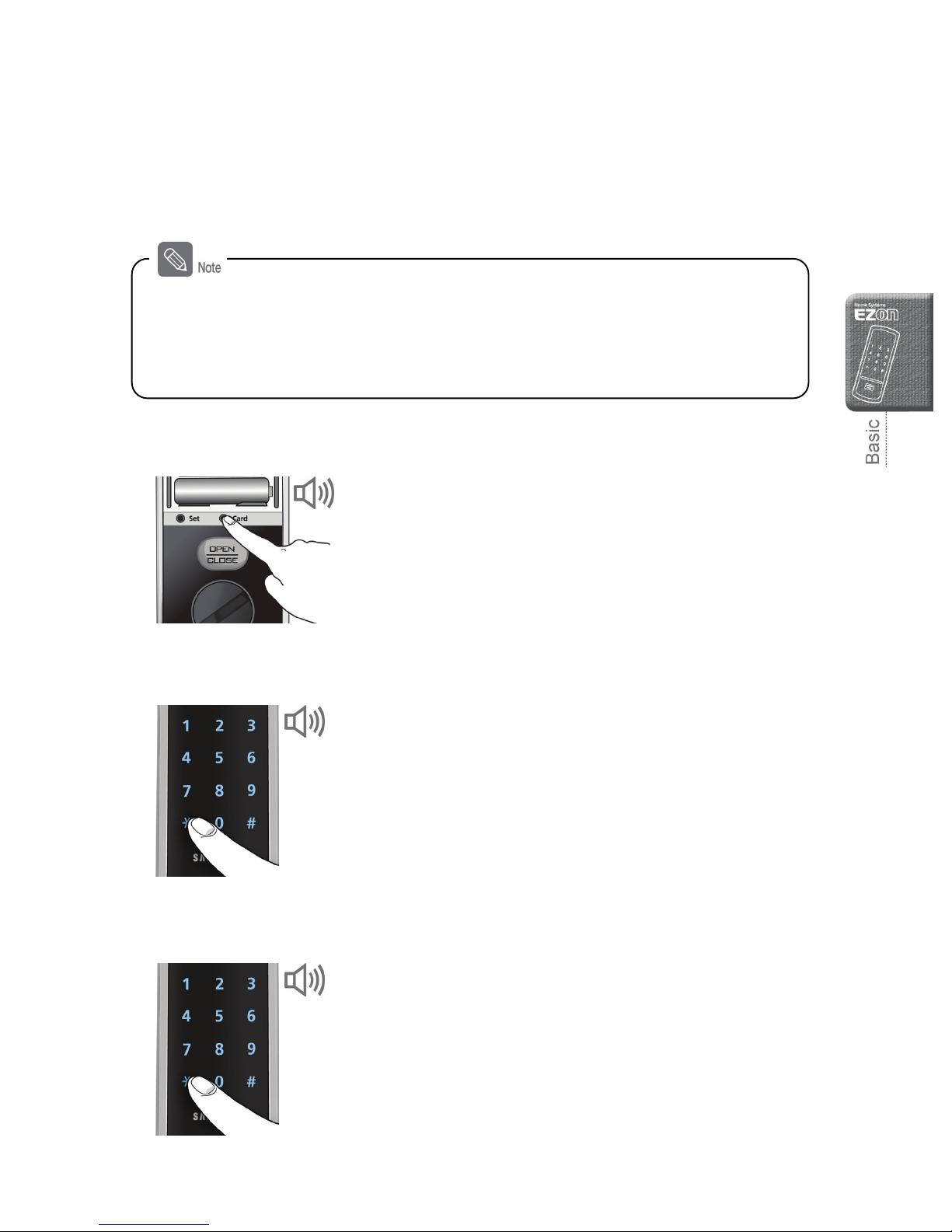

1. Pressing the [Card] button (from inside)
Open the battery cover of the indoor unit
and briefly press the [Card] button.
2. Entering the Master Password (from outside)
Enter the master password when the
number pad is lighted and press the
[¾] button.
3. Entering a User Code (from inside)
Enter the user code (1 to 70) of the card to
be registered and press the [¾] button.
- The already registered code is not available.
Successful: Too~~~t, toot, toot
Failed: Toot~~
Successful: Toot, toot
Failed: Toot~~
Toot -> toot, toot
- The 70 user codes are allocated to register the password and card information.
- It is required to enter the user code of the registered password or card information to
be deleted in order to delete it. Make sure to manage the user code well when
registering the password or card information.
- Registering the card is available while the door is open.

18

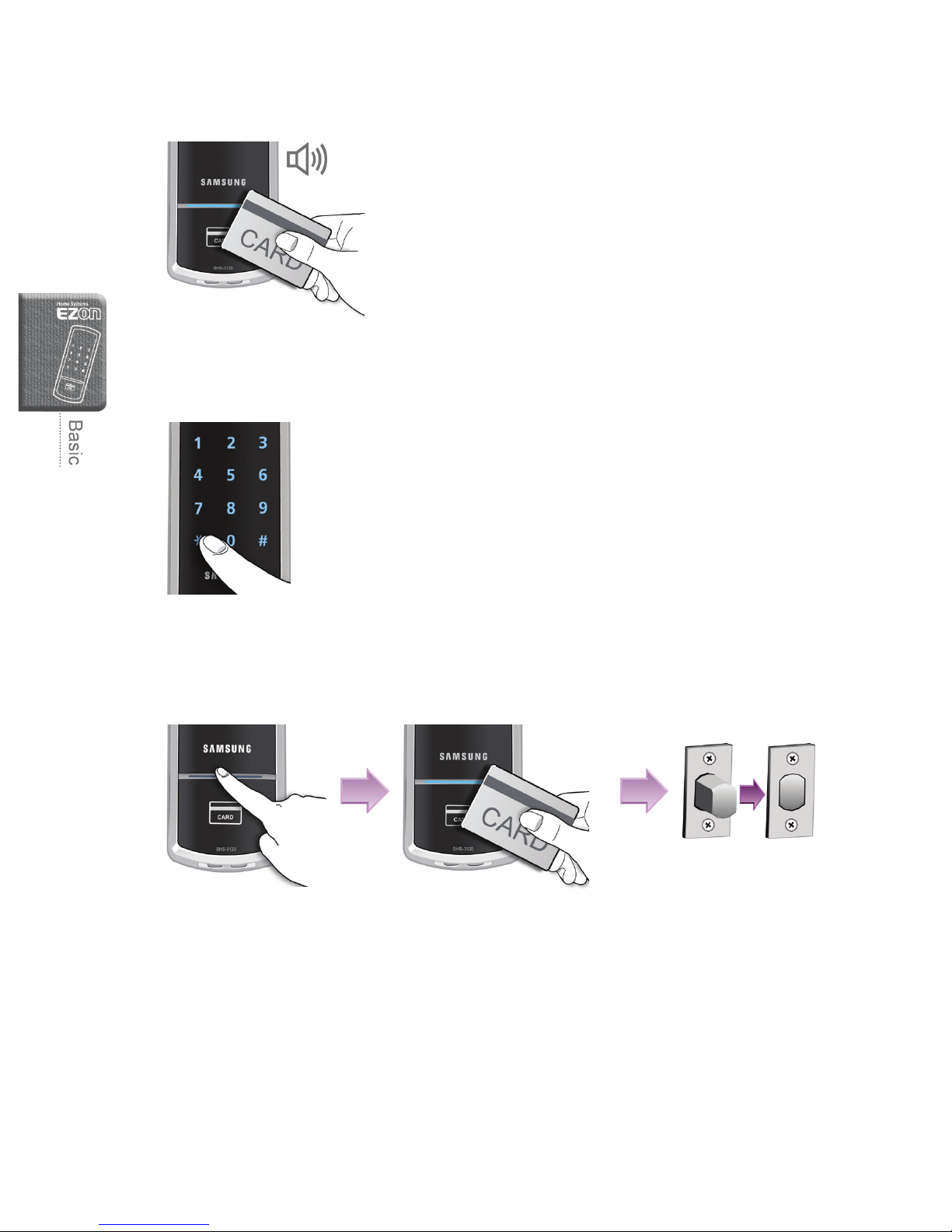

4. Placing the Card in Contact (from outside)
Place the card to be registered on the card
reader.
5. Registering in a Series and Terminating
Repeat the Steps 3 and 4 to register
additional cards.
- Press the [Wake Up] button to terminating
registration.
6. Checking Card Registration (from outside)
Press the [Wake Up] button and then put the card on the card reader.
- Please refer to "Opening the Door from Outside with a Card" on page 21.
Too~~~t
