Samsung SMG-3200 User manual

SAMSUNG
SMG-3200
USER GUIDE
SAMSUNG MEDIA GATEWAY

Publication Information
Samsung Telecoms reserves the right without prior notice to revise infor-
mation in this publication for any reason.
Samsung Telecoms also reserves the right without prior notice to make
changes in design or components of equipment as engineering and manu-
facturing may warrant.
Disclaimer
Samsung Telecoms is not responsible for errors or problems arising from
customers not installing, programming or operating their Samsung sys-
tems as described in this manual.
Copyright 2002
Samsung Telecoms (U.K.) Limited
All rights reserved. No part of this manual may be reproduced in any form
or by any means –graphic, electronic or mechanical, including recording,
taping, photocopy or information retrieval system –without express writ-
ten permission of the publisher of this material.
Part No.:16320Version 1.0

EU Declaration of Conformity (LVD,EMC)
For the following product:
Product Name: VoIP Media Gateway
ModelName: SMG-3200
Manufactured at:
Factory Name, Address: Samsung Electronics Co., Ltd,259 Gongdan-Dong, Gumi-City Kyungbuk,
Korea 730-030
We hereby declare that all major safety requirements concerning the CE Marking Direc
tive [93/68/EEC] and
Low Voltage Directive [73/23/EEC], ElectroMagnetic Compatibility [89/336/EEC], amend
ments [92/31/EEC]
are fulfilled, as laid out in the guidelines set down by the member states of the EEC Commission.
This declaration is valid for all samples that are part of this declaration, which are manu
factured according to
the production charts appendix.
The standards relevant for the evaluation of safety & EMC requirements are as follows:
1. Certificate of conformity / Test report issued by:
LVD : EN60950:1992 +A1+A2+A3+A4+A11
EMC : EN55022:1998, EN 61000-3-2:1995 inc+A1+A2:1998,
EN61000-3-3:1995, EN 55024:1998, AS/NZS3548:1995
2. Technical documentation kept at:
LVD: VDE
EMC: SAMSUNG Electronics EURO Q.A. Lab. in the U.K.
which will be made available upon request.
Samsung Electronics Co., Ltd
(Manufacturer)
Samsung Electronics Co., Ltd,
259 Gongdan-Dong, Gumi-City
Kyungbuk, Korea 730-030
2002-03-14 TE Jang Tae-eok Jang / General Manager
(place and date of issue) (name and signature of authorised person)
(Representative in the EU)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK
2002-03-18 IS Lee In-Seop Lee / Senior Manager
(place and date of issue) (name and signature of authorised person)

Before You Begin
This guide is intended for anyone who installs and uses the SMG-3200. It provides an introduction
to the SMG-3200 system as well as network setupand maintenance.
Both the novice and expert user in switching systemsshould first read this guide before
installing the SMG-3200 system,and pay particular attention to the precautionary notes.
This guide describes in detail the structure and the installation of the SMG-3200 system with
illustrations toassist you.
Caution: Fatal problems,such as the loss of significant data or network service disconnection,may occur
if you make modifications to the hardware and board configurationsother than those described
in this manual. If you have any inquiries or find any faults with the system, please contact your
system supplier.
i

About This Guide
This guide comprises seven chapters and three appendices. It explains the functions and features of
the system, and describes installation procedures. It is organized so that you can easily access
information by topic of your choice.
It is best to read this guide from the beginning to the end for safe installation of the SMG-3200.
Summaries of the chapters andappendices follow.
Chapter 1, Overview describes the various functions of the system, and lists the advantagesof
the system.
Chapter 2, System Boards explains the board types and board features.
Chapter 3, Installing the System provides instructions for installing the system, placing the
boardsinthe slots, and connecting the cables to the system.
Chapter 4, Configuring the System shows how to set up the basic information to use the
system.
Chapter5,
CLI(CommandLine Interface) describes the CLI that enables operational settings
for the SMG-3200. An overview of menus followed by the functions of each menu and
settingsof submenusare given.
Chapter 6, Web-based Remote Management explains how to log in to the web management
interface of the SMG-3200.
Chapter 7, Using the CDR (Call Detail Record) explains how to view or receive the call
informationthroughthe CDRwhichisprovided by the SMG-3200 system.
Appendix A, Call Termination Code describes the form of Call Termination Code and code
information.
Appendix B, System Information (DataBase) File Structure provides the hierarchy and usage of
the text file which enables backup, restore, and editing of SMG-3200 system
information.
AppendixC,Glossaryprovides definitionsoftermsused inthisguide.
ii

Table of Contents
Chapter 1 Overview ······························· 1-1
Introduction to SMG-3200·································1-1
SMG-3200 Features································· 1-2
Components of SMG-3200 ································ 1-4

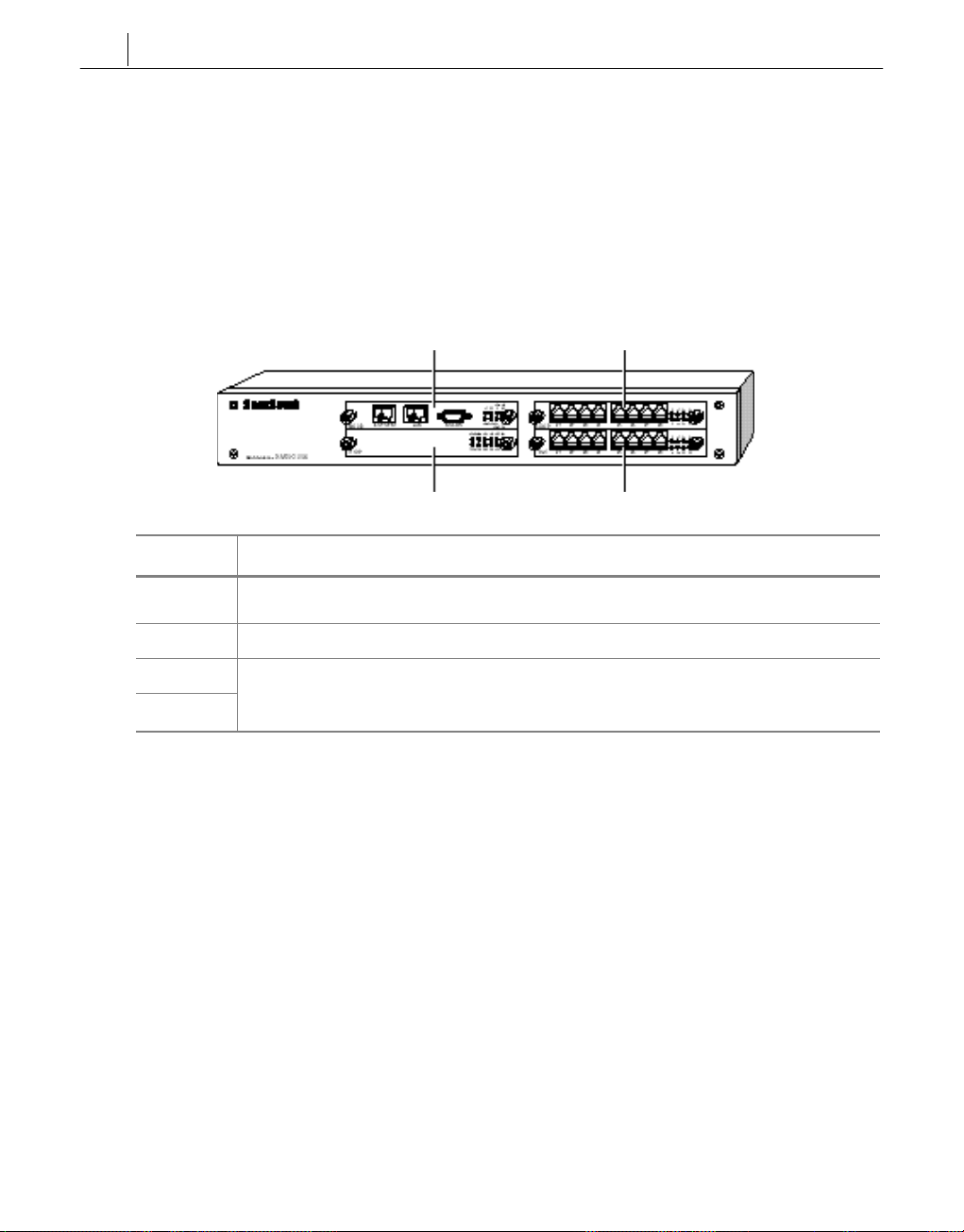

Front View of SMG-3200 ······························ 1-4

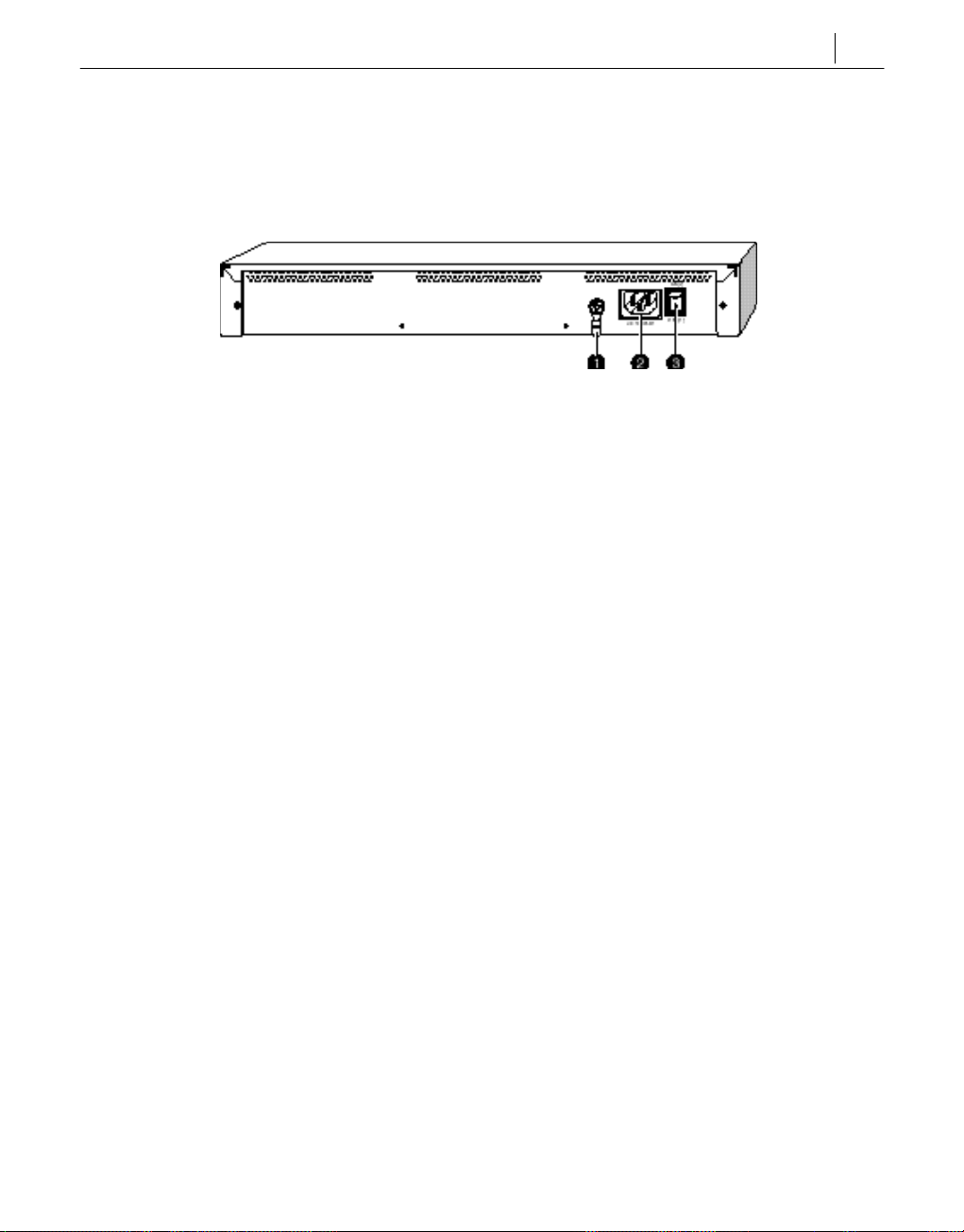

Rear View of SMG-3200 ······························ 1-5
SMG-3200 System Specifications ···························· 1-6
Hardware Specifications ······························ 1-6
Software Specifications······························· 1-7

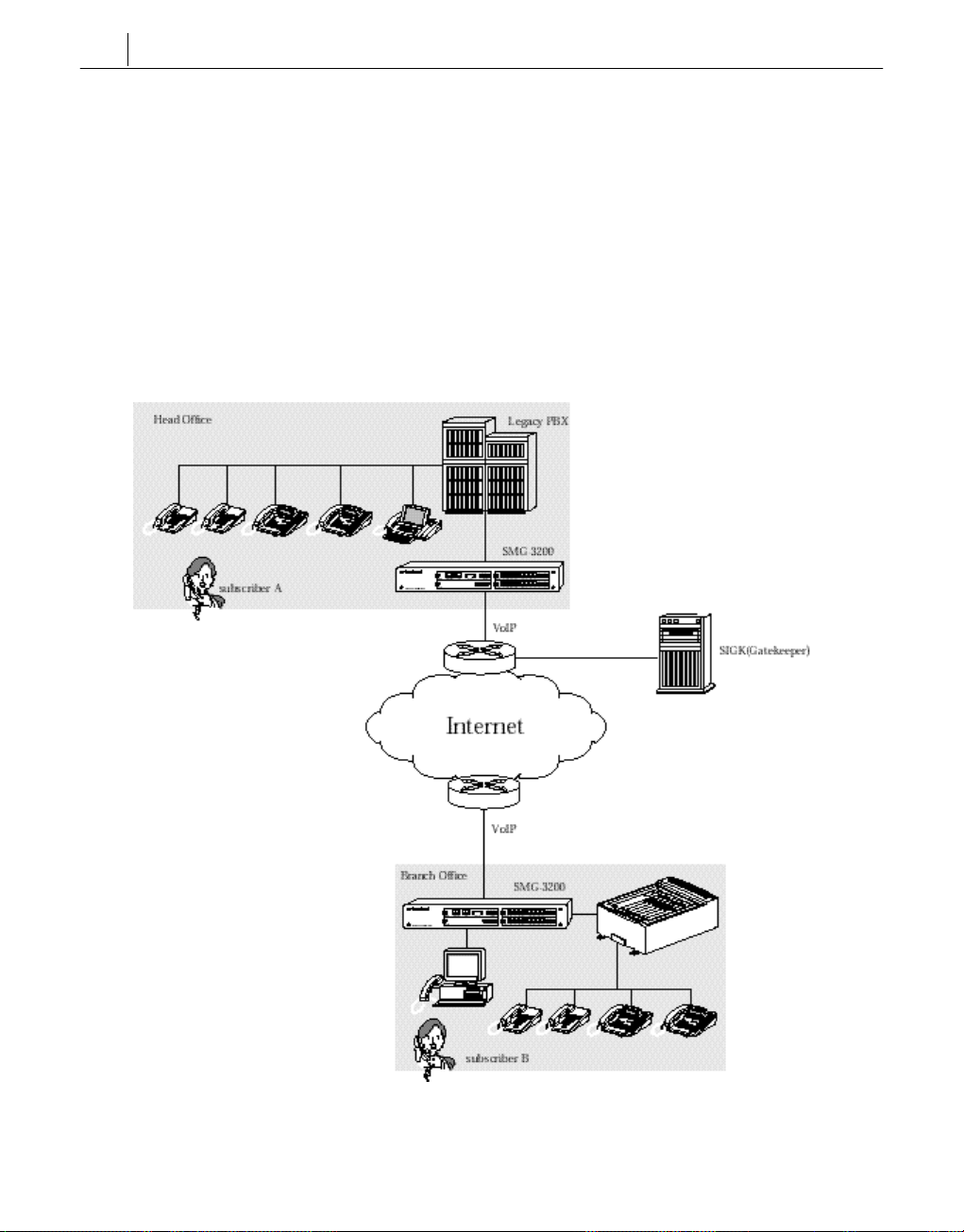

VoIP Network Configuration Using SMG-3200 ···················· 1-8
Tandem Gateway Mode······························· 1-8
Standalone Gateway Mode····························· 1-9
Chapter 2 System Boards
·························· 2-1
Types of Boards ····································· 2-1
Common Boards·································· 2-1
Universal Boards ·································· 2-1
Common Boards ····································· 2-2
MGCB Board ···································· 2-2
VOIP Board ····································· 2-8
Universal Boards ···································· 2-11
LOOP Board····································· 2-11
E&M Board ····································· 2-12
SLC Board······································ 2-15
Chapter 3 Installing the System ······················ 3-1
Procedures on Installing the System ··················· 3-1
Condition of the Installation Location
······················ 3-2
Space Condition ·································· 3-2
Grounding Condition································ 3-3
Input Power Condition ······························· 3-4
Line Condition···································· 3-4
Unpacking the System ································· 3-5
Installing in a Rack ··································· 3-6
iii

Safety Precautions ································· 3-6
Rack Requirements ································ 3-7
Required Tools ··································· 3-7
Installing in a Rack ································· 3-8
Connecting Ground Cable ································ 3-9
Installing Boards ····································· 3-10
System Slots ···································· 3-10
Selecting Boards ·································· 3-11
Setting Jumper and Switch ···························· 3-12
Installing Daughter Boards ···························· 3-13
Installing Board in a Slot ····························· 3-16
Connecting Cables ···································· 3-18
Attaching Ferrite Cores ································· 3-21
Connecting Power Cable ································ 3-21
Chapter 4 Configuring the System ···················· 4-1
Setting up the Terminal ·································· 4-1
Terminal Features ································· 4-1
Starting SMG-3200 ···································· 4-3
Turning on ······································ 4-3
Logging in ······································ 4-4
Configuring the Operating Environment ····················· 4-6
Configuring the TCP/IP ······························ 4-6
Configuring the System Operation Mode···················· 4-11
Configuring the VoIP································ 4-17
Chapter 5 CLI (Command Line Interface) ··············· 5-1
Menu Configuration ···································· 5-1
Using Menus ········································ 5-3
System Configuration Menu ····························· 5-4
[0]DHCP Client Setting ······························ 5-5
[1] Network Configuration ····························· 5-6
[2 Login ID Configuration ····························· 5-8
[3] System Upgrade ································ 5-9
[4] Display Package Information ························· 5-11
[5] Default DB Setting ······························· 5-12
[6] Restart System ································· 5-13
iv

[7] Exit ········································5-13
PSTN Configuration Menu ····························· 5-14
[0] Gateway Operation Mode··························· 5-16
[1] PSTN Rerouting Insert Digit ························· 5-19
[2] PCM Method ·································· 5-20
[3] Dial Method ··································· 5-21
[4] SLC Signal···································· 5-23
[5] Trunk Signal··································· 5-24
[6] Call Control Method ······························ 5-28
[7] Ring Cadence·································· 5-30
[8] System Tone Cadence····························· 5-32
[9] CO Tone Cadence ······························· 5-34
[10] Gain Control ·································· 5-36
[11] Diagnosis···································· 5-38
[12] MMC Port Block/UnBlock ·························· 5-39
[13] Display Slot Configuration ·························· 5-41
[14] Display Port Status ······························ 5-42
[15] Save & Exit··································· 5-44
[16] Exit········································ 5-44
VoIP Configuration Menu ······························ 5-45
[0] VoIP General Option ······························ 5-46
[1] VoIP DSP Option ································ 5-49
[2] VoIP Gatekeeper Option ··························· 5-52
[3] VoIP Routing Table······························· 5-55
[4] VoIP Caller ID Table ······························ 5-59
[5] VoIP Remote IP Table ····························· 5-60
[6] VoIP Remote IP Status ···························· 5-62
[7] Save & Exit ··································· 5-64
[8] Exit ········································ 5-64
CLI Command Menu ·································· 5-65
Chapter 6 Web-based Remote Management ················ 6-1
Before you Begin ····································· 6-1
Login ············································· 6-1
Configuration and Functions of Menu ······················ 6-4
v

Chapter 7 Using the CDR (Call Detail Record) ·········· 7-1
Screen for checking current call information···············7-1
How to receive call information -TCP Link ················7-2
How to receive call information -UDP Link ················ 7-5
CDR Form ··········································· 7-7
Appendix ACall Termination Code ····················A-1
CDR Form ········································ A-1
Call Termination Code ·································A-2
Appendix B System Information (Database)
File Structure
·························· B-1
File Structure ······································ B-1
Hierarchical structure ······························ B-1
Syntax structure ································· B-3
Appendix C Glossary ·······························C-1
vi

1-1
Chapter 1Overview
This chapter describes the various functions of the SMG-3200 system, its component parts, and
system specifications to provide you with a good understanding of the system.
Introduction to the SMG-3200
SMG-3200 VoIP (Voice over Internet Protocol) gateway system is a high performance H.323
compliantgatewayoptimized for voice communicationover the Internet.
SMG-3200 enables transmission of both voice and FAX data from a PSTN (Public Switched
Telephone Network) through real-time data compression and protocol conversion. Therefore, it
enables seamless integration of voice and data networks, simple network architecture design and
considerable cost reduction in network infrastructure construction. Also, it can provide long-
distance and international telephone services at local telephone rates for users in an Internet or
Intranet environment.
Since SMG-3200 is designed based on hardware and software modules, it is easy to install.
Installation of trunks, subscriber linesor new software for additional features is possible,even during
operation if necessary.
SMG-3200 provides local/remote CLI (Command Line Interface). To use SMG-3200 after
installing the hardware, only a basic information configuration for system operation using CLI
commands is needed, while the remaining operatingenvironment configuration is automatically
configured using default values. Providing conversational type CLI, SMG-3200 enables easier
systemconfiguration evenif a user is not accustomed to the Gatewaysystem.

1-2
Chapter 1
Overview
SMG-3200 Features
The SMG-3200 system has the following major features.
PSTN InterfacesPSTN Interfaces
The SMG-3200 system provides the following PSTN interfaces for interoperability with PSTN.
LOOP Analog Trunk Interface
E1/PRI, T1 Digital StationInterface (PBX, KTS Interface)
E&M Analog StationInterface (PBX, KTS Interface)
SLC Analog Interface
VoIP InterfacesVoIP Interfaces
VoIP is a technology that enables simultaneous transmission of both voice and data over the
Internet, and enables Internet telephony service. The SMG-3200 system offers the following VoIP
interfaces.
H.323-V3 VoIP Interface
Gatekeeper Interface (RAS)
Real Time Internet Fax Support (FoIP)
Trunk Routing FunctionsTrunk Routing Functions
The SMG-3200 system offers the following trunk functions including trunk routing, trunk tandem,
and access code control.
Trunk Routing
ŸLCR (Lease Cost Routing) code and route control
ŸDynamic rerouting depending on the traffic load of PSTN and Internet Protocol state
ŸRouting Table
Trunk Tandem
ŸVarious PSTN and VoIP trunks connection
ŸInteroperability among analogtrunk, digital station, and VoIP network

1-3
Access Code Control
ŸIP address translation based on access code and prefix number
Call Processing FunctionsCall Processing Functions
The SMG-3200 system provides the following call processing functions.
R2 Signaling and DTMF Signaling
Caller ID Relay between PSTN and VoIP
DTMF Relay between PSTN and VoIP
CDR (Call Detail Record) Generation
RTP Traffic Channel Status Monitoring Functions (Delay, Loss, and Link Down)
System Management FunctionsSystem Management Functions
The SMG-3200 system provides a GUI interface, and a Standard Network Management Protocol
(SNMP) for easier management. The SMG-3200 also provides the following system management
functions.
Web-based Management
Program change by TFTP Loading
DHCP Client (IP address allocation by DHCP server)
FTP, Telnet Interface
CLI (Command Line Interface)

1-4
Chapter 1
Overview
Components of SMG-3200
This section explains each component and function of the SMG-3200 system.
Front View of SMG-3200
There are 4 slots for board installation on the front of the SMG-3200 system.
SlotSlot DescriptionDescription
MGCB For the installation of the MGCB board that controls overall operation of the
SMG-3200 system.
VOIP For the installation of the VoIP board offering VoIP gateway functions.
US1
US2
For the installation of Universal boards (LOOP, E&M, and SLC boards) offering
trunk and subscriber terminal communication functions.
MGCB Slot
VOIP Slot
US1 Slot
US2 Slot

1-5
Rear View of SMG-3200
The rear side of the SMG-3200 system includes a ground terminal, power-in terminal, and power
switch.
¶ Ground Connector
Provides an external ground connection to protect user and system against lightning, static
electric charges, spikes, sags, and surges.
· Power Connector
Provides power supply cable connection. It requires AC 110-240V main power.
¸ Power Switch
Aswitch to turn the system power on/off.

1-6
Chapter 1
Overview
SMG-3200 System Specifications
This section describes hardware and software specifications of the SMG-3200 system.
Hardware Specifications
Feature Description
Processor MPC860 50MHz
Memory
ŸBoot Flash ROM :512KB
ŸFlash Memory: 8MB
ŸSDRAM :16MB
VoIP DSP 2 ~8 of Audio Codes AC4804
Network 10Base-T/100 Base-TX
Test Port RS-232C
System
Power ŸInput : AC 110-240V
ŸOutput : -48V(25W), +5V(10W), +3.3V(15W)
Analog
ŸLoop :8/16 Channel
ŸSLC :8/16 Channel
ŸE&M :8/16 Channel
Digital
ŸT1 :24 Channel
ŸE1 : 30 Channel
ŸPRI :30 Channel
ŸR2 : 8 Channel
ŸDTMF : 4 Channel
Line Capacity
VoIP
Ÿ8/16/24/32 Channel
-G.723.1, G.729A,G.711
-Fax channel receives maximum of 8 channels.
-Fax channel receives maximum of 6 channels when
G.711 codec is used.

1-7
Software Specifications
Feature Description
OS VxWorks
VoIP Protocol ITU-T H.323-V3
VoIP Codec G.723.1, G.729A, G.711
Audio Function
ŸEcho Cancellation (G.165)
ŸSilence Suppression(VAD, CNG)
ŸDTMF Detection/Generation(In/Outband)
ŸSelectable A /ulaw
ŸGain/Volume Control
ŸDynamic Jitter Control
VoIP Function
ŸH.323-V3 Interoperability (RADVision)
ŸG3 Internet FAX Relay (FRF.11, T.38)
ŸExternal Gatekeeper RAS Interface
ŸInternal Gatekeeper Functions (Control Code Translate/Add/Delete)
ŸFlexible Numbering Plan
ŸCaller ID (G/W ID, IP, ANI, Assigned Caller ID)
ŸQoS Functions (Delay/Loss/Link Down Check, RTP Multiframe, IP TOS)
System
Management
ŸDHCP Client Functions to Enable Automatic IP Address Allocation
ŸRemote Program Upgrade
ŸFTP, TFTP, Telnet Network Interface
ŸEasy Install (Default Configuration)
ŸDiagnostic and Alarm Report
ŸLocal/Network CLI Interface
ŸSystem Maintenance Through NMS ManagerCenter
-GUI, SNMP, Web Management
-DB List and Change

1-8
Chapter 1
Overview
VoIP Network Configuration Using SMG-2000
A VoIP network can be constructed using SMG-3200, PBX, and KTS as the following figure
shows.
Tandem Gateway Mode
The SMG-3200 can be run in the tandem gateway mode. It connects the SMG-3200 to PBX or
KTS, and uses the SMG-3200 as a gateway without internal subscribers.

1-9
Standalone Gateway Mode
The SMG-3200 can be run in the standalone gateway mode. It connects a telephone to anSLC port
on the SMG-3200 and uses the system as a VoIP Gateway with internal subscribers.

2-1
Chapter 2System Boards
ThisChapter describes the types of boards available for the SMG-3200, and the functionsand
features of each board.
Types of Boards
There are two typesof boards available for the SMG-3200.
Common Boards
Common boards have to be installed in the SMG-3200 system. They provide important
functionssuchas operational control ofthe system, andVoIP gatewayfunctions. Common
boards include the following two boards.
*MGCB (Media GatewayControl Board)board
*VOIP (Voice over Internet Protocol) board
Universal Boards
Universal board may be installed depending on the user’s need. US1 and US2 system slot is
intended for Universal boards. Universal boards include the following three boards.
*LOOP (Loop Start Trunk) board
*E&M (E&M TieTrunk Module)board
*SLC (Subscriber LineCircuit) board

2-2 Chapter 2
System Boards
Common Boards
Common boards of the SMG-3200 system include the MGCB board and VOIP board. This section
describes the features of each board.
MGCB Board
MGCB (Media Gateway Control Board) board controls the entire operation of the SMG-3200
system, and is installed in the MGCB system slot.
Three memories are installed in the MGCB board.
*512KB FlashMemory:Bootingprogramisstored.
*8MB FlashMemory:Databaseused bythe SMG-3200 system issaved in.
*16MB SDRAM : The place where the systemsoftware is run.
The features and functions of the MGCB board are as follows.
yOperational control of installed boards in the system
yDetection and generation of 16 DTMF
yGeneration of 7 call progressing tones
yOffering 256x256 channel time slot
yProviding digital station interfaces and R2 signaling
yOffering a 10/100Mbps LAN port, and RS232C port
