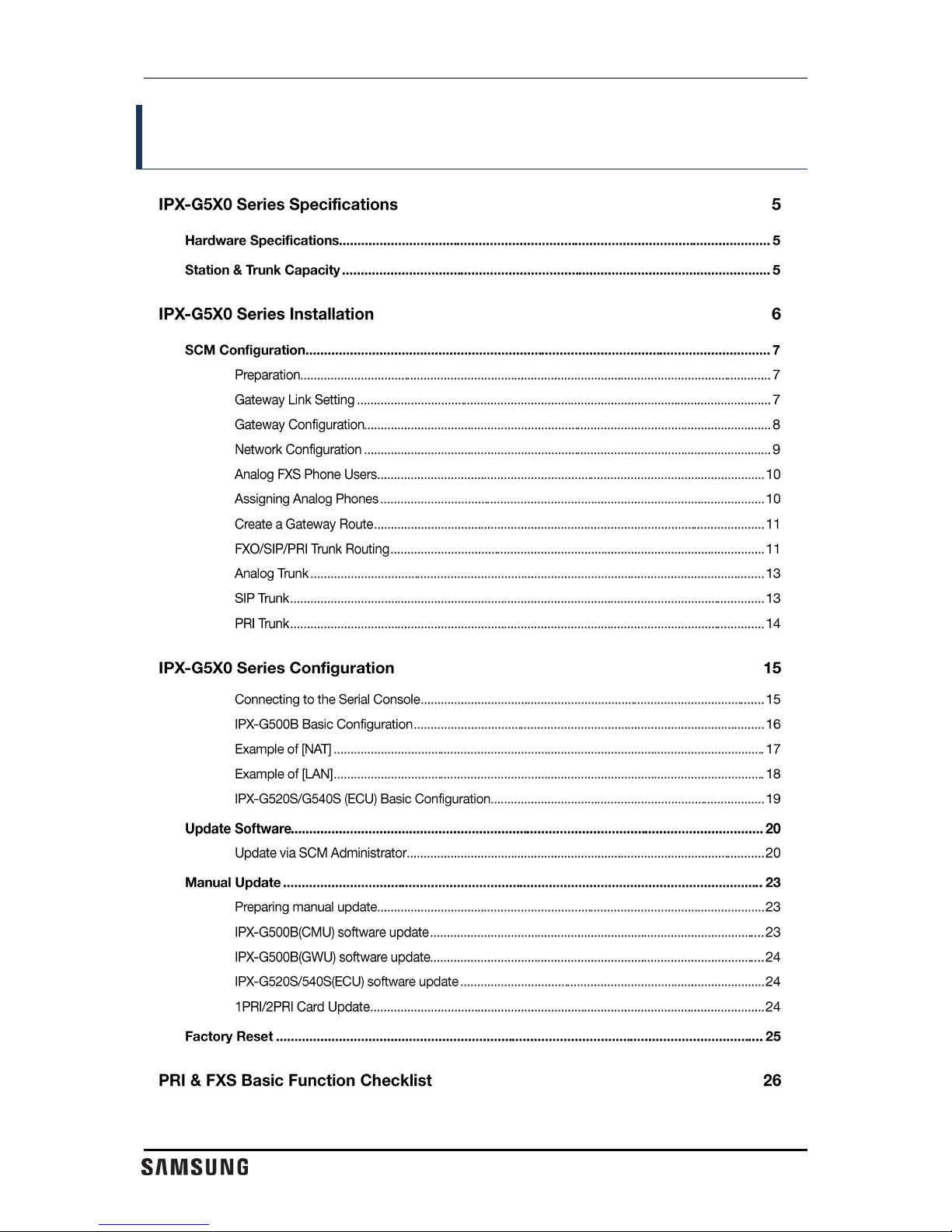

Table of Contents

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
5
IPX-G5X0 Series Specifications
Hardware Specifications
Size
Size (W x D x H): 441.5 × 352 × 44mm
19” Rack Installation: 1U
Power
AC 110/220V ICMUt, DC +12 V/5.5 A Output
IPX-G500B
Base Unit
2 Gigabit Ethernet ports / 1 USB port / 1 Console port
Optional Power Redundancy
4 Universal Card Slots
RJ-45 connector
Card Options: 4 port FXS, 4 port FXO, 2 port PRI
No Card Type Limit
IPX-G520S
20 port FXS Expansion Cabinet
Optional Power Redundancy
Expandable to maximum of 6 cabinets (240 ports)
50p Champ Connector
IPX-G540S
40 port FXS Expansion Cabinet
Optional Power Redundancy
Expandable to maximum of 6 cabinets (240 ports)
50p Champ Connector
Station & Trunk Capacity
Max stations
FXS port
256
136 port power redundancy
SIP Phone Survivability
512
UDP/TLS are same
Simultaneous Survivable Stations
768
Survival mode
Max trunks
FXO port
16
PRI channel
240 (E1 PRI)
8 ports
SIP channel
256
Simultaneous Trunk Total
256

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
6
IPX-G5X0 Series Installation

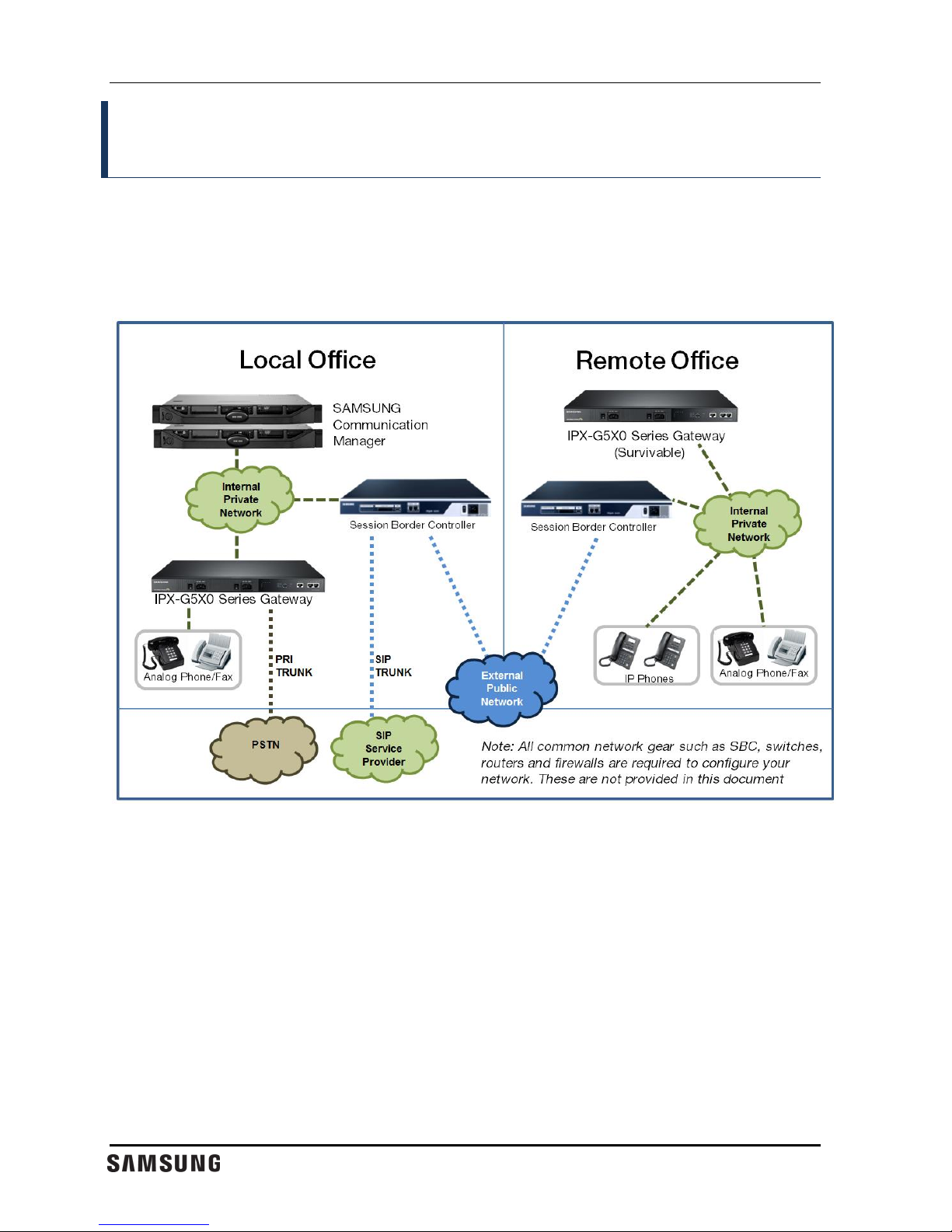

The IPX-G5X0 series gateways provide interfaces to a number of protocols such as PRI, FXS and FXO.
It interfaces with the Samsung Communication Manager (SCM) by SIP protocol and can be extended to
remote locations as a survivable gateway.
To install an IPX-G5X0 Series Media Gateway you first have to setup your gateway information in the
Samsung Communication Manager (SCM). Additionally some basic information must be set within the
IPX-G5X0 Series system.
The IPX-GX0 Series is compatible with SCM software version 5.4 or higher. If your SCME software
version is prior to version 5.4, you must upgrade the SCM first. Please refer to the SCM documentation
for upgrade instructions.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
7
SCM Configuration
Preparation
The following hardware is provided with your IPX-G5X0 Server:
AC Power Cord
RJ45 to DB9 Serial Cable
Gateway Link Setting

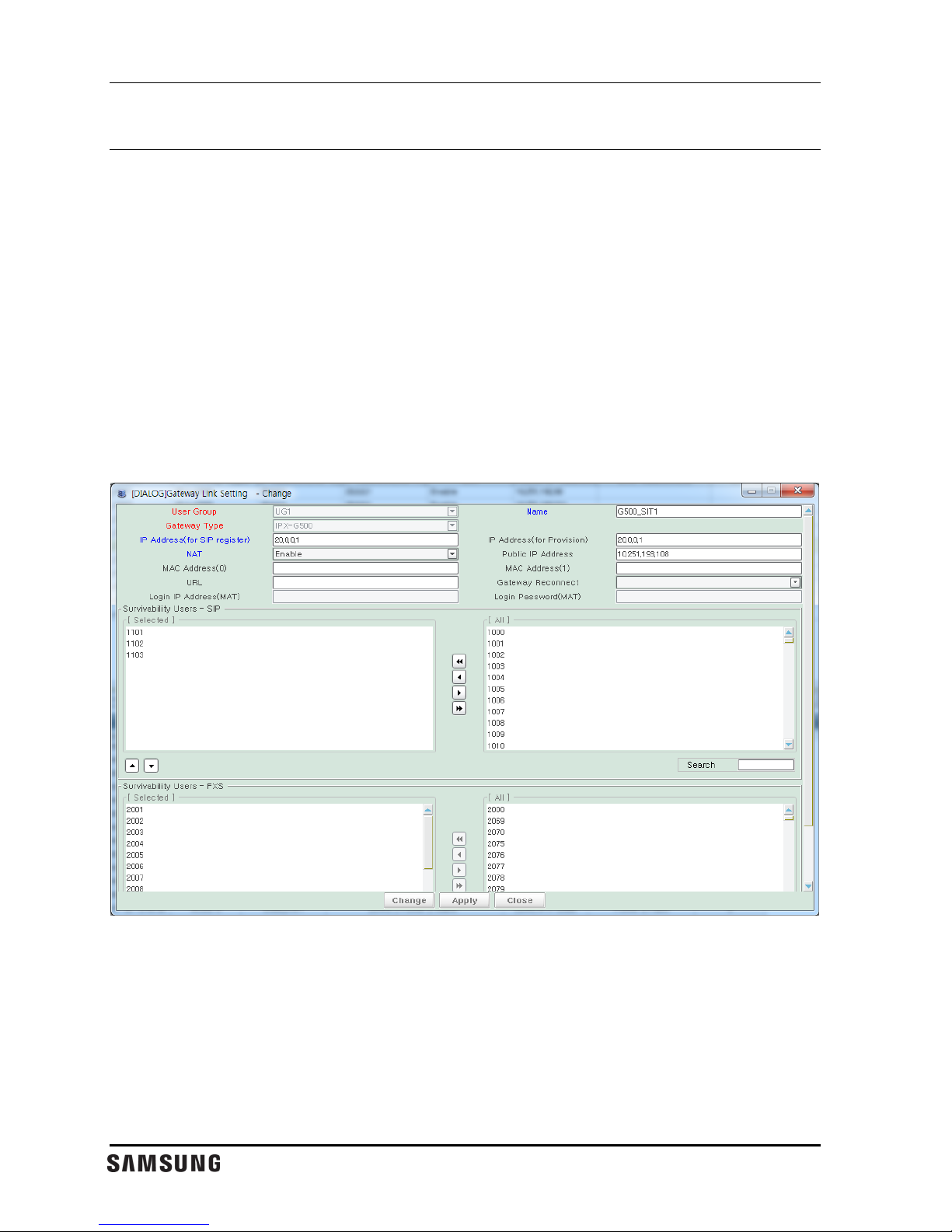

Begin by creating a new gateway link in the SCM Administrator at:
[Configuration> Gateway> Gateway Link Setting]
Enter a gateway Name, Local IP Address, Public IP Address, and enable or disable NAT.
Note: If NAT is enabled, then Public IP Address should be entered.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
8
Gateway Configuration
In the SCM Administrator configure a new gateway at:
[Configuration> Gateway> IPX Setting> Gateway Configuration]
Basic Configuration tab
Enter the Profile Login ID, which should be the same as the Gateway Name. Then enter the Profile
Login Passcode (samsung*# by default). You don’t need to enter any IP addresses here. These fields are
not needed for this implementation.
Slot Configuration
There are 4 slots on the back of the gateway. This tells the SCM what is configured on each slot. On
the left side of the slot configuration tab, enter the slot and expansion configuration of the gateway.
Select the option cards and expansion cabinets installed in the gateway. After the installation is
complete, the actual states of slots and expansions will be updated on the right side.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
9
Expansion Private Configuration

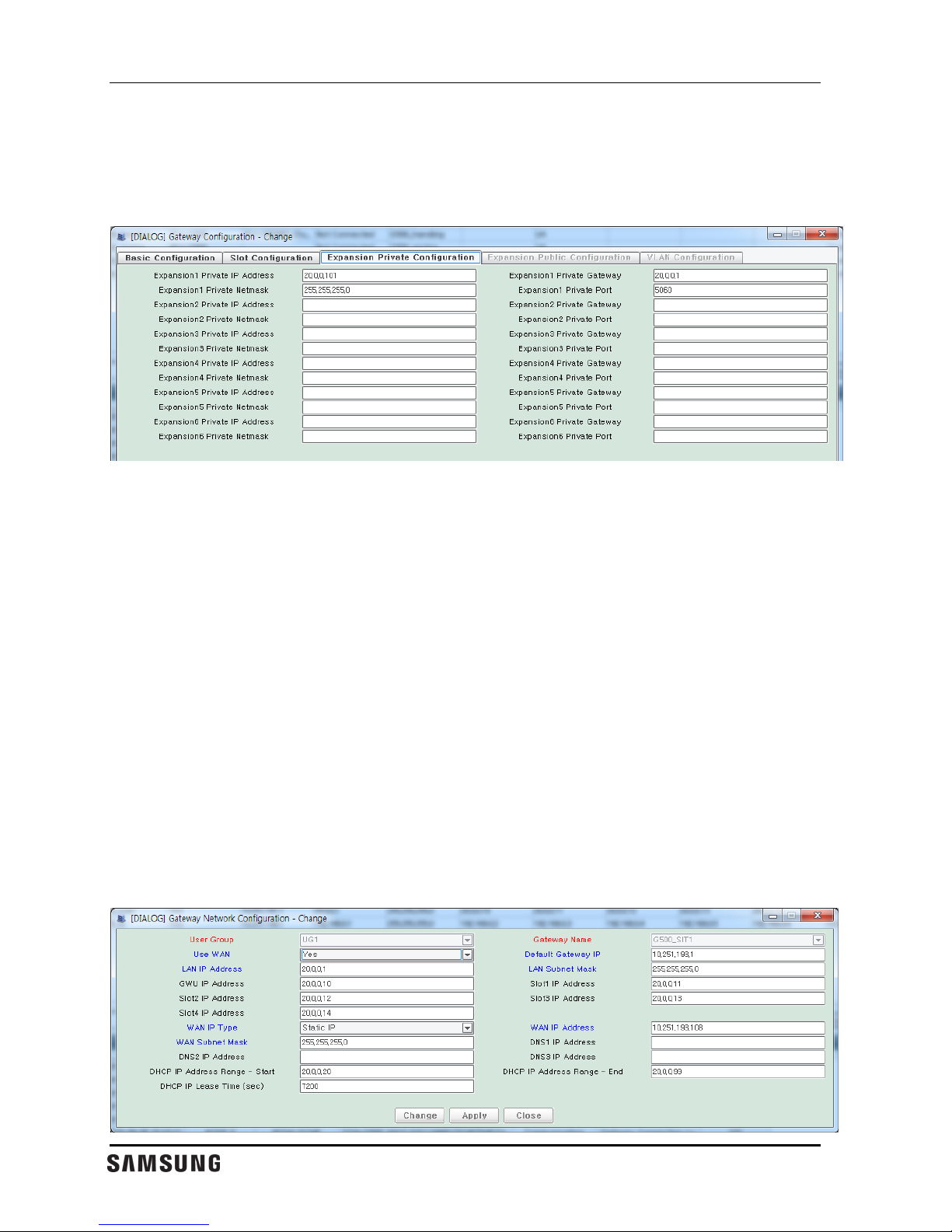

The SCM supports expansion analog gateways. This table sets up the analog line gateways that will
be provided with the new G5X0 gateway.
For multiple cabinet configurations, enter the IP address and ports of installed expansion cabinets.
Network Configuration
In the SCM Administrator, enter the network information for the gateway at:
[Configuration > Gateway > IPX Setting > Gateway Network Configuration]
Depending on whether you are using a WAN interface, set Use WAN to ‘Yes’ or ‘No’.
Then enter the Default Gateway IP, LAN IP Address, LAN Subnet Mask, and GWU IP Address.
The IPX-G500B has 2 internal hardware units, the CMU and GWU.
The LAN IP Address will be assigned to CMU and GWU IP Address will be assigned to the GWU board.
If you have optional universal cards, enter Slot IP Addresses for optional cards. (PRI cards need
individual IP addresses, etc.)
If you selected to Use WAN, enter WAN IP Address and WAN Subnet Mask.
The IPX-G5X0 Series has an internal DHCP server. If you want to connect another devices, for example
IP phones, to the LAN and want to receive IP addresses automatically, set the DHCP IP Address Range –
Start and DHCP IP Address Range –End. The DHCP lease time can also be specified in seconds using
the DHCP IP Lease Time field.
Note: The IPX-G500B has 2 GbE ports. If you want to use WAN/LAN, you must connect WAN to GbE
port 1 and LAN to GbE port 2. If you want to use LAN only, you can connect to any GbE port.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
10
Analog FXS Phone Users
Create an Analog FXS Phone User that will be assigned to the gateway in the SCM at:
[Configuration –User –Single Phone User]
If you already have existing FXS phone users, you may also use those.
Enter the Extension Number, Name, Application User ID, Application Password, Application User ID,
Authentication Password, Profile Login ID, Profile Login Passcode, and PIN Number.
The Phone Type should be set to ‘Analog-FXS-Phone’.
Assigning Analog Phones
Assign the created Analog FXS Phone to the Slot and Port of the gateway in the SCM at:
[Configuration –Gateway –IPX Setting –Gateway Analog Phone]

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
11
Create a Gateway Route
This table creates the SIP connection between the SCM and the Gateway for Signaling, Media and
security of the communication.
Create the route information for the new gateway in the SCM at [Configuration> Trunk Routing>
Route]

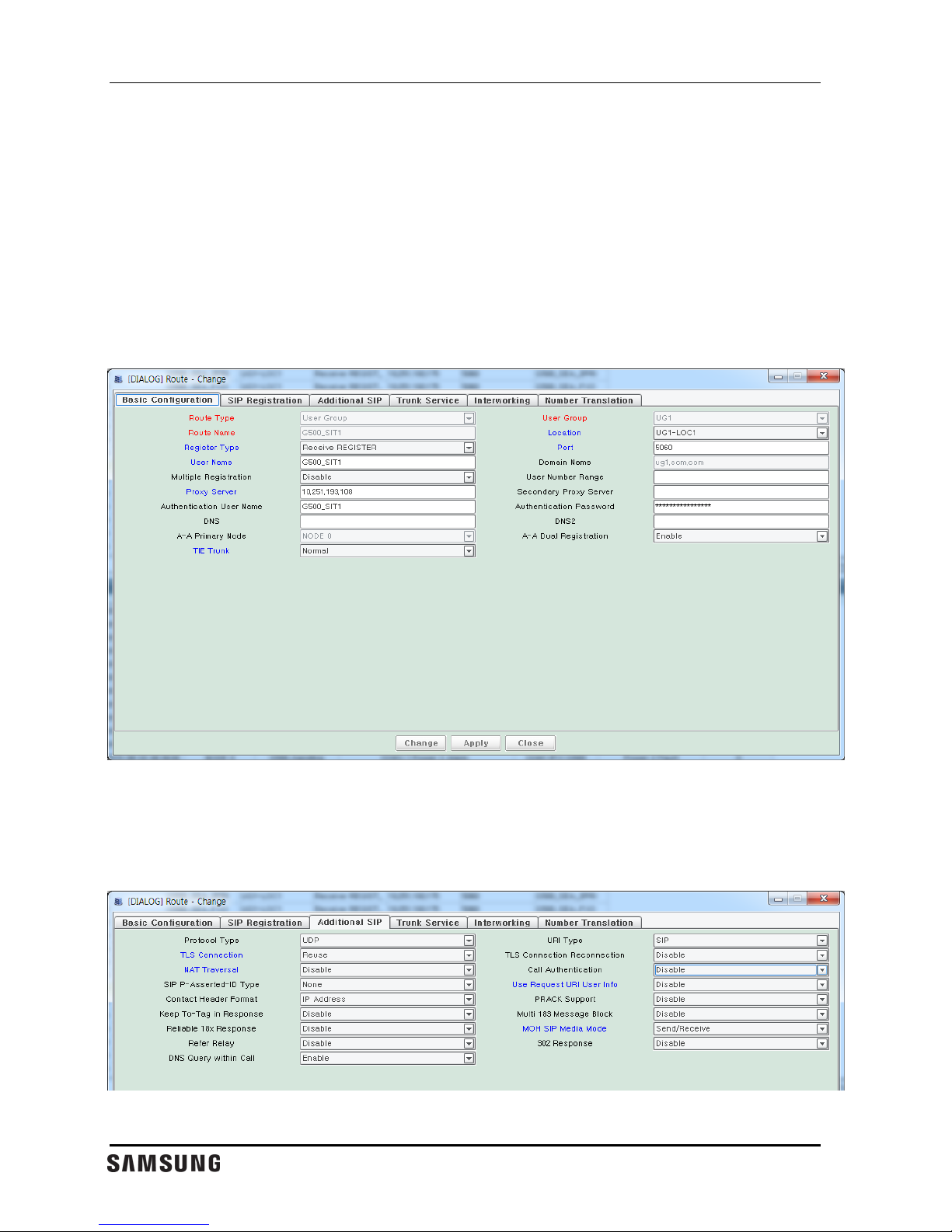

Basic configuration
Select Register Type and set to ‘Receive REGISTER’and enter port 5060.
The User Name should match the Gateway Name.
Enter the Gateway IP Address for Proxy Server, and also add the proper Authentication User Name and
Authentication Password.
Additional SIP
Under the Additional SIP tab, set the Call Authentication to ‘Disable’.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
12
FXO/SIP/PRI Trunk Routing
Create the appropriate route information for your FXO/SIP/PRI trunks attached to
the gateway in the SCM at: [Configuration –Trunk Routing - Route]
Basic Configuration
Set the Register Type to ‘Receive REGISTER’, and enter port 5060.
Enter a unique User Name for this trunk. This name must not be used elsewhere.
Then Enter the Gateway IP Address for Proxy Server, and also add the proper Authentication User
Name and Authentication Password. You can also set access code for this trunk route.
Additional SIP
Under the Additional SIP tab, set Call Authentication to ‘Disable’.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
13
Analog Trunk
If you have a FXO card configure Analog Trunks in the SCM Administrator at:
[Configuration –Gateway –IPX Setting –Gateway Analog Trunk]
Select the Gateway and press the Change button.
Select the slot you where your FXO card is installed.
Assign the created FXO Trunk Route to the Route Name.
Select other settings at this time, such as CID Receive Support and Ring Destination Number.
SIP Trunk
SIP Trunks are configured in the SCM Administrator at:
[Configuration –Gateway –IPX Setting –Gateway SIP Trunk]
The IPX-G5X0 Series supports up to 4 SIP carriers.
Note: SIP Servers must be entered as IP addresses. Domain Names are not supported at this time.

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
14
PRI Trunk
To use a 1PRI/2PRI card you have to configure it in the SCM Administrator at:
[Configuration –Gateway –IPX Setting –Gateway PRI Trunk]
Select the Gateway to edit and press the Change button.
Then select the Slot where the PRI card is installed.
Assign the created PRI Trunk Route to the Route Name and select the correct network mode
(TE : Terminal Mode or NT : Network Mode)

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
15
IPX-G5X0 Series Configuration
After SCM Configuration is completed begin the configuration of the IPX-G5X0 series gateway.
For the IPX-G500B (Base cabinet) you will have to set the IP Address of the base cabinet, the IP
Address of the SCM, and the Gateway Name.
For IPX-G520S/G540S you have to set the IP Address of the Expansion Cabinet and Sequence Number.
Connecting to the Serial Console
Use the following steps to connect to the serial console:
Connect a serial cable to the console port of the system.
Run a serial terminal program (I.E., PuTTY, etc.) on your PC and set the baud rate to 38,400.
The default login ID is: admin / The default Password is: samsung*#
Enter ‘cli’ to set up the basic gateway configuration.
Welcome to Samsung IPX-G500
IPT-NPU login: admin
Password: samsung*#
#############################################################
# #
# #
# Samsung IPTGW-CMU #
# #
# Enter 'cli' to set basic configuration #
# #
# #
#############################################################
S A M S U N G - I P T G W
---------------------------------------------------
admin@IPT-NPU:~#cli

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
16
IPX-G500B Basic Configuration
Once connected via serial to the IPX-G500B, you can enter your network information into the gateway.

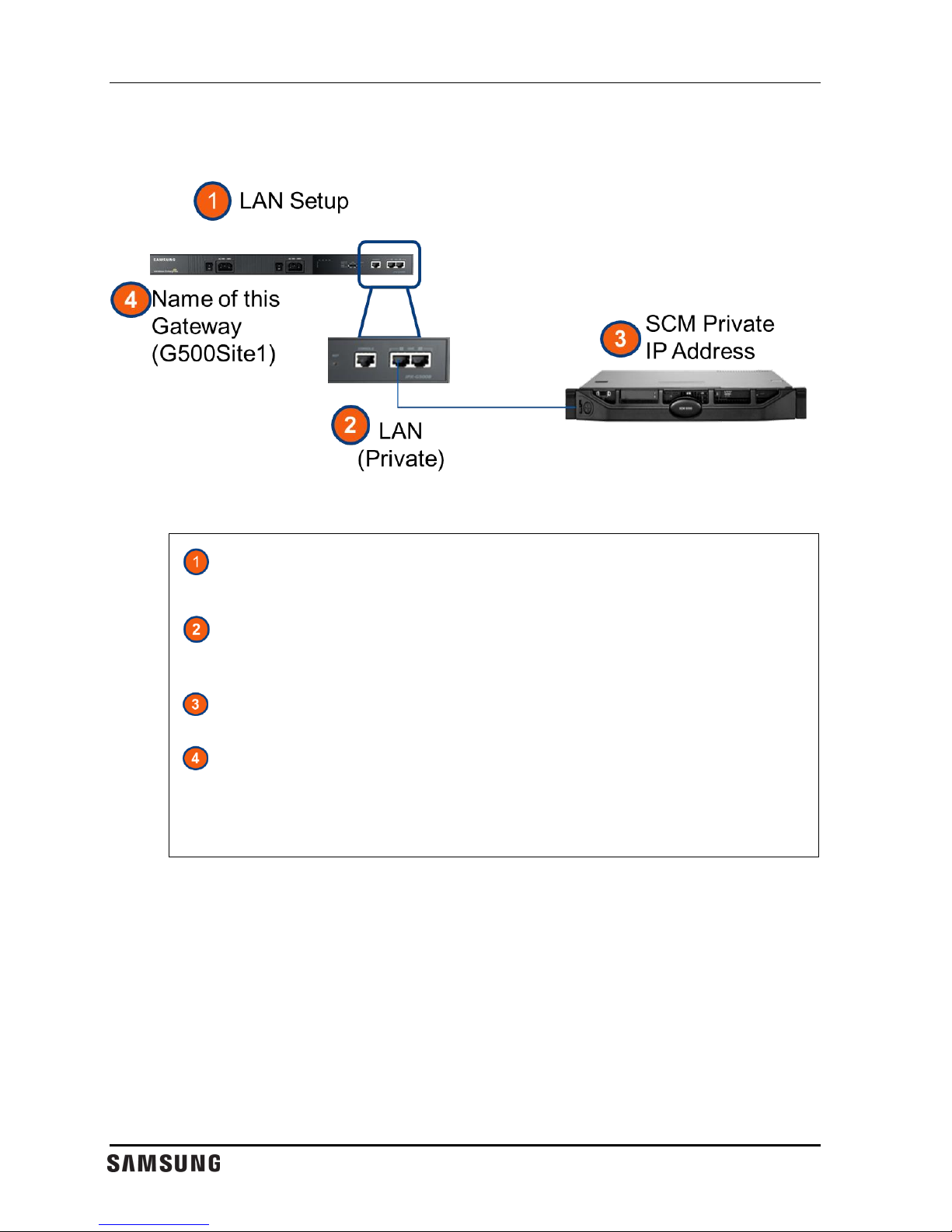

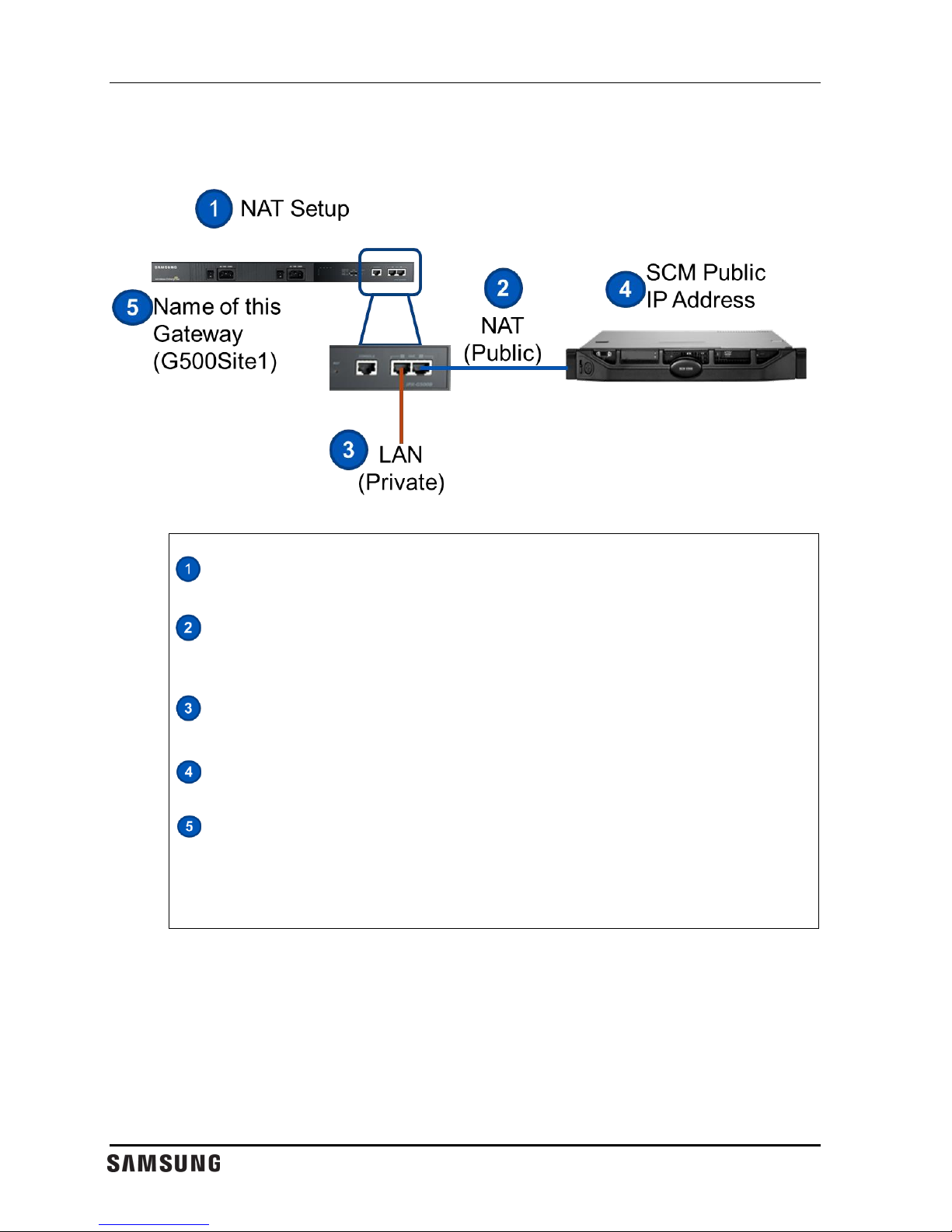

There are options to setup the gateway in a LAN or NAT configuration (see examples in the following
pages). Use the following steps to enter network information.
Select ‘1. Setup Basic Configuration’.
According to the prompt, select the network mode. LAN or NAT
If you select NAT:
Enter the WAN IP Address, Gateway and Subnet Mask of the IPX-G500B.
Enter the LAN IP Address, Gateway and Subnet Mask of the IPX-G500B.
If you select LAN:
Enter the LAN IP Address, Gateway and Subnet Mask of the IPX-G500B.
Enter the SCM Composite IP Address.
Enter the Gateway Name. This must match the Gateway Name in the SCM Configuration.
After all information is entered it will ask if you want to reset the system to apply the changes.
To reboot the system enter ‘yes’, otherwise enter ‘no’
###### Please enter network mode of this GW ######
1. Enter Networkmode [0:LAN / 1:NAT] (Enter Key : NAT) :
###### Please enter [WAN IP/Gateway/Subnet Mask] of this GW ######
1. Enter WAN IP Address (Enter Key : 10.251.0.10 ) :
2. Enter Gateway Address (Enter Key : 10.251.0.1 ) :
3. Enter WAN IP Subnet Mask (Enter Key : 255.255.255.0 ) :
###### Please enter [LAN IP/Subnet Mask] of this GW ######
1. Enter LAN IP Address (Enter Key : 192.168.0.1 ) :
2. Enter LAN IP Subnet Mask (Enter Key : 255.255.255.0 ) :
###### Please enter the IP Address of SCME ######
1. Enter SCME IP Address (Enter Key : 10.251.0.100 ) :
###### Please enter the name of this GW (Max 30char) ######
1. Enter Name of this GW (Enter Key : G500_default ) : G500Site1
End of Configuration. To apply it, please restart the system.
Do you want to restart? (yes/no) :

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
17
Example of [NAT]
###### Please enter network mode of this GW ######
1. Enter Networkmode [0:LAN / 1:NAT] (Enter Key : NAT) :
###### Please enter [WAN IP/Gateway/Subnet Mask] of this GW ######
1. Enter WAN IP Address (Enter Key : 10.251.0.10 ) :
2. Enter Gateway Address (Enter Key : 10.251.0.1 ) :
3. Enter WAN IP Subnet Mask (Enter Key : 255.255.255.0 ) :
###### Please enter [LAN IP/Subnet Mask] of this GW ######
1. Enter LAN IP Address (Enter Key : 192.168.0.1 ) :
2. Enter LAN IP Subnet Mask (Enter Key : 255.255.255.0 ) :
###### Please enter the IP Address of SCME ######
1. Enter SCME IP Address (Enter Key : 10.251.0.100 ) :
###### Please enter the name of this GW (Max 30char) ######
1. Enter Name of this GW (Enter Key : G500_default ) : G500Site1
End of Configuration. To apply it, please restart the system.
Do you want to restart? (yes/no) :

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
18
Example of [LAN]
###### Please enter network mode of this GW ######
1. Enter Networkmode [0:LAN / 1:NAT] (Enter Key : NAT) : 0
###### Please enter [LAN IP/Gateway/Subnet Mask] of this GW ######
1. Enter LAN IP Address (Enter Key : 192.168.0.10 ) :
2. Enter Gateway Address (Enter Key : 192.168.0.1 ) :
3. Enter Subnet Mask (Enter Key : 255.255.255.0 ) :
###### Please enter the IP Address of SCME ######
1. Enter SCME IP Address (Enter Key : 192.168.0.100 ) :
###### Please enter the name of this GW (Max 30char) ######
1. Enter Name of this GW (Enter Key : G500_default ) :
End of Configuration. To apply it, please restart the system.
Do you want to restart? (yes/no) :

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
19
IPX-G520S/G540S (ECU) Basic Configuration
Use the following steps to connect to the serial console:
Connect a serial cable to the console port of the system.
Run a serial terminal program (I.E., PuTTY, etc.) on your PC and set the baud rate to 38,400.
The default login ID is: admin / The default Password is: samsung*#
Enter ‘cli’ to set up the basic gateway configuration.
Select ‘1. Setup basic configuration’.
Following the prompts enter the IP Address of the ECU, Gateway IP Address, and Subnet Mask.
Enter the LAN IP Address of the main IPX-G500B, which this expansion cabinet will be connected to.
Note: The IPX-G520S/G540S LAN port should be connected to the same LAN network as the IPX0-G500.
Assign the sequence number from 1 to 6 for this expansion cabinet. It should be unique for each
gateway.
After all information is entered it will ask if you want to reset the system to apply the changes.
To reboot the system enter ‘yes’, otherwise enter ‘no’
###### Please enter [IP/Gateway/Subnet Mask] of this ECU ######
1. Enter ECU IP Address (Enter Key : 10.251.0.11 ) :
2. Enter Gateway Address (Enter Key : 10.251.0.1 ) :
3. Enter Subnet Mask (Enter Key : 255.255.255.0 ) :
###### Please enter the IP Address of CMU ######
1. Enter CMU IP Address (Enter Key : 10.251.0.10 ) :
1. Enter this ECU number (Enter Key : 1) :
End of Configuration. To apply it, please restart the system.
Do you want to restart? (yes/no) :

SAMSUNG IPX-G5X0 Installation Manual v1.0 Mar 2016
20
Update Software
Update via SCM Administrator
You can upload and update the IPX-G5X0 series software using the GUI of the SCM
Administrator.
File Upload

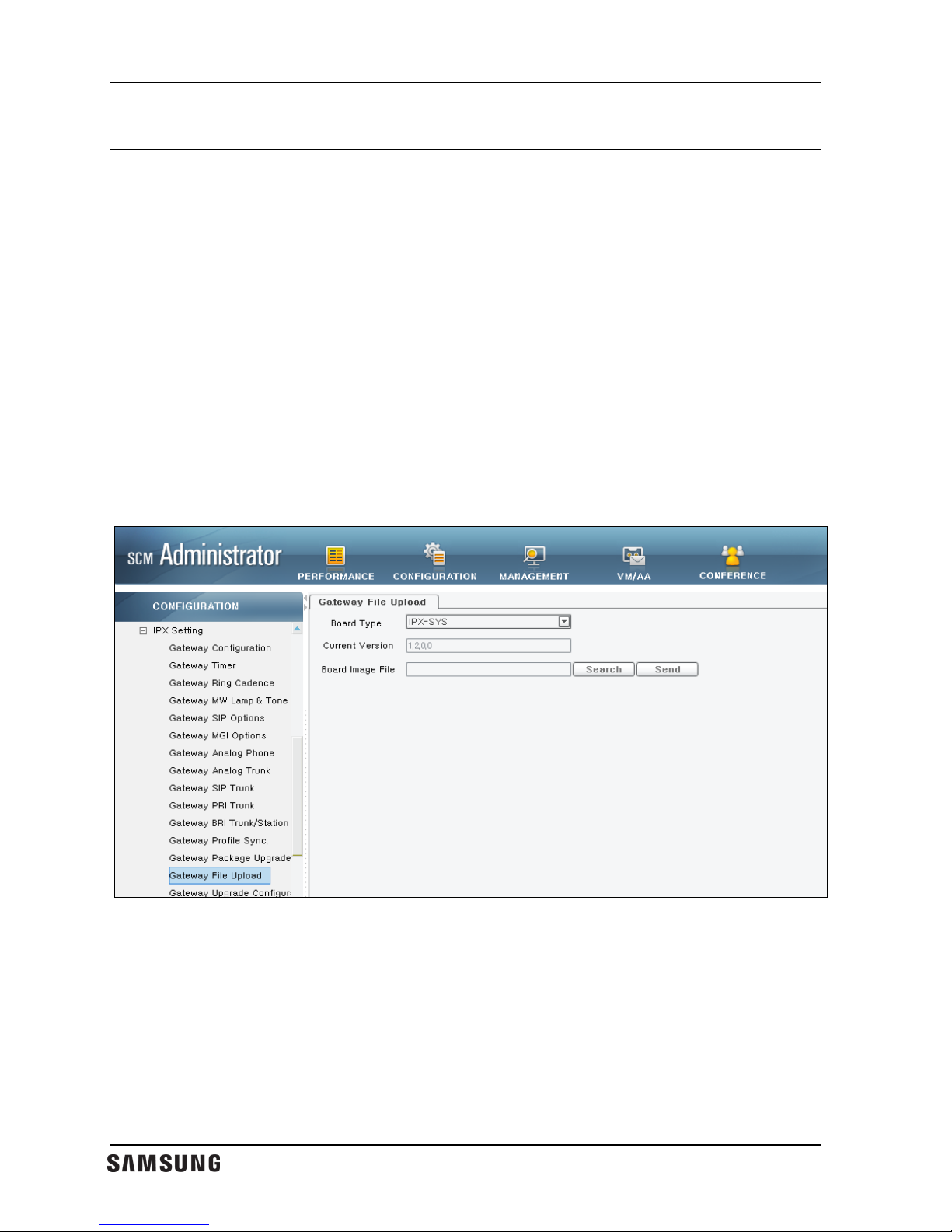

Before updating the gateway software you have to upload the software to the SCM.
You can upload it at: [Configuration –Gateway –IPX Setting –Gateway File Upload]
Select the Board Type and press the Search button to browse your file system for the gateway
software. Select the gateway software then press the Send button to upload it.
Example Board Types:
IPX-SYS = IPX-G500B software
IPX-ECU = IPX-G520S/G540S software
IPX-PRI = 1PRI/2PRI card software
