Samsung MIM-B17 User manual

Data Management Server2
MIM-D00A
BACnet Gateway
MIM-B17
LonWorks Gateway
MIM-B18
Air Conditioner
user manual
DB98-33388A(1)
E
imagine the possibilities
Thank you for purchasing this Samsung product.
MIM-D00A_DMS2_IB_E 33388-1.indd 165 2011-02-17 오후 1:12:02

E-2
Safety Precautions
 Do not attempt to install or repair this DMS2 by yourself.
 This DMS2 contains no user-serviceable parts.
Always consult authorized service personnel for repairs.
 When moving, consult authorized service personnel for
disconnection and installation of the DMS2.
 Ensure that the wall is strong enough to support the
weight of the DMS2.
 Must install the DMS2 with rated power supply.
 In the event of a malfunction (burning smell, etc.),
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
WARNING
CAUTION
 Do not use inflammable gases near the DMS2.
 Do not spill water into the DMS2.
 Do not operate the DMS2 with wet hands.
 Do not install the DMS2 in a location where it will come
into contact with the combustible gases, machine oil,
sulphide gas, etc.
 Do not press buttons with a pointed thing.
 Do not pull or bend the DMS2 cable excessively.
 Do not use this DMS2 for other purpose.
 Do not spray an insecticide or other combustible things
on the DMS2.
 Do not clean the DMS2 with benzene, solvents or other
chemicals.
 Do not give a shock to the DMS2 or disassemble it by
yourself.
• Before using the DMS2, read carefully these instructions.
• After reading the instructions, keep this user's manual in a handy and safe place.
If a user is changed, you must hand over the manuals.
• Never attempt to install the air conditioning system or to move the DMS2 by yourself.
MIM-D00A_DMS2_IB_E 33388-1.indd 2 2011-02-17 오후 1:11:25

E-3
Contents

General Description
....................................................... 4

ViewinG the parts
........................................................... 6

Before Use
...................................................................... 8

Main fUnction
............................................................. 10


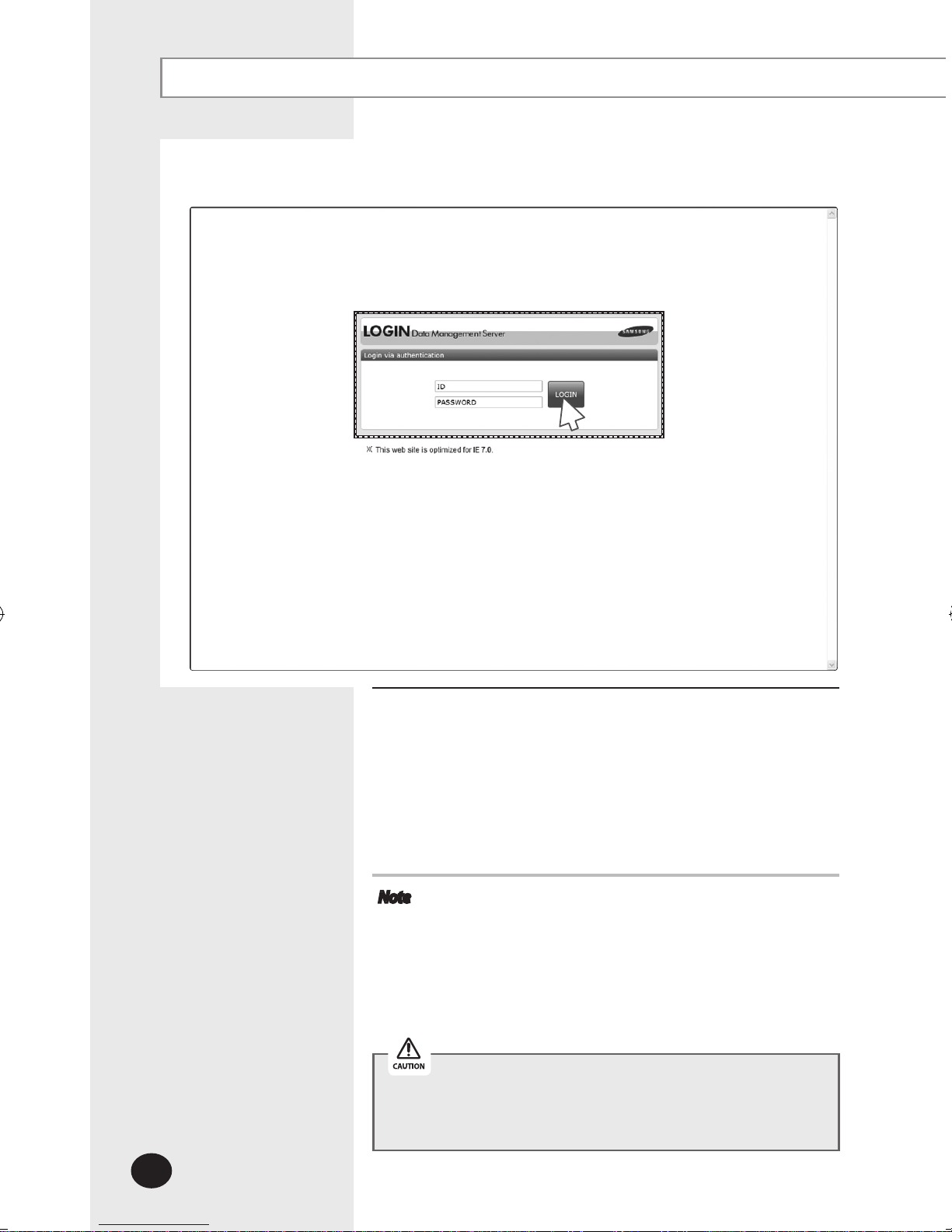

startinG DMs2
........................................................... 14


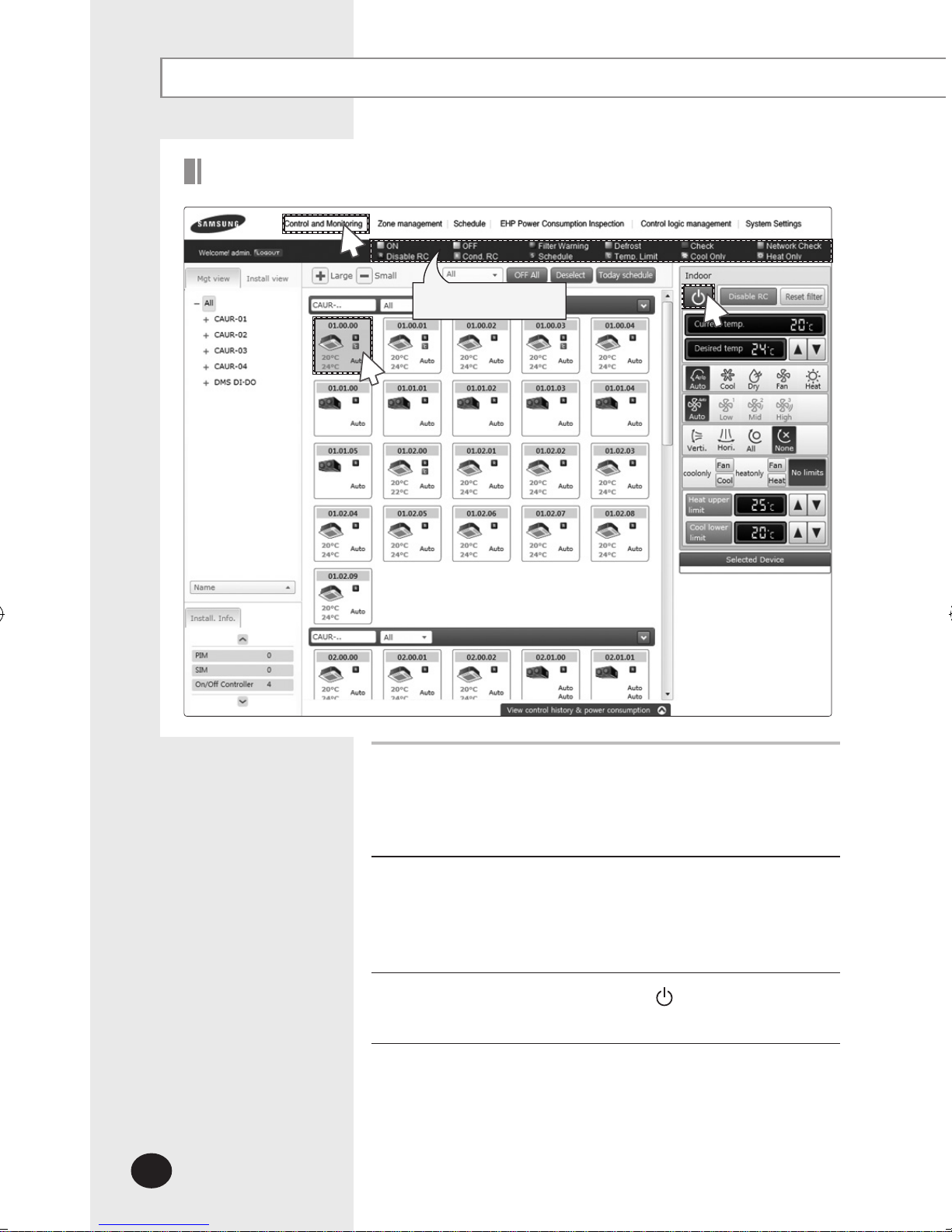

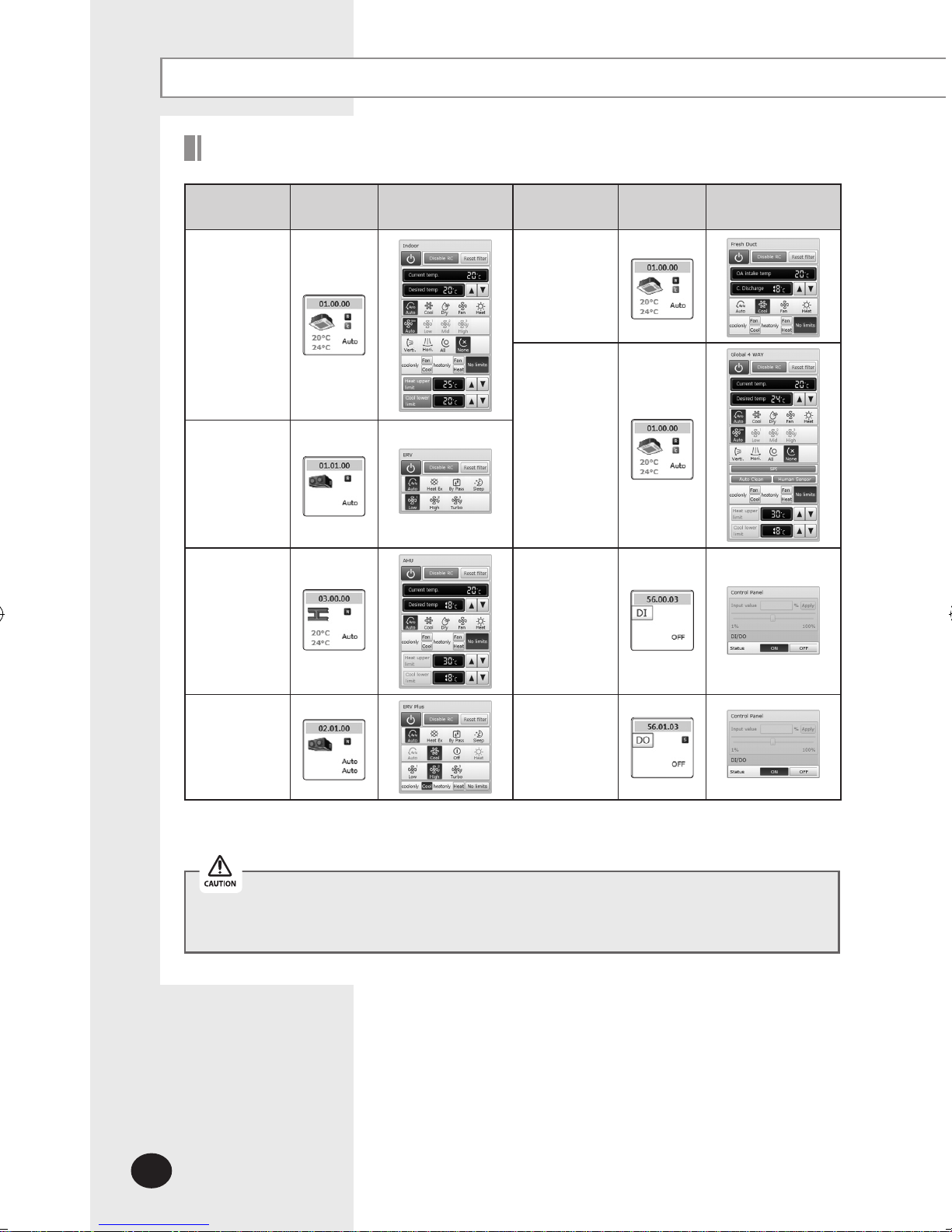

control anD MonitorinG
............................................. 18

Zone ManaGeMent
....................................................... 59

scheDUle
..................................................................... 64

ehp power consUMption inspection
............................ 74

control loGic ManaGeMent
........................................ 85

systeM settinGs
........................................................... 98

check Before UsinG panel
.......................................... 147

settinG network inforMation
................................... 148

checkinG inDoor/oUtDoor Unit inforMation
............ 150

checkinG DMs2 Version
............................................ 151

Data BackUp settinG
................................................. 154

checkinG error inforMation
..................................... 156

reset passworD
......................................................... 157

BUtton lock
.............................................................. 158

safety halt
............................................................... 159

troUBleshootinG
....................................................... 160

specifications
............................................................ 162

license
....................................................................... 163
Note  The contents and pictures used in this user manual
may be changed without advance notice for the
functional reinforcement and improvement of a
product.
MIM-D00A_DMS2_IB_E 33388-1.indd 3 2011-02-17 오후 1:11:25

E-4
General Description
The DMS2 is an Internet based device for central management of Samsung system
air-conditioners. It supports LAN & WAN and operates 24 hours without a separate PC.
Introduction of DMS2 (Data Management Server2)
The DMS2 provides the following advantages:
 Everyday Device–The DMS2 is operational all year long 24 hours.
 Independent Operation–The DMS2 can operate schedule control and power distribution
without a PC.
Note In order to run power distribution, relevant controllers need to be installed.
 Internet Control
 Web – The DMS2 has a built-in web server function and can be accessed from a
remote location to operate status
monitoring, control, trouble history, and schedule setting of the system
air-conditioners.
 Using an Upper Level Controller–When a separate upper level controller (S-NET
series) is used, a number of DMS2 can be controlled with one central management
system.
 Data Storage–The DMS2 has its own database built-in, therefore, trouble history,
indoor unit installation information, and power distribution data can be saved and
retrieved.
 Large Scale Management–At most 256 indoor units can be connected to one DMS2
and therefore, only one DMS2 can manage small and medium size buildings.
 Automatic ”e-mail” sending–When an error is occurred, inform the error details to an
e-mail saved on DMS2.
Advantages of DMS2 System
MIM-D00A_DMS2_IB_E 33388-1.indd 4 2011-02-17 오후 1:11:25

E-5
General Description
 DMS2: The abbreviation of Data Management Server2.
 Upper Controller: It means S-NET Series, a local controller of the DVM system.
S-NET 3, S-NET mini and RMS are linked to a DMS2.
 Centralized Controller: A device that controls 16 groups of the DVM air conditioner.
A central control device of a DVM system which is located
between a DMS2 and an outdoor unit interface module.
 Interface module: A data interface module of a DVM system which is located between
a central controller and an outdoor unit.
 AHU(Air Handling Unit): Excutes heat exchange between air and cooling unit using
central air conditioning duct method.
 ERV(Energy Recovery Ventilator): Ventilating system using heat recovery function.
Terms
MIM-D00A_DMS2_IB_E 33388-1.indd 5 2011-02-17 오후 1:11:25

E-6
Viewing the Parts
Front View
No. Name Description

LCD Display Display current time/ Check menu

Menu button Access to main menu
▼/▲ button Select the function you want and set detailed functions in
main menu
Set button Check the function you want from main menu
and select it

Bottom cover Unfasten 2 screws on the bottom and separate the bottom
cover from DMS2. Then check cable connection part.



Name Description
Power Turns blue when the power is supplied.
CPU Alive Blinks in orange with 1 second intervals during normal
operation.
Ethernet–Linked Turns green during normal connection.
Ethernet–Active Blinks in orange during normal transmission/reception.
COM1~5 – TX Blinks in green during normal transmission.
COM1~5 – RX Blinks in green during normal reception.
Check Turns green when notice occurs.
Indicator
MIM-D00A_DMS2_IB_E 33388-1.indd 6 2011-02-17 오후 1:11:26

E-7
Viewing the Parts
DI Terminal1
Connect Digital Input
- Channel 1~Channel 5
DI Terminal2
Connect Digital Input
- Channel 6~Channel10
DO Terminal 2
Connect Digital Output
- Channel 6~Channel 10
DO Terminal1
Connect Digital Output
- Channel 1~Channel 5
Power
Terminal
Connect
DMS2 adapter
Reset Button
Reset DMS2
RS485
Communication
terminal
Connect for RS485
communication
with devices such as
centralized controller/
interface module
- COM1 ~ COM5
Cable tie groove
Arrange cables connected to
DMS2
LAN Terminal
Connect LAN cable
Serial Terminal
Service agent checks error
status
SD Card Socket
Socket for sub memory (SD or MMC)
( Sub memory is for DMS2 program update and set
information saving)
※ Purchase SD card separately.
 Separate bottom cover by unfastening 2 screws on the bottom.
Bottom View
MIM-D00A_DMS2_IB_E 33388-1.indd 7 2011-02-17 오후 1:11:26

E-8
 Connecting centralized controller and DMS2 (ⓐ type )
You can control up to 16 centralized controllers and 256 indoor units using DMS2.
 Connecting interface module and DMS2 (ⓑ type)
- You can control up to 80 interface modules and 256 indoor units using DMS2.
※ 16 interface modules can be connected to RS485 communication channel of DMS2.
- The more interface modules are connected, the longer time takes for tracking.
S-NET mini
Centralized
controller
DMS2
Internet
S-NET 3
Interface module
ⓐ ⓑ
Interface module Interface module
Before Use
System Configuration
MIM-D00A_DMS2_IB_E 33388-1.indd 8 2011-02-17 오후 1:11:27

E-9
Before Use
 Install Windows XP SP2, Windows 2000 SP4 or later version
 Install Internet Explorer 7.0 or later version
※ You can use Internet Explorer 6.0 but it is not recommended.
 Install Silverlight 2.0 or later version
Web Browser Specification

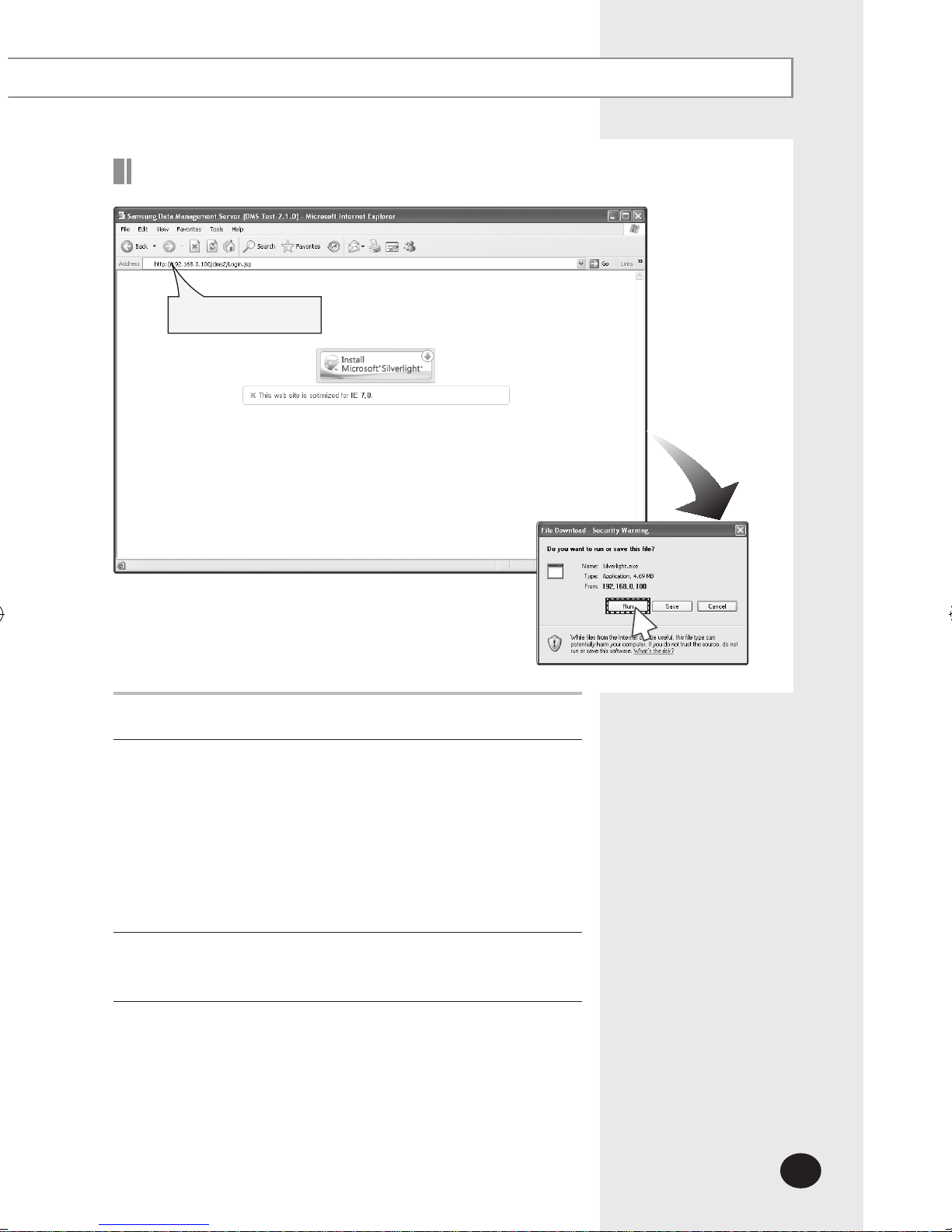

Note  Visit internet homepage (http://www.microsoft.
com/silverlight/) to download Silverlight. Or you can
download it through the download link which is noticed
automatically when the PC is connected to the Internet
and you access to DMS2 for the first time.
 Silverlight operates normally with Windows XP SP2 or
later version.
It may not operate normally with former version of
Windows.
All settings of DMS2 will be arranged in web page which built in
DMS2.
You should access to DMS2 IP to use DMS2 web page.
There are 2 ways to access DMS2 IP.
(For about settings, refer to installation manual.)
 Static IP setting
 Dynamic IP(DHCP) setting
Computer Settings for DMS2 Connection
 When connecting centralized controller and interface module to the DMS2 of same
communication channel, only one of them will communicate according to the
communication channel mode setting of [System Settings][Tracking].
Therefore, do not connect the centralized controller and interface module to the same
communication channel.
 If you set the communication channel mode as interface module, virtual centralized
controller address will be assigned. Therefore if you connect centralized controller
at the same time and set the address as virtual centralized controller address, it may
cause trouble for bringing device information.
Channel 0: Virtual centralized controller 11,
Channel 1: Virtual centralized controller 12,
Channel 2: Virtual centralized controller 13,
Channel 4: Virtual centralized controller 14,
Channel 5: Virtual centralized controller 15
MIM-D00A_DMS2_IB_E 33388-1.indd 9 2011-02-17 오후 1:11:27

E-10
Device Type
Indoor Unit
Indoor unit communication error
Indoor unit sensor related error
Other errors
Outdoor Unit
Outdoor unit communication error
Pipe inspection error
Outdoor unit sensor related error
Outdoor unit related other errors
Communication error
such as centralized controller
Option device related communication
error
Main Function
The DMS2 saves at most 1024 cases of trouble history.
If the number of errors exceeds 1024, only the latest 1024 cases
are stored by deleting the oldest trouble history.
 Device name, address, error occurrence time, error solvation
time, trouble history will be saved. You can check it in web
page or upper controller.
 When an error occurs, it sends trouble history to e-mail saved
in DMS2.
Save Trouble History
The DMS2 receives/manages setting and control data from the
upper level controller and sends the received data to the lower
level system.
 The upper level controllers of the DMS2 are the S-NET series
and the connectible S-NET series are S-NET 3, S-NET mini and
RMS.
 S-NET 3: System air conditioner controlling and monitoring
program that is used by installing on a PC.
 S-NET mini: System air conditioner controlling and monitoring
device with touchscreen
 RMS: A device which supervises operation status and break
down status by connecting to DMS2 for system air
conditioner remote service. If break down is detected,
it notifies service agent and makes fast service possible.
Interface with Upper Level Controller
MIM-D00A_DMS2_IB_E 33388-1.indd 10 2011-02-17 오후 1:11:27

E-11
Item Content Remark
Schedule Period Starting and ending date of a schedule
Exception Day
Setup
Set an exception day within a schedule period to
ignore the schedule control
Devices to
be applied Select devices to receive schedule control
Event
Set indoor unit operation modes
- Device On time
- Device O time
- Desired temperature
- Operation mode: Auto/Cool/Dry/Fan/Heat/O
- Remote control usage Enable RC/ Disable RC/
Cond.RC
- Fan speed: Auto/Low/Mid/High
- Air ow: None/Vertical/Horizontal/All
- ERV operation mode: Auto/HeatEx/ByPass/Sleep
- ERV Fan speed: Low/High/Turbo
Weekly Repeat:
Maximum 10 events
per day
Daily Repeat:
Maximum 70 events
Main Function
The schedule function of the DMS2 can be set through the Web
or using the upper level controller. 1day/Everyday/Every week
schedules can be set.
 Each schedule can be used selectively by using the run
schedule/stop schedule order.
 At most 256 schedules can be set.
 Indoor unit control is possible at least 1 minute of interval by
set schedule.
Set and Run Schedule
MIM-D00A_DMS2_IB_E 33388-1.indd 11 2011-02-17 오후 1:11:27

E-12
System Architecture
S-NET 3
Centralized controller SIM /PIM
DMS2
Internet
Web Client
Watt-hour meter
Up to
8 units
SIM /PIM
Up to
8 units
Up to
8 units
Watt-hour meter
The DMS2 calculates and distributes the power consumed by each indoor unit by
receiving the total power usage from the watt-hour meter interface modules (SIM/PIM)
and taking into account the operation status of the indoor units.
The DMS2 saves at most 1 year of data. After a year, the oldest data is deleted and
the latest data is saved. This data can be checked through the built-in Web page of
the DMS2 or by S-NET 3.
Save Integrated Power Distribution Data
Main Function (Continued)
MIM-D00A_DMS2_IB_E 33388-1.indd 12 2011-02-17 오후 1:11:28

E-13
 Time segmentation is used to divide 24 hours into different sections and to distribute
power according to each section.
 This function is used when the power consumption fee is different according to
different time slots or when a building is charged differently depending on the
consumption time.
 1 section (A) is set as 24hours, and the factory default setting is set as 1 section.
The time, 24hours, can also be divided into 2 sections (A,B,A), 3 sections (A,B,C,A) or
4 sections (A,B,C,D,A)
 DMS2 shows the result of the power distribution for each section you set.
Input manually (When setting 2 sections, 3sections, and 4sections)
Time Segmentation
Main Function (Continued)
If communication error occurs between DMS and the lower level controllers,
actual power consumption and the result of power distribution value may not be
same. Make sure to solve communication error status.
- Communication error example : Between DMS2 and SIM/PIM
Between SIM/PIM and Watt-hour meter
Between DMS2 and Centralized controller
Between Centralized controller and interface
module
Between Interface module and indoor/outdoor
units Between DMS2 and interface module
MIM-D00A_DMS2_IB_E 33388-1.indd 13 2011-02-17 오후 1:11:28

E-14
Set the current time of DMS2 system.
 “2009/01/01 01:01:01” is factory setting. Set the current time as DMS2 system time.
You can set DMS2 time in [System Settings]  [System environment setting]
(Refer to page 118~119)
Starting DMS2
Current time setting
(1) Make sure that centralized controller communication cables(C1, C2) or interface module
communication cables(R1, R2) are connected.
 For communication between DMS2 and centralized controller/interface module,
centralized controller communication cable(C1, C2) or interface module
communication cable(R1, R2) should be connected.
(2) Execute tracking.
 DMS2 communicates with centralized controller and interface module and
brings information about installed indoor unit and outdoor unit.
 After tracking, you can use indoor unit control and other menu.
 For tracking, refer to [System Settings]  [Tracking] (Refer to page 134~144)
Connecting centralized controller & interface module
Starting DMS2
If DMS2 time does not set as the current time, DMS2 may cause malfunction when
using Schedule or control logic management.
MIM-D00A_DMS2_IB_E 33388-1.indd 14 2011-02-17 오후 1:11:29

E-15
Starting DMS2
Access to DMS2 & Login
Address bar
1Run internet explorer on your computer.
2Enter IP address (http://192.168.0.100) on the address bar,
and then press [ENTER].
 If it is the first access to DMS2, “Install Microsoft Silverlight”
message will be displayed.
- The message will not appear if Microsoft Silverlight have
already installed.
If the message window and login screen does not
appear, check PC setting status.
3Click [Run] and continue installation.
 Access to DMS2 again after installation.
3
MIM-D00A_DMS2_IB_E 33388-1.indd 15 2011-02-17 오후 1:11:29

E-16
Starting DMS2 (Continued)
4Enter ID and password when DMS2 main web page appears.
Then click [LOGIN].
 The default DMS2 user ID is 'admin' and password is '1234'.
 Depending on authorization settings which set by the
administrator, access to some functions may be restricted.
 To edit user authorization, refer to [System Settings]
[User authorization management]. (Refer to page 101)
Note  Only authorized users can access to web page.
 Fewer than 5 concurrent users are recommended
because connection speed may slow down.
 DMS2 manager should change ID and password for
security and management. (Refer to page 99)
 Logout: To log out, click [LOGOUT] on the top of the
menu.
Silverlight will run normally with Windows XP SP2 or later
version. With former version of Windows, DMS2 may not
operate normally.
4
MIM-D00A_DMS2_IB_E 33388-1.indd 16 2011-02-17 오후 1:11:29

E-17
Starting DMS2 (Continued)

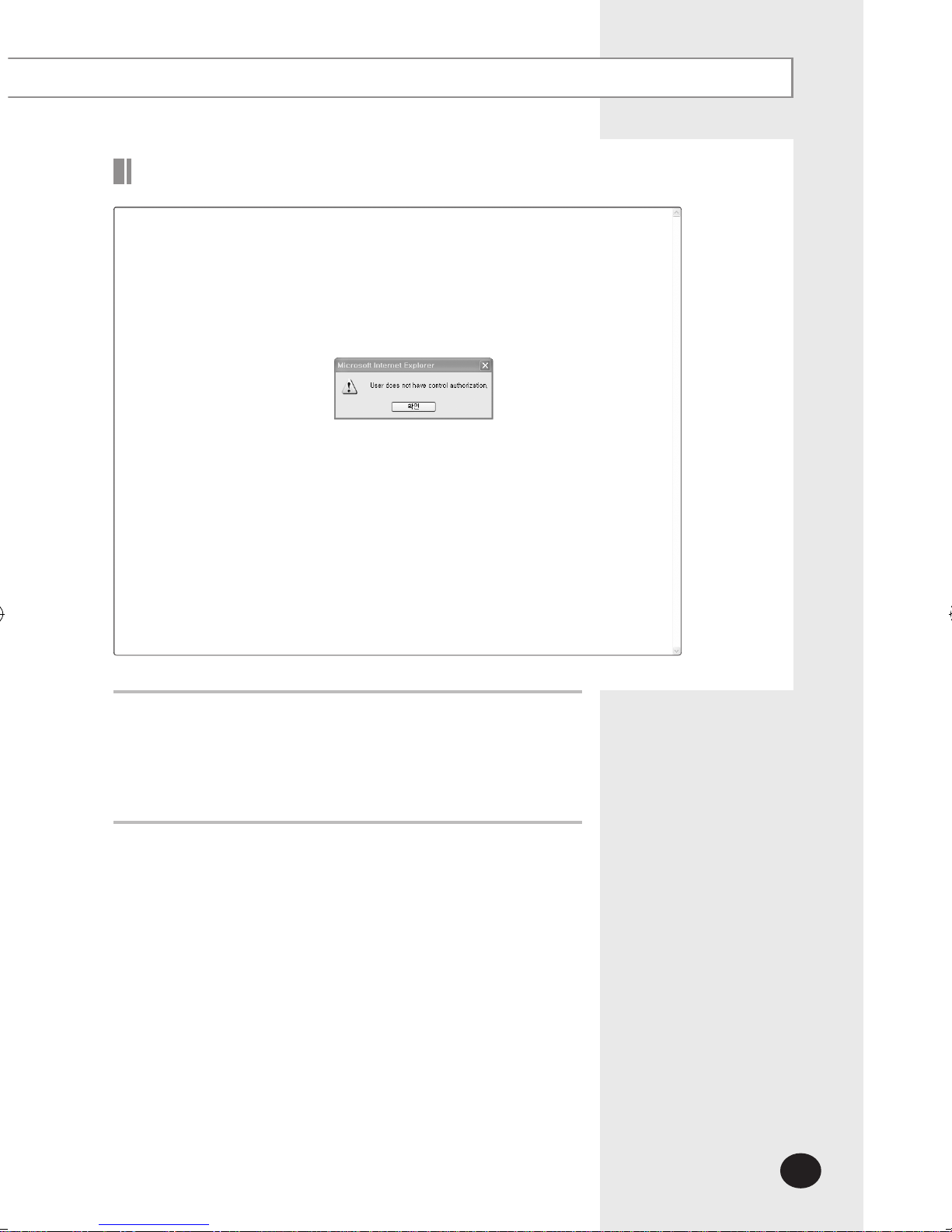

Logged-in User with No Authorization
1When the screen above appears, ask for manager.
 Depending on control authorization setting, there can be
a user who does not have control authorization.
 Above screen will appear when the logged-in user does
not have control authorization.
MIM-D00A_DMS2_IB_E 33388-1.indd 17 2011-02-17 오후 1:11:29

E-18
Devices controlled and monitored by DMS2
Control and Monitoring
When users select multiple devices, 'Basic Control' will be displayed on the screen.
(This is when different types of multiple devices are selected.)
Type Display Remote controller
(Controlling range) Type Display Remote controller (Controlling range)
Indoor unit
display icon
Fresh duct
display icon
Global 4 way
display icon
ERV
display icon
AHU
display icon
DI
(Digital Input)
display icon
ERV PLUS
display icon
DO
(Digital Output)
display icon
DMS2 can control and monitor the devices in the above table.
MIM-D00A_DMS2_IB_E 33388-1.indd 18 2011-02-17 오후 1:11:29

Control and Monitoring
Monitoring Indoor Unit Operation Status
1
1Click [Control and Monitoring] when DMS2 web page menu screen appears.
 [Control and Monitoring] screen will appear when you log-in to DMS2 web page.
2Check the current status of all devices.
 You can check the current controlling status of all installed indoor units, ERV, AHU,
ERV PLUS, Fresh duct, Global 4 Way, and other devices.
Note  When the advanced functions (such as Sleep mode, Energy saving function) are
selected through wired/wireless remote controllers or indoor unit panel,
set operation mode on the remote controllers and DMS2 may be displayed
differently. Also, when controlling by DMS2, additional functions will be canceled.
 Depending on the model of indoor unit, Horizontal/All air flow direction control
may not be possible. In this case, vertical or fixed flow will be displayed depending
on indoor unit’s basic operation specification.
 AHU, ERV, ERV PLUS, Global 4 Way, Fresh duct, Lighting, and other devices will be
displayed only when the corresponding devices are installed.
2
Some functions available on DMS2 webpage may not be functional at BACnet
Gateway and LonWorks Gateway. For detailed function, refer to the installation
manual or contact Samsung Electronics.
E-19
MIM-D00A_DMS2_IB_E 33388-1.indd 19 2011-02-17 오후 1:11:30

E-20
Controlling an Indoor Unit
Control and Monitoring (Continued)
1Click [Control and Monitoring] when DMS2 web page menu
screen appears.
 [Control and Monitoring] screen will appear when you
log-in to DMS2 web page.
2Select an indoor unit to control.
 Check the indoor unit status through status display window.
 When the selected indoor unit is switched on, the remote
controller panel will be automatically activated.
3Turn the indoor unit on by clicking [ ].
 Remote controller panel will be activated.
1
Status display window
3
2
MIM-D00A_DMS2_IB_E 33388-1.indd 20 2011-02-17 오후 1:11:30
