installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
EN
DB68-03720A(1)
LonWorksGateway
MIM-B18N
This manual is made with 100% recycled paper.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG^Z YWXZTW[TY\GGG㝘㤸GXWaX]aZ^

E-2
Safety Precautions
XRead carefully this installation manual before
installation and check if the LonWorks Gateway is
installed correctly after installation.
XDo not attempt to install or repair this LonWorks Gateway
by yourself.
XThis LonWorks Gateway contains no user-serviceable
parts. Always consult authorized service personnel for
repairs.
XWhen moving, consult authorized service personnel for
disconnection and installation of the LonWorks Gateway.
XEnsure that the wall is strong enough to support the
weight of the LonWorks Gateway.
XMust install the LonWorks Gateway with rated power
supply.
XThe LonWorks Gateway must be installed according to
the national electrical rules by an installation specialist.
XIf you wish to uninstall the LonWorks Gateway, consult an
authorized installation center.
WARNING
CAUTION XDo not use inflammable gases near the LonWorks
Gateway.
XDo not install the LonWorks Gateway in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
XAvoid locations where acid/alkali solution or special
spray is used.
XChoose a location that is dry and sunny, but not exposed
to direct sunlight. Suitable temperature is between
0°C(32°F) and 39°C(102.2°F).
XDo not spill water into the LonWorks Gateway.
XDo not apply tensile strength to the cable to avoid cable
damage.
XDo not press the buttons with a sharp object.
XDo not connect the power cable to the control terminal.
XIf the LonWorks Gateway is installed in a hospital or
other special places, it should not affect other electronic
devices.
This installation manual describes how to install the LonWorks Gateway. For installation
of other optional accessories, refer to the appropriate installation manual.
K  LonWorks, LONand Lontalkare registered trademarks of
Echelon Corporation.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGY YWXZTW[TY\GGG㝘㤸GXWaX]aX_

E-3
Contents
XSAFETY PRECAUTIONS .......................................................... 2
XBEFORE INSTALLING THE LONWORKS GATEWAY ......................... 4
XACCESSORIES ...................................................................... 5
XVIEWING THE PARTS ............................................................ 6
XPRODUCT DIMENSIONS ......................................................... 8
XSYSTEM ARCHITECTURE ........................................................ 9
XCOMPATIBLE DEVICES ....................................................... 10
XINSTALLING THE LONWORKS GATEWAY ................................. 12
XSETTING THE LONWORKS GATEWAY ..................................... 20
XREADING EHP WATT-HOUR METER ..................................... 25
XSYSTEM SETTING INITIALIZATION .......................................... 30
XSYSTEM ENVIRONMENT SETTING .......................................... 31
XTRACKING ....................................................................... 44
XDEVICE CONFIGURATION .................................................... 50
XOVERVIEW FOR FUNCTION .................................................. 56
XNETWORK PARAMETER CHART ............................................ 58
XMESSAGE DEFINITION ....................................................... 60
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGZ YWXZTW[TY\GGG㝘㤸GXWaX]aX_

E-4
Checks before installation
1LonWorks Gateway IP
XA public IP is needed to access the LonWorks Gateway
over the internet.
(One public IP is needed for each LonWorks Gateway)
XA private IP may be used if the LonWorks Gateway need
not be accessed over the internet.
2Network related equipments
3Installation connection wire
XThe LAN cable and the communication cables from
centralized controllers/interface modules must be
installed in such a way that the wires can be connected
to the LonWorks Gateway with ease.
Note XThe LonWorks Gateway is a server and supports
static IP. To access the LonWorks Gateway through the
internet or with BMS System, the LonWorks Gateway
address, which is the IP address, must be known.
XA static IP service from an internet service provider
must be used if xDSL (ADSL, VDSL) is being used for
internet connection. (Static IP costs more than dynamic
IP.)
Before Installing the LonWorks Gateway
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG[ YWXZTW[TY\GGG㝘㤸GXWaX]aX_

E-5
Item LonWorks
Gateway
Quantity 1
Shape
Adapter Power cable M4x16 Screw
1
16
User’s manual Installation
manual Cable tie
111
Make sure you have each item. Supplied items may vary depending on your
country or service provider.
Accessories
X
The LonWorks Gateway must be installed by a trained
installer.
X
Ensure the main power is turned off before installing
the LonWorks Gateway.
XBe sure to use adapter and power cable we provide.
X
The power cable and the communication cable must
be installed according to the national electrical wiring
regulations.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG\ YWXZTW[TY\GGG㝘㤸GXWaX]aX`

E-6
LonWorks Gateway Exterior
LCD Display
Shows current time and IP address. Various
messages will be displayed depending on
button input.
LCD operation button
There are 4 buttons(Menu, T(Down), S(Up),
Set) and you can access to menu and move,
check the menu.
LED Indicator
Check 15 LED status such as Power, CPU-Alive,
Ethernet-Linked/Active, COM1~4-TX/RX,
Lon ACK, Lon SVC and Check.
LonWorks Gateway Bottom cover
Unfasten 2 screws on the bottom and
separate the bottom cover from LonWorks
Gateway. Then check cable connection part.
Item Name Status
Power Power indicator Turns blue when the power is supplied.
CPU Alive CPU operation indicator Blinks in orange with 1 second intervals
during normal operation.
Ethernet–
Linked Internet connection indicator Turns green during normal connection.
Ethernet–
Active
Internet data transmission/reception
indicator
Blinks in orange during normal
transmission/reception.
COM1~4 – TX Channel 1~4 OnOff controller/Outdoor unit
Data transmission Indicator
Blinks in green during normal
transmission.
COM1~4 – RX Channel 1~4 OnOff controller/Outdoor unit
Data reception Indicator Blinks in green during normal reception.
Lon ACK LonWorks data reception indicator Blinks in green during normal reception.
Lon SVC LonWorks device status indicator
Blinks in green during un-configured.
- Needs commission by integration
tool (Ex. LonMaker)
Check Indoor/Outdoor unit/Communication check
Indicator Turns green when notice occurs.
LED Indicator
Viewing the Parts
Main Parts
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG] YWXZTW[TY\GGG㝘㤸GXWaX]aX`

E-7
Name Description
DI Terminal1 Digital Input connection terminal, Channel1~Channel5
DI Terminal2 Digital Input connection terminal, Channel6~Channel10
DO Terminal3 Digital Output connection terminal, Channel1~Channel5
DO Terminal4 Digital Output connection terminal, Channel6~Channel8
Lon Terminal
Terminal Block for LonWorks communication (TP/FT-10)
Reset Button Reset LonWorks Gateway
Power Terminal Connect LonWorks Gateway adapter
Serial Terminal Service agent checks LonWorks Gateway error status using this terminal
SD card socket
Sub memory (for program update and set information saving) socket
RS485
Communication
Terminal
Connect for RS485 communication with devices such as OnOff
controller/Interface module
-COM1 ~ COM5
Ethernet Terminal Connect LAN cable
Cable tie groove Groove for arranging cables
Cable tie groove
Reserved
SD Card Socket
Serial Terminal
Power Terminal
Reset Button
DI Terminal1 DI Terminal2 DO Terminal3 DO Terminal4
Ethernet Terminal
RS485 Communication Terminal
LonWorks Gateway Cable Connection Part
Lon Terminal
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG^ YWXZTW[TY\GGG㝘㤸GXWaX]aX`

E-8
240
255
64.80 (Unit : mm)
Display Board
40-pin Cable
20-pin Cable
Main Board
LonWorks Board
10-pin Cable
2-pin Cable
Sub Board
LonWorks Gateway Interior
Main Parts
Viewing the Parts (Continued)
Note If you need external circuit configuration, consult with the manufacturer.
Product Dimensions
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG_ YWXZTW[TY\GGG㝘㤸GXWaX]aYX

E-9
OConnecting outdoor units and LonWorks Gateway
- You can control up to 80 outdoor units and 128 indoor units using LonWorks Gateway.
*Each communication channel of LonWorks Gateway can be connected with 16 outdoor units.
- The more outdoor units are connected, the longer time takes for tracking.
System Architecture
X
For the devices which support new communication, set the communication channel
mode on '[System setting]-[Tracking]' menu as 'NEW' and for SIM/PIM which conventional
communication is applied, set the communication channel mode as 'IM'. You cannot
connect indoor & outdoor unit SET which conventional communication is applied to new
communication LonWorks Gateway.
X
When setting communication channel mode as 'NEW', the address of virtual OnOff control
will be assigned.
Channel 0: Virtual OnOff controller 11, Channel 1: Virtual OnOff controller 12,
Channel 2: Virtual OnOff controller 13, Channel 4: Virtual OnOff controller 14,
Channel 5: Virtual OnOff controller 15
OnOff
controller
Outdoor
Unit
RS 485
LonWorks Gateway
Internet
BMS system
BMS Engineering
SAMSUNG Engineering
Max 128 Indoor units
(DVM Series)
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGG` YWXZTW[TY\GGG㝘㤸GXWaX]aYY

E-10
Compatible Devices
KProducts with‘* ’ are not Samsung products and must be purchased separately.
(Only selected power meters may be used for protocol compatibility issues.)
KSamsung is not responsible for BMS engineering which creates each device and objects.
For further directions regarding on BMS engineering, consult with specialized BMS related vendor.
No Devices Model Note
1
Indoor Unit
Outdoor Unit
DVM S HR/DVM S HP/DVM MINI
outdoor unit and indoor units which
can be connected to DVM S HR/
DVM S HP/DVM MINI outdoor unit.
-
2
OnOff
controller MCM-A202DN -
3
SIM MIM-B12 Needed for EHP power distribution
4
PIM MIM-B16 Needed for EHP power distribution
5*
Watt-hour
Meter
RS485 comm. type
Connected with SIM
Needed for power distribution
( Please consult Samsung for compatible
power meters)
Pulse type
Connected with PIM
Pulse Width: 20~400(ms)
Pulse: 1~10000(Wh/Pulse)
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGXW YWXZTW[TY\GGG㝘㤸GXWaX]aYY

E-11
Maximum Devices Attachable
Devices Max. Note
Indoor Unit 128 Tracking error occurs if exceeded
OnOff
controller 75 Must not exceed 15 units per each RS485
communication terminal
Outdoor unit 80 Must not exceed 16 units per each RS485
communication terminal
SIM/PIM 8 Communication mode : IM
Watt-hour
Meter 64 Maximum 8 units can be connected to 1 SIM/PIM.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGXX YWXZTW[TY\GGG㝘㤸GXWaX]aYY

E-12
Installation
plate

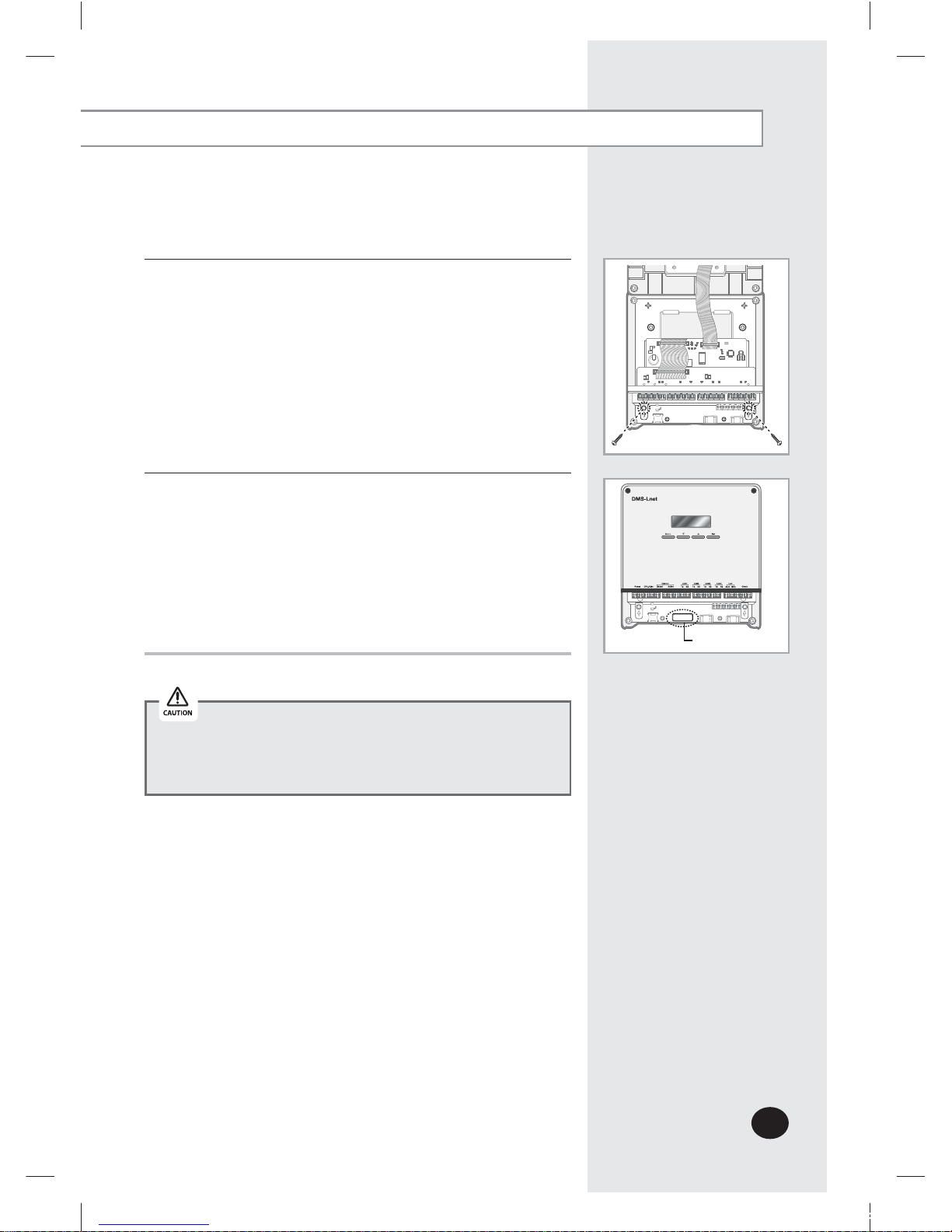

Installing the LonWorks Gateway
1Separate the installation plate on the rear side of
LonWorks Gateway.
2Fix the installation plate on the wall using 4 screws.
3Hang the LonWorks Gateway on the groove which is on
the top of the installation plate.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGXY YWXZTW[TY\GGG㝘㤸GXWaX]aYY

E-13
wiring groove
4Fix the installation plate and LonWorks Gateway using
2 screws.
5If you install LonWorks Gateway inside of the wall or wiring
from the rear side is needed, use wiring groove on the
bottom of LonWorks Gateway.
To prevent breakdown and damage of LonWorks Gateway, and
for safe usage, it is recommended to install LonWorks Gateway
on the wall.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGXZ YWXZTW[TY\GGG㝘㤸GXWaX]aYZ

E-14
Cable tie
LAN cable
Connect
communication
cable
Adapter
Installing the LonWorks Gateway (Continued)
Connecting Outdoor unit
1Unfasten the 2 screws on the bottom of the LonWorks
Gateway front cover. Hold the bottom 2 sides of the
LonWorks Gateway and push downwards to slide open
the cover.
2Connect the adapter to the power terminal.
XArrange the adapter as the left figure.
3Separate 1 terminal block from 5 terminal blocks which
are attached to RS485 communication terminal.
Then, connect Outdoor unit communication cable
(SOL_COM(R1,R2)) to the terminal block.(R1󱈗A, R2󱈗B)
4Connect LAN cable to the Ethernet terminal of LonWorks
Gateway. Then arrange it using cable tie.
5Fasten the bottom cover of LonWorks Gateway and fix it
using 2 screws.
Maximum 80 Outdoor units can be connected to one LonWorks
Gateway.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGX[ YWXZTW[TY\GGG㝘㤸GXWaX]aY[

E-15
Connect
communication
cable
Cable tie
LAN cable
Adapter
Connecting SIM
1Unfasten the 2 screws on the bottom of the LonWorks
Gateway front cover. Hold the bottom 2 sides of the
LonWorks Gateway and push downwards to slide open
the cover.
2Connect the adapter to the power terminal.
XArrange the adapter as the right figure.
3Separate 1 terminal block from 5 terminal blocks which
are attached to RS485 communication terminal.
Then, connect SIM communication cable
(C1, C2) to the terminal block. (C1¥A, C2¥B)
4Connect LAN cable to the Ethernet terminal of LonWorks
Gateway. Then arrange it using cable tie.
5Fasten the bottom cover of LonWorks Gateway and fix it
using 2 screws.
Maximum 8 SIM/PIM units can be connected to one LonWorks
Gateway.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGX\ YWXZTW[TY\GGG㝘㤸GXWaX]aY\

E-16
Cable tie
LAN cable
Connect
communication
cable
Adapter
1Unfasten the 2 screws on the bottom of the LonWorks
Gateway front cover. Hold the bottom 2 sides of the
LonWorks Gateway and push downwards to slide open
the cover.
2Connect the adapter to the power terminal.
XArrange the adapter as the left figure.
3Separate Lon terminal block. Then, connect LonWorks
communication cable to the terminal block.
4Connect LAN cable to the Ethernet terminal of LonWorks
Gateway. Then arrange it using cable tie.
5Fasten the bottom cover of LonWorks Gateway and fix it
using 2 screws.
LonWorks communication cable should use the cable which fits to
the specification provided by Echelon.
Connecting LonWorks
Installing the LonWorks Gateway (Continued)
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGX] YWXZTW[TY\GGG㝘㤸GXWaX]aY]

E-17
Commision
To activate the Service Pin, press and hold [SET] button for more than three
seconds while time is displayed in the LCD Display window of the front side of
LonWorks Gateway.
When you press Service Pin, Neuron ID will be sent and [SVC] LED of the front
panel will be lit up for a second.
Commision using Service Pin
Press and hold the [SET] button
for more than 3 seconds.
You should correctly set up a network according to the installation and communication
environment and set the data processing system in advance.
This Gateway provides data for 128 indoor units. However, the connectable number of
indoor units can be different according to the number of items, communication cycle or
operating environment.
Do not connect a device requiring urgent control in the same network.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGX^ YWXZTW[TY\GGG㝘㤸GXWaX]aY]

E-18
Control and Monitoring Item
Installing the LonWorks Gateway (Continued)
The functions provided can be different according to the type of the connected device.
O Functional classification by a device.
No NV Name Remarks Indoor ERV AHU Kit
1nviOnOff ON/OFF command O O O
2nviApplicMode Setting operating mode O X O
3nviSetpoint Setting desirable temperature O X O
4nviFanStatus Setting wind speed and direction O O X
5nviERVMode Setting ERV operation mode X O X
6nviFilterReset Filter reset command O O O
7nviUserLockout Setting the restriction of remote control use OO O
8nviOccOpMode Setting cooling only mode / Setting heating
only mode OX O
9nviCoolTempLock Setting the low temperature limit OX O
10 nviHeatTempLock Setting the high temperature limit OX O
11 nvoSpaceTemp Display indoor temperature OX O
12 nvoApplicMode Display operating mode OX O
13 nvoSetpoint Display desire temperature OX O
14 nvoOnOff Display ON/OFF status OO O
15 nvoFanStatus Display wind speed and direction OO X
16 nvoERVMode Display ERV operating mode XO X
17 nvoErrorCode Display Error code OO O
18 nvoDeviceAlarm Remote control Lock, Filter Sign, Thermo
ON/OFF, Error occurrence status display OO O
19 nvoOccOpMode Cooling only/Heating only setup status
display OX O
20 nvoCoolTempLock Low temperature limit setting status display OX O
21 nvoHeatTempLock High temperature limit setting status display OX O
22 nvoUserLockout Display the restriction of remote control use OO O
23 nvoEnergyConp Display electricity usage (Time Period) OX X
24 nvoEnergyCon Display electricity usage (Basic date) OX X
25 nvoRuntimep Display used hours (Period) OX O
26 nvoRuntime Display used hours (Basic date) OX O
27 nvoDevListDesc The summary of device information
(Model, Address, Operation Status) OO O
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGX_ YWXZTW[TY\GGG㝘㤸GXWaX]aY]

E-19
OAlthough the LonWorks Gateway can connect 128 units, the actual
number of available items can differ according to the number of
indoor units connected.
When the number of indoor units is increased, the number of
controllable items will be decreased; on the other hand, as the number
of indoor units decreases, the controllable items increase.
OYou can freely choose the items.
OThe number of items that can be processed will be different according
to the time interval that inquires about data at Human Machine Interface.
LonWorks Gateway can process 20 items of Acknowledged Service Type per
a second. Therefore, the amount of data that can be processed is decided
according to how frequently HMI inquires about the data and the number of
indoor units that can be connected is decided by this amount of data.
* For example : In the case that HMI inquires about the 27 items of
Acknowledged Service Type by an indoor unit.
When HMI inquires for data at 30 seconds interval, 22 indoor
units can be connected, at 60 seconds interval 44 indoor units
can be connected, at 120 seconds interval 88 indoor units can be
connected.
OThe renewal cycle can be different according to the provided NV.
Control and Monitoring
Item
The maximum number of
connectable indoor units. Remarks
27 items (All)
22
In the case that 20 items can
be processed per a second
and data inquiry interval is 30
seconds.
20 items
30
15 items
40
12 items
50
9 items
64
6 items
100
4 items
128
The functions provided can be different according to the type of the connected device.
uhzhtptTiX_us~GnptluWZ^YWhOXPUGGGX` YWXZTW[TY\GGG㝘㤸GXWaX]aY]
