This section explains what to remember for the proper use of your Bluetooth
headset.
Your headset overview
Make sure you have the following items with your headset: travel adapter, •
ear pieces, earhook and user manual.
The items supplied with your headset may vary depending on your region.•
Volume button
Talk button Earhook
Power switch
Indicator light
Charger jack
Earpiece
Microphone
HM1100_UM_NA.indb 4 2010-11-01 오전 9:36:49

English
5
Button functions
Button Function
Power
switch Slide the switch to turn the headset on or off.
Talk
Press and hold to enter•Pairing mode.
Press to make or answer a call.•
Press to end a call.•
Volume
Press to adjust the volume.•
Press and hold to turn the microphone on or off.•
In Pairing mode, press and hold the Volume up button •
to turn the Multi-point feature on.
In Pairing mode, press and hold the Volume down •
button to turn the Multi-point feature off.
You can hear a beep when the volume level of the headset reaches to the lowest
or highest level.
HM1100_UM_NA.indb 5 2010-11-01 오전 9:36:49

6
Charging the headset
This headset has a rechargeable internal battery which is non-removable. Ensure
that you fully charge the battery before using the headset for the rst time.

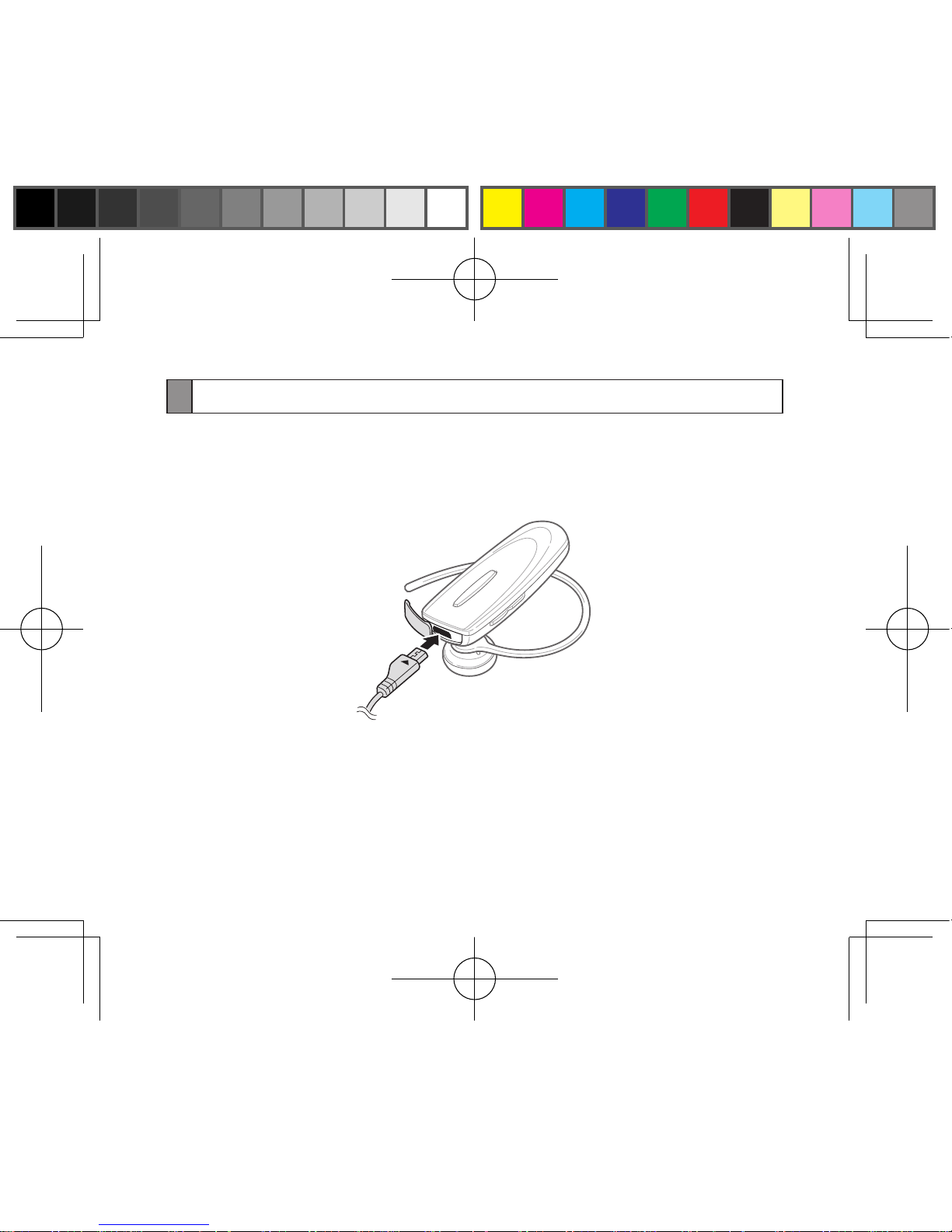

1Connect the charger to the headset (see below images).
2Plug the charger in to the wall outlet.
During charging, the indicator light will turn red. If charging does not begin,
unplug the travel adapter and plug it in again.
3When the headset is fully charged, the indicator light changes to blue. Unplug
the travel adapter from the power outlet and the headset.
HM1100_UM_NA.indb 6 2010-11-01 오전 9:36:49

English
7
Use only Samsung-approved chargers. Unauthorized chargers may cause •
an explosion or damage to the headset.
The battery will gradually wear out while charging or discharging because•
it is a consumable part.
When a call come in while charging, disconnect your headset from the travel•
adapter and answer the call.
When the battery charge gets low
The headset beeps and the indicator light ashes red. Recharge the battery. If the
headset powers off during a call, the call will be automatically transferred to the
phone.
Checking the battery level
At the same time, press and hold the Volume down and the Talk button. Depending
on the battery level, the indicator light ashes 5 times in one of the following colors:
Battery level Indicator light color
Above 80 % Blue
80 ~20 % Violet
Below 20 % Red
HM1100_UM_NA.indb 7 2010-11-01 오전 9:36:49

8
Wearing the headset
Place the headset on your ear. Depending on what ear you are going to wear
the headset, simply adjust the ear hook accordingly.
Handle the headset properly to improve performance
Do not block the device’s internal antenna. The human body can interfere •
with a Bluetooth signal.
If you usually use your mobile phone with your right hand, wear the headset •
on your right ear.
Avoid coming in contact with the internal antenna of a headset or mobile•
for a better performance.
▲ Left ▲ Right
HM1100_UM_NA.indb 8 2010-11-01 오전 9:36:49

English
9
Using your headset
This section explains how to turn the headset on, pair and connect to the phone,
and use various functions.
Activated functions and features may differ depending on the phone type.•
Some devices, especially those that are not tested or approved by Bluetooth SIG, •
may be incompatible with your headset.
Turning the headset on or off
To turn the headset on, slide up the power switch. The blue indicator light•
ashes 4 times.
To turn the headset off, slide down the power switch. The indicator light ashes •
red then turns off.
HM1100_UM_NA.indb 9 2010-11-01 오전 9:36:49

10
Pairing and connecting the headset
Pairing will create a unique and encrypted wireless link between two Bluetooth
enabled devices, such as a Bluetooth phone and a Bluetooth headset.
To use the headset with other Bluetooth devices, the devices must be paired.
When trying to pair the two devices, keep the headset and the phone reasonably
close together. After pairing, you can connect the two devices.
Pairing and connecting the headset with a phone
1 Enter Pairing mode.
With the headset turned on, press and hold the Talk button until the blue•
indicator light stays lit.
If you turn on the headset for the rst time, it proceeds into Pairing mode •
immediately.
2Activate the Bluetooth feature on your phone and search for the headset
(see your phone’s user manual).
3 Select the headset (HM1100) from the list of devices found by your phone.
4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your
phone.
HM1100_UM_NA.indb 10 2010-11-01 오전 9:36:49

English
11
Your headset supports the Simple Pairing feature which allows the headset to be
paired with a phone without requesting a PIN. This feature is available for phones
that are compliant with Bluetooth version 2.1 or higher.
The headset also can be paired via the Active pairing feature, see page 13.
Connecting with two Bluetooth phones
With the Multi-point feature activated, your headset can be connected with two
Bluetooth phones at the same time.
1 After connecting with the rst Bluetooth phone, press and hold the Talk button
until the blue indicator light stays lit.
2 Press and hold the Volume up button to activate the Multi-point feature.
3Activate the Bluetooth feature on the second Bluetooth phone and search for
the headset (see your phone’s user manual).
4 Select the headset (HM1100) from the list of devices found by the second
Bluetooth phone.
5 Enter the Bluetooth PIN (0000, 4 zeros) to connect the headset to the phone.
6Turn the headset off and on. When the headset turns on, it automatically
connects with the two Bluetooth phones.
HM1100_UM_NA.indb 11 2010-11-01 오전 9:36:49

12
When the headset connects to two Bluetooth phones, some phones may not connect
to the headset as the second Bluetooth phone.
Disconnecting the headset
To disconnect the headset from your phone,
Turn off the headset.•
Use the Bluetooth menu on your phone.•
Reconnecting the headset
When the headset is paired with phones, it will attempt to automatically reconnect
each time you turn it on.
If the headset does not automatically attempt to reconnect,
Press the Talk button.•
Use the Bluetooth menu on your phone.•
If the Multi-point feature is deactivated, your headset will reconnect only to a primary
phone. To turn Multi-point feature on or off, see page 5.
HM1100_UM_NA.indb 12 2010-11-01 오전 9:36:49

English
13
Pairing via the Active pairing feature
With the Active pairing feature, your headset can automatically search for
a Bluetooth phone and try to make a connection with it.
This feature is available for mobile phones, but the phone’s Bluetooth visibility option
must be set to on.
1Turn on the headset.
2Press and hold the Talk button to enter Pairing mode.
3Press and hold the Talk button until the violet indicator light turns on.
The headset will switch to Active Pairing mode, search a Bluetooth phone
within range, and attempt to pair with it.
Ensure the phone you wish to connect to is within range of the headset. Place the •
headset and phone close to each other to avoid pairing with other devices.
The Bluetooth phone you want to connect with must not be paired with other•devices. If the phone is already connected to another device, end the connection
and restart the Active pairing feature.
This feature may be unavailable depending on the some PDAs.•
HM1100_UM_NA.indb 13 2010-11-01 오전 9:36:49

14
Using call functions
Available call functions may vary by the phone.
Making a call
Redialing the latest number
Press and hold the Talk button to redial the latest number of the most recently
connected phone.
Press the Talk button twice to redial the last number of the other phone,
see page 11.
For some phones, pressing the Talk button opens the call log list. Press the Talk
button again to dial the selected number.
Dialing a number by voice
Press the Talk button and say a name. You can dial a number of the rst phone.
HM1100_UM_NA.indb 14 2010-11-01 오전 9:36:49

English
15
Answering a call
Press the Talk button to answer a call when you hear incoming call tones.
When two calls from the two connected phones come in, you can answer the call
of the rst phone.
Ending a call
Press the Talk button to end a call.
Rejecting a call
Press and hold the Talk button to reject a call when a call comes in.
When two calls from the two connected phones come in, you can reject the call
of the rst phone.
This function is available only on the Hands-Free prole. For more information,
see your phone’s user manual.
HM1100_UM_NA.indb 15 2010-11-01 오전 9:36:49

16
Using options during a call
You can use the following functions during the call.
Adjusting the volume
Press the Volume up or down button to adjust the volume.
Muting the microphone
Press and hold the Volume up or down button to turn the microphone off so that
the person with whom you are speaking cannot hear you. When the microphone
is turned off, the headset beeps at regular intervals. Press and hold the Volume up
or down button again to turn the microphone back on.
Transferring a call from the phone to the headset
Press the Talk button to transfer a call from the phone to the headset.
Placing a call on hold
Press and hold the Talk button to place the current call on hold.
This function is available only on the Hands-Free prole. For more information,
see your phone’s user manual.
HM1100_UM_NA.indb 16 2010-11-01 오전 9:36:49

English
17
Answering a second call
Press the Talk button to end the rst call and answer a second call of the same •
phone when you hear call waiting tones.
Press and hold the Talk button to place the rst call on hold and answer •
a second call of the same phone when you hear call waiting tones.
To switch between the current call and the held call, press and hold the Talk•
button.
This function is available only on the Hands-Free prole. For more information,
see your phone’s user manual.
Answering a new call of the second phone
Press the Talk button to end the rst call and answer a second call of the other •
phone when you hear call waiting tones.
Press and hold the Talk button to place the rst call on hold and answer •
a second call of the other phone when you hear call waiting tones.
To switch between the current call and the held call, press and hold the Talk•
button.
This function is available only on the Hands-Free prole. For more information,
see your phone’s user manual.
HM1100_UM_NA.indb 17 2010-11-01 오전 9:36:49
